In Stock Current Voltage Reference DC Switching Linear Controllers Regulators PMIC LDO ICs Chip Electronic Components IC
- Category: >>>
- Supplier: Jinhua Technology (shenzhen) Co. Ltd.
Share on (1600922793044):
Product Overview
Description
Electronics Components Service
Profrssinal Electronics Components & PCBA Supplier

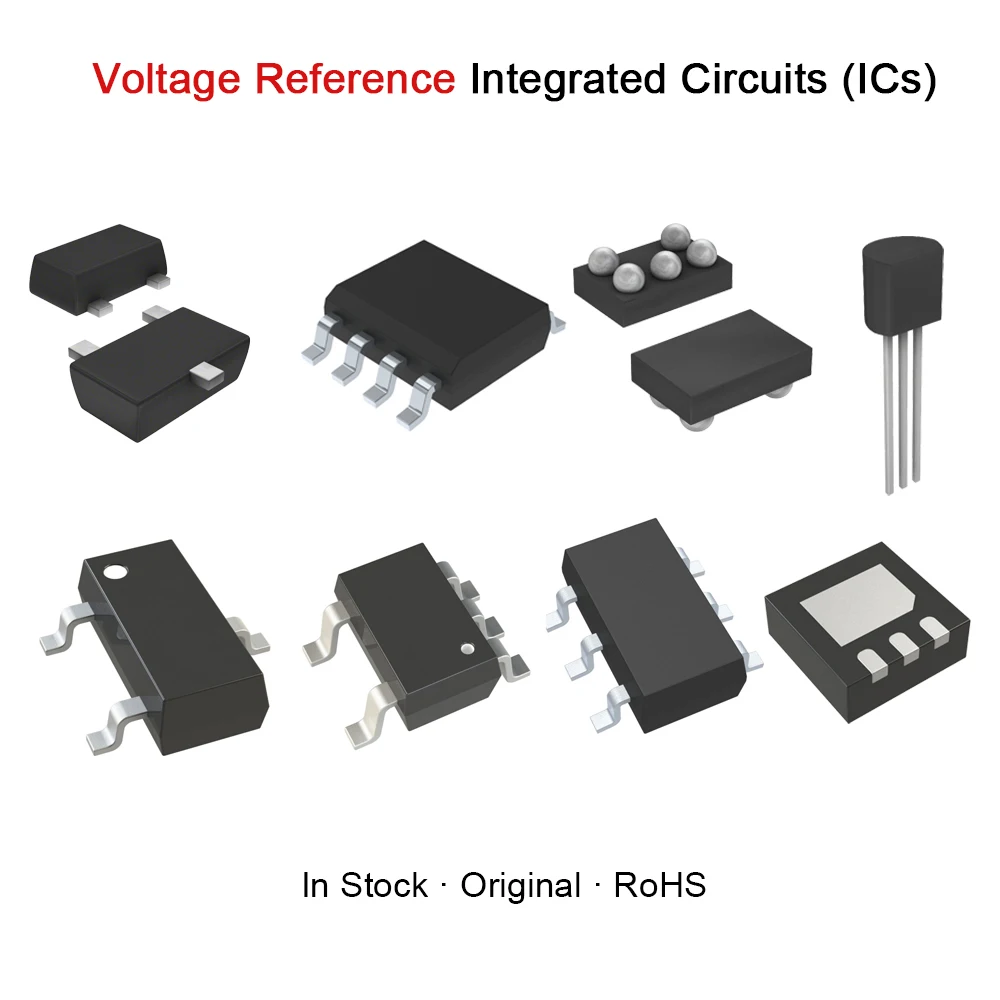

Voltage Reference
Reference Type，Ground Reference (Virtual)/Buried Zener/Dual/Shunt Series
Output Type， Adjustable/Fixed/Programmable
Voltage Output， 0.3V-40V
Output Type， Adjustable/Fixed/Programmable
Voltage Output， 0.3V-40V

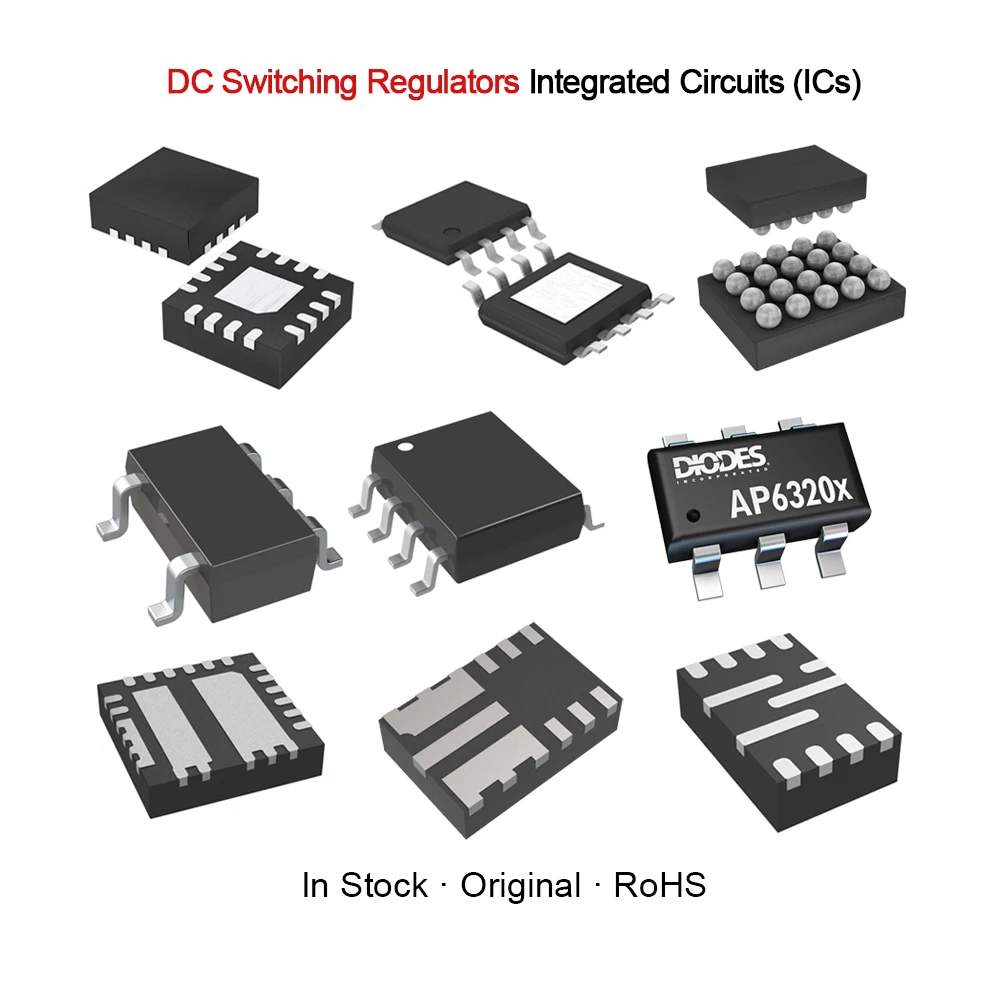

DC Switching Regulators
Function, Buck-Boost/Ratiometric/Step-Up/Step-Down.
Output Configuration, Positive/Negative/lsolation Capable.
Topology, Boost/Charge Pump/Cuk/Flyback/SEPIC/Forward Converter.
Output Configuration, Positive/Negative/lsolation Capable.
Topology, Boost/Charge Pump/Cuk/Flyback/SEPIC/Forward Converter.

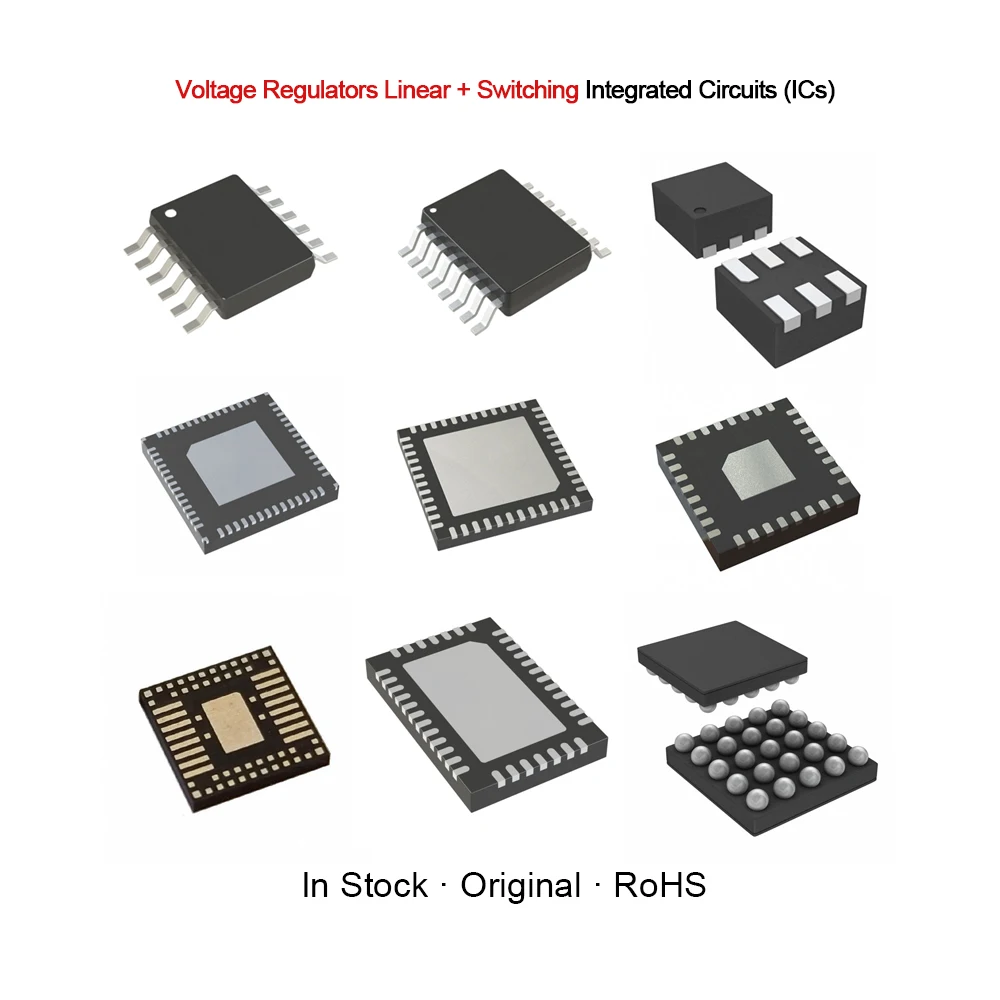

Voltage Regulators - Linear + Switching
Frequency, 50kHz-8MHz
Topology, Charge Pump/Step-Up/Step-Down
LED Driver/Supervisor/Sequencer
Topology, Charge Pump/Step-Up/Step-Down
LED Driver/Supervisor/Sequencer

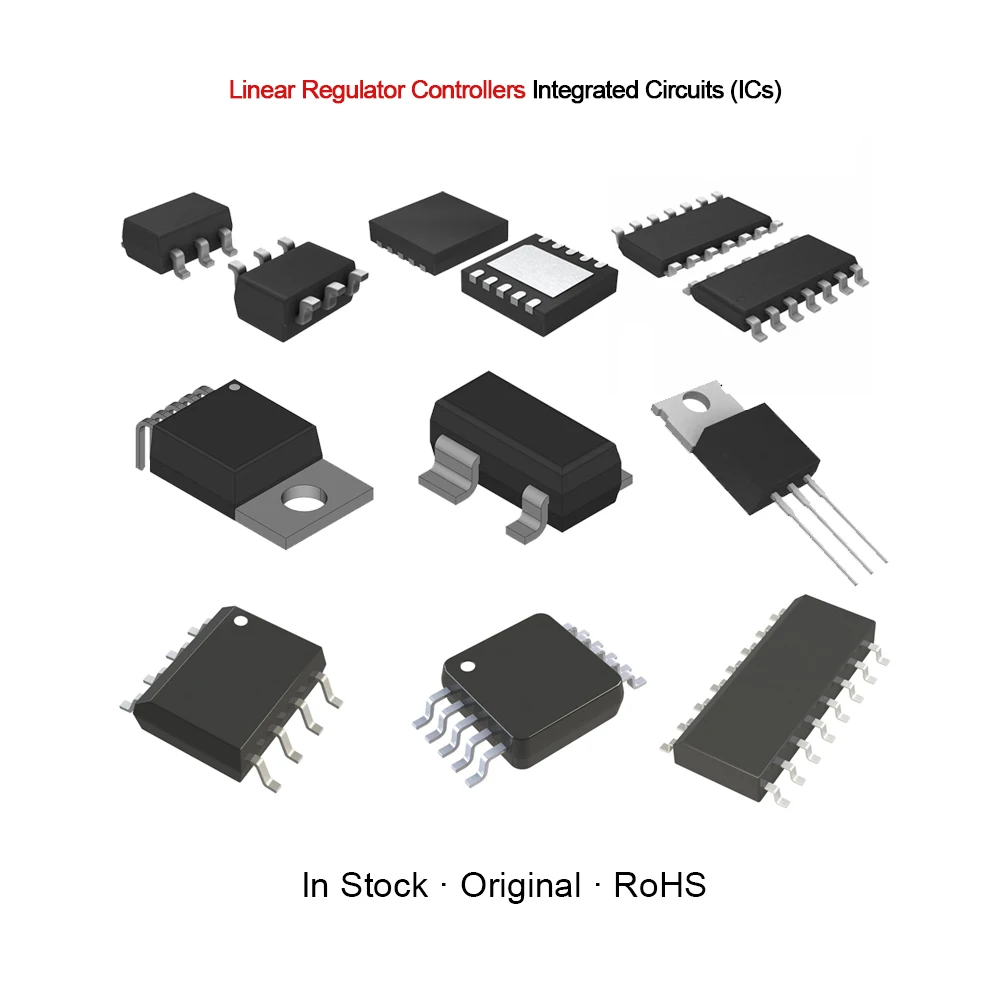

Voltage Regulators - Linear Regulator Controllers
Type, External Transistor/Positive Fixed /Negative Fixed
Operating Temperature, -55°C~125°C
Voltage Input, 1V-40V
Operating Temperature, -55°C~125°C
Voltage Input, 1V-40V
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Output Configuration, Positive / Negative
Output Type, Adjustable/Programmable/Fixed
Protection Features, Antisaturation/Mirror-lmage lnsertion/Over Current/Over Temperature/Reverse Polarity/Current Limit
Output Type, Adjustable/Programmable/Fixed
Protection Features, Antisaturation/Mirror-lmage lnsertion/Over Current/Over Temperature/Reverse Polarity/Current Limit

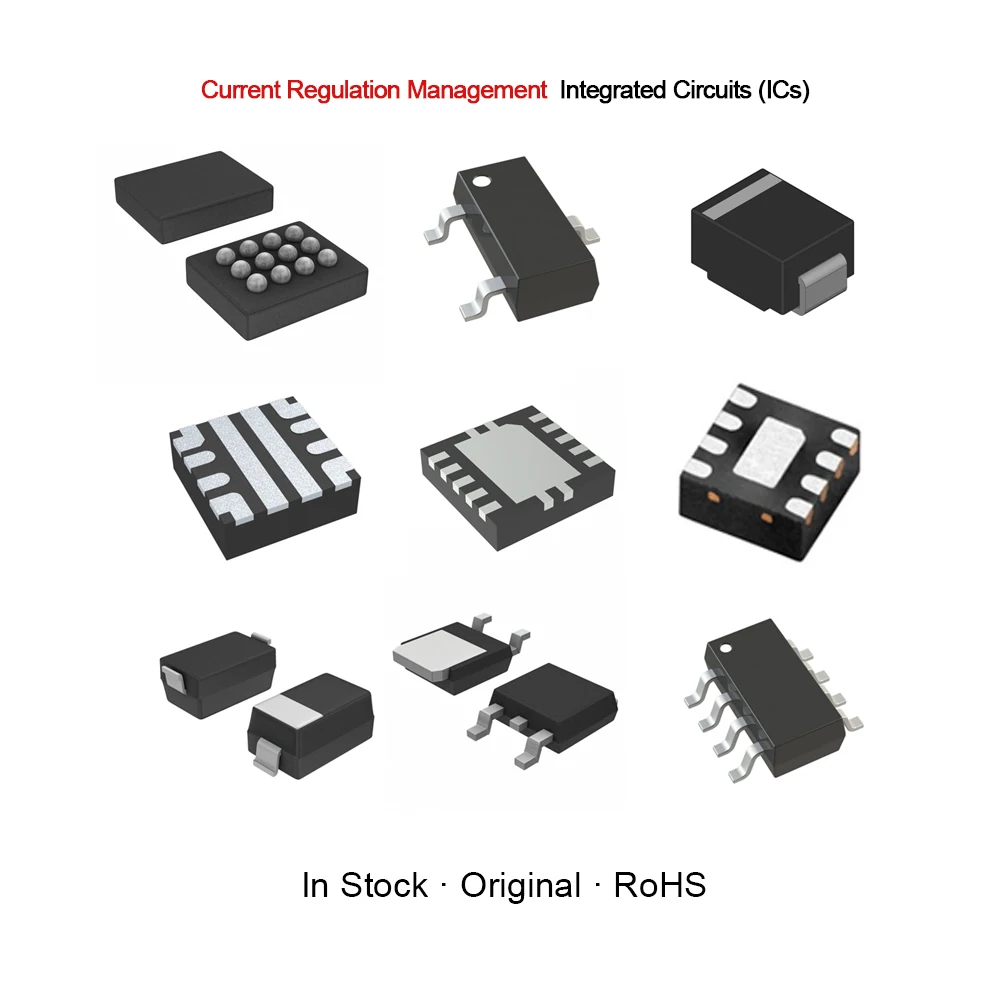

Current Regulation Management
Function, Protector/Gauge/Limiting/Sink/Monitor/Regulator/Ripple Suppressor/Sense/Source
Sensing Method, Current/High-Side/Low-Side
Current Output, Adjustable
Sensing Method, Current/High-Side/Low-Side
Current Output, Adjustable
Customer Factory Inspection
Customer Review
Manufacturer advantage
JINHUA SMT Workshop Production Line:
JINHUA DIP Workshop Production Line:
Production Capability :
PCB board size can be assembled: | maximum 480X510mm; minimum size: 50mm x 50mm; |
Smallest Component: | 01005, 0201,0402 |
Minimum BGA: | 0.3mm pitch for rigid PCB, 0.4mm pitch for PCB; |
Fine Pitch component: | 0.3mm pitch |
Component Height Limit: | 15mm |
Assembly Accuracy: | +/-0.025mm |
SMT Production Capacity: | 200-300 million chips/month |
THT Production Capacity: | 13 million chips/month |
Test Capacity: | Depending on customer needs and product conditions |
FAQ
We can offer you PCB Design, PCB board manufacturing, Components or Parts Source, Surface Mount (SMT), Thru-Hole (THT),hybrid of both, Functional Test etc. one stop PCB&PCBA service.
Q2. What is needed for quotation?
Gerber file and Technic requirements (material, surface finish treatment, copper thickness, board thickness, and so on.)
Q3. What file formats do you accept for production?
Gerber Files+BOM File+Centroid File(other names maybe: aka Insertion, Pick-N-Place, or XY Data)
Gerber Files: including files: copper (track), soldermask, silkscreen, solder paste, drill, outline files
Q4. How do you handle the excessive and unused parts?
Excessive parts do exist because we will ask for some percentage of overage for consigned/kitted orders, or we will buy more for the same purpose for those Turn-key orders. You can either ask us to ship back to you these unused parts together with the loaded boards, or keep them in our shelf for your next order. All up to you.
Q5. What is your testing policy and how you control the quality?
As to PCBA production, there are automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts, first article inspection(FAI) before mass production.
Q6. How long does it take for PCBA quote?
Normally 24 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
