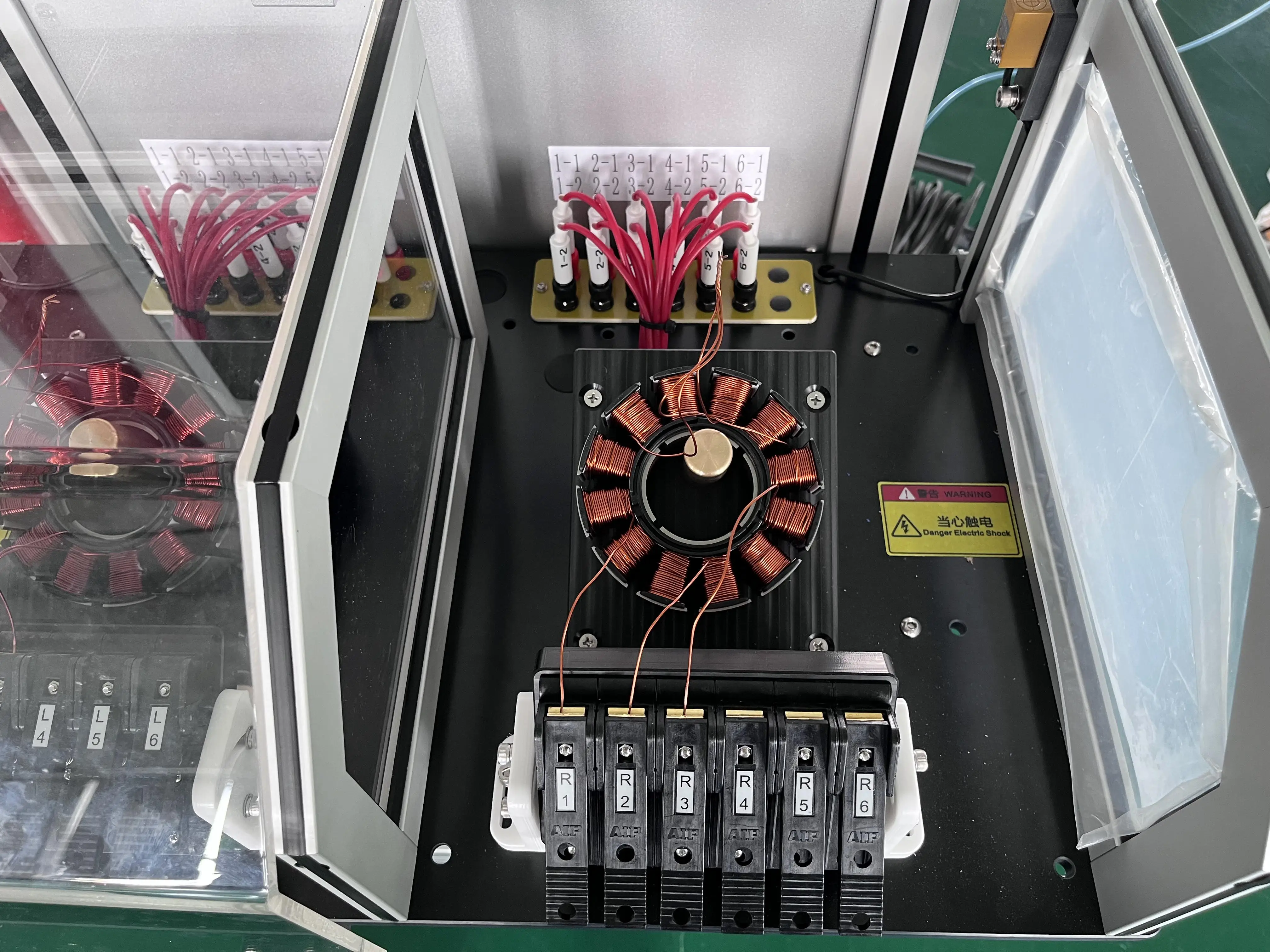

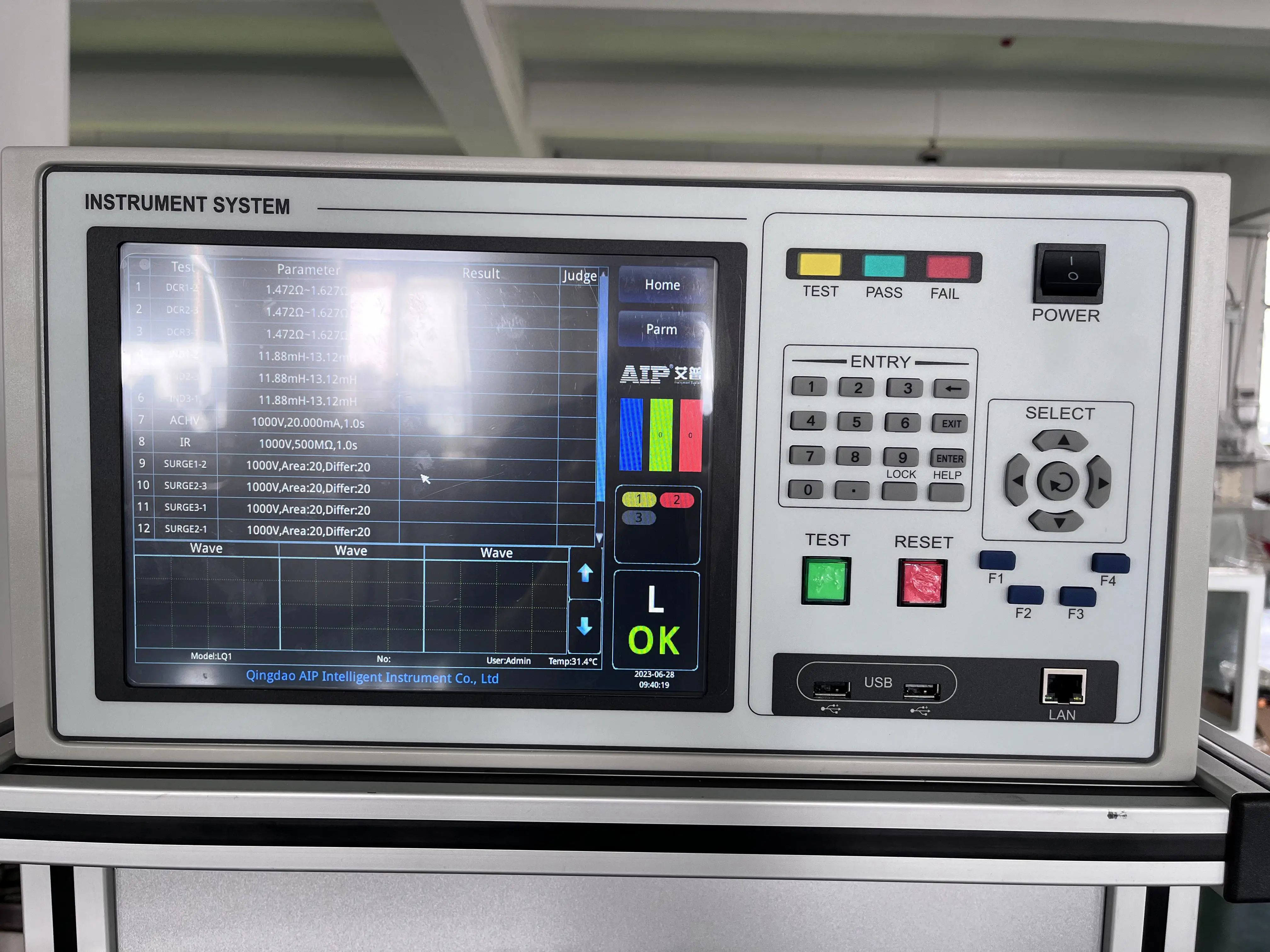

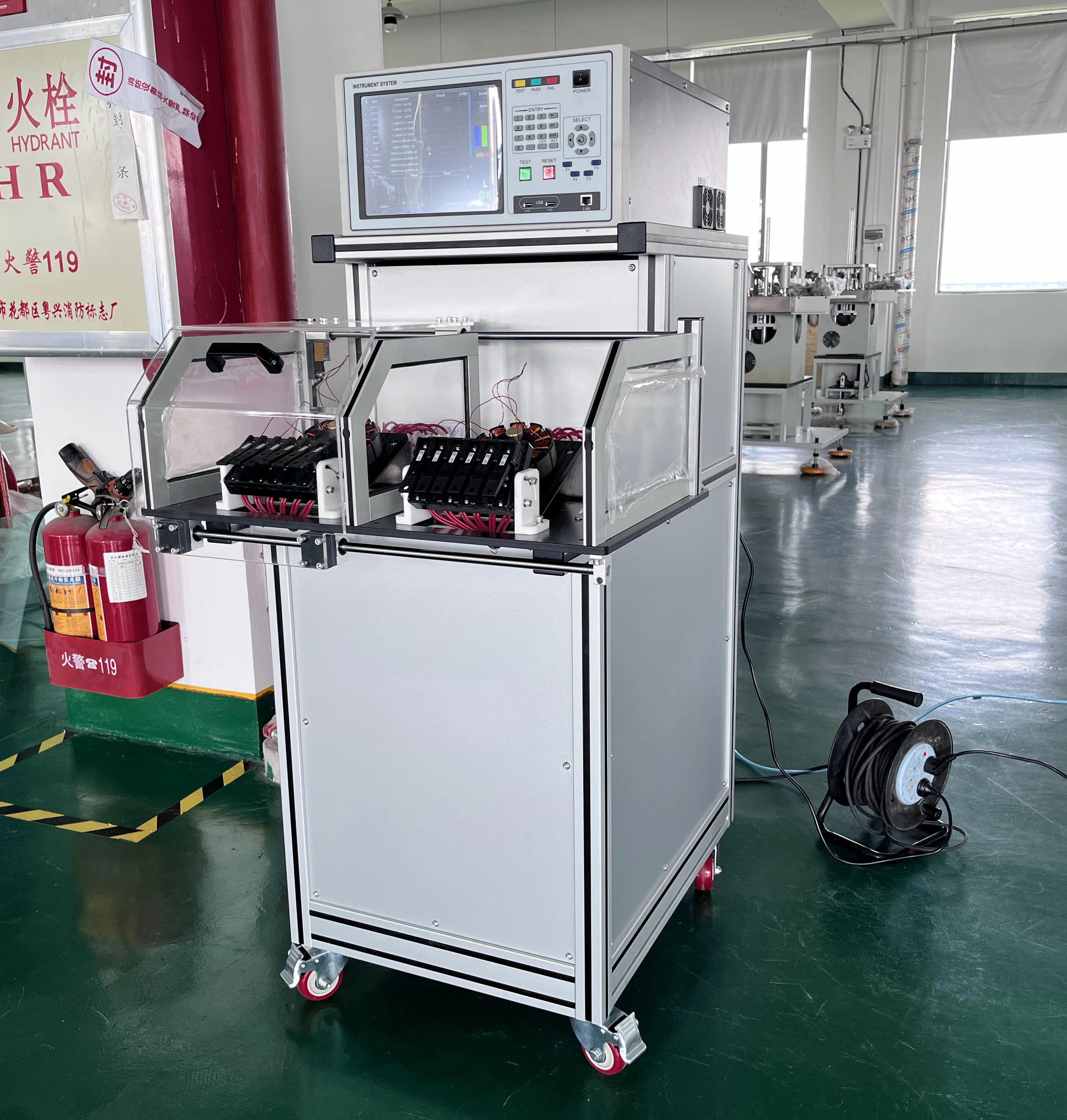

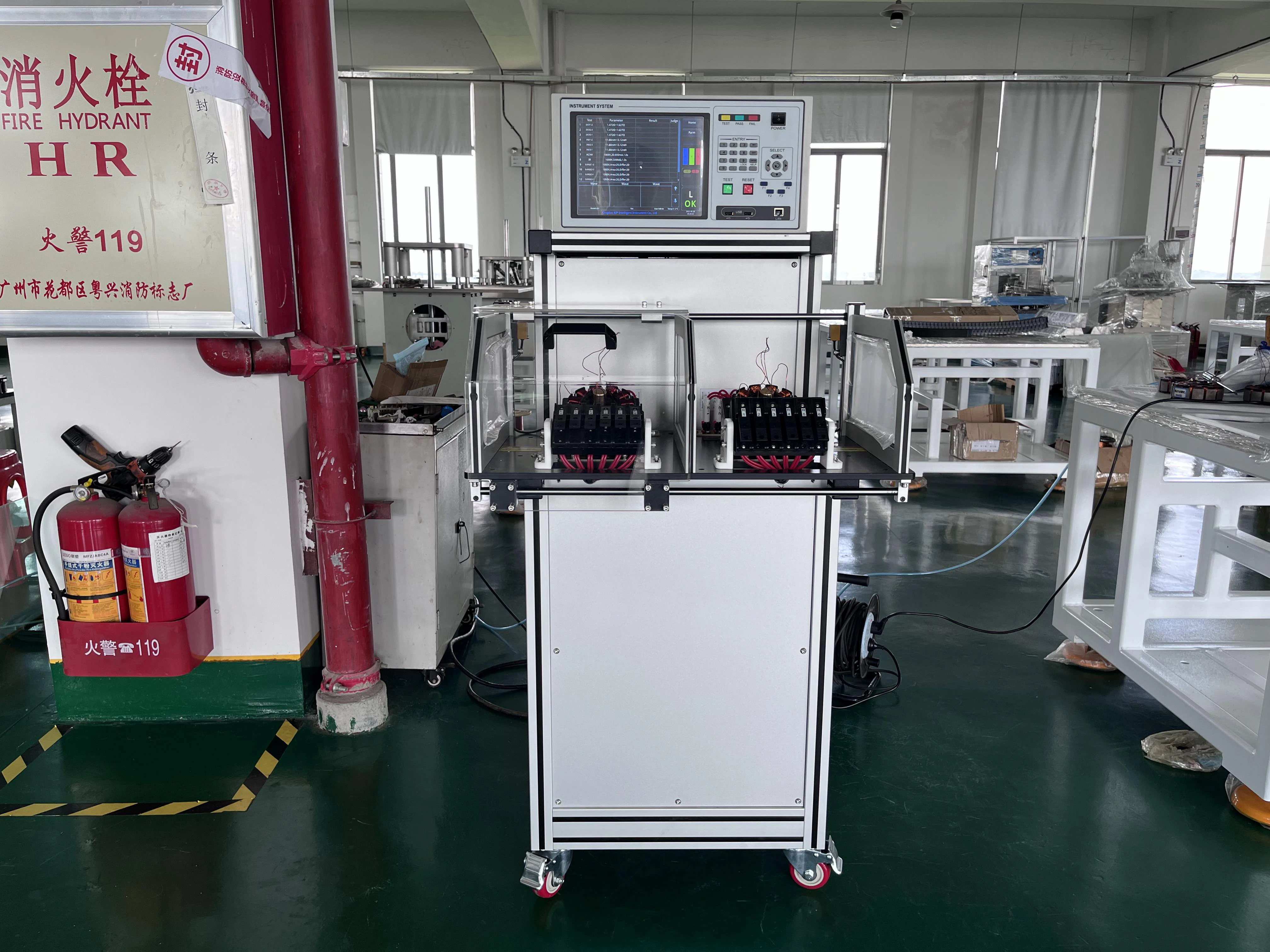

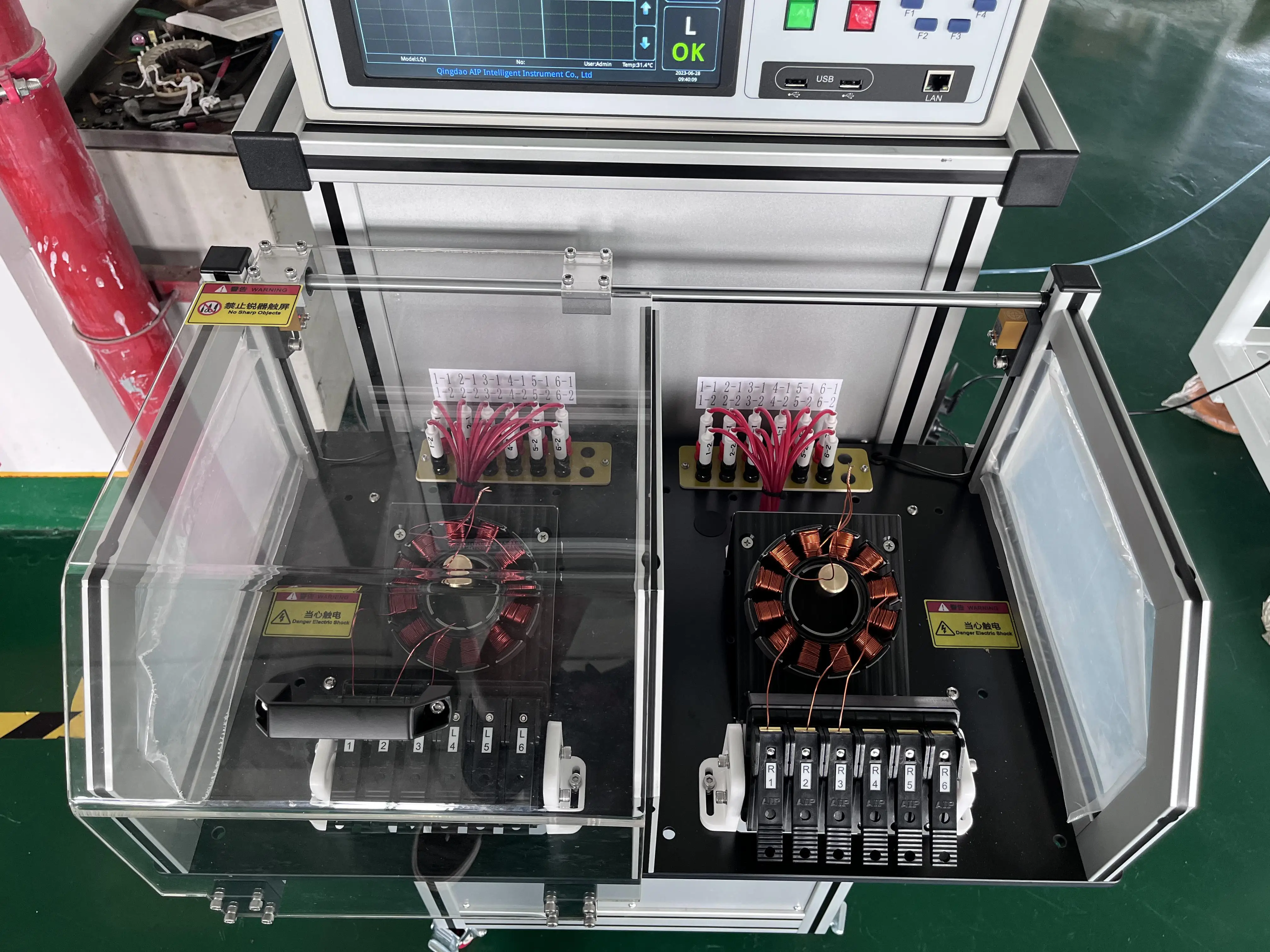

DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations
DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations
DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations
DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations
DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations
DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations
DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations

DR Air conditioner BLDC motor stator winding Electronic testing panel machine with 2 stations

Share on (1600922794700):


Price:$10,200.00 - $11,000.00

Quantity:


Product Overview

Description





Test object
Single phase motor stator (single speed, multi speed)
Testing station
2 station
Output voltage setting range/accuracy
AC 200-3000V ± (2% x set value+10V)
Breakdown current measurement range/accuracy
0.10-20.00mA ± (2% x display value+0.05mA)
Breakdown current preset alarm range
Upper limit: 0.10-20.00mA; Lower limit: 0.00~20.00mA
Test time range/resolution
0.5~999.9s 0.1s/step
Insulation resistance alarm setting range
Upper limit: 0-500MQ; Lower limit: 1~500M Ω
Output voltage setting range/accuracy
500~3000V ± (3% x display value+8V)
Test frequency
100Hz 120Hz 1kHz 10kHz
Test scope/basic accuracy
one μ H~2H 0.5%

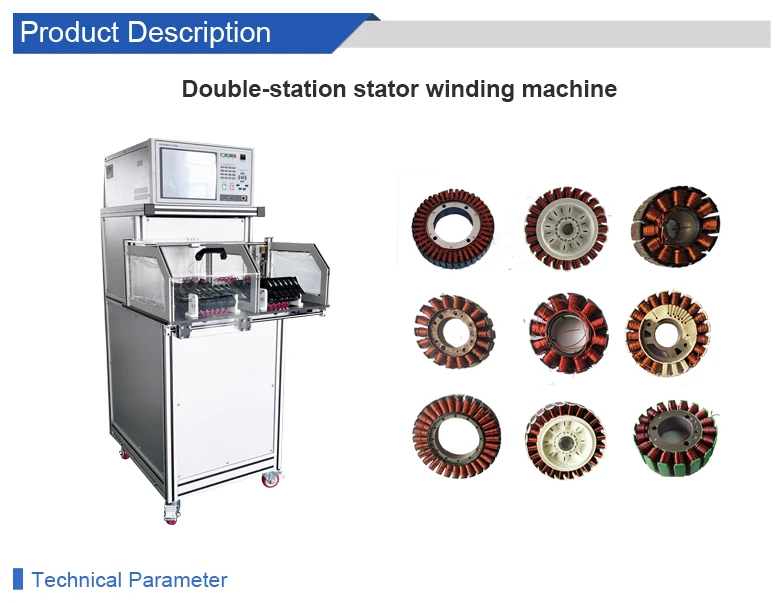

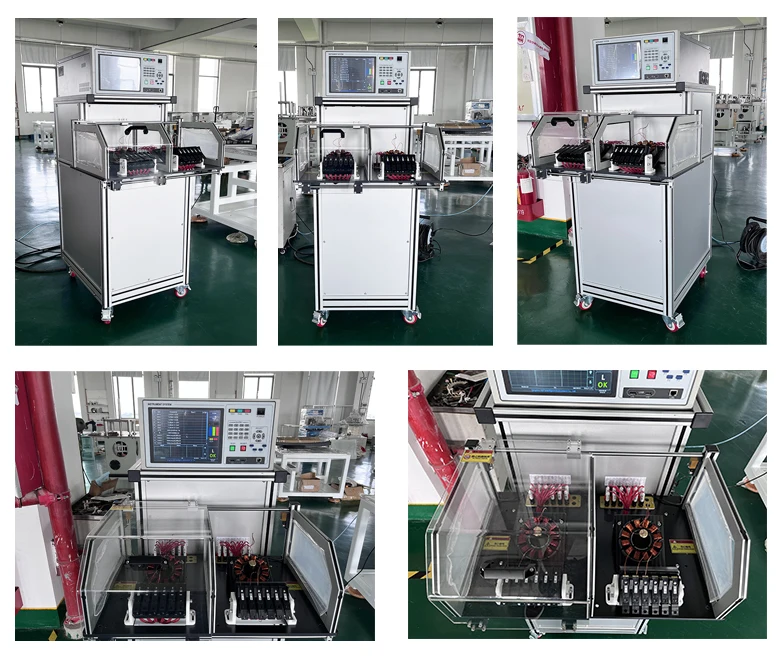

Product model: SMG-ST01
Product name: Brushless motor stator testing machine
Product Range: Brushless motors, stepper motors, fan motors, elevator door motors, new energy motors, and other types of DC brushless motors.
Machine Description:The motor stator testing system is a testing system for the motor stator. Mainly used for rapid and accurate testing of electrical comprehensive performance parameters of motor stators in new energy vehicles, fans, air conditioners, washing machines, vacuum cleaners, electric tools, and other products
