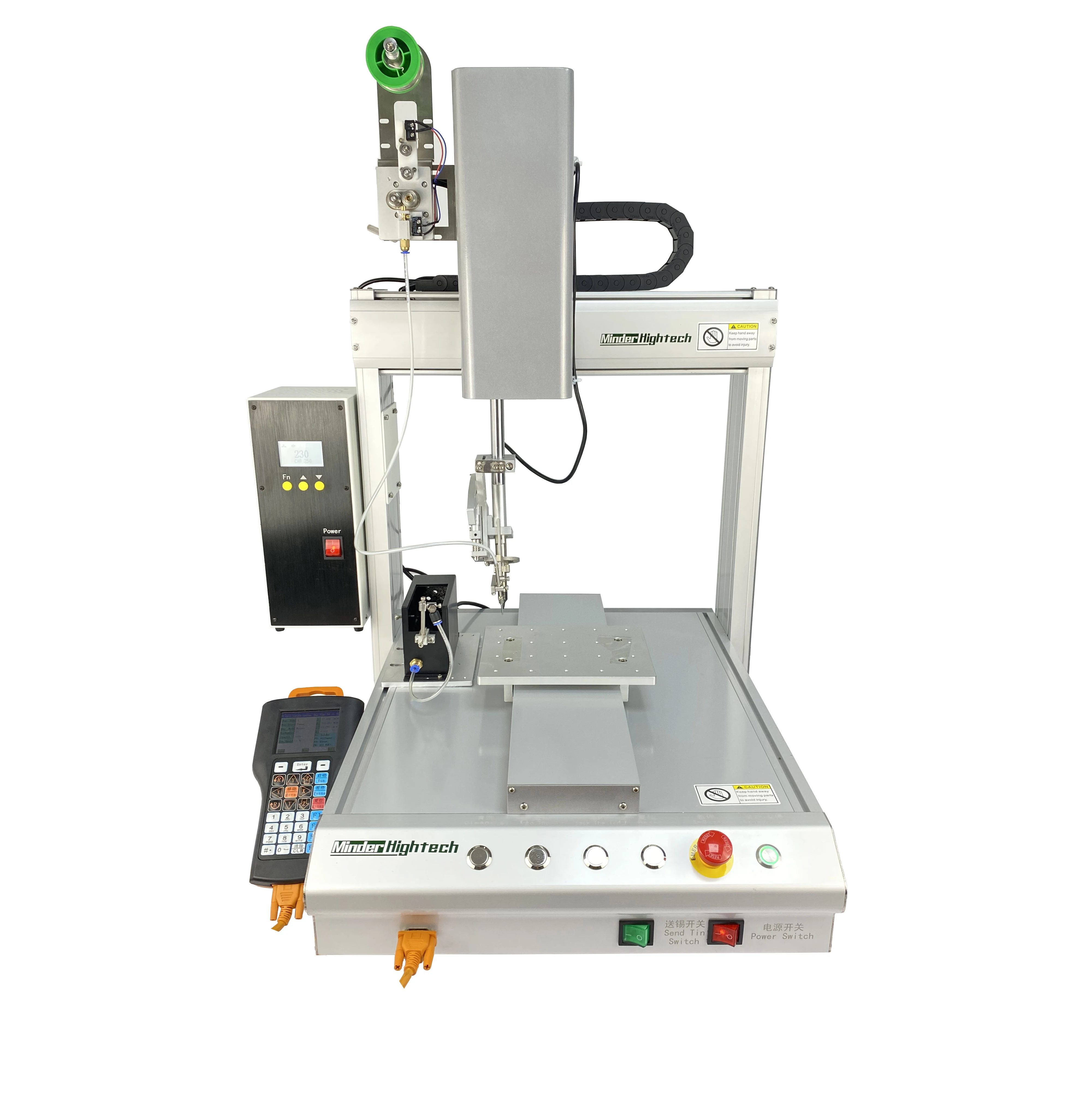

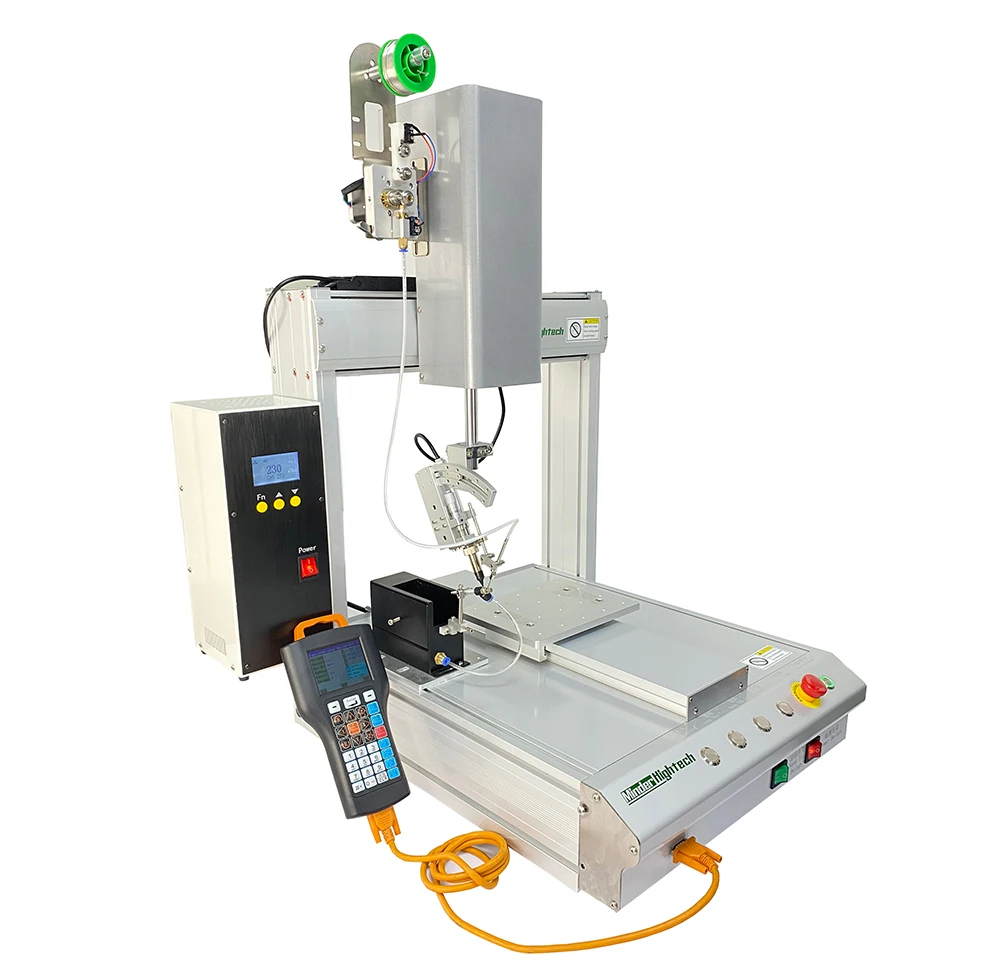

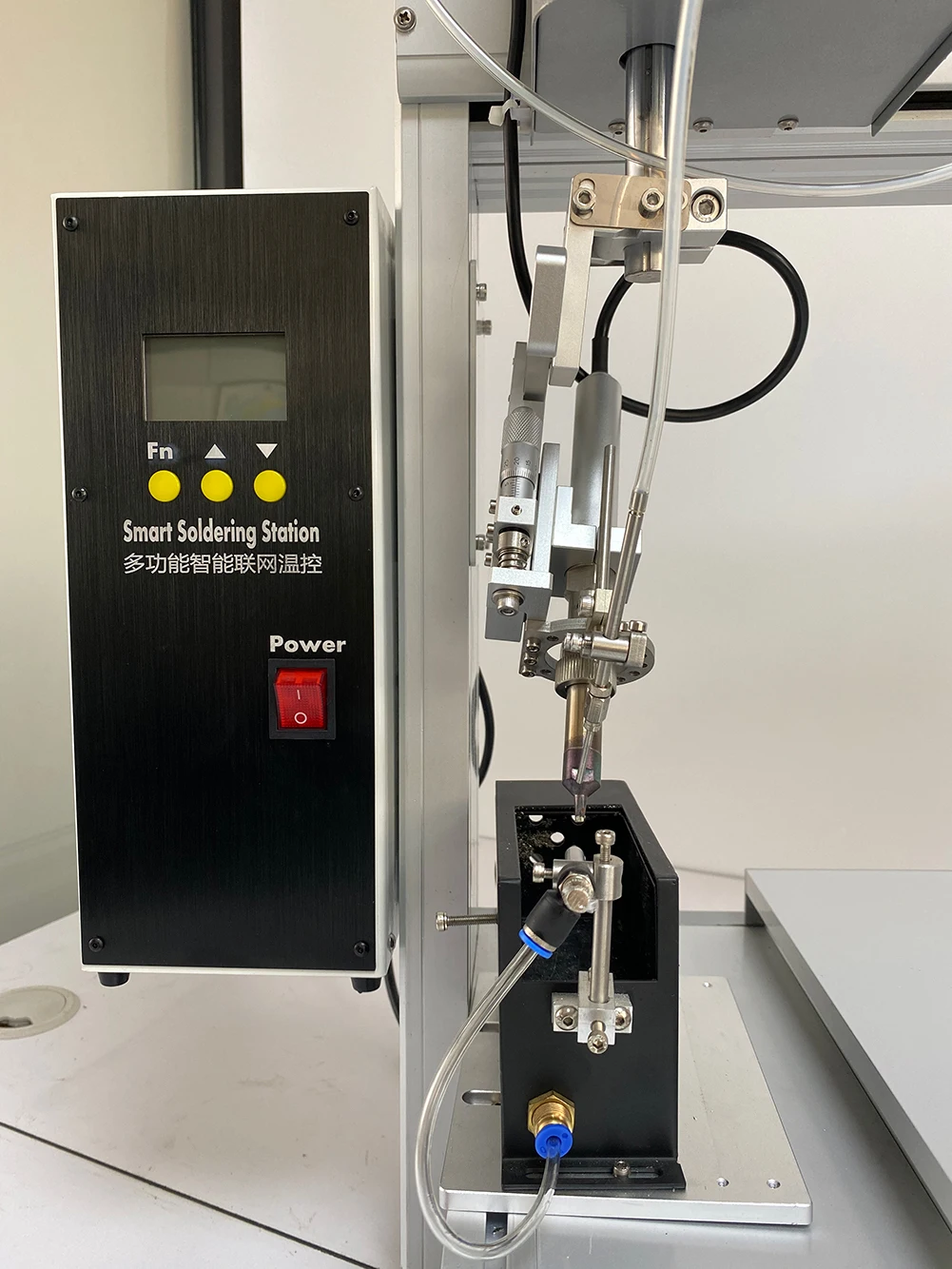

High production PCB desktop 4 axis solder soldering robot welding soldering machine automatic tin supply
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600922859620):
Product Overview
Description
Products Description
The automatic soldering machine is a multi-function, which can adjust the welding angle, orientation, and set the point at will, control the amount of tin in and out, control the size of the solder point, and better guarantee the welding process requirements of customer products. The machine has five axes, in addition to the ordinary XYZ axis, there is an independent stepping motor controlled tin feeding axis, and there is also a rotating axis that can rotate 360° in all directions. We call it the R axis, which has this rotating axis The main function is that it can effectively avoid the over-high components on various PCB boards, and the influence of objects such as chips, wires, or terminals on the movement space of the soldering iron head, and can adjust the welding angle, the tin catheter and the needle tip at will. The tin wire can be accurately sent to the soldering iron head to match the appropriate molten tin surface of the customer's product to avoid the phenomenon of tin jamming caused by various reasons during the soldering process. The machine can increase the production capacity by more than 30% in the actual production and application process, and is suitable for various electronic products such as electronic automobiles, integrated circuits, printed circuits, color LCD screens, motors, pin headers, plugs, switches and PCB.
Features

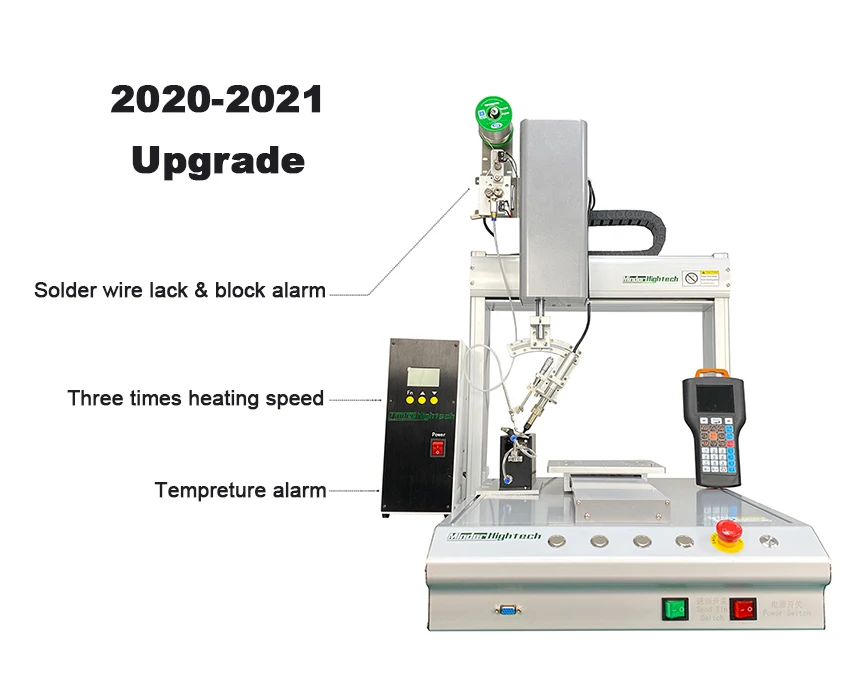

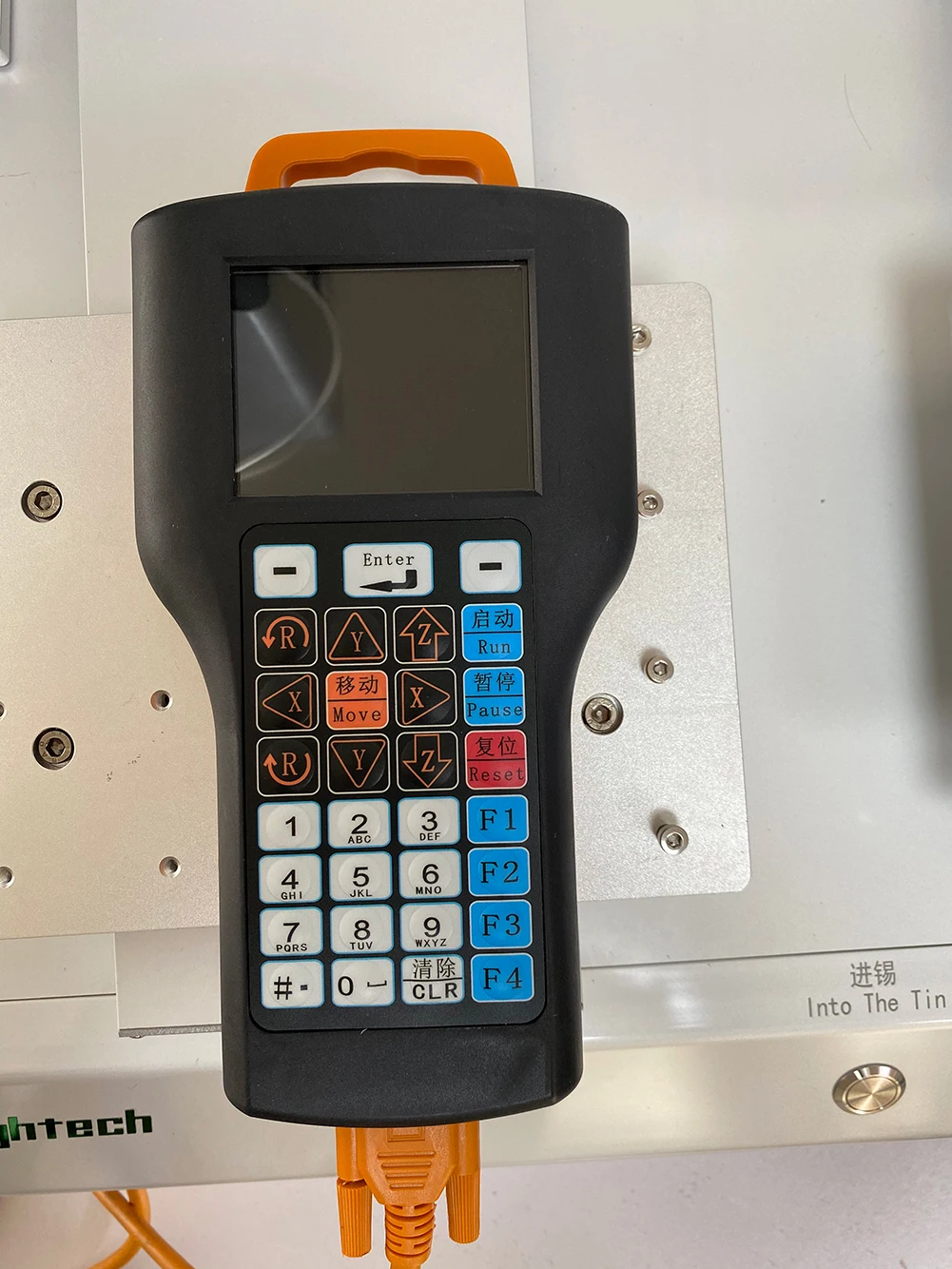

1, contains BASIC interpreter, simple programming, direct handle teaching, you can directly enter the welding point coordinates, but also teach welding position, can reproduce the welding position coordinates.
2, Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
3, The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.
2, Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
3, The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.
Specification
Single head single Y platform | ||||||
Model | DH-T3311 | DH-T4411 | DH-T5511 | |||
Stroke X | 300mm | 400mm | 500mm | |||
Stroke Y | 300mm | 400mm | 500mm | |||
Stroke Z | 100mm | 100mm | 100mm | |||
Rotary R axis | with R axis (optional no R axis) | |||||
Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | |||||
Soldering Tip | Default 1 PC (optional 2 PCS) | |||||
Tin thickness | 0.3-1.6mm | |||||
Temperature | normal—500℃ | |||||
Heating | 150w, 5 second to 300℃ | |||||
Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | |||||
Motion mode | Point to point; line; circle | |||||
Positioning Accuracy | +- 0.02(mm) | |||||
Program | Control Teaching Box/PC | |||||
External | RS232 | |||||
Program storage | 100groups/1000points per group | |||||
Power | 2*220V50Hz | |||||
Air | 0.5Mpa | |||||
Dimension L | 580mm | 580mm | 780mm | |||
Dimension W | 520mm | 620mm | 720mm | |||
Dimension H | 603mm | 603mm | 603mm | |||
Weight | 60kg | 70kg | 80kg | |||
Detail display
Application
Packing & Delivery
Why Choose Us
1. Help customer analyze product project and provide welding solution.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
