Share on (1600922928450):


Price:$0.16 - $0.22

Quantity:


Product Overview

Description



Products Description





CERTIFICATES
* IEC 61215，IEC 61730
* ISO 9001：2005 Quality Management System
* ISO 14001：2015 Environment Management System
* ISO 45001：2018 Occupational health and safety management systems



PRODUCT FEATURES

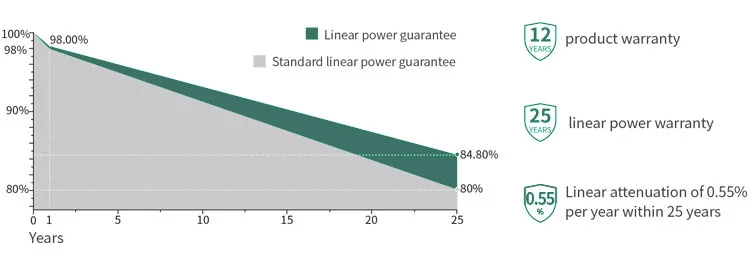

LINEAR PERFORMANCE WARRANTY




Product Paramenters




Mechanical Data


Cell Type
182×91mm Mono
Cell Orientation
156(6×26)
Module Dimensions
2465×1134×30mm
Weight
30.5kg
Glass
3.2mm high transmittance, reinforced glass
Backsheet
Anti-aging film
Frame Material
Anodized aluminum alloy
Junction Box
Protection class IP68
Cable
4.0 mm2
positive pole: 200 mm
negative pole: 250 mm
wire length can be customized
Connector
MC4 compatible connector

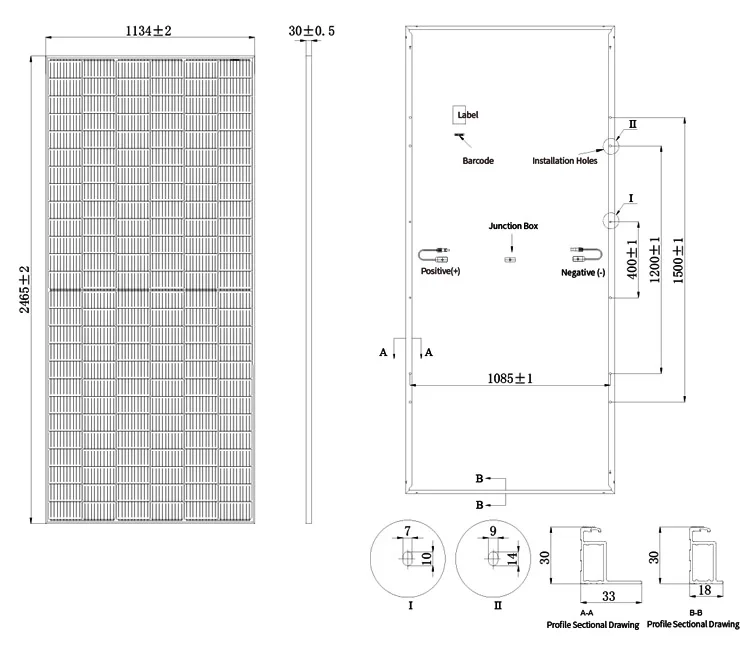

Module Dimensions (mm)





Electrical Data (STC)


Maximum Power (Pmax/W)
580
585
590
595
600
Open Circuit Voltage (Voc/V)
53.52
53.67
53.82
53.97
54.12
Short Circuit Current (Isc/A)
13.56
13.64
13.72
13.8
13.88
Voltage at Maximum Power (Vmp/V)
44.32
44.47
44.62
44.77
44.92
Current at Maximum Power (Imp/A)
13.1
13.17
13.23
13.3
13.36
Module Efficiency (%)
20.75
20.93
21.11
21.29
21.46
Operating Temperature
-40° C~+85° C
Maximum System Voltage
1000/1500V
STC (Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25℃ , AM1.5

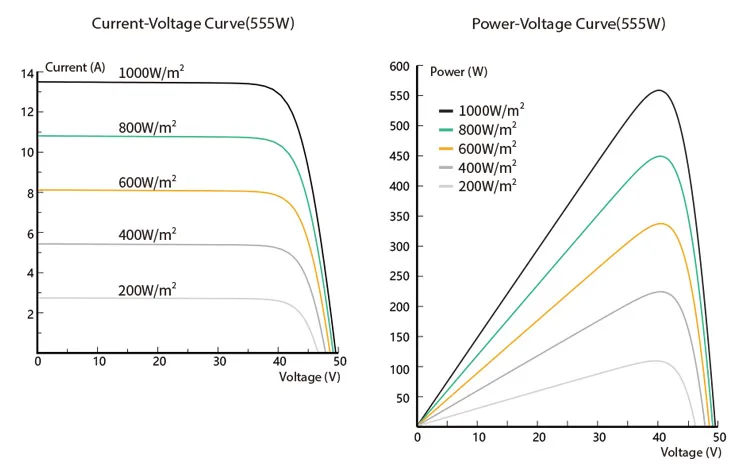

I-V Curve





Temperature Coefficients


Temperature Coefficient (Pm)
-0.340%/℃
Temperature Coefficient (Voc)
-0.270%/℃
Temperature Coefficient (Isc)
0.048%/℃
NMOT (Nominal Moudule Operating Temperature)
41±3℃

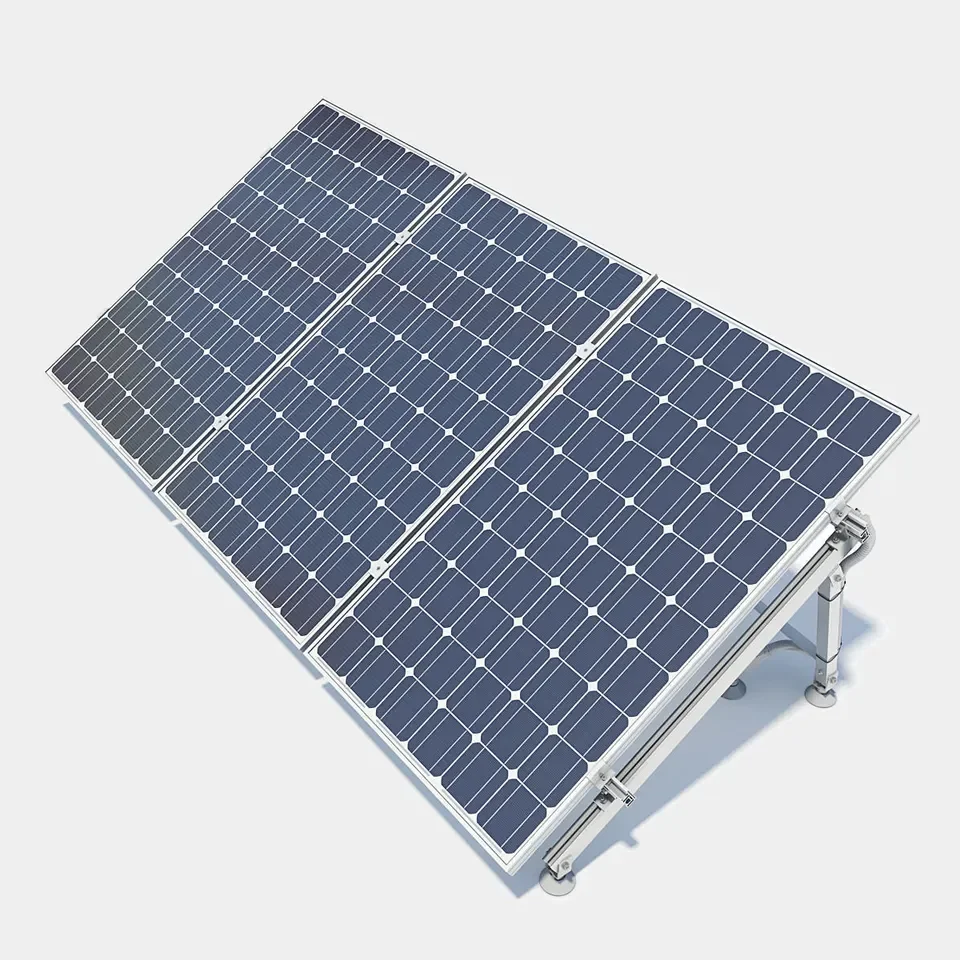

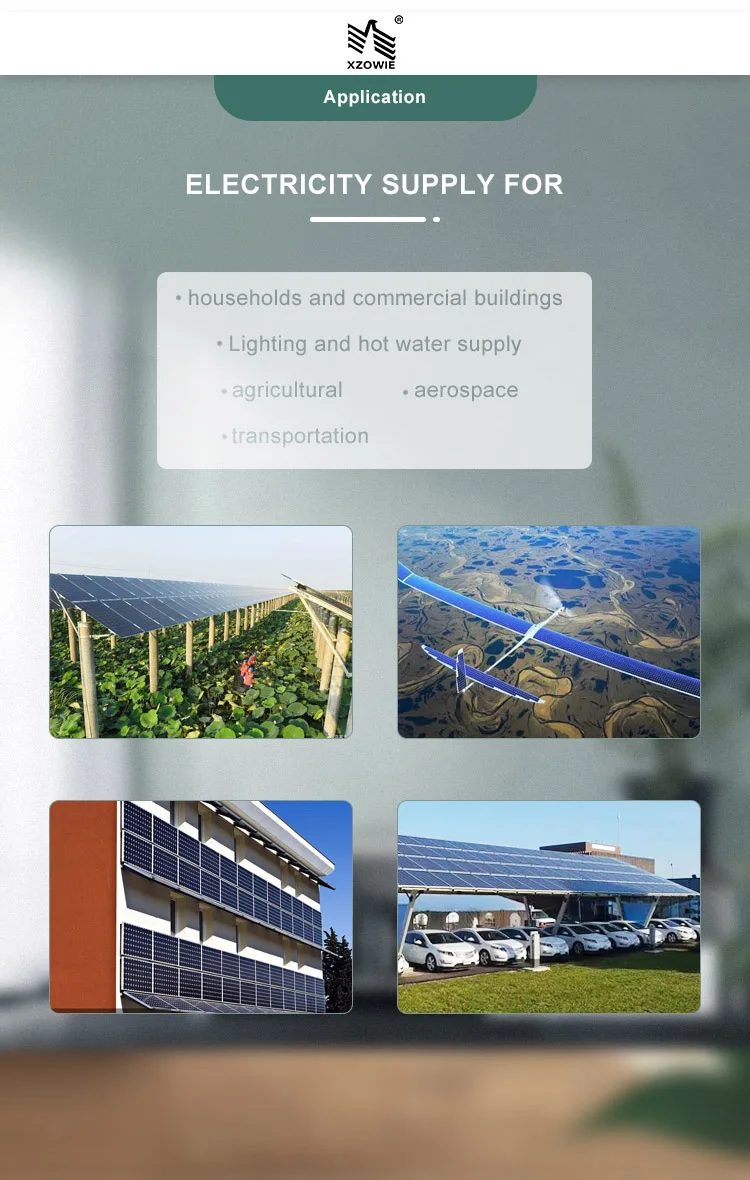

Application

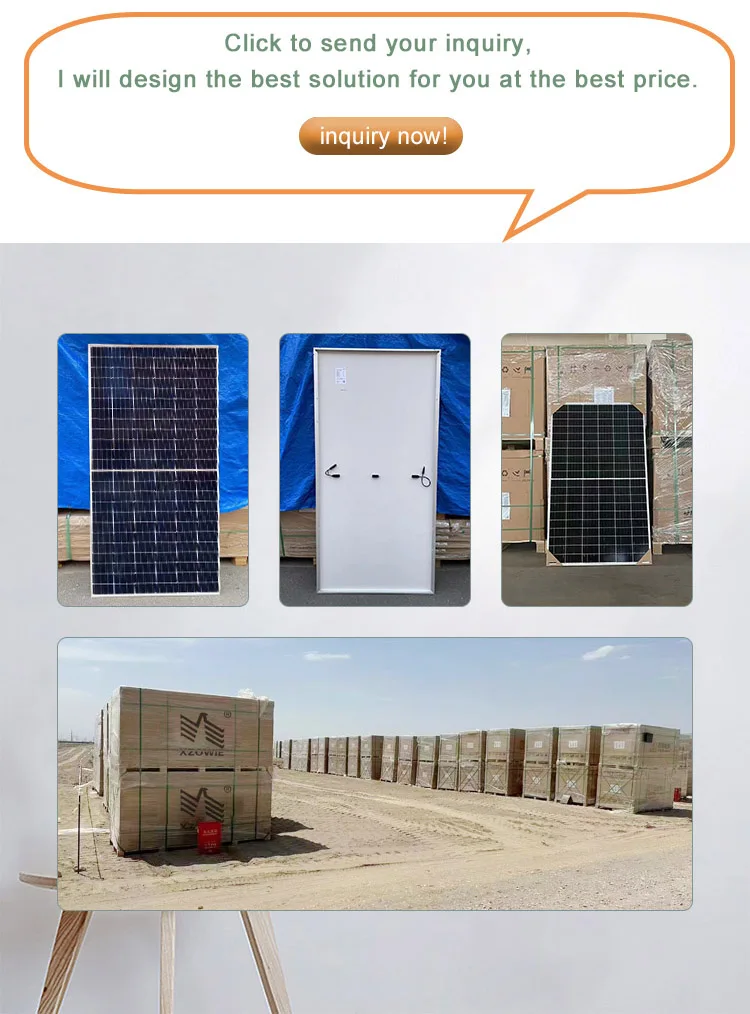

Shipment&Payment




Packaging Specifications
Transportation methods
Number of modules per cabinet
Number of modules per pallet
40HQ container
576pcs
36pcs+36pcs




Recommend Products






Company Profile




Zhuowei new energy has focused on the field of battery for many years. The annual production capacity is more than 20 million KVA.

The R & D and manufacturing of a full range of standby, starting and power batteries has competitiveness and influence in the global competition.

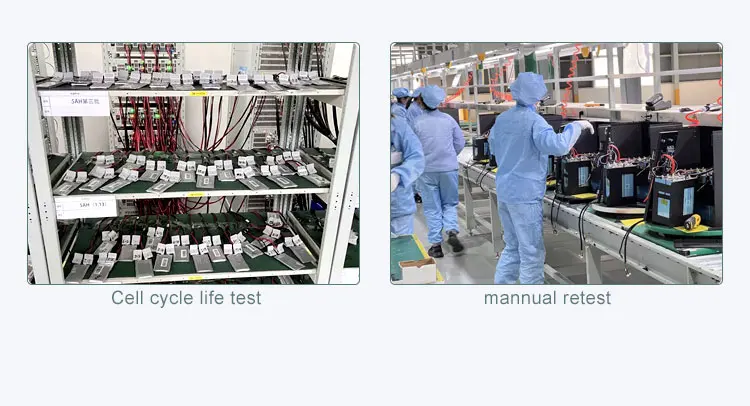

The company has complete laboratory testing equipment to test the performance of each batch of batteries to ensure product quality.




FAQ




Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Samples neeeds 10-15 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A.
1-Identify your needs requirements.
2-We will provide you with a quotation.
3-you confirms the samples and places a deposit for formal order.
4- We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about warranty?
A. 2 years warranty.
