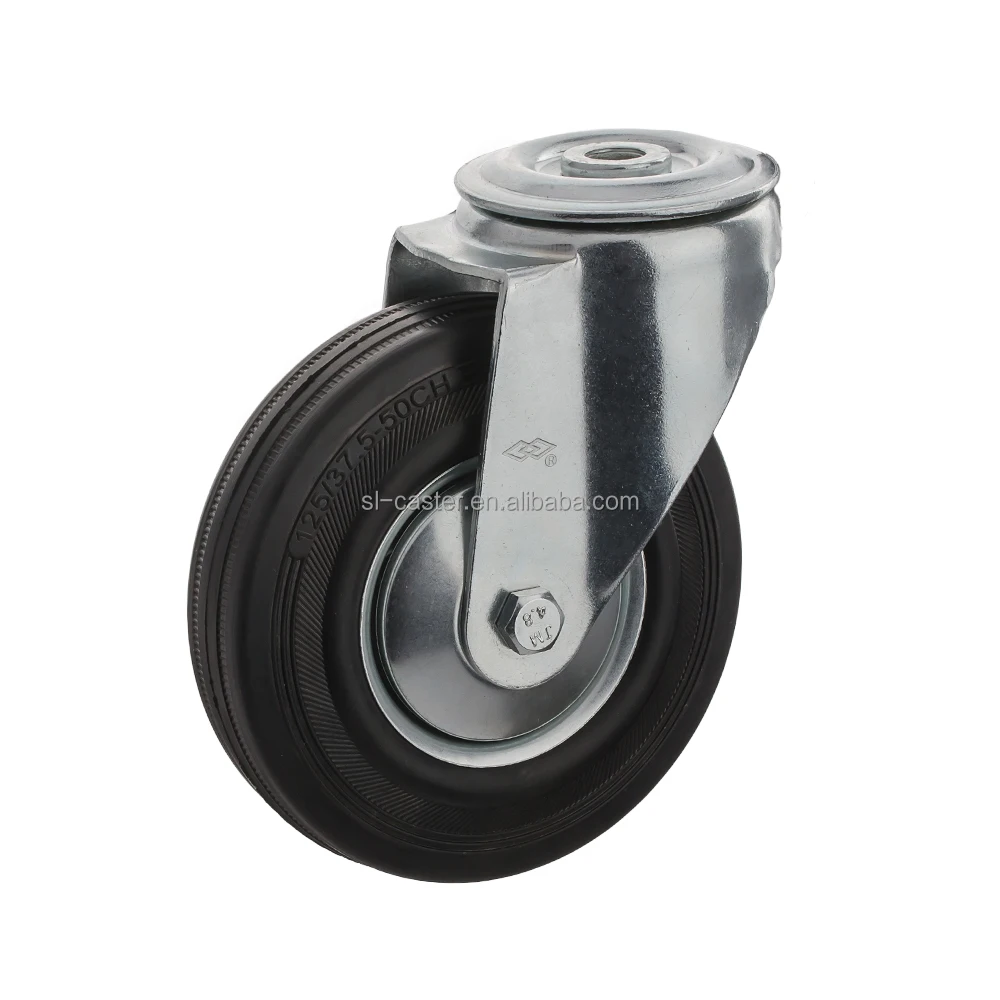

European type black 3.2inch elastic rubber industrial caster roulettes pour chariots heavy duty 100mm casters
- Category: >>>
- Supplier: Hubei Space Double Rhombus Logistics Technology Co. Ltd.
Share on (1600922948492):
Product Overview
Description
Video Description
Products Descriptipon
2024 hot sale 3/4/5/6/8 inch swivel brake type castor black rubber caster wheel 80/100/125/150/200mm locking industrial caster
Brand | Double Rhombus | Series | Industrial Caster |
Model No. | P102-11D080X25S | Load Capacity(kgs) | 60Kgs |
Wheel diameter(mm) | 80mm | Width of Tread(mm) | 25mm |
Offset(mm) | 40mm | Hole size(mm) | 9mm |
Overall height(mm) | 106mm | Size of plate(mm) | 105x82.5x3mm |
Bearing | roller bearing | Bolt hole spacing(mm) | 80x60mm |
Walking Performance Test
Test standard according to EN12532, the rubber industrial caster sample with 60kg load, 2mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,
go over the barriers for 500 times, then remove the barriers, continue to walking 3.02km, the rubber wheel need to walk total 3.77kms,
after testing, sample no abrasive wear, the wheel is qualified.
after testing, sample no abrasive wear, the wheel is qualified.
5000 times Brake Fatigue Test
Long service life period
Test standard according to EN12532, the rubber industrial castor Pass 5000 times Fatigue Test for Locking Device.
Up to 5000 brake applications
High cost performance

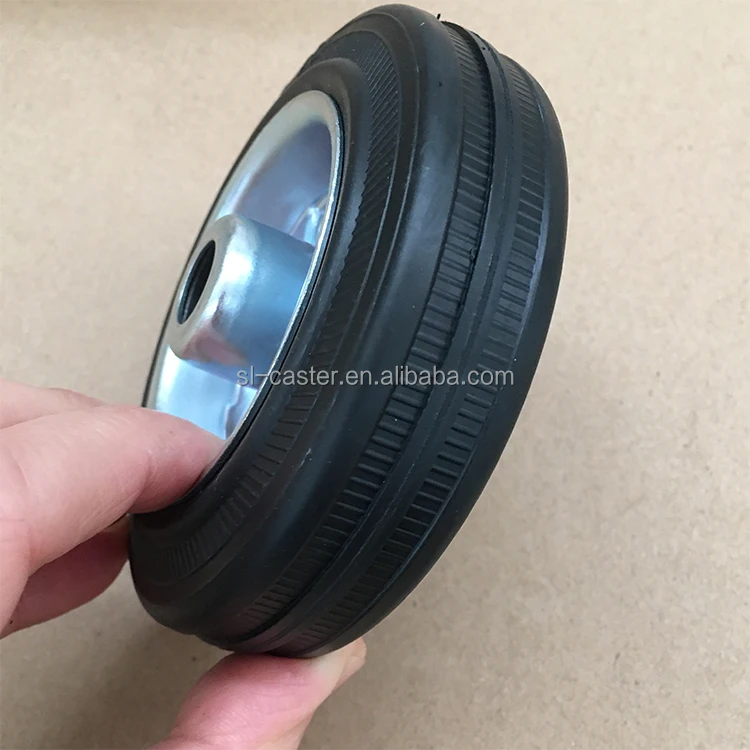

Wear resistant rubber tire with steel core, roller bearing
Running smooth
Running smooth
Thicker rubber layer Environmentally friendly Different standard: PAHS<50mg/kg, Reach，RoHS
We use more Softer rubber tire

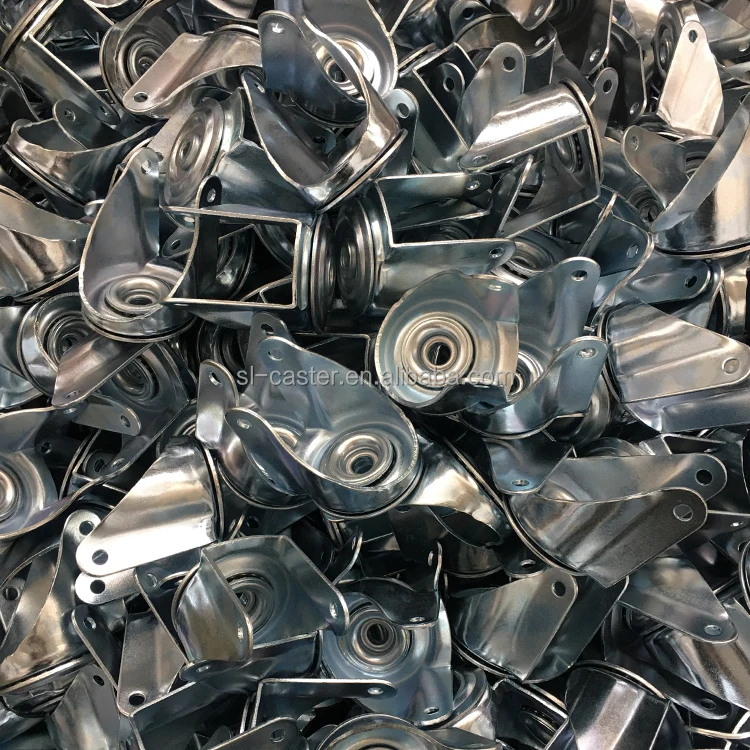

Thickened presed steel housing castor,3-10inch size,60-260kgs load range
Multiple configurations are optional
Fork optional: Rigid, swivel, brake, top plate, top bolt hole type, 2/2.5/3/3.5mm fork thickness for different size, wheel material can choose rubber, nylon/PP,Pu,TPR
Application-widely use 3-10inch black rubber wheel industrial caster
Hot sales & Recommend Products
Company Profile
Hubei Space Double Rhombus Logistics Technology Co., LTD. is a large-scale professional manufacturer of casters, hand trucks, furniture transporters, airport trolley, airport chair, queue barriers and series of logistics products,The company was founded since 1978, has experienced 40 years.Our company has I S O 9 0 0 1 certification, also has GS, VPA, SGS, REACH, ROHS, PAHS certificate. In 1993, the national Standard Bureau entrusted the corporation to compile the National Standard (GB/T1 4 6 8 7-2 0 11) which is the standard for caster production in China today.
