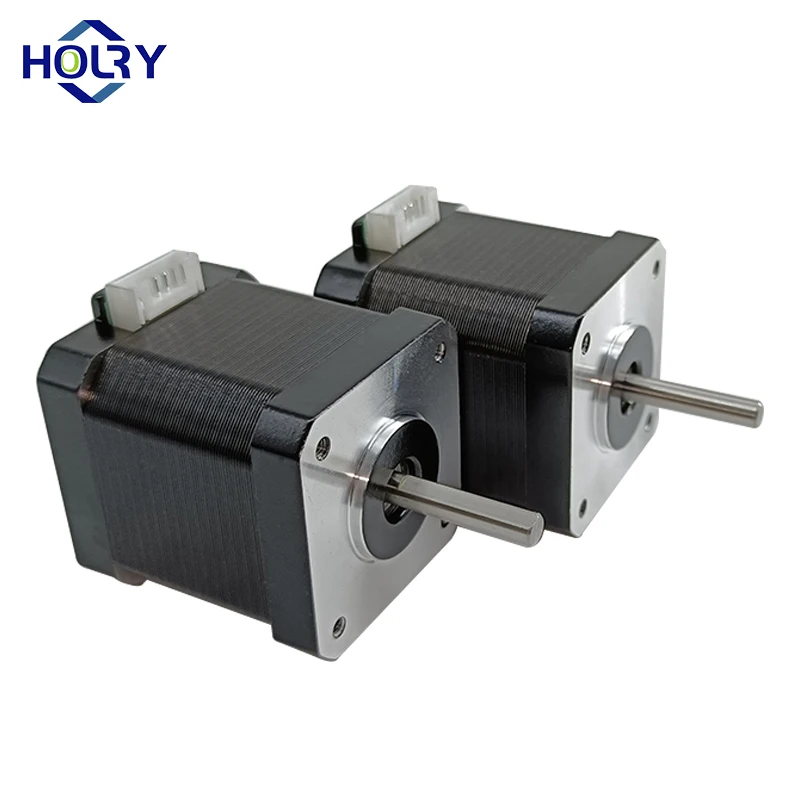

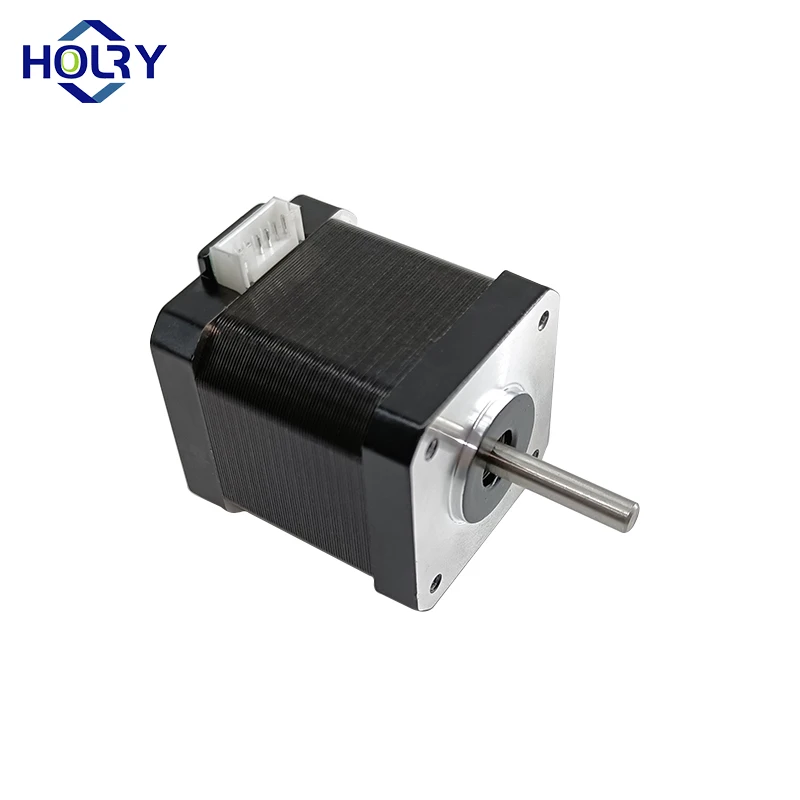

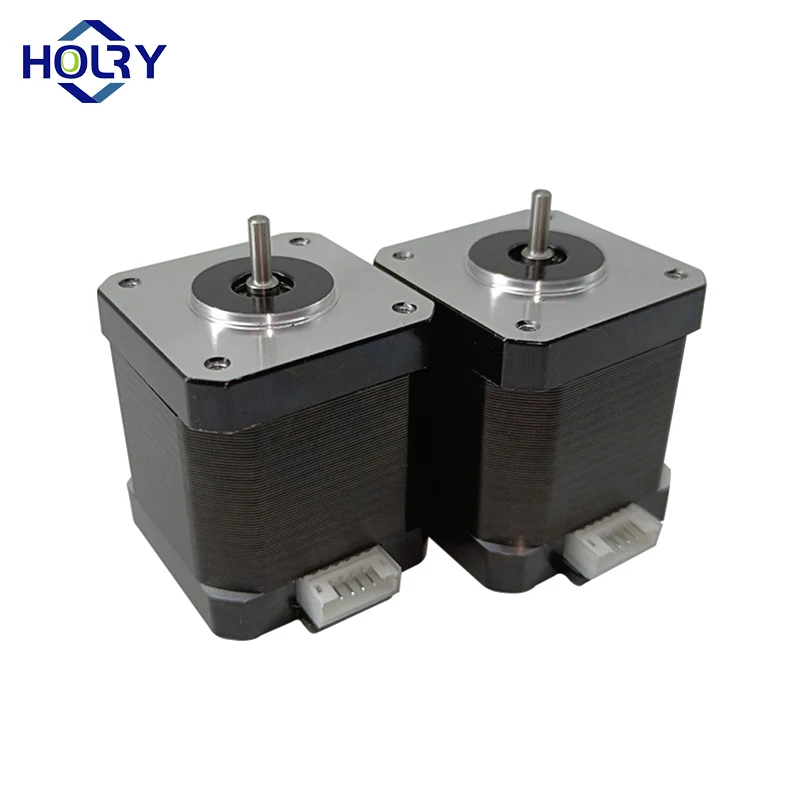

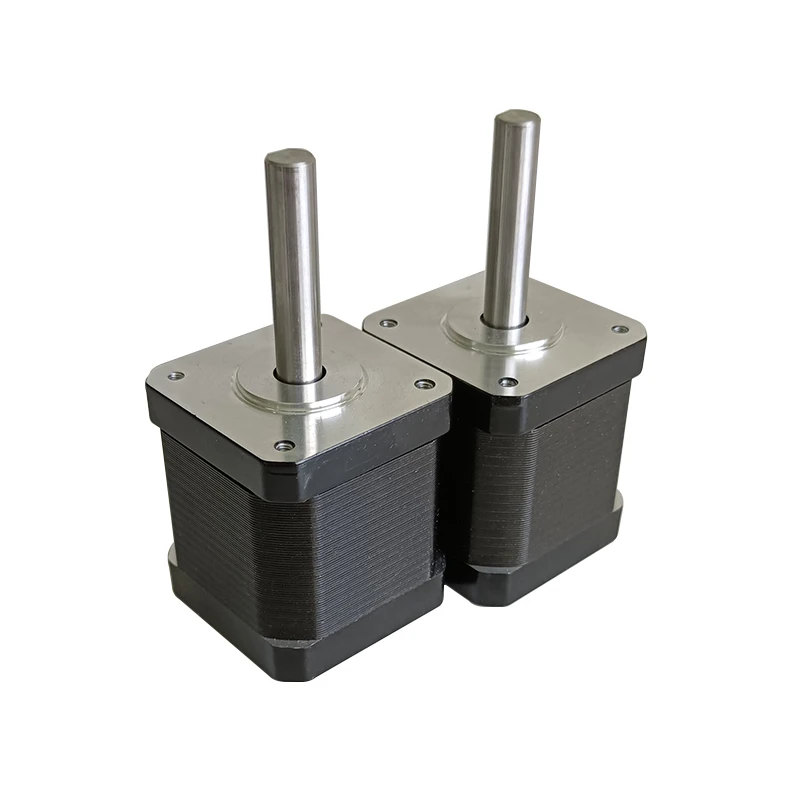

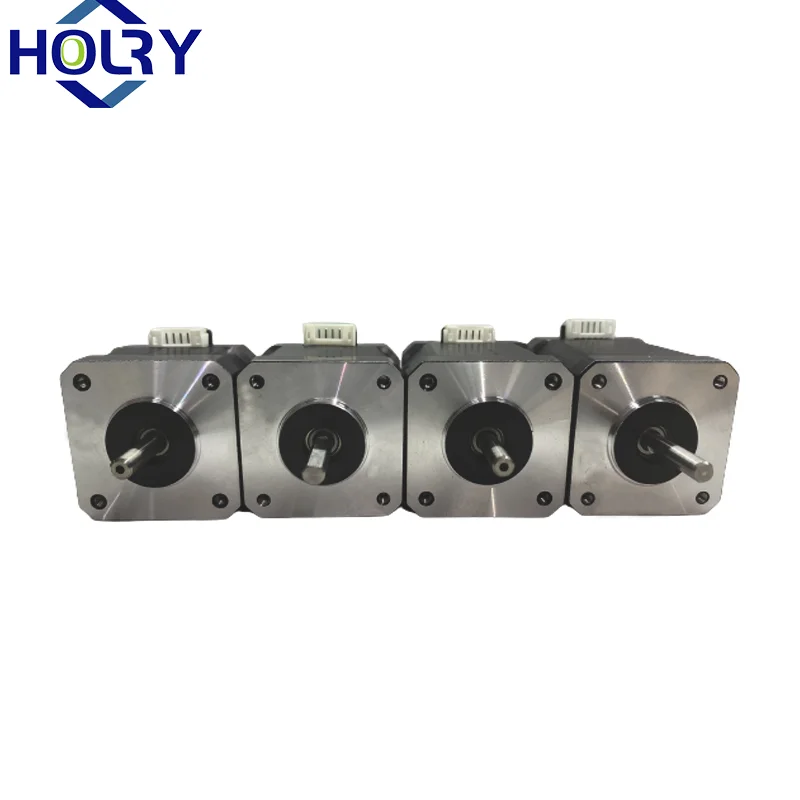

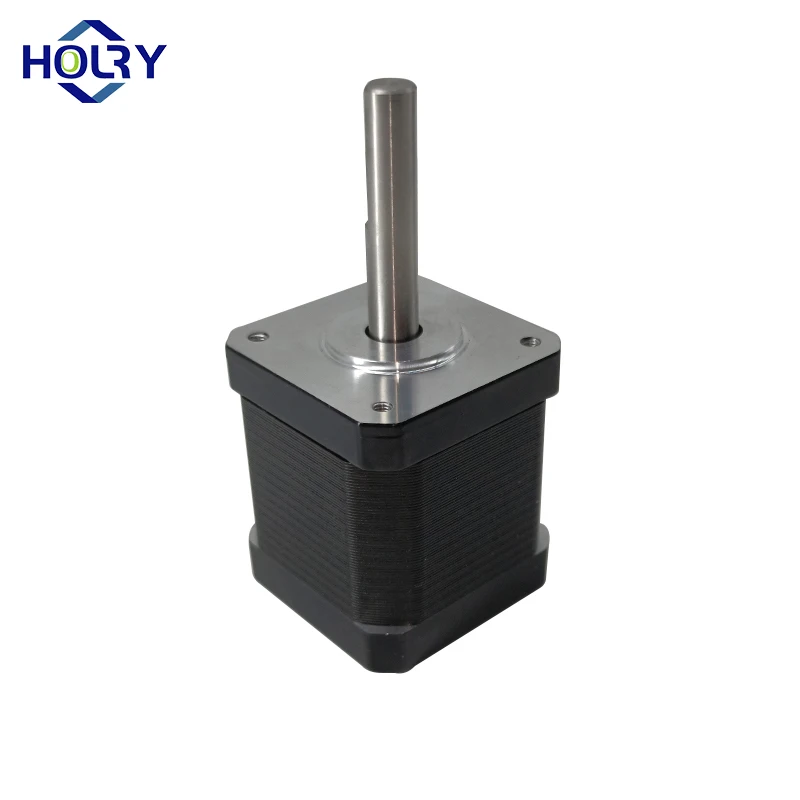

Nema 17 0.4A 42x34mm 2.4Nm Low Speed 12v 24v Step Motor Controller Nema 17 Stepper Motor For 3D Printer
- Category: >>>
- Supplier: Changzhou Holry Electric Technology Co. Ltd.
Share on (1600922958508):
Product Overview
Description
Products Description
Product Paramenters
Item | Specifications |
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full Step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100MΩMin., 500VDC |
Dielectric Strength | 500VDC for one minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Insulation Class | B |
Series Model | Moter Length L(MM) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Lead Wire (NO.) | Rotor Intertia (g.c㎡) | Motor Weight (g) |
42HB34F04AB | 34 | 13.2 | 0.4 | 33 | 45 | 2.4 | 4 | 34 | 200 |
42HB34F08AB | 34 | 4.96 | 0.8 | 6.2 | 10 | 2.4 | 4 | 34 | 200 |
42HB34F105AB | 34 | 2.7 | 1.5 | 1.8 | 2.4 | 2.4 | 4 | 34 | 220 |
42HB40F102AB | 40 | 6.5 | 1.2 | 6.0 | 13 | 3.0 | 4 | 50 | 220 |
42HB40F107AB | 40 | 2.4 | 1.7 | 1.5 | 2.5 | 3.5 | 4 | 50 | 220 |
42HB40F05AB | 40 | 4.1 | 0.5 | 8.0 | 15 | 2.6 | 4 | 50 | 250 |
42HB44F05A | 44 | 8.9 | 0.5 | 18 | 23 | 2.9 | 4 | 54 | 250 |
42HB44F1AB | 44 | 8.0 | 1.0 | 8.0 | 16 | 3.5 | 4 | 54 | 250 |
42HB48F04AB | 48 | 8.0 | 0.4 | 20 | 40 | 4.0 | 4 | 68 | 280 |
42HB48F08AB | 48 | 7.2 | 0.8 | 9.0 | 15 | 4.5 | 4 | 68 | 280 |
42HB48F105AB | 48 | 4.2 | 1.5 | 2.8 | 4.8 | 4.0 | 4 | 68 | 280 |
42HB62F2AB | 62 | 3.2 | 2.0 | 1.6 | 3.0 | 8.0 | 4 | 75 | 320 |
