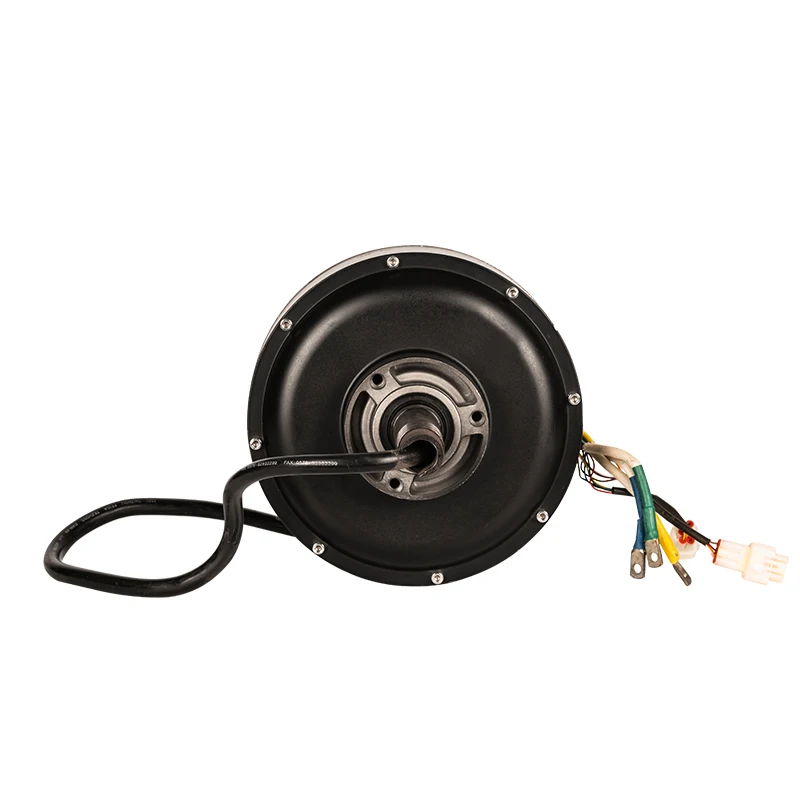

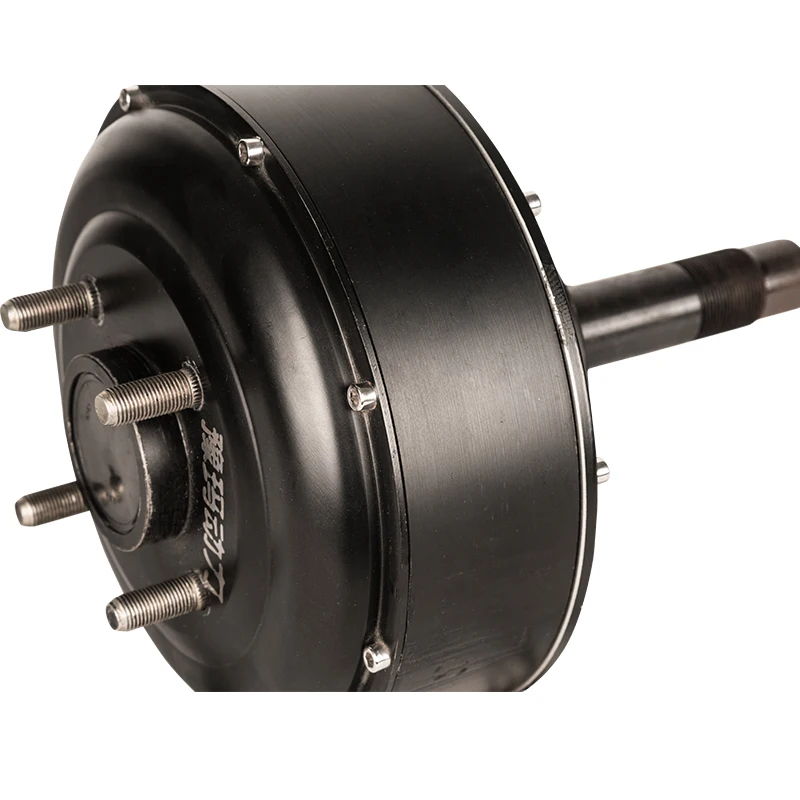

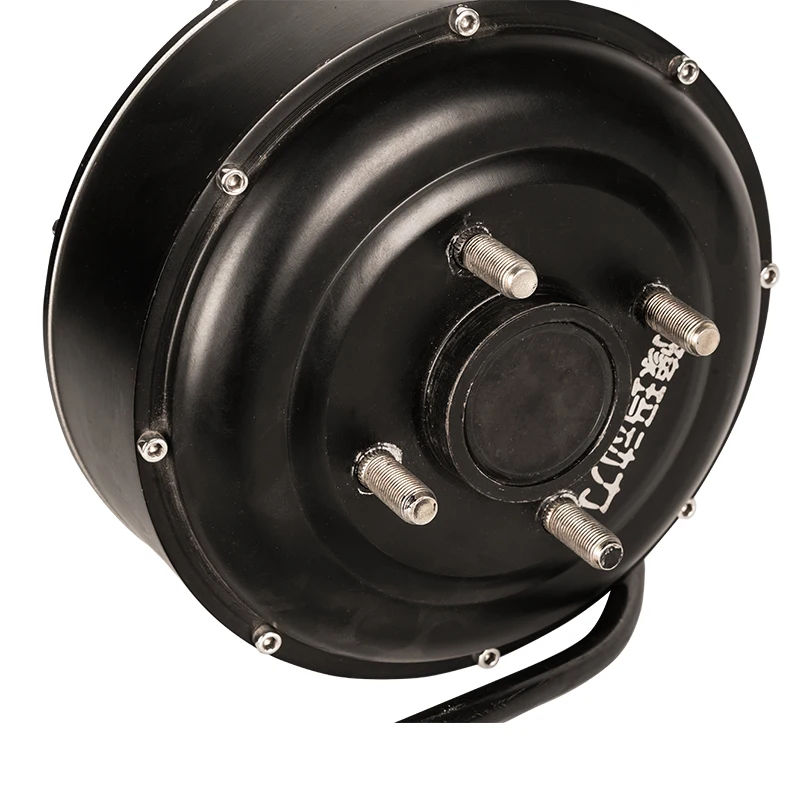

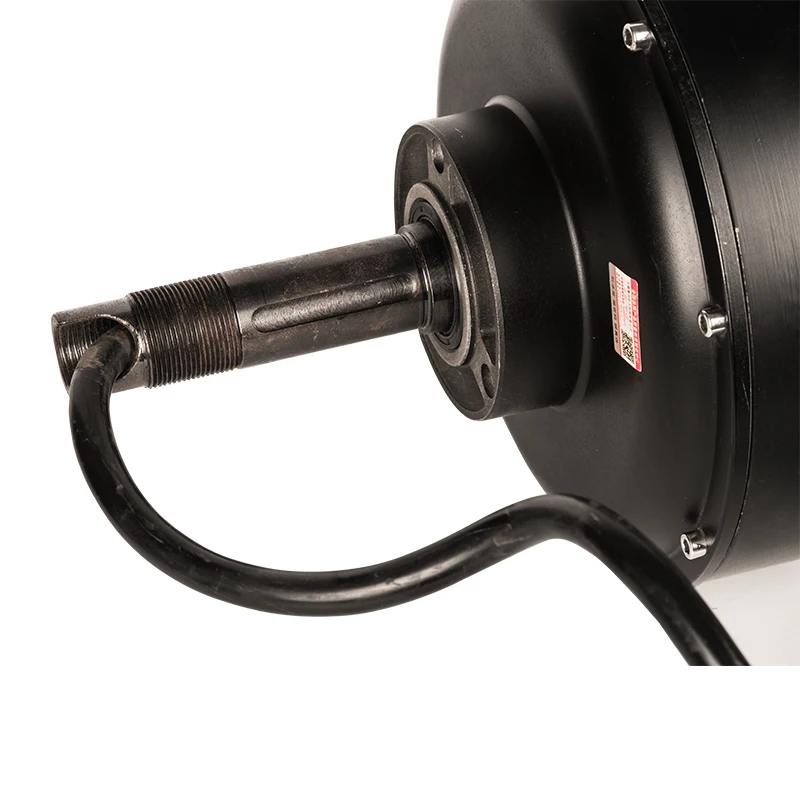

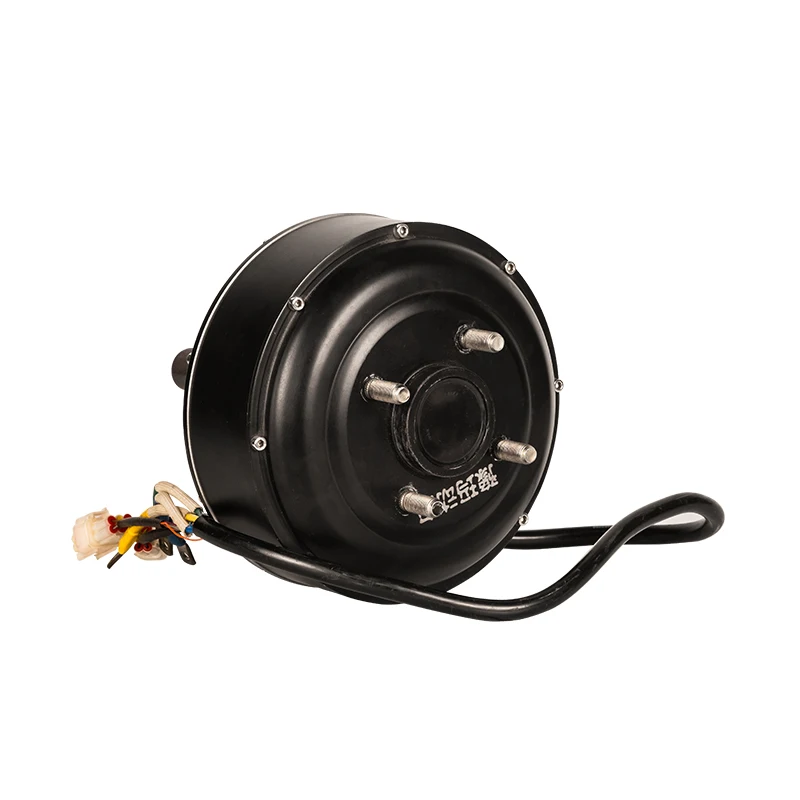

3000W V3 YMMOTOR 227 Brushless DC Electric Car Wheel Hub Motor
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600922971628):
Product Overview
Description
Product Details
Product Name | YM -227 Removable Rim Hub Motor |
Rated Voltage | 48-72v |
Rated Power | 1000-5000W |
Rated Speed | 20-80kmh |
Peak Torque | 70-250 |
Hub Fixing Hole Pitch | 4*Φ100mm |
NOTICE
This product only contain a motor. If you need the hub outside, please tell us about it. We can discuss about it further according to your need.
Motor Design | 227 Electric Car Hub Motor with hall sensor |
Rim Size | Can match with 10 inch, 12 inch, 13 inch wheel rim |
Magnet Height | 45mm, 16 pole pairs |
Stator | Aluminum Core |
Rated Power | 3000W |
Peak Power | 6000W |
Speed | 40KPH-90KPH, it's customized |
Work Voltage | 48V-72V |
Peak Torque | 160-180N.m |
Thermic Probe | KTY84-130(as default, optional) |
Max Efficiency | 89.5% |
Brake Type | Disc brake (as default), PCD3*80mm-M8, CB 58mm |
CB & PCD | 63cm, 4*100mm |
Hall | Double Halls with waterproof connectors(one for sqare) |
Waterproof Grade | IP65 |
Color | Black |
