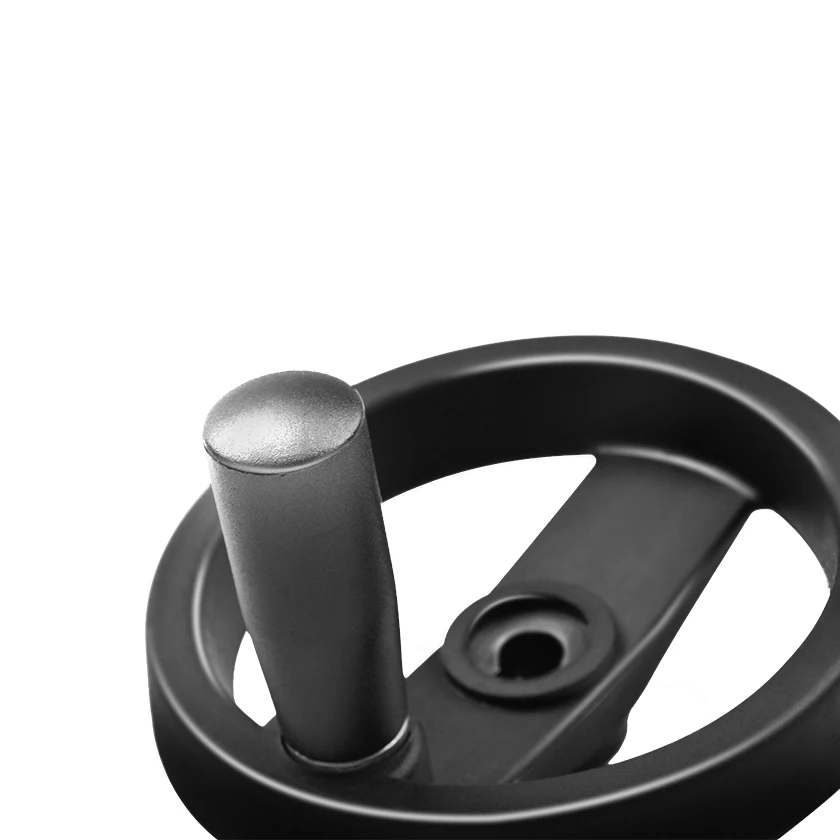

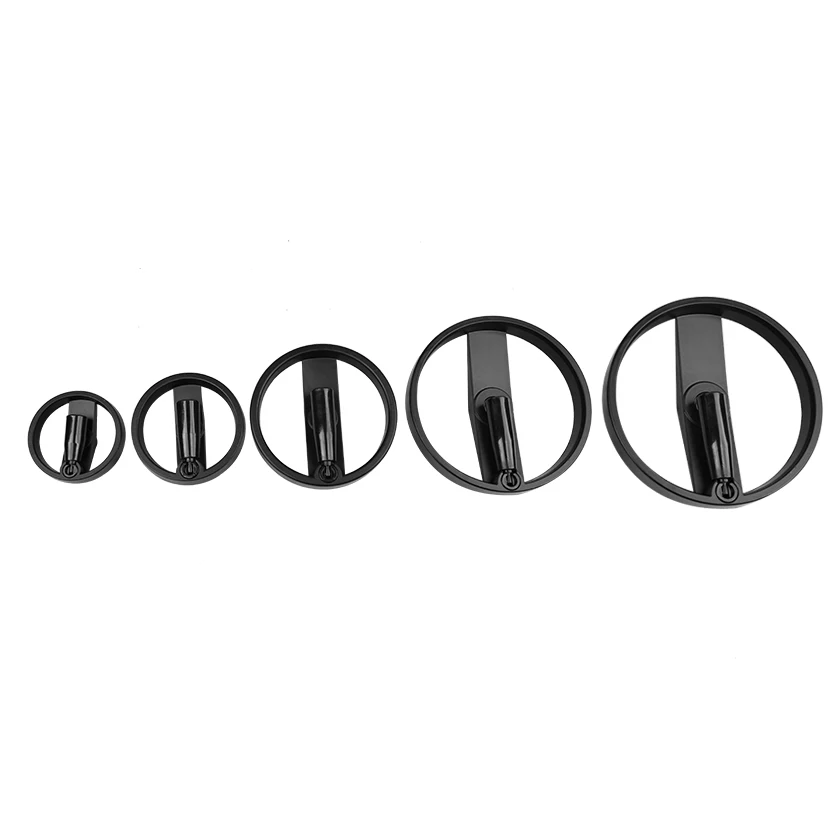

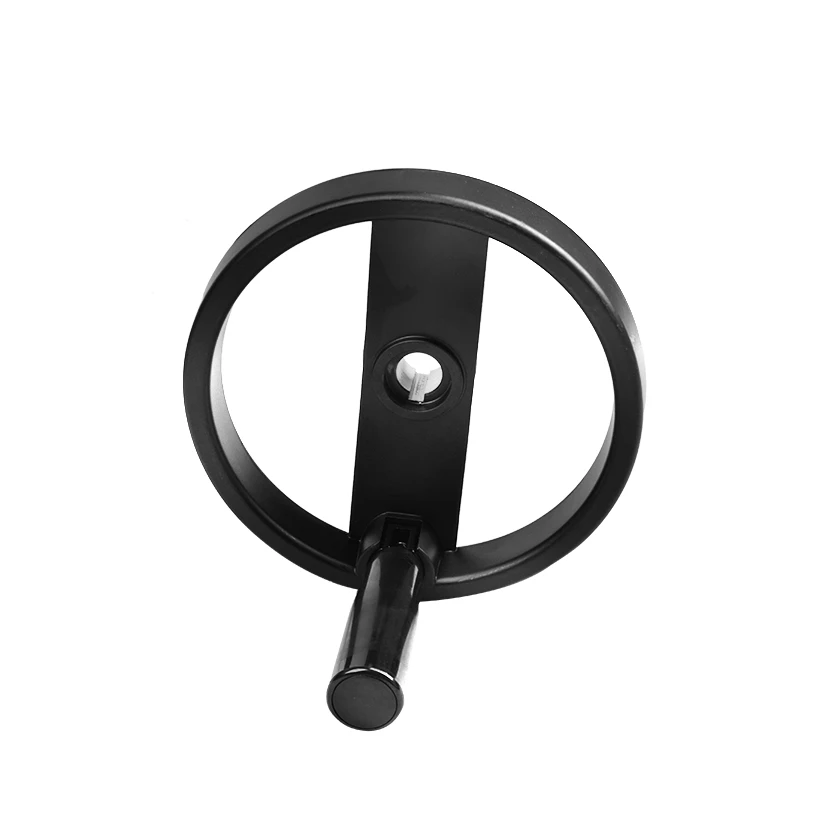

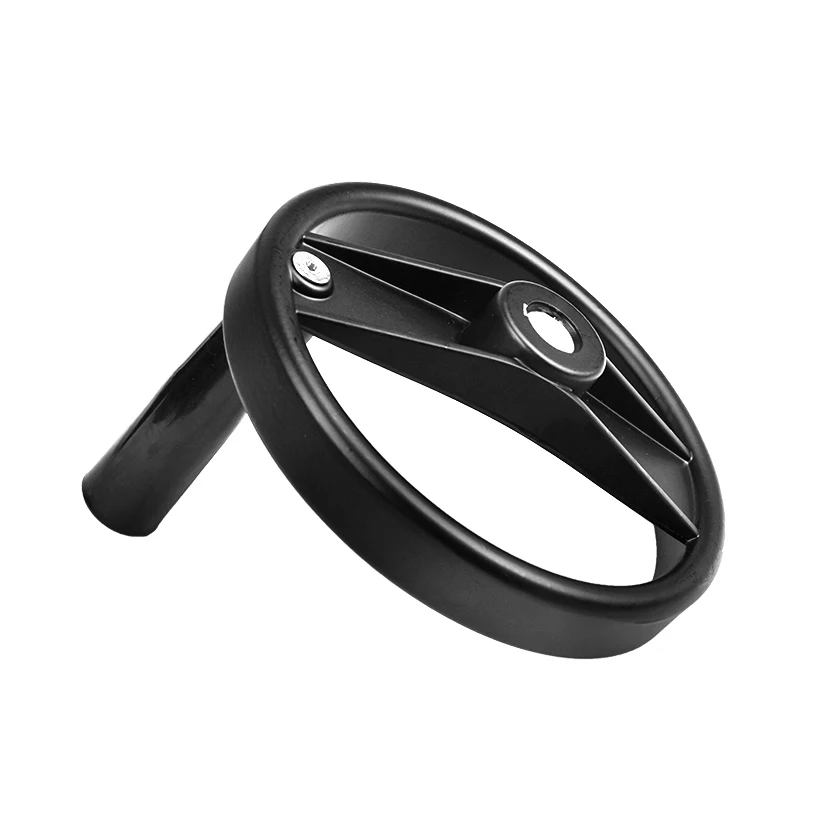

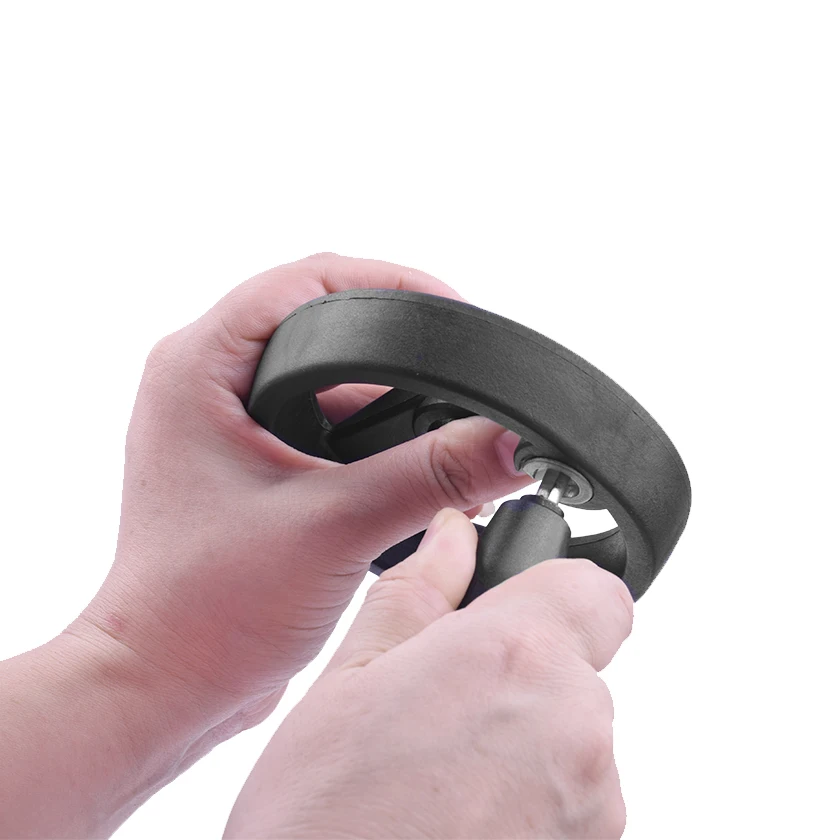

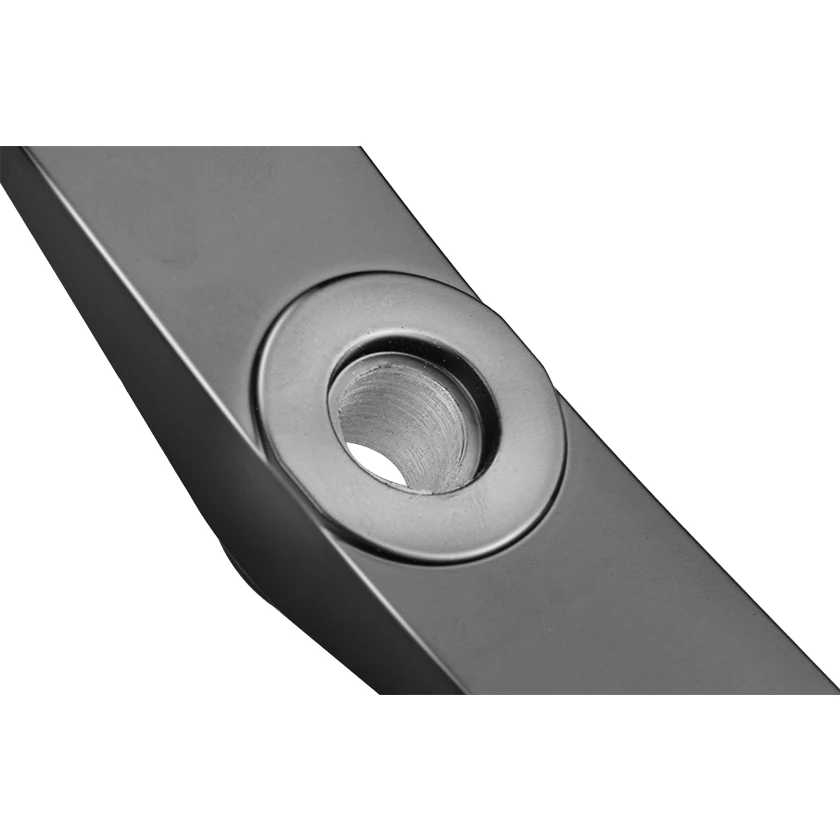

Nylon Aluminum Alloy Handwheel Milling Machine Lathe Durable

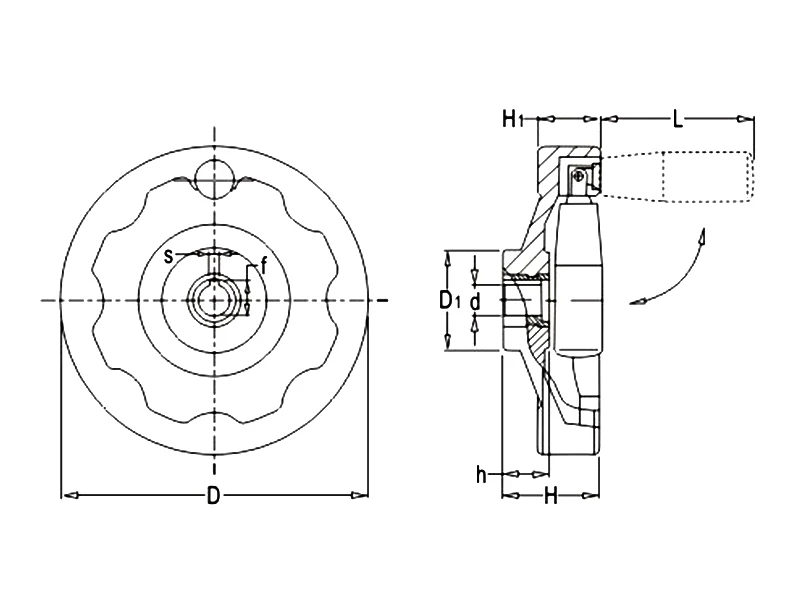

D

d

D1

H

H1

h

f

s

L

HM.101001 100

100

12

40

41

26

22

13.8

4

50

HM.101001 100

125

12

45

44

30

22

13.8

4

63

HM.101001 100

160

16

52

54

32

24

18.3

5

80

HM.101001 100

200

18

60

56

34

29

22.8

6

100

HM.101001 100

250

22

60

60

36

30

24.8

6

100

HM.101001 100

300

25

65

65

40

32

29

2

100
