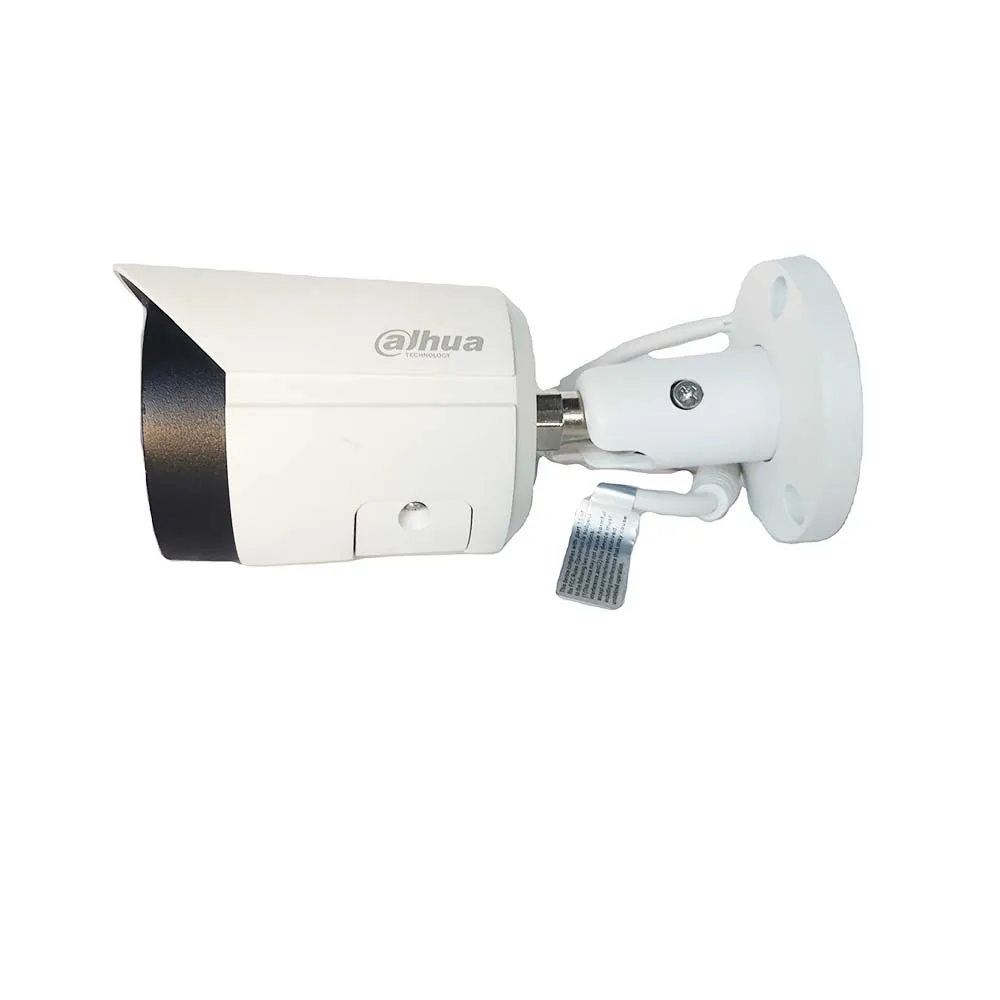

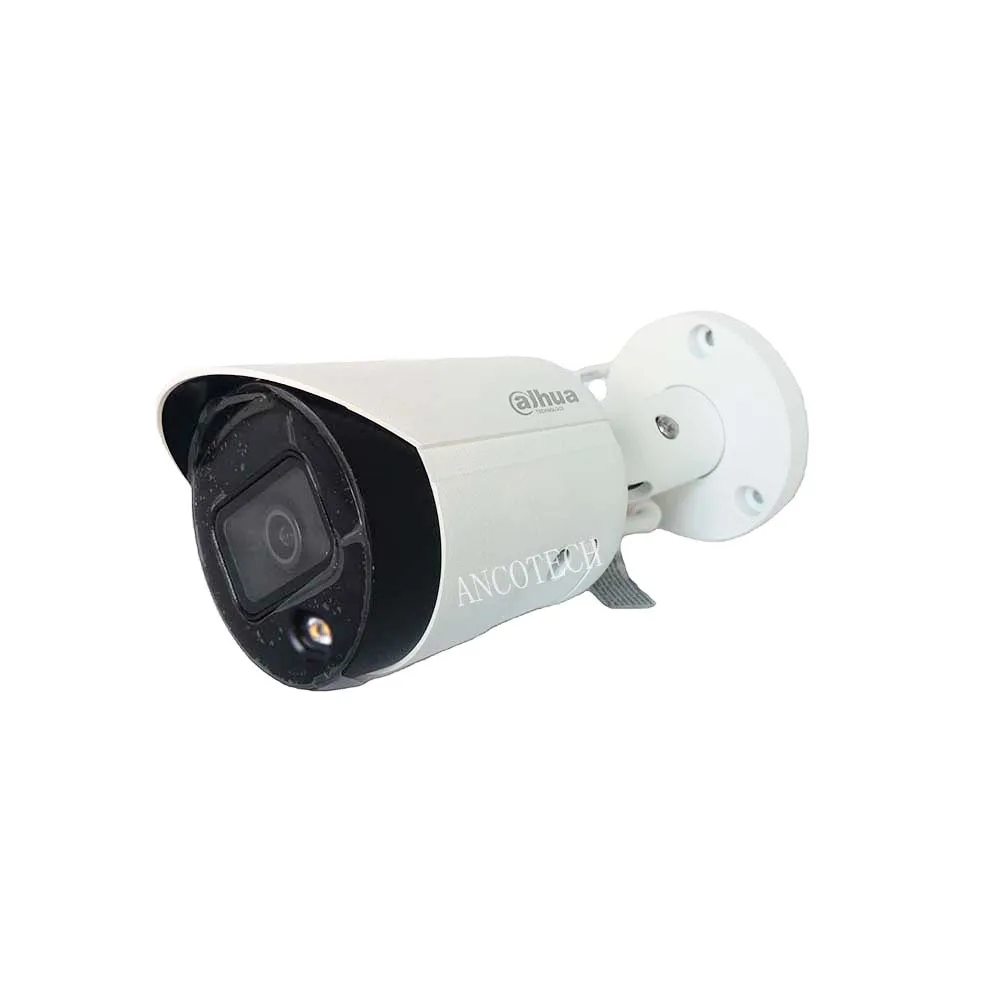

Dahua Waterproof / Weatherproof Full color starlight camera 5MP 20 m LED distance HAC HFW1509T A LED HDCVI Dahua CCTV Camera

Camera

Image Sensor

5M CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/3 s–1/100,000 s

NTSC:1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.0, 0 Lux warm light on

Illumination Distance

20 m (65.61 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88; V: 46°; D: 104°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1.6 m (5.25 ft);
3.6 mm: 2.3 m (7.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

67.4 m

(212.3 ft)

27.0 m

(88.6 ft)

13.5 m

(44.3 ft)

6.7 m

(22.0 ft)

3.6 mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps;
NTSC: 5M@25 fps; 4M@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

POC (only CVI)/12V±30% DC

Power Consumption

Max4.4W (12V DC, warm light on) PoC (AF)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

174.5 mm × 72.3 mm × 70.6 mm ( 6.87" × 2.85" × 2.78" )

Net Weight

0.37 kg (0.82 lb)

Gross Weight

0.50 kg (1.1 lb)
