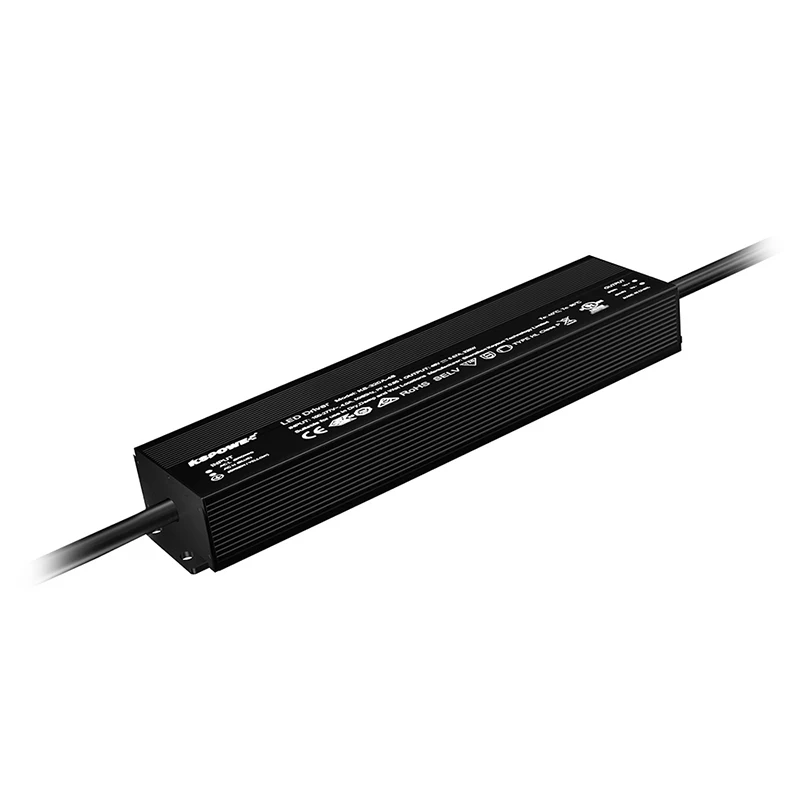

custom industry waterproof 24volts 36volts 48volts led driver 320watt high quality Lighting Transformers for led lamp
- Category: >>>
- Supplier: Shenzhen Keysun Technology Limited
Share on (1600922980680):
Product Overview
Description
Products Description
custom industry waterproof 24volts 36volts 48volts led driver 320watt high quality Lighting Transformers for led lamp

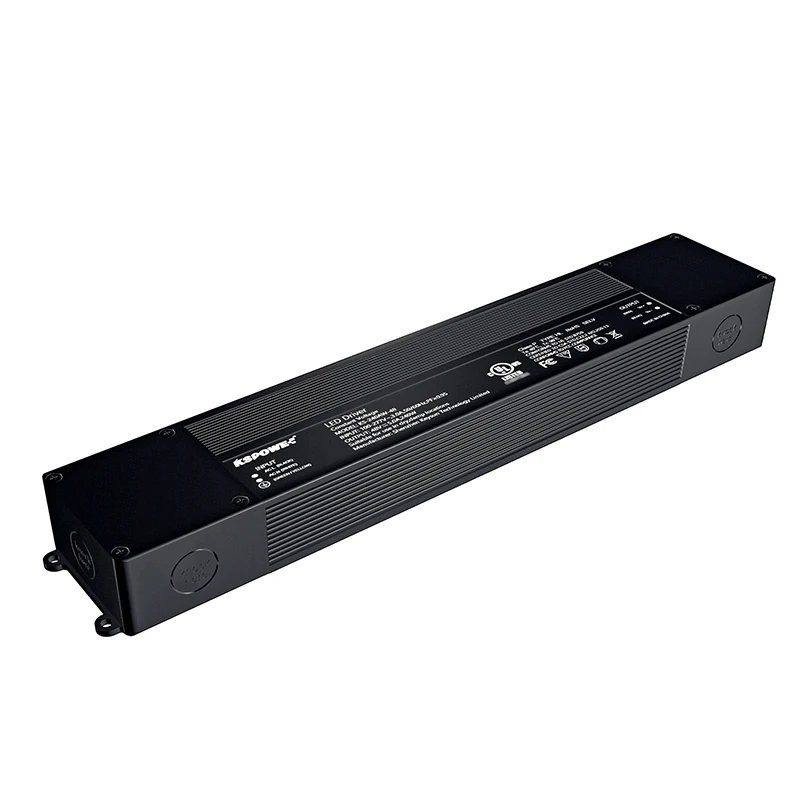

The KSPOWER - H series non dimmable led driver 320 Watt is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 24Volt 36Volt 48Volt optional with greater operating efficiency and high PFC function. Featuring single output and IP67 waterproof environment protection rated for indoor or outdoor use, the UL/cUL CE GS listed outdoor lights power supply provide 5 years warranty and no flicker outstanding performance.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, Industrial and Other Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt, 36Volt, or 48Volt （options）
* Driver Type: Class P

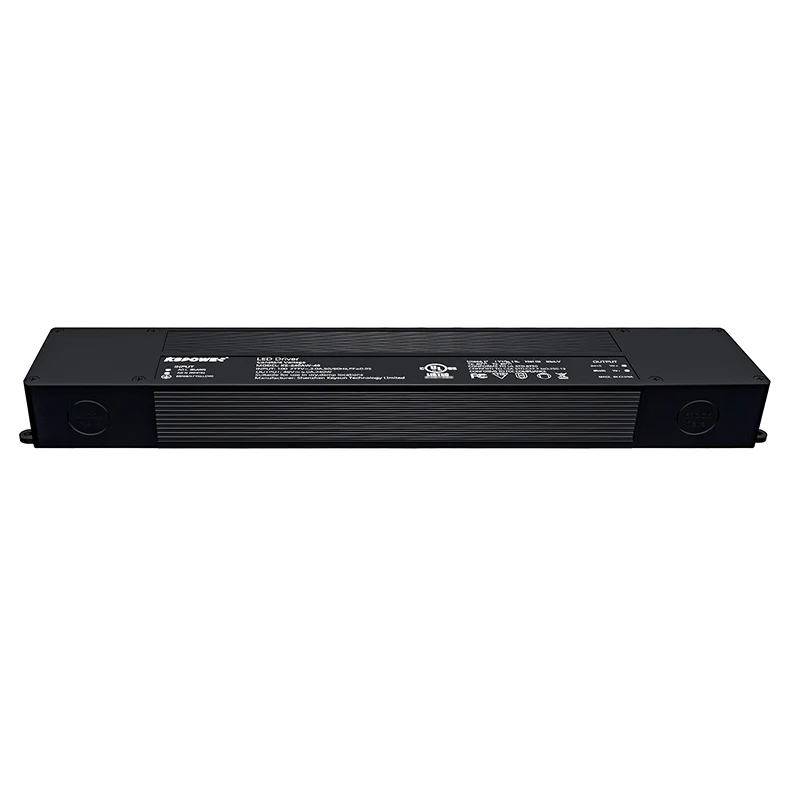

* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage

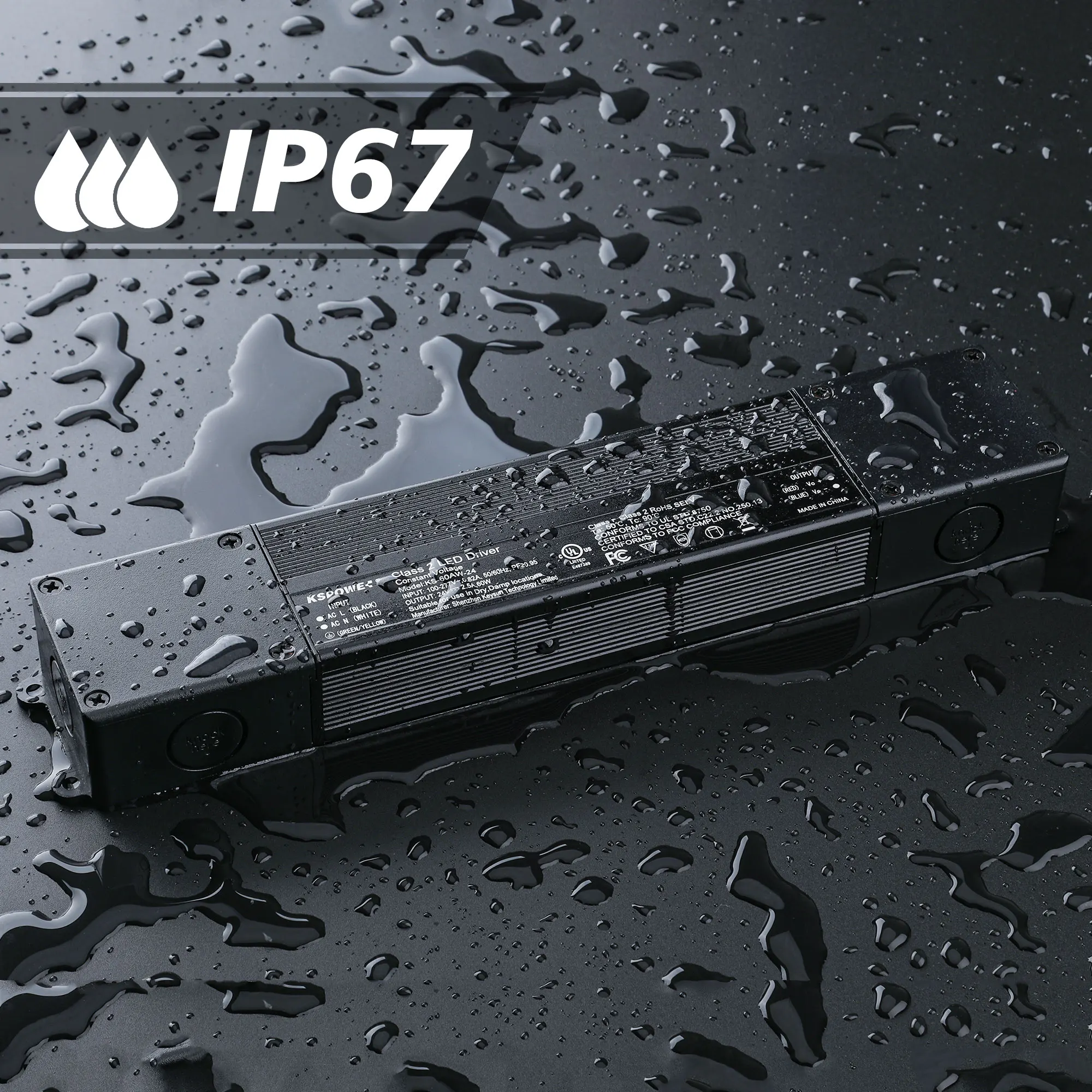

* IP65; IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt, 36Volt, or 48Volt （options）
* Driver Type: Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65; IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 .98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSH-320W24 | KSH-320W36 | KSH-320W48 | ||||
Output Voltage | 24V | 36V | 48V | ||||
Rated Current | 13.33A | 8.88A | 6.66A | ||||
Ripple & Noise (max.) | 250mVp-p | 250mVp-p | 250mVp-p | ||||
Rated Power | 320W | ||||||
Certificate | UL/cUL FCC CE ROHS SAA CLASS P etc. | ||||||
Dimension(L*W*H) | 367*68*41mm / 14.4*2.68*1.85in | ||||||
Show Details

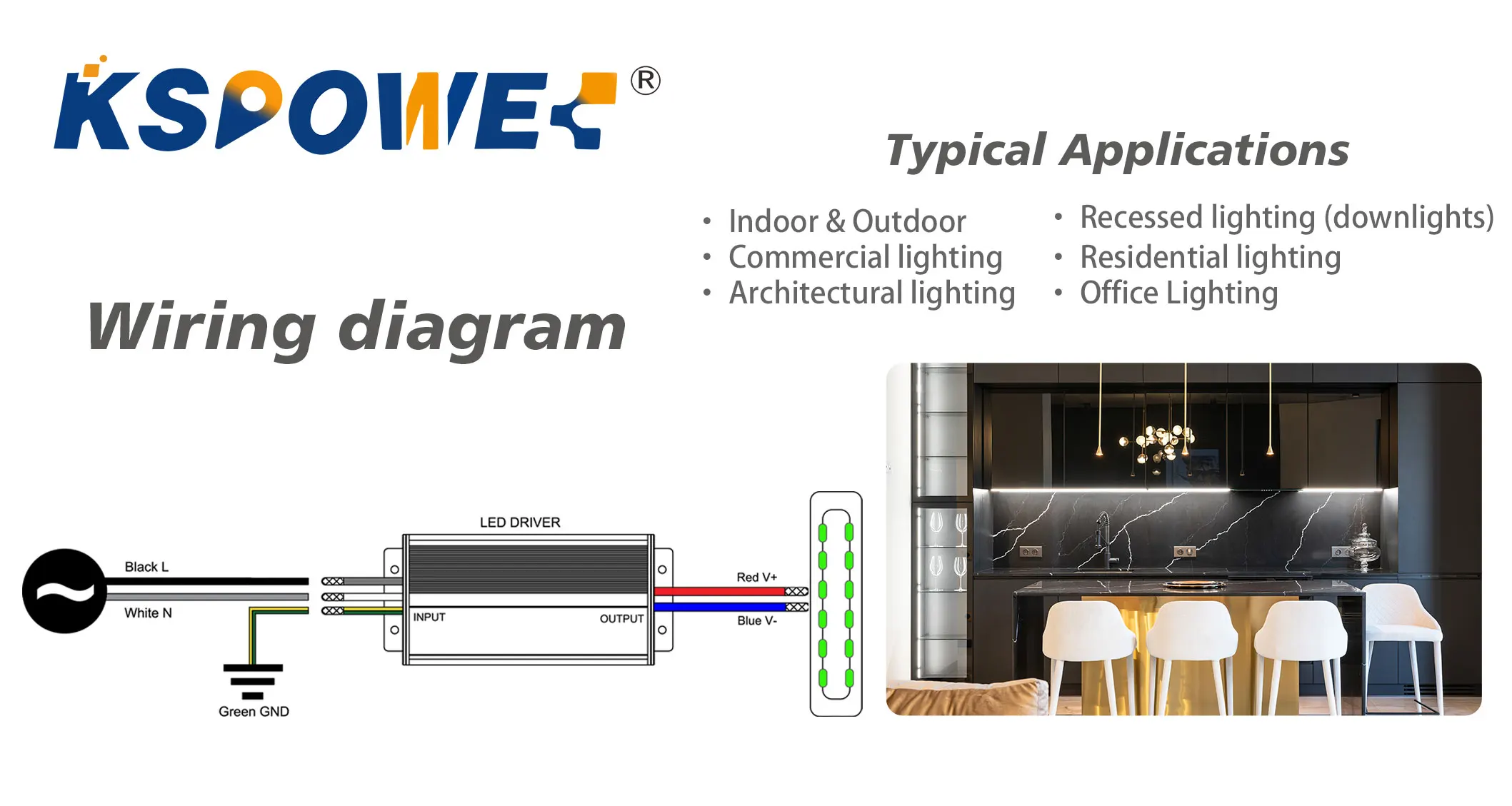

Connect Drawing

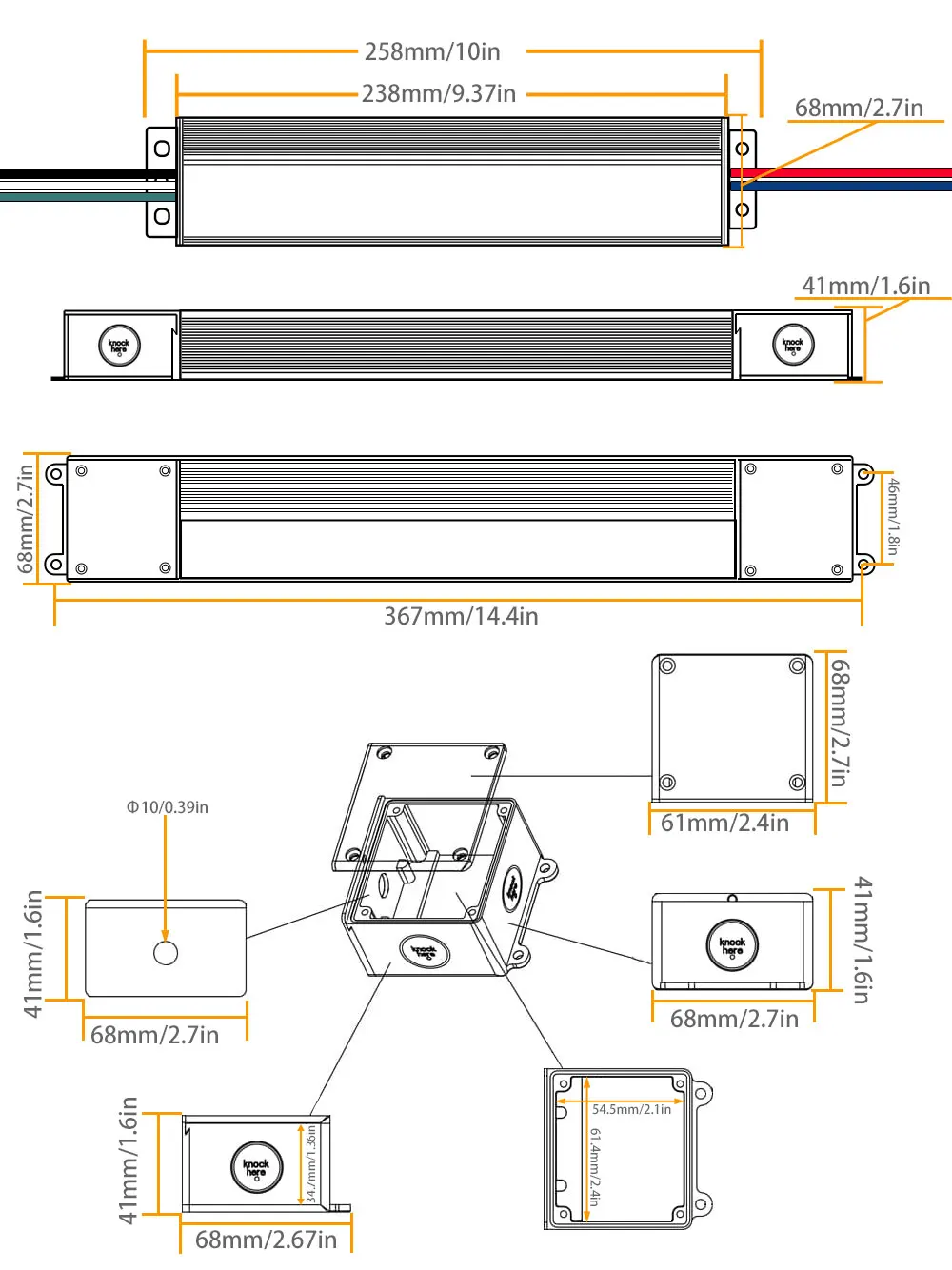

Dimension Drawing
Product Packaging
1. Each one put in one small inner brown box, then 15 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 15 | 1.46 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
382*74*45 | 400*400*165 | 22.5 | ||||
Applications
The led dimming power supply use low profile metal aluminum case with or without junction box makes the dimmable led driver solutions perfectly suitable for LED strips, LED sign, billboard and landscape lightings.
