4G LTE 5G Outdoor Router Dual Band WIFI 6 2.4G 5.8G Waterproof IP65 Omni directional 4*4 MIMO Antenna 5G Modem
- Category: >>>
- Supplier: SHENZHEN SUNCOMM INDUSTRIAL CO. LTD.
Share on (1600922980800):
Product Overview
Description
Recommend Products
Why Choose Us
Product Details
Product overview |
5G & WiFi-6 intelligent wireless access router (CPE), developed based on a new hardware platform, can meet the growing access needs of mobile terminals and IOT nodes, and can greatly improve the user's wireless Internet experience. CPE is fully compatible with NSA/SA dual mode and conforms to the network access standard of telecommunication products of the Ministry of industry and information technology. Provide up to Gigabit air optical fiber access capability to meet the transmission bandwidth requirements of VR/AR/4GK/8K online video streams. |
5G cellular network access |
Integrated with Qualcomm snapdragon SDX55 baseband, it provides excellent 5G network access capability. Support the true 5G standard of all Netcom, and you can access Gigabit Internet by inserting SIM card. |
WiFi6 (802.11ax) enhancement technology |
OFDMA and DL MU-MUMI technologies provide more stable and high-speed wireless transmission channels, synchronously schedule multiple users to send and receive in parallel, reduce network delay, and improve network utilization efficiency. |
More space flow, more capacity |
Dual band 4 spatial streams, with a bandwidth of 1800Mbps (600+1200), let you enjoy UHD streaming video and real-time online games without worry. At the same time, it provides more access capabilities of mobile terminals to meet the full scene access needs of rich nodes in the future smart home. |
Seamless roaming under mixed backhaul |
You can freely choose MESH networking mode through wired backhaul and wireless backhaul to meet the simple deployment in various indoor scenes. At the same time, the seamless roaming function ensures that you get a more stable wireless connection in the mobile state. |
5G network |
1. 5G module: Qualcomm ® Snapdragon ™ X62 Modem-RF System |
2. 5G network mode: SA (standalone), NSA (non standalone) |
3. 5G NSA band: N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/N25/N26/N28/N29/N30/N38/N40/N41/N48/N66/N70/N71/N75/N76/N77/N78/N79 |
4. 5G SA band: N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/N25/N26/N28/N29/N30/N38/N40/N41/N48/N66/N70/N71/N75/N76/N77/N78/N79 |
5. 5G protocol: 3GPP release 15 |
6. 5G SA speed: 2.1gbps/900mbps (up to ISPs) |
7. 5G NSA speed: 2.5Gbps/650mbps (up to ISPs) |
8. Antenna type: built-in 5G/4G main and diversity antennas |
4G LTE network |
1、LTE Category：Down Cat 16/ UP Cat 18 |
2、LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
3、LTE-TDD：B34/B38/B39/B40/B41/B42/B43/B48 |
4、LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66 |
5、WCDMA:B1/B2/B4/B5/B8/B19 |
6、LTE : Down 1.0 Gbps； UP 200 Mbps |
Wireless WiFi |
1. Radio frequency: #1: 600mbps @ 2.4GHz# 2: 1200Mbps @ 5.0-5.8GHz |
2. Code modulation technology: 1024-QAM / OFDMA |
3. Peak connection performance: not less than 100 terminals |
4. Wi Fi standard: WiFi 6 downward compatible with WiFi 5 |
5. Antenna type: built in 4 high-performance Wi Fi antennas |
Route switching |
1. Mobile network (5G/4G) access (supporting private network) |

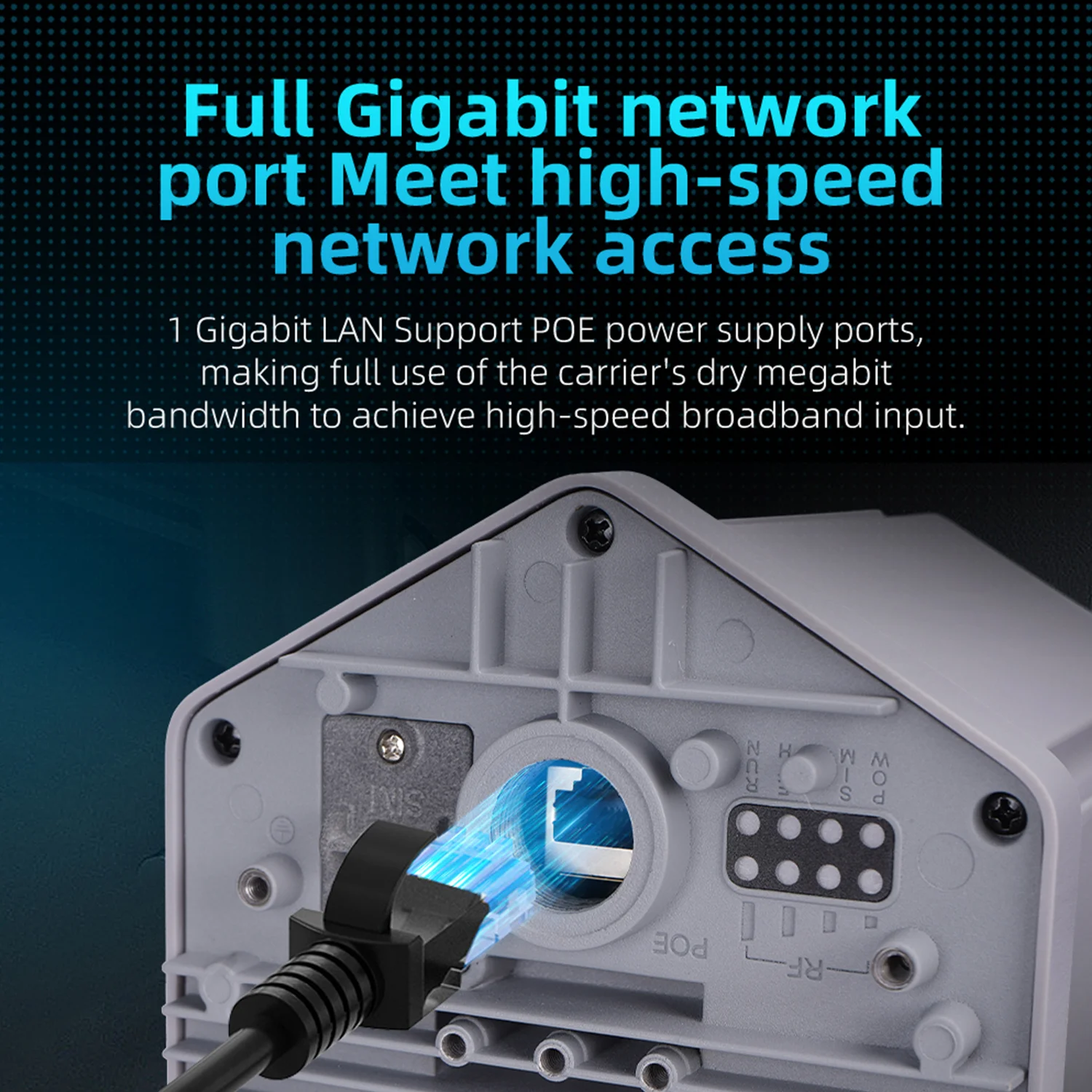

2. Gigabit Ethernet access |
3. Cascade Technology: MESH+ hybrid networking |
4. 2.4G/5Ghz WiFi adaptation |
5. Advanced firewall |
6. MAC address filtering |
7. WiFi encryption authentication |
8. VPN tunnel /VPN penetration |
9、IPV4/IPV6 |
10. Web page /App management |
11. Firmware upgrade |
12、TR069 |
Compulsory/Consistency Certification |
GCF/ PTCRB/ CE/ Anatel*/ CCC/ RCM/ IC/ FCC/ JATE*/ TELEC*/ KC*/ NCC* |
Operator certification |
T-Mobile/ Verizon*/ AT&T*/ NTT DOCOMO*/ Deutsche Telekom*/ Telstra* |
