Product Overview
Description
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

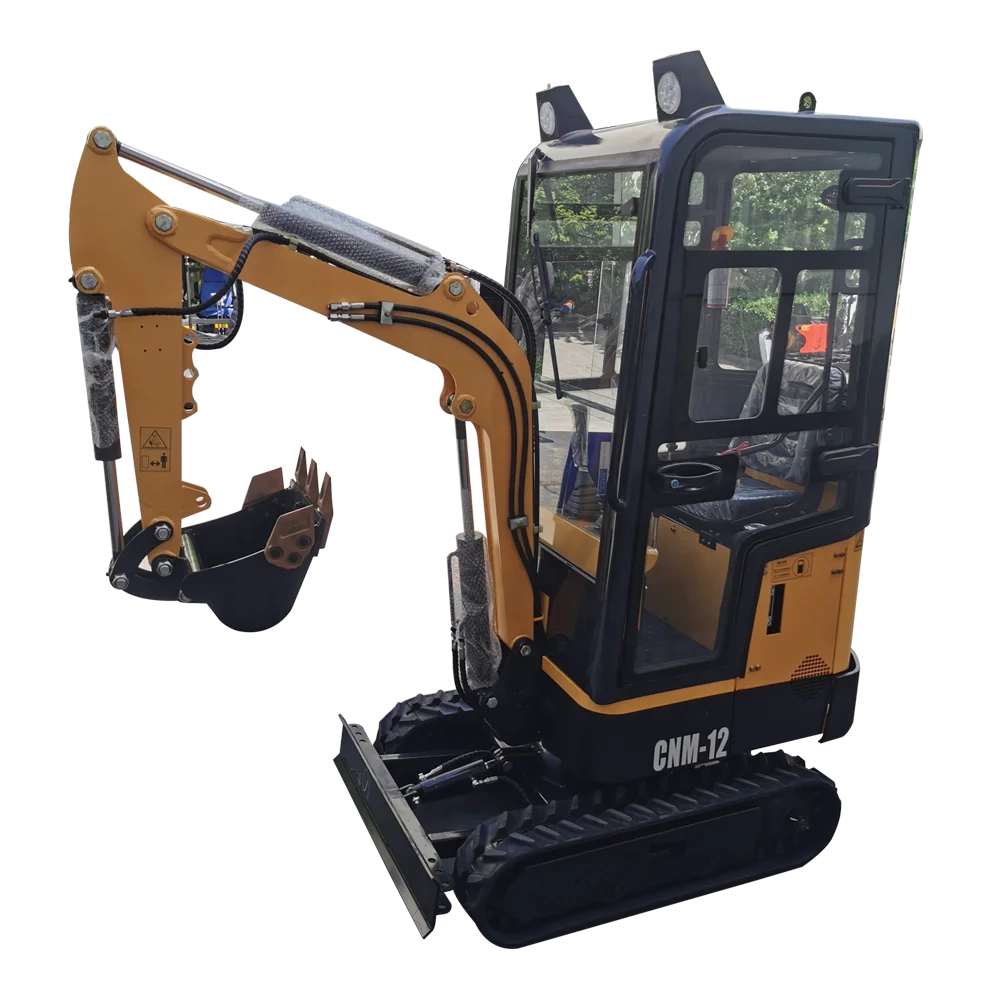

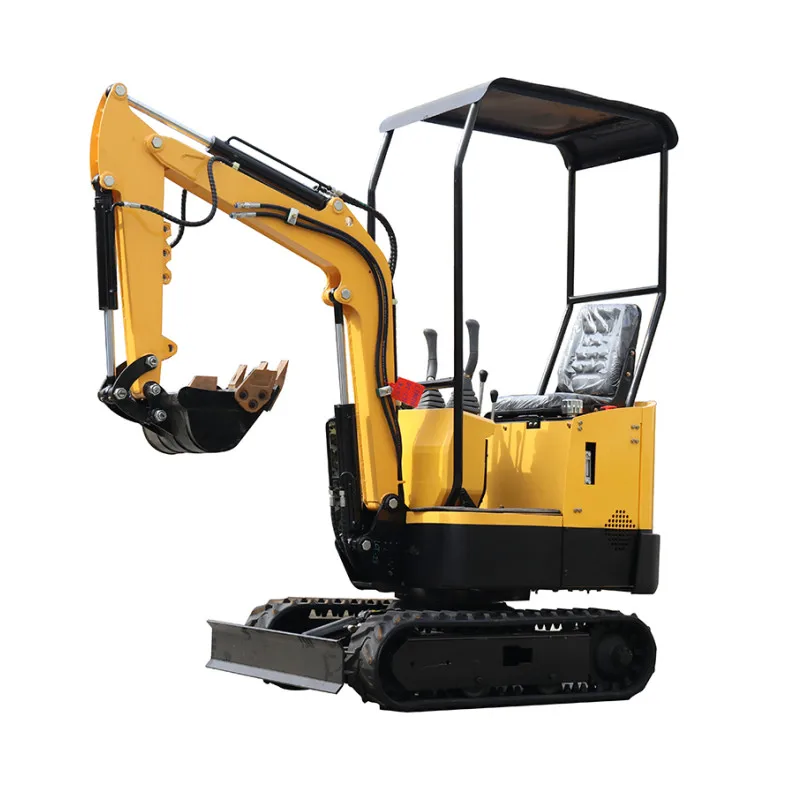

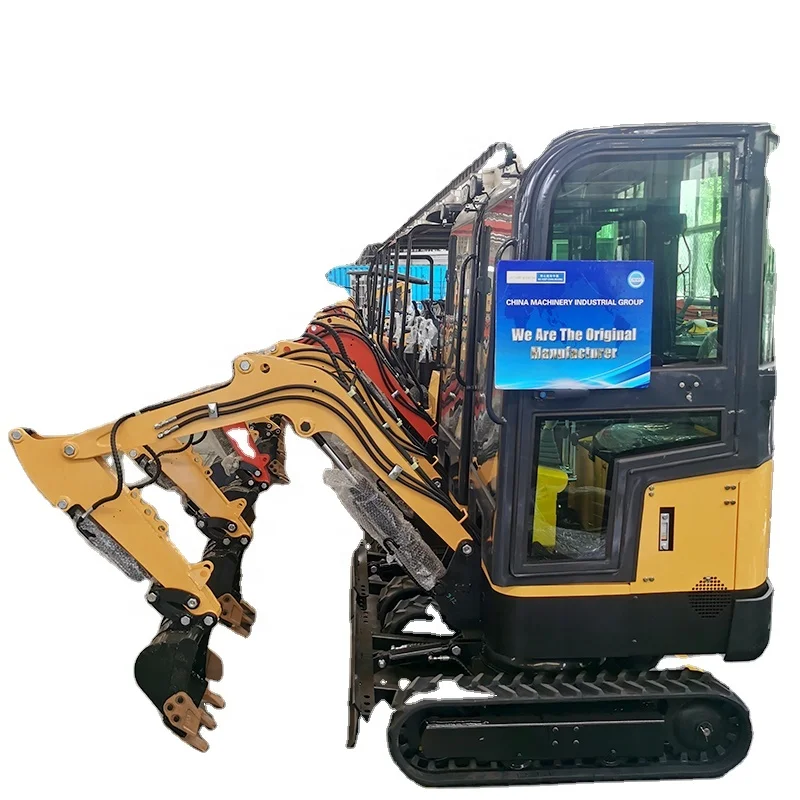

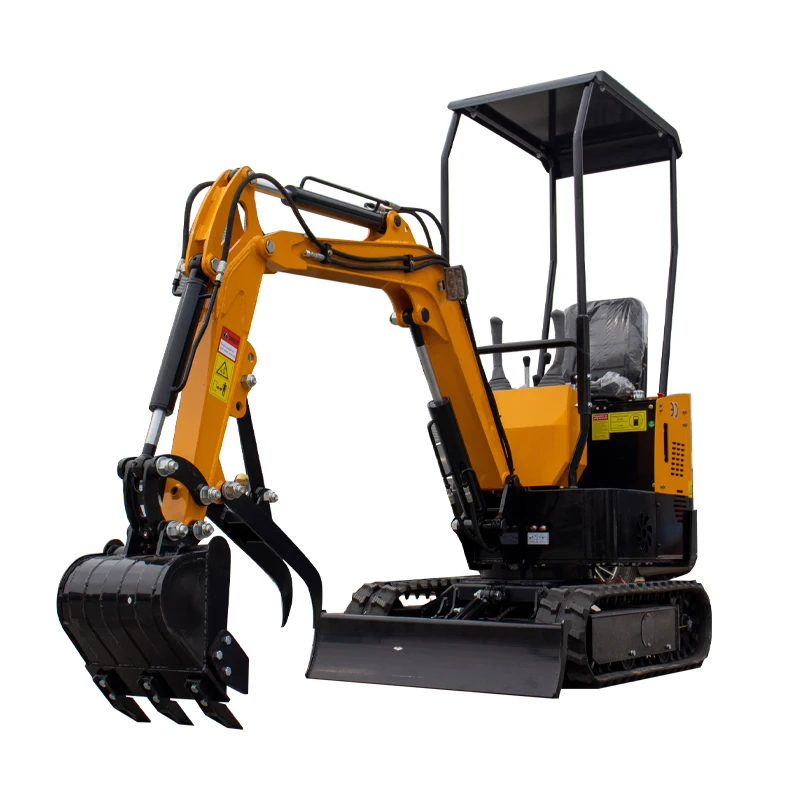

Model | CNM-12 |
Manufacturer | CHINA MACHINERY ENGNEERING MACHINERY CO.,LTD |
Opereting Weight | 1200kg |
Digging Bucket Capacity | 0.025cbm/120kg |
Bucket width | 380mm |
Engine | CHANGCHAI（192FAM） |
Rated power | 8.6kw/3600r/min |
Displacement | 6.8ml/r |
Bore stroke | Single cylinder, fan cool |
Main pump | G5-6 |
Displacement | 6.8ml/r |
Swing motor | SANYANG (BMRS-250) |
Traveling motor | SANYANG（BMT-245） |
Travel speed | 2.2km/h |
MAIN DEMENSIONS | |
Overall dimension LxWxH | 2876x850x2219 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Piltform ground cearane | 380 mm |
Platform back tuning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassisground ciarance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max.digging depth | 1787mm |
Max. Vertical diging depth | 1626 mm |
Max.digging height | 2550 mm |
Max. Dumping height | 1850 mm |
Max. Digging redius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
With power track, torque, start low speed,suitable working in the soft,potholes and geolagical condition.
Braking performance is smooth,to avoid the impact of the dumper during the start-up, braking to reduce the damage of parts and improve the driver's comfort.
Tetrahedral cab, wide field of vision equipped with shock-absorbing seats, driving comfort.
The dynamic load and impact resistance,the rear axle and suspension are strengthened.
