Ruiyuan reflux vacuum extractor
- Category: >>>
- Supplier: Shanghai Ruiyuan Michinery Co. Ltd.
Share on (1600923137315):
Product Overview
Description
Product Description
Equipment advantages:
1. This equipment Shanghai manufacturer extraction machinery herbal plant extract machine has excellent
1. This equipment Shanghai manufacturer extraction machinery herbal plant extract machine has excellent

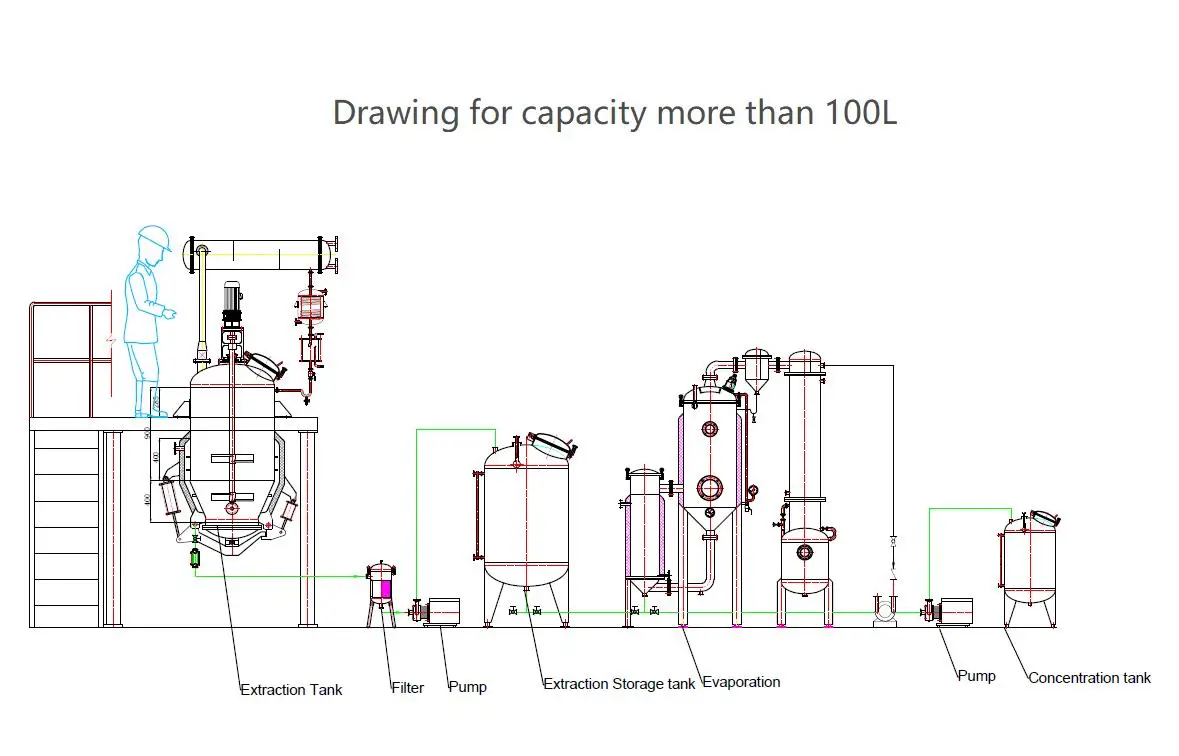

manufacture,completecollocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid
material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric
heating,the user can operate it only to engage the steam or electricty.
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric
heating,the user can operate it only to engage the steam or electricty.
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is
espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the
processing to enhance the production efficiency and quality.
espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the
processing to enhance the production efficiency and quality.
Specification
Technology and parameter | ||||||||||
Model | RY-NSG-30 | RY-NSG-50 | RY-NSG-100 | RY-NSG-200 | RY-NSG-500 | |||||
Volume (L) | 30 | 50 | 100 | 200 | 500 | |||||
Evaporation capacity (kg/h) | 20 | 30 | 50 | 70 | 200 | |||||
Motor power(KW) | 2.7 | 2.7 | 2.7 | 2.7 | 3.5 | |||||
Steam consumption(kg/h) | 20 | 25 | 60 | 90 | 240 | |||||
System vacuum (MPa) | -0.085 | -0.085 | -0.085 | -0.085 | -0.085 | |||||
Pressure of jacket(MPa) | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | 0.09~0.3 | |||||
Compressed air (MPa) | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | |||||
Evaporation temperature(°C) | 50~90 | 50~90 | 50~90 | 50~90 | 50~90 | |||||
Company Profile
Certifications
Packing & Delivery
FAQ
1. who are we?
We are based in Shanghai, China, start from 2011,sell to North America(20.00%),South America(10.00%),Southeast
Asia(10.00%),Africa(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Domestic Market(10.00%),Central
America(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
essential oil distiller,herb extraction tank,concentration machine,lab spray dryer,fall film evaporator
4. why should you buy from us not from other suppliers?
Ruiyuan Machinery--High-tech Enterprise Professional--Made high quality Service--To customer satisfaction
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English
We are based in Shanghai, China, start from 2011,sell to North America(20.00%),South America(10.00%),Southeast
Asia(10.00%),Africa(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Domestic Market(10.00%),Central
America(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
essential oil distiller,herb extraction tank,concentration machine,lab spray dryer,fall film evaporator
4. why should you buy from us not from other suppliers?
Ruiyuan Machinery--High-tech Enterprise Professional--Made high quality Service--To customer satisfaction
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English
