Wood MDF Edge Bander Oblique Bevel Straight Line Woodworking Panel PVC Furniture Cabinet Automatic Edge Banding Machine
- Category: >>>
- Supplier: Zhengzhou The Right Time Import And Export Co. Ltd.
Share on (1600923169385):
Product Overview
Description
Products Disply
Fully automatic beveled edge and straight edge dual-purpose edge banding machine

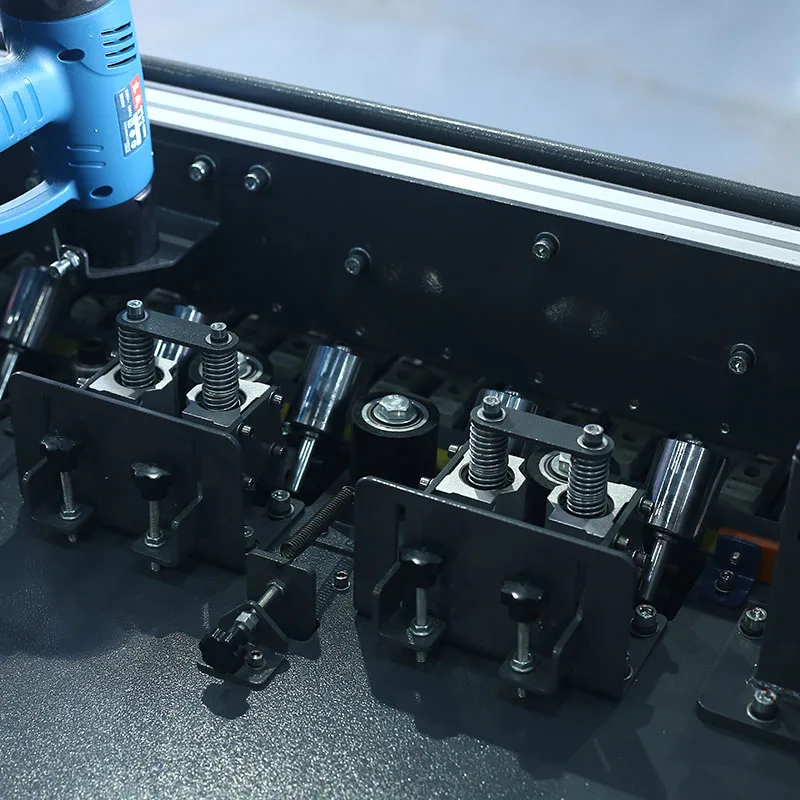

The machine has a 45-degree sawing unit, which crushes and cuts the beveled edge outside the reserved straight edge; adopts the principle of one-time straight edge and beveled edge coating at the same time to achieve a perfect glue coating effect, and assembles two sets of pressure wheels to match the beveled edge and the beveled edge. Straight edge for pressing;
Use edge band slotting to slot and form the parts that need to be combined to achieve clear edge angles on the edge banding surface;
It has a hot air auxiliary unit, which can soften the edge band and heat the rubber surface twice to make the effect more perfect;

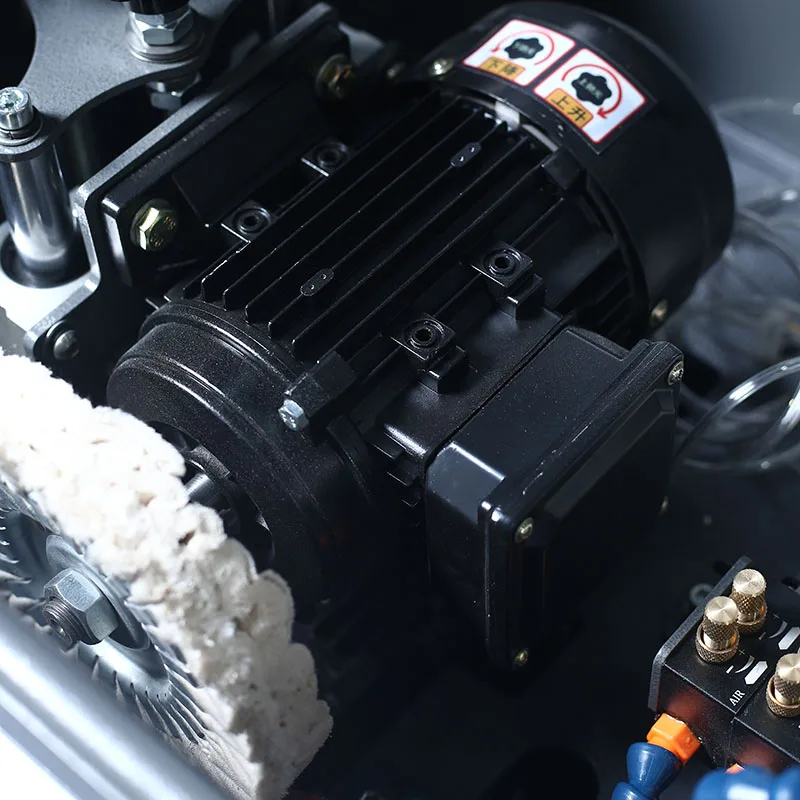

The machine also has the functions of end cutting, fine trimming, scraping and polishing, which can achieve perfect beveled edge banding effect at one time.
It mainly produces panel-type furniture edge-banding workpieces. It is suitable for melamine boards, medium-density boards, and plywood (plywood). Various types of edge banding can be used, including: PVC/ABS/acrylic (straight edge sealing) and other edge banding materials.
The machine has a 45-degree sawing unit, which crushes and cuts the beveled edge outside the reserved straight edge; adopts the principle of one-time straight edge and beveled edge coating at the same time to achieve a perfect glue coating effect, and assembles two sets of pressure wheels to match the beveled edge and the beveled edge. Straight edge for pressing;
Use edge band slotting to slot and form the parts that need to be combined to achieve clear edge angles on the edge banding surface;
It has a hot air auxiliary unit, which can soften the edge band and heat the rubber surface twice to make the effect more perfect;
The machine also has the functions of end cutting, fine trimming, scraping and polishing, which can achieve perfect beveled edge banding effect at one time.
It mainly produces panel-type furniture edge-banding workpieces. It is suitable for melamine boards, medium-density boards, and plywood (plywood). Various types of edge banding can be used, including: PVC/ABS/acrylic (straight edge sealing) and other edge banding materials.
Product Parameters
Edge speed | 0-12m/min | Edge banding sheet thickness | 18-45mm |
Voltage | 380v | Power | 8.9kw |
Working pressure | 0.5-0.7Mpa | Glue pot capacity | 4000ml |
Bevel Angle | 30°-90° | Edge motor | 0.12kw |
Glue pot heating | 2kw | Oven lamp heating | 2kw*2 |
Slotting motor | 65w | Trimming motor | 2.2kw*2 |
Milling motor | 2.2kw | Polishing Motor | 0.37kw*2 |

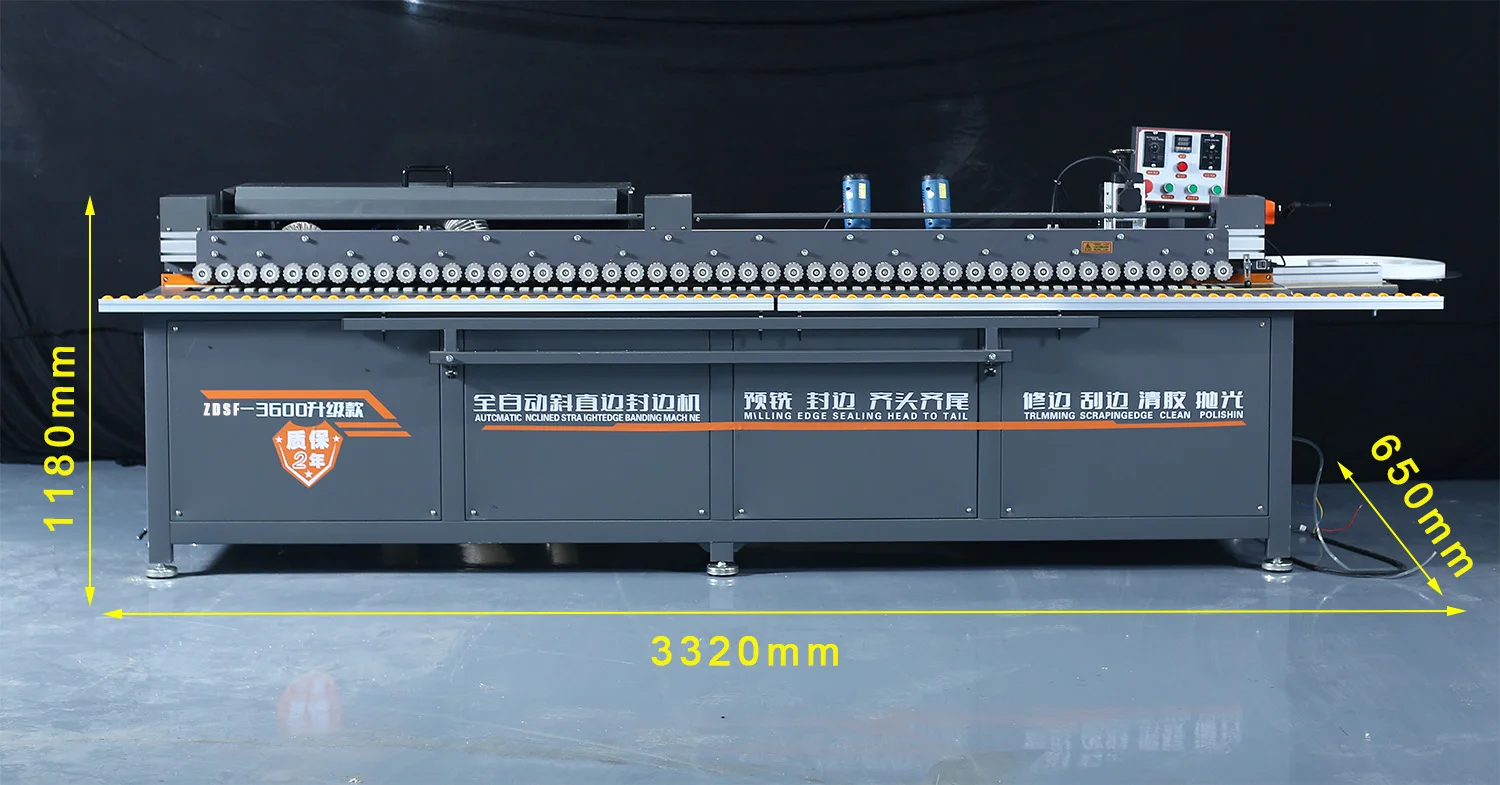

Size | 3320*650*1180mm | Weight | 450kg |
Product details
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co., Ltd. designated procurement channels for China Construction Overseas Projects, and is mainly involved in woodworking machinery, construction machinery, machinery accessories, engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao, Foshan City.
Combining advanced woodworking production technology and experience at home and abroad, in order to better serve woodworking machinery and support the woodworking industry, we have successively developed, designed and manufactured various type of portable and sliding table saws, the whole house customization straight and curved edge bander, trimming machine, C N C nesting machine, C N C wood router, C N C six-sided drilling and milling processing center, C N C side holes drilling machine, industrial automatic edge banding machine, hinge hole drilling machine, panel saws and other woodworking best-selling products. The products are exported to Europe, America, Southeast Asia, Kazakhstan, Vietnam, India, Brazil, Peru, and other regions and countries.
In line with the company philosophy of customer first and pursuit of excellence, the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience, with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Combining advanced woodworking production technology and experience at home and abroad, in order to better serve woodworking machinery and support the woodworking industry, we have successively developed, designed and manufactured various type of portable and sliding table saws, the whole house customization straight and curved edge bander, trimming machine, C N C nesting machine, C N C wood router, C N C six-sided drilling and milling processing center, C N C side holes drilling machine, industrial automatic edge banding machine, hinge hole drilling machine, panel saws and other woodworking best-selling products. The products are exported to Europe, America, Southeast Asia, Kazakhstan, Vietnam, India, Brazil, Peru, and other regions and countries.
In line with the company philosophy of customer first and pursuit of excellence, the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience, with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
Q3: What is your delivery time?
A1:You can order online , Or Email us your details, and we will contact you immediately and help you proceed with the orders.
Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes, we will give you best support according to your quantity.
Q3: What is your delivery time?
A3:Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.
Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.
Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.
Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
Q7:What payment do you accept?
A7:Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
A7:Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
