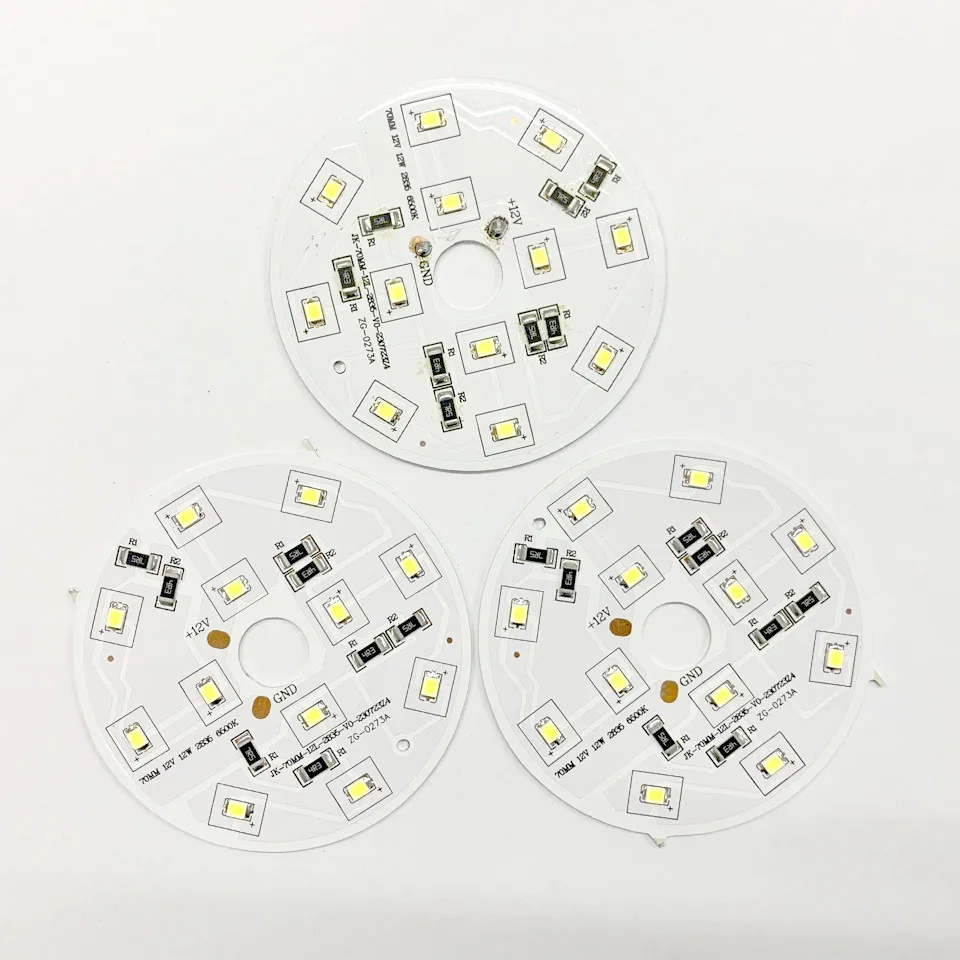

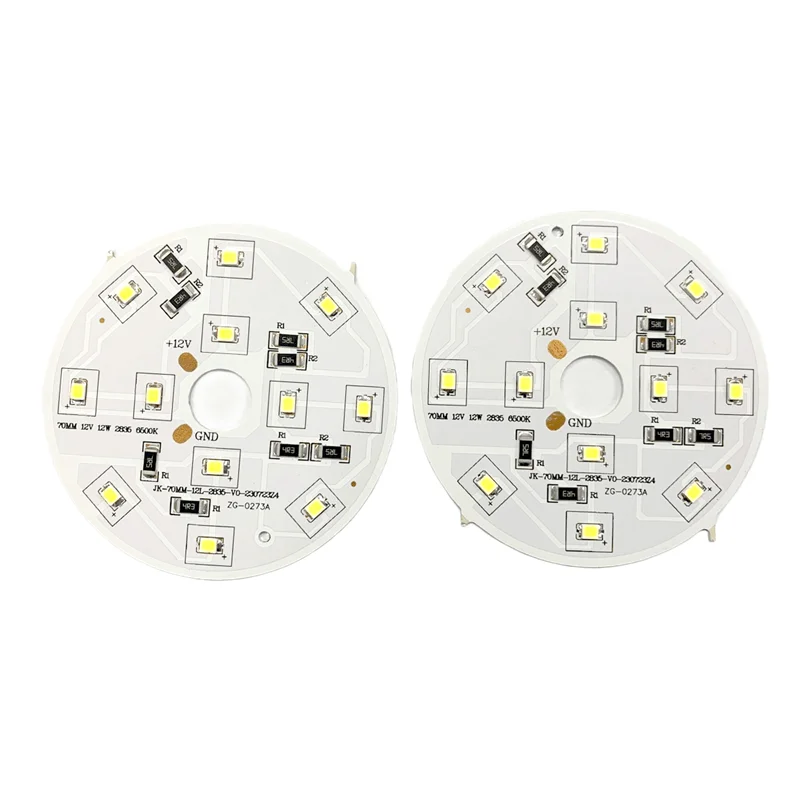

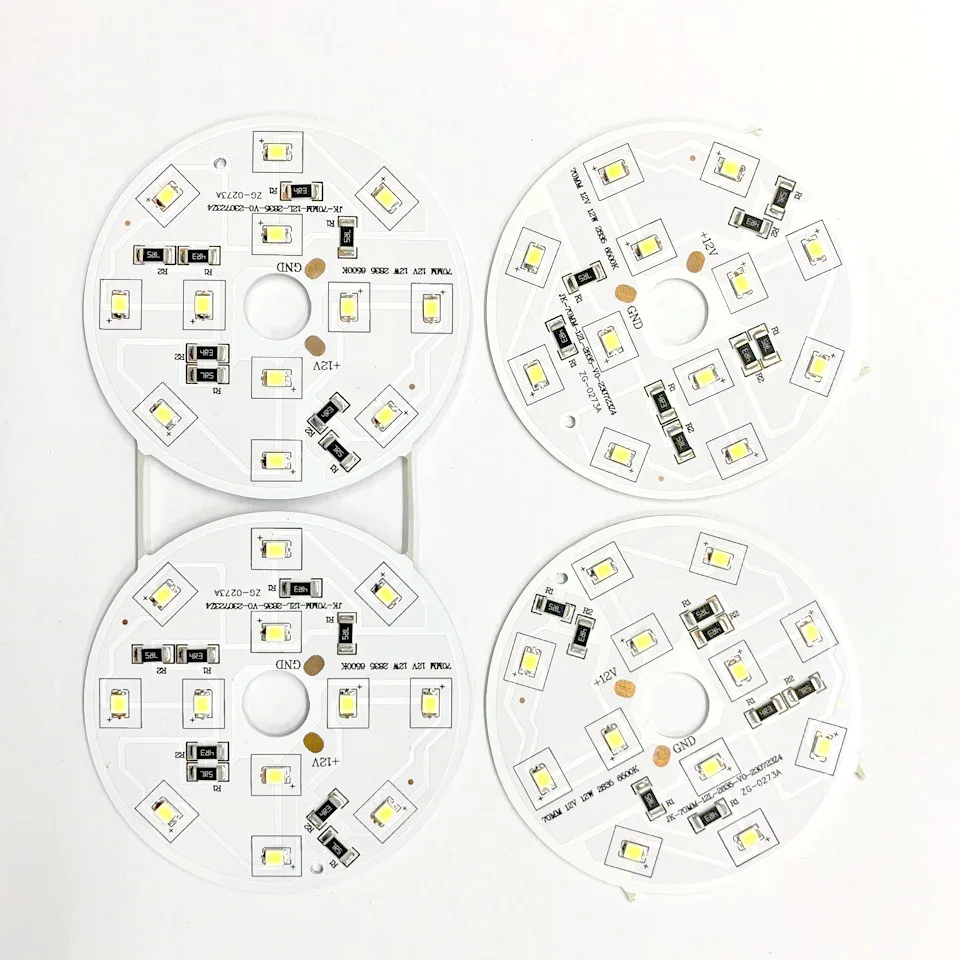

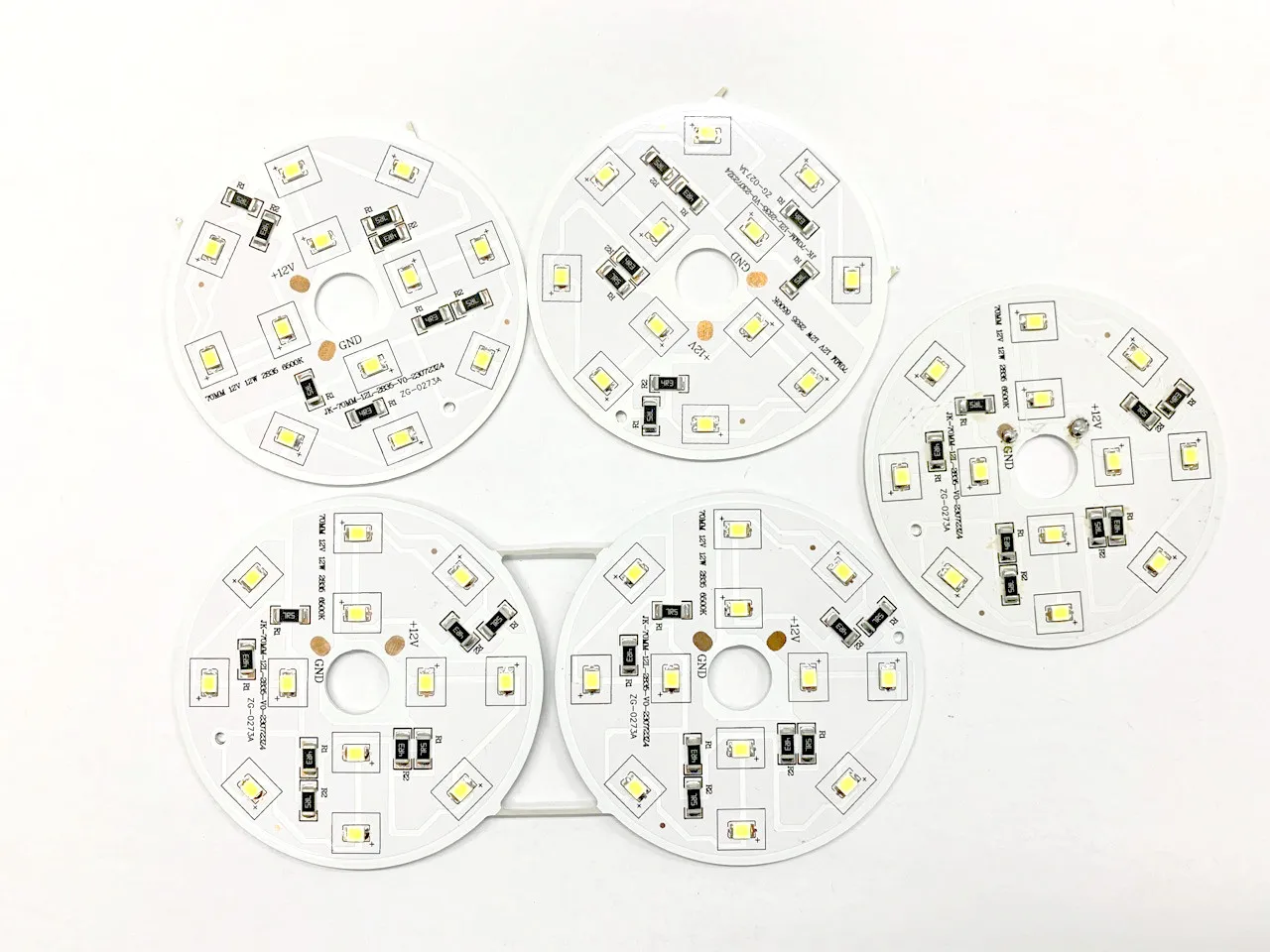

Aluminum Round PCB Light Board 12V 12W 2835 SMD Chip 7000K White Emitting Color RGB LED Module Lighting
- Category: >>>
- Supplier: Demo Photoelectric Technology (Wuxi) Co. Ltd.
Share on (1600923264111):
Product Overview
Description
Product Description
Aluminum Round PCB Light Board 12V 12W 2835 7000K White Emitting Color RGB LED Module Lighting
Custom Design! Patent Technology! High Reliability!
Specification
item | value |
Color Temperature(CCT) | 7000K (Daylight Alert) |
Input Voltage(V) | 12V |
Type | LED Modules |
Lighting solutions service | Lighting and circuitry design, auto CAD layout |
Luminous Efficacy(lm/w) | 151 |
Emitting Color | White |
Luminous Intensity | 151 lm/W |
Luminous Flux(lm) | 1627 |
Optical Attenuation(%) | 5 |
Power | 12W |
Power Dissipation | 12W |
Color Rendering Index(Ra) | 80 |
Color Temperature | 7000K |
Place of Origin | China |
Jiangsu | |
Brand Name | Demo |
Input Voltage | 12V |
Power Consumption | 12W |
Color rendering index | Ra 80 |
Size | D70mm*1.2mm |
Emitting Color | White color |
Peak Wavelength | 450nm |
LED Type | 2835 Led Chips |
LED QTY | 12pcs |
Color Temperature | 7000K |
Company Profile
Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding photoelectric products.
Our Vision: Win-win cooperation is the only way to business success in the long run!
Our Vision: Win-win cooperation is the only way to business success in the long run!
Workshop View
Certifications
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art technology.
Q2: What products you main business?
A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.

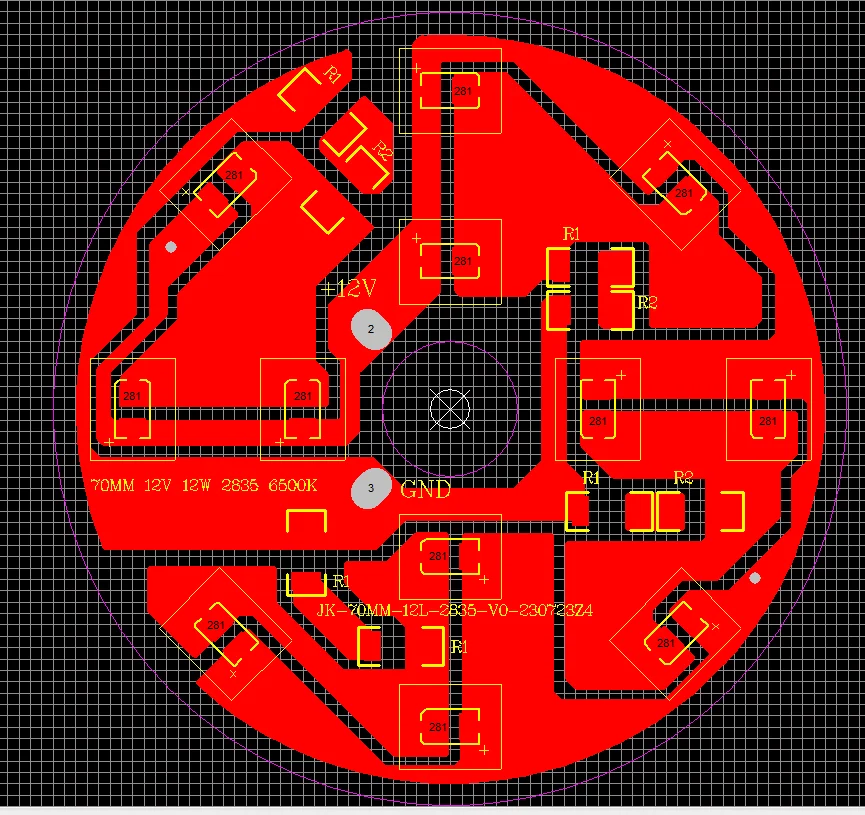

Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art technology.
Q2: What products you main business?
A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
