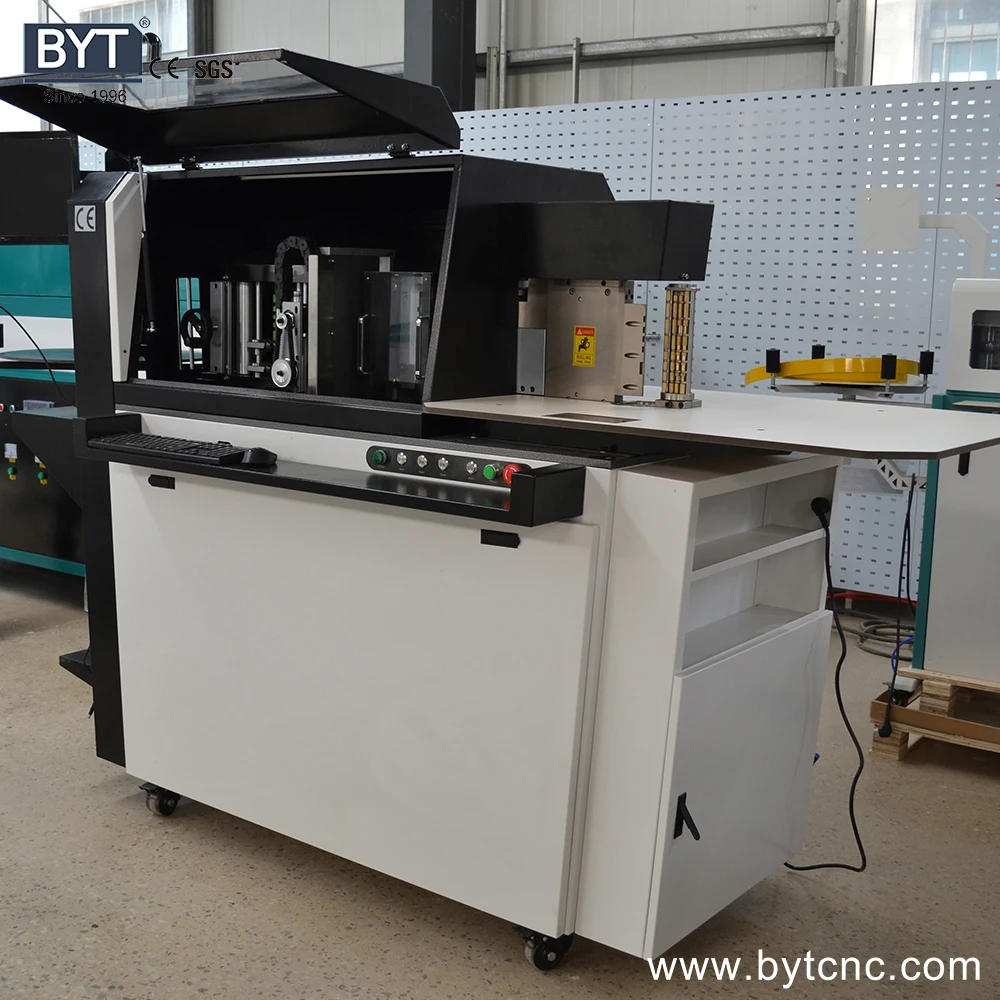

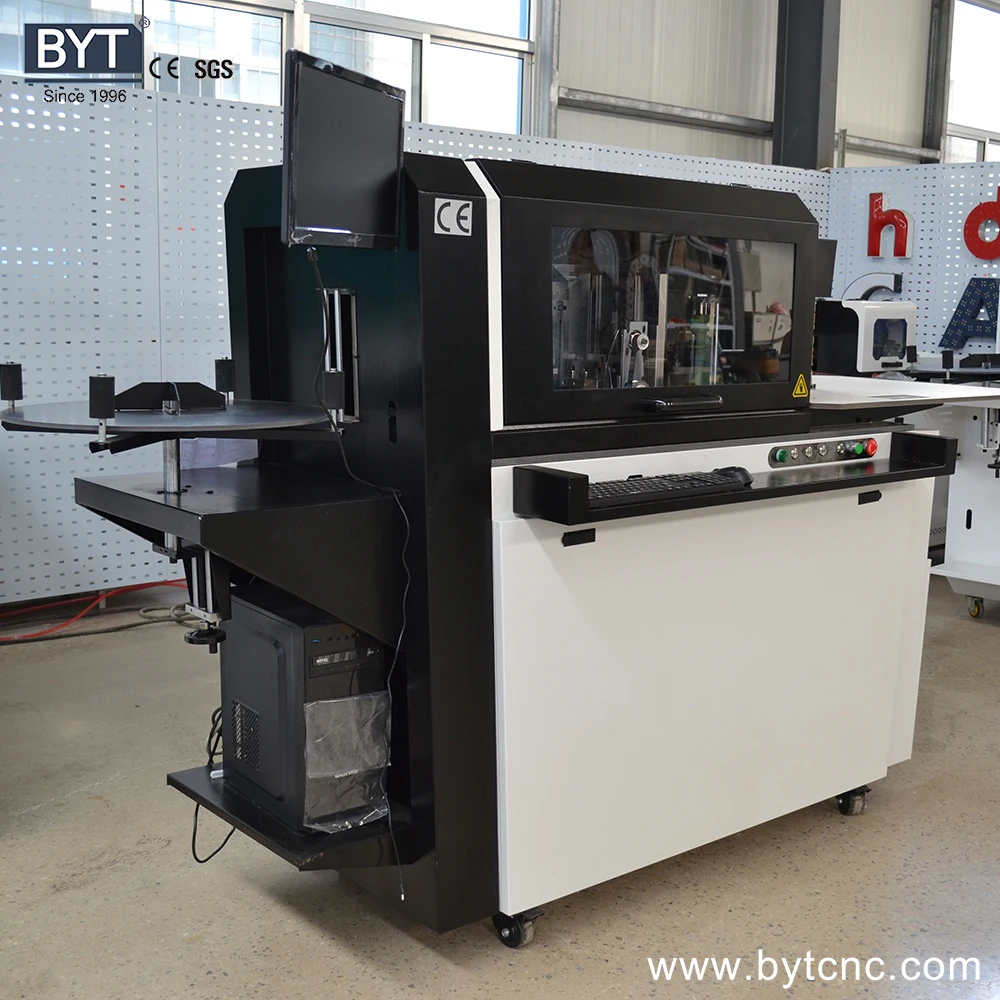

Aluminum Alloy Channel Letter Bending Machinery Bending Machine For LED Light Box signage
- Category: >>>
- Supplier: Shandong Char9 Technology Co. Ltd.
Share on (1600923280163):
Product Overview
Description
Products Information
Auto Channel Letter Bending Machine SS and Aluminum New Model Titanium Led Metal Steel Training Stainless Power Raw
Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry.
When the advertising company needs to do the luminous characters for the shops, it needs to use the channel letter bending machine to make the production.
The channel letter bending machine can process many materials ( aluminum profiles, aluminum strips, channelume, stainless steel, and galvanized iron ) and does not damage the material.
The processing precision is high and the speed is fast.
The material thickness and tool adjustments are all adjusted by software, more convenient and quick.
The application range of the Channel Letter Bending Machine is generally in the advertising industry.
When the advertising company needs to do the luminous characters for the shops, it needs to use the channel letter bending machine to make the production.
The channel letter bending machine can process many materials ( aluminum profiles, aluminum strips, channelume, stainless steel, and galvanized iron ) and does not damage the material.
The processing precision is high and the speed is fast.
The material thickness and tool adjustments are all adjusted by software, more convenient and quick.

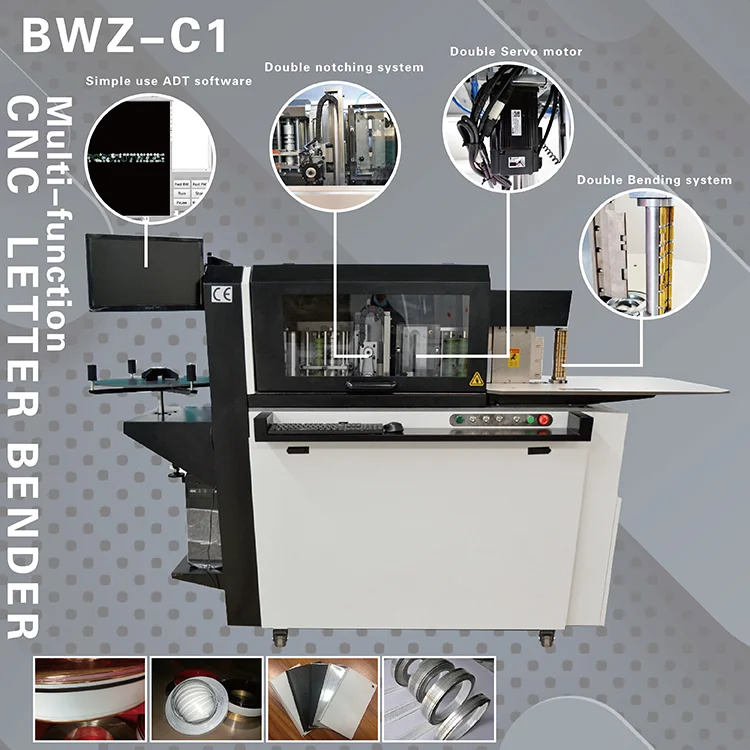

Technical datas:
Model | BWZ-C1 |
Function | Automatic feeding, slotting and bending |
Applicable Material (Alu=Aluminum) | Flat Stainless steel, Aluminum profile, Iron & Copperplate, Folding Aluminum profile, channelume |
Material Width | Flat Alu：≤160mm Folding Alu：≤160mm ;Channelume:70,90,110mm |
Material Thickness | Aluminum profile 0.3-1.5mm Stainless steel 0.3-1.2mm |
Bending Radius | R≥3.5MM |
Feeding | φ45mm feeding wheel+Guide material auxiliary+Encoder |
Slotting System | Milling cutter slotting + Planner slotting |
Bending | Coupled extrusion-Double copper shaft flat arc bender + lifting stainless steel arc bender |
Control System | ADT |
Power | 2000W |
Air Pressure | 0.6MPa |
Air Pressure | Dxf, Ai,Plt |
Working Voltage | 220V/ 50-60HZ/1P |
Net Weight(kgs) | 500 |
Overall Size(mm)(L*W*H) | 2680*880*1590mm |
1. Quality Guarantee
Whole machine guarantee 2 years, and the motor guarantee 3 years

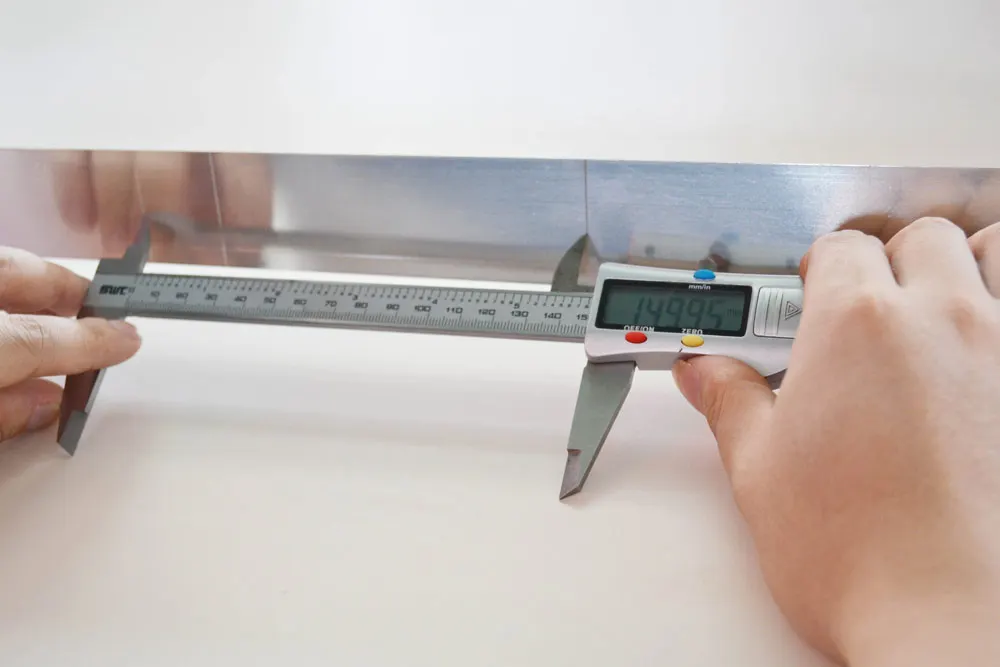

2. Processing material
Width: 10-160mm, Thickness: Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
2. Processing material
Width: 10-160mm, Thickness: Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
3. Machining parts 1
All machining parts be treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4. Machining parts 2

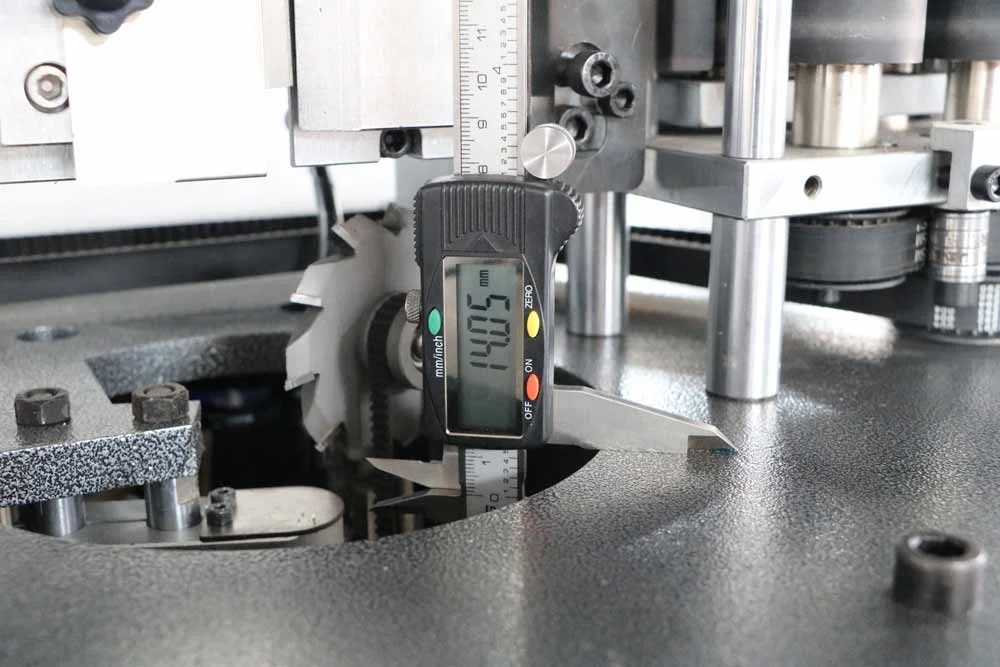

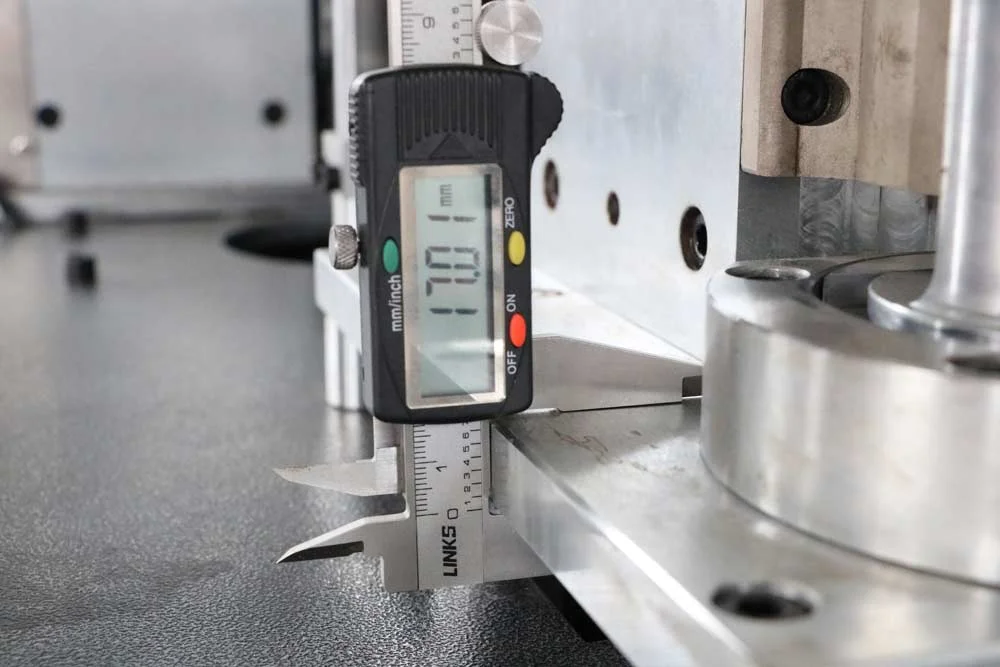

In the overall structure, the working platform uses a 14 mm whole plate dealing with three times plain grinding finish, and the internal workpiece thickness is 17 mm, ensuring long-term working stability and accuracy
All machining parts be treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4. Machining parts 2
In the overall structure, the working platform uses a 14 mm whole plate dealing with three times plain grinding finish, and the internal workpiece thickness is 17 mm, ensuring long-term working stability and accuracy

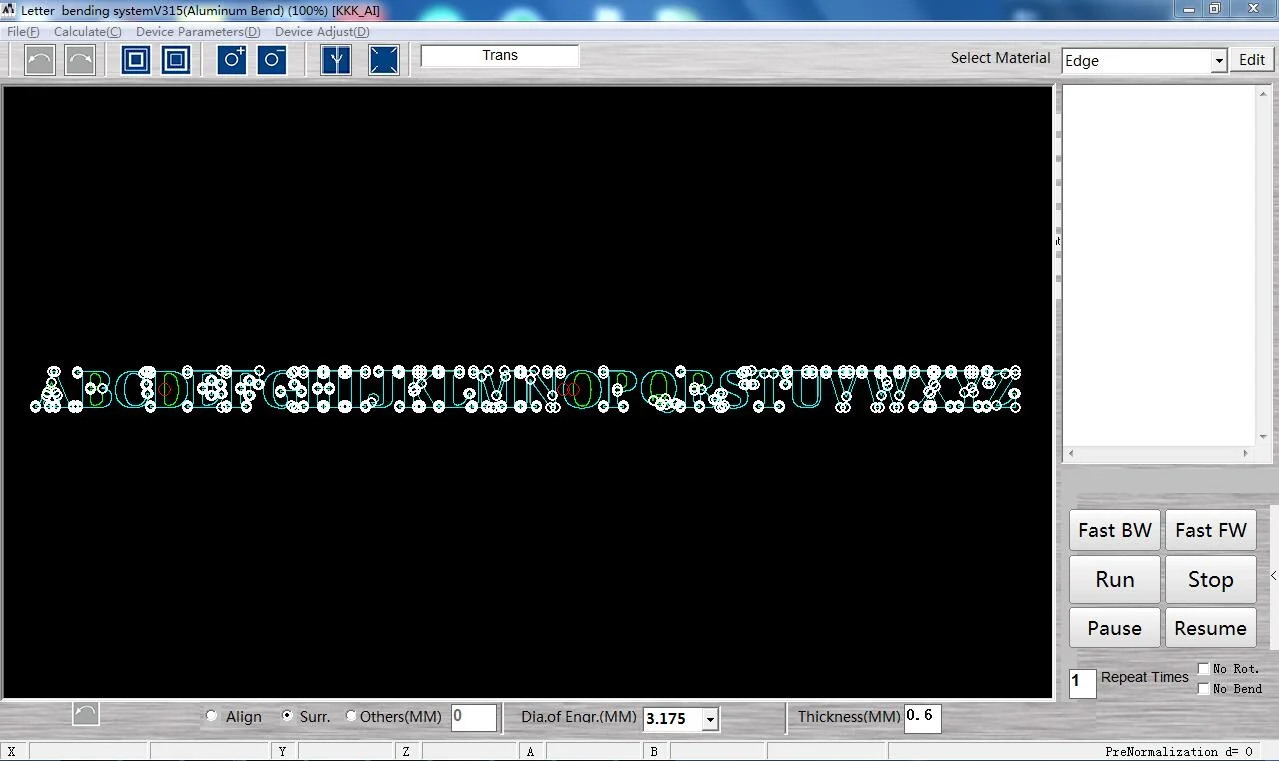

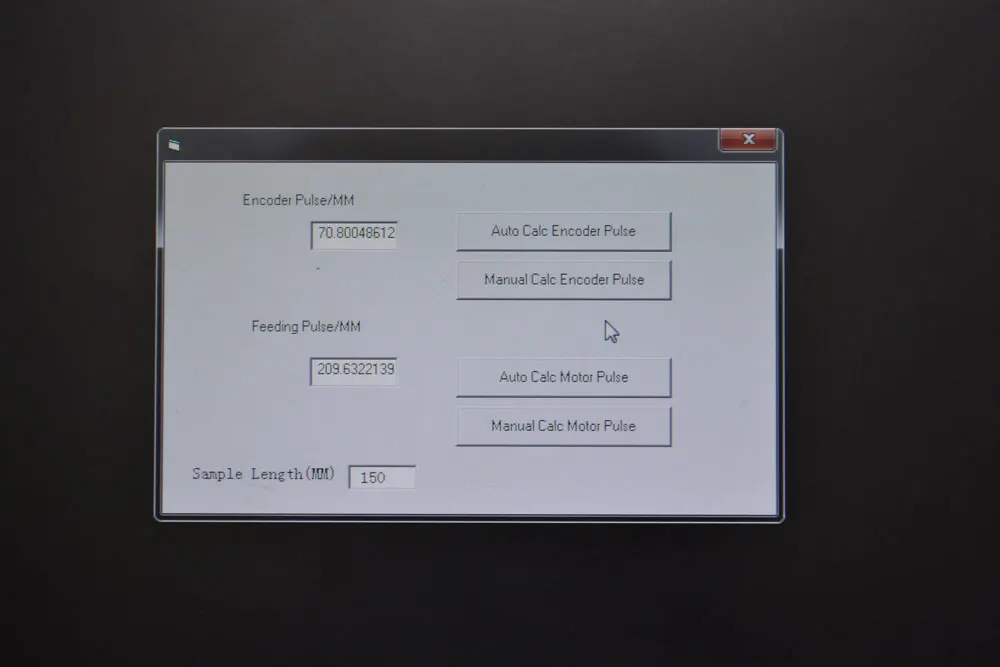

5. Easy operation ADT Control system with Length closed-loop control system
The software has a Length closed-loop control system, the length precision ≤0.1mm.
Meantime Independent development software systems can be updated according to customer needs and are easier to use.
The software has a Length closed-loop control system, the length precision ≤0.1mm.
Meantime Independent development software systems can be updated according to customer needs and are easier to use.
6. voltage digital display device
The motor and driver use the transformer with a voltage digital display device to replace the switching power, monitor the voltage situation, and remind the customer to do the corresponding treatment when the voltage is unstable.
7. Whole machine weight meets 530kgs and is more stable.

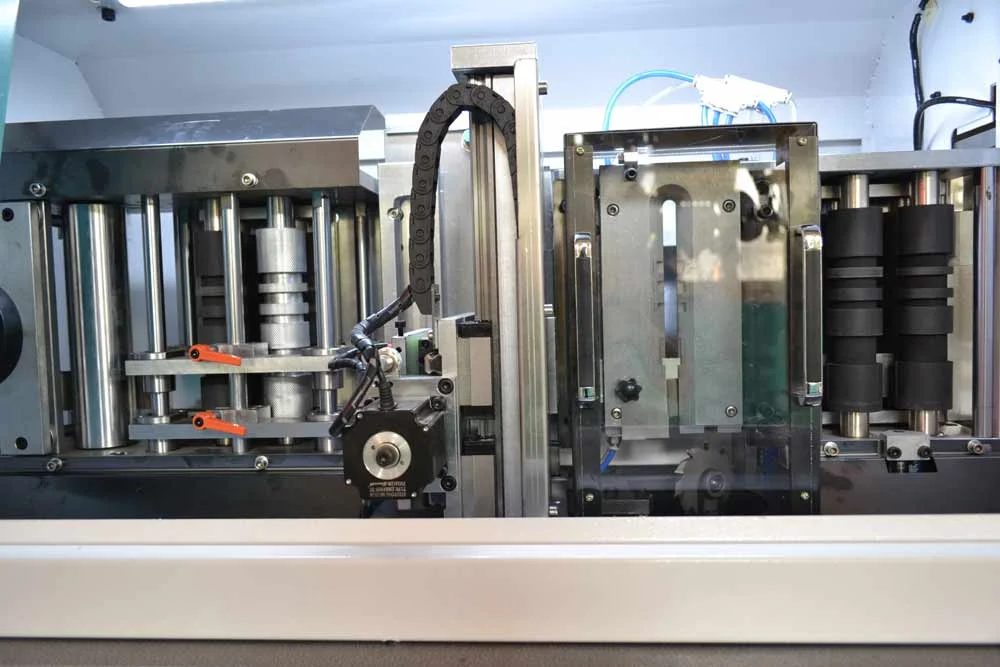

Feeding

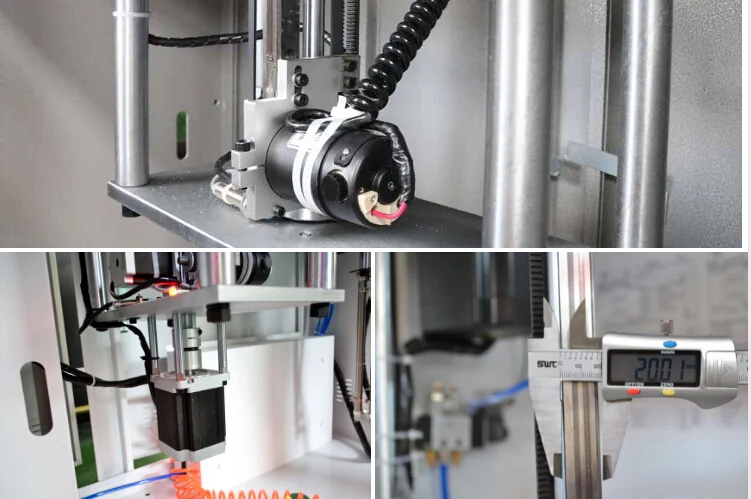

1. The feeding roller diameter is 45mm and the install encoder, precision, and speed are similar to the manipulator.
2. Install a return material control device that ensures the returned material's precision.

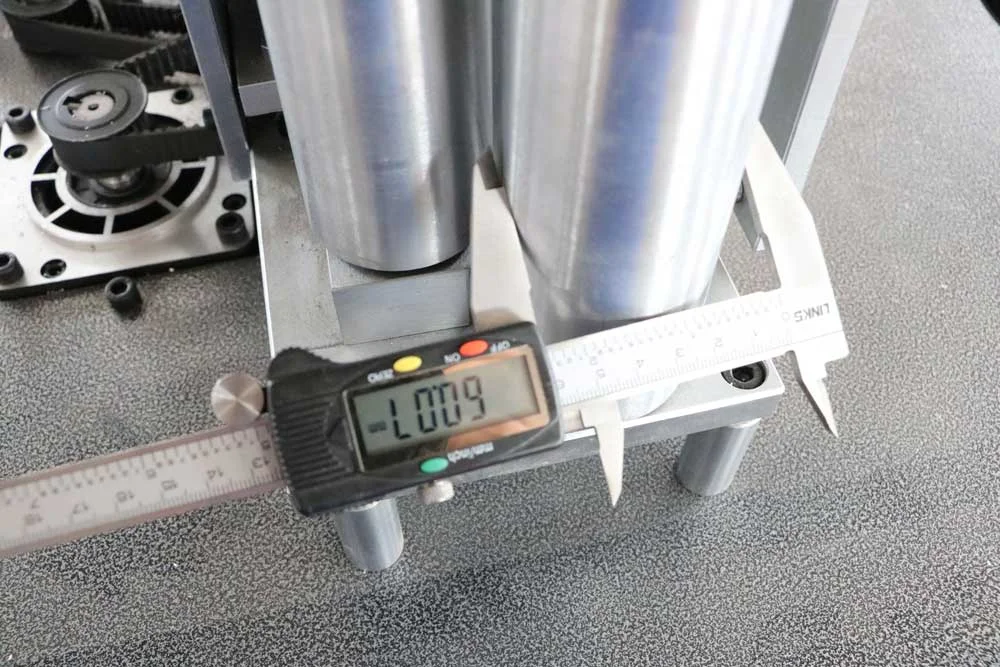

3. The guide roll diameter is 60mm and ensure the material more straight when feeding.
The motor and driver use the transformer with a voltage digital display device to replace the switching power, monitor the voltage situation, and remind the customer to do the corresponding treatment when the voltage is unstable.
7. Whole machine weight meets 530kgs and is more stable.
Feeding
1. The feeding roller diameter is 45mm and the install encoder, precision, and speed are similar to the manipulator.
2. Install a return material control device that ensures the returned material's precision.
3. The guide roll diameter is 60mm and ensure the material more straight when feeding.

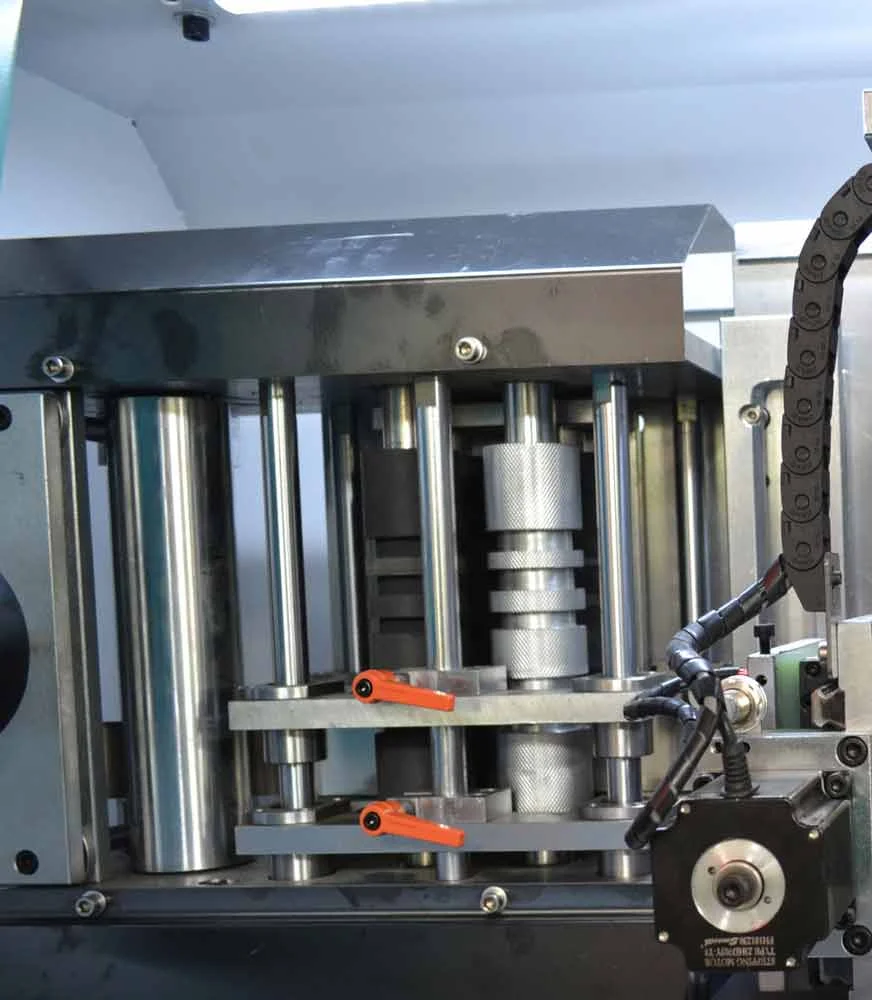

Aluminum notching
1. Aluminum cutting uses 20mm Taiwan PDF guide rails, and the knife is 75mm, which guarantees smooth cutting with fast rotating speed and a small cutting angle.
2. Cutting mode uses motor lifting control, is more stable, does not easily damage material, and noise small.
3. Use a four-column design to ensure the cutting is stable and effective.
1. Aluminum cutting uses 20mm Taiwan PDF guide rails, and the knife is 75mm, which guarantees smooth cutting with fast rotating speed and a small cutting angle.
2. Cutting mode uses motor lifting control, is more stable, does not easily damage material, and noise small.
3. Use a four-column design to ensure the cutting is stable and effective.

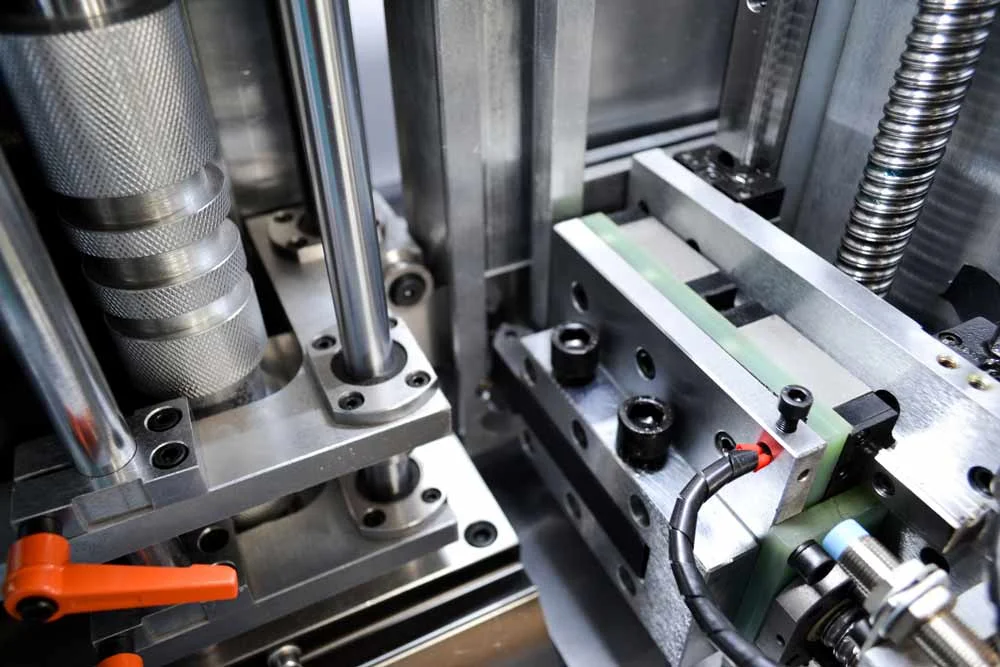

Stainless steel Notching
1. Planer has current induction automatic knife adjustment, very easy finish cutting depth through software, and more precision than manual adjustment.

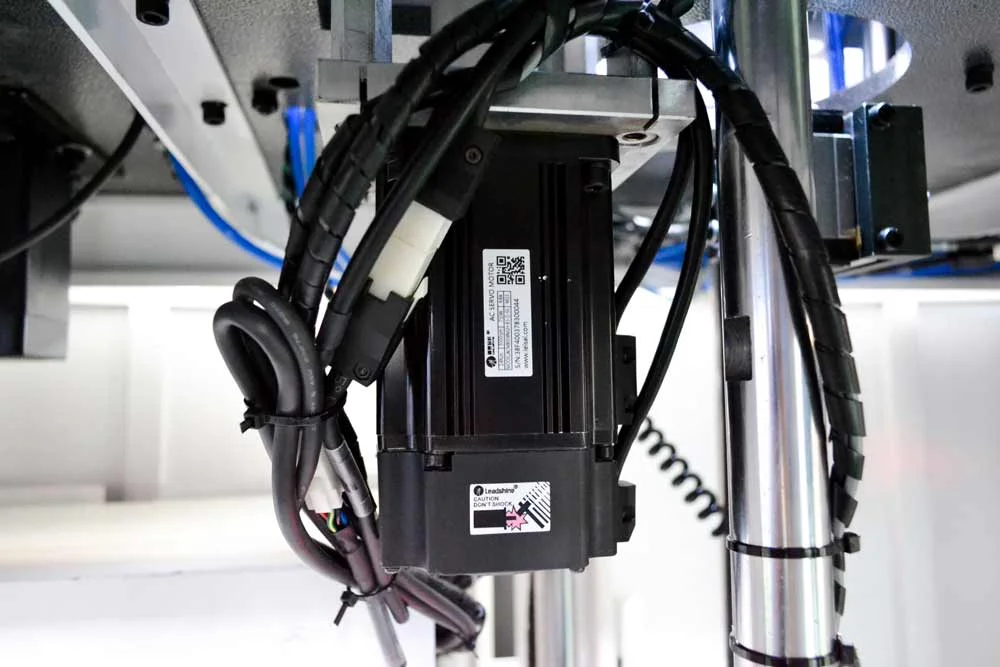

2. Double Japan Fuji Servo motor and driver for cutting and bending, 20mm leading screw, more fast, stable, and high precision. One set bender can service 6 sets of laser welding working.

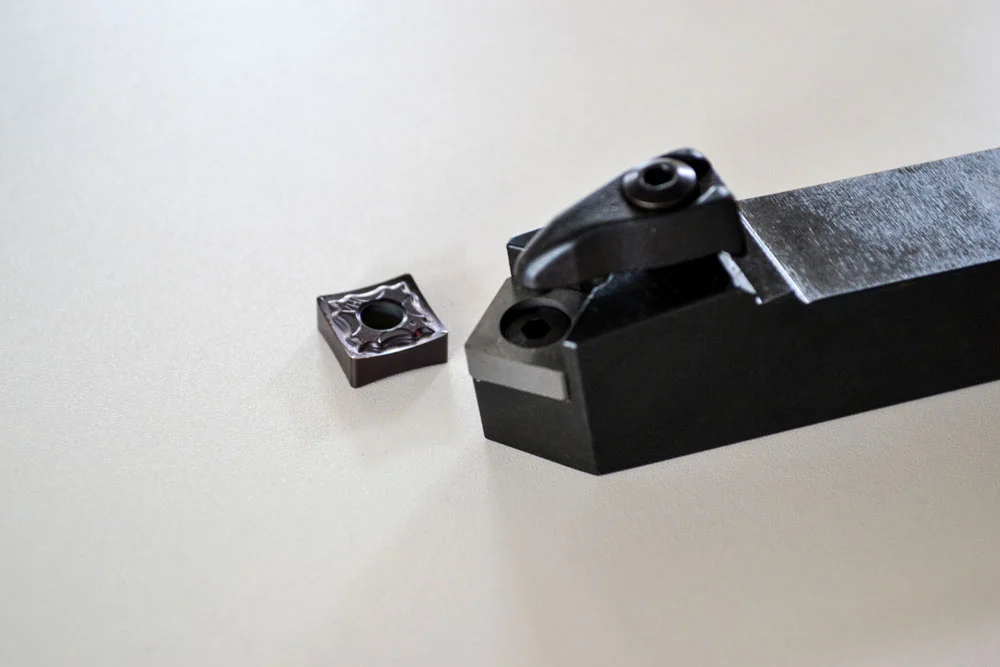

3. The Planner cutter uses a carbide blade, each blade has 8 sides, and every side can work about 7000 times, the use cost is very lower, and the cutting effect is beautiful.
1. Planer has current induction automatic knife adjustment, very easy finish cutting depth through software, and more precision than manual adjustment.
2. Double Japan Fuji Servo motor and driver for cutting and bending, 20mm leading screw, more fast, stable, and high precision. One set bender can service 6 sets of laser welding working.
3. The Planner cutter uses a carbide blade, each blade has 8 sides, and every side can work about 7000 times, the use cost is very lower, and the cutting effect is beautiful.
Bending

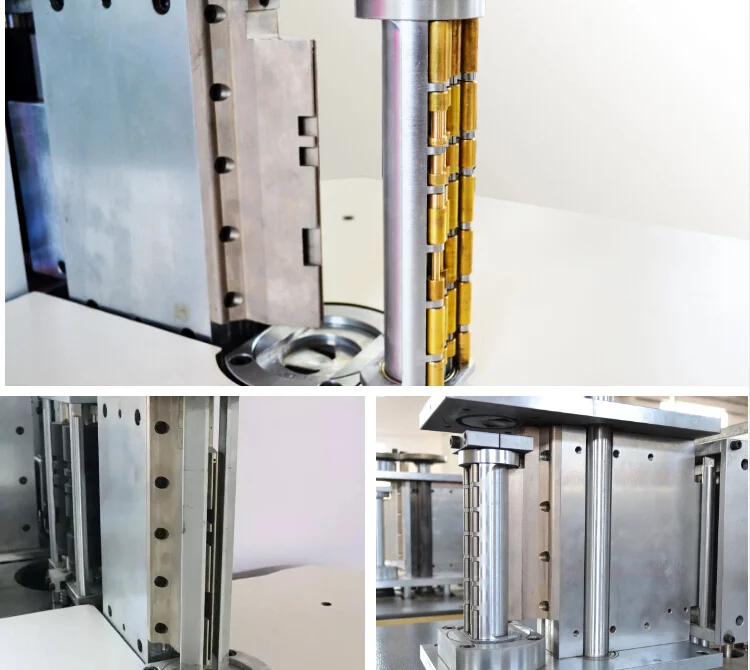

1. Use double arc bender design, lifting arc beating, and squeezing, for the bender use one-button disassembly, usually one minute can finish, to improve the working efficiency.
2. At the consistency the lifting arc beating is better than fixed single-axis arc beating, finishing the Stainless steel width can meet 13-16cm. But others only meet 8-10cm.
3. There are two groups of grinding gear on arc bending parts, to ensure arc bending accuracy and reduce noise.
1. Use double arc bender design, lifting arc beating, and squeezing, for the bender use one-button disassembly, usually one minute can finish, to improve the working efficiency.
2. At the consistency the lifting arc beating is better than fixed single-axis arc beating, finishing the Stainless steel width can meet 13-16cm. But others only meet 8-10cm.
3. There are two groups of grinding gear on arc bending parts, to ensure arc bending accuracy and reduce noise.

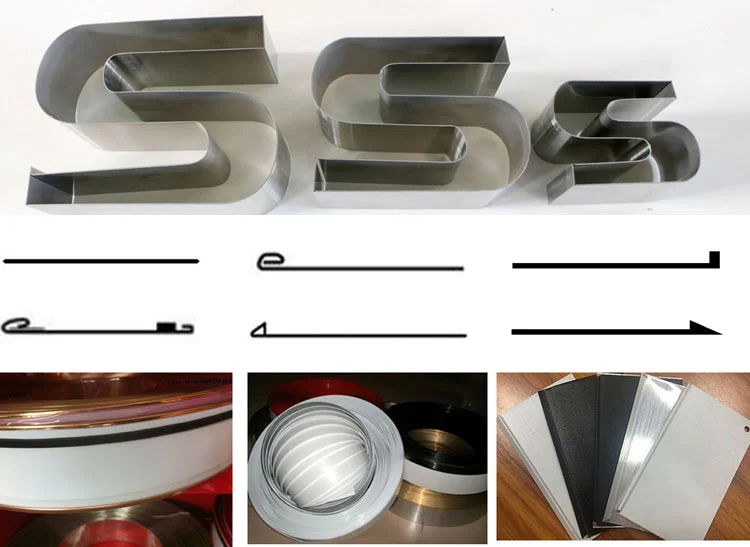

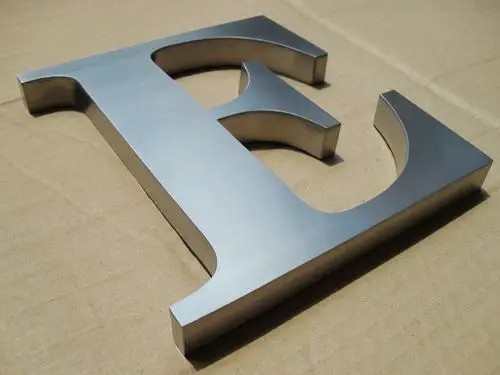

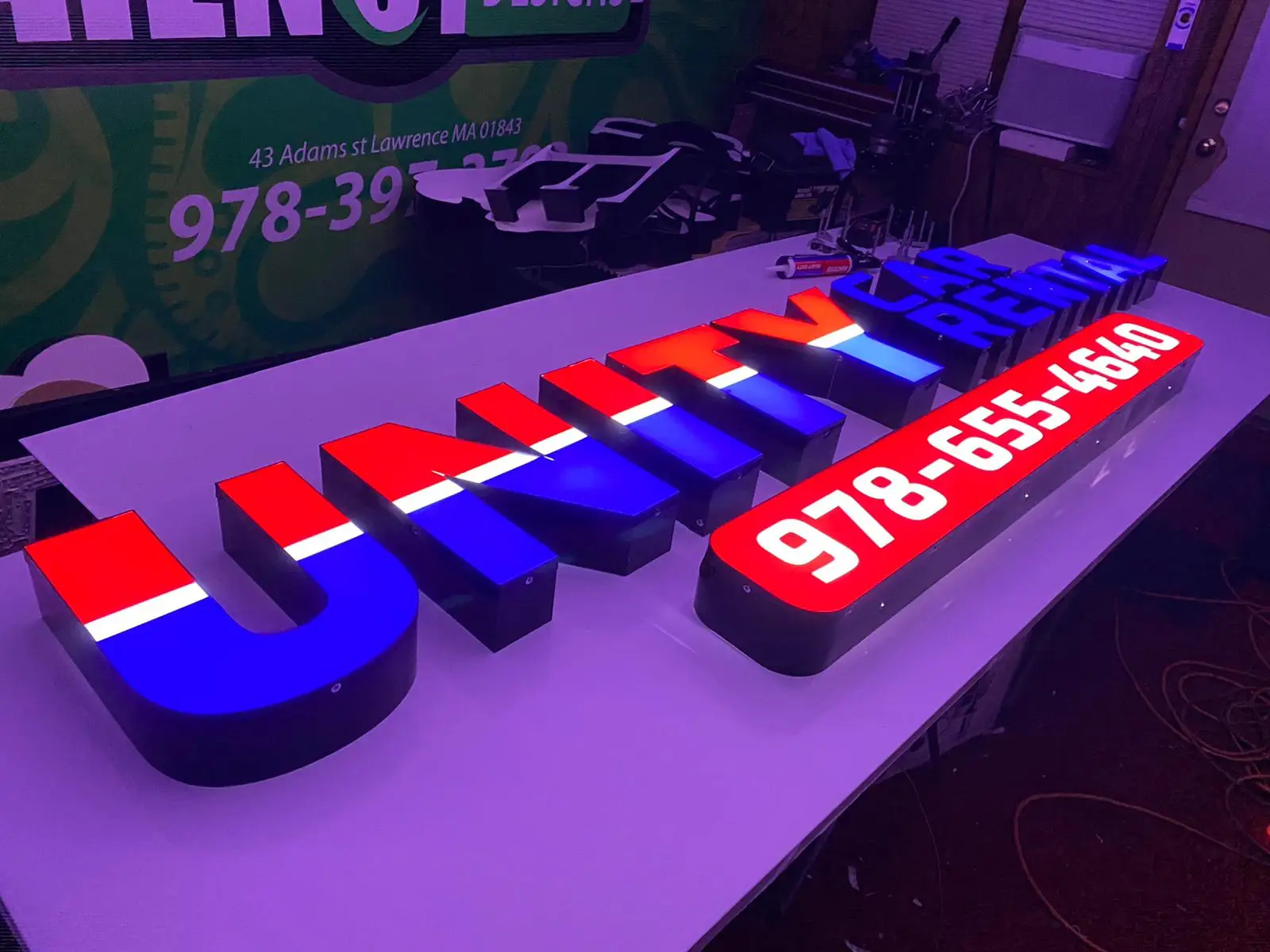

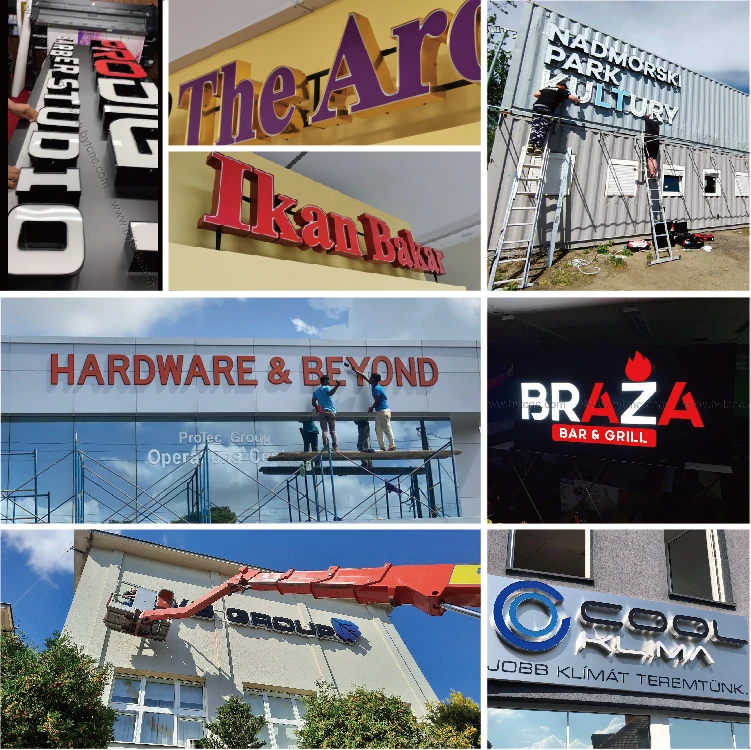

Custom Finish Samples

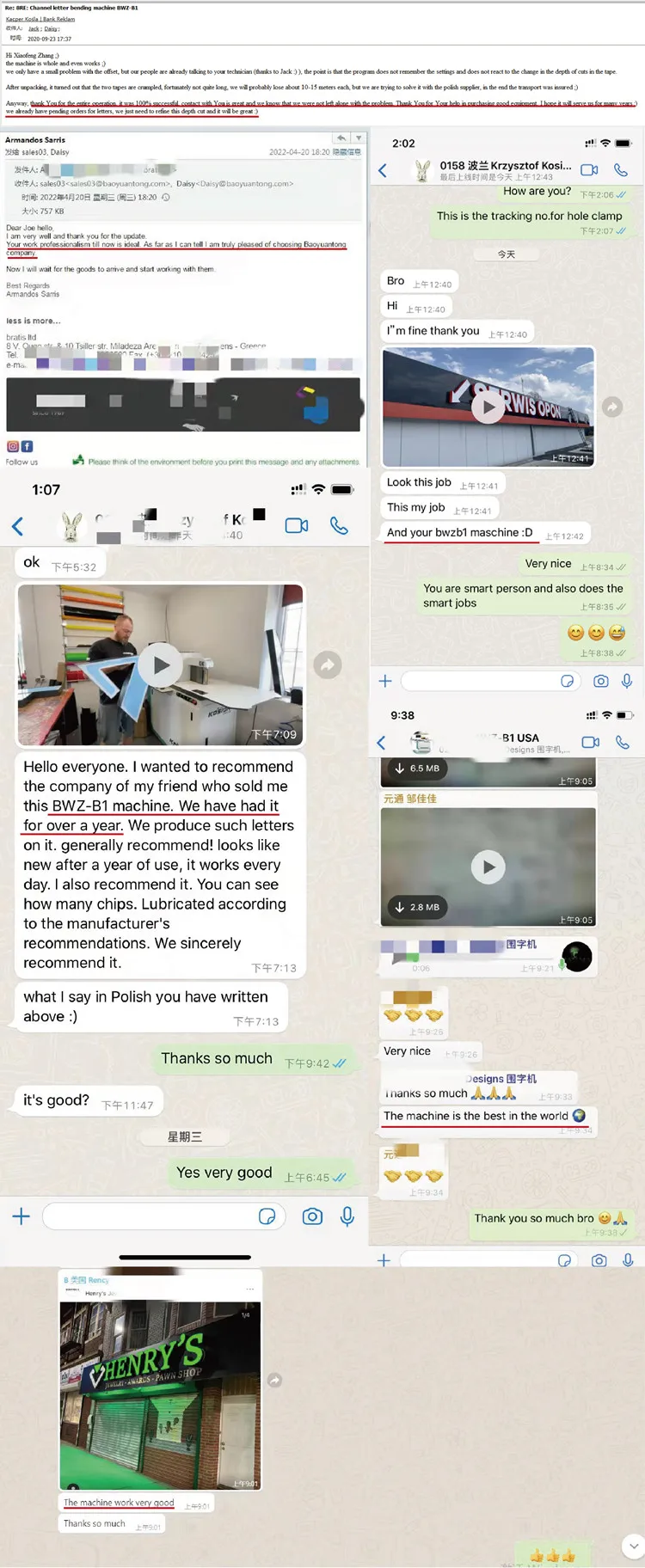

Customer Feedback
Click below picture you will find letter bender detail video ,it is our customer recently feedback our CNC letter bending machine and laser welding machine. it is our duty to provide good service to our every customer .
Related Product
Our serivce
Keep Quality and Service Be Our First Responsibility
Sales Service1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

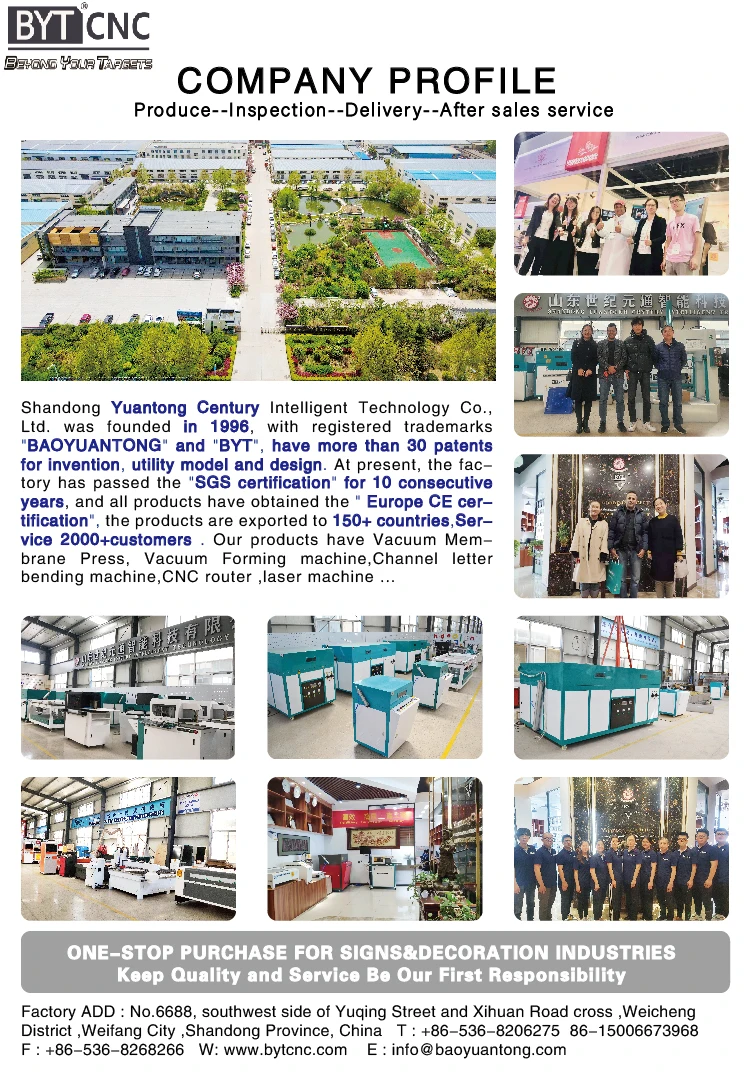

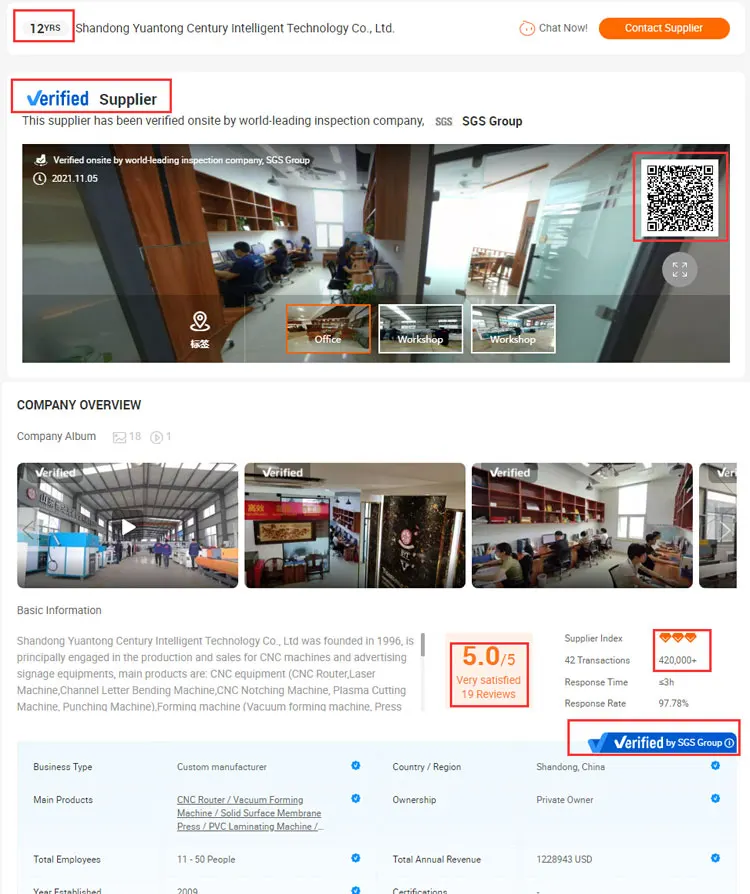

Company Profile
