Product Overview

Description

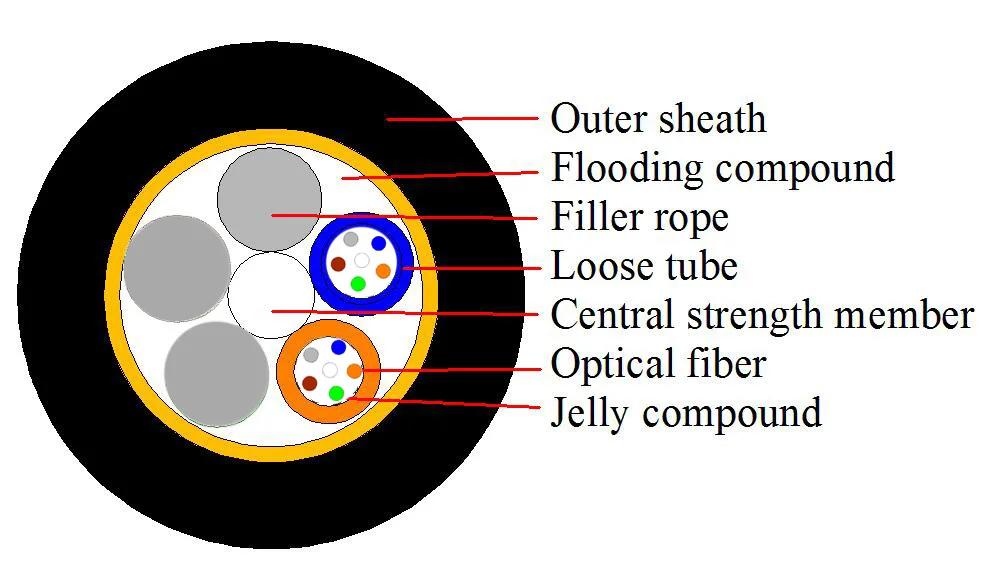

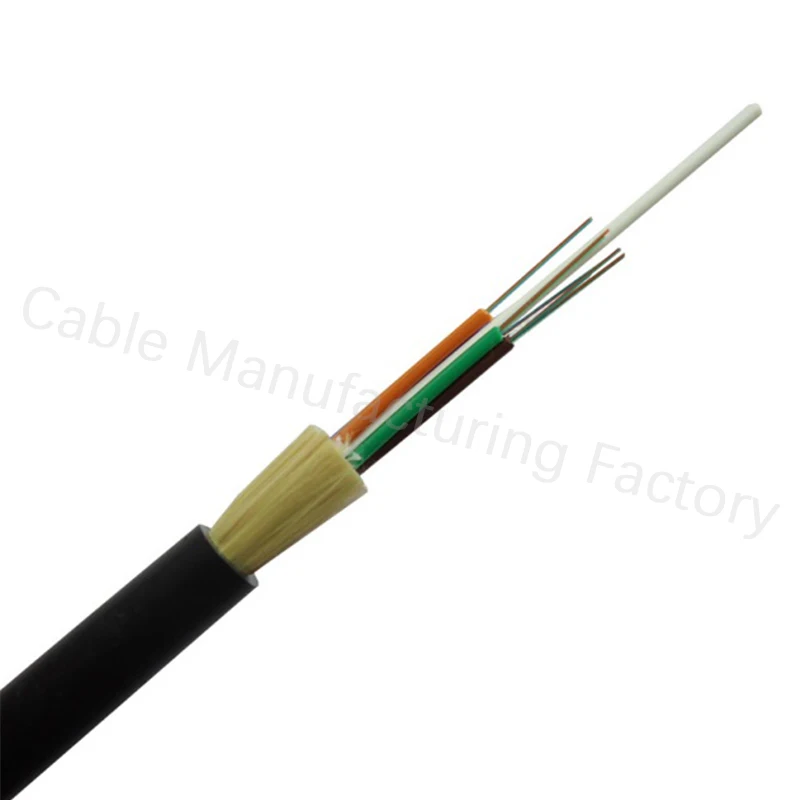

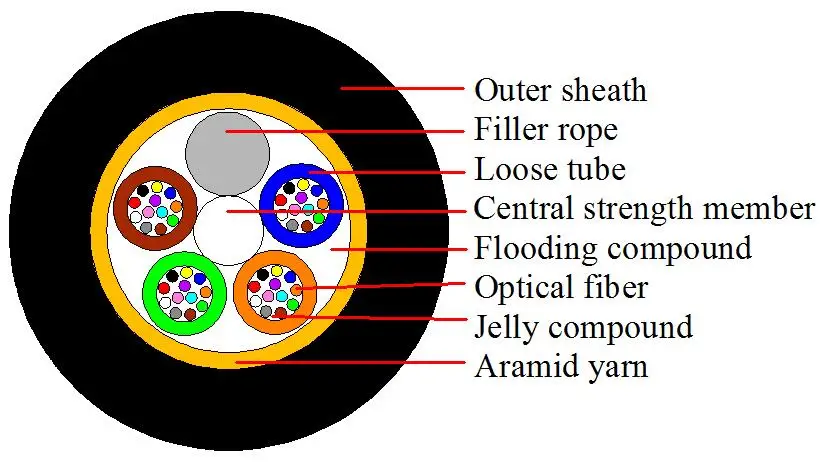

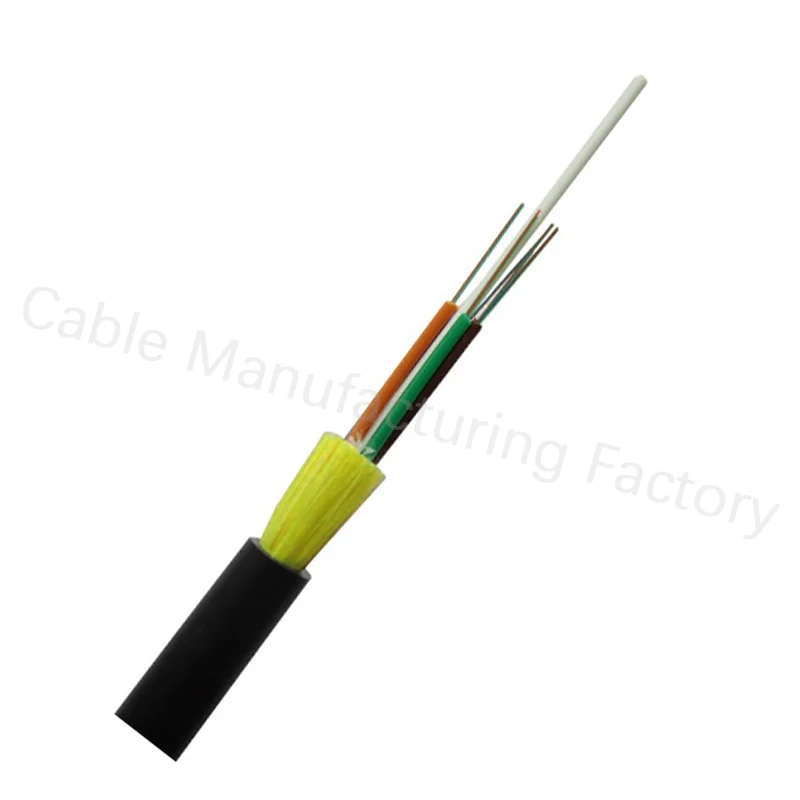

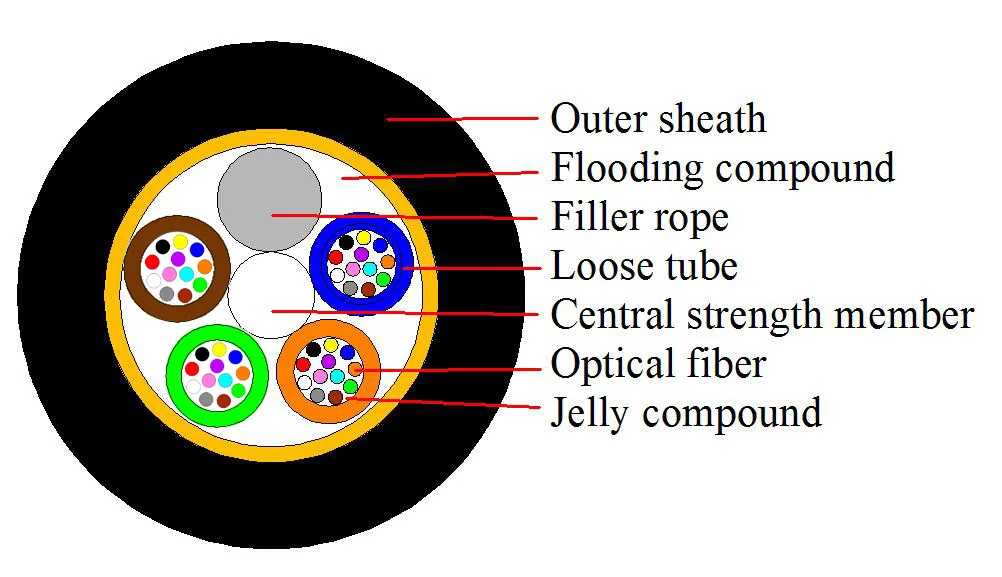

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.




The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.


Feature


* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature
* The design life span is 30 years


Technical data


No. of cable
48
Design(StrengthMember+Tube&Filler)
1+5
Fiber type
G.652D

Central Strength Member
Material
FRP
Diameter(±0.05mm)
1.5


Loose Tube
Material
PBT
Diameter(±0.05mm)
2.1
Thickness(±0.03mm)
0.35
MAX.NO./per
12
Water Blocking Layer
Material
Water blocking yarn& Water blocking tape
Additional Strength Member
Material
Aramid Yarn

Outer Sheath
Material
MDPE
Thickness
1.8（nominal）
Color
Black.
Cable Diameter(±0.2mm)
10.3
Cable Weight(±10.0kg/km)
72
Attenuation(dB/km)
1310nm
≤0.35
Coefficient
1550nm
≤0.21
Cable breaking strength(RTS)
7
Working Tension (MAT)
2.8
Span Length
120
Crush Resistance(N/100)
Short Term
2200
Long Term
1100
Min. bending radius(mm)
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range（℃）
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

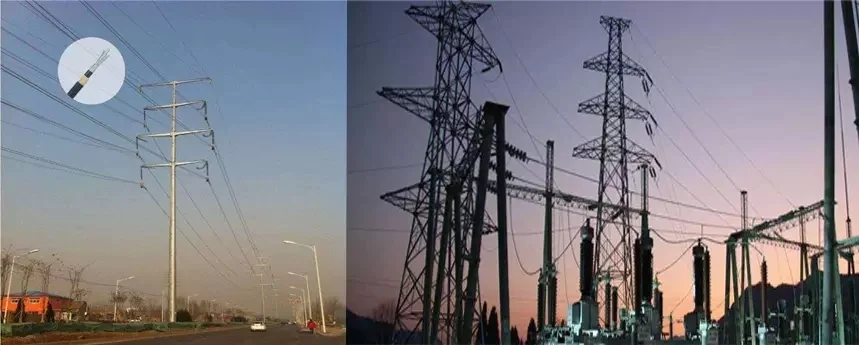

Application




Our Company




Welcome to Shanghai Wanbao Optical Technologies Co., Ltd.We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products of SWOT include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

SWOT was established in 2012, and is growing rapidly. Our head office is in Shanghai, China. SWOT owns two factories. One is in Shenzhen , producing all kinds of fiber optical cable. Another is in Zhejiang province, producing PLC, FWDM and other products. We have more than 100 employees and controls the quality constantly and strictly in order to give the best products to the users.We also promise all the features and advantages are the high technology, which are full of
professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.








FAQ


Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
