Garage carbon monoxide detector CO concentration monitoring Temperature and humidity detector Air quality monitoring system
- Category: >>>
- Supplier: Yaoan (shenzhen) Electronic Technology Development Co. Ltd.
Share on (1600923323916):
Product Overview
Description
Product Discription
Garage carbon monoxide detector CO concentration monitoring Temperature and humidity detector Air quality monitoring system

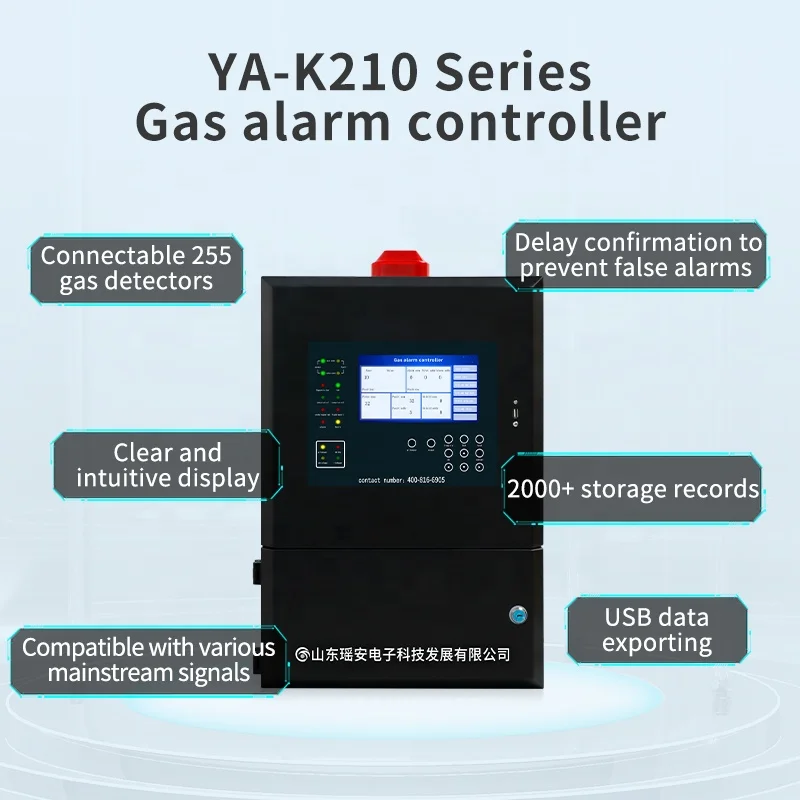

YA-K210 This alarm is a hot-selling multi-channel gas alarm controller of our company. It can continuously monitor and display the concentration of flammable and toxic gases in the environment, and can also monitor oxygen, temperature and humidity, and dust related values. Real-time display and sound and light alarm can be displayed in the control room or duty room, and it can be linked with other external equipment for control. The alarm also adopts domestic advanced PWM power control technology, which makes the alarm stable and reliable. It has the advantages of fast response speed and strong anti-interference ability. At the same time, the alarm can be customized according to the requirements of the site environment, and is suitable for various complex monitoring environments. Continuous operation with optional high-performance backup power
ITEM | VALUE | ||||||
Power supply | Main power supply: AC220V±15% 50～60Hz Backup power supply: two DC12V 9AH rechargeable lead-acid batteries | ||||||
Power | ≤20W | ||||||
Output power supply voltage | DC24V±25% | ||||||
Supporting detector model | Supporting detector model YA-D series | ||||||
Number of mount detectors | Optional onboard 32-channel 4-20mA signal (Multiple expansion boards can be connected externally, and each expansion board supports 8 channels of 4-20mA signals) Onboard 4-way two-bus signals can be selected (up to 256 bus signals are supported) 【The number of detectors connected at the same time shall not exceed 32 when using the backup power supply】 | ||||||
Instructions | The indicator light indicates the status of the detector and the machine The LCD screen displays the detector concentration and alarm detector number, the first report address, and the alarm address cycle Alarm and fault status are indicated by different voice alarm sounds | ||||||
Response time | ≤30 seconds | ||||||
Protection class | IP30 | ||||||
Detector connected to controller line requirements | Connecting split line detector: RVVP3×1.5mm²; Connect 485 bus type detector: RVVSP4×1.5mm² Connect two bus detectors:RVVSP2×1.5mm² | ||||||
Communication between the detector and the controller distance | ≤1200m | ||||||
Output signal | 4-20mA, RS485, LoRa, 4G, PC | ||||||
Installation method | Wall-mounted | ||||||
Alarm methods | Sound (sound pressure level above 70dB and below 115dB at a distance of 1 meter), light, voice broadcast alarm | ||||||
Product Features
1.YA-K210 gas alarm controller host embedded microprocessor, with detector signal sampling, real-time data calculation, system fault detection, power management, key scanning, display drive, alarm display, fault display, shielding display, data storage , data export, 4G networking, alarm peripheral driver and other functions;
2.Intelligent system: can realize unit switching between μmol/mol and mg/m³;
3.2 groups of public relays, 6 groups of programmable relays for passive output, if necessary, an external relay linkage module can be connected;
4.Support 4-20mA, RS485, LoRa, 4G, host computer and other mainstream communication methods;
3.2 groups of public relays, 6 groups of programmable relays for passive output, if necessary, an external relay linkage module can be connected;
4.Support 4-20mA, RS485, LoRa, 4G, host computer and other mainstream communication methods;

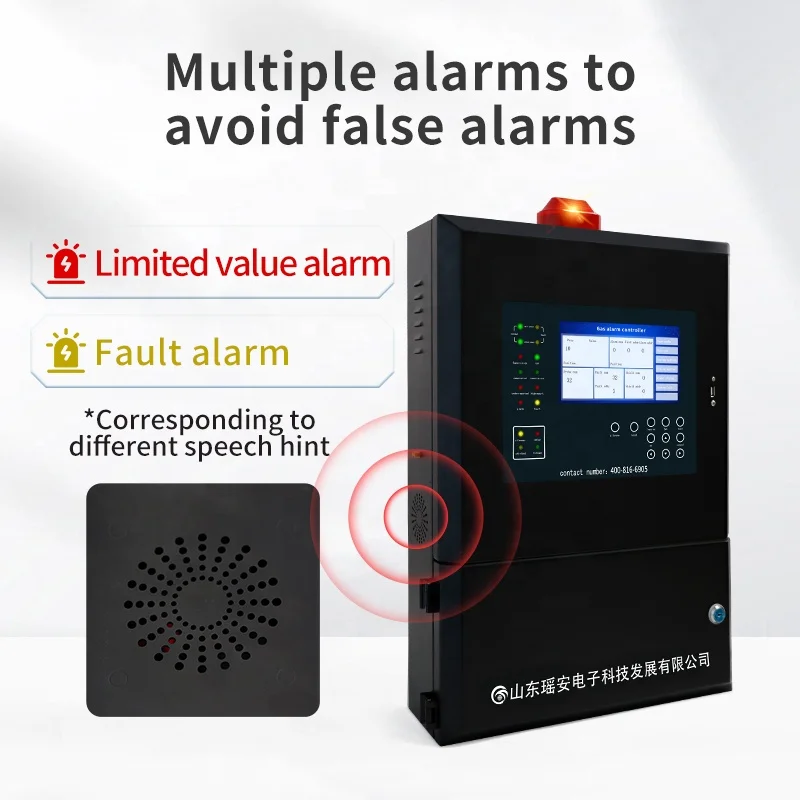

5.Real-time monitoring of the concentration of the measured gas in the detection area, when the gas concentration reaches or exceeds the set alarm value, the controller sends a corresponding sound and light alarm signal;

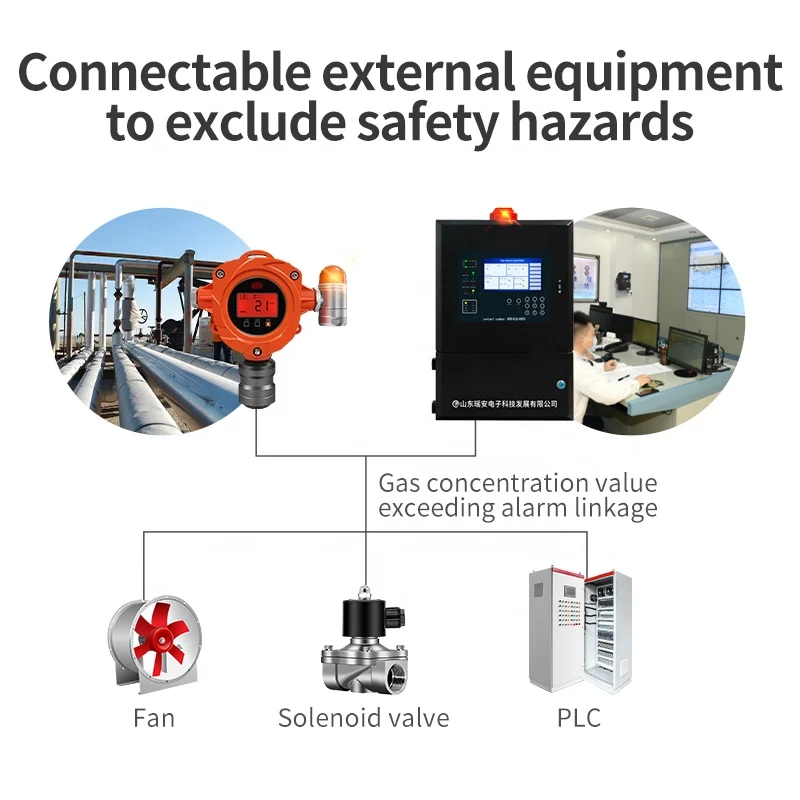

6.When the preset logical relationship is satisfied, the connected external device can act on its own;
7.External devices can be started directly through the controller;

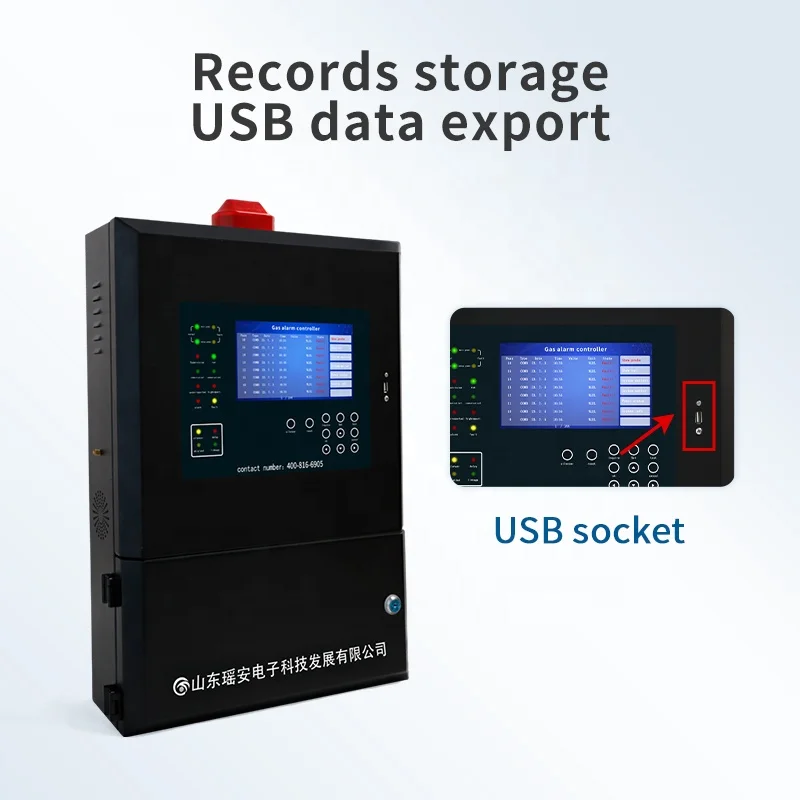

8.Separation of records, automatic screening and separation of faults, alarms, and system records, the total number of stored records is more than 2000, and the data can be exported through a U disk connected to the controller;
9.The power supply adopts 220V 50Hz AC, and the backup power adopts two 12V/9Ah batteries.
6.When the preset logical relationship is satisfied, the connected external device can act on its own;
7.External devices can be started directly through the controller;
8.Separation of records, automatic screening and separation of faults, alarms, and system records, the total number of stored records is more than 2000, and the data can be exported through a U disk connected to the controller;
9.The power supply adopts 220V 50Hz AC, and the backup power adopts two 12V/9Ah batteries.
Product Details
Product packaging
✔Standard import and export cardboard packaging, key positions are filled with foam;
✔For specific logistics methods, please contactour customer service,thank you
✔100% strictly inspection before package，Will dispatch immediately when get payment
✔100% strictly inspection before package，Will dispatch immediately when get payment
