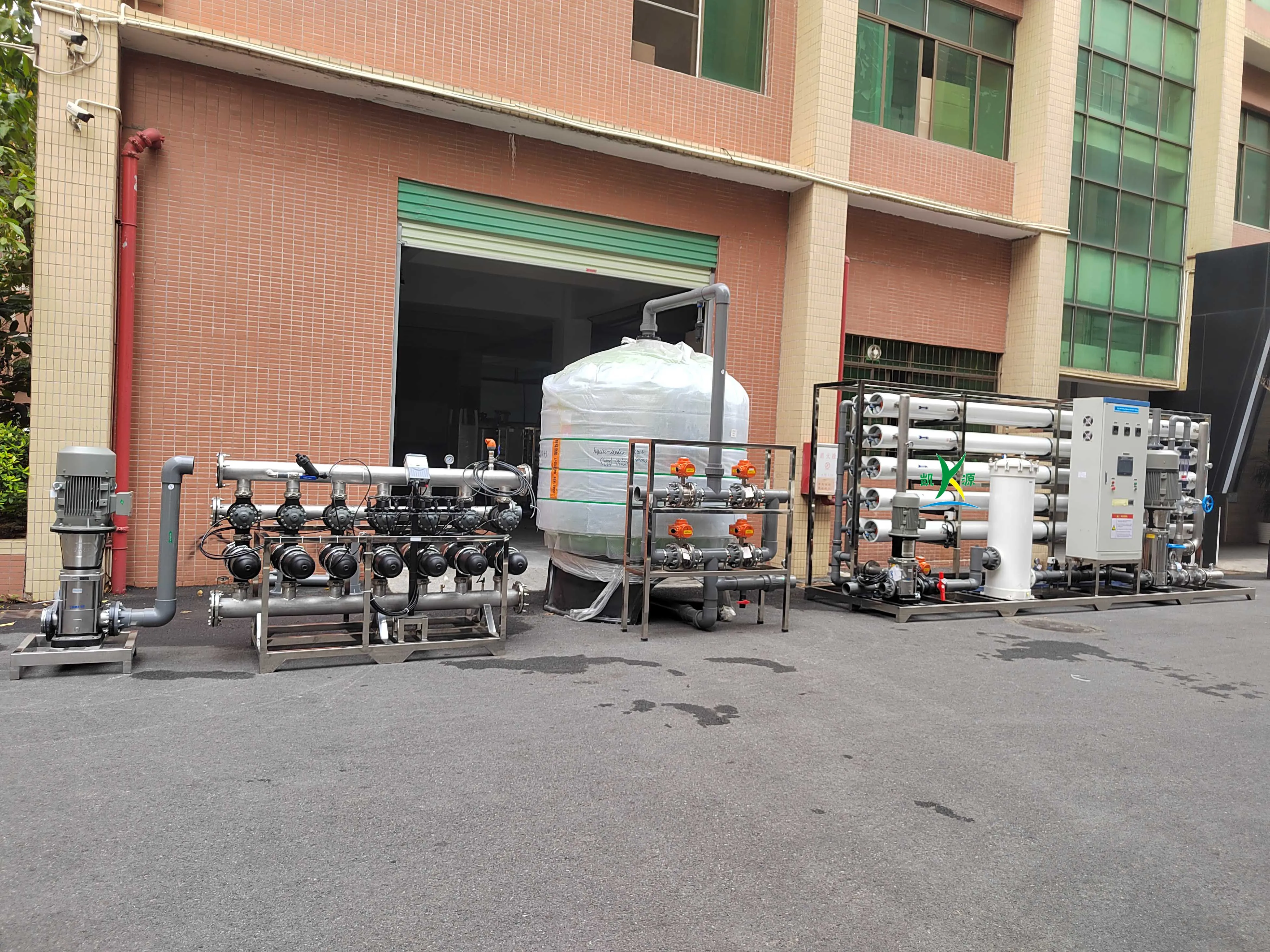

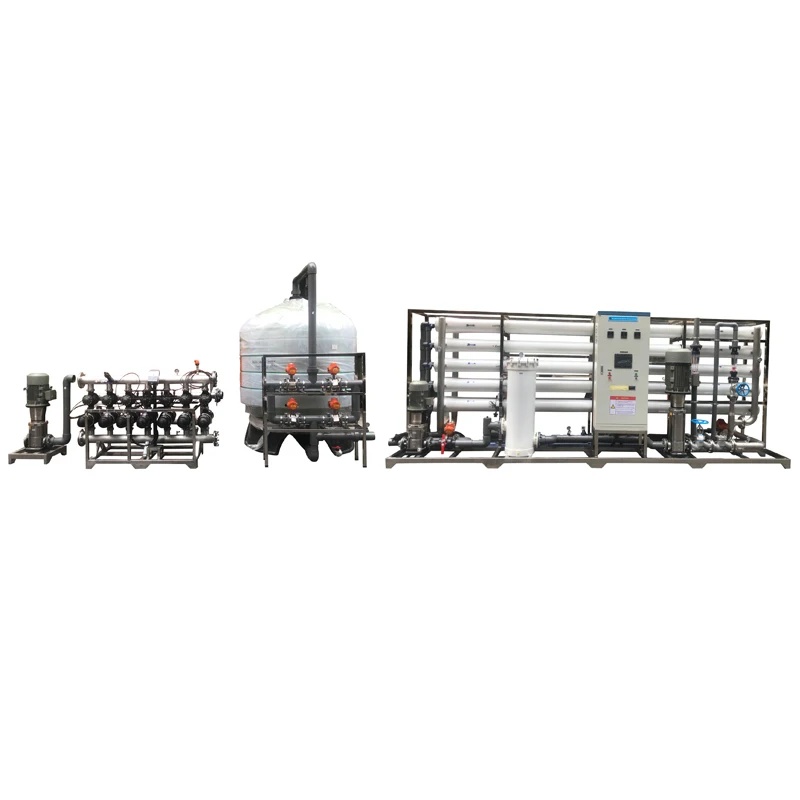

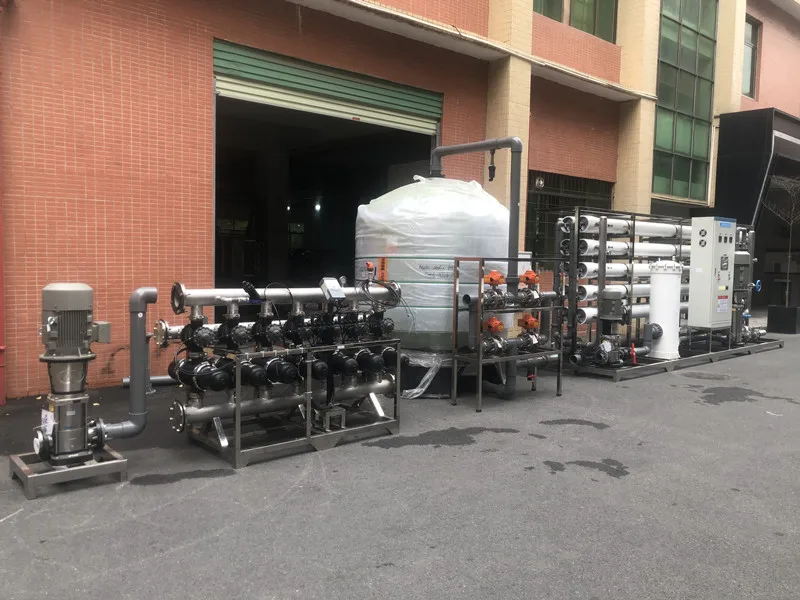

PLC Remote Digital Control Automatic Ro Osmosis Water Treatment Plant for Brackish Well Rive Water Filtration Purification

Saline/TDS(Mg/L, PPM)

2-10

20-1000

2000-20000

20000-40000

Domestic cooking, washing,drinking

Yes

Yes/No

No

No

irrigation, industry,

Yes

Yes

No

No

Ro Material

SUS-304

SUS-316

SUS-316/2507

Yes, our system can make seawater and brackish(from underground bore hole, river ect.) water into fresh drinking pure water. Besides, our system can also make city  water water into pure bottled or sachet drinking water. In addition, our system can also make pure water into ultra-pure water for special industry using or medical ect.

1.TDS ≤1000Mg/L

2.Fl ≤1.0Mg/L

3.PH=6.5-8.5

4.Total bacterial count≤100Ml

5.SO4≤250Mg/L

6.As≤0.01Mg/L

7.Pb≤0.01Mg/L

ect...

Reverse Osmosis Technology is to purify TDS from your source water with action of pressure difference of semi permeable membranes,which is effectively to remove asbestos, taste,colour, odor, chemicals, radium, particulates, turbidity and total dissolved solid(TDS) ect. Ro system is widely used to offer human drinking water consumption,pure water for power stations,electronic industries and medical treatment ect. It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacterial from the feed water.

1.Your source water details(Is it city water or bore well water,river/lake water....?)

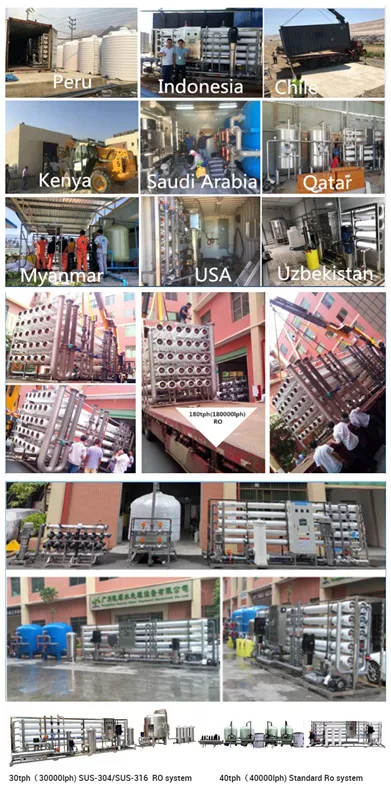

2.What's the capacity for the RO system you need? (Such as successful experience of 500lph, 1000lph to 180000lph)
3.What will you use treated water for? (industrial/commercial/agricultural/domestic human consumption?)

1.Can run and produce water continuously, highly automatically.
2.No need chemical to regeneration,easy operation and maintain.
3.RO system uses imported USA DOW membrane and China best Brand VONTRON Brand.
4.Automatic switch on when lack of raw water,and switch off when no water or full of pure water.
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.

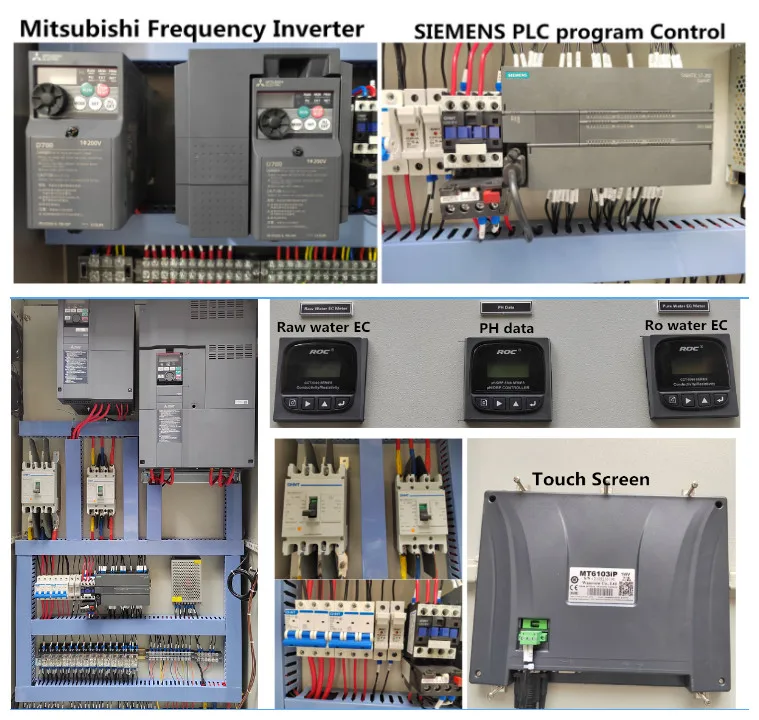

7.Production water conductivity meter and PH monitors water quality online continuously.8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

1.Electricity supply: can be 110v-480v, 50hz or 60hz,1 or 3 phases     Total power: about 15kw Can be customized

2.Membranes Brands:DOW(Dupont) or Toray, Hydraunatics or Vontron, Pumps will adopt CNP or European Brand

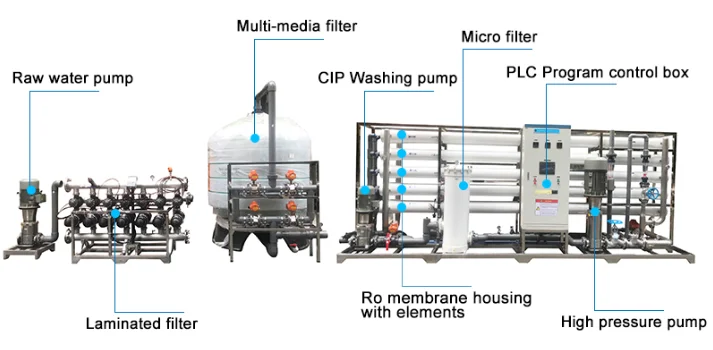

3.Pre-treatment: Raw water pump, multi-media filter, carbon filter, Resin filter or Iron removal and security filters

4.Main Core Part: High pressure pump, Ro system,

5.More Optional Parts: Uv sterilizer or Ozone Generator

6.Membranes Protect system: CIP washing system, SEKO Brand anti-scale dosing system

S/N

Application

Application/Function

Remark(Brand/Material)

1.

Raw water tank(buyer offer)

Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system.

Customer provide for themselves, because big size will result in expensive freight.

2.

Raw water pump or called booster pump

Provide needed pressure for every pretreatment filter

We can provide CNP pumps or Grundfos pumps, SUS-304/316/2507

3.

Mechanical filter or called quartz sand filter or sand filter

We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended
substances, colloids etc.

China best brand, FRP/SUS-304/SUS-316

4.

Activated carbon filter

We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.

China best brand, FRP/SUS-304/SUS-316

5.

Water softener, demineralizer, or  Na+ exchanger.
Or anti-scalant system.

Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling.

China best brand, FRP/SUS-304/SUS-316

6

Iron Removal or Arsenic, Fluorine Removal filter ect..

To remove heavy ions like arsenic, Fluorine  or Iron(Metallic), Manganese

China best brand, FRP/SUS-304/SUS-316

7.

Security filter or micro filter, or called PP sediment filter

prevent large particles, bacterial, viruses into RO membrane, accuracy is 5µm. With pressure gauges to remind washing time.

Filter housing will use China best brand, can be U-PVC, FRP, SUS-304/316 material

8.

High pressure pump

Provide needed working pressure for RO system, ensure production capacity of pure water.

We can provide CNP pumps or Grundfos pumps, SUS-304/316/2507

9.

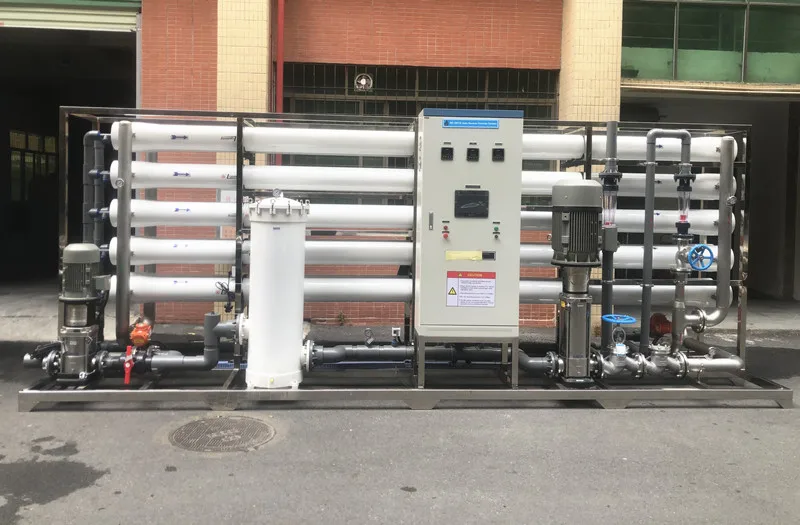

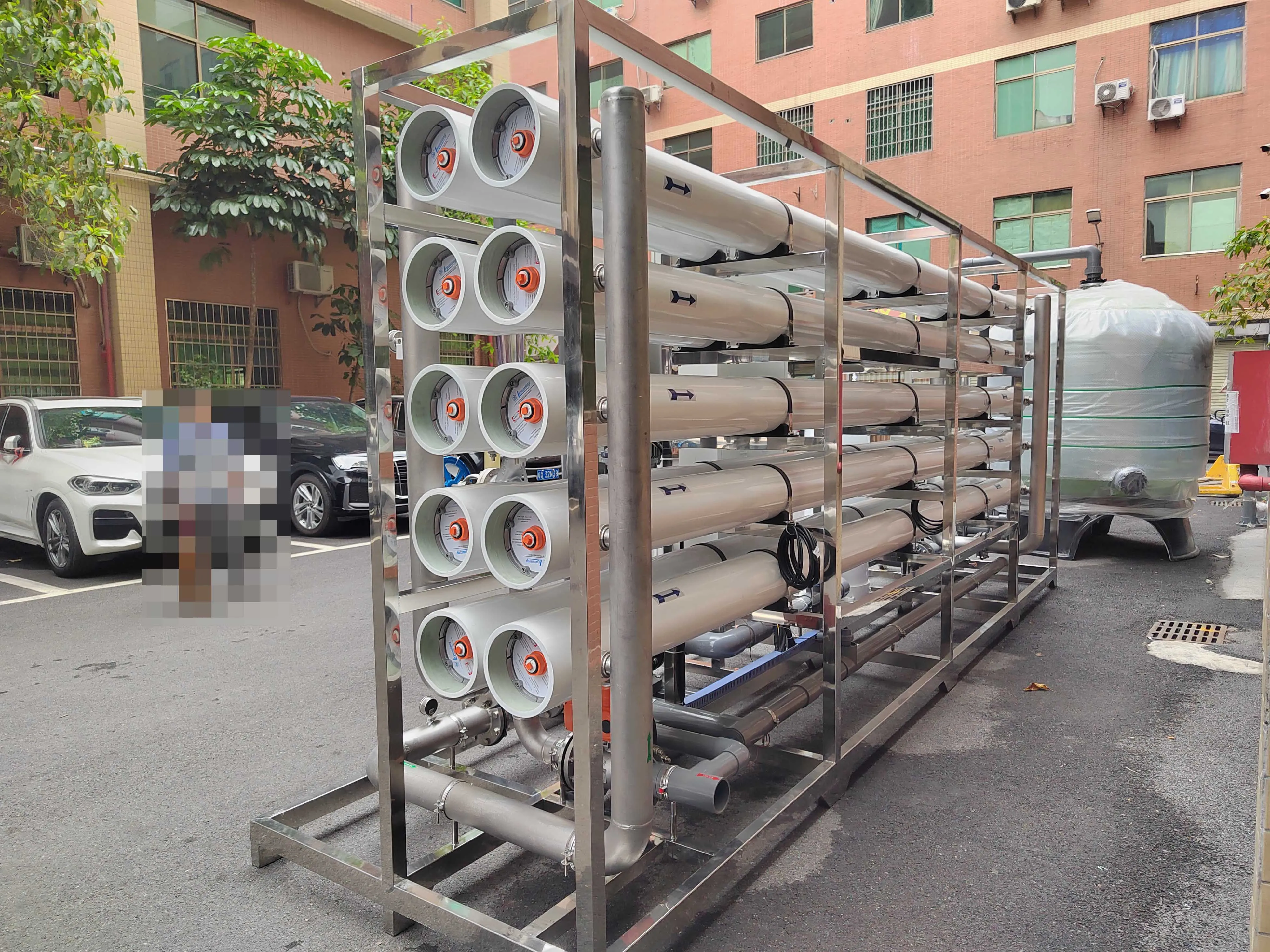

RO(reverse osmosis) system

Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts, saline, TDS, conductivity from source water

RO membranes USA Filmtec Dow(DUPONT) Or China best Brand VONTRON.Membrane element will use China best brand, SUS-304/316/FRP
material

10.

Uv Sterilizer or Ozone Generator

Further kill bacterial to be safe for storing and drinking

Optional Part.

11.

Pure Purified Water Tank(buyer offer)

Store Pure Water

Customer provide for themselves to save shipping cost, Suggest SUS-304/316

12.

Pure Water Supply Pump

Offering Water to the house

Suggest SUS-304/316 material
