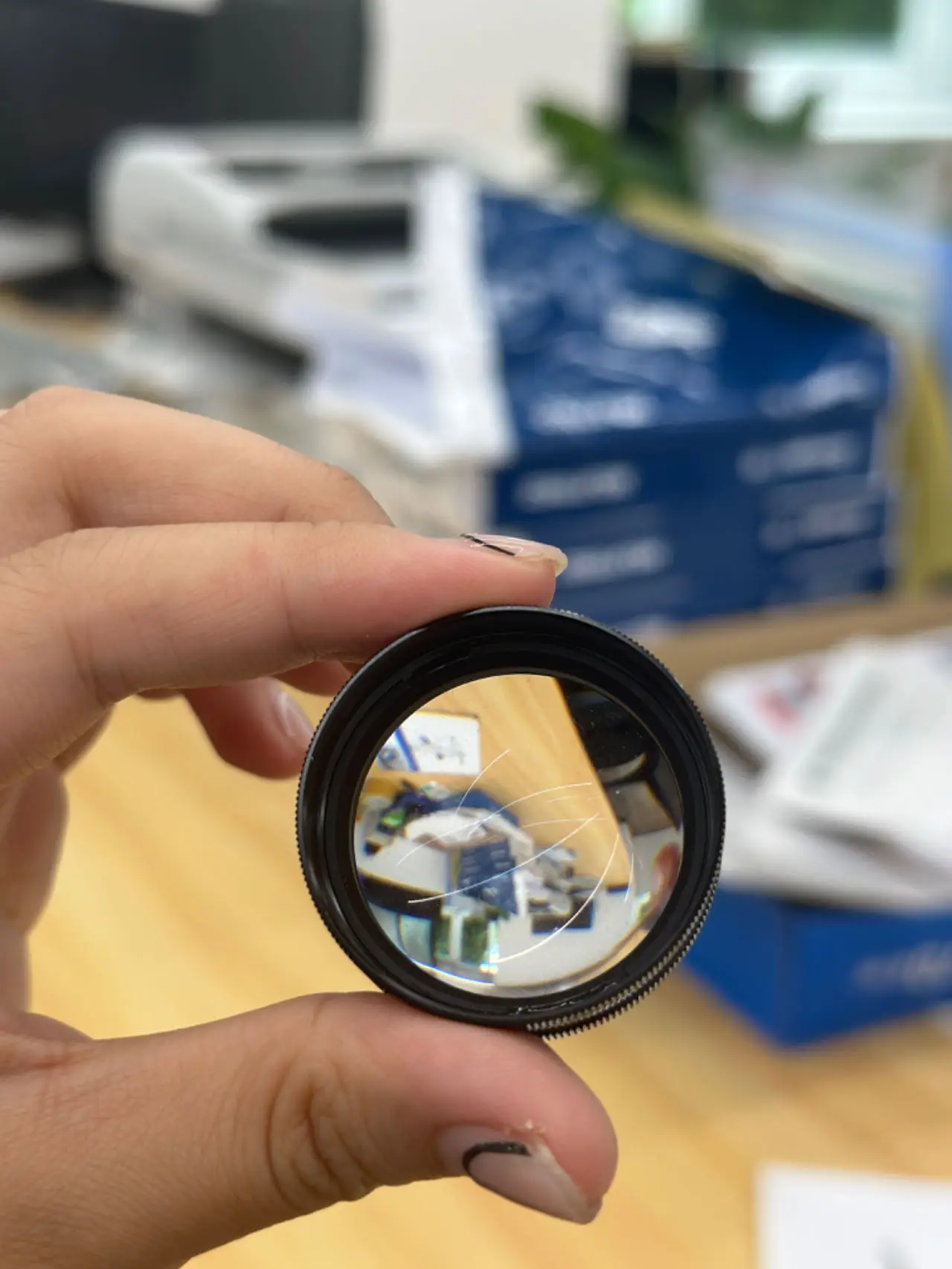

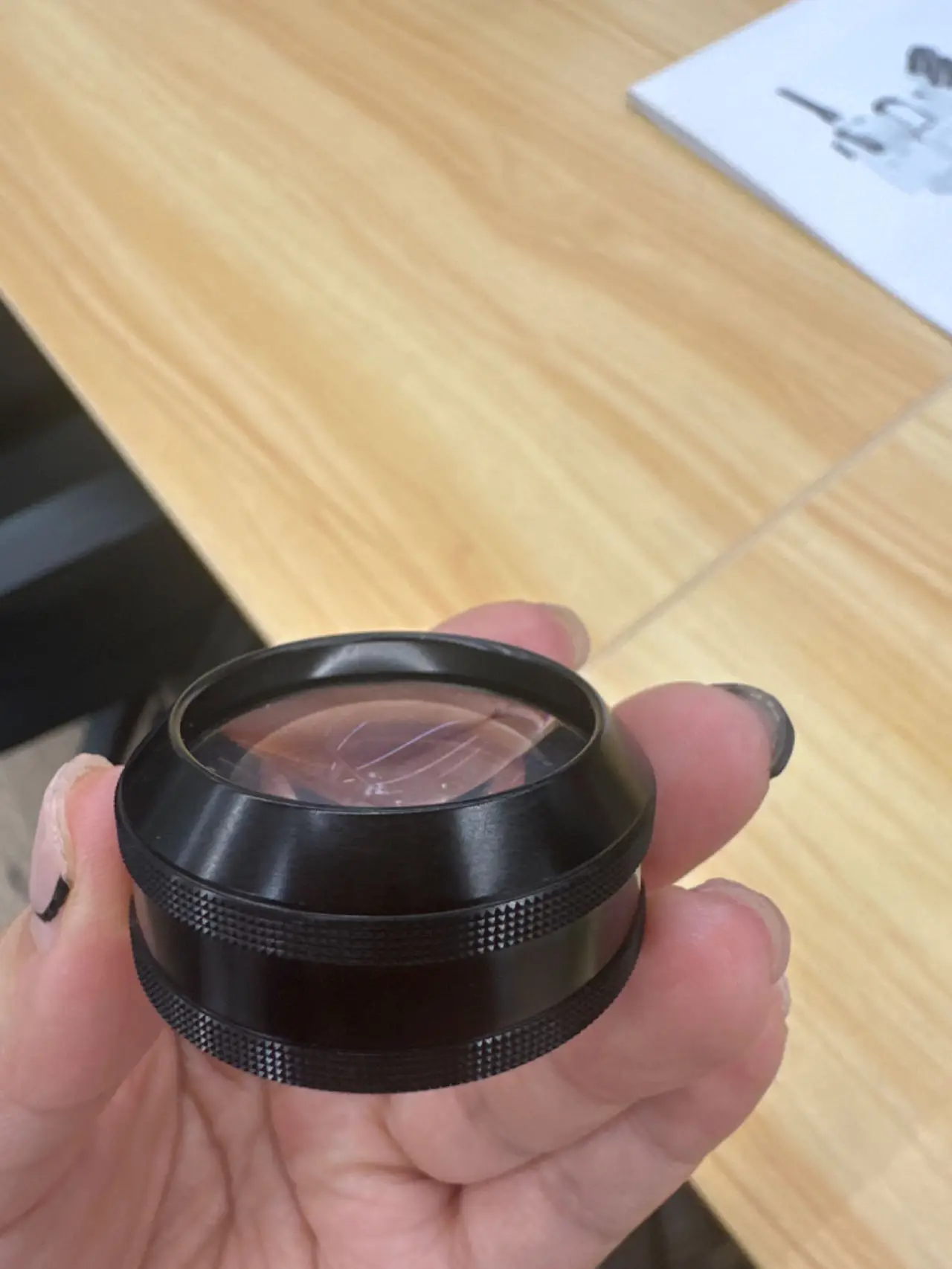

XSP78 78D 90D 20D slit lamp lens retina diagnostic double aspheric lens ophthalmic lenses
- Category: >>>
- Supplier: Chengdu Corder Optics & Electronics Co. Ltd.
Share on (1600923348676):
Product Overview
Description
Product Description
optical plastic material, high cost performance, double-sided aspherical surface, and excellent imaging quality. Curved mirror body for comfortable grip.
The circular design is excellent in dynamic examination of the fundus of the eye, suitable for small pupil examination and a popular lens for rapid examination of the posterior pole.
Model | Field | Magnification | Laser Spot Magnification | Working distance | Application |

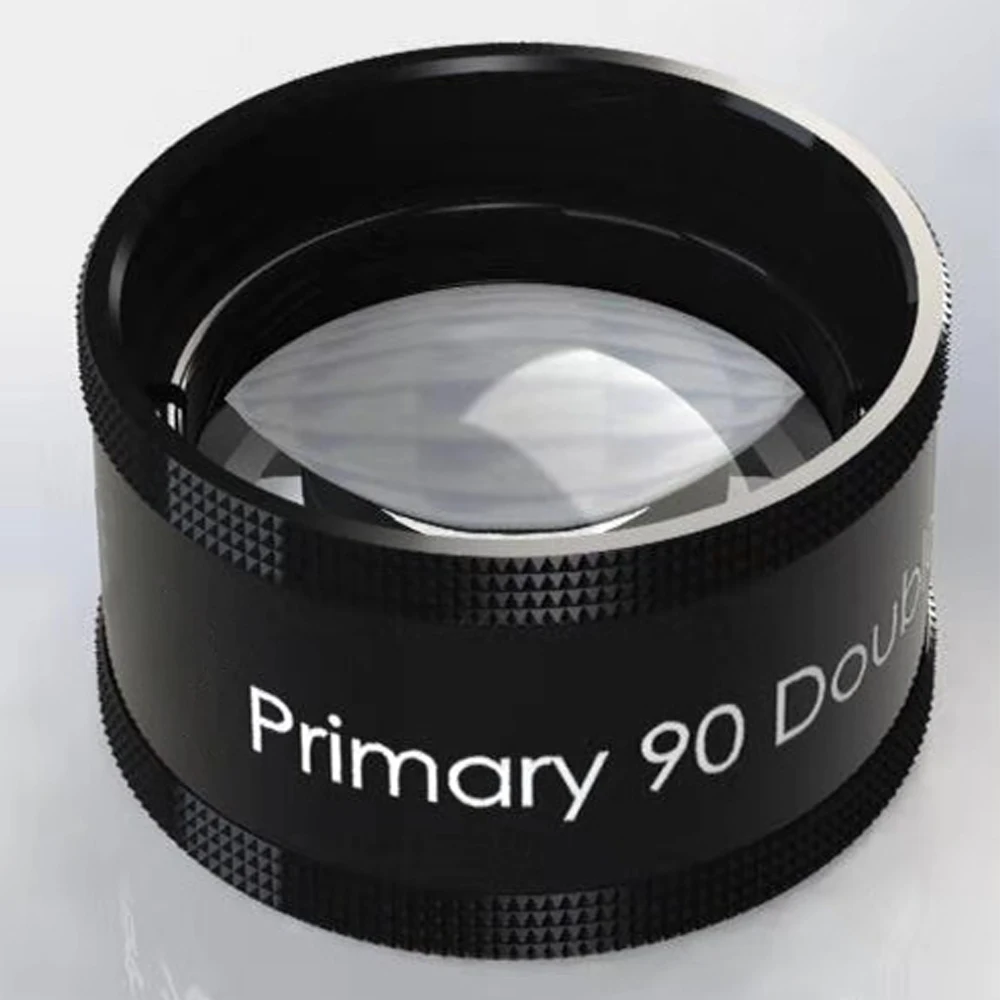

Primary90 | 72°/ 86° | 0.82 | 1.22 | 7.5mm | General diagnosis and small pupil examination |
Primary78 | 82°/98° | 1.03 | 0.97 | 10mm | General diagnosis and treatment |

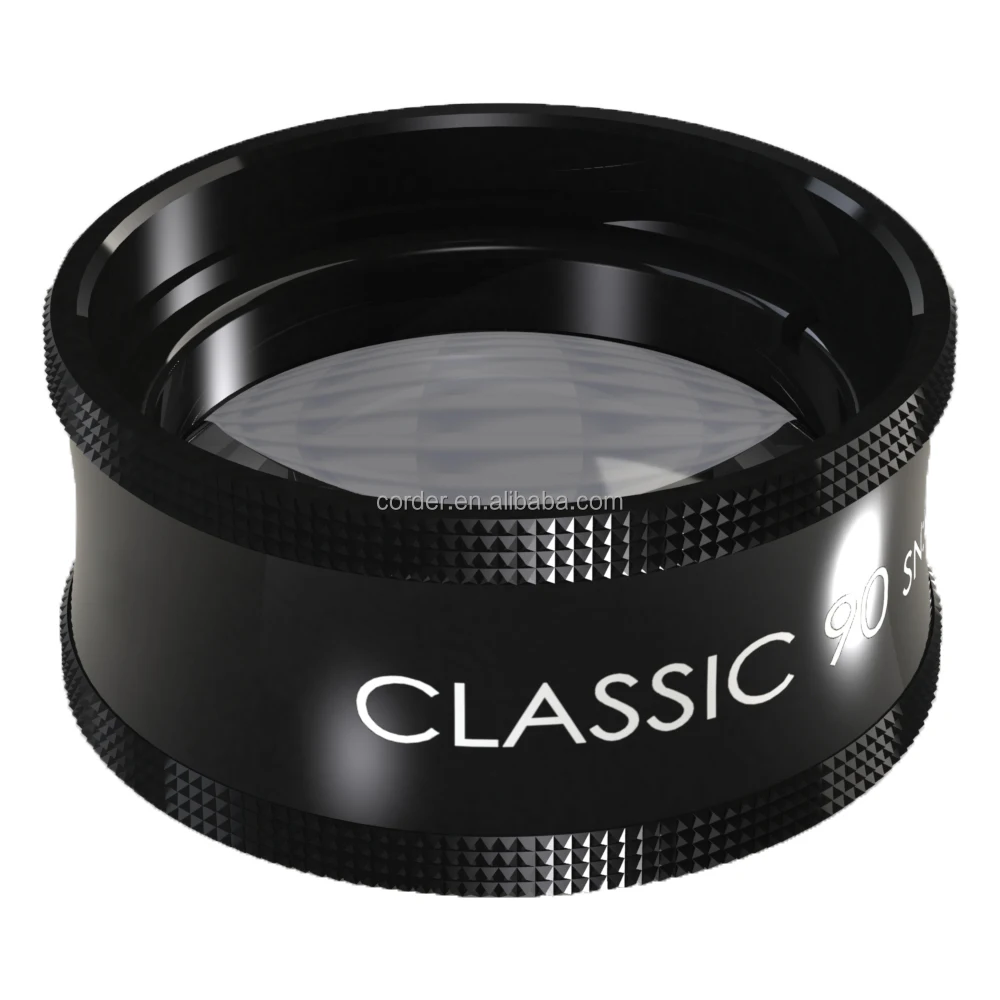

Classic90 | 74°/ 89° | 0.76 | 1.32 | 7 mm | General diagnosis and small pupil examination |

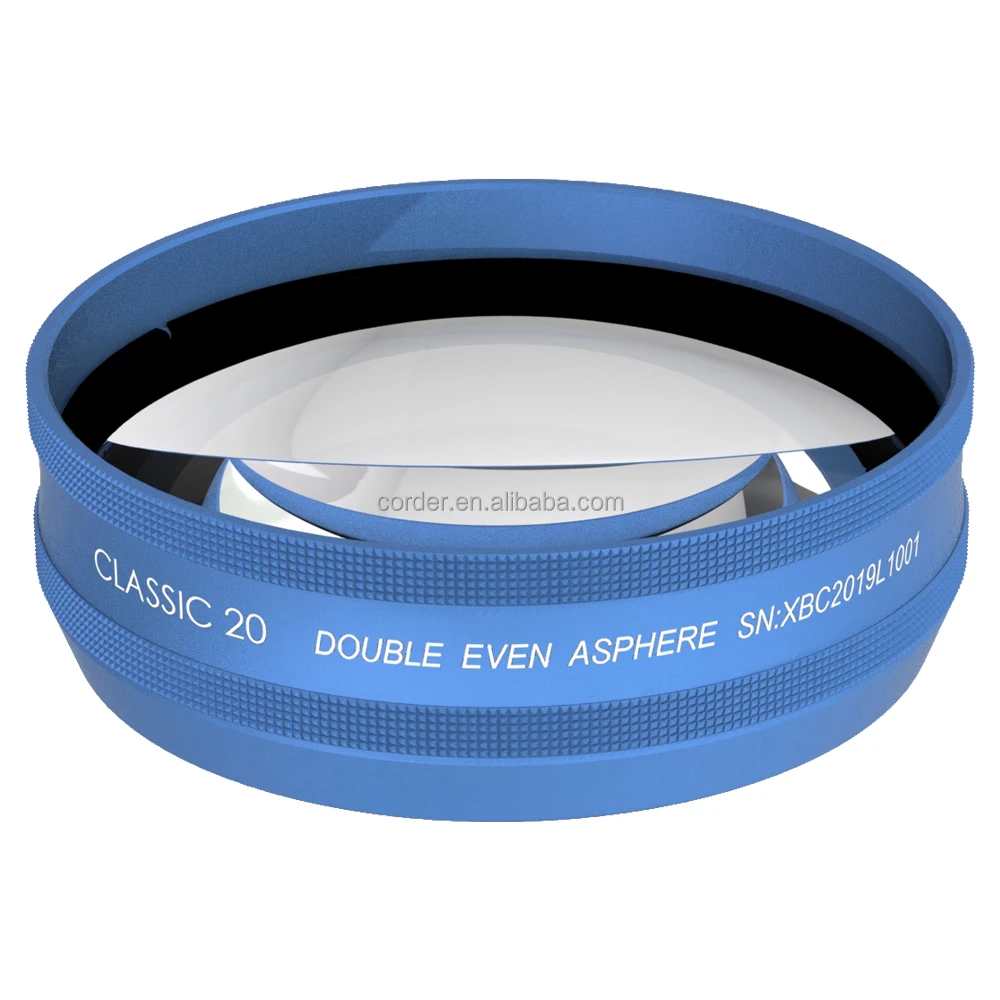

Classic20 | 46°/60° | 3.13 | 0.32 | 50mm | General diagnosis and small pupil examination |
Suitable for whole retina examination and easy to use.
Compared to primary &classical series, the range of fundus observed is larger，Effective field of view increased to 116 °.
Model | Field | Magnification | Laser Spot Magnification | Working distance | Application |

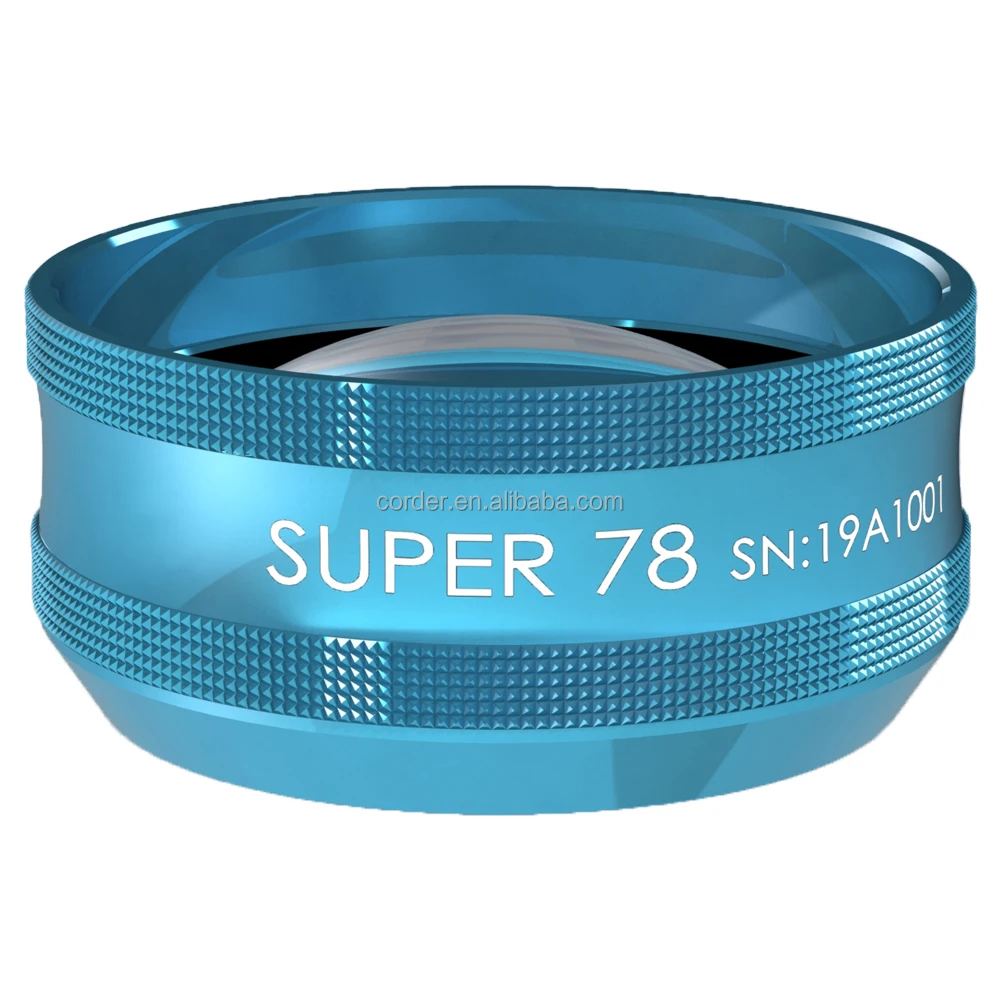

Super 78 | 82°/98° | 1.05 | 0.95 | 10mm | High resolution post polar images |

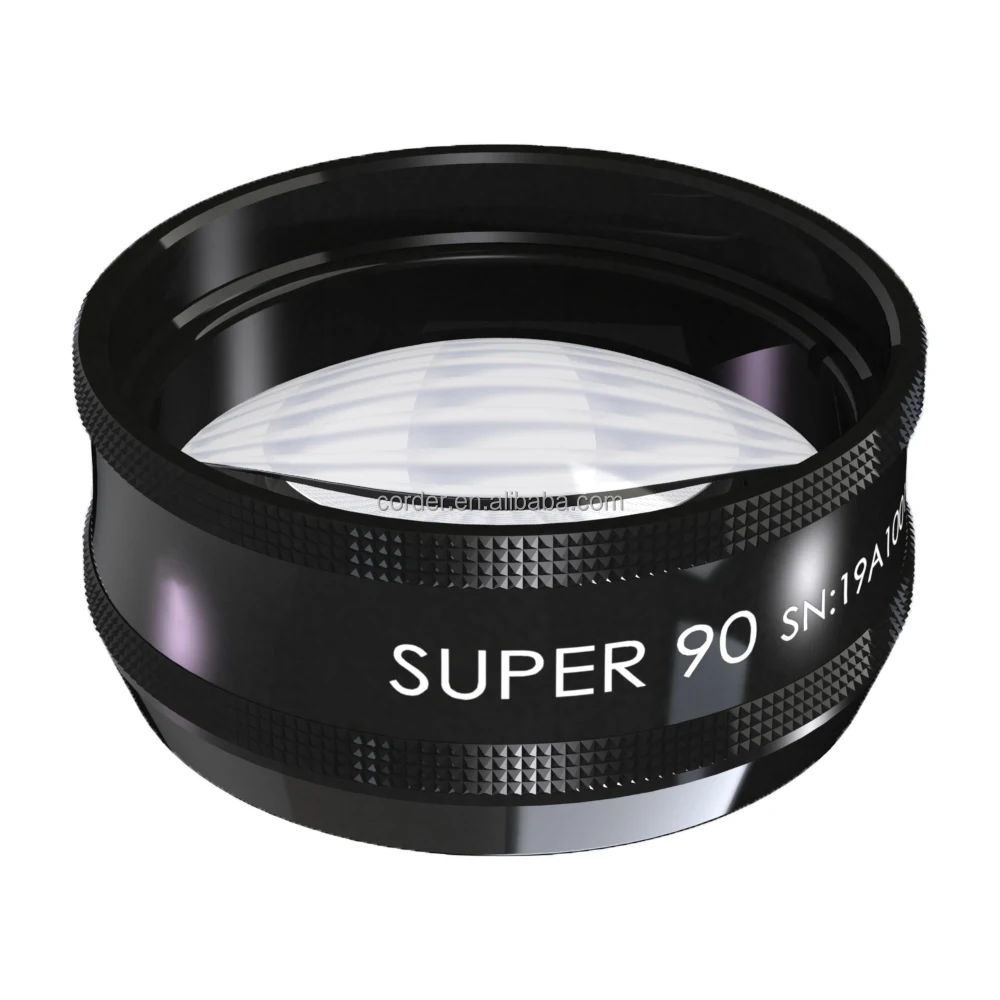

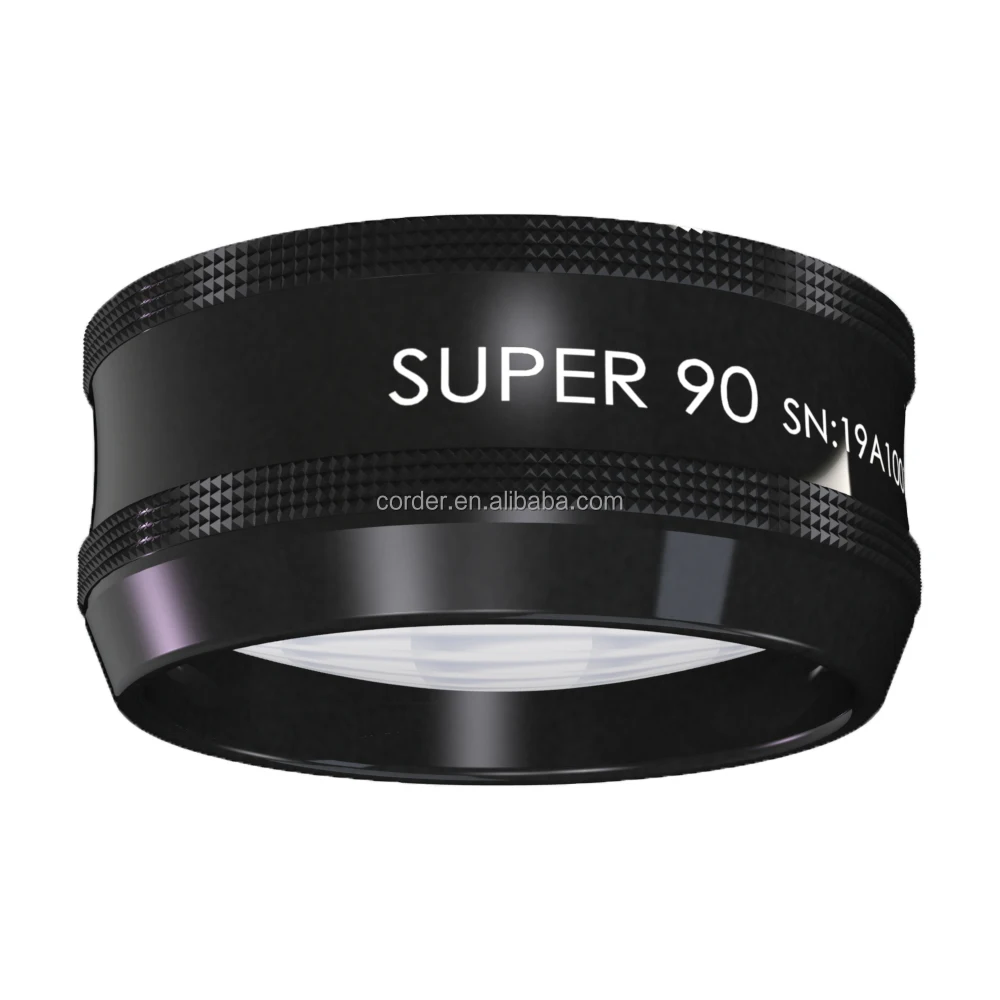

Super 90 | 95°/116° | 0.76 | 1.31 | 7 mm | Conventional retinal lens |
The Mater90 lens maintains the same magnification, but the field of view angle increases by 39%, reaching the widest 125°and widest field of view without glare reflection.
High index optical glass ensures the highest resolution of stereoscopic images, with the same effect when passing through small pupils.
Model | Field | Magnification | Laser Spot Magnification | Working distance | Application |

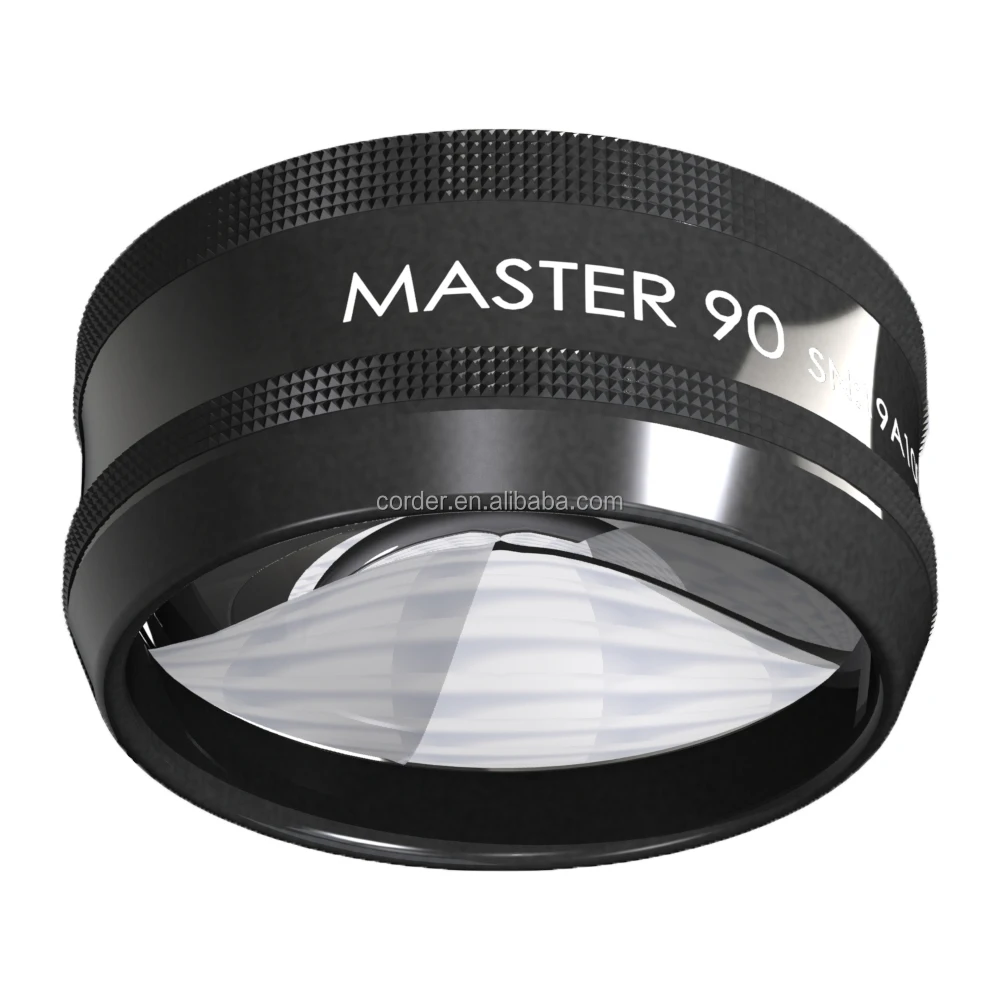

Master 90 | 104°/125° | 0.72 | 1.39 | 4.5mm | Panretinal examination with the widest field of view while maintaining high resolution |

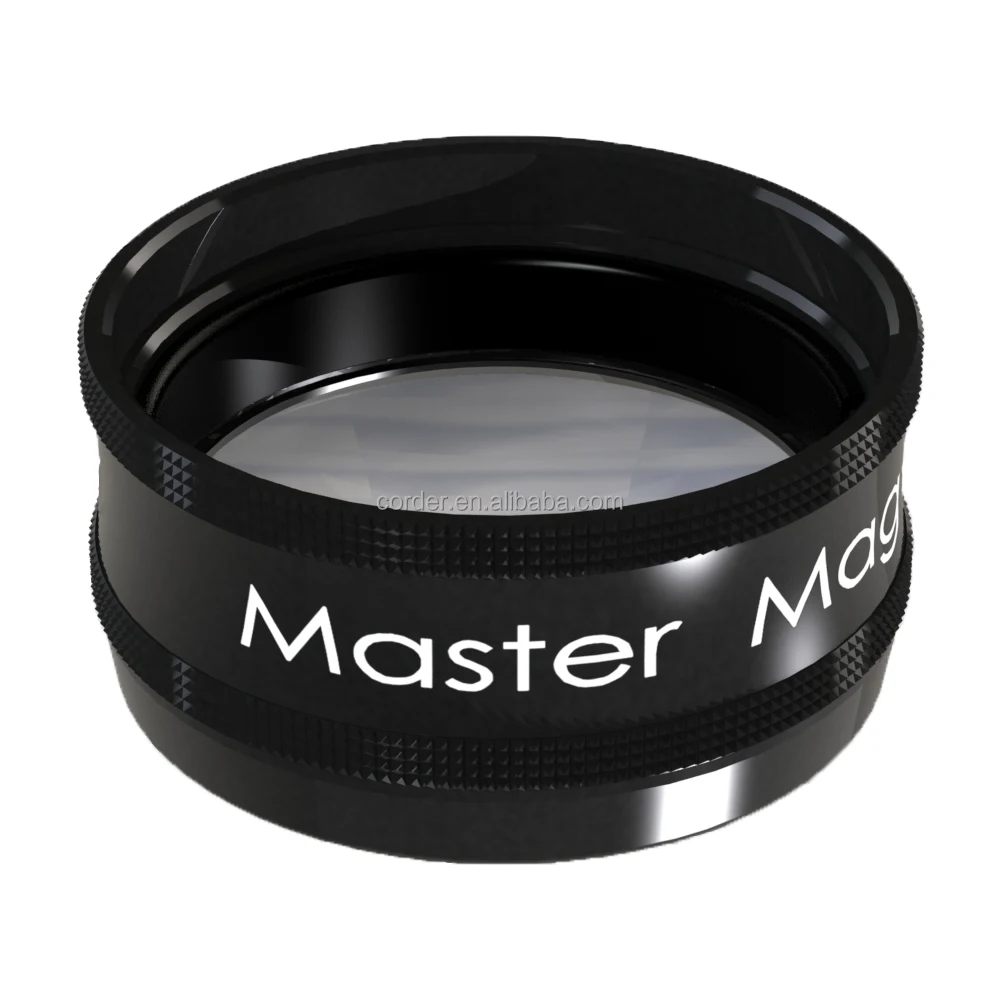

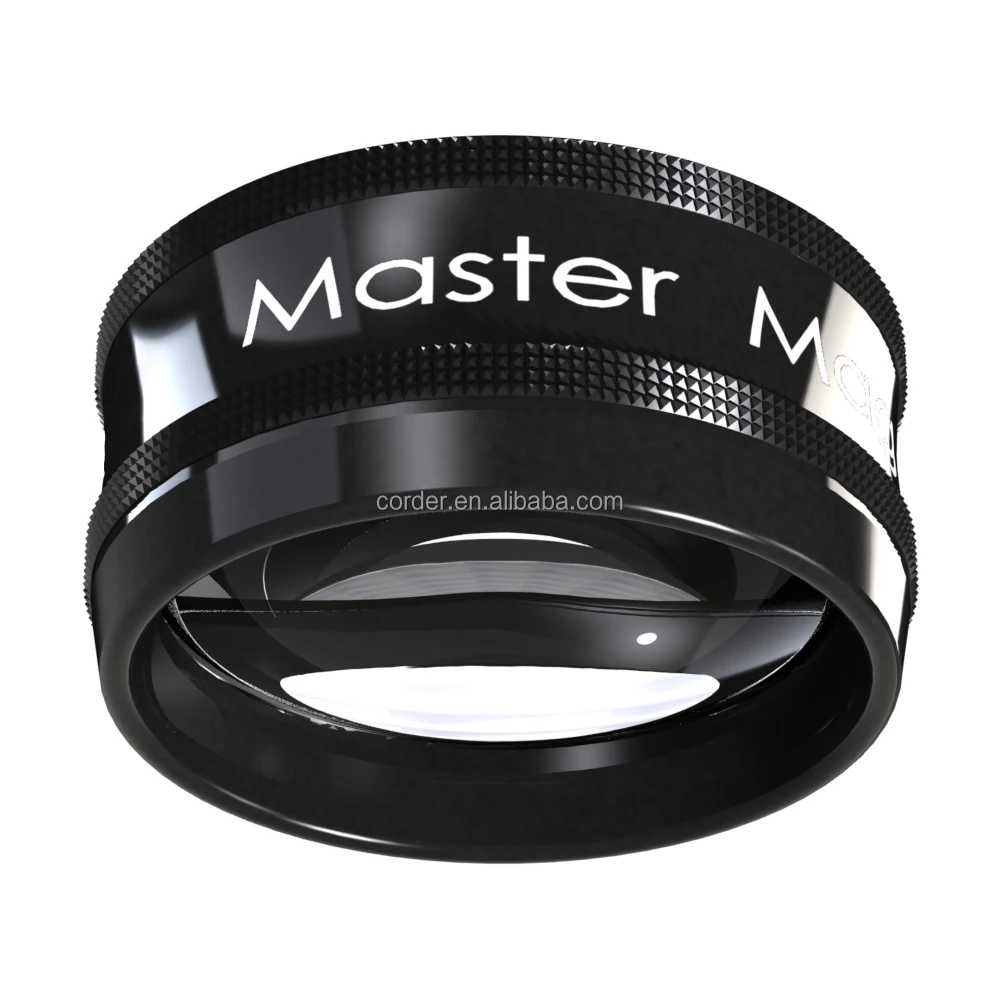

Master Mag | 66°/78° | 1.2 | 0.83 | 13mm | The highest resolution and high magnification imaging of the central retina |
