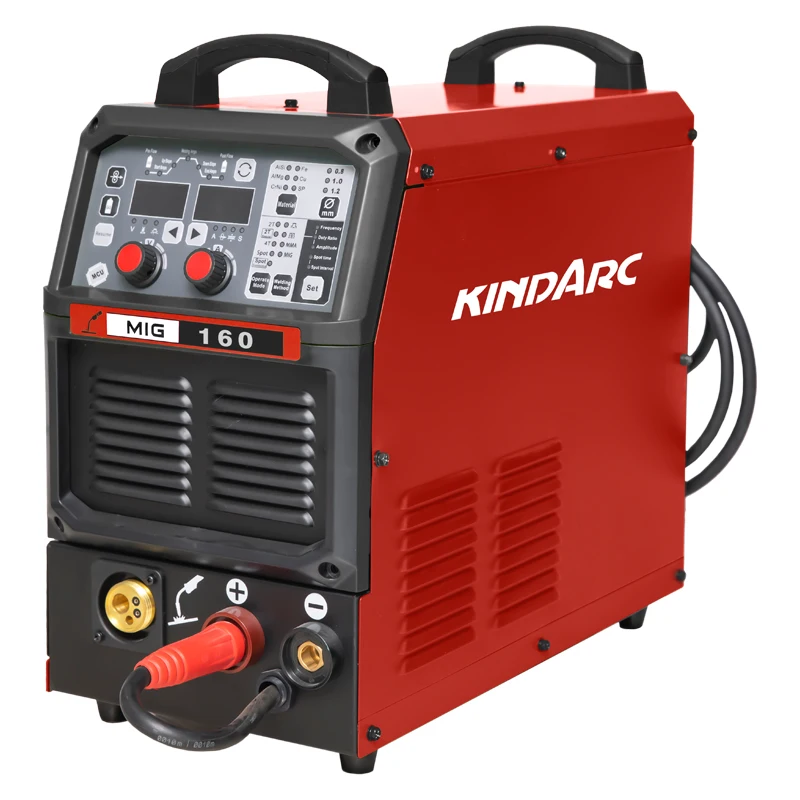

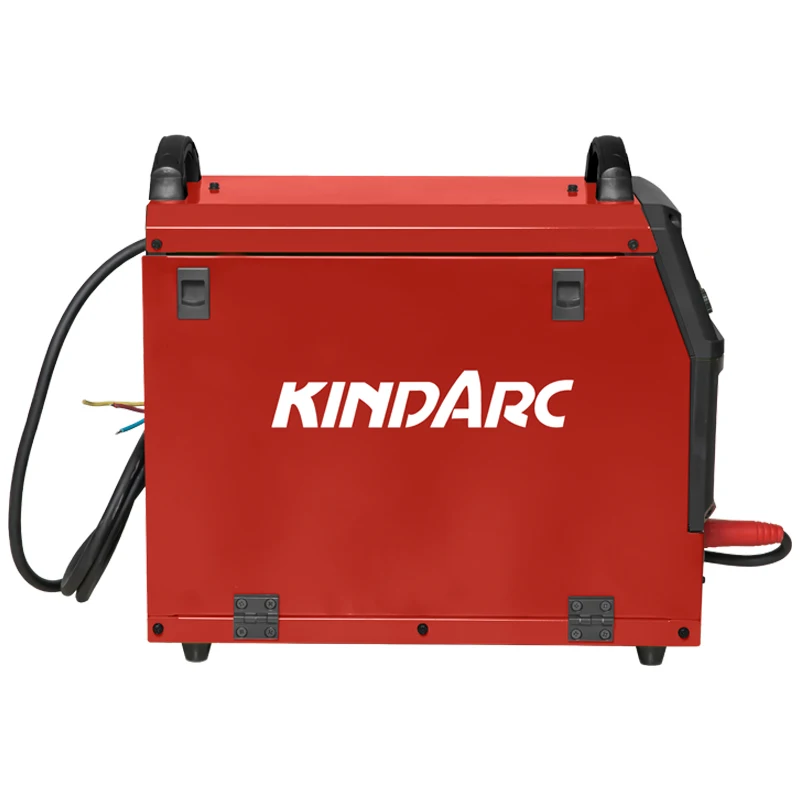

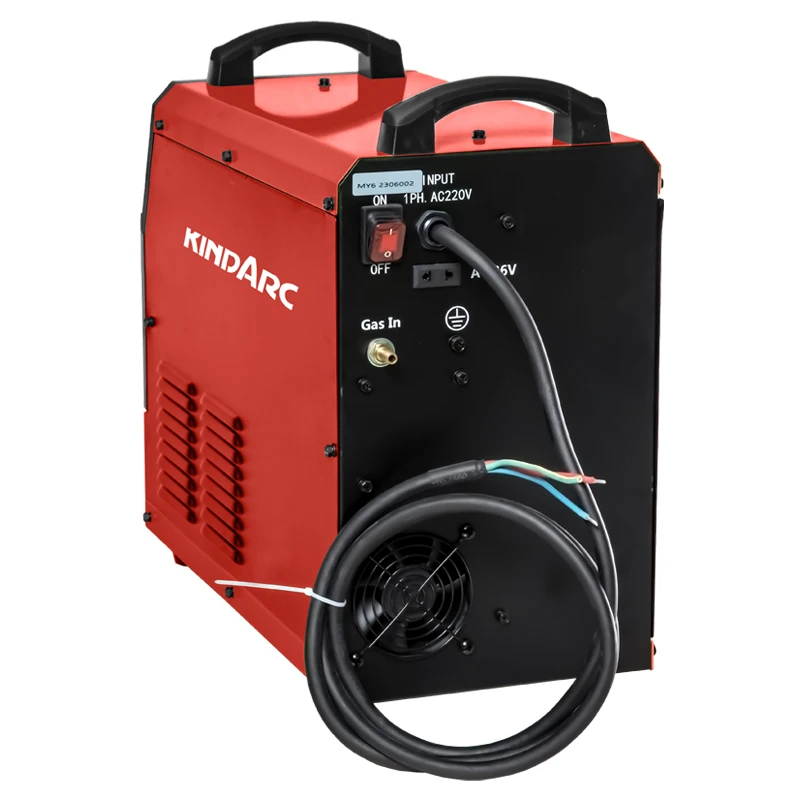

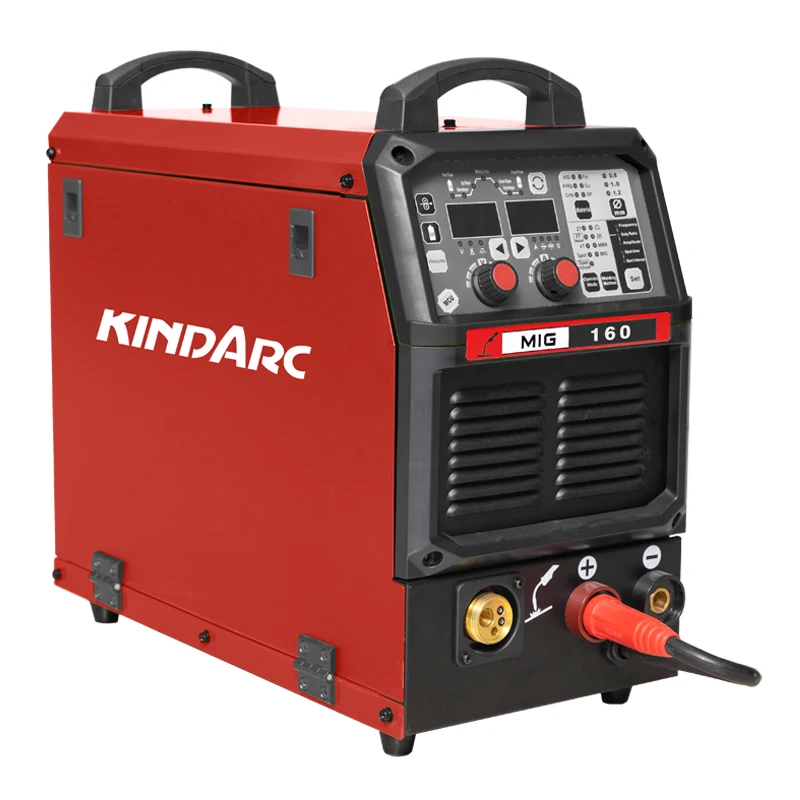

Portable High Speed Pulse MIG Welders For MIG 160 Easy to Operate CO2/MIG Welding Machine New Arc Welders
- Category: >>>
- Supplier: Wuhan Jinda Welding Technology Co. Ltd.Wuhan Ltd.
Share on (1600923383809):
Product Overview
Description
Product Description
Main features：
1, with manual welding, ordinary gas welding, high-speed single pulse, high-speed double pulse a total of four welding methods (reverse connection can achieve gas-free welding).
2. Can store 10 sets of welding procedures, with 2T/4T/ special 2T/ spot welding/continuous spot welding function.
3. Can weld carbon steel, stainless steel, aluminum and its alloys, copper and its alloys and other non-ferrous metals.
4. The main feature is the super double pulse welding function of carbon steel, stainless steel and aluminum alloy.
5 Can be the plate thickness of 0.5-4mm aluminum alloy workpiece super double pulse spatter-free welding, fish scale forming close to tungsten arc welding, higher efficiency than argon arc welding.
Specification
Model | MIG-160 |
Input Power Voltage(VAC) | 1PH.AC220V |
Rated Input Capacity(KVA) | 5.3 |
Rated Input Current(A) | 24 |
No-load Voltage(V) | 65 |
Output Current Range(A) | 10-160 |
Rated Duty Cycle(%) | 60 |
Diameter Of Rod(mm) | ∅0.8/∅1.0/∅1.2 |
Insulation Class | F |
Protection Class | Ip21 |
Efficiency(%) | 85 |
Power Factor( cosφ) | 0.93 |
