3V CR2477 Lithium Battery 2032 CR2032 CR1220 CR2025 CR2016 CR2477 lithium Button cell battery for Tags
- Category: >>>
- Supplier: Shenzhen Lus Technology Co. Ltd.
Share on (1600923399760):
Product Overview
Description
CR2450 Data sheet:
3V CR2477 Lithium Battery 2032 CR2032 CR1220 CR2025 CR2016 CR2477 lithium Button cell battery for Tags
LITHIUM MAGANESE DIOXIDE BATTERY
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
APPLICATION:
Utility meters (water, electricity, gas meters and AMR)
Alarm or security equipment (smoke alarm systems and detectors)
GPS tracking
Teal time clocks
Remote monitoring systems
Car electronics
Photo cameras
CR2477 DATA
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Model number | CR | CR2477 | button cell |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 1100 | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 10.2 | Unit cell |

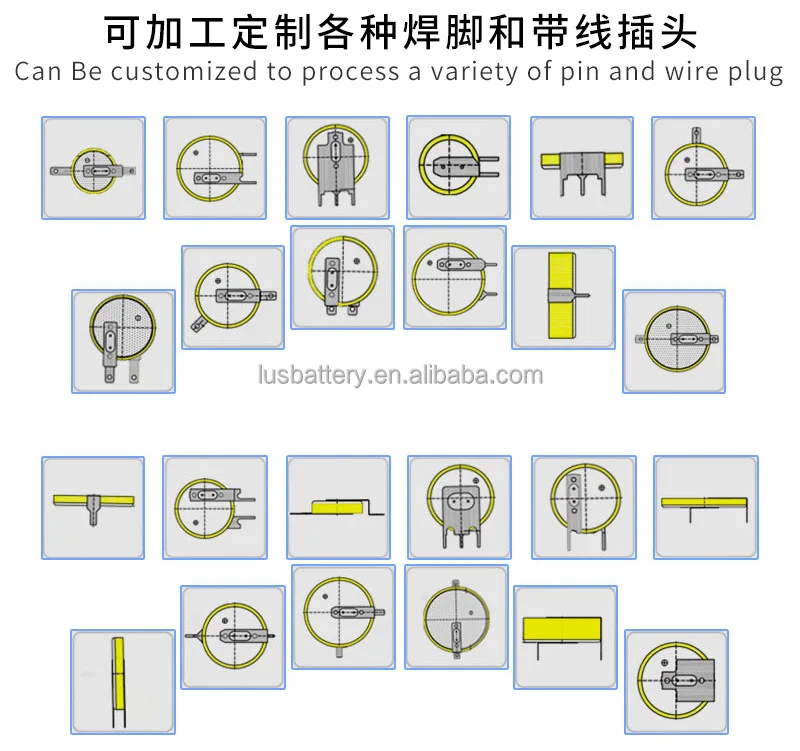

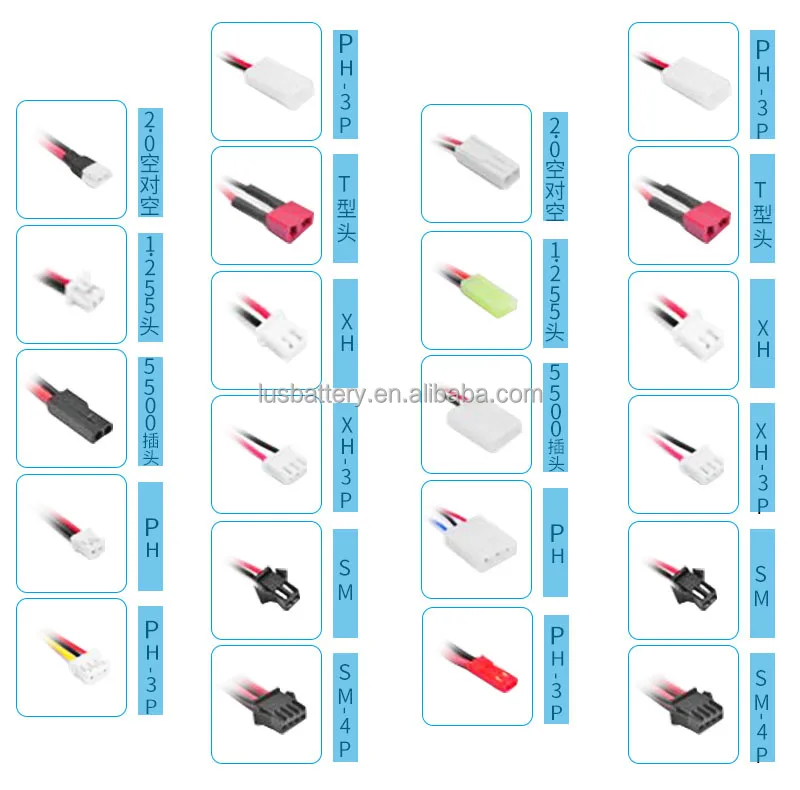

| Terminals | wires and connectore | Can be customized |
Button coin cell batteries list:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
LiMnO2 application
Utility meters (water, electricity, gas meters and AMR)
Alarm or security equipment (smoke alarm systems and detectors)
GPS tracking
Teal time clocks
Remote monitoring systems
Car electronics
Photo cameras
OEM button cell
Why choose us
1) Comprehensive
One-stop service of R&D, production, and marketing of all kinds batteries and battery packs.
High production capability can keep stable and reliable supply to enhance the competitive of your market.
Products cover the most complete category of batteries: Branded battery, 3V lithium primary battery, Li-ion battery & pack, Lithium polymer battery, Ni-MH battery& pack, Ni-Cd battery& pack, Lithium thionyl chloride battery, Li-FePO4 battery, Custom/OEM button battery,Battery holder, Battery charger,etc.
2. Professional
Professional R&D team aims to providing the most creative and advanced products to facilitate your business development.
With strong technical strength; Sophisticated production equipment; Rich-experienced sales and after-sales team.
3. Fast
Quick delivery: 3 -7 days for samples; 15-20 days for batch goods.
Prompt direct-shipping or drop-shipping to your customers.
4. Price
Affordable and competitive price for each product with the highest quality.
5. Quality
Complete and strict product testing is accordance with international test standard.
100% tested and inspection before shipping to make no unqualified goods in order to reduce your risk.
Talent in green products with environmental friendly chemistry.
6. Reputation
Products are highly appreciated and commented by our customers from all over the world.
7. Service
Support multiple payment way,such as L/C,T/T,Western Union,Paypal,etc.
OEM/ODM service and customize design to meet customers' special demands. Your logo and brand can be added as your request.
We will definitely provide our full support to help you achieve your business goals with our highest quality, best price, fast delivery and sincerest service.
Sincerely looking forward to from you. Many thanks!
