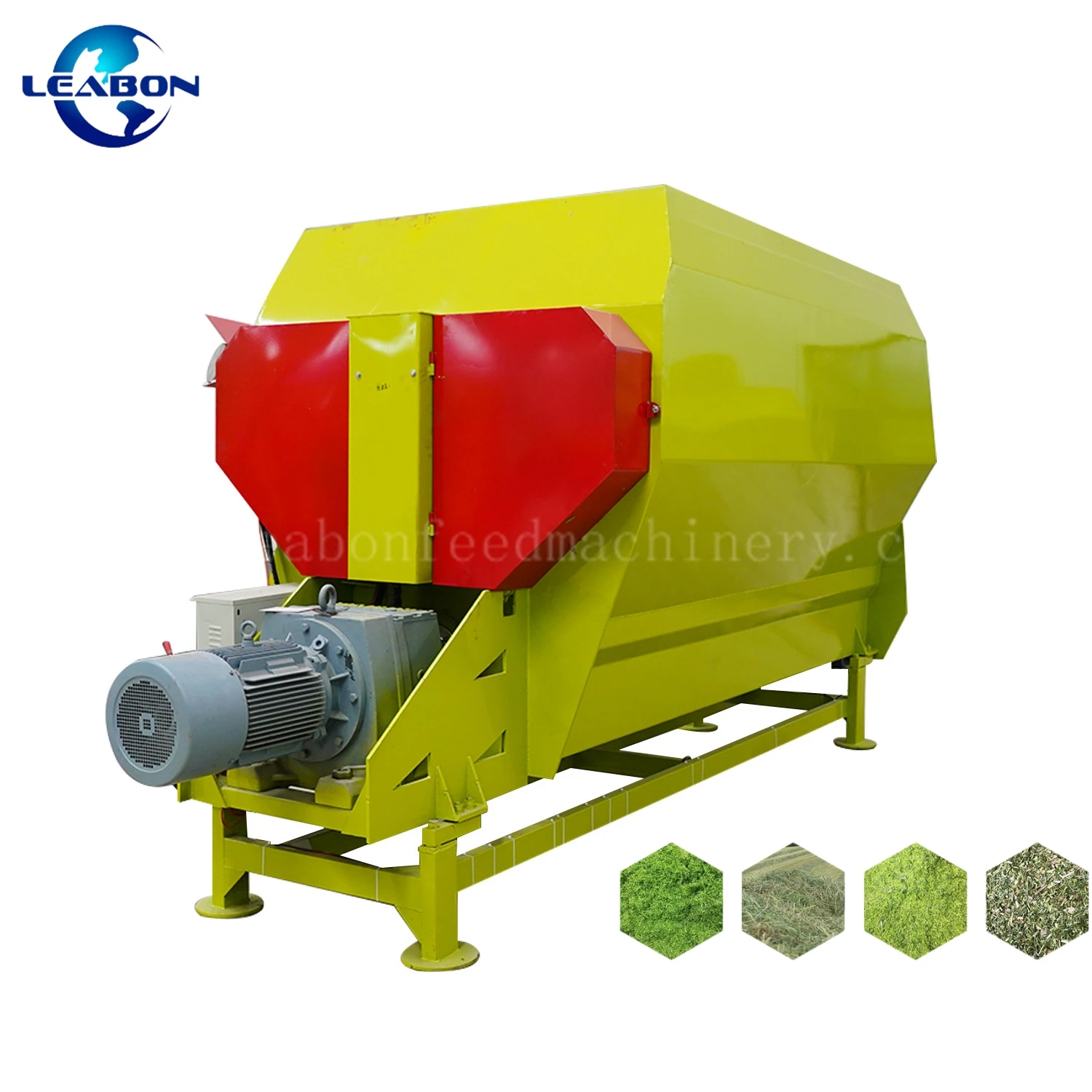

CE Professional Animal Feed Mixing Equipment 3CBM Horizontal TMR Feed Mixer Machine
- Category: >>>
- Supplier: Zhengzhou Leabon Machinery Equipment Co. Ltd.
Share on (1600923443989):
Product Overview
Description
Product Description

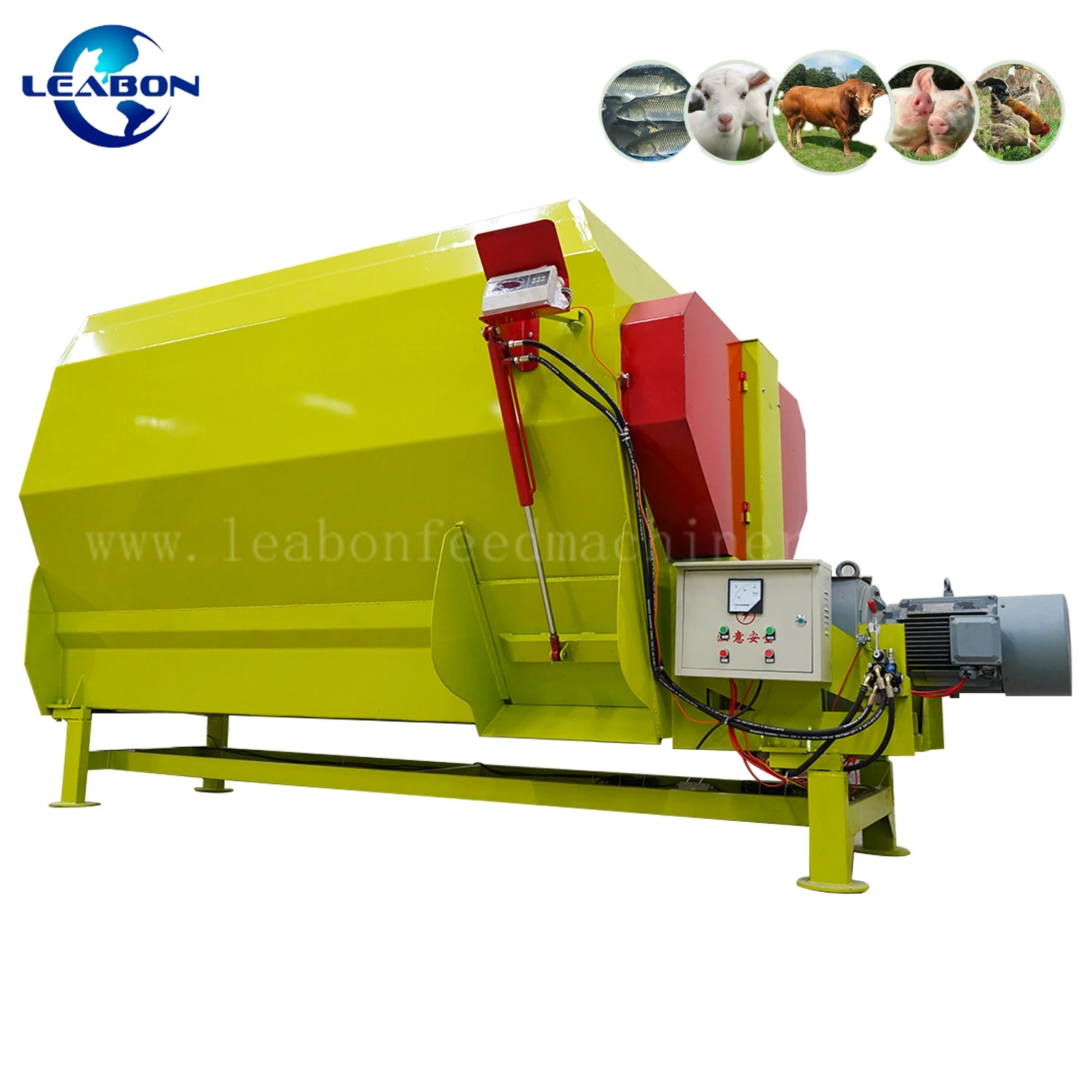

CE Professional Animal Feed Mixing Equipment 3CBM Horizontal TMR
Feed Mixer Machine
Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency. The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality, reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.
Detailed Images
Hydraulic control

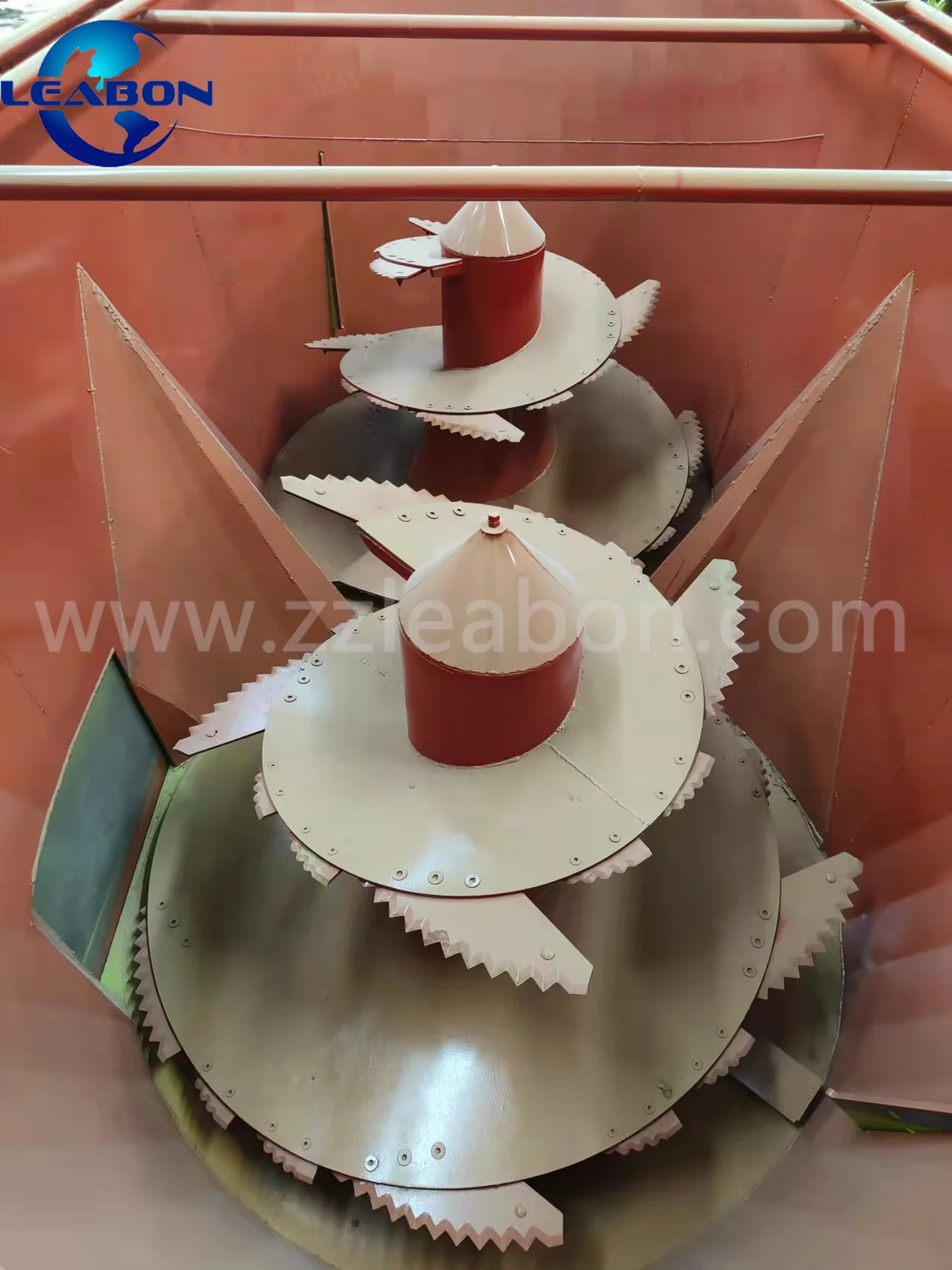

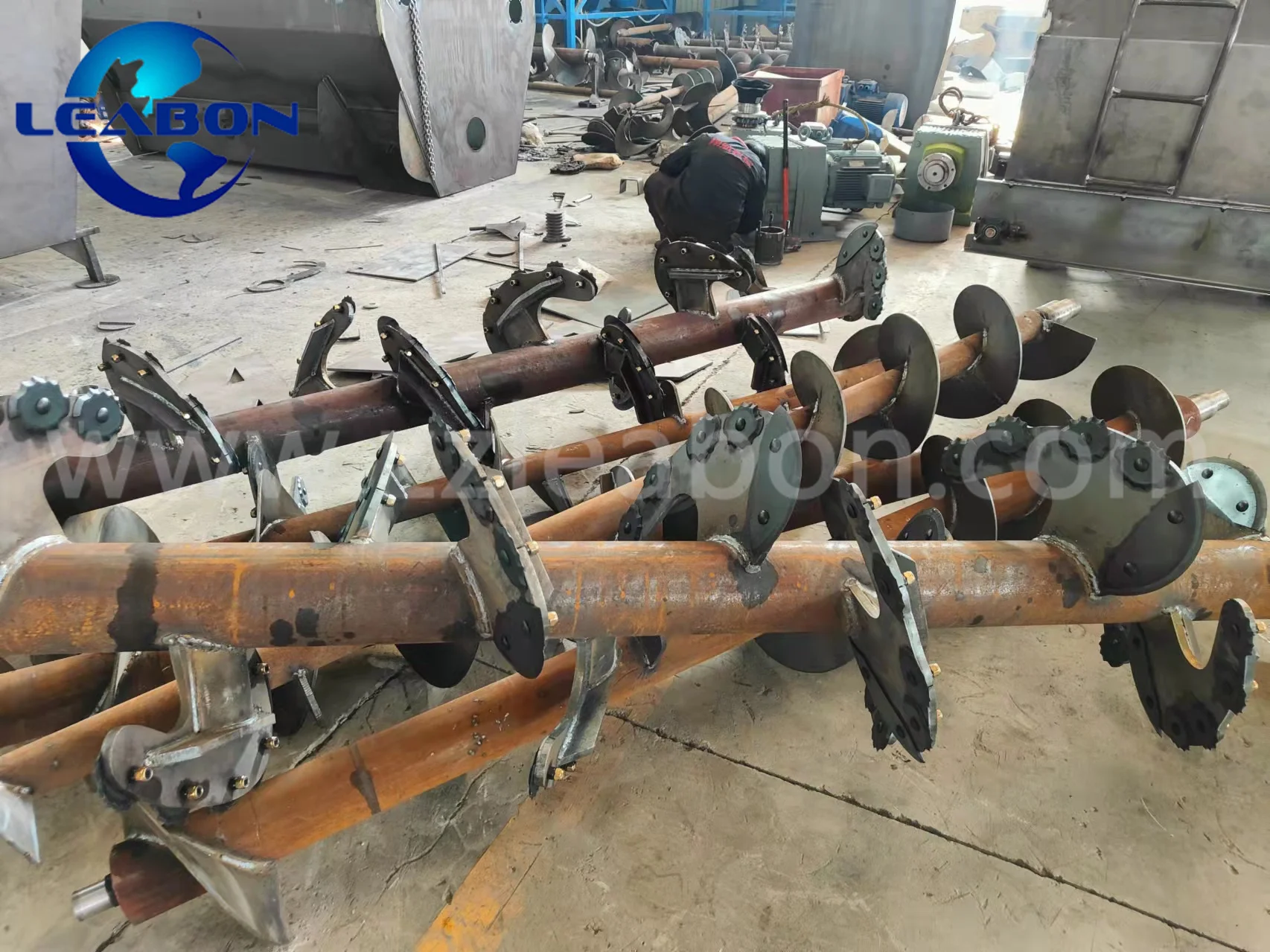

Augers

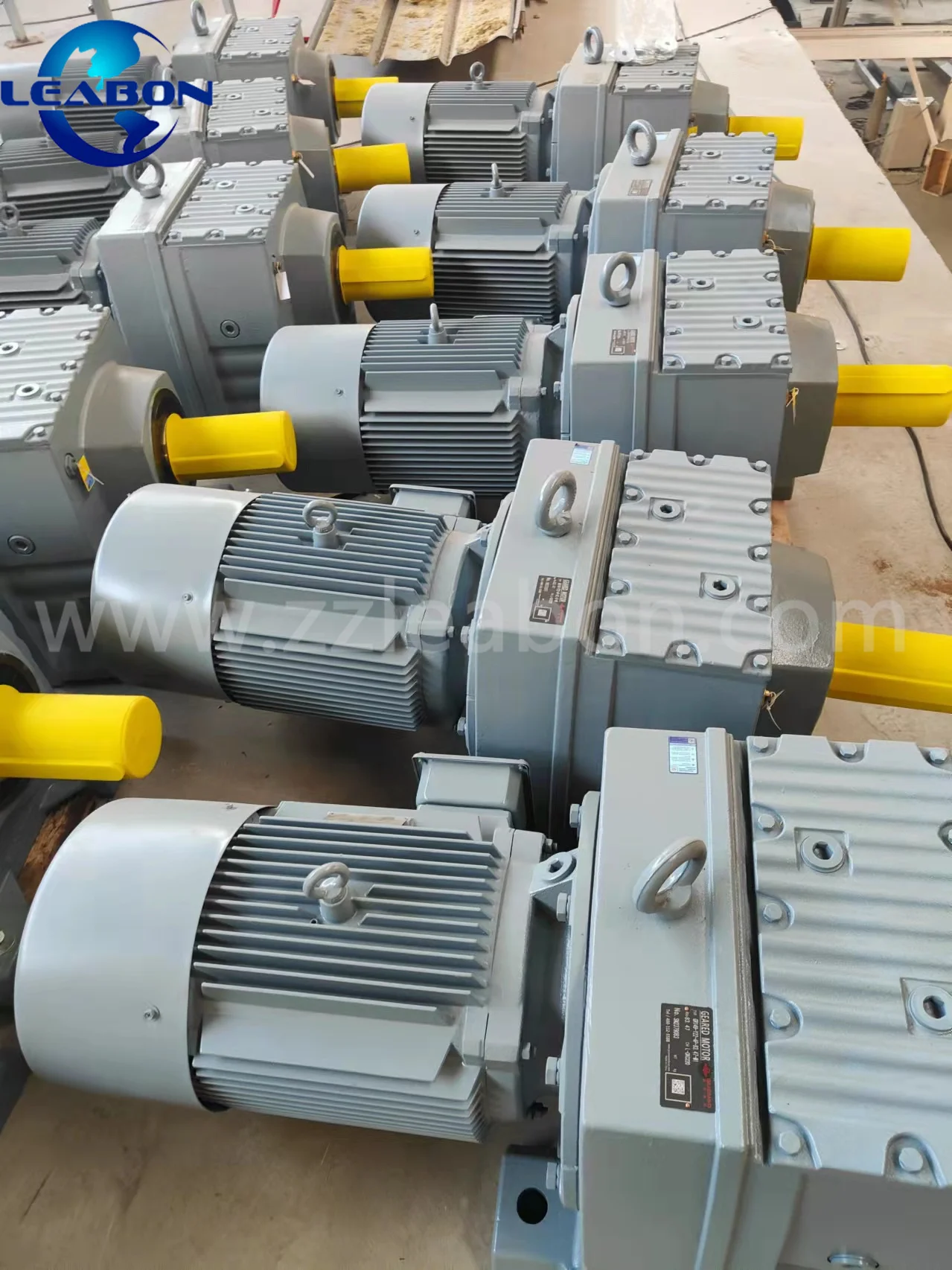

Electric motor
Electric control box
Operating Principle:
Vertical full-mixing dietary mixer is mainly composed of one or two screw-shaped, and the spiral twisted dragon is divided into upper and lower spin. During the mixing and stirring, the material from both ends of the box at the same time all directions to the middle of the mixer peeling stirring. Each helix of the screwdriver is equipped with a moving blade to cut the fixed tooth at the position of the center line of the feed mixer, and cut and agitate all kinds of fibrous forages and stalks passed through, so as to achieve the complete mixing and crushing and dietary feeding effect.
Different Kinds Of TMR Silage Feed Mixer:

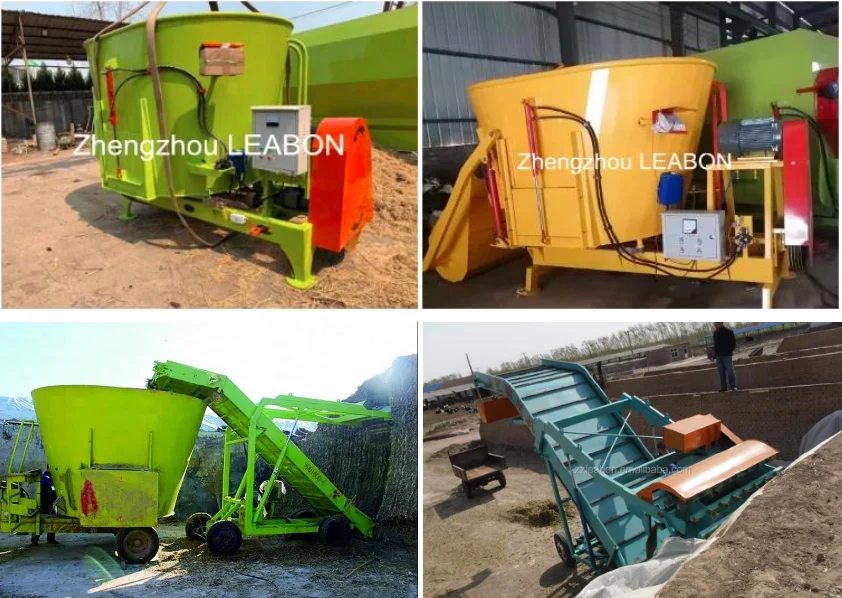

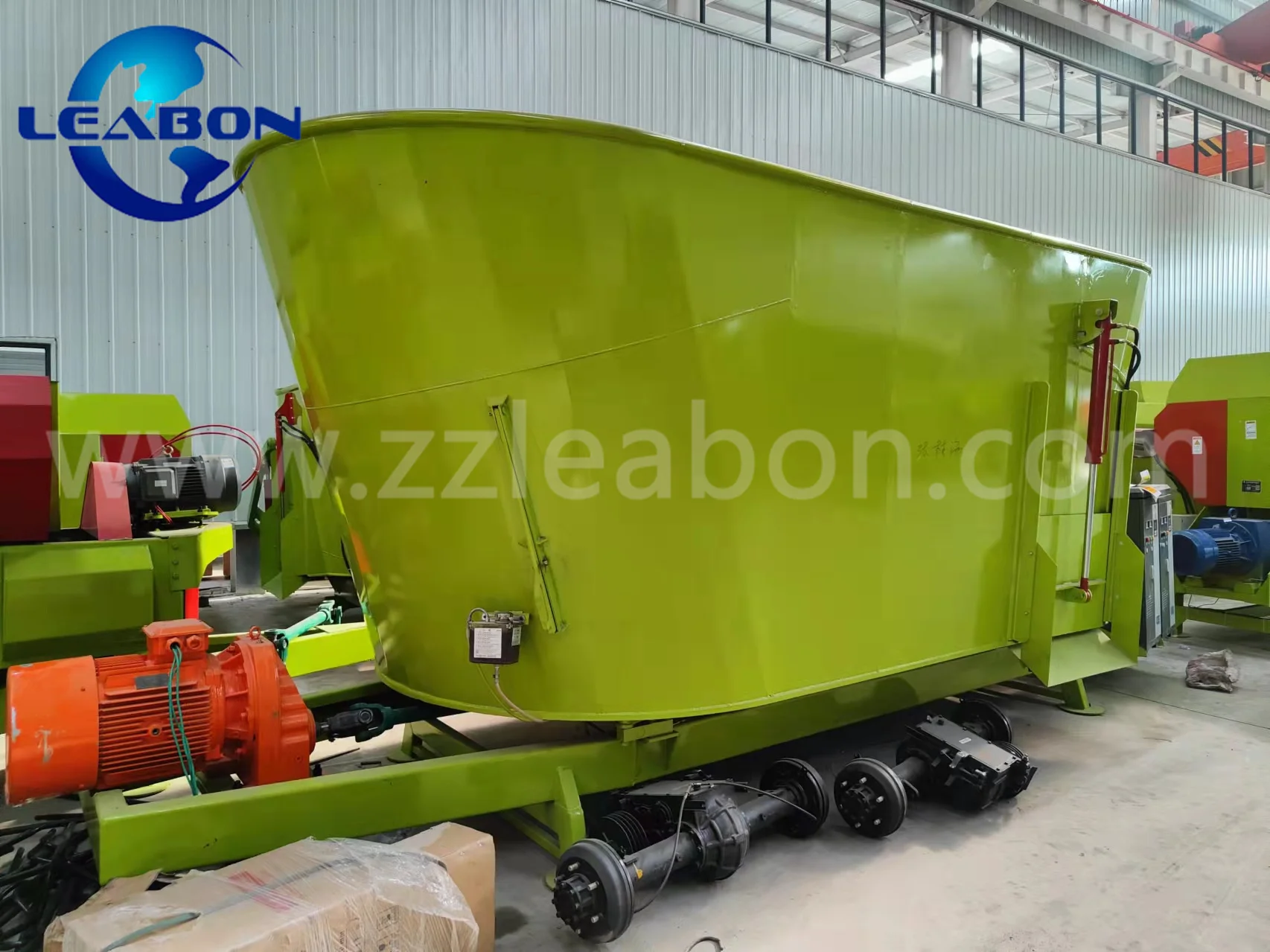

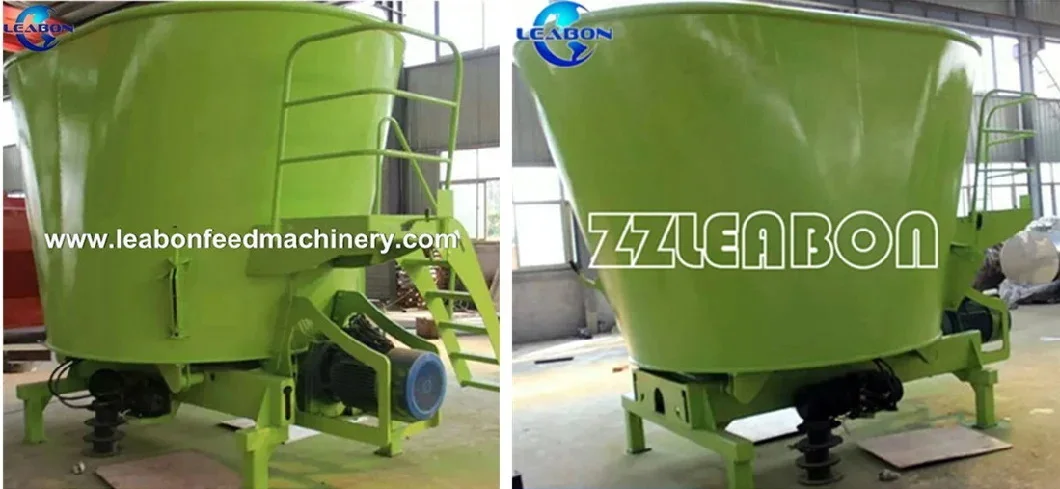

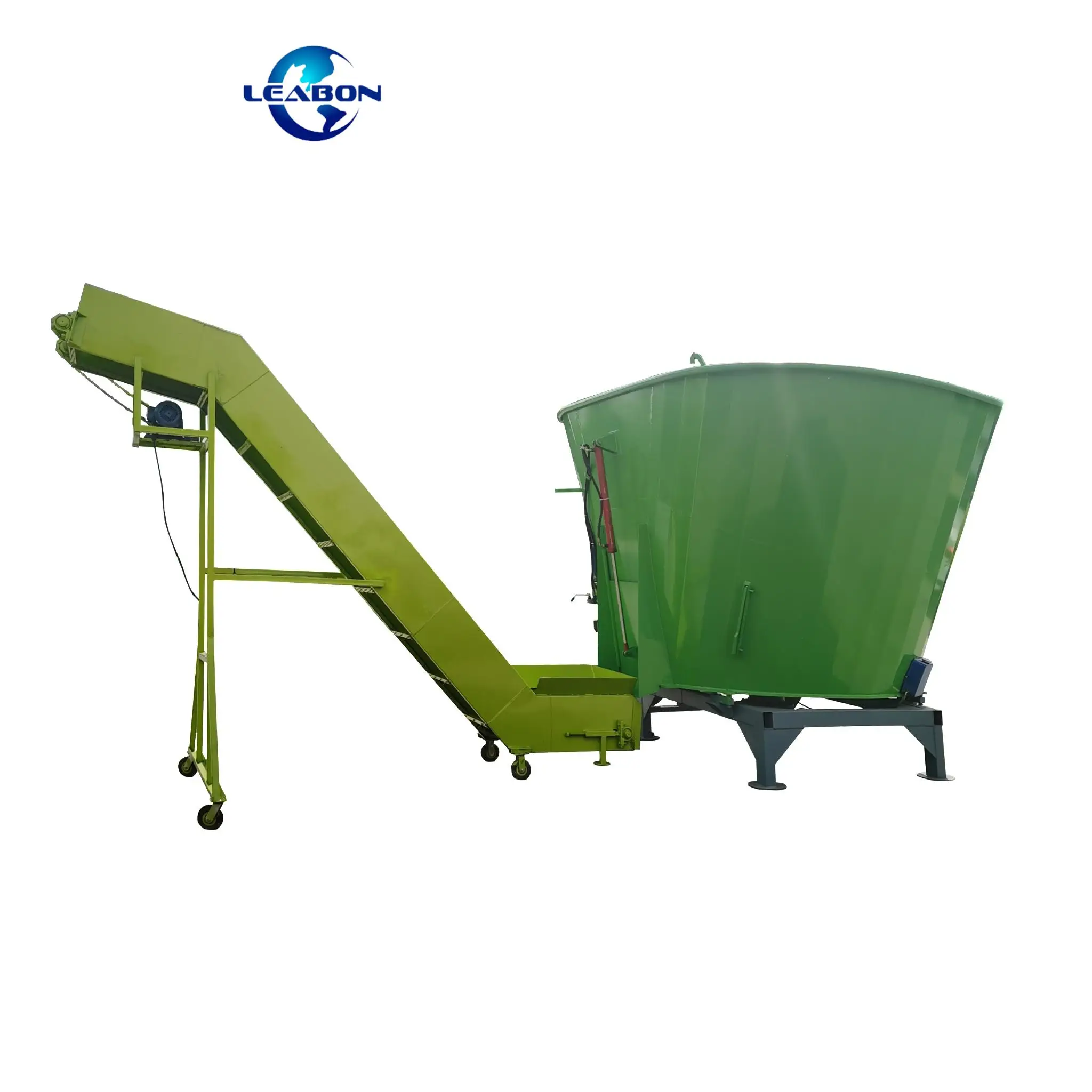

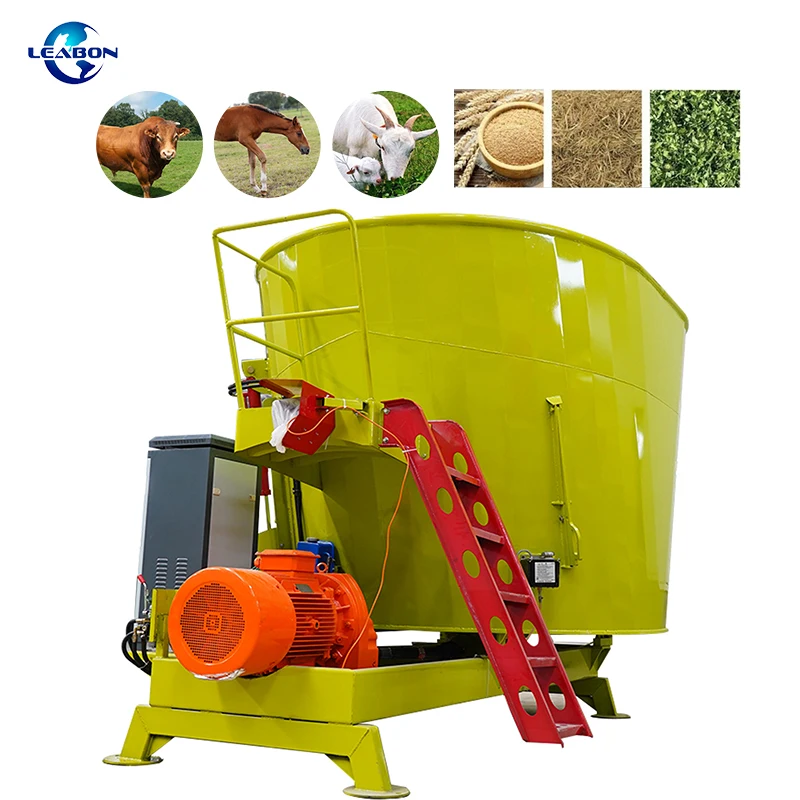

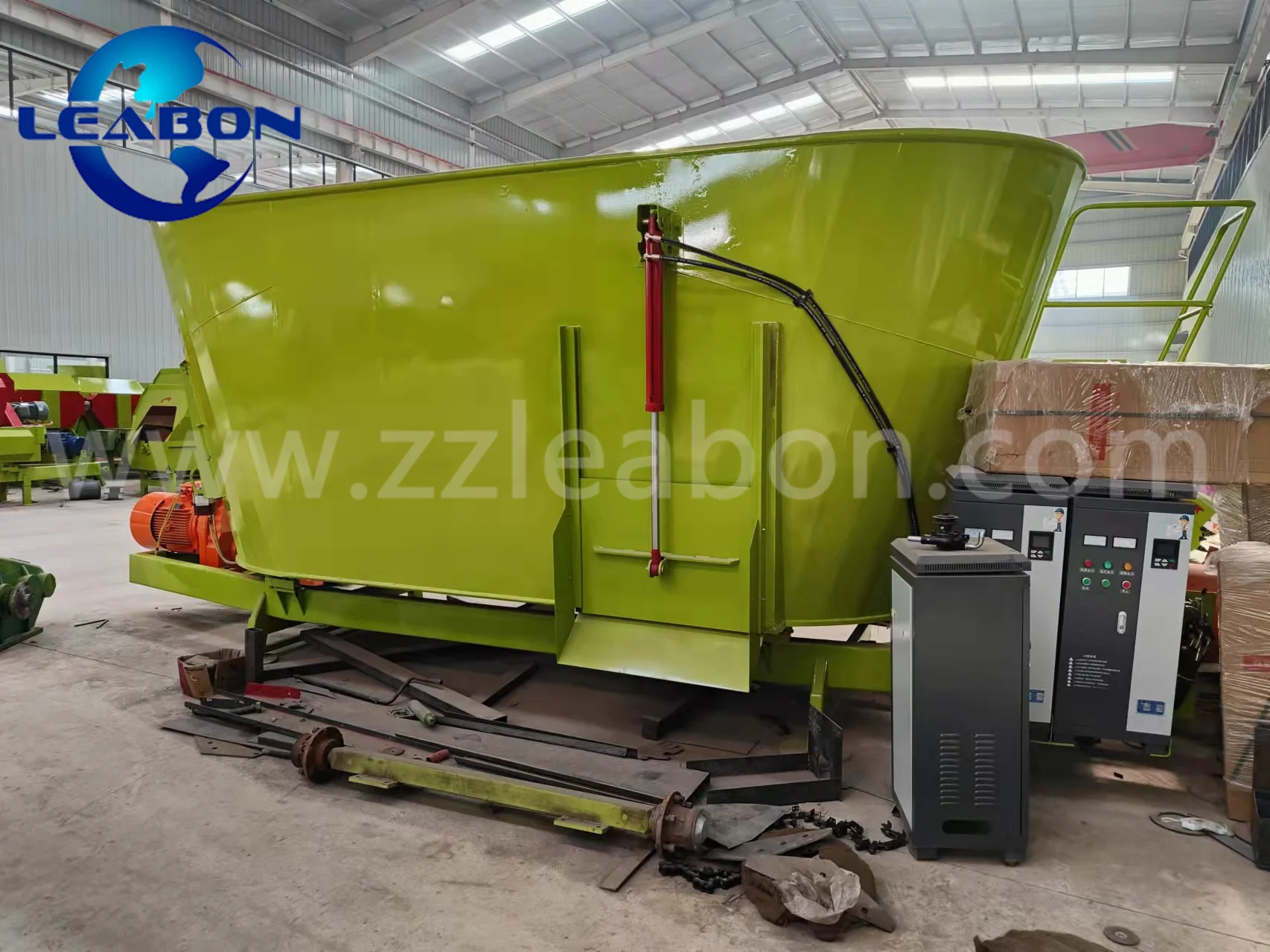

1.Vertical TMR Feed Mixer:
1.Vertical TMR Feed Mixer:
Model | 9TMRL-5 | 9TMRL-9 | 9TMRL-12 | 9TMRL-16 |
Motor Power(kw) | 15 | 22 | 30 | 22+22 |
Capacity(T/H) | 2-3t/h | 4-5t/h | 6-7t/h | 8-10t/h |

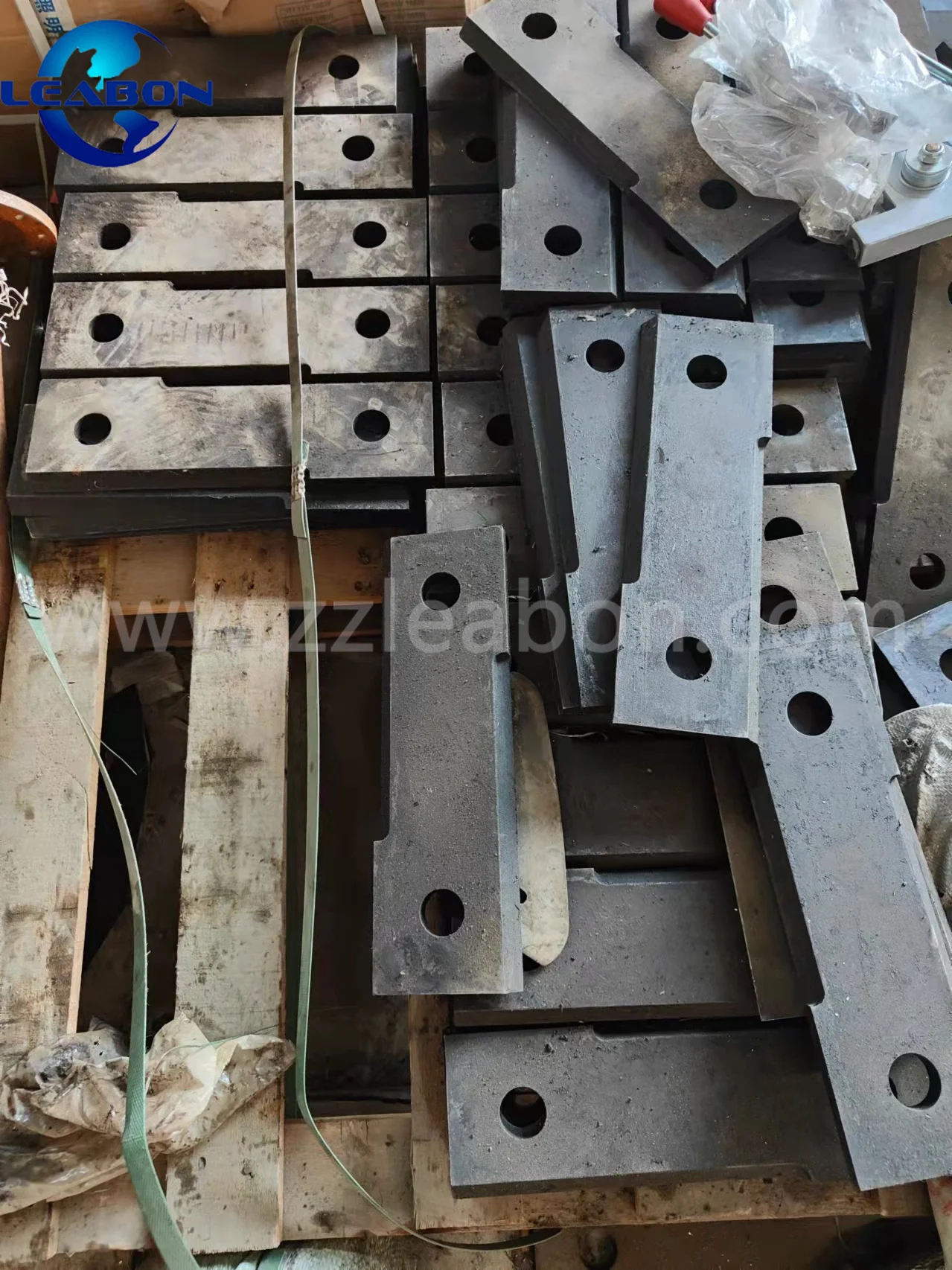

QTY of blades(PCS) | 5 | 8 | 8 | 16 |
QTY of twisted dragon(PCS) | 1 | 1 | 1 | 1 |
Bottom plate thickness | 14mm | 16mm | 16mm | 18mm |
Side plate thickness | 5mm | 8mm | 8mm | 8mm |
Dimension(mm) | 3100*1900*2100mm | 3900*2300*2500m | 4600*2400*2600m | 5800*2500*2600m |
Weight（kg） | 1900kg | 2800kg | 3600kg | 5000kg |

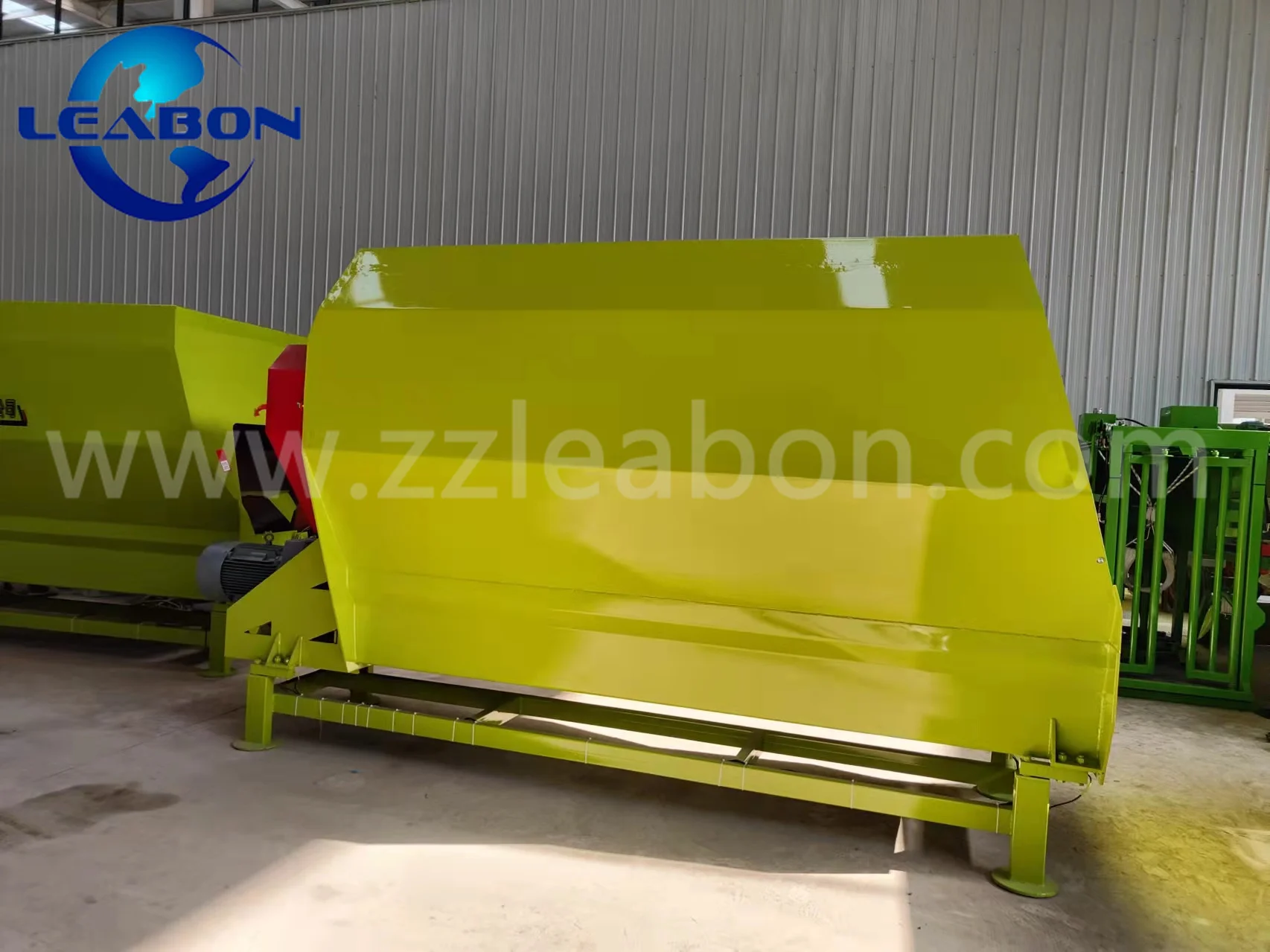

2.Horizontal Type TMR Silage Feed Mixer:
Model | 9TMRW3 | 9TMRW-5 | 9TMRW-9 | 9TMRW-12 |
Motor Power(kw) | 11 | 15 | 22 | 30 |
Capacity(kg/h) | 1000-1500kgs/h | 2000-3000kgs/h | 4000-5000kgs/h | 6000-7000kgs/h |
QTY of blades(PCS) | 33 | 40 | 58 | 69 |
QTY of twisted dragon(PCS) | 3 | 3 | 3 | 3 |
Bottom plate thickness | 5mm | 6mm | 8mm | 10mm |
Side plate thickness | 4mm | 5mm | 6mm | 6mm |
Dimension(mm) | 3600*1700*1900 | 3900*1800*2100 | 4600*2000*2500 | 5300*2200*2600 |
Weight(kg) | 1700 | 2300 | 3200 | 4100 |

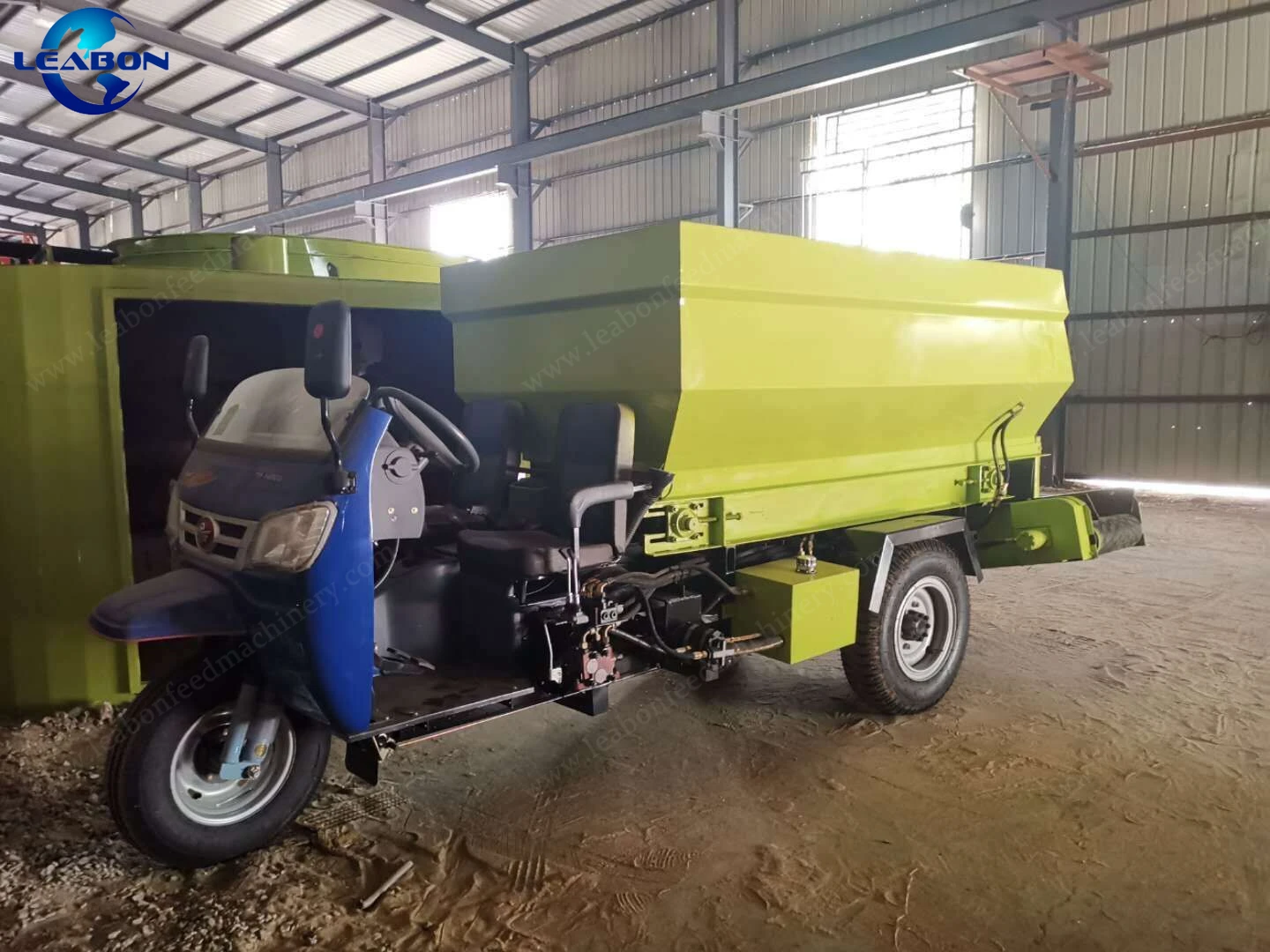

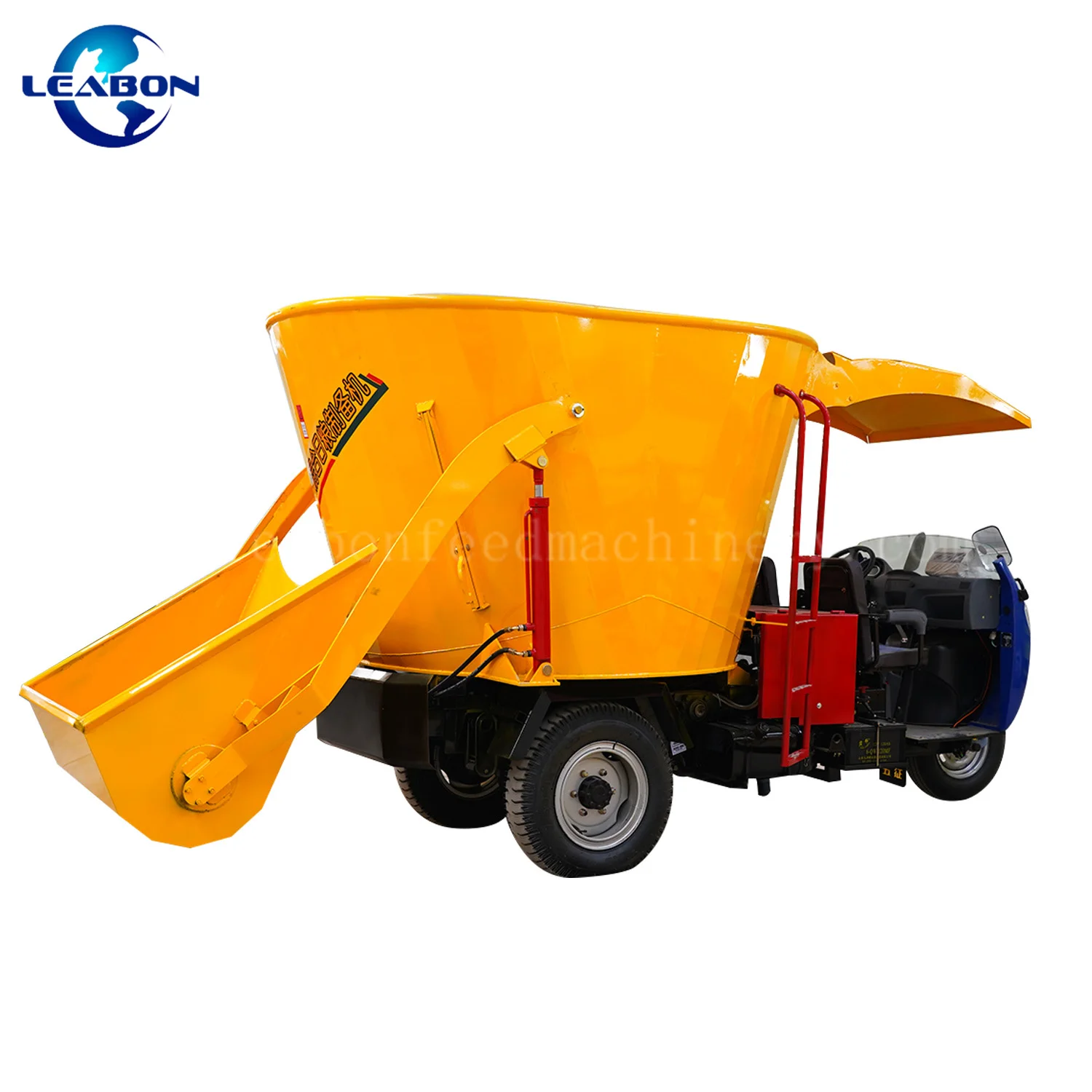

3.Mobile Type Tricycle Spreader Mixer:

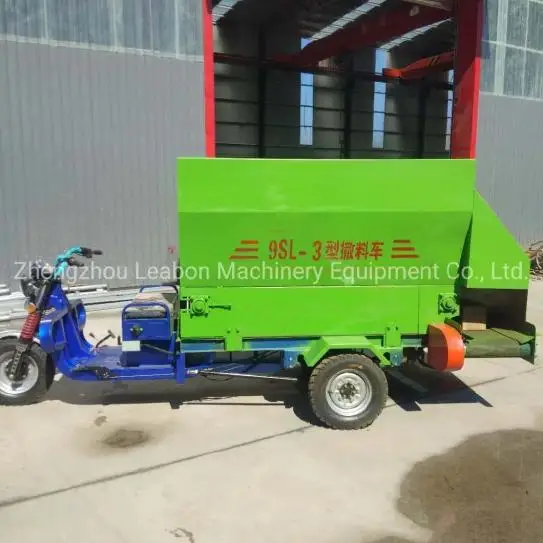

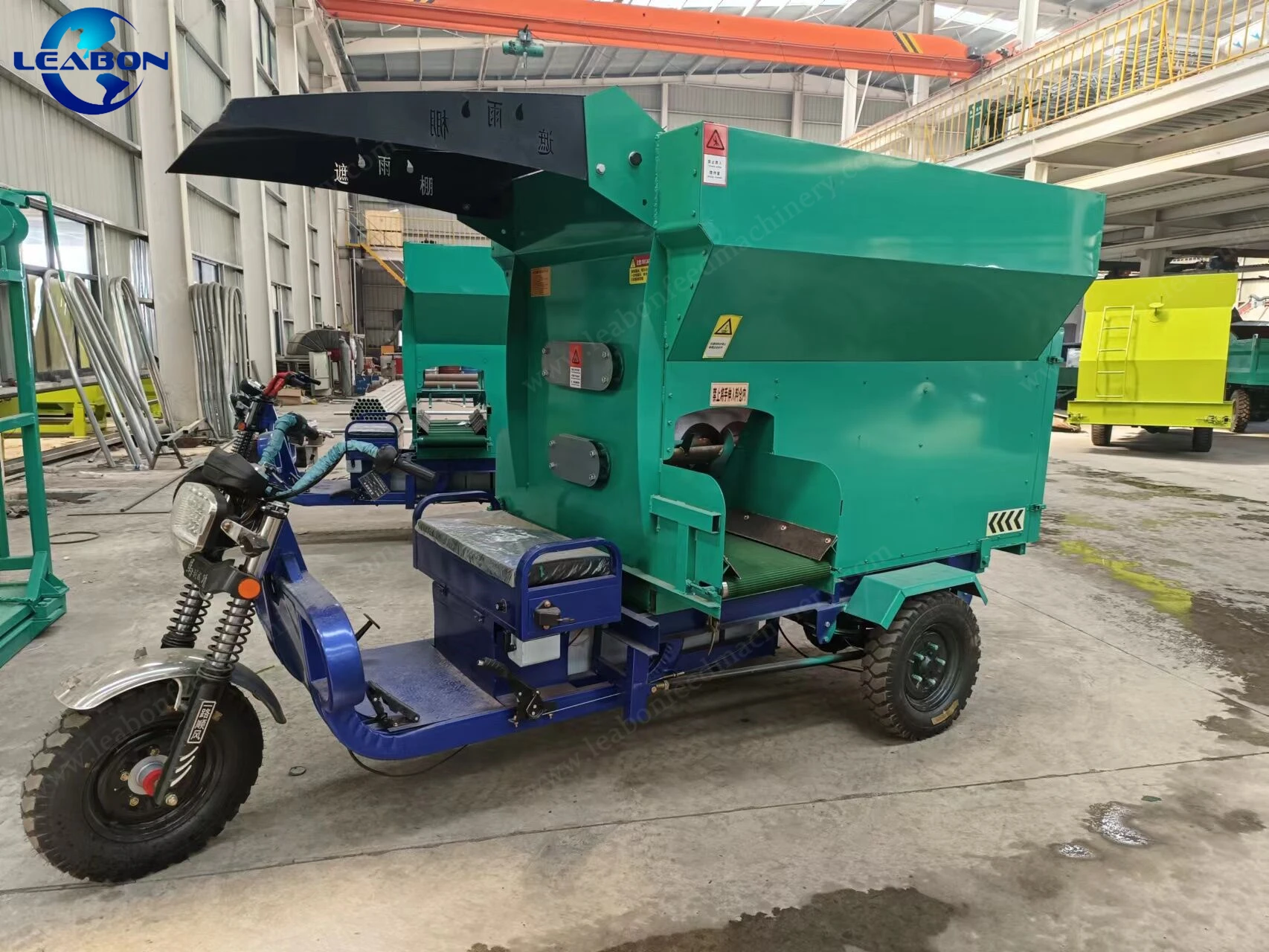

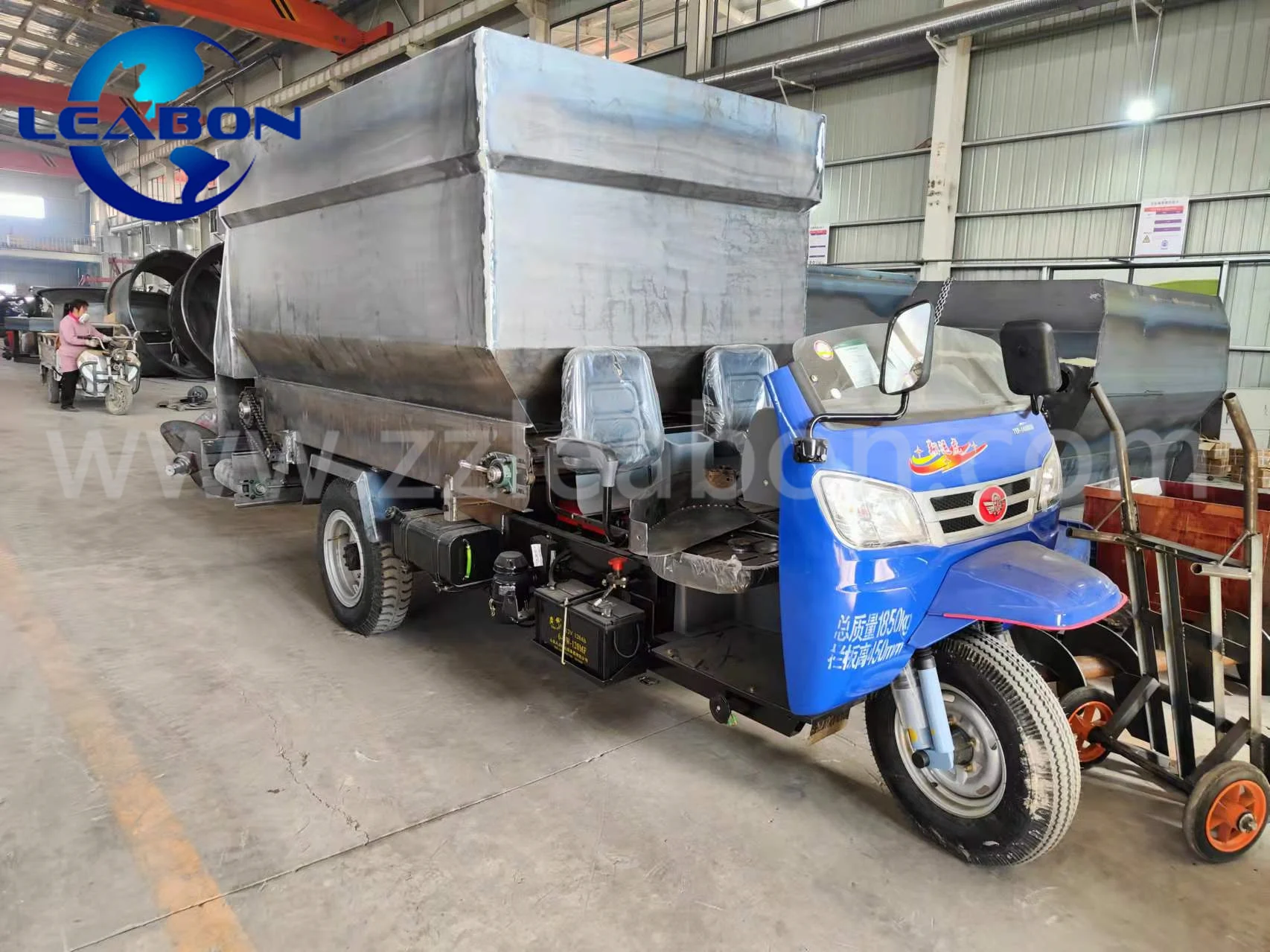

(1)Electric Mobile Type TMR Silage Feed Mixer
(1)Electric Mobile Type TMR Silage Feed Mixer
Model | 9SL-2 | 9SL-3 |
Battery | 5PCS，60V | 6PCS，72V |
Structure Type | electric tricycle | electric tricycle |
Feeding method | Spiral auger | Spiral auger |
Sprinkling method | Belt | Belt |
Size | 3100*1200*1800mm | 3600*1400*2000mm |
Weight | 1100kg | 1500kg |
(2)Diesel Mobile Type TMR Silage Feed Mixer
Model | 9SL-5 | 9SL-7 |
Tricycle Brand | Wuzheng | Wuzheng |
Power | 25HP | 25HP |
Structure Type | diesel tricycle | diesel tricycle |
Feeding method | scraper | scraper |
Sprinkling method | Belt | Belt |
Size | 4700*1800*2300mm | 5000*1800*2500mm |

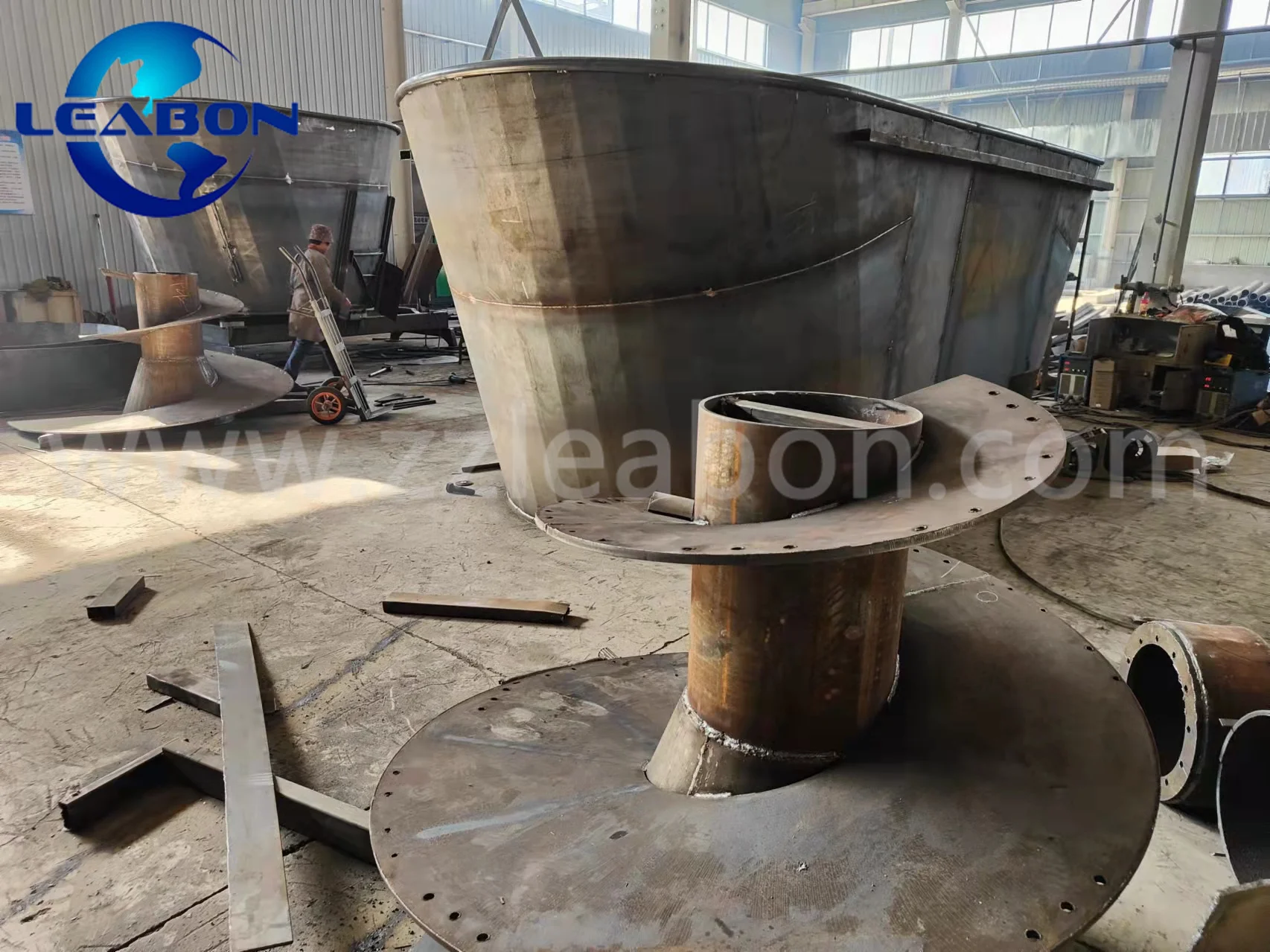

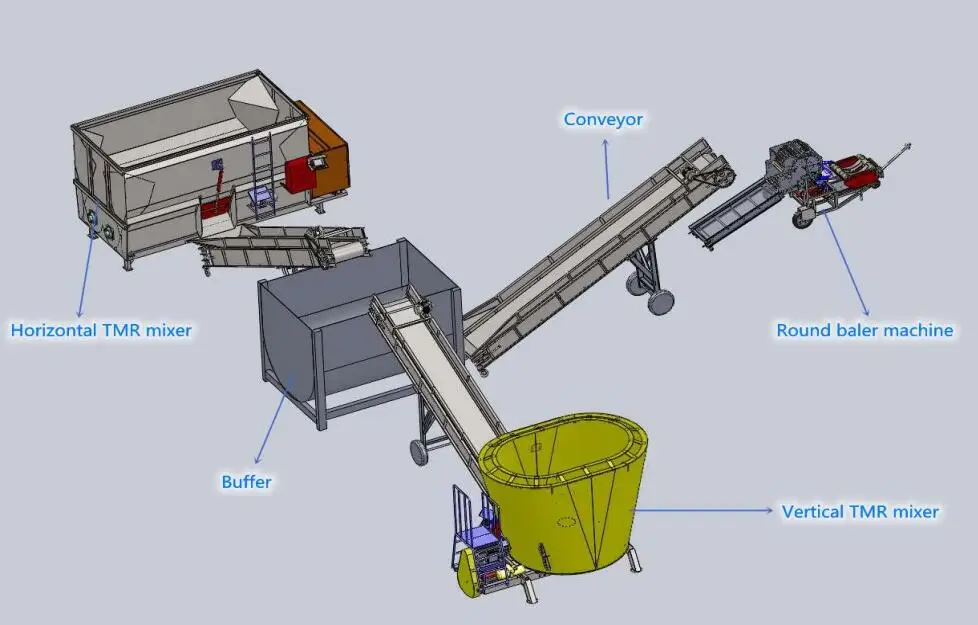

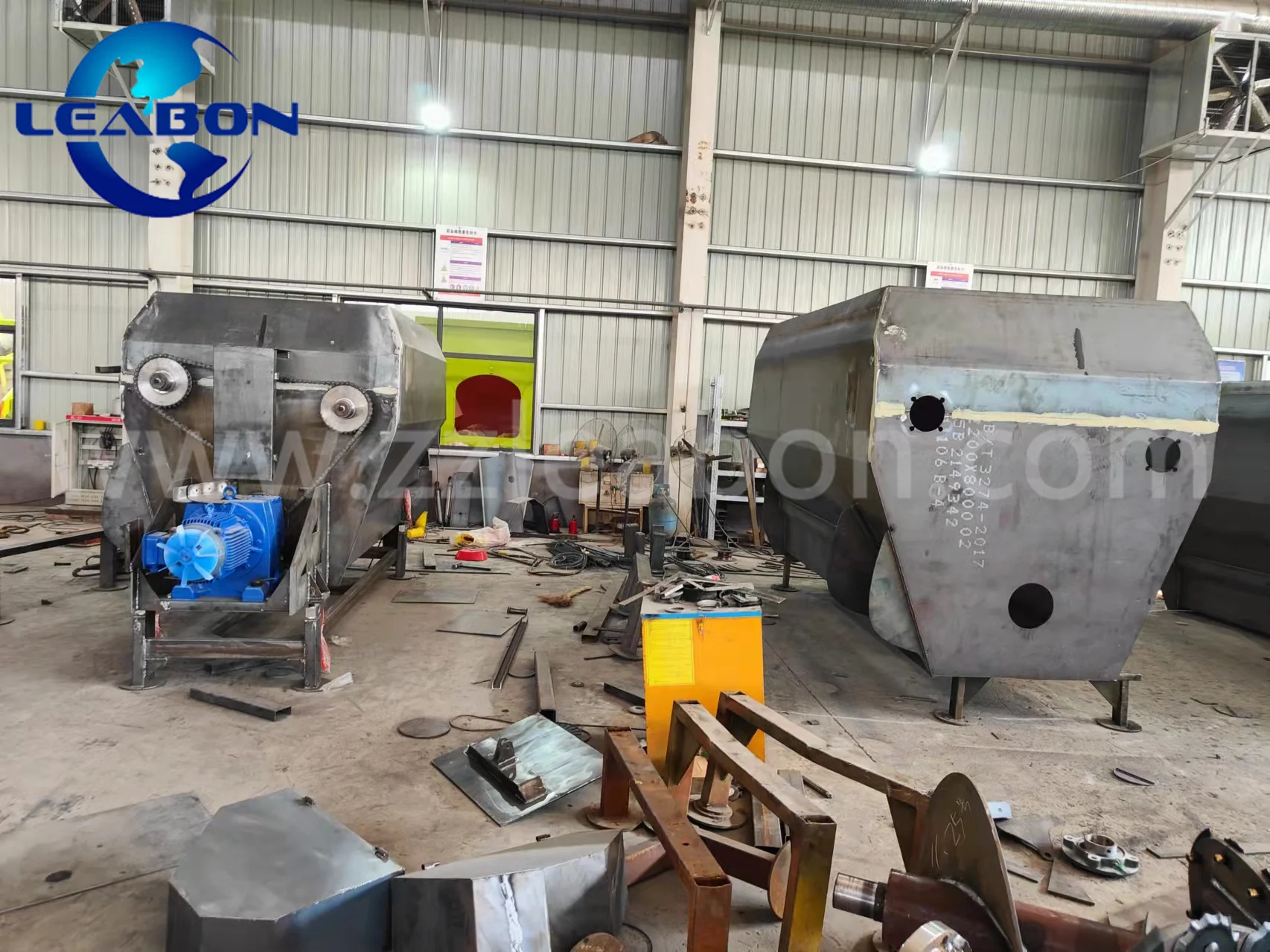

Production project display:
Raw material
The raw material could be used for chopping and mixing of all kinds of forage grasses, crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
Application Range

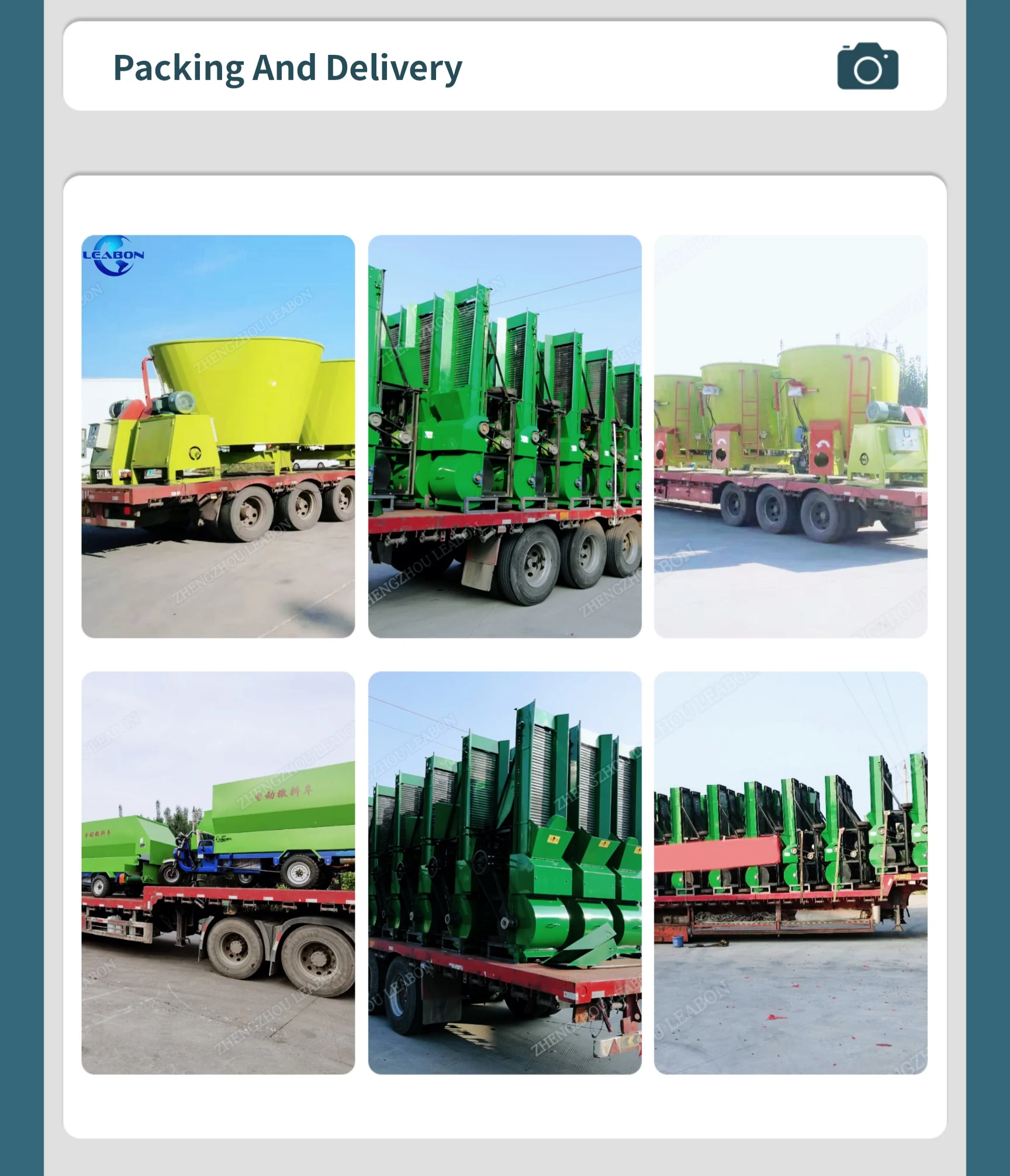

Packing & Delivery
Customer Feedback:
Company profile
FAQ
Q1:what are your raw material to mix? ------Grass, alfalfa, stalk, straw, grains powder |
Q2:how many cubes do you need for this series mixer ? ------3CBM, 5CBM, 9CBM; 13CBM; 15CBM etc |
Q3:What's the certification of your TMR feed mixer? ------CE Certification. |
Q4:What's the warranty of TMR feed mixer? ------Warranty:1 Year(except spare parts). |
Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram. |
