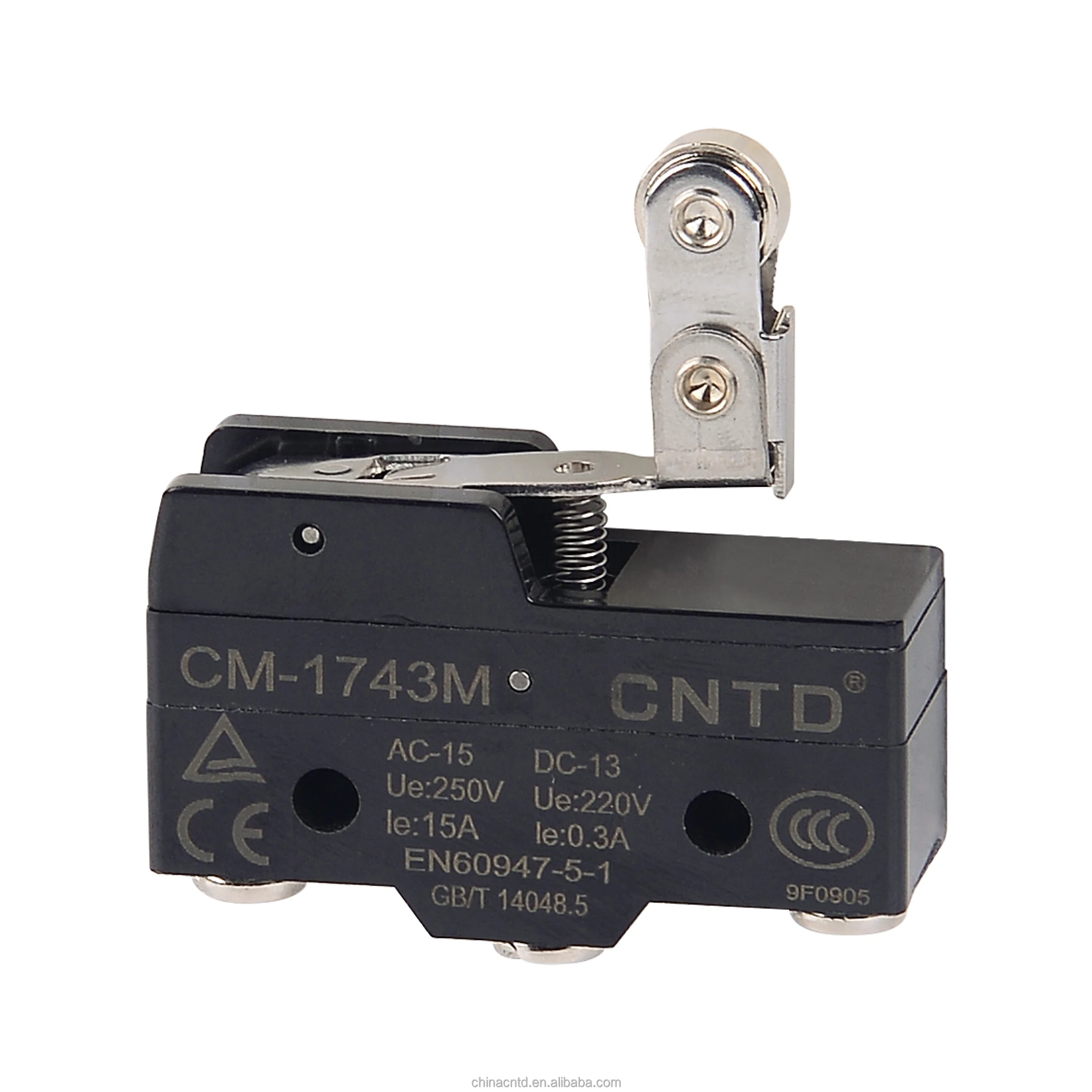

CNTD CM 1743M Safety Waterproof IP67 15A 250V Micro Limit Travel Switch
- Category: >>>
- Supplier: Cntd Electric Technology Co. Ltd.
Share on (1600923500030):
Product Overview
Description
Features
Various actuators and some with adjustable opersting position (such as CM1701)
High accuracy wide range of operation speed

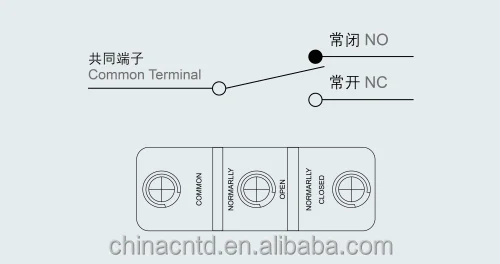

Contact Form
Specifications
Operation Speed | 0.05mm-1m/s (Plunger type) |
Operating Frequency | Electrical: 20 operations/min |
Contact Resistance | 15mΩ max. (initial avalue) |
Insulation Resistance | 100mΩ min. (at 500VDC) |
Dielectric Strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
Vibration | (＊10 to 20 Hz): 1.5Vibration amplitude action duration: 10 to 55 Hz |
Shock | Mechanical durable: 1,000m/Sec² (about 100G'S) Malfunction: 100m/Sec² (about 30G'S) |
Ambient temperature | Using: -20~+80℃ (With no icing) |
Humidity | General purpose type: 85% RH max., Sealed type: 95% RH max. |
Electrical Life | 500,000 operations above |
Weight | About 22 to 58g |
Ratings
Rated Voltage | Noninductive Load (A) | Inductive Load (A) | |||||||||||||
Resistance Load | Lamp Load | Inductive Load | Motor Load | ||||||||||||
NC | NO | NC | NO | NC | NO | NC | N0 | ||||||||
125VAC | 15 | 3 | 1.5 | 15 | 5 | 2.5 | |||||||||
250VAC | 15 | 2.5 | 1.25 | 15 | 3 | 1.5 | |||||||||
500VAC | 3 | 1.5 | 1.5 | 2.5 | 1.5 | 0.75 | |||||||||
8VDC | 15 | 3 | 1.5 | 15 | 5 | 2.5 | |||||||||
14VDC | 15 | 3 | 1.5 | 10 | 5 | 2.5 | |||||||||
30VDC | 6(2) | 3 | 1.5 | 5 | 5 | 2.5 | |||||||||
125VDC | 0.4 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | |||||||||
250VDC | 0.2 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 | |||||||||
Inrush Current | N.C: 30A max., N.O: 15A max. | ||||||||||||||
