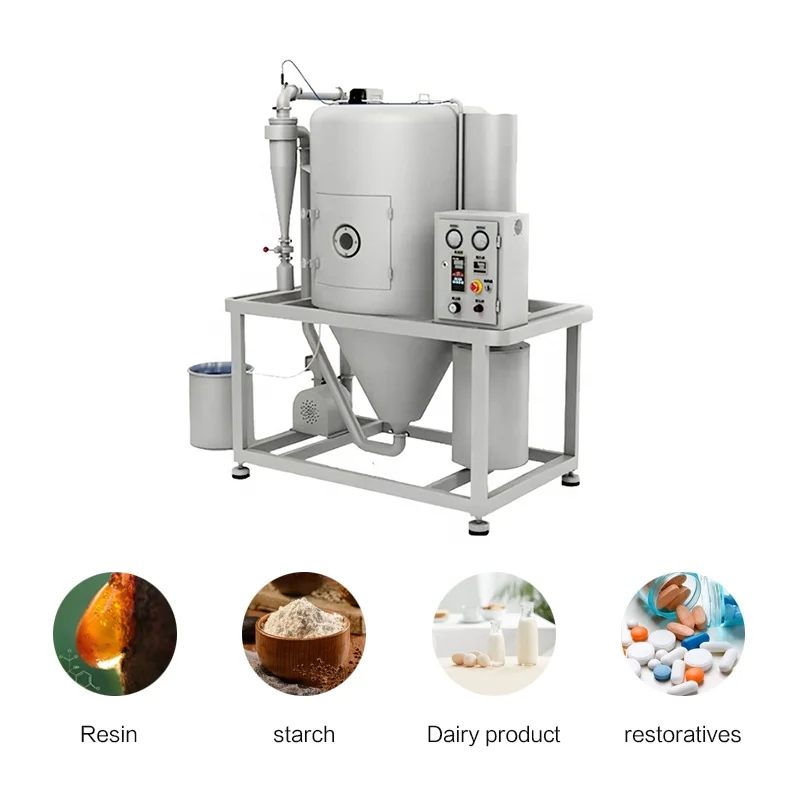

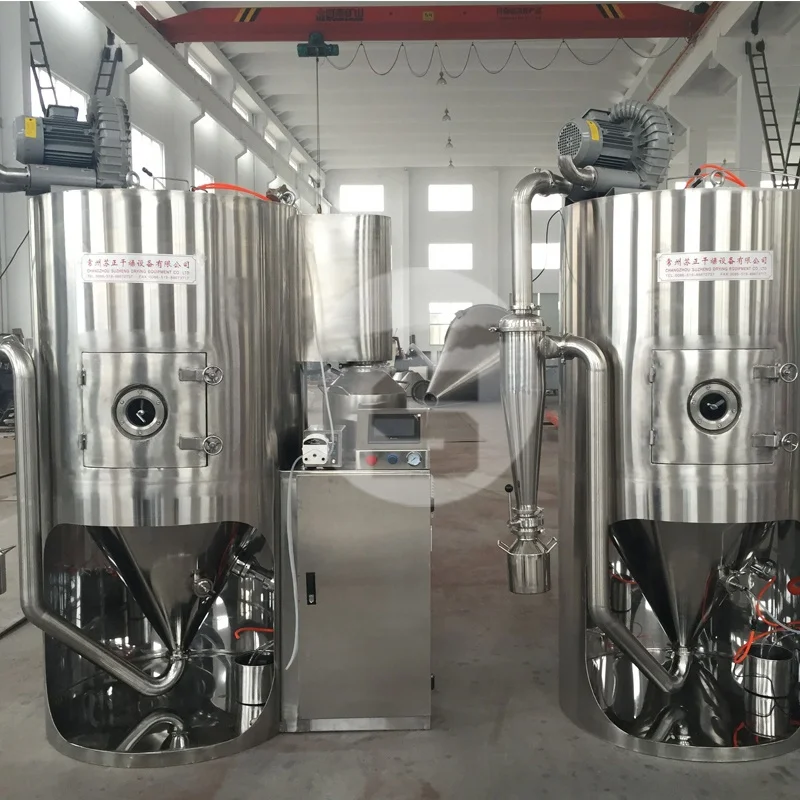

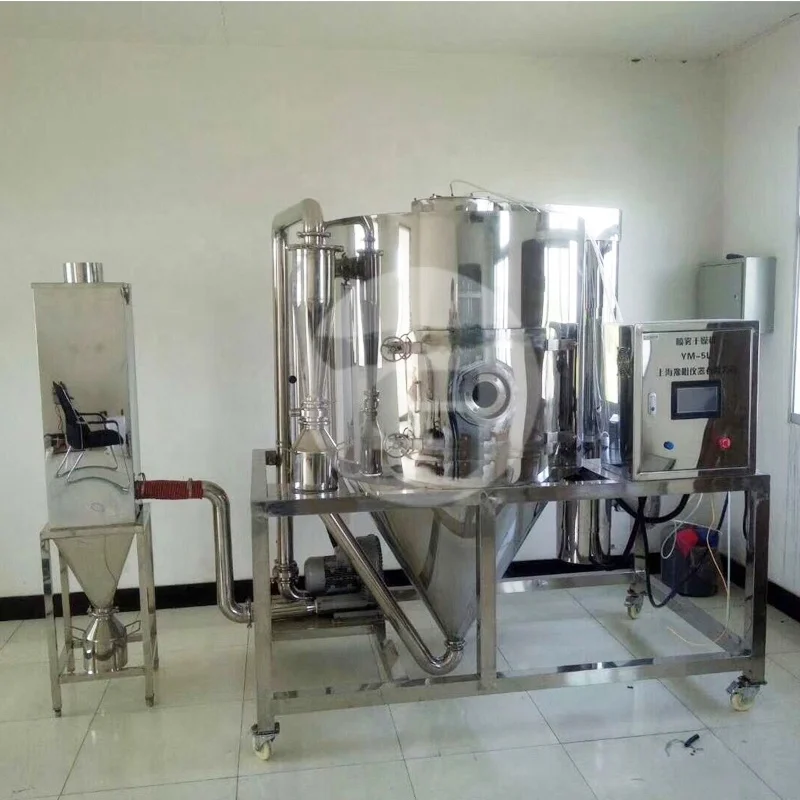

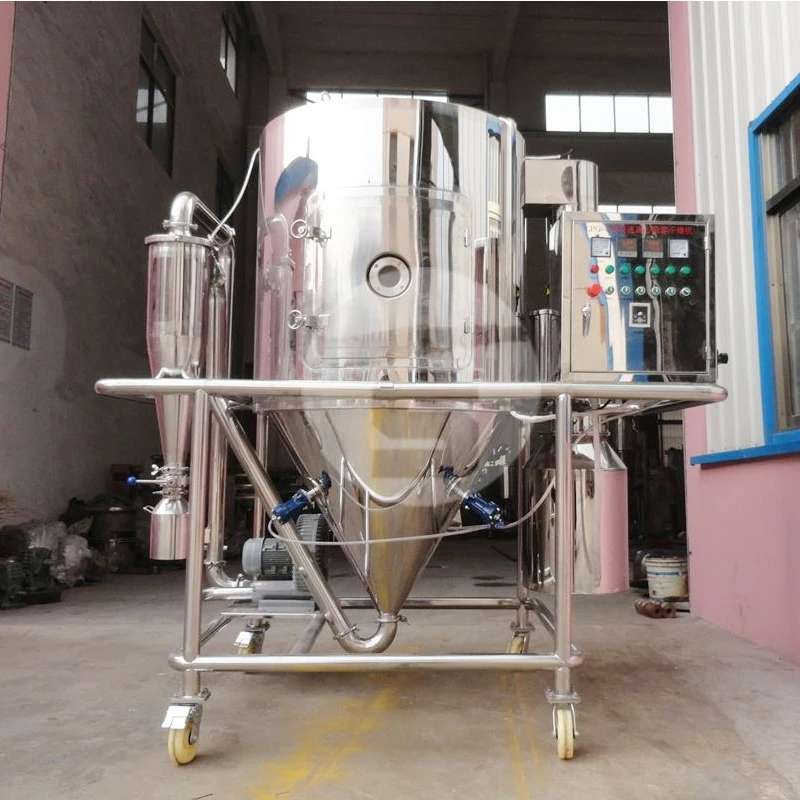

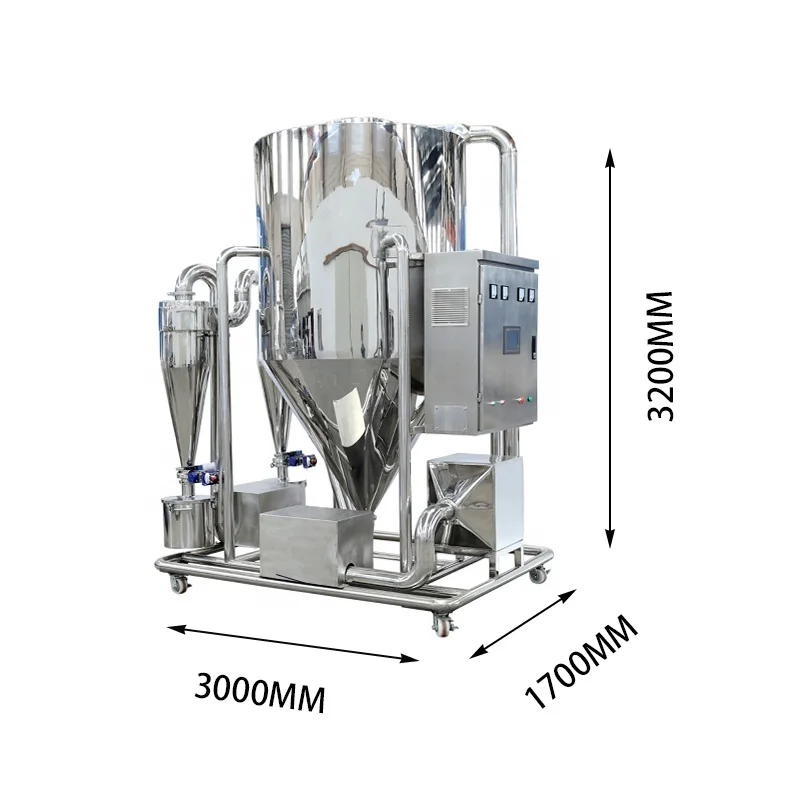

20Kg/h automatic centrifugal herbal extract yolk pectin algae yeast extract spray dryer machine
- Category: >>>
- Supplier: Sichuan Nanchong Shouchuang Technology Development Co. Ltd.
Share on (1600923517478):
Product Overview
Description
Product Overview
The material is formed by the action of high-speed rotating centrifugal disc to contact with the hot air of parallel (reverse)
flow so as to achieve the purpose of rapid drying. It is mainly used in the process equipment of quickly removing solvent from solid contents in viscous solution to obtain powder or fine granular materials. It is especially suitable for rapid dehydration and drying of heat-sensitive materials, such as milk powder, plant extract, biological, chemical, blood products, protein powder, etc. The system is widely used in food, chemical, feed, biological engineering, metallurgy, environmental protection and other fields.
flow so as to achieve the purpose of rapid drying. It is mainly used in the process equipment of quickly removing solvent from solid contents in viscous solution to obtain powder or fine granular materials. It is especially suitable for rapid dehydration and drying of heat-sensitive materials, such as milk powder, plant extract, biological, chemical, blood products, protein powder, etc. The system is widely used in food, chemical, feed, biological engineering, metallurgy, environmental protection and other fields.
Product Paramenters
Item/Model | SCSD-5 | SCSD-25 | SCSD-50 | SCSD-100 | SCSD-150 | ||||
Hot air inlettemperature(℃) | 100-400 | ||||||||
Exhausttemperature (℃) | 80-120 | ||||||||
Maximum walerevaporation ( kg/h） | 5 | 25 | 50 | 100 | 150 | ||||
Outline dimension ( ㎥ ) | 2.3*1.5*3.4 | 4*2.8*4.2 | 5*3.4*5 | 6*4.0*6 | 7*4.5*8 | ||||
Maximumtotal power ( Kw) | 2.5 | 7 | 9 | 18 | 21 | ||||
Atomization method | Centrifugal atomization | ||||||||
laying-off | Butterfly valve + barrel | ||||||||
Drying system form | Open circulation system | ||||||||
Feeding mode | Peristaltic pump stable feed | ||||||||
Hot air contact system | Parallel flow mode | ||||||||
Product capture method | Level 1 whirlwind | ||||||||
Heat source mode | Electric heating | ||||||||
Control mode | Set arbitrarily, and automatically control the inlet air temperature | ||||||||

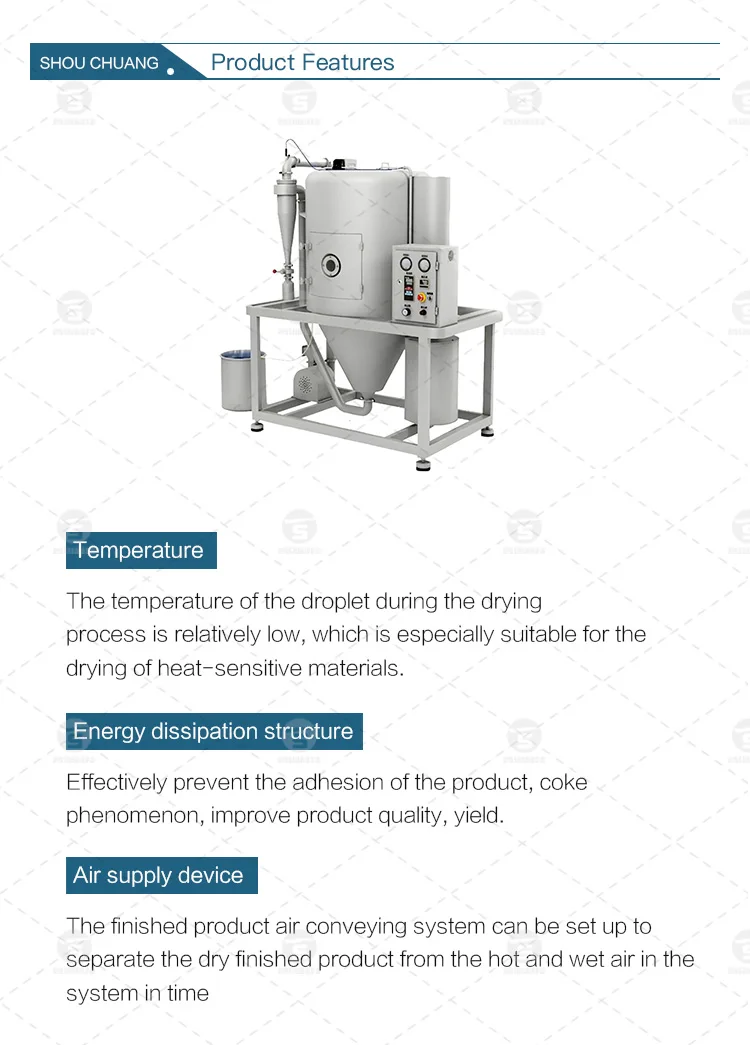

Product Features
1. The drying speed is fast, the material liquid is centrifugal spray, the surface area is greatly increased, in the high
temperature air flow, 95-98% water can evaporate instantly, and the drying time only takes a few seconds.
2. suitable for heat-sensitive materials.
Due to the parallel flow of the droplets and the hot air, although the temperature of the hot air is high, the material will not
overheat during the water evaporation.
3. Wide range of use.
A large number of materials with large physical property differences are produced in this way.
Such as polymers and resins, dyes, pigments, ceramics, glass; carbohydrates; dairy products; blood and fish products;
fertilizers; organic and inorganic compounds; and etc.
4. the product has good dispersion, fluidity and solubility.
This is due to the instantaneous drying; the product can maintain a uniform fine grain.
5. simplified production process, convenient operation and control.
For the wet content of 70-90% solution can be dried into a powder product, drying does not need to crush and screening, reduce the production process, improve the purity of the product. For the product particle size, loose density, water, within a certain range, can change the operating conditions to adjust, control, management are very convenient.
temperature air flow, 95-98% water can evaporate instantly, and the drying time only takes a few seconds.
2. suitable for heat-sensitive materials.
Due to the parallel flow of the droplets and the hot air, although the temperature of the hot air is high, the material will not
overheat during the water evaporation.
3. Wide range of use.
A large number of materials with large physical property differences are produced in this way.
Such as polymers and resins, dyes, pigments, ceramics, glass; carbohydrates; dairy products; blood and fish products;
fertilizers; organic and inorganic compounds; and etc.
4. the product has good dispersion, fluidity and solubility.
This is due to the instantaneous drying; the product can maintain a uniform fine grain.
5. simplified production process, convenient operation and control.
For the wet content of 70-90% solution can be dried into a powder product, drying does not need to crush and screening, reduce the production process, improve the purity of the product. For the product particle size, loose density, water, within a certain range, can change the operating conditions to adjust, control, management are very convenient.

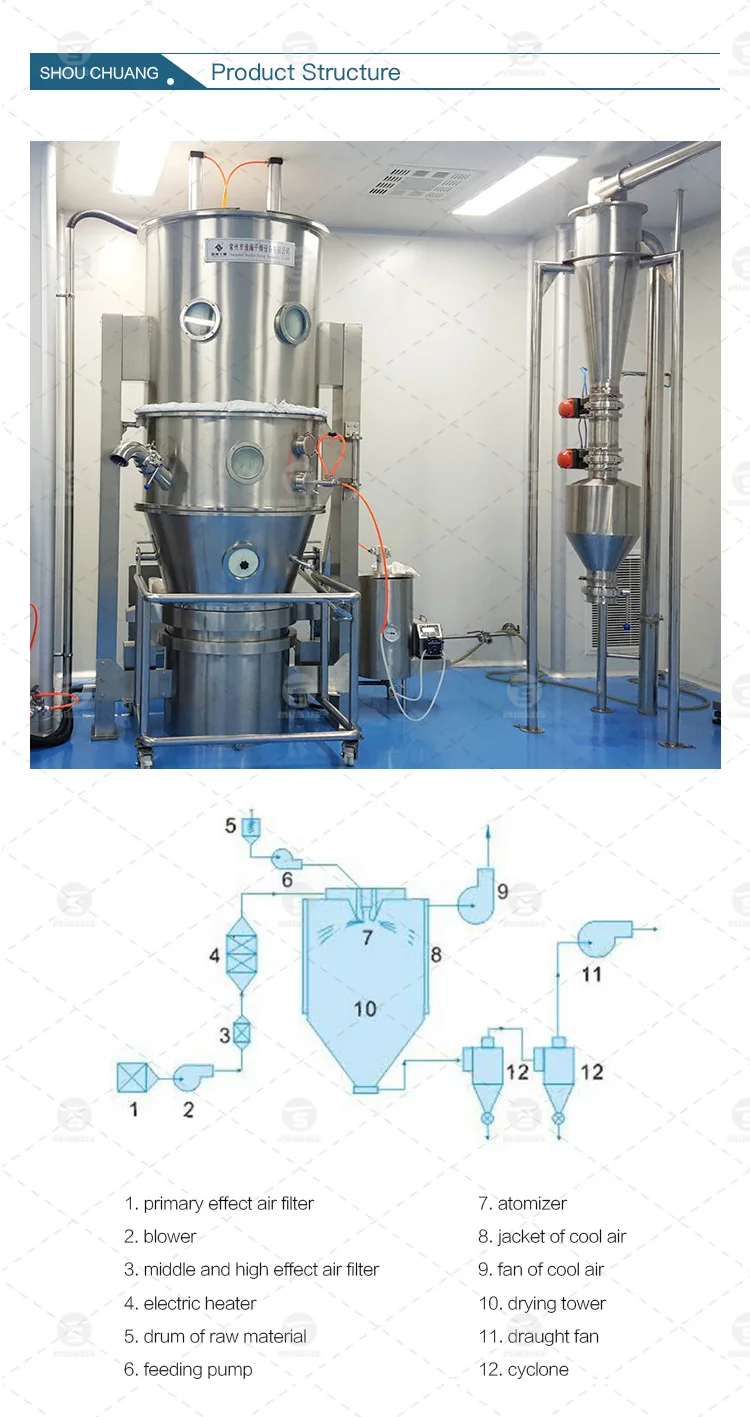

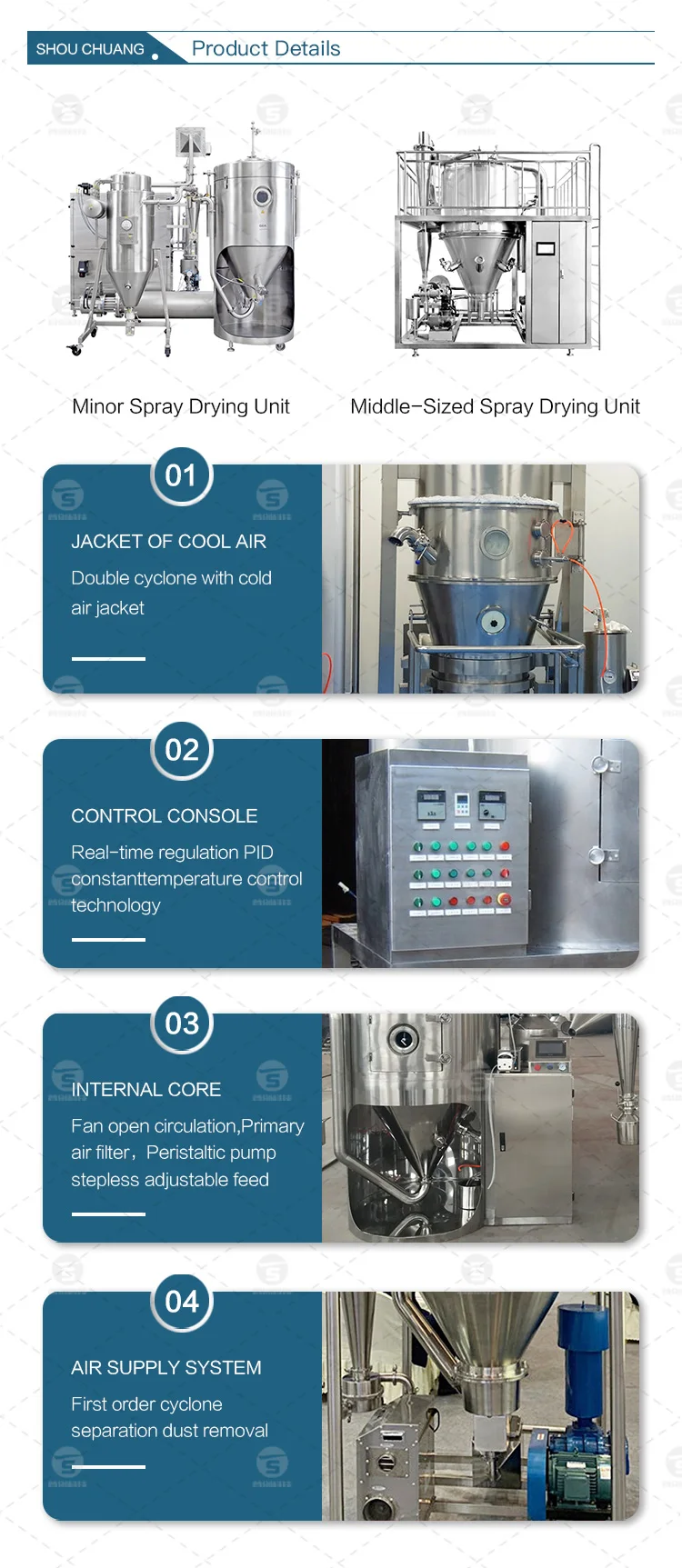

Product Configuration
Company Profile
Active pulse air supply technology | The internal circulation technology | Multi section pulse drying technology | ||||
The system realizes active temperature control by layers and sections, active air supply control by a certain evaluation rate, maximum preservation of material color, flavor and other inherent quality, and improvement of drying efficiency by 21%+. | The original small air supply and large cycle technology combined with temperature and humidity identification technology is adopted to reduce the consumption of drying efficiency, and the comprehensive energy efficiency ratio is improved by 27%+ | The pulsating drying technology is implanted on the basis of dynamic and static combined drying, which solves the effects of skin rupture, blistering, browning and long drying cycle on the finished products,and maximizes the quality of dry products. | ||||
Sichuan Nanchong Shouchuang Technology Development Co., Ltd is a service provider focusing on comprehensive processing solutions for agricultural products. It is a high-tech enterprise. It is committed to helping customers solve the problem of storage and collection of agricultural products, put an end to processing pollution and preserve the quality of agricultural products.
The company adheres to the concept of "environmental protection, energy conservation and safety", and adheres to the enterprise spirit of "taking responsibility bravely and pursuing excellence". From micro machinery to large-scale complete processing system, through advanced technology, software, equipment and services, it helps the industrial optimization and helps customers optimize their operation. Its products cover fruits and vegetables, drinks, feed and food processing and other fields.
Choose us Choose Profession
Precise customization ① Pre-sale
1.Fully understand the customers current processing method and process,solve the customer's processing confusion and problems.
2.Customers provide material samples for drying experiments in our laboratory,and draw the best drying process and curve.
3.Plan the site for customers, choose the best energy consumption scheme and the lowest processing cost drying method.
2.Customers provide material samples for drying experiments in our laboratory,and draw the best drying process and curve.
3.Plan the site for customers, choose the best energy consumption scheme and the lowest processing cost drying method.
Precise customization ② In sale
1.Visual production process support online appointment inspection.
2.Delivery guarantee to avoid missing the processing season.
3.Minimum transportation cost, over 30
professional cooperation of logistics company makers.
2.Delivery guarantee to avoid missing the processing season.
3.Minimum transportation cost, over 30
professional cooperation of logistics company makers.
Precise customization ③ After sale
1.Optional after-sales service: third party overseas after-sales service/ our engineers directly to the door/ Remote video guidance by our professional engineers
2.Professional installation, customers can still complete the installation in bad environment.
2.Professional installation, customers can still complete the installation in bad environment.
3.VIP customers enjoy annual inspection service and inspection service.
