New design automatic agricultural fixed knot hinge joint wire mesh land field fence machine
- Category: >>>
- Supplier: Hebei Meirun Wire Mesh Products Co. Ltd.
Share on (1600923520328):
Product Overview
Description
Product Description

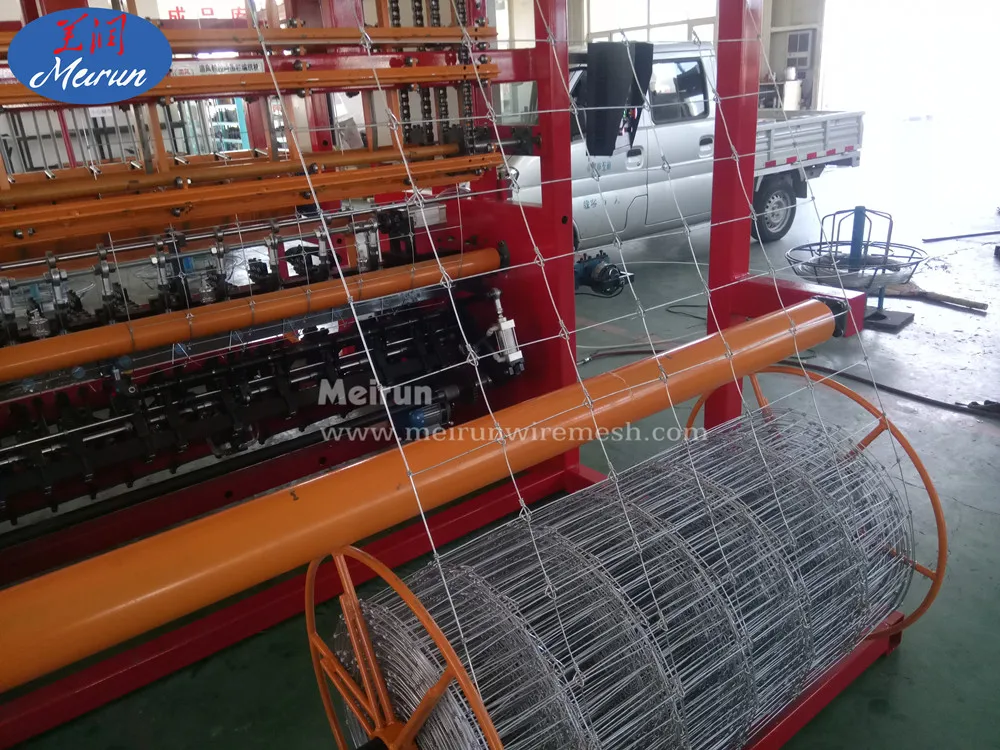

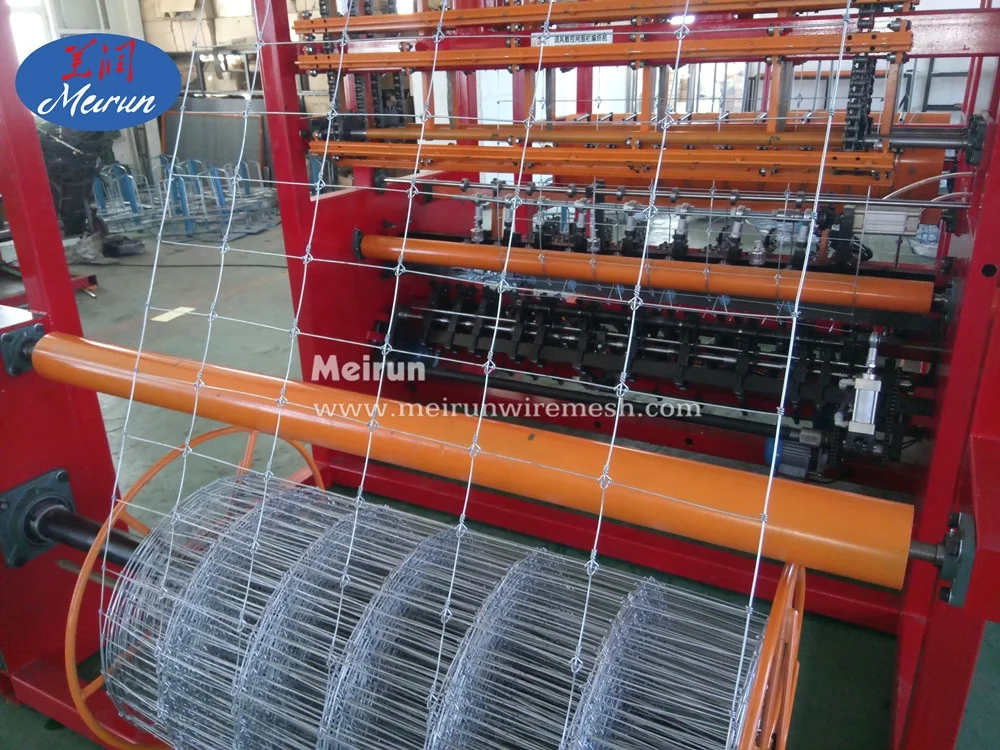

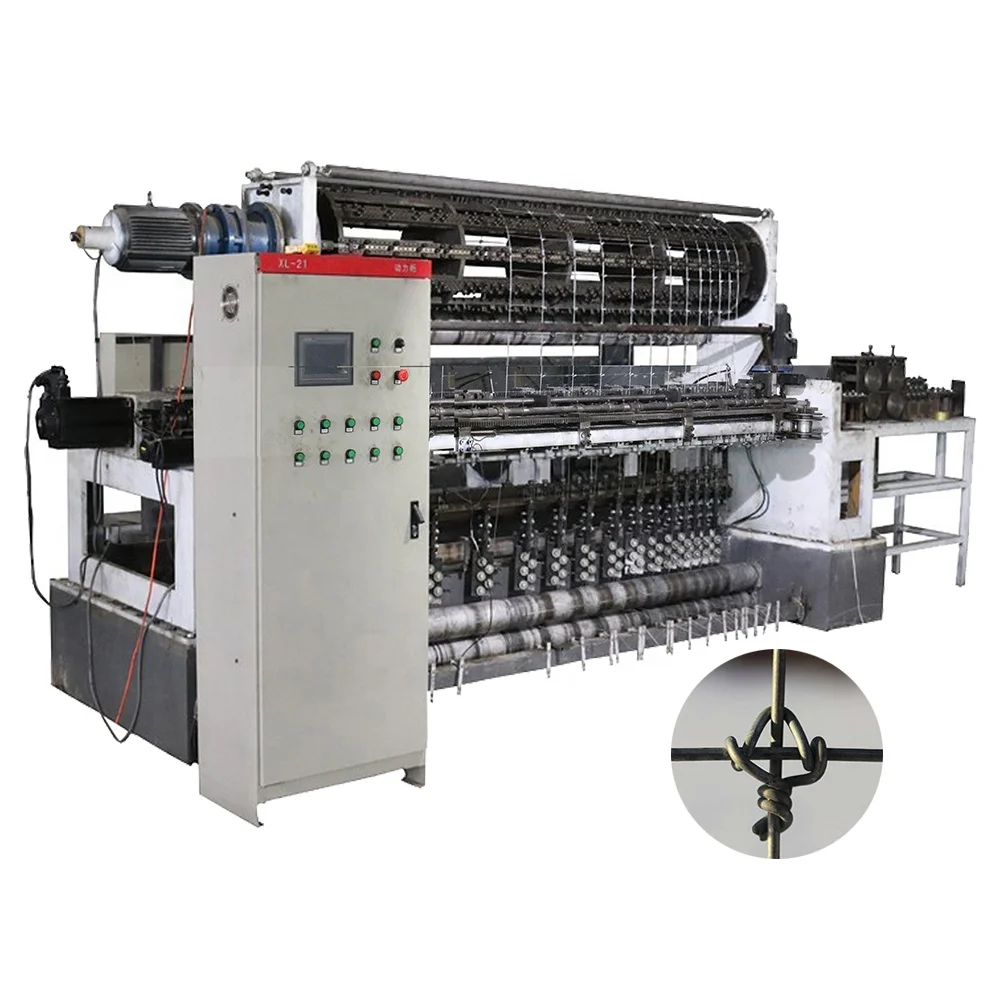

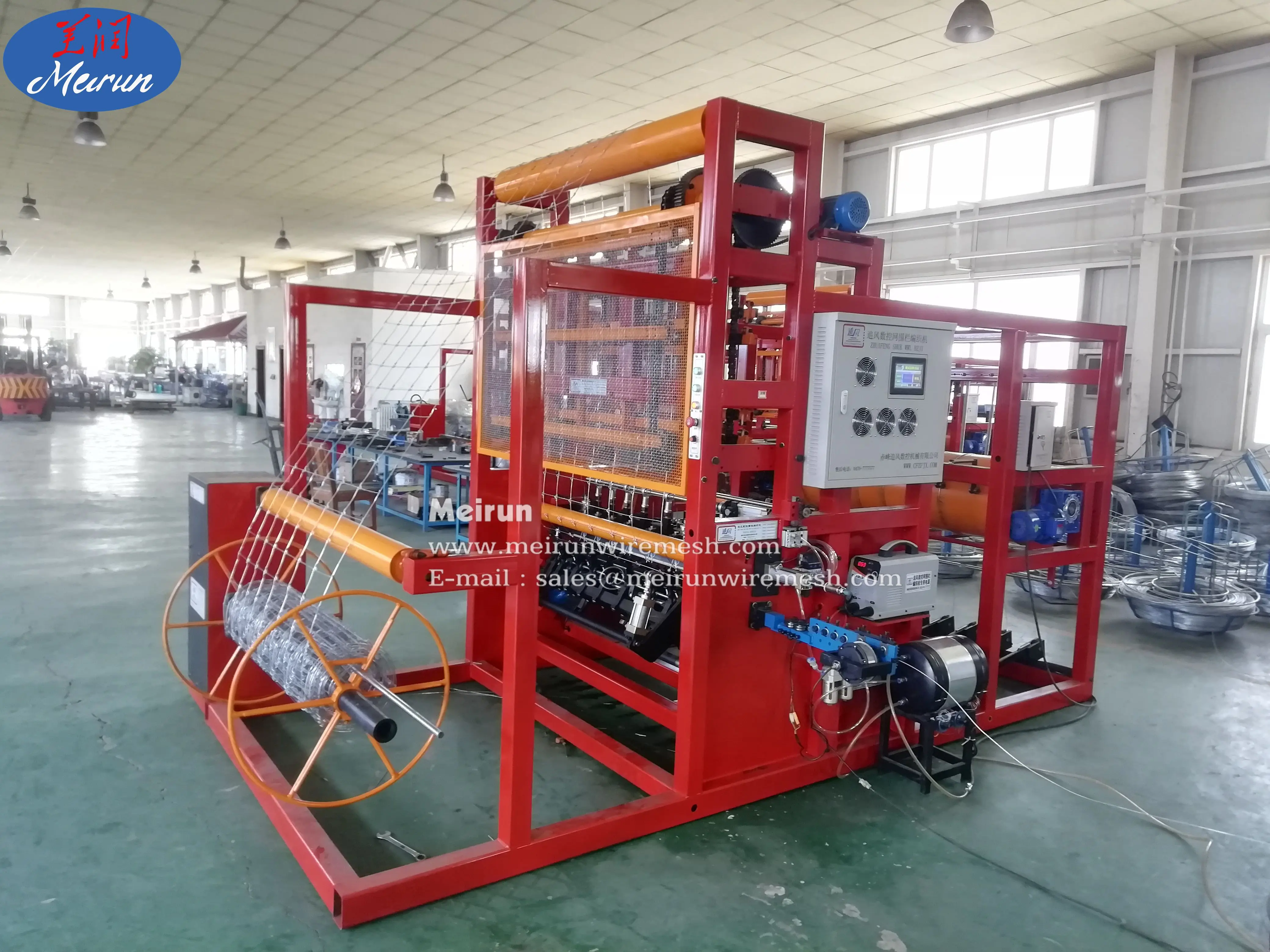

Automatic Deer Field Fence Fixed Knot Wire Mesh Making Machine
1) it is suitable to all kinds of carbon wires. 2) the mesh size has a wide of wide adjustable range. 3) the machine can Save 20%
of your electricity. 4) production efficiency is about twice of same species. 5) the loss of the raw materials of the same species
is 1%-5%,while the innovative grassland fence machine is nearly zero. 6) machine is easy and simple to handle.the worker has the
common mechanical konwledge can master it in one hour.
of your electricity. 4) production efficiency is about twice of same species. 5) the loss of the raw materials of the same species
is 1%-5%,while the innovative grassland fence machine is nearly zero. 6) machine is easy and simple to handle.the worker has the
common mechanical konwledge can master it in one hour.
Specification
Model | MR-1560 | MR-1800 | MR-2400 | ||
Edge wire diameter | 2.0-3.5 mm | 2.0-3.5 mm | 2.0-3.5 mm | ||
Line wire diameter | 1.6-3.2 mm | 1.6-3.2 mm | 1.6-3.2 mm | ||
Knot wire diameter | 1.6-2.5 mm | 1.6-2.5 mm | 1.6-2.5 mm | ||
Production speed | 32 Time /min | 32 Time /min | 32 Time /min | ||
Fence height | Max 1560 mm | Max 1800 mm | Max 2400 mm | ||
Line wire number | Max 14 | Max 16 | Max 21 | ||
Line wire spacing | 120 mm (Multiple adjust) | ||||
Cross wire spacing | 70-300 mm(Arbitrarily adjust) | ||||
Roll mesh length | 30-100 meter | ||||
Line wire testing | Automatic stop lack of wire | ||||
Cross wire testing | Automatic stop lack of wire | ||||
Knot wire testing | Automatic stop lack of wire | ||||
Control system | PLC+touch screen | ||||
Dimensions | 5000*2000*2600 mm | 5000*2300*2600 mm | 5000*2800*2600 mm | ||
Weight | 2800 kg | 3200 kg | 4500 kg | ||
Wire material | Iron wire, Steel wire, Galvanized wire, etc | ||||
