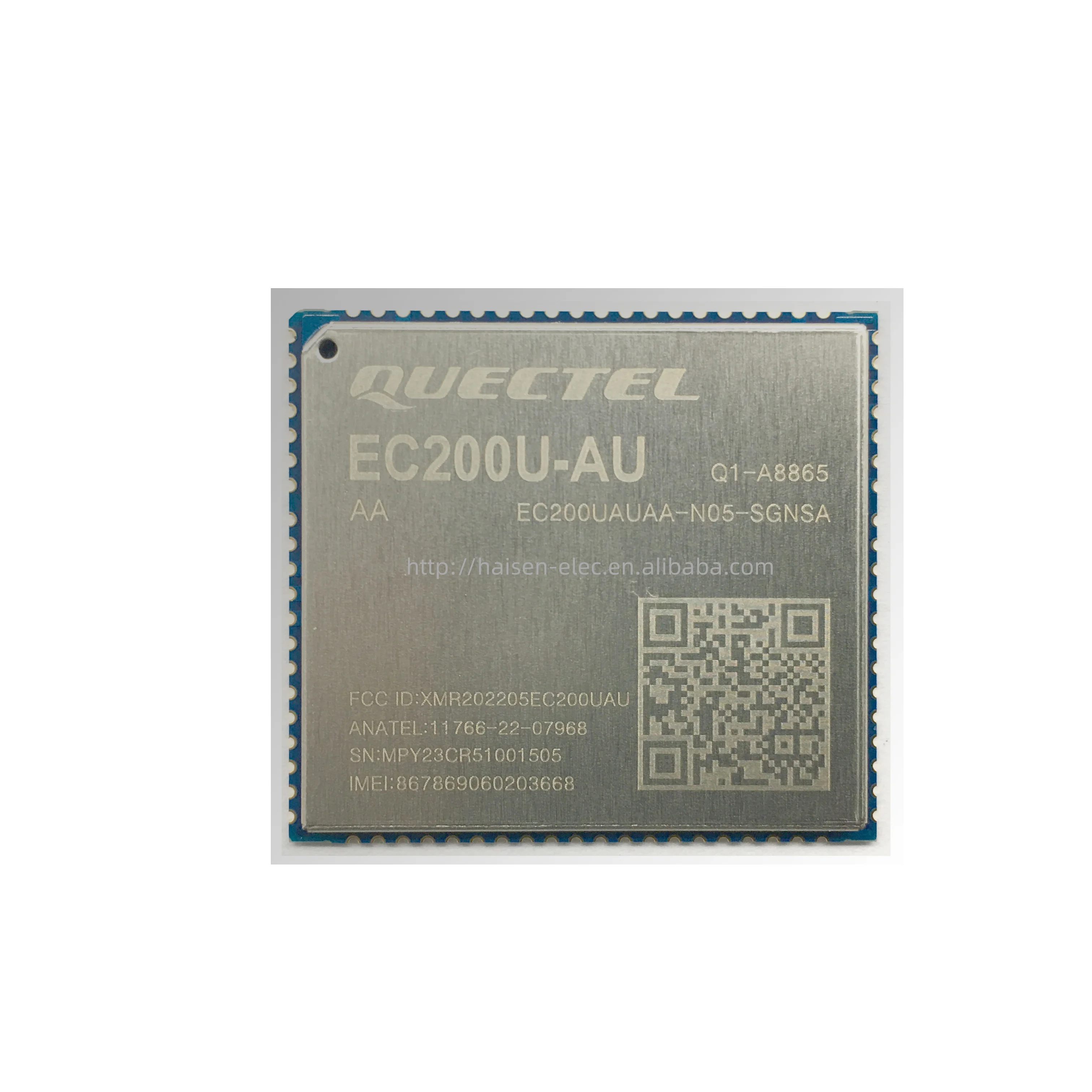

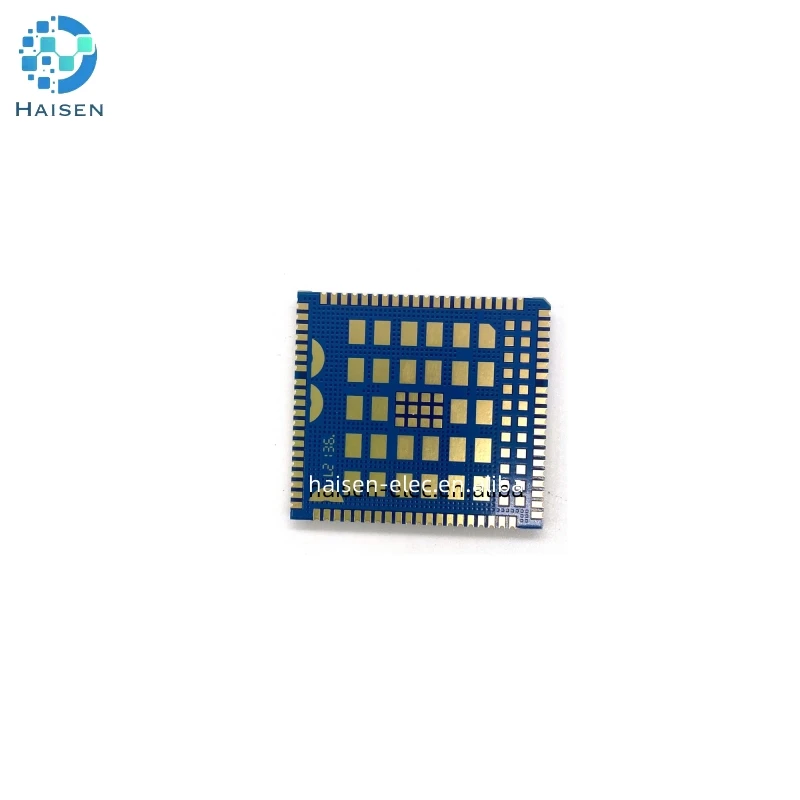

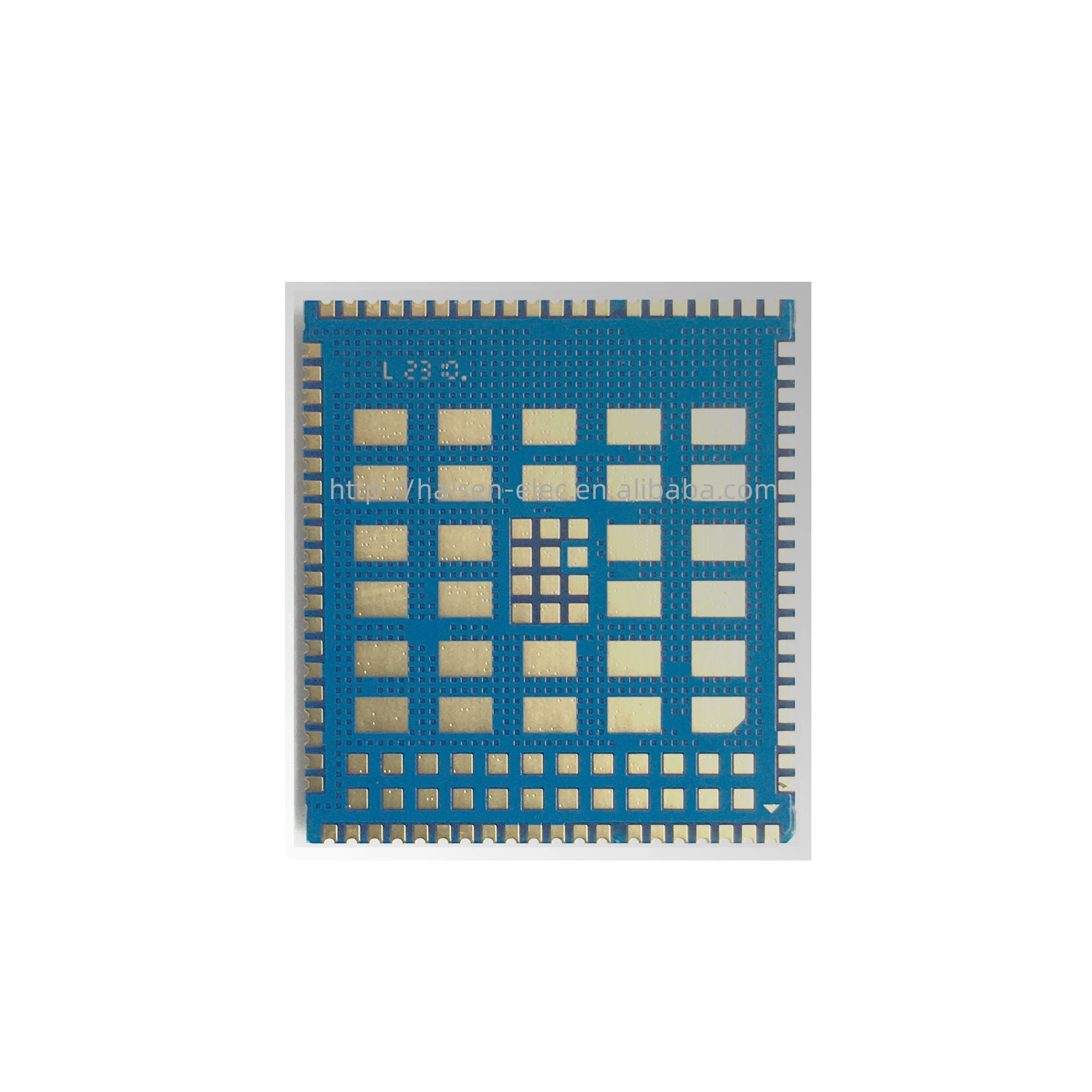

HAISEN Quectel 4G LTE Cat 1 IOT Wireless BT GNSS module EC200U EC200U CN downlink 10 Mbps uplink 5 Mbps EC200UCNAB N05 SNNSA
- Category: >>>
- Supplier: Shenzhen hapchuang Technology Co. Ltd
Share on (1600923529833):
Product Overview
Description
Products Description
Product details | ||
1. EC200U-CN is Quectel's latest LTE Cat 1 wireless communication module. It supports a maximum downlink rate of 10 Mbps and a maximum uplink rate of 5 Mbps. It is extremely cost-effective; at the same time, it is compatible with Quectel's multi-network standard LTE Standard EC25 series, EC21 series, EC20-CE, EC20-CN, EC200T series, EC200S series, EG25-G, EG21-G and UMTS/HSPA+ UC200T series modules realize seamless switching from 3G network to 4G network. | ||
2. EC200U-CN also supports standard Mini PCIe package to meet the application requirements of products in different industries. | ||
3. EC200U-CN adopts the laser carving process, which has the advantages of better appearance, strong metal texture, better heat dissipation, information not easily erased, and more suitable for automation needs. | ||
4. EC200U-CN has built-in rich network protocols, integrates multiple industry standard interfaces, and supports multiple drivers and software functions (applicable to USB drivers under Windows 7/8/8.1/10, Linux and Android operating systems), greatly Expanded its application range in the M2M field, such as POS, POC, ETC, sharing, data card, energy control, security, and industrial-grade PDA. | ||
Key Features | ||
1. LTE Cat 1 module optimized for M2M and loT applications | ||
2. Worldwide LTE, GSM/ GPRS coverage | ||
3. Abundant functionalinterfaces | ||
4. Support analog audio | ||
5. Built-in GNSS (optional) | ||
6. Feature refinements: support Wi-Fi Scan (optional)Bluetooth (optional) and FOTA | ||
7.High performance | ||
LTE Cat 1 | EC200U-CN | EC200U-EU | EC200U-AU |
Region/ Operator | China | EMEA | Australia/ Latin America |

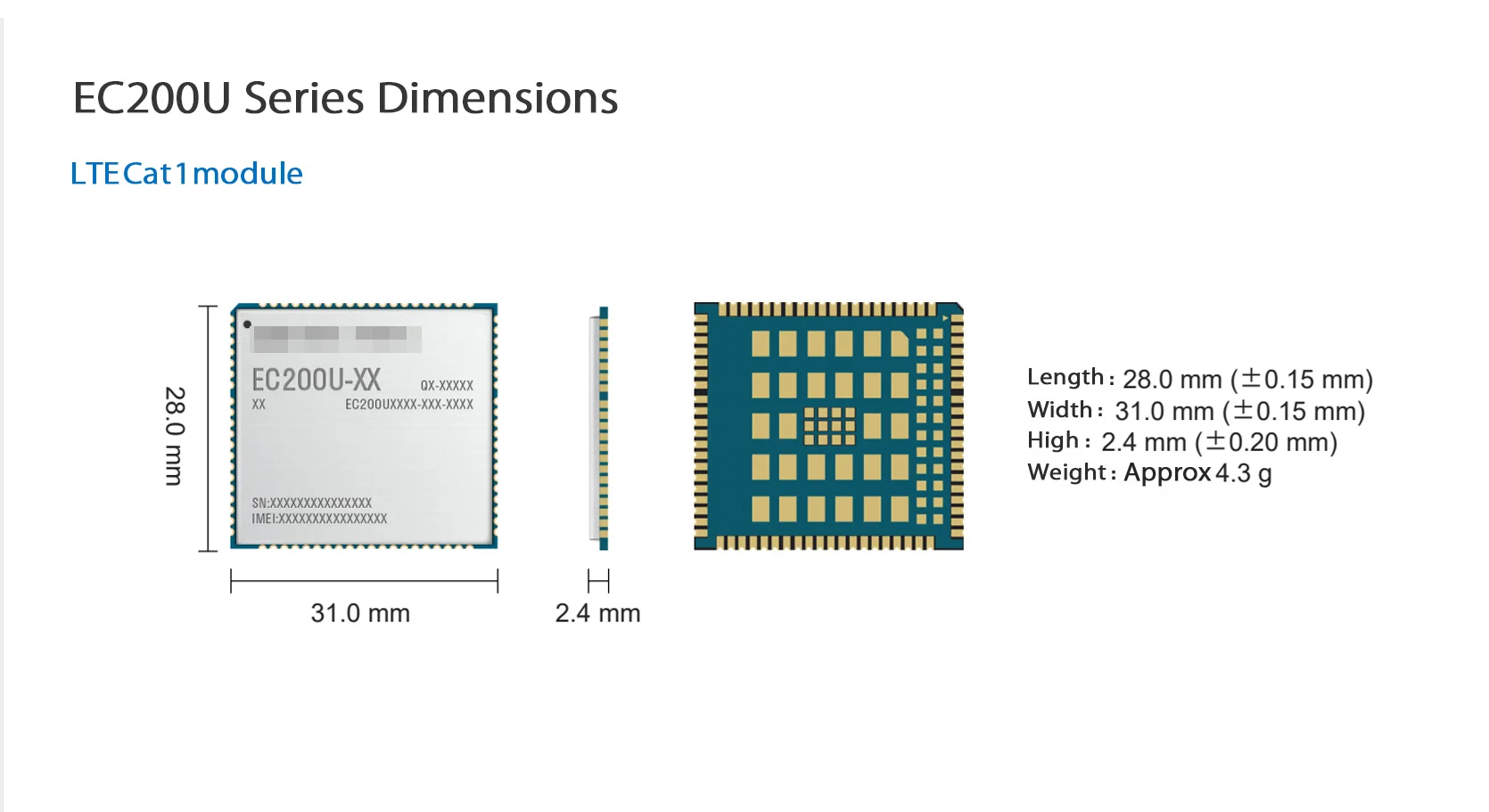

Dimensions (mm) | 28.0x 31.0x 2.4 | 28.0x31.0x 2.4 | 28.0 x 31.0 x 2.4 |
Weight (g) | Approx.4.1 | Approx.4.1 | Approx. 4.1 |
Temperature Range | |||
Operating Temperature | -35C to +75C | -35Cto +75C | -35C to +75*C |
Extended Temperature | -40Cto+85°C | -40Cto +85C | -40Ct+85C |
Frequency Bands | |||
LTE-FDD | B1/3/5/8 | B1/3/ 5/7/8/20/ 28 | B1/ 2/ 3/ 4/ 5/7/ 8/ 28/ 66 |
LTE-TDD | B34/ 38/ 39/ 40/ 41 | B38/ 40/ 41 | B38/40/ 41 |
GSM | B3/8 | B2/3/ 5/8 | B2/3/5/8 |
GNSS | GPS/ BDS/ Galileo/ GLONASS/ QZSS | GPS/BDS/ Galileo/ GLONASS/OZSS | GPS/ BDS/ Galileo/ GLONASS/ QZSS |
Bluetooth | Bluetooth 4.2(BR/EDR) | Bluetooth 4.2(BR/ EDR) | Bluetooth 4.2(BR/EDR) |
Wi-Fi Scan | 2.4 GHz 11b(Rx) | 2.4GHz 11b(Rx) | 2.4GHz 11b(Rx) |
Bandwidth | 1.4/ 3/ 5/ 10/ 15/20 MHz | 1.4/ 3/ 5/ 10/ 15/ 20 MHz | 1.4/ 3/ 5/10/15/ 20 MHz |
Certifications | |||
Regulatory | China: SRRC/NAL/CCC | Europe: CE Australia/New Zealand: RCM | America: FCC Brazil: Anatel |
Carrier | China: China Telecom/ China Mobile/ China Unicom | ||
Max. Data Rate | |||
LTE-FDD(Mbps) | 10(DL)/ 5(UL) | 10(DL)/ 5( UL) | 10(DL)/ 5( UL) |
LTE-TDD(Mbps) | 8.96(DL)/ 3.1(UL) | 8.96(DL)/ 3.1(UL) | 8.96(DL)/ 3.1(UL) |
GSM (kbps) | 85.6(DL)/ 85.6(UL) | 85.6(DL)/ 85.6(UL) | 85.6(DL)/ 85.6(UL) |
Our Advantages

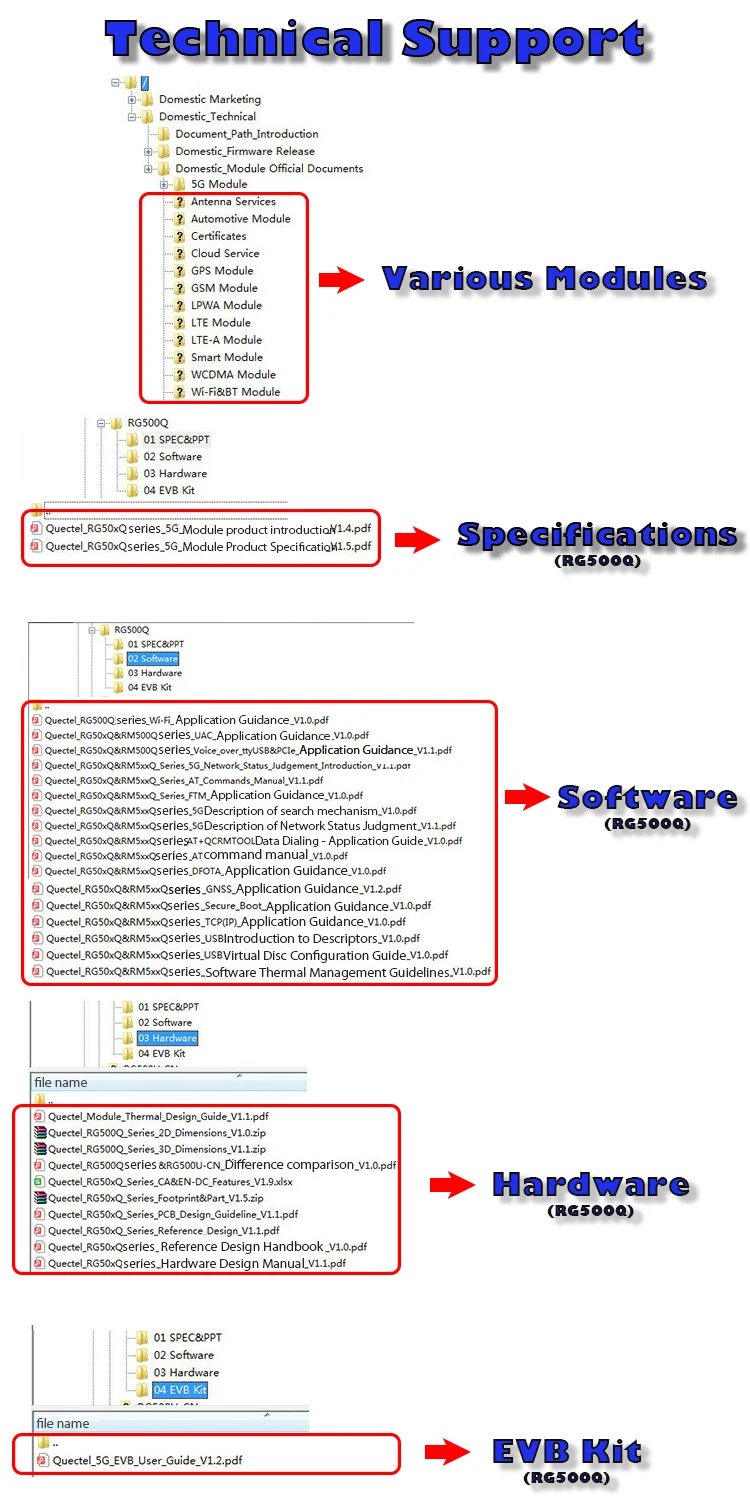

We have a professional technical team that can provide all product specifications, hardware, software, development boards and
other documentation and technical guidance.
If you need any moduels and technical files, please contact us! (click here)
Send an inquiry
Hot products
Cooperated partners
Hot products
Brand Standard Form | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ | ||
/ |

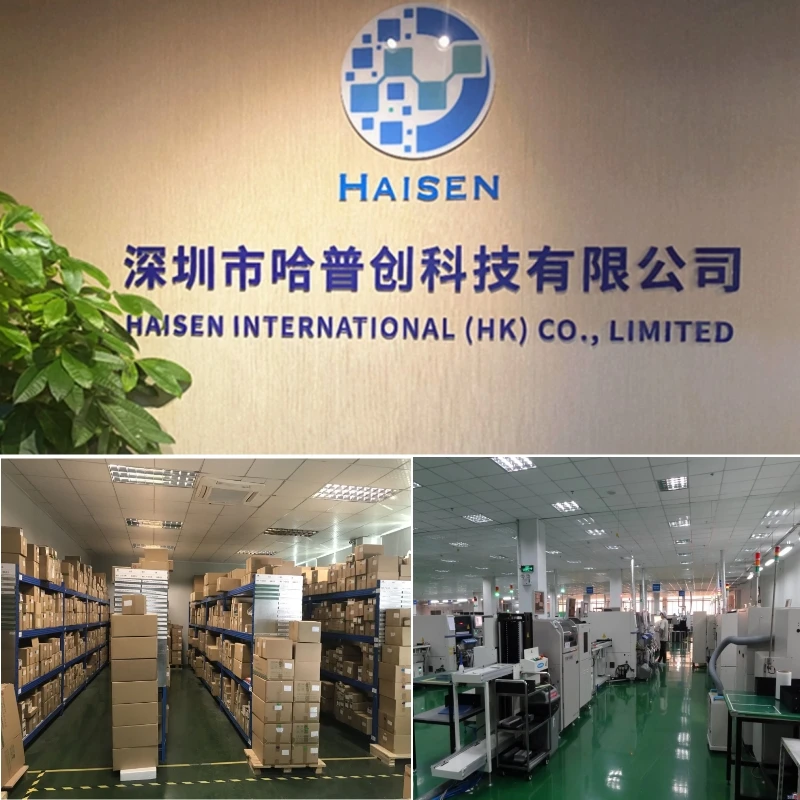

Company Profile

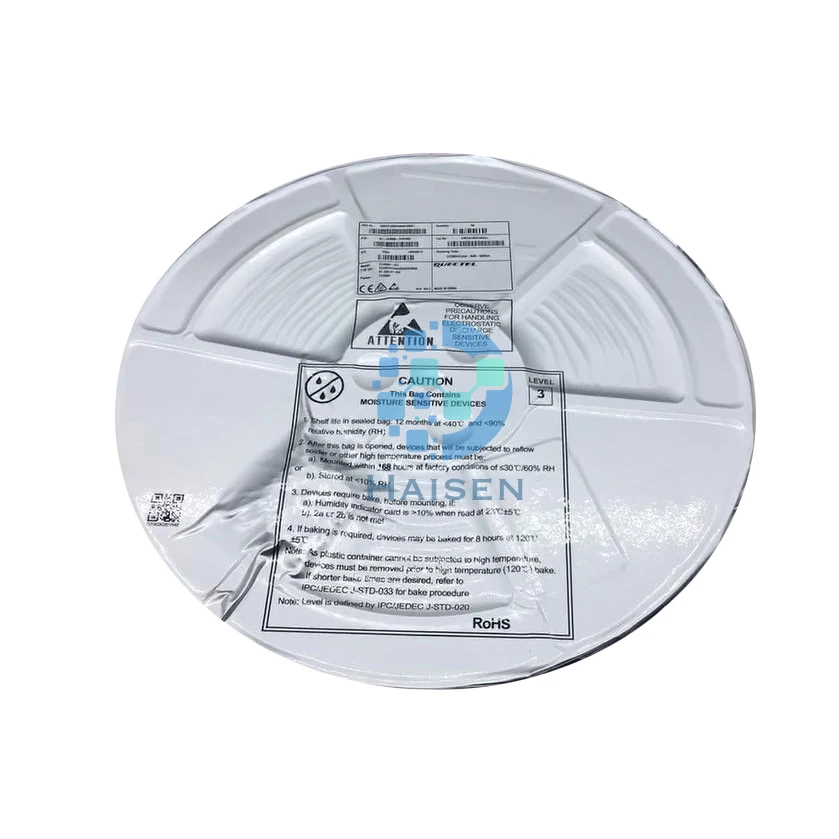

Product packaging
