ELP 4K HDMI Camera IMX415 H.265 USB HDMI Simultaneous Output USB Webcam With 2.8 12mm Manual Optical Zoom Lens for Microscope
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (1600923836113):
Product Overview
Description
Products Description
General Discription:
This 4K ELP-USB4KCAM01H-CFV(2.8-12) HDMI Camera is a New member of ELP Cameras Family. It adopt 1/2.8" Sony IMX415 Color CMOS sensor. Which can achieve Ultra HD 3840x2160 30FPS& Full HD Video 1080P 30FPS Video Output. Support Type C and HDMI Dual Output
simultaneously. With 2.8-12mm Manula focus and zoom Lens Enable 2X digital Zoom and 4X optic Zoom for super clear details images
With New H.265 Video format, can achieve up to 50% more compression than H.264, which means that it can transmit the same quality video using less bandwidth or storage. This makes H.265 ideal for high-resolution video formats such as 4K and 8K.
This 4K ELP-USB4KCAM01H-CFV(2.8-12) HDMI Camera is a New member of ELP Cameras Family. It adopt 1/2.8" Sony IMX415 Color CMOS sensor. Which can achieve Ultra HD 3840x2160 30FPS& Full HD Video 1080P 30FPS Video Output. Support Type C and HDMI Dual Output
simultaneously. With 2.8-12mm Manula focus and zoom Lens Enable 2X digital Zoom and 4X optic Zoom for super clear details images
With New H.265 Video format, can achieve up to 50% more compression than H.264, which means that it can transmit the same quality video using less bandwidth or storage. This makes H.265 ideal for high-resolution video formats such as 4K and 8K.
Features:
* With 1/2.8”IMX415 Color CMOS image Sensor Max resolution 3840X2160.
* Type C and HDMI simultaneously output

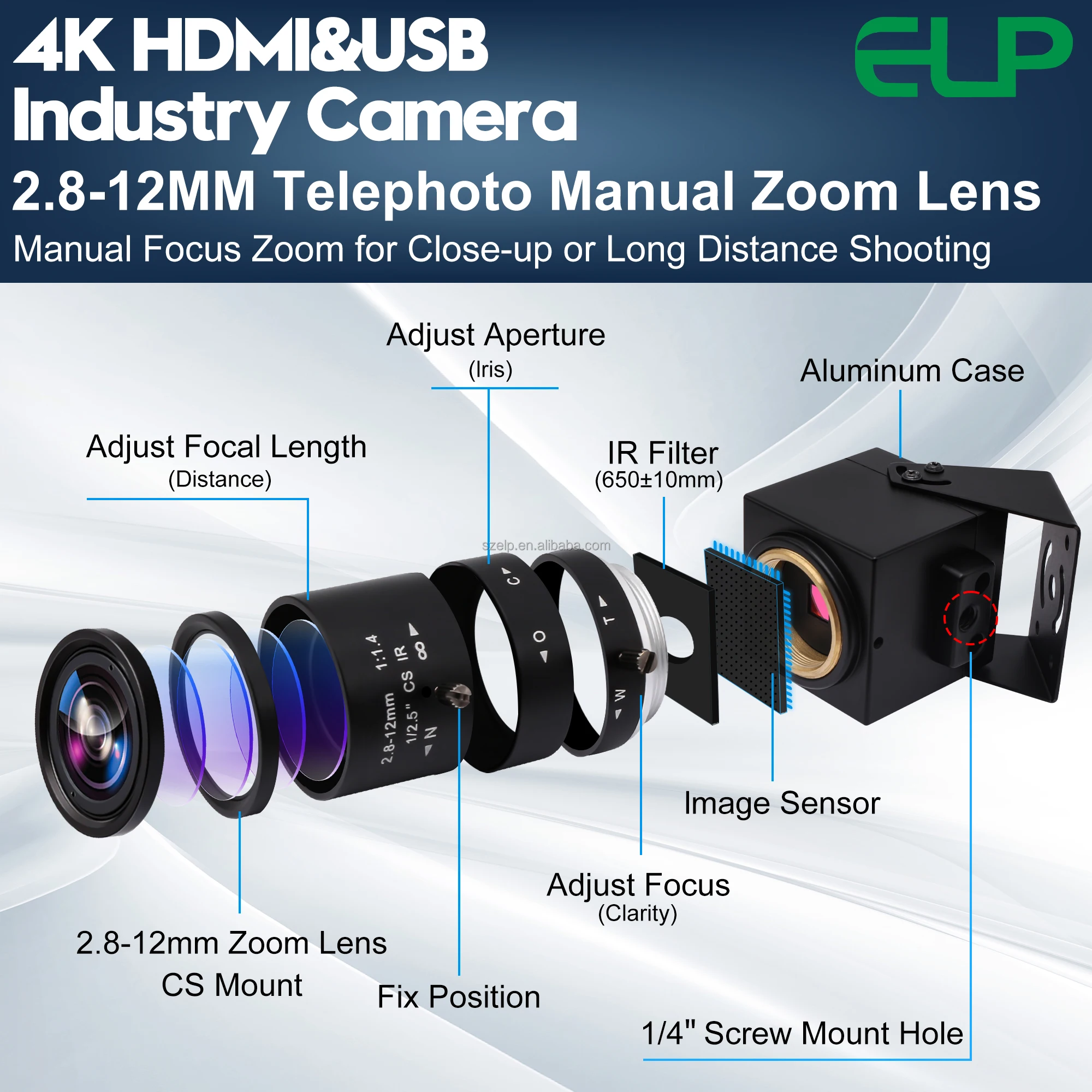

* With 2.8-12mm CS lens, Support 2X digital Zoom and 4X optic Zoom for super clear details images
* H.265/H.264/MJPEG/YUY2 optional, can drive 3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps.
* High speed USB 2.0 interface camera module Low power consumption
* UVC Compliant Plug&Play - just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed or with HDMI cable to motitor for display directly
* Good zoom in and out camera suitable for the research, technical or hobby projects, Raspberry Pi project to record bird
feeding/the bird feeder, keep the recording in loop, especially getting a satisfactory long distance focus outdoors.
* Type C and HDMI simultaneously output
* With 2.8-12mm CS lens, Support 2X digital Zoom and 4X optic Zoom for super clear details images
* H.265/H.264/MJPEG/YUY2 optional, can drive 3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps.
* High speed USB 2.0 interface camera module Low power consumption
* UVC Compliant Plug&Play - just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed or with HDMI cable to motitor for display directly
* Good zoom in and out camera suitable for the research, technical or hobby projects, Raspberry Pi project to record bird
feeding/the bird feeder, keep the recording in loop, especially getting a satisfactory long distance focus outdoors.
Specification
Model | ELP-USB4KCAM01H-CFV (2.8-12) (With 2.8-12mm CS Lens) ELP-USB4KCAM01H-CFV (5-50( (With 5-50mm CS Lens) |
Sensor | 1/2.8" SONY IMX415 |
Max Resolution | 3840(H)*2160(V) |
Sensitivity | 0.65V/lux-sec@550nm |
Pixel Size | 1.45µmx1.45µm |
Video Compression | MJPEG/ YUY2(YUYV) / H.264 / H.265 |
Resolution & Frame rate | 3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps 2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps 1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps 1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps 1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps 640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps |
Central Definition | 1000LW/PH(Center) |
S/N Ratio | 30dB |
Min illumination | 0.2Lux |
Shutter Type | ElectronicRollingShutter/FrameExposure |
Connecting Port Type | USB 2.0 Interface &HDMI v1.4 Interface |
AEC | Support |
AWB | Support |
AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
Lens Parameter | HD 2.8-12MM CS Lens |
Power Supply & Interface | USB Type-C Power Supply, Type-C & HDMI Display Simultaneous |
Operating Voltage | DC5V |
Working Current | 480-500mA |
Dimension | Double-deck, 38mm x 38mm |
Storage Temperature | -20°Cto85°C |
Working Temperature | -10°Cto70°C |
USB Cable | 2 pieces cables (1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port) |
Operating System Request | Win7/Win8/Win9/Win10/Win11 etc. LinuxwithUVC MAC-OSX10.4.8orlater, Android5.x or above |
Products Details

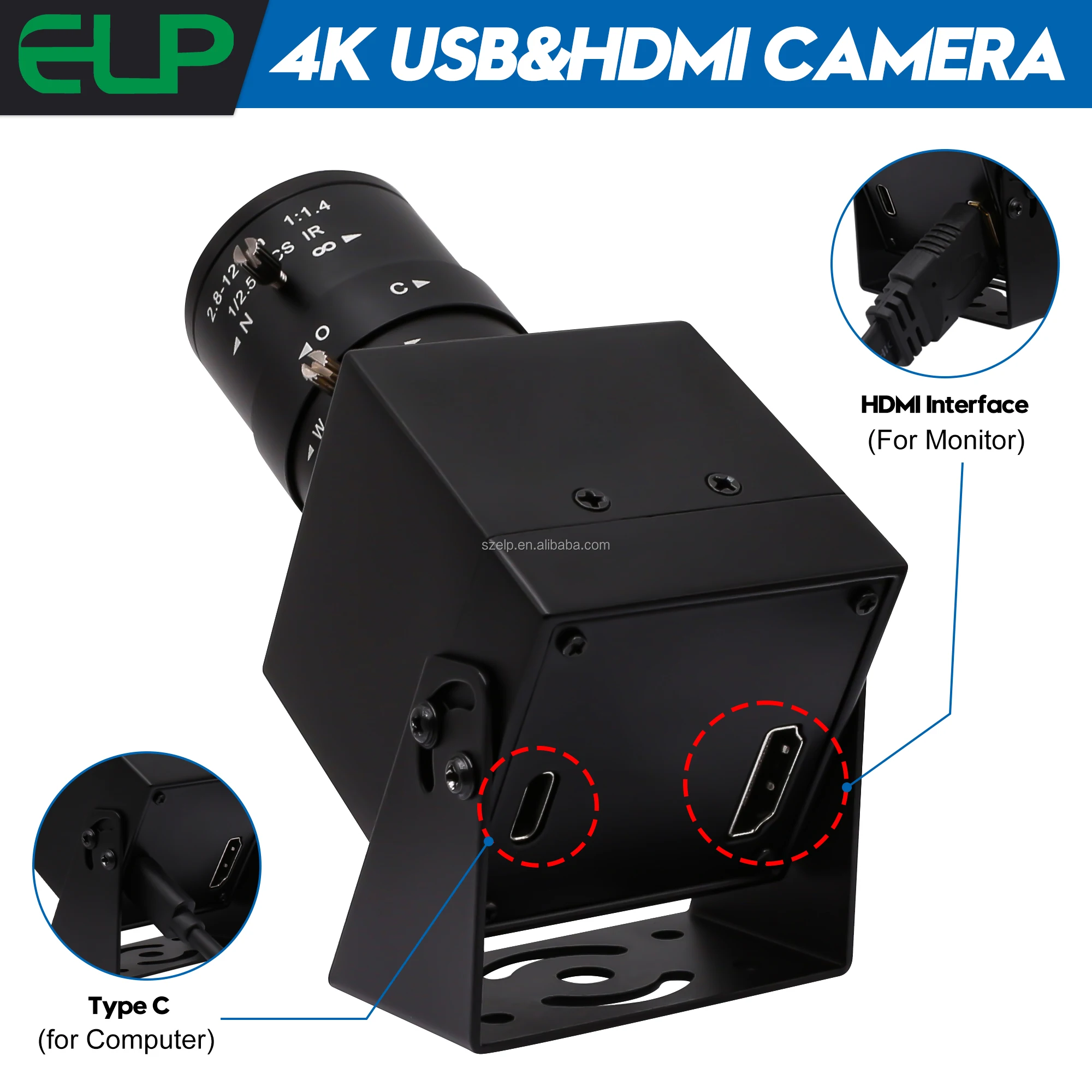

4K USB & HDMI Camera, Type C and HDMI simultaneously output

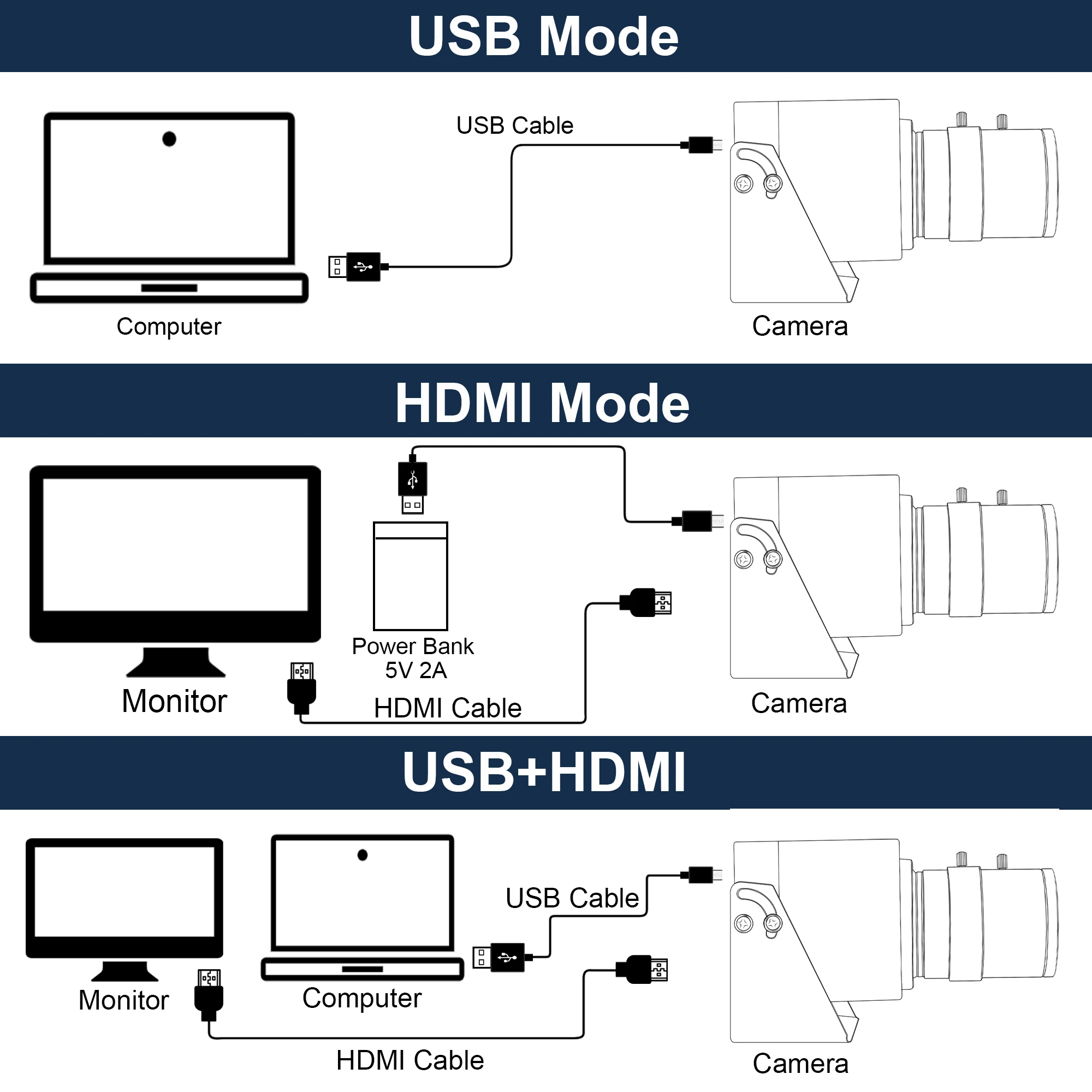

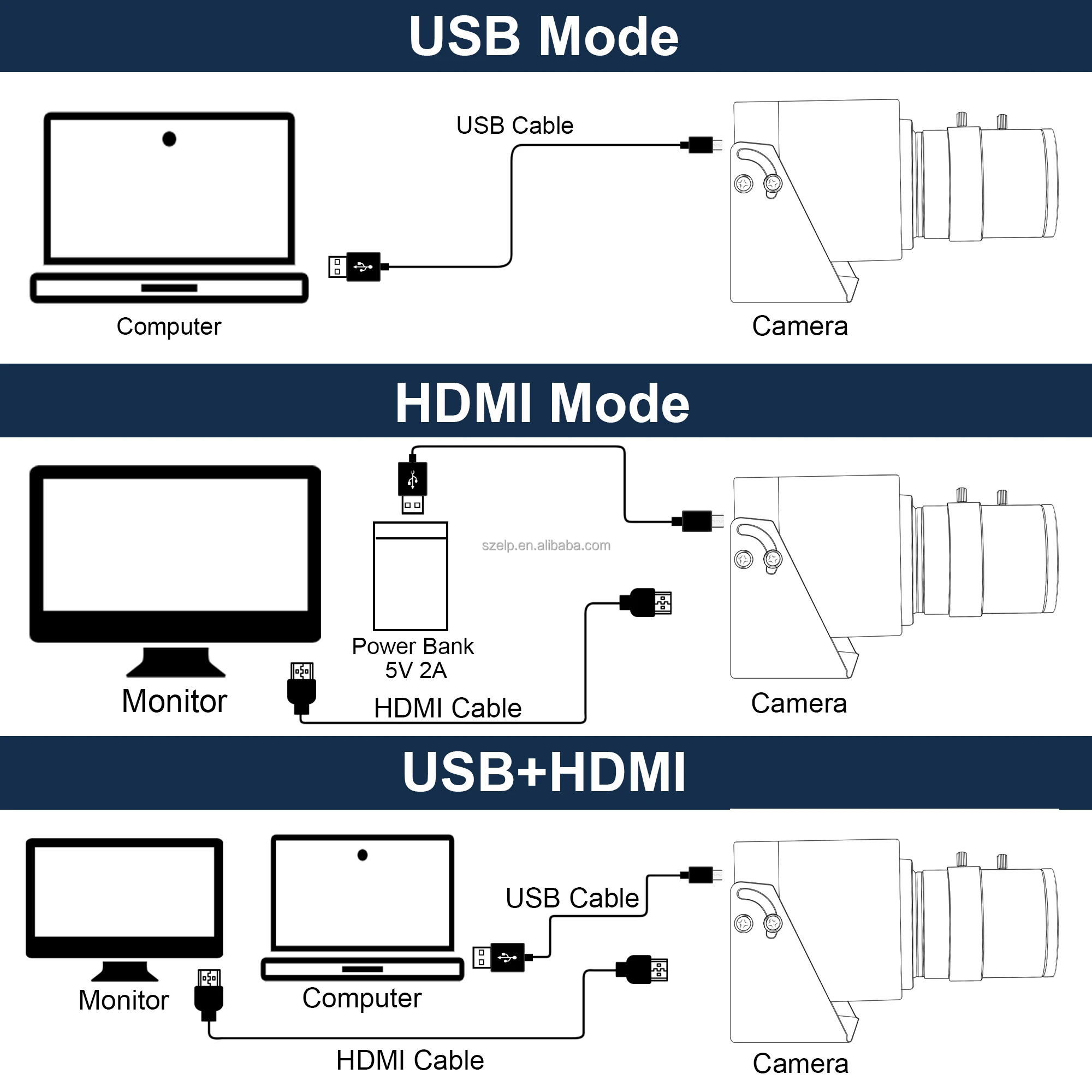

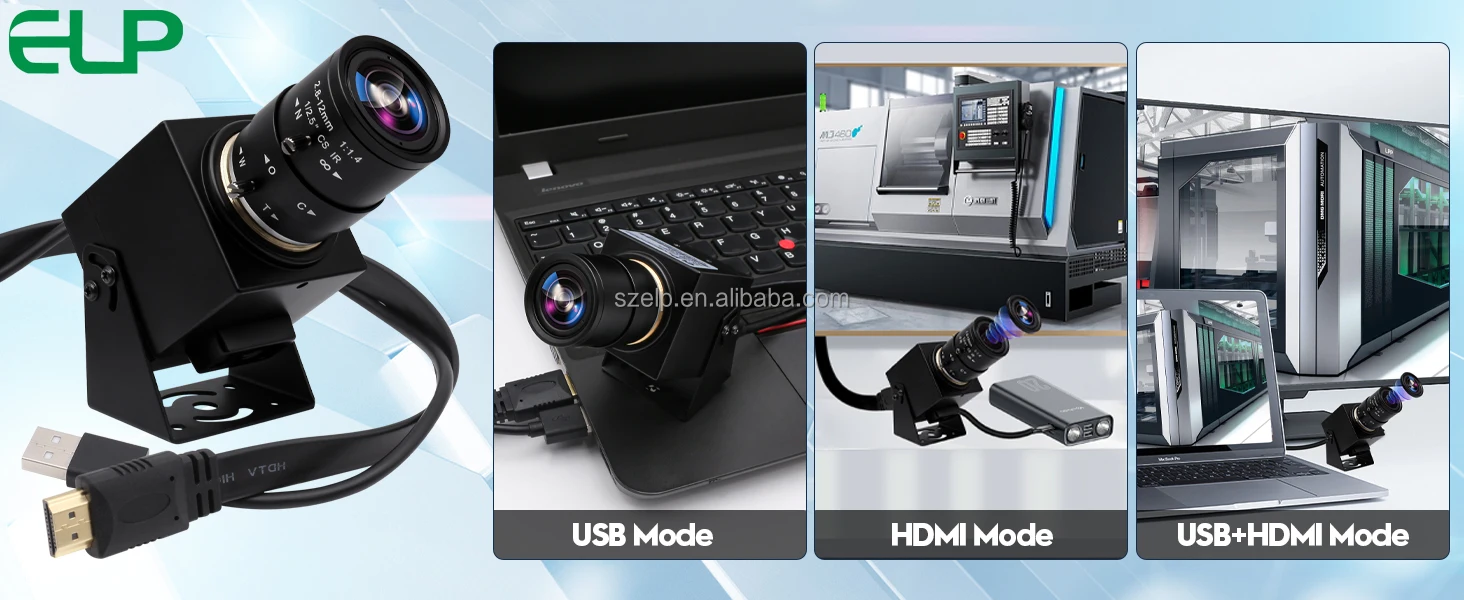

3 Working Modes: USB Mode/HDMI Mode/USB+HDMI simultaneously output Mode
Powerful H.265 Video Compression+ H.265 Video format---Ultra Smooth Uploading Experience
2X Digital Zoom + 4X Optical Zoom -Ultra HD shooting, Every Details can be Seen Clearly
4K Industrial Telephoto Microscope Camera
4K HDMI & USB Security Cameras
Max. 3840*2160 USB Camera for pc, Raspberry Pi, Android Develop Board, Jetson Nano

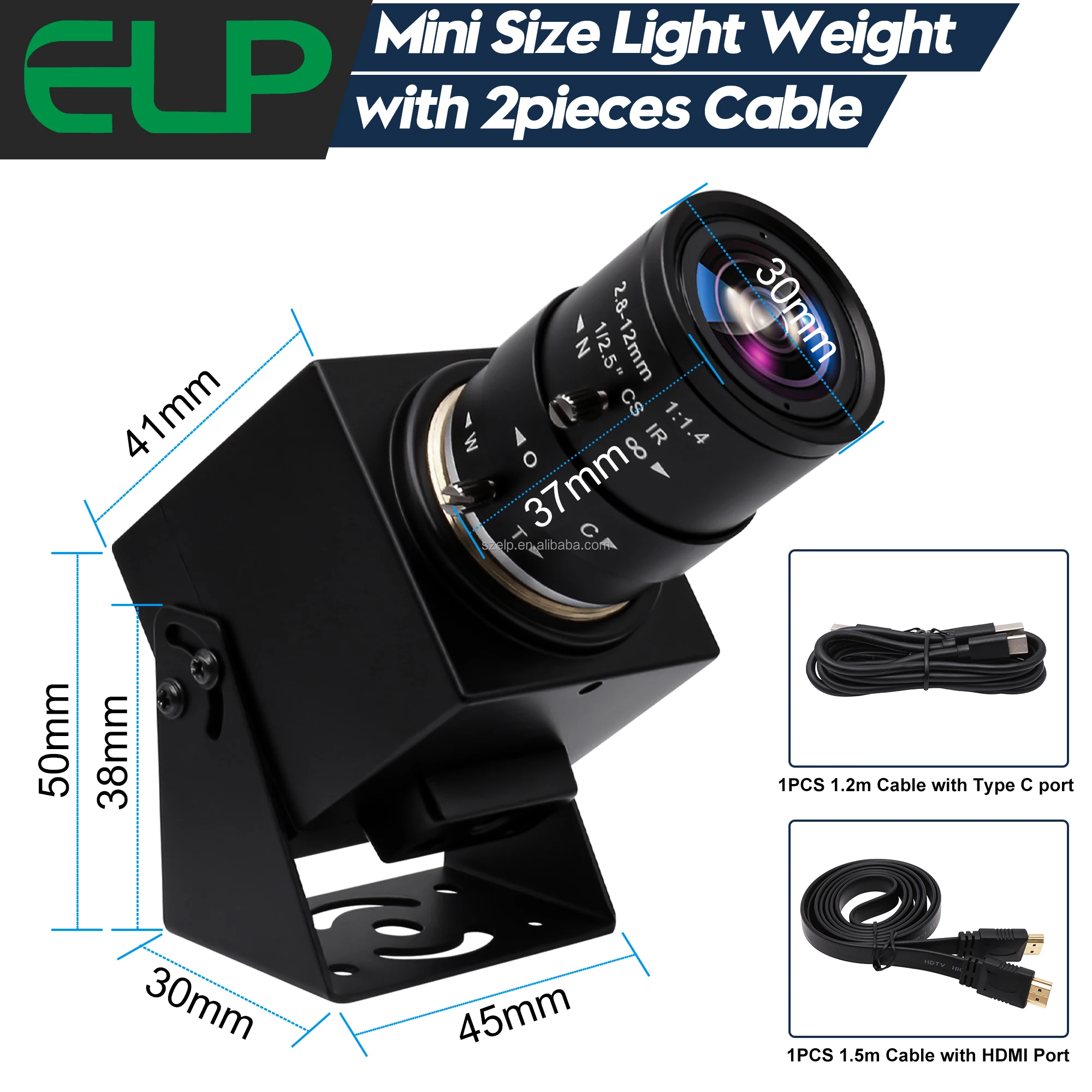

Cameras Size & Parts Details
Company Profile
Shenzhen Ailipu Technology Co.,Ltd established in 2005, is a 18 years professional USB Cameras manufacturer in China. Our own brand ELP is well known in cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS. With our own unique R&D team as the basic, oriented by dedicated sales team. We already developed into a professional video products company, integrated with developing, manufacture, sales and service all together.
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for manufacturing, life sciences, medical imaging, security and defense application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3/1/1.3/2/3/5/8/13 megapixel to 48 megapixel. Recently We launch new ultra HD USB cameras like Super Sharp 48MP cameras,16 MP cameras, HDMI Camera. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras.
We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera for more than 18 years
♦Can you OEM camera module?
Yes, we can offer OEM USB Camera according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal 2.1/2.8/3.6/6/8/12mm Fixed and Varifocal M12 lens, M7/M8 mini lens and also wide angle fisheye lens and varifocal C/CS mount lens option.
♦What operating system your cameras support?
Android, Windows , Linux Mac System.
♦What certificate you have?
Our factory is certificated with ISO 9001. And our cameras have CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP, Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player, Quick Time, USB Camera, Photo Booth, Facetime, Zoom, Quick Time.
Yes, we are designer and manufacturer for usb camera for more than 18 years
♦Can you OEM camera module?
Yes, we can offer OEM USB Camera according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal 2.1/2.8/3.6/6/8/12mm Fixed and Varifocal M12 lens, M7/M8 mini lens and also wide angle fisheye lens and varifocal C/CS mount lens option.
♦What operating system your cameras support?
Android, Windows , Linux Mac System.
♦What certificate you have?
Our factory is certificated with ISO 9001. And our cameras have CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP, Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player, Quick Time, USB Camera, Photo Booth, Facetime, Zoom, Quick Time.
