Small Self Feeding Mobile Cement Mixer Type Concrete Agitator Self loading Concrete Mixer Machine For Sale
- Category: >>>
- Supplier: Laizhou Jufeng Machinery Co. Ltd.
Share on (1600923883298):
Product Overview
Description
Product Description
JF MIX Self loading concrete mixer

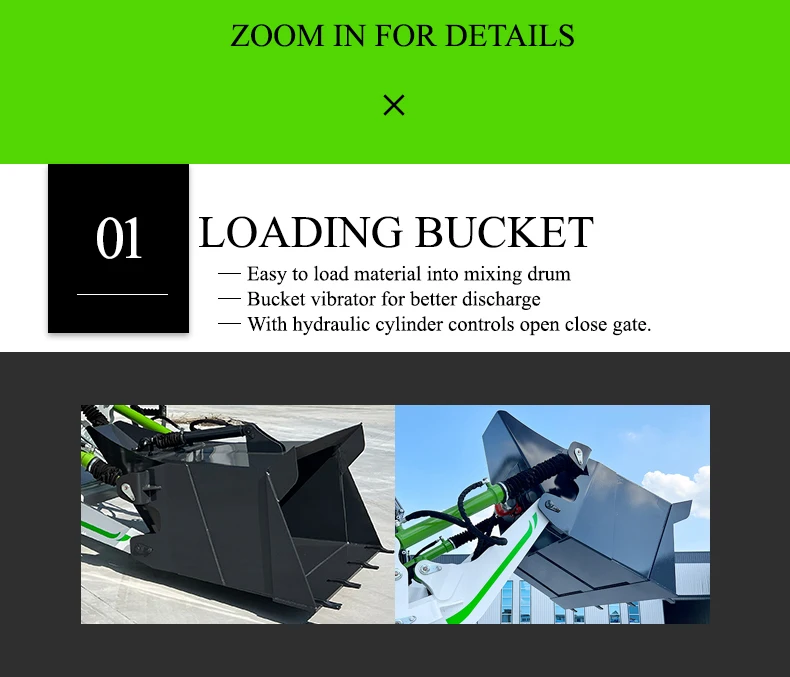

1. JF MIX Self-loading mixer truck, one machine with multiple functions
Bucket downturn function, realize the loading function, truly realize the multi-purpose function of one machine
2. JF MIX Self-loading mixer truck, liberate productivity
Fully automatic mixer truck integrates loading, mixing, transportation and unloading
3. JF MIX Self-loading mixer truck, unloading is more thorough
The forward-tilt unloading function makes unloading more thorough and faster
4. JF MIX Self-loading mixer truck, large water tank design
Enlarge the water tank to meet the needs of working in a water-deficient environment
1. JF MIX Self-loading mixer truck, one machine with multiple functions
Bucket downturn function, realize the loading function, truly realize the multi-purpose function of one machine
2. JF MIX Self-loading mixer truck, liberate productivity
Fully automatic mixer truck integrates loading, mixing, transportation and unloading
3. JF MIX Self-loading mixer truck, unloading is more thorough
The forward-tilt unloading function makes unloading more thorough and faster
4. JF MIX Self-loading mixer truck, large water tank design
Enlarge the water tank to meet the needs of working in a water-deficient environment

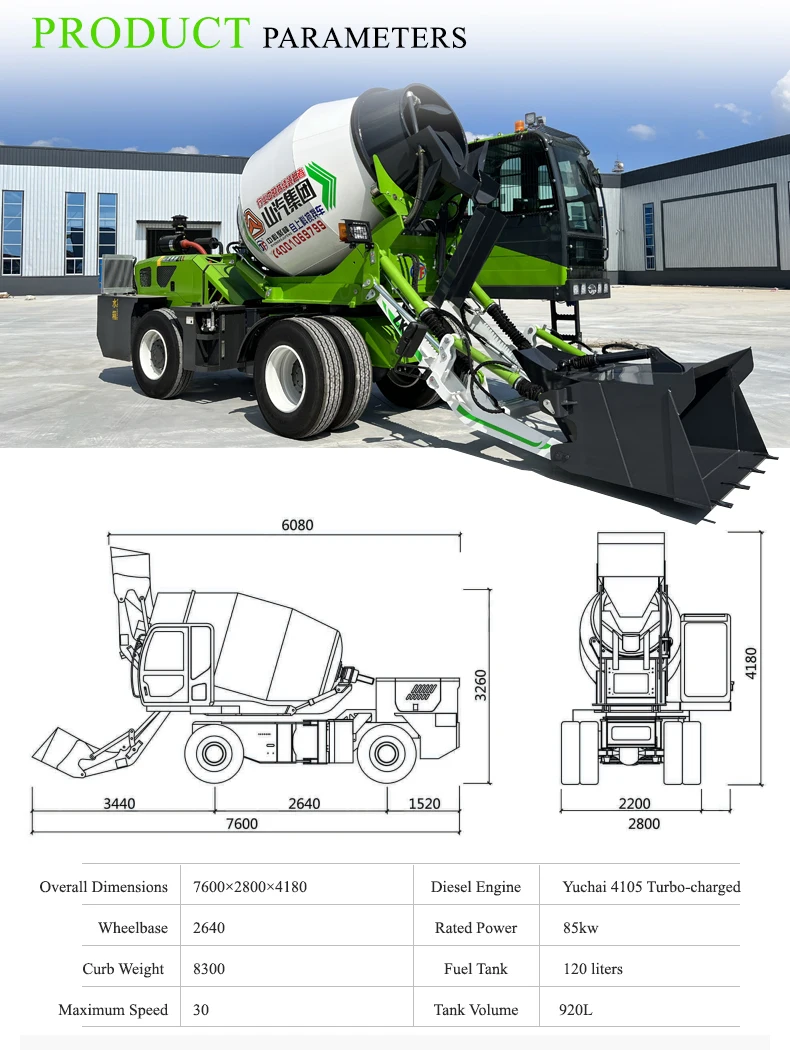

Specifications for CMT3500R Self Loading Mobile Concrete Mixer | ||||

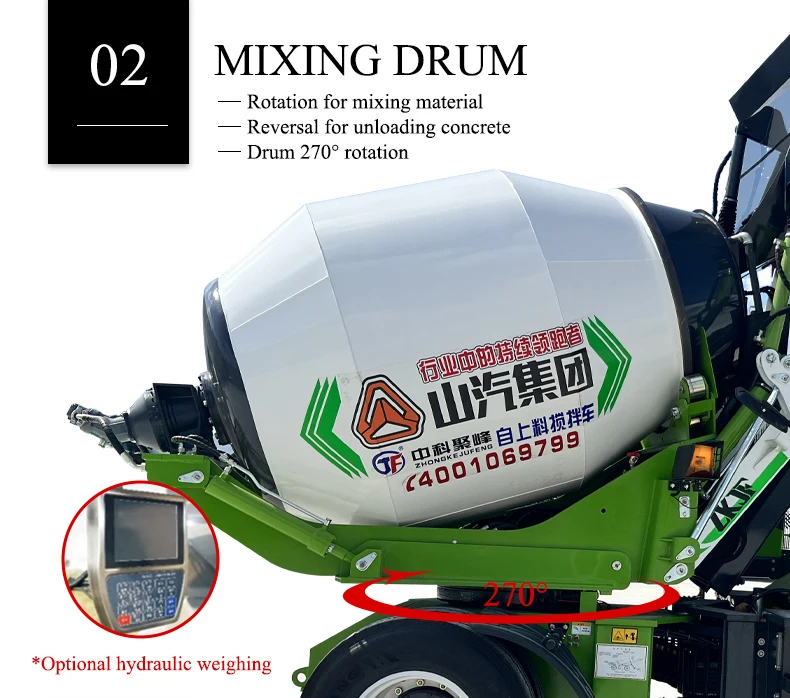

Mixing Drum | Mixing Volume | 3500 L | ||
Geometric Volume | 5300 L | |||
Concrete Output | 3500 L/ batch , 4 Batches/ hr | |||
Inclination Angle | 16° | |||
Max. Slewing Angle | 270° | |||
Rotating Speed | 0~21 rpm | |||
Body /Bottom Thickness | 4 mm/6 mm(Q345B) | |||
Overall Size | Φ1700x 3210 | |||
Chute | Max. Slewing Angle | 180° | ||
Tilting Method | Mechanically | |||
Length | 450mm +1200 mm (2 Sections) | |||

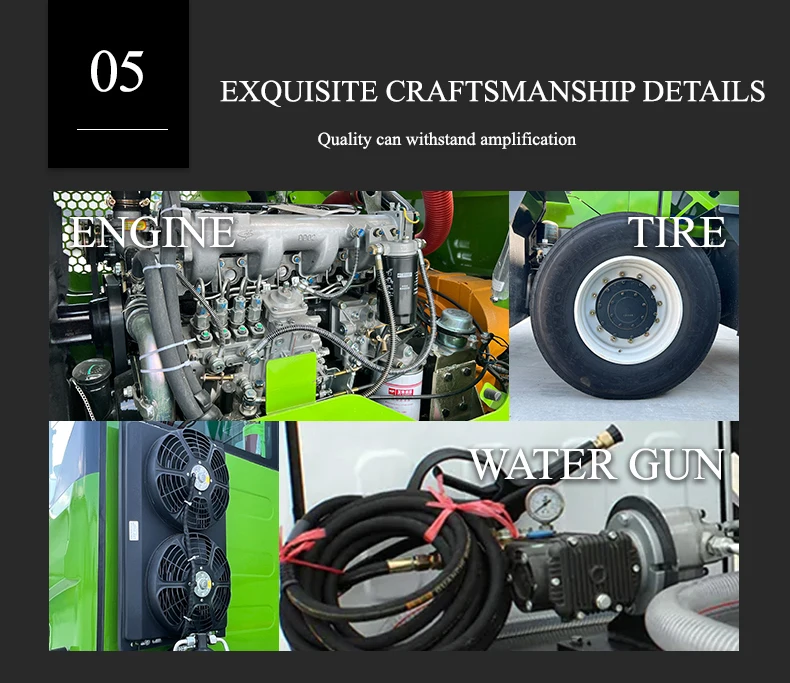

Engine | Brand | YUCHAI ( Cummins Optional) | ||
Model | YCD4J22G | |||
Rated Power/Speed | 116 HP /2400 rpm | |||
Max.Torque/ Speed | 390 N.m/2800 rpm | |||
Bore x Stroke | 105 mm x125 mm | |||
Displacement | 4.33 L | |||
Type | 4-Cylinder,In-line, Turbo Charged, Water-cooled | |||
Emission Standard | Euro II | |||
Hydraulic System | Reducer Model | HJ80-43 | ||
Hydraulic Pump Displacement | 50/32 mL/r | |||
Hydraulic Motor Displacement | 160 mL/ r | |||

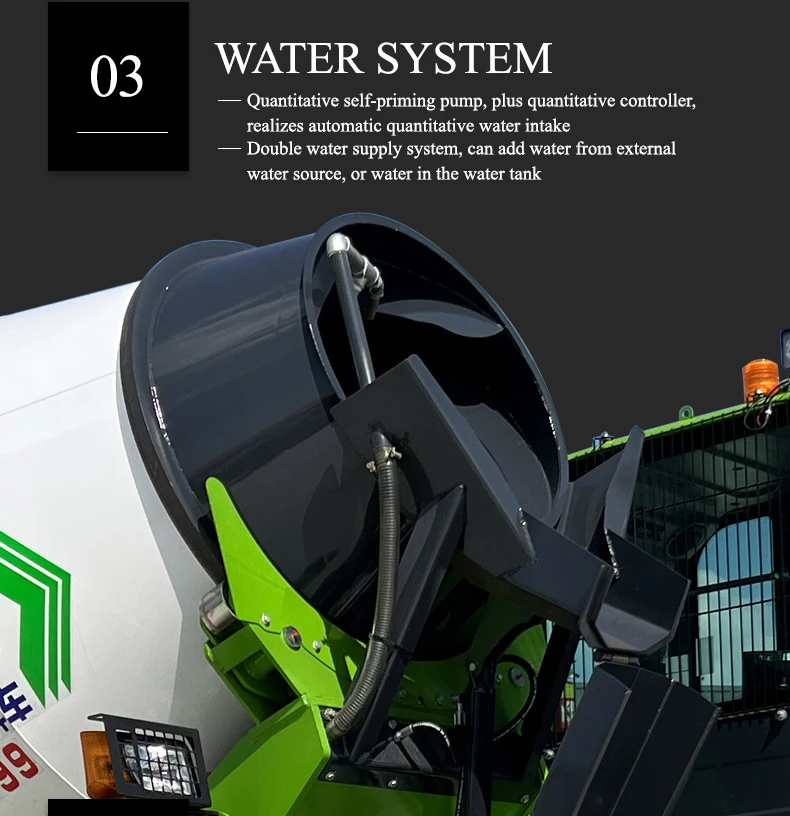

Water Supply System | Water Tank Volume | 2 x 280 L | ||
Water Supply Mode | Self-contained, Hydraulic Driven water pump | |||
Chassis | Structure | Articulated Structure | ||
Drive Type | 4 X 4 | |||
Transmission | 2 Forward +2 Reverse Shift (Low+ High Speed) | |||
Torque converter | YJ280 ( Split Type） | |||
Gearbox Mode | Counter Shaft, Power-shift | |||
Wheelbase | 2800 mm | |||
Tread | 1700 mm | |||
Loading Shovel Capacity | 600 L | |||
Brake Type | Air Brake | |||
Tyre Size | 16/70-20 | |||
Vehicle | Drum and Shovel Control | By Joystick | ||

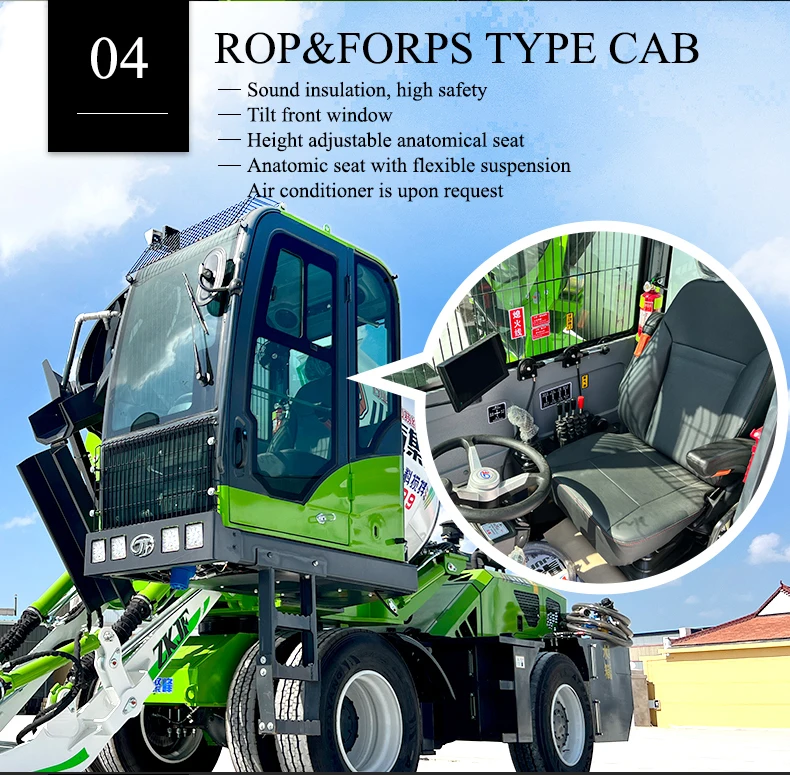

Driver’s Cab | Air-conditioner Inside | |||
Max. Drive Speed | 30 km/h | |||
Grade Ability | 30 % | |||
Mini Turning Radius | 5300 mm | |||
Max. Payload | 8,500 kg | |||
Operating Weight | 7,500 kg | |||
Overall Size | 7800 x 2700 x 3300 mm | |||
Advantage Display
The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self-loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 112 m³ of concrete), and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
More Options
Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,85 kW Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.
Our Company

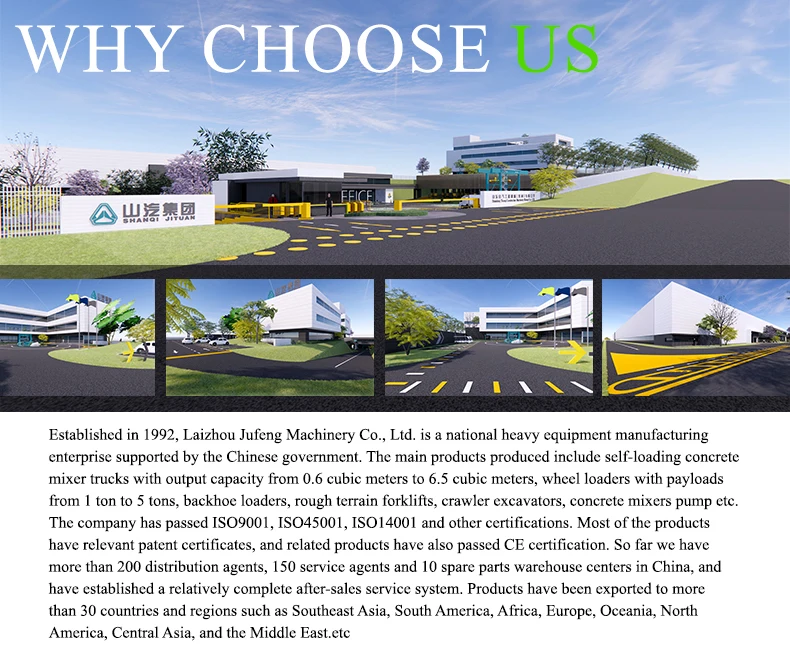

Established in 1992, Laizhou Jufeng Machinery Co., Ltd. is a national heavy equipment manufacturing enterprise supported by the Chinese government. The main products produced include self-loading concrete mixer trucks with output capacity from 0.6 cubic meters to 6.5 cubic meters, wheel loaders with payloads from 1 ton to 5 tons, backhoe loaders, rough terrain forklifts, crawler excavators, concrete mixers pump ctcThc company has passed ISO9001, ISO45001, ISO14001, and other certifications. Most of the products have relevant patent certificates, and related products have also passed CE certification. So far we have more than 200 distribution agents, 150 service agents, and 10 spare parts warehouse centers in China, and have established a relatively complete after-sales service system. Products have been exported to more than 30 countries and regions such as Southeast Asia. South America, Africa, Europe, and Oceania. NorthAmerica.Central Asia. and the Middle East.etc
