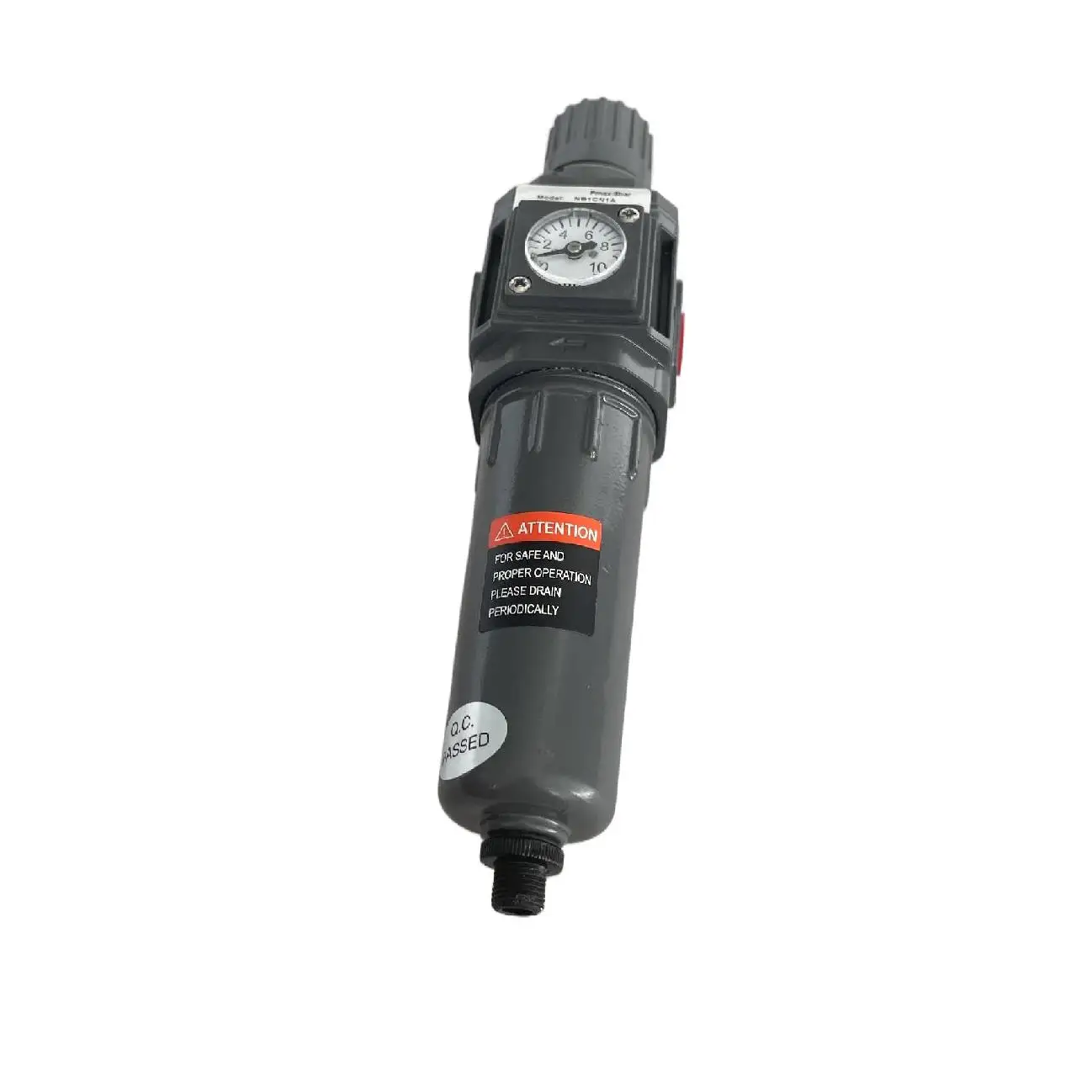

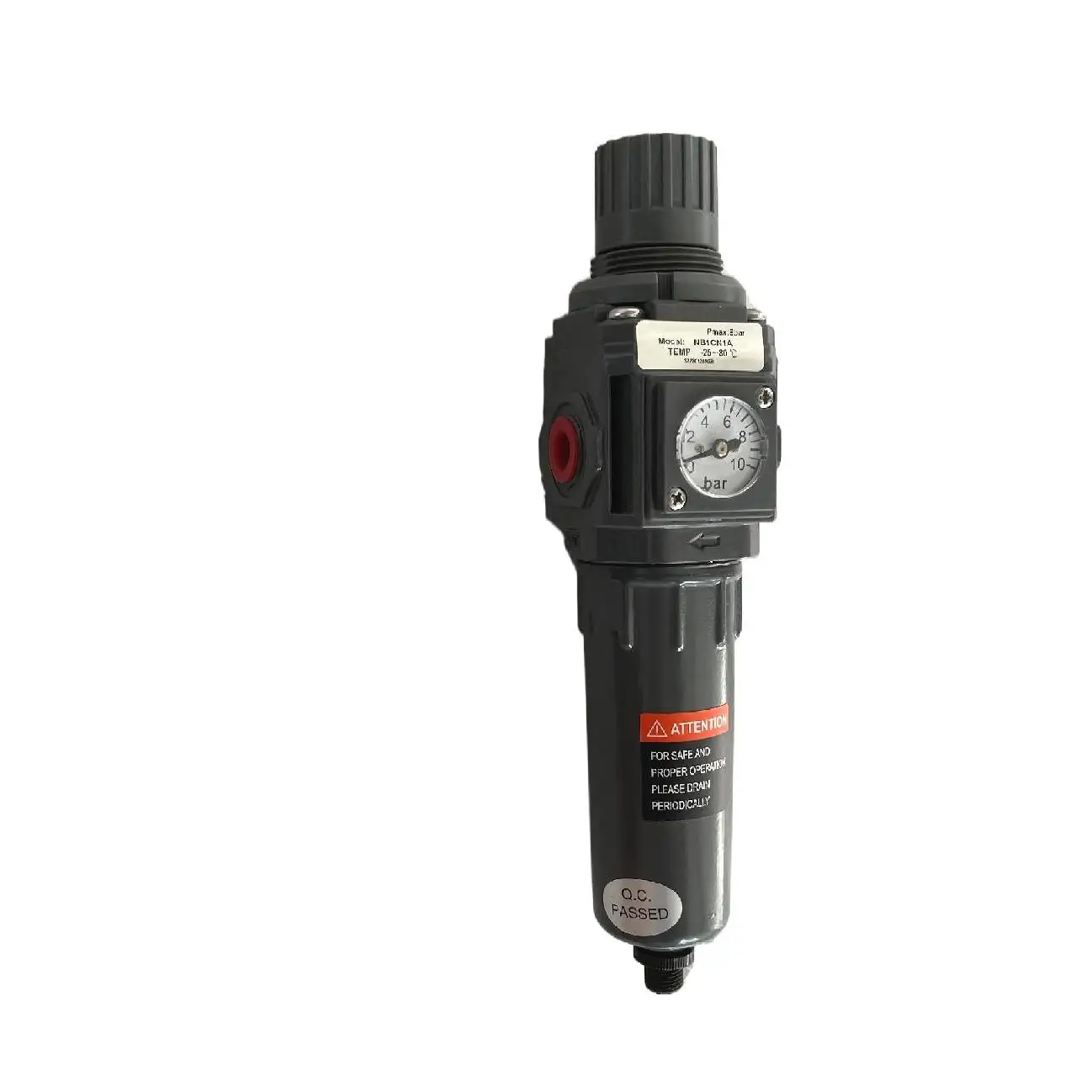

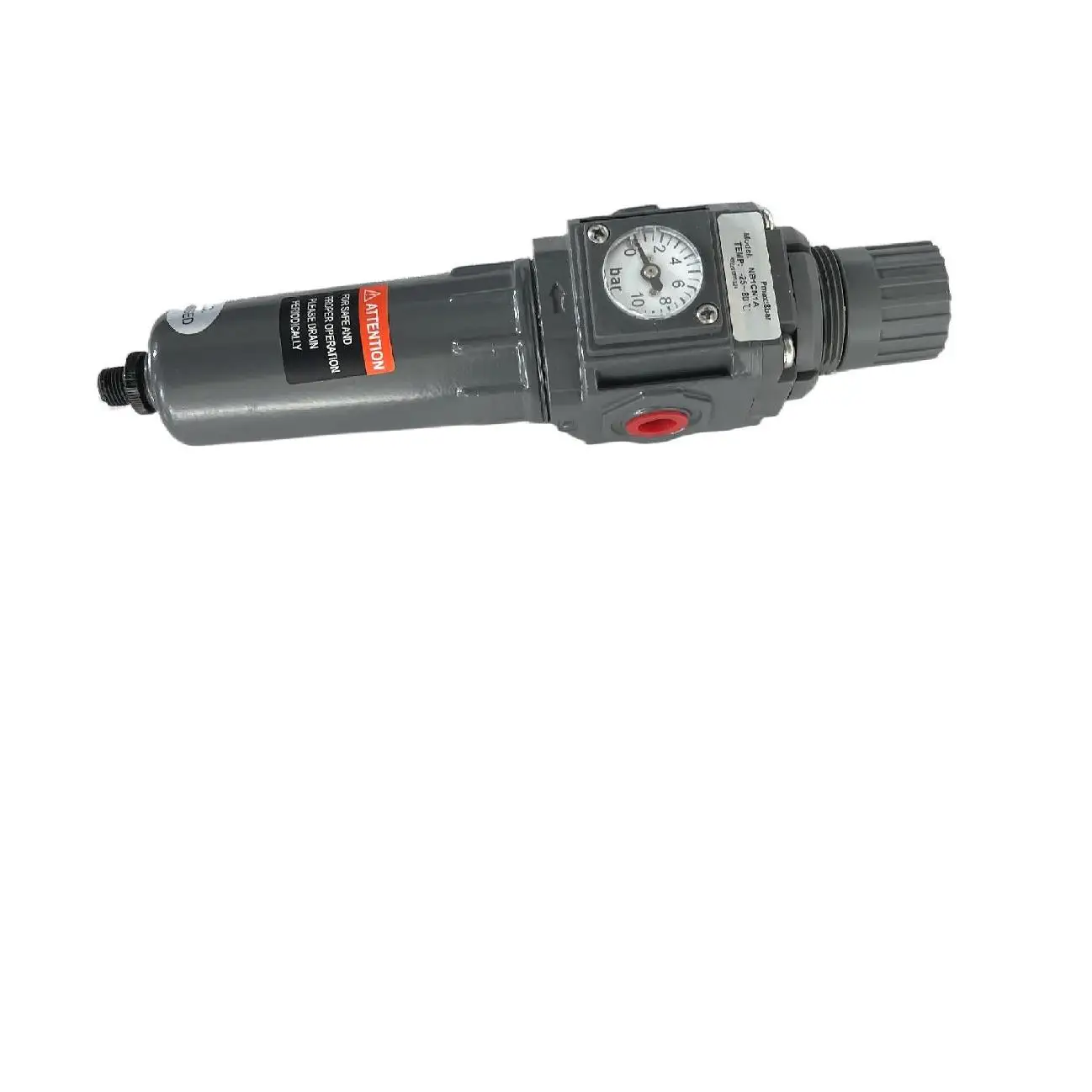

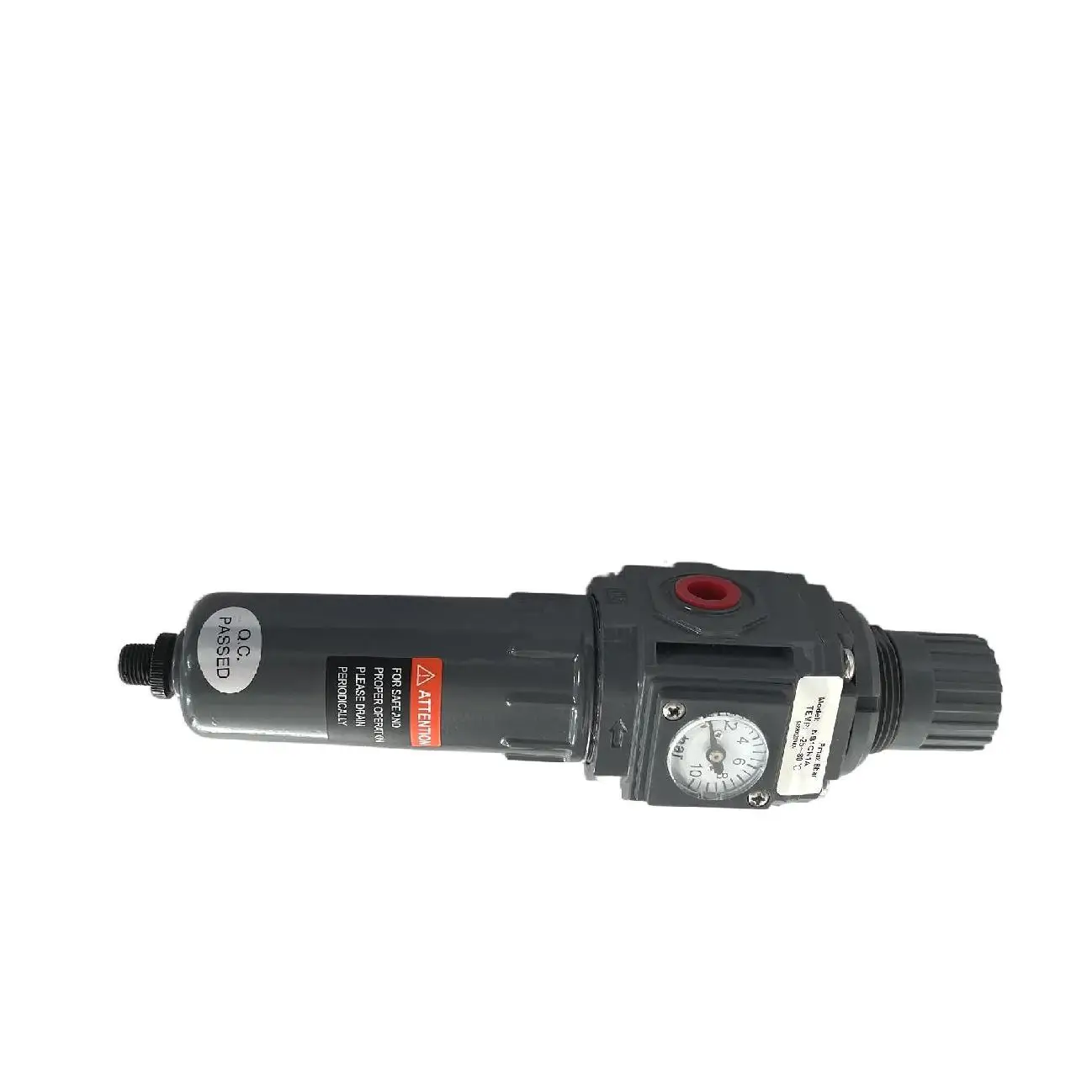

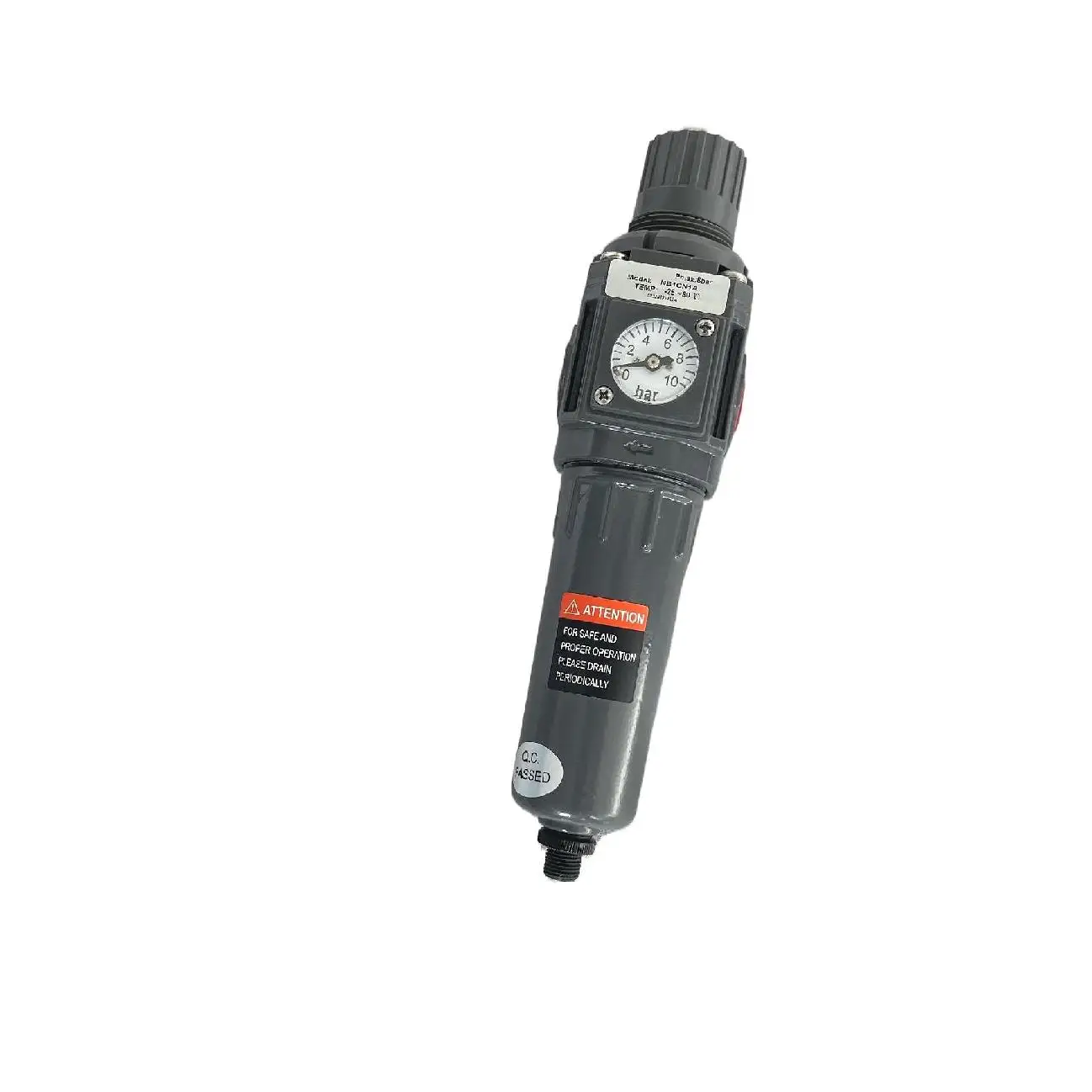

Original Norgren air compressor water filter regulator
- Category: >>>
- Supplier: Alpha Industrial Equipment (Shandong) Co. Ltd.
Share on (1600923933452):
Product Overview
Description
Products Description
Product features
1.Air filter regulator combines by filter and regulator,also named air pressure regulator-fier.
2.For filter part,it can filter dust,rust and condensate in the compressed air.The filter features new whirlwind blade design,with high water diversion efficiency.In addition,it is fitted with a water discharge device.
3.Patent design of the rolling diaphragm, so that the output pressure into a perfect curve characteristics, with the locator use, so that more stable and reliable locator.
4.A variety of installation methods, easy to install.
5.Low-temperature products can be used under -50℃.
Dimension
Product Paramenters
Model | NR1 / 2 | NR3 / 4 / 5 / 6 | NR7 / 8 / 9 / 0 |
Port size | G1/4 NPT1/4 | NPT3/8 G3/8 G1/2 NPT1/2 | G3/4 G1” NPT3/4 NPT1” |
Ensured pressure resistance | 1.5Mpa （15kgf/cm2) | 1.5Mpa （15kgf/cm2) | 1.5Mpa （15kgf/cm2) |
Maximum supply pressure | 1.0Mpa （15kgf/cm2) | 1.0Mpa （15kgf/cm2) | 1.0Mpa （15kgf/cm2) |
Temperatu | -50℃~70℃ | -50℃~70℃ | -50℃~70℃ |
Filter precision | 5μm | 5μm | 5μm |
Material | Aluminum/Stainless steel 316 | Aluminum/Stainless steel 316 | Aluminum/Stainless steel 316 |
Flow capacity | 800L/min | 2000L/min 2500L/min | 7900L/min 8100L/min |
Output pressure ranges | 0-35PSI、0-60PSI、0-125PSI | 0.05Mpa~0.8Mpa(0.5~8kgf/cm2) | 0.05Mpa~0.8Mpa(0.5~8kgf/cm2) |
Valve type | With overflow | With overflow | With overflow |
Recommend Products
Company Profile
Alpha Industrial Equipment(Shandong)Co.，Ltd.Established in 2013,is located in Jinan City,Shandong,CN. lt is a comprehensiveindustrialequipment supplier that produces valveaccessories and assembles complete sets. After years ofdevelopment, the company has completed the optimizationand improvement of its own product technology and quality,and has fully mastered the core technology of products andthe reserve of technical development talents.
The company's products have their own intellectual property rights and core technologies, and have successivelyobtained: safety, explosion-proof，waterproof and other international authority certifications. With excellentproduct quality and good service spirit,after years of development,we have made long-term progress anddevelopment. With the efforts of the technical team, the company's product structure has become more completeand the quality has been further improved.
Alpha people believe that: through our continuous efforts and pursuits, we will continue to develop and innovate inthe sincere cooperation with customers. In order to enable more users and enterprises to use first-class products.we strictly control the product quality, and believe that the addition of a high-quality product will definitely enableboth parties to achieve mutual benefit and win-win results.
At present, the valve accessories produced by the company have been widely used in dozens of industries suchas petrochemical, pharmaceutical chemical, pesticide chemical, dye chemical, rubber chemical, food chemical,coal chemical, power heating and gas, and have been highly recognized by customers.
The company's products have their own intellectual property rights and core technologies, and have successivelyobtained: safety, explosion-proof，waterproof and other international authority certifications. With excellentproduct quality and good service spirit,after years of development,we have made long-term progress anddevelopment. With the efforts of the technical team, the company's product structure has become more completeand the quality has been further improved.
Alpha people believe that: through our continuous efforts and pursuits, we will continue to develop and innovate inthe sincere cooperation with customers. In order to enable more users and enterprises to use first-class products.we strictly control the product quality, and believe that the addition of a high-quality product will definitely enableboth parties to achieve mutual benefit and win-win results.
