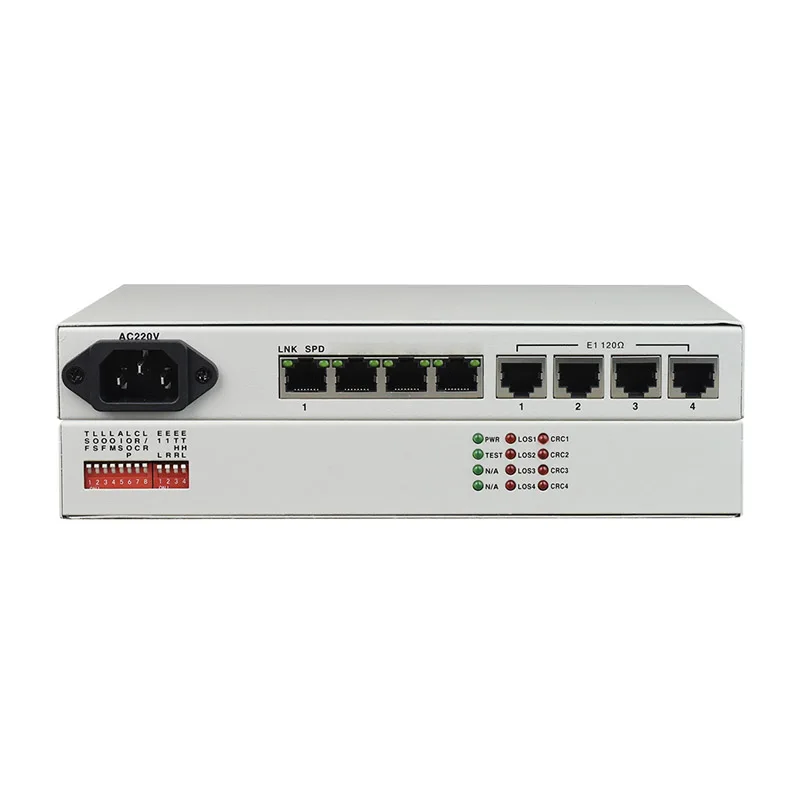

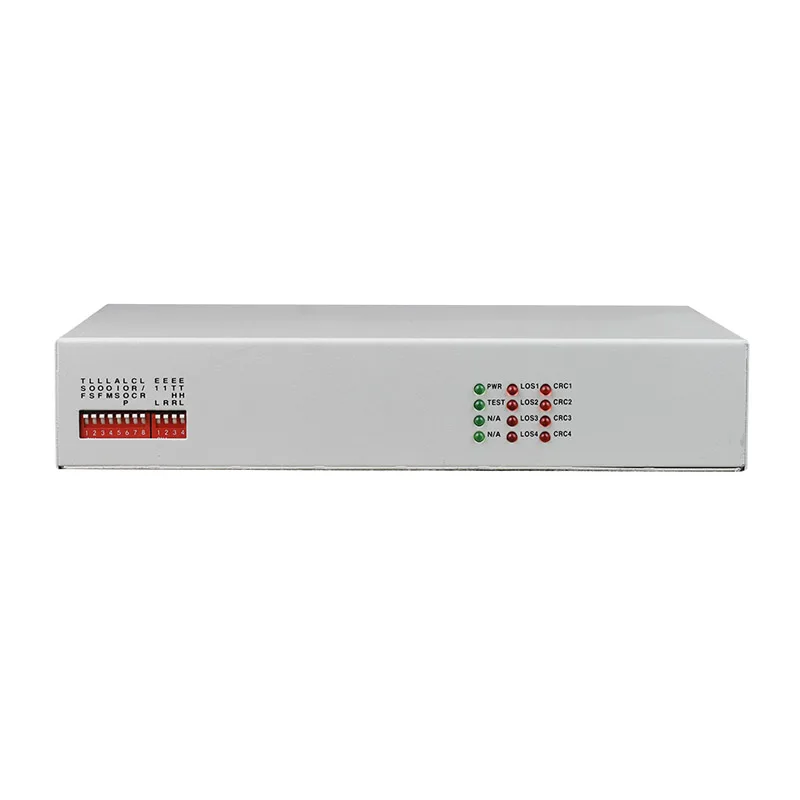

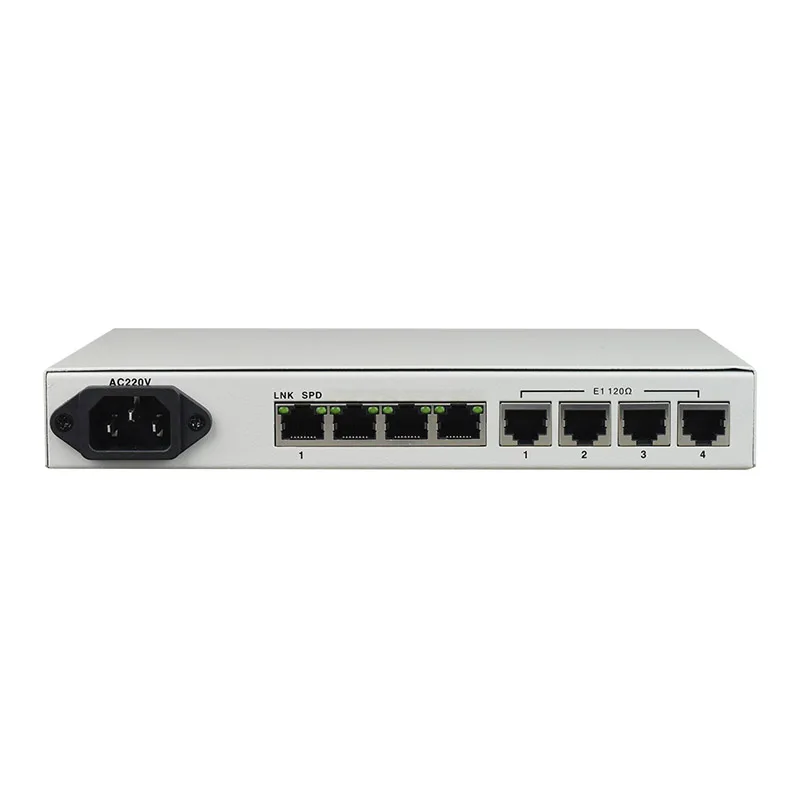

High Performance Ethernet over E1 Protocol Converter 4 Channel E1 to FE Interface Converter
- Category: >>>
- Supplier: Hangzhou Fctel Technology Co. Ltd.
Share on (1600923975116):
Product Overview
Description
Product
4e1 to ethernet fiber optic interface converter
We have Strong R&D team, Providing customization.
For optional function, Pls state your requirement when in order.
Description

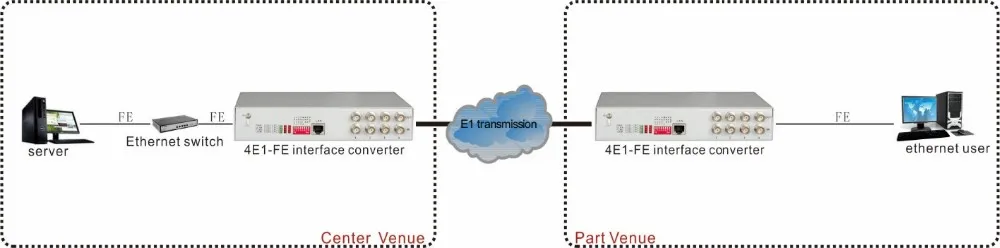

This interface converter is based on FPGA, using reverse direction multiplexing technology to bundle for multiple E1 circuits to transmit the Ethernet data of 4Channel 100BASE-TX. It can realize 1~4 E1 channel to convert between Ethernet optical interface. This device can transmit the transceiver signal point to point to Ethernet optical interface to make E1 channels interconnected with Ethernet optical interface. Unlike general remote network bridge, this device can support 1-4Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available. It allows E1 lines transmission time delay difference.
E1 Interface | Ethernet interface(10/100M) | ||
Interface Standard | comply with protocol ITU-T G.703 | Interface rate | 10/100 Mbps, half/full duplex auto-negotiation |
Interface Rate | n* 64Kbps±50ppm | Interface Standard | Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
E1 Impedance | 75Ω (unbalance), 120Ω (balance); | MAC Address Capability | 4096 |
Interface Code | HDB3 | Connector | RJ45, support Auto-MDIX |
Jitter tolerance | In accord with protocol G.742 and G.823 | ||
Allowed Attenuation | 0~6dBm |
Our Company
Certifications
Packing&Delivery
Order Information
Model | Description |
FCC-E4F1 | 4E1/1FE interface Converter |
