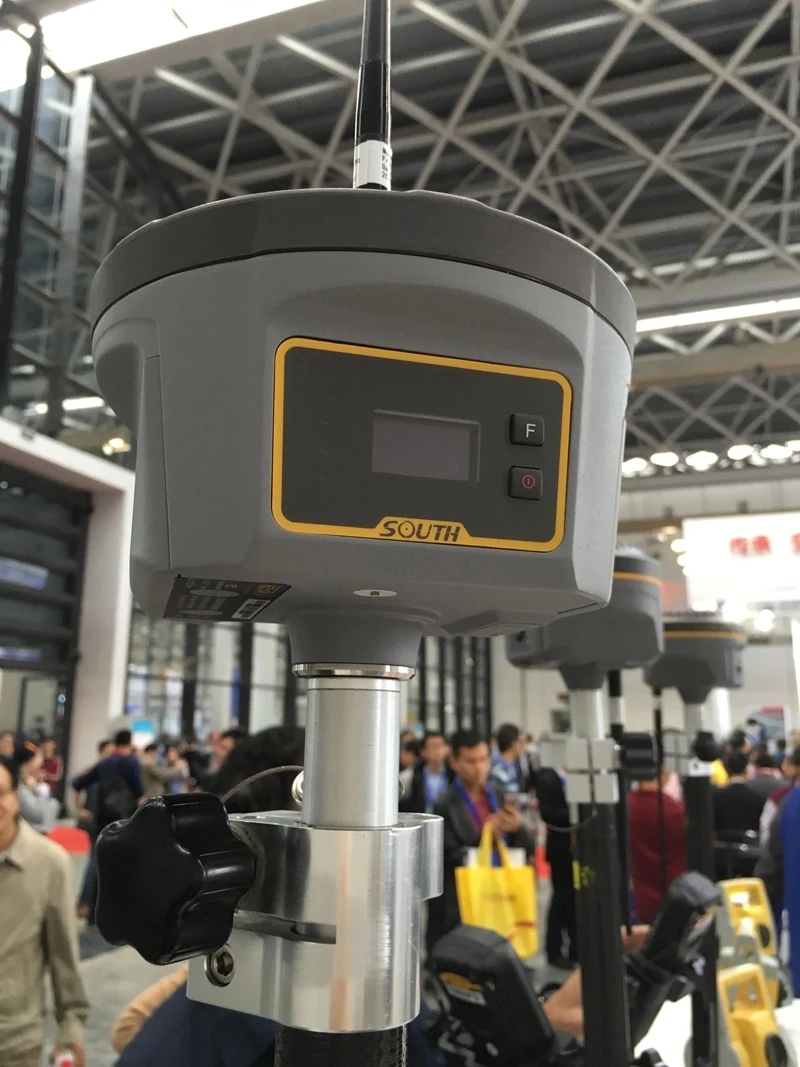

Convenient to carry Geodetic South brand galaxy g6 GNSS Receiver

SOUTH Galaxy G6

Surveying Performance

Channel

220 Channels

Signal Tracking

BDS B1, B2,

GPS L1C/A, L1C, L2C, L2E, L5

GLONASS L1C/A, L1P, L2C/A,L2P, L3

SBAS  L1C/A, L5( Just for the satellites supporting L5 )

Galileo GIOVE-A, GIOVE-B, E1, E5A, E5B

QZSS,WAAS, MSAS, EGNOS, GAGAN, SBAS

GNSS Feature

Positioning output rate: 1HZ~50HZ

Initialization time :  <10s

Initialization reliability: >99.99%

Positioning Precision

Code Differential GNSS Positioning

Horizontal: 0.25 m + 1 ppm RMS

Vertical: 0.50 m + 1 ppm RMS

SBAS positioning accuracy: typically<5m 3DRMS

 Static GNSS Surveying

Horizontal: 2.5 mm + 0.5 ppm RMS

Vertical: 5 mm + 0.5 ppm RMS

Real-Time Kinematic Surveying (Baseline<30km)

Horizontal: 8 mm + 1 ppm RMS

Vertical: 15 mm + 1 ppm RMS

Network RTK

Vertical: 15 mm + 0.5 ppm RMS

RTK initialization time

2~8

Operation system/User interface

OS

Linux

Button

Double buttons and Visual operation interface

LCD

0.96 inch HD OLED screen,the resolution is 128 ×64

Web interaction

Visiting the internal management web page via WIFI or USB mode,

to monitor the

receiver status and change the configuration freely

Voice

iVoice intelligent voice technology provides status and operation

voice promptly

Supporting Chinese,English,Korean,Russian,Spanish,Turkish

Supporting user defined voice

Secondary development

Providing Secondary development package,and opening the OpenSIC

observation data

format and interface definition secondary development

Date cloud service

Web page cloud service management platform,supporting online

register etc.

Hardware performance

Dimension

155mm(diameter)*137mm(height)

Weight

1.44kg(including battery)

Material

Magnesium aluminum alloy shell

Temperature

Operating: -45℃~+60℃

Storage: -55℃~+85℃

Humidity

100%Non-condensing

Protection Level

Waterproof:IP67 standard,protected from long time immersion

to depth of 1m

Dustproof:IP67 standard,fully protected against blowing dust

Shock and Vibration

Withstand 3 meters pole drop onto the cement ground naturally

Electrical

9-25v wide voltage DC design,with overvoltage protection

Battery

High capacity removeable battery with the indicator displaying the

power usage

Voltage 7.4v,6800mAh/per

Battery life

More than 30h(static mode),more than 15h (RTK mode),

(providing the 7*24h battery solition)

Communication

I/O Port

 5PIN LEMO external power port+Rs232, 7PIN LEMO external USB (OTG)

1 network/radio data link antenna port,SIM card slot

Wireless Modem

Integrated internal radio receiver and transmitter 1W/2W/3W

External radio transmitter 5W/25W

Working frequency 410-470MHz

Communications Protocol:Trim Talk450s, SOUTH

Cellular Moblie Network

WCDMA3.5G network communication module,GPRS/EDGE compatible,

CDMA2000/EVDO3G and TDD-LTE,FDD-LTE 4G optional

Double Module Bluetooth

BLEBluetooth 4.0 standard,support for android,ios cellphone connection

Bluetooth  2.1 + EDR standard

WIFI

Wifi hot spot

Adopting the WIFI hot spot function,any smart terminals

(controllers,cellphone and PC)

can connect to the receiver easy

wifi data link

The receiver can transmit and receive correction via WIFI

Data storage/transmission

Data storage

8GB internal storage

supporting external USB data storage

changeable record interval,support uo to 50Hz raw data collection

Data Transmission

USB data transmission,FTP download,HTTP download

Data Format

Static data format:STH Rinex2.xand Rinex3.x etc.

Differential data format:  CMR+,CMR×,RTCM 2.1,RTCM 2.3,RTCM 3.0,

RTCM3.1,RTCM3.2

GPS output data format:  NMEA0183,PJK plane coordinates,

binery code,Trimble GSOF

Network model support: VRS,FKP,MAC,supporting NTRIP protocol

Inertial Sensing System

Tilt Survey

Built-in tilt compensator, correcting coordinates automaticlly according

the tilt direction and angle of the centering rod

Electornic Bubble

Conteroller software display electronic bubble, checking leveling status of

the centering rod real time

Thermometer

Buiilt-in thermometer sensors,adopting intelligent temperature control

technology.

monitoring and adjusting the receiver temperature in real time
