Product Overview

Description

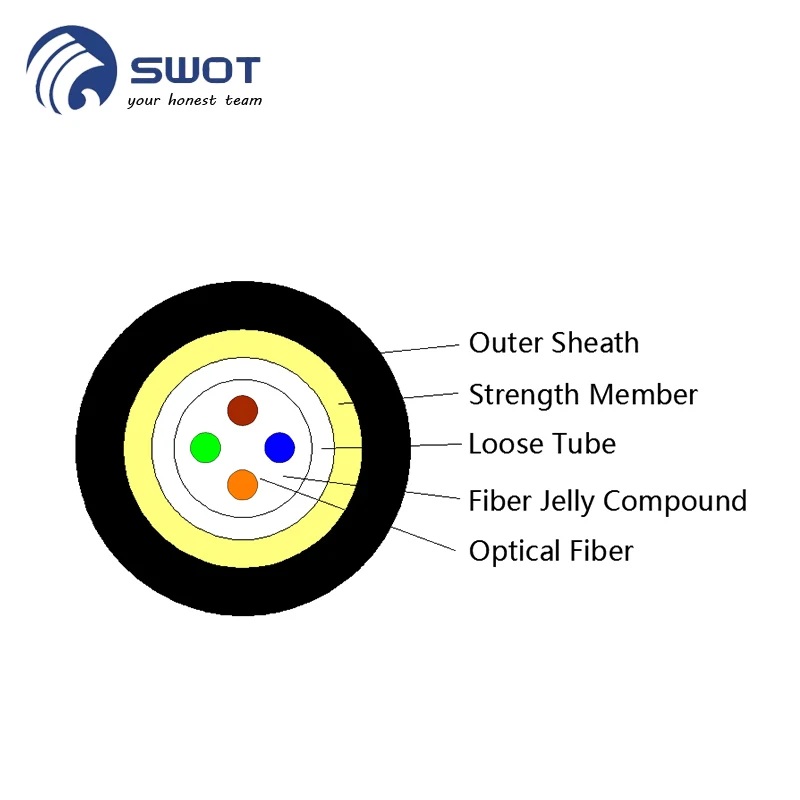

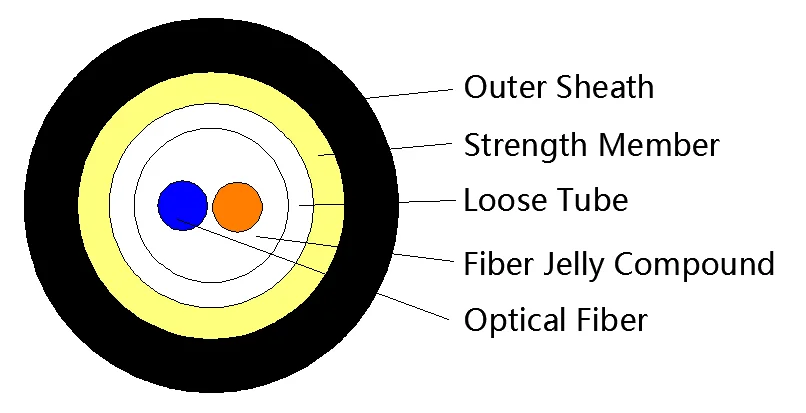

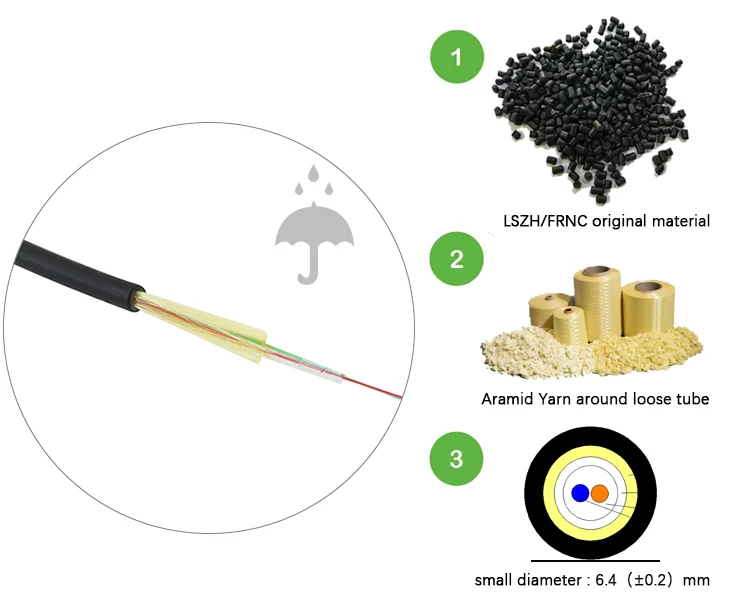

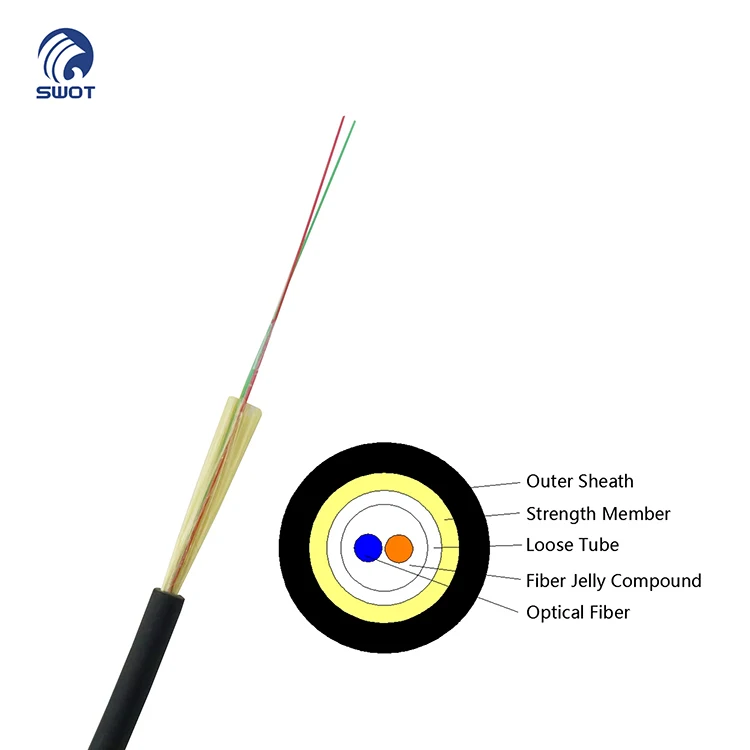

1.The cable consists of a single central gel filled uni-tube containing individually colour coded 250 μm buffered fibres.
This tube is embedded in a water blocking aramid yarn, and over sheathed with an FRNC/LSZH (Low Smoke Zero Halogen) outer jacket.
2.The jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture.
3.A choice of multimode and singlemode fibre types and specifications are offered with fibre counts from 2~24 in the standard range.




No. of cable
2
Fiber Model
G.652D
Loose tube
Material
PBT
Diameter（±0.03）mm
0.35
Thickness（±0.06）mm
3.0
Outer Sheath
Material
LSZH
Thickness（±0.1）mm
1.0
Cable Diameter（±0.2）mm
5.0
Cable Weight（±5）kg/km
49
Min. bending radius
Without Tension
15.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
（℃）
Installation
-5~+50
Transport&Storage
-30~+70
Operation
-20~+70


Feature
1.Can be installed without shutting off the power
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
3.Good performance of tensile strength and temperature
4.The cable life is 30 years
5.Package : 2~4km/ wooden drum or as customer request


Application
The very small diameter, lightweight and excellent environmental performance makes the cable ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.












Welcome to Shanghai Wanbao Optical Technologies Co., Ltd.We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products of SWOT include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.




Packaging detail: 2km / export wooden drum (your request is available )
Remark：Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
