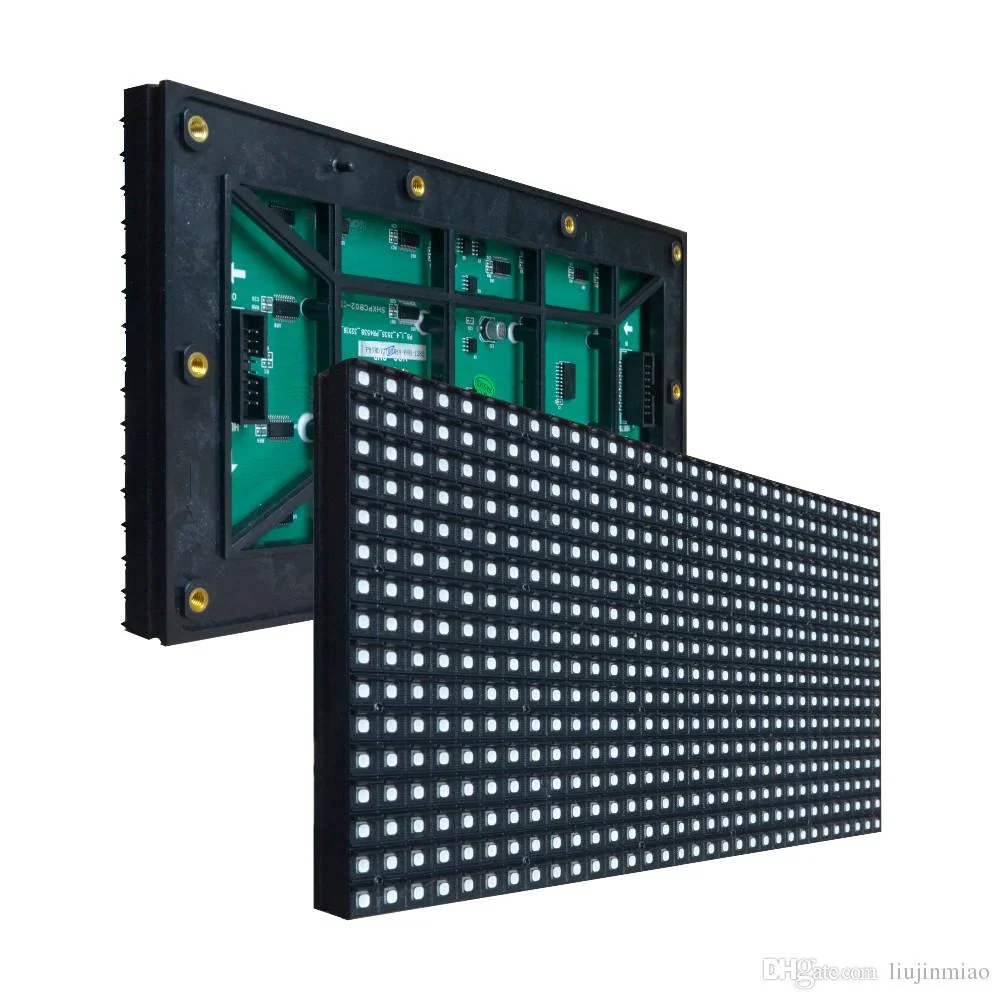

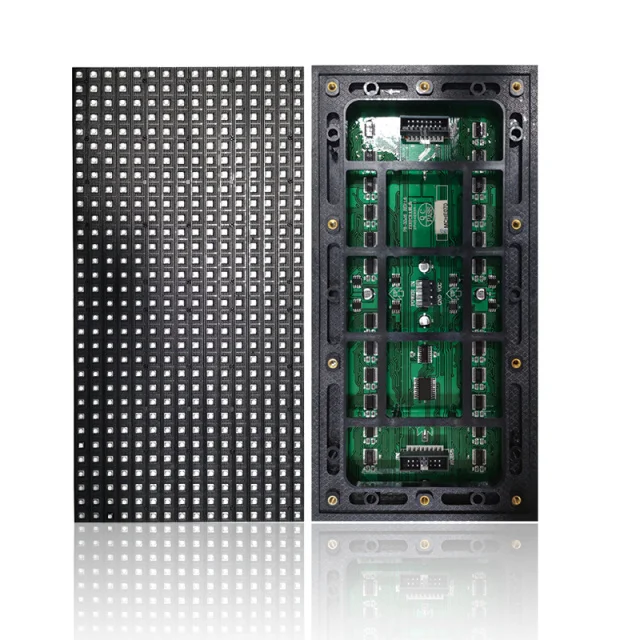

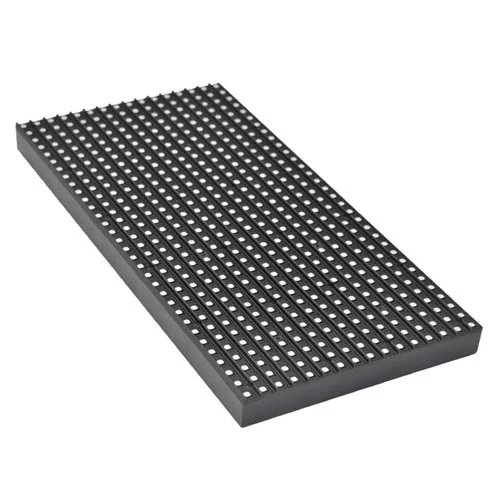

Flash Sale LED P3.91 Outdoor Led Module LED Outdoor P2.5 Led Module Video Wall P3 Led Module Outdoor
- Category: >>>
- Supplier: Shenzhen Future Hi-Tech Co. Ltd.
Share on (1600924044133):
Product Overview
Description
Product Description
Product Description
Specification
Specification
Pixel Specifications | |

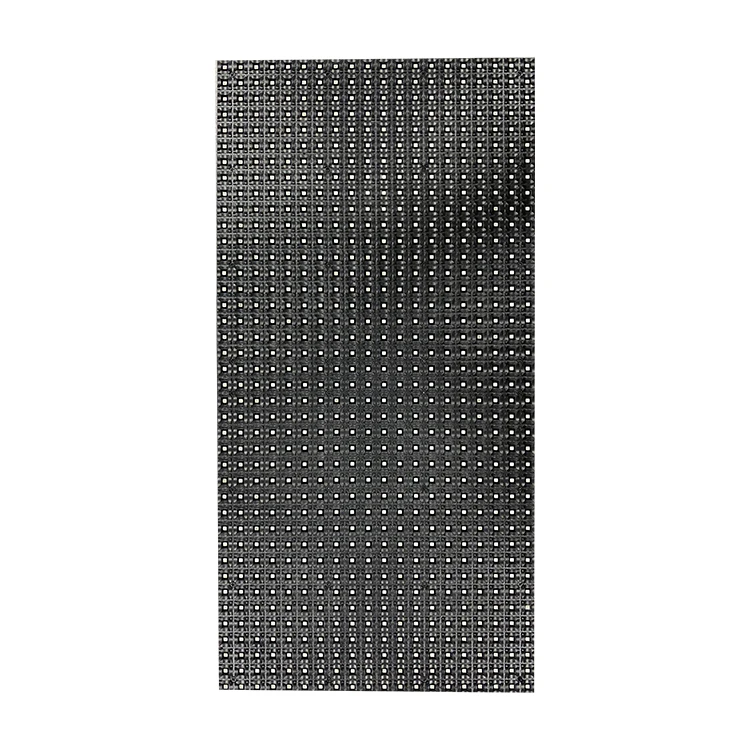

Specifications | P8 Door-head Full Color |
Pixel Configuration | 1R1G1B |
Pixel Density | 15625(dot/m2) |
Pixel Pitch | 8mm |
Module Resolution | 40*20=800(dot) |
Module Size | 320*160mm |
A: Structure Representation | |
Structure Explain | every pixel consist of red blue and green chips |
IC | FM5020 |
Lamp Encapsulation | SMD2525 |
Encapsulation Manufacturer | MLS |
B:Specialty Analysis | |
Blendent Analysis | The color proportion is R:G :B=3:6:1 |
Module | |
Pitch | 8mm- 5Scan |
View Angle | Horizontal 100°~160°,Vertical 140° |
Best View Distance | 8m~100m |
Work Temperature | -10℃~75℃ |
Environment Humidity | 10%—90%RH |
Storage Temperature | -30ºC~+90ºC |
Protection Grade | IP65 |
System Guard | Moistureproof ,dust proof , resist high temperature, corrosion prevention, prevent burn,static-free,shock resistant,resist lightning |
Power Supply | |
Supply Voltage | AC110V-220V,50-60Hz |
Average Power | 450w/m2 |
Max. Power | 700w/m2 |
Control system | |
Control Host | Lenovo or above |
Control system | WIN 98/ 2000/ XP |
Control Method | Control with the computer |
GPU | DVI GPU |
Diving Method | Constant Current |
Refresh Rate | ≥1920Hz |
Frame Frequency | ≥60Hz |
Grayscale | Single Color 16384 Level |
Color | 10.7 Hundred Million |
Brightness | ≥4500CD/M2 |
Luminousness | 0 |
Brightness Adjustment | Manual & Automatically |
Video Signal | RF,S-Video,RGB,RGBHV,YUV,YC,.etc |
Control System | PCTV+DVI GPU+Master card+ Network Cable |
Mean Time Between Failure | 10000 hour |
Lifetime | 100 thousand hours |
Flatness | Between adjacent pixels≤0.5mm; |
Brightness Uniformity | Pixel light intensity, MODULE brightness is balance≤0.1 |
Malfunction dot rate | <0.0001 |
Wire | |
Effective Communication Distance | National transmission distance 100m,Optical fiber transmission distance≥100m |
Wire | |
Effective Communication Distance | National transmission distance 100m,Optical fiber transmission distance≥100m |
