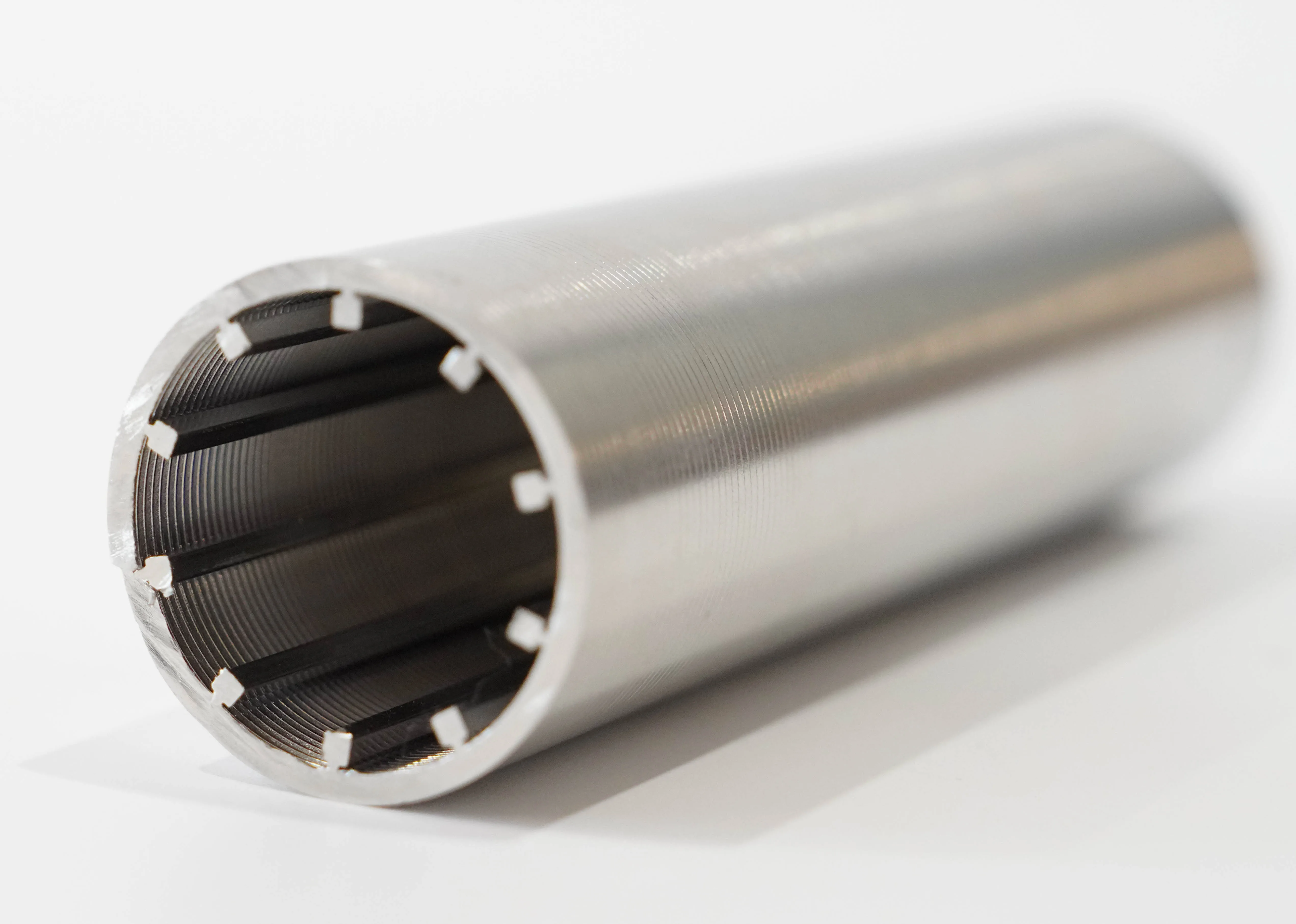

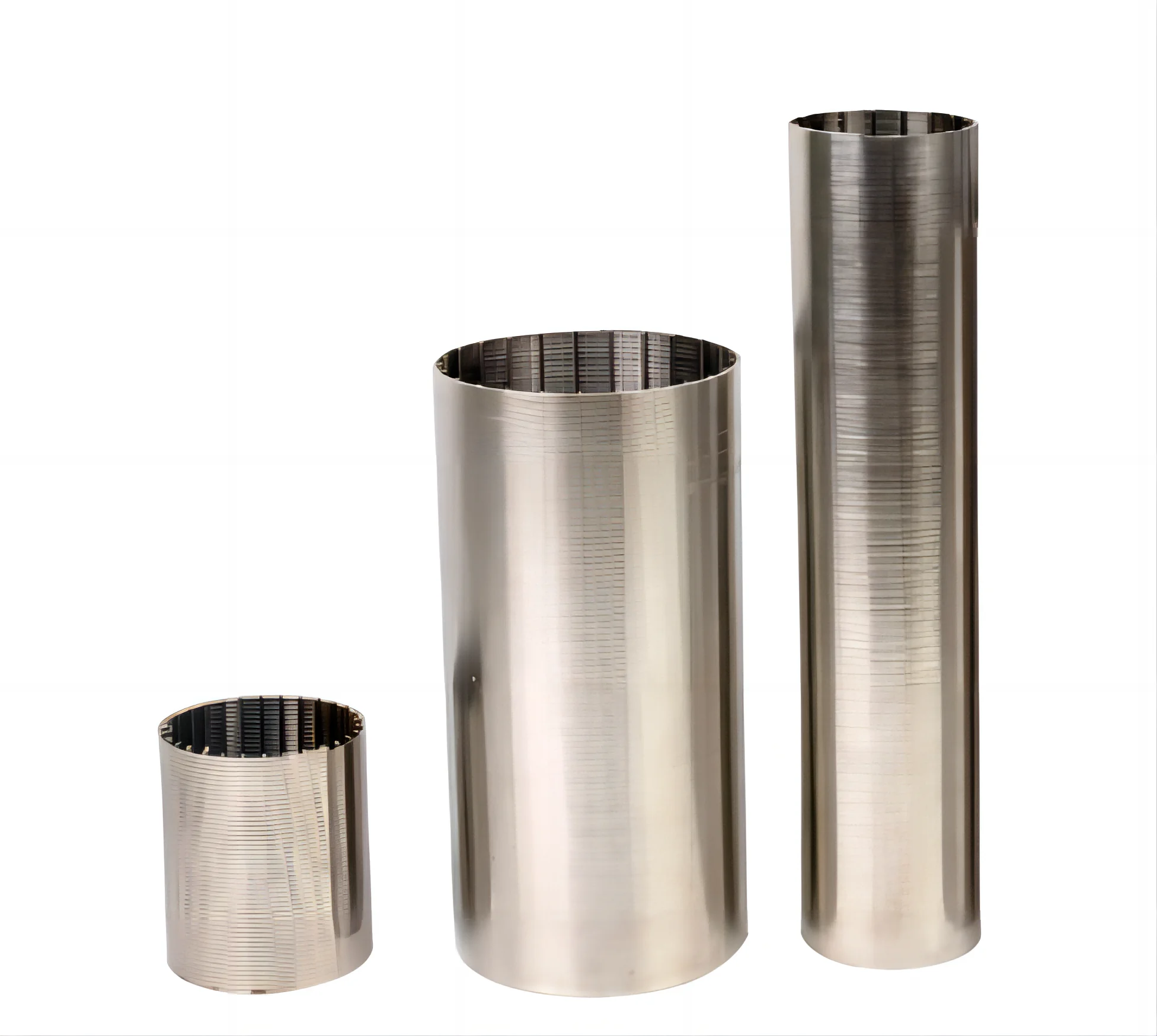

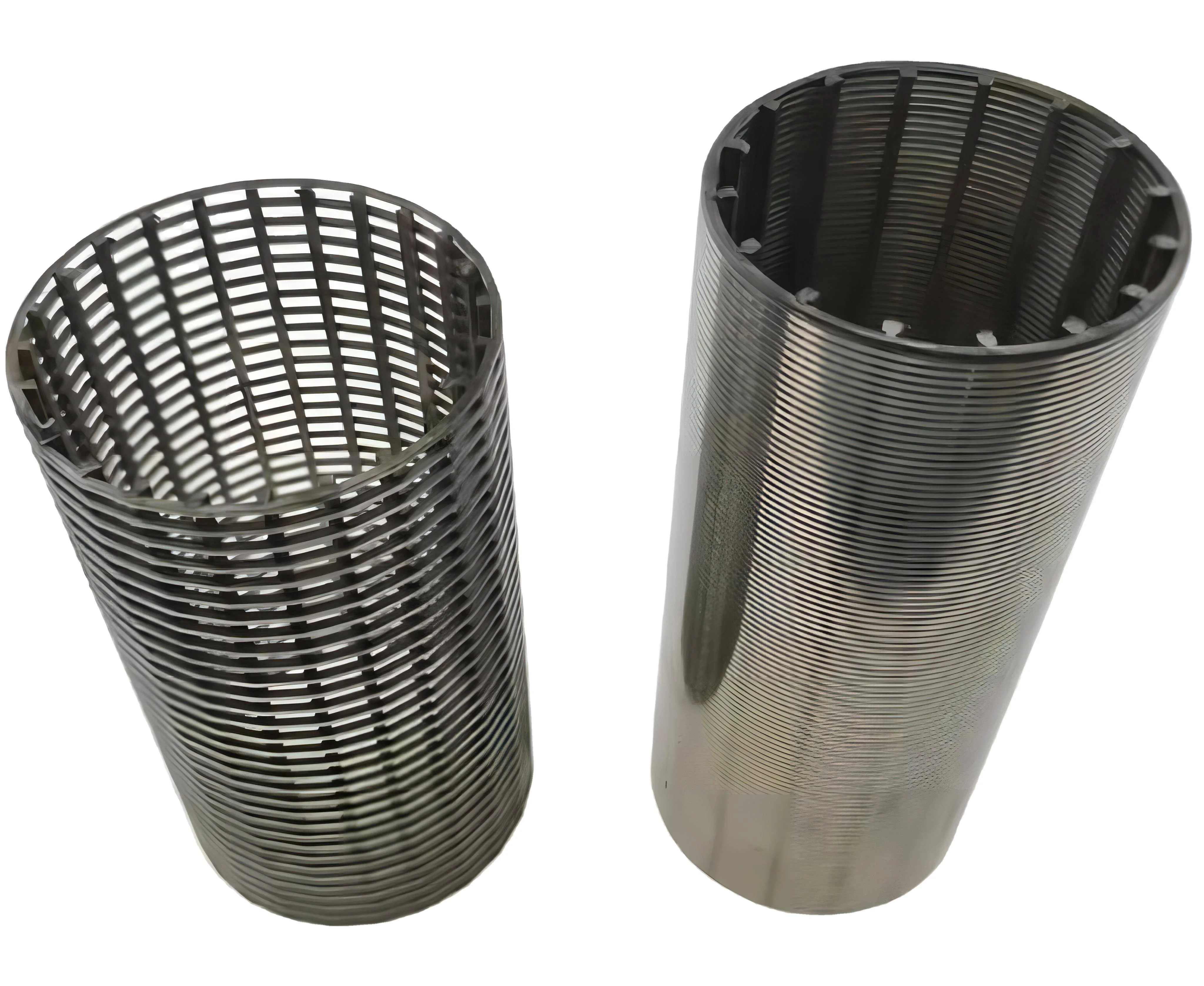

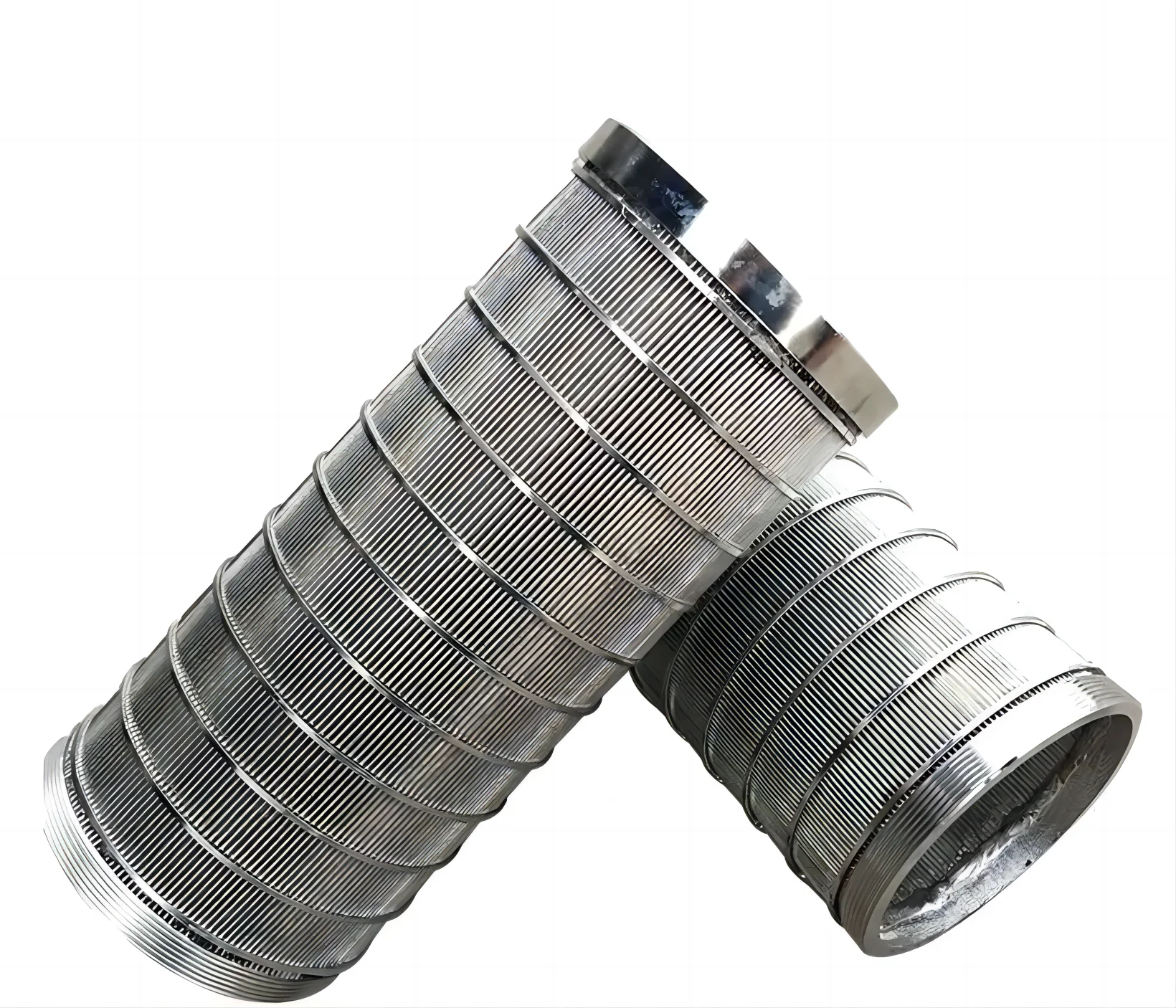

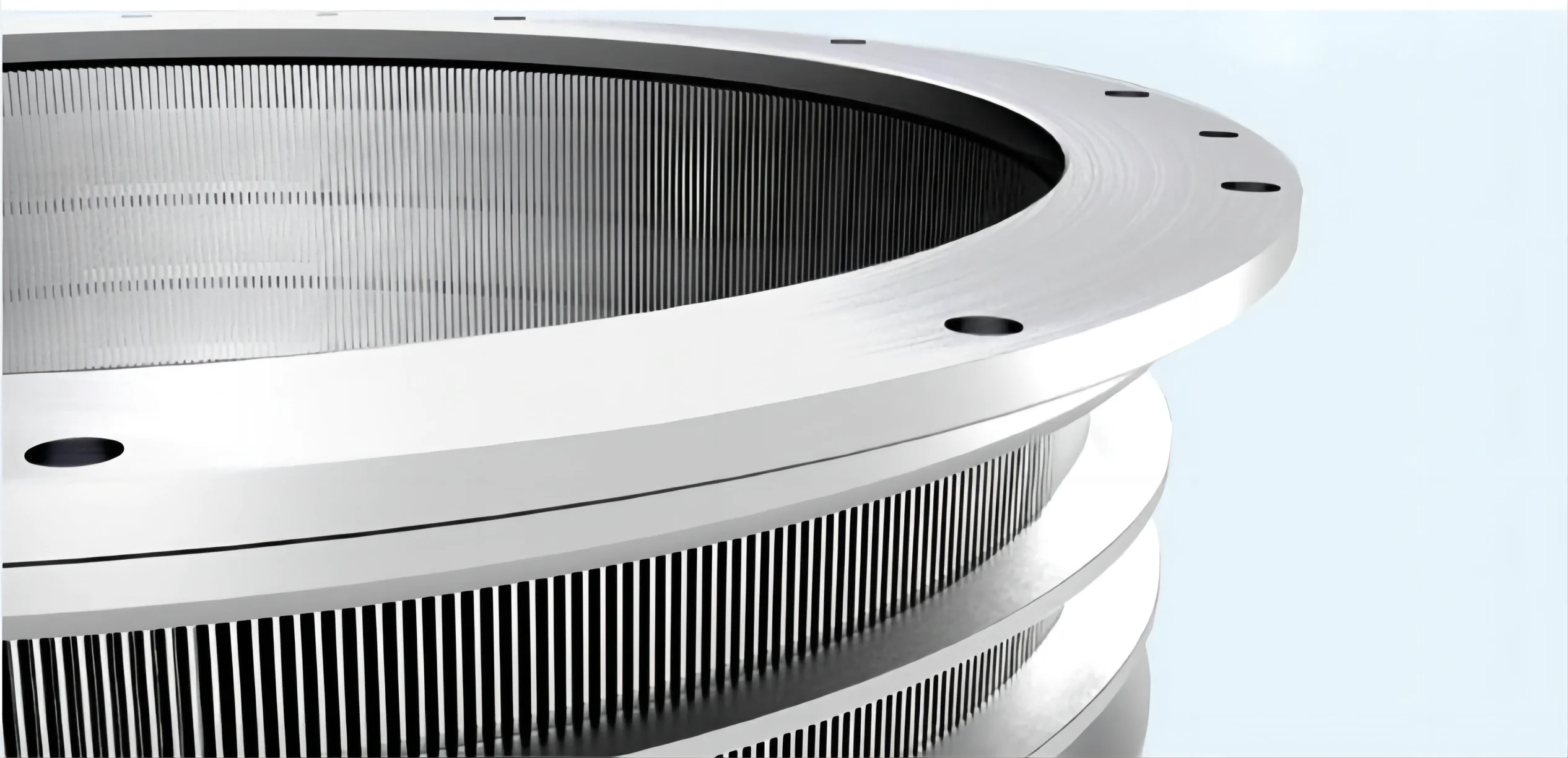

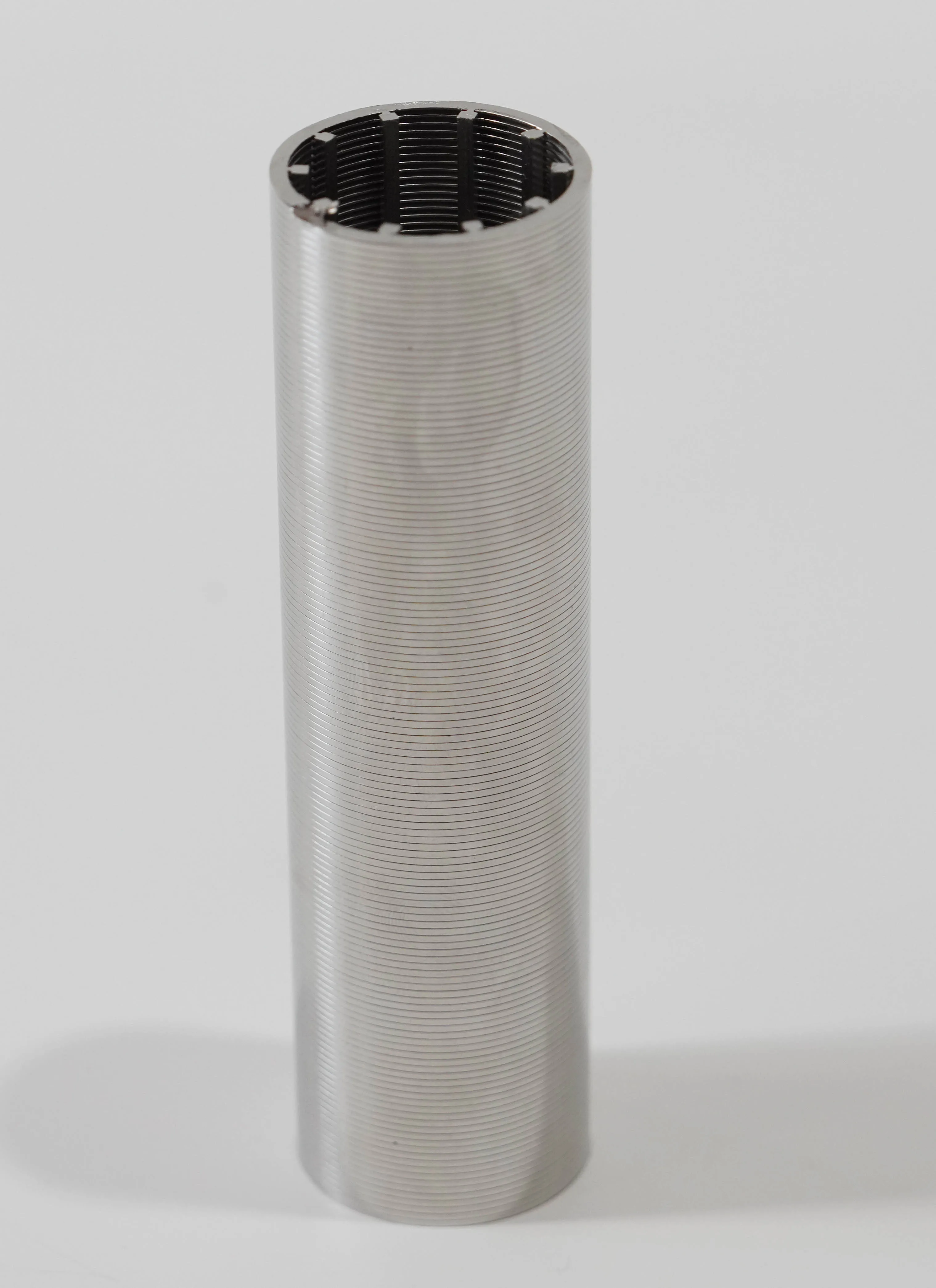

SS 304 316L Wedge Wire Static Drum Screen for Wastewater
SS 304 316L Wedge Wire Static Drum Screen for Wastewater
SS 304 316L Wedge Wire Static Drum Screen for Wastewater
SS 304 316L Wedge Wire Static Drum Screen for Wastewater
SS 304 316L Wedge Wire Static Drum Screen for Wastewater
SS 304 316L Wedge Wire Static Drum Screen for Wastewater
SS 304 316L Wedge Wire Static Drum Screen for Wastewater

SS 304 316L Wedge Wire Static Drum Screen for Wastewater

Share on (1600924064915):


Price:$90.00 - $100.00

Quantity:


Product Overview

Description



Product Description

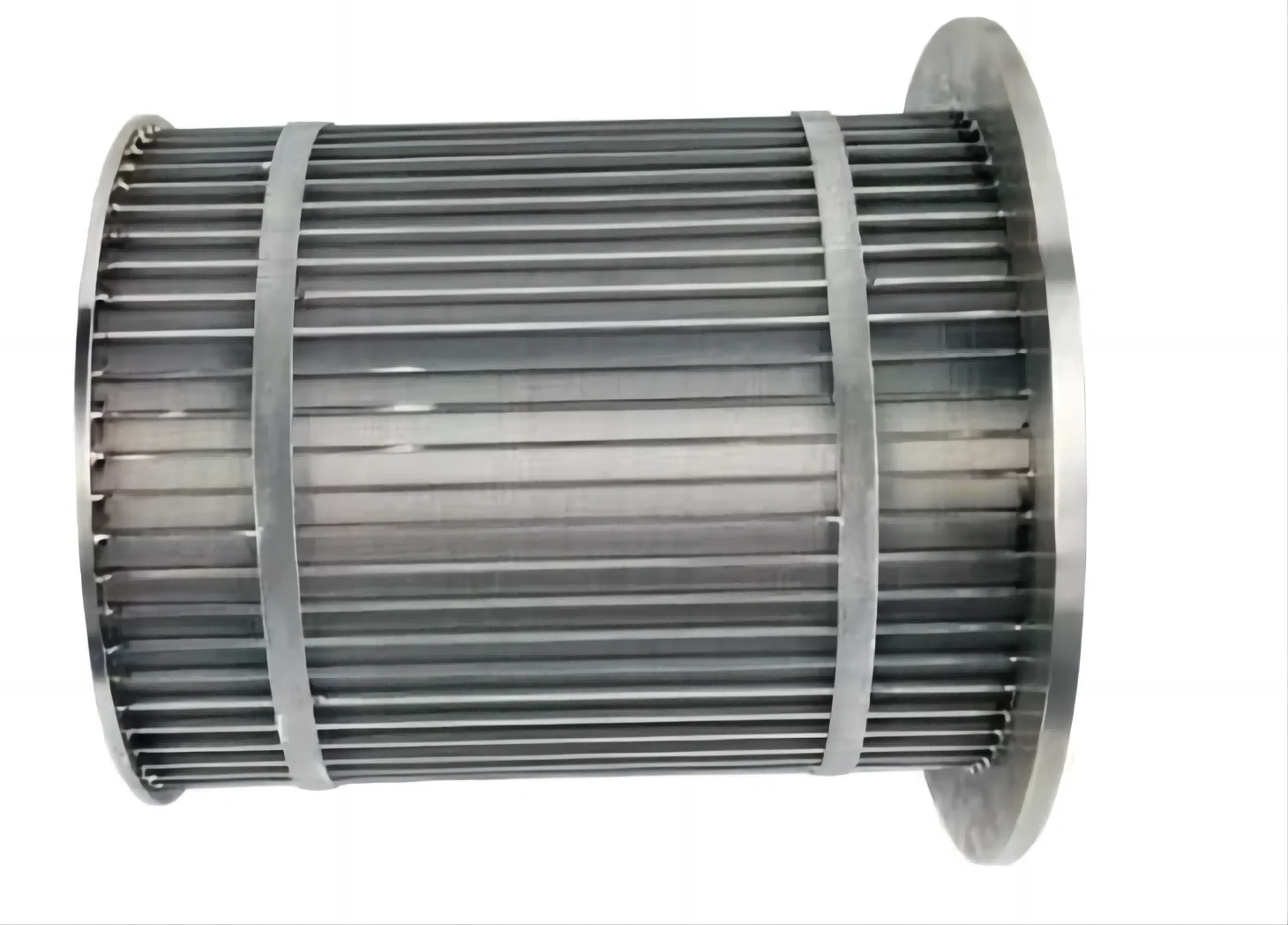

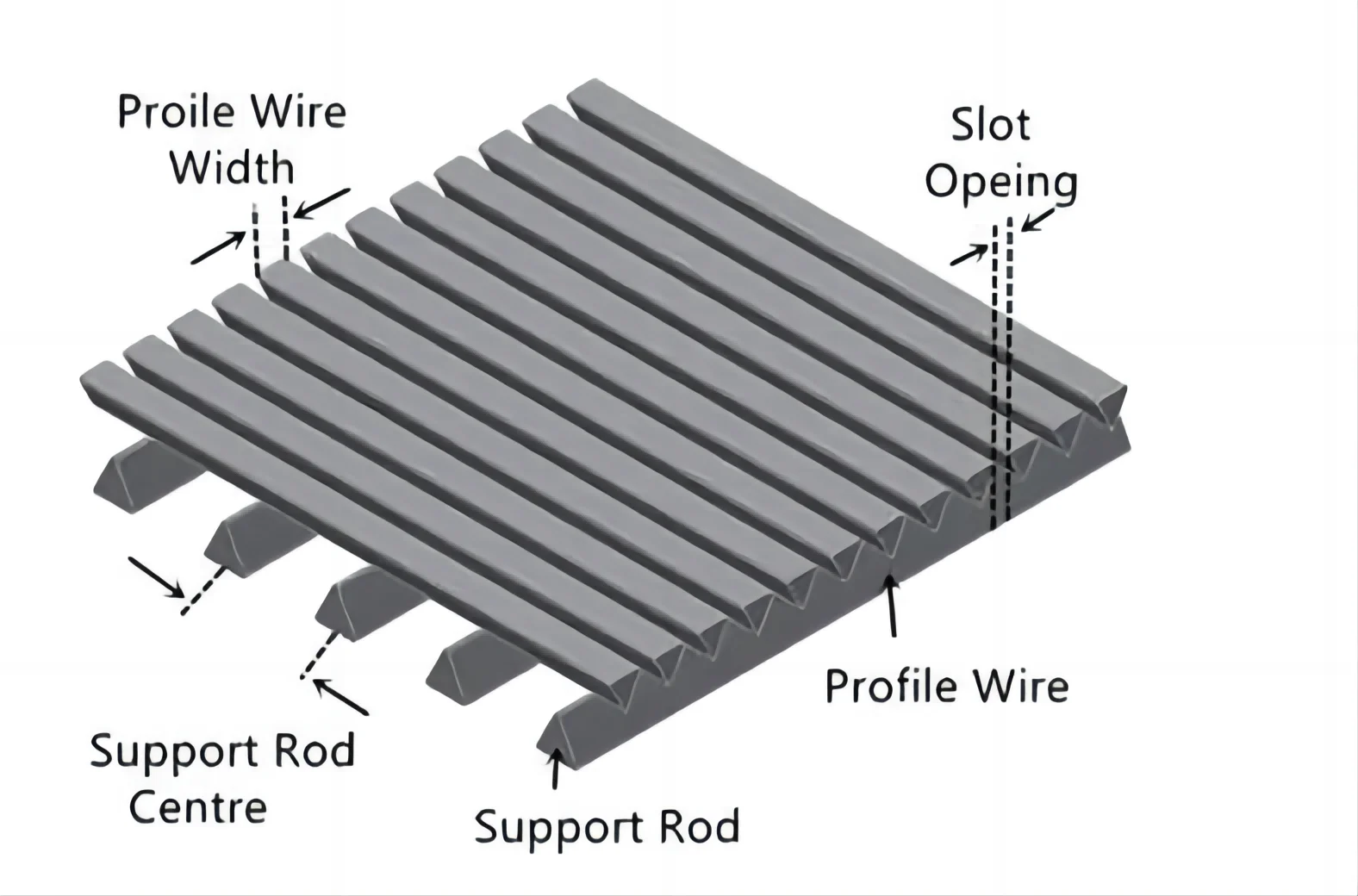

Slotted wedge wire screens are made of longitudinal profile wires and cross bars.

They are supplied ready to be build in
* in wear and corrosion resistant alloyed steel grades
* with or without reinforcement
* in a welded or looped execution

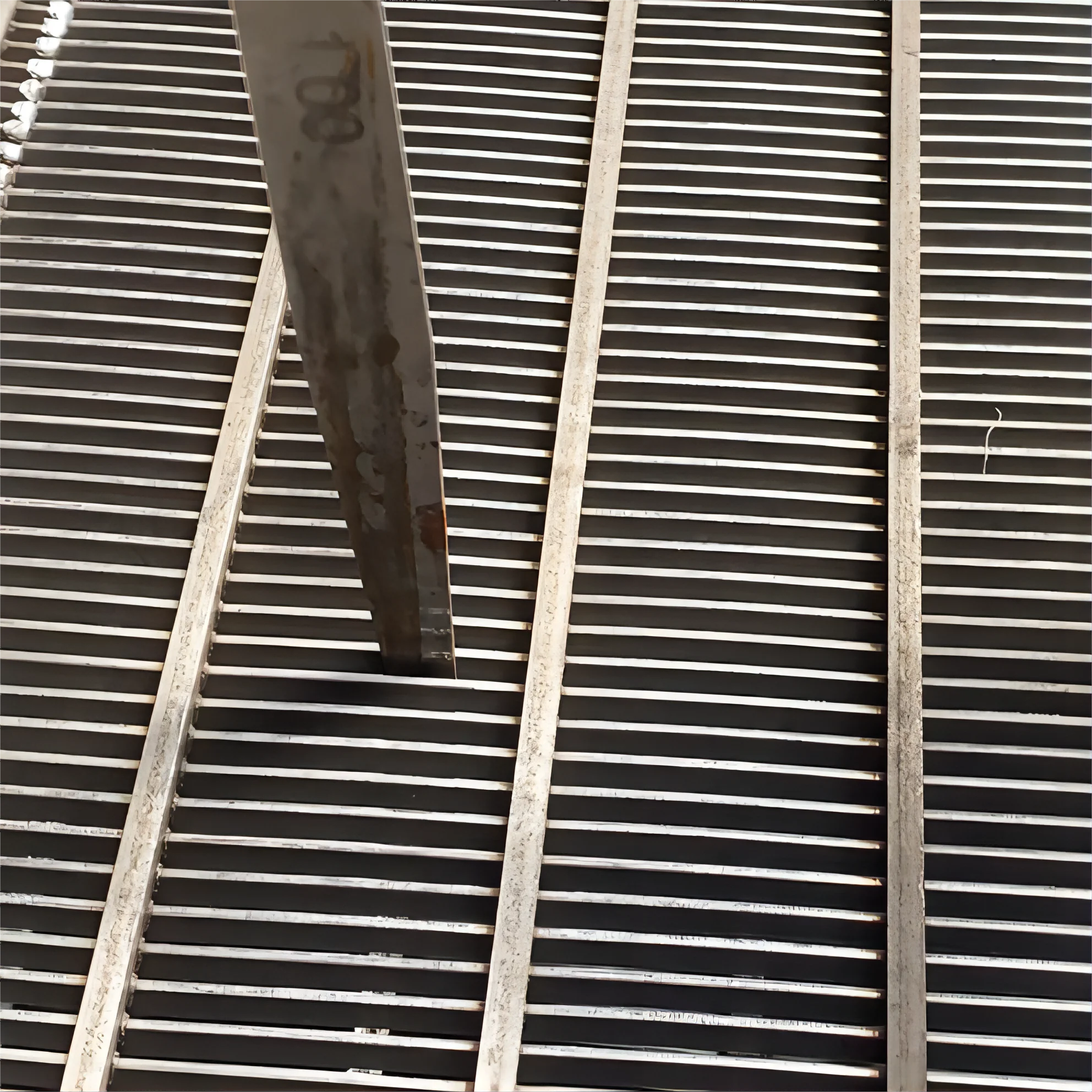

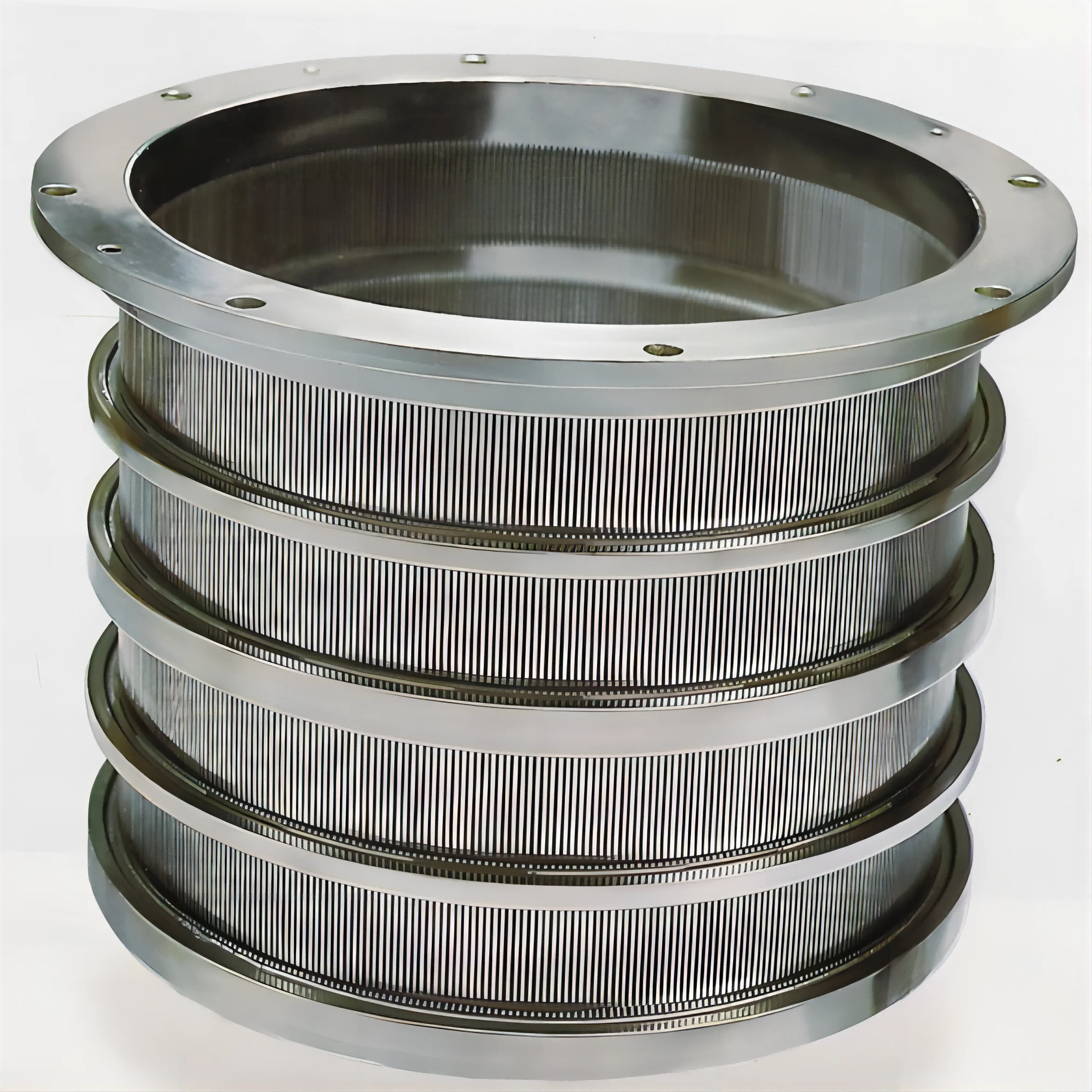

Detail Images






Specification


Name
Breadth
Altitude
α°
Cross-sectional area -Q
Resistance moment -W
Bending moment - |

mm
mm

mm2
mm3
mm4
0.8
0.8(round)
-
-
0.5
0.05
0.02
⊘1
1 (round)
-
-
0.785
0.098
0.049
⊘2
2(round)
-
-
3.14
0.785
0.785
4S
0.45
1.2
6
0.4003
0.0848
0.0442
5S
0.5
1.25
6
0.4760
0.1026
0.0566
6SC
0.6
1.2
13
0.5
0.071
0.051
10S
0.75
1.425
10
0.728
0.13
0.109
11S
0.75
1.8
8
0.912
0.208
0.22
12S
1
2
10
1.32
0.327
0.388
12SL
1
2
-
1.104
0.204
0.204
15S
1.2
2.5
10
1.97
0.605
0.899


Name
Breadth
Altitude
Cross-sectional area -Q
Resistance moment -W
Bending moment - |

mm
mm
mm2
mm3
mm4
Q22
2
2.28
3.273
1.005
0.892
Q25
2
3
4.61
2.019
2.39
Q35
3
5
11.75
8.52
17.032
Q53
5
3
8.084
4.039
3.787
D 45
3.8
5.6
13.803
9.67
22.512
D 56
5
6.5
22.14
17.678
50.031
10x3
3
10
26.125
40.329
177.916
11x5
5
11
42.92
62.96
299.7
12x3
3
12
32.02
48.848
322.14
15x3
3
15
41.13
81.96
664.6
25x3
3
25
71.125
283.52
664.6


Application




Advantage


1. No blocking
V-shaped screen to form a wedge gap to ensure that it is not blocked;

2. Large opening area
Its various specifications of V-shaped wire diameter for choice, high water flow efficiency;

3.Easy to clean
The surface can be used to remove debris by backblowing methods such as scraper or steel brush;

4.Small pressure
loss High mechanical properties, anti-wear;

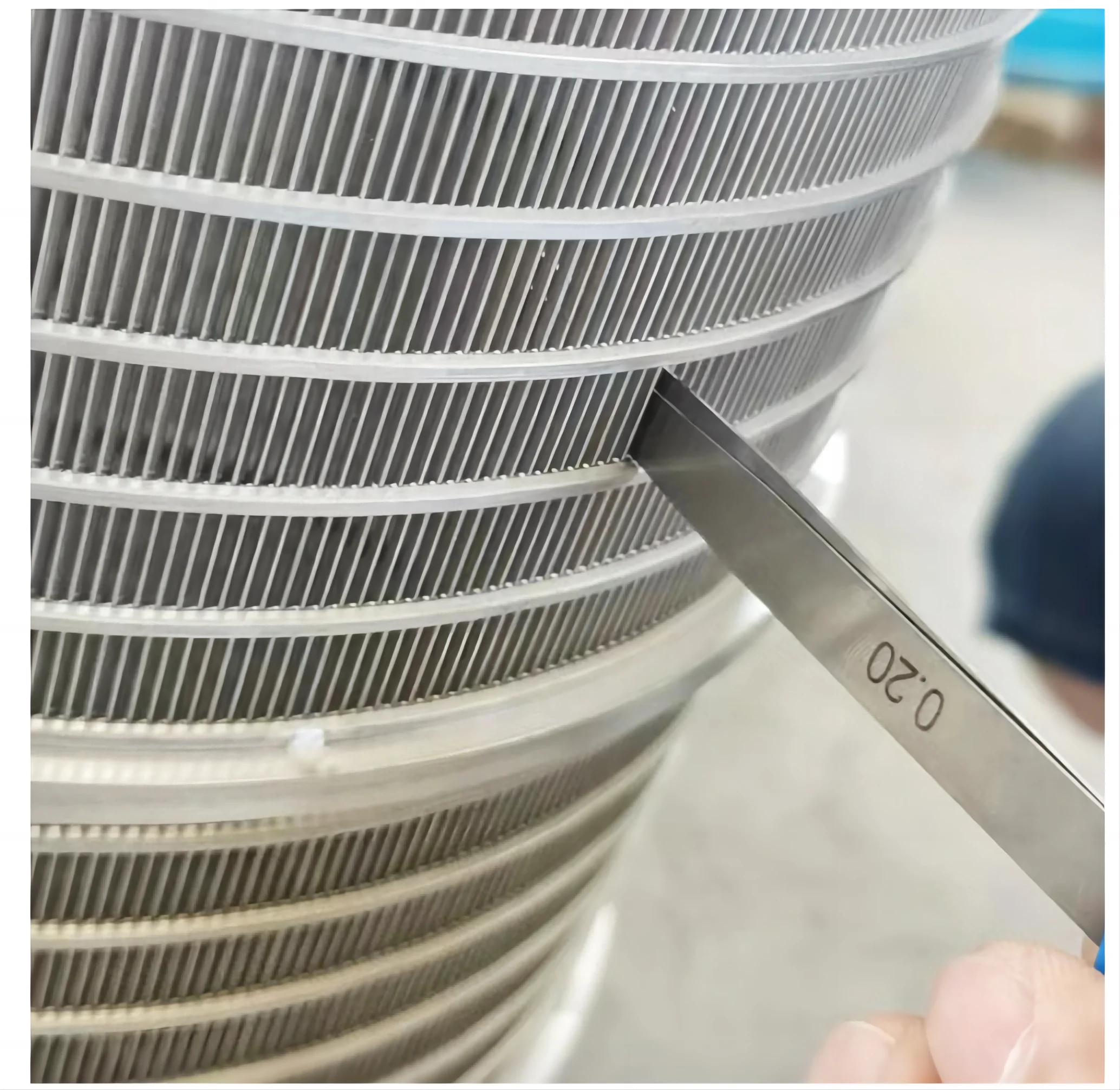

5.High precision screen seam
Automatic welding ensures the uniform precision of the screen joint;




Company Profile




Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.


Certificates

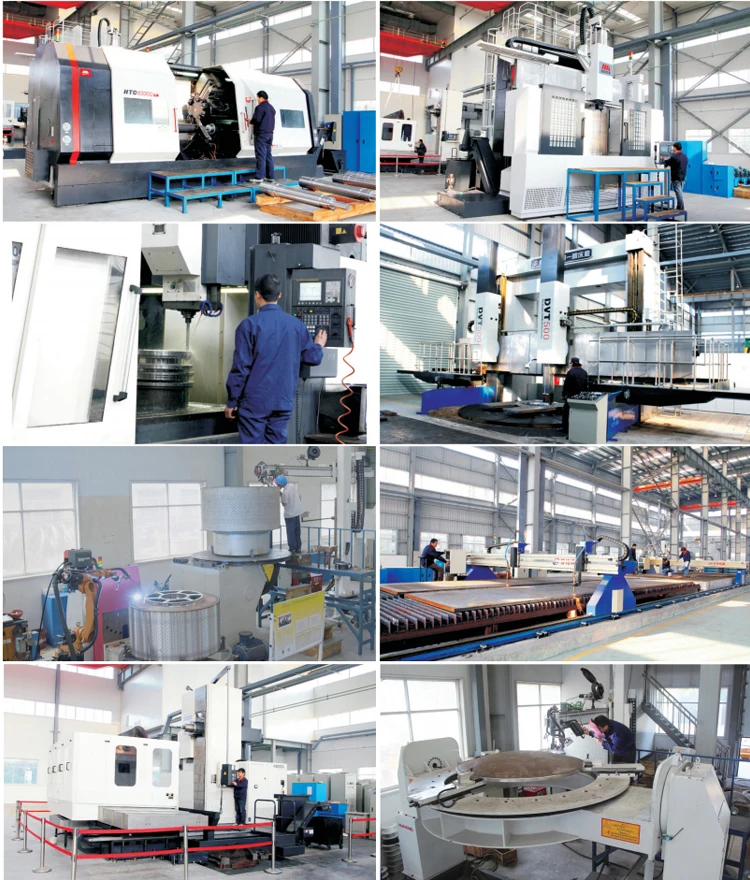

Processing equipment
