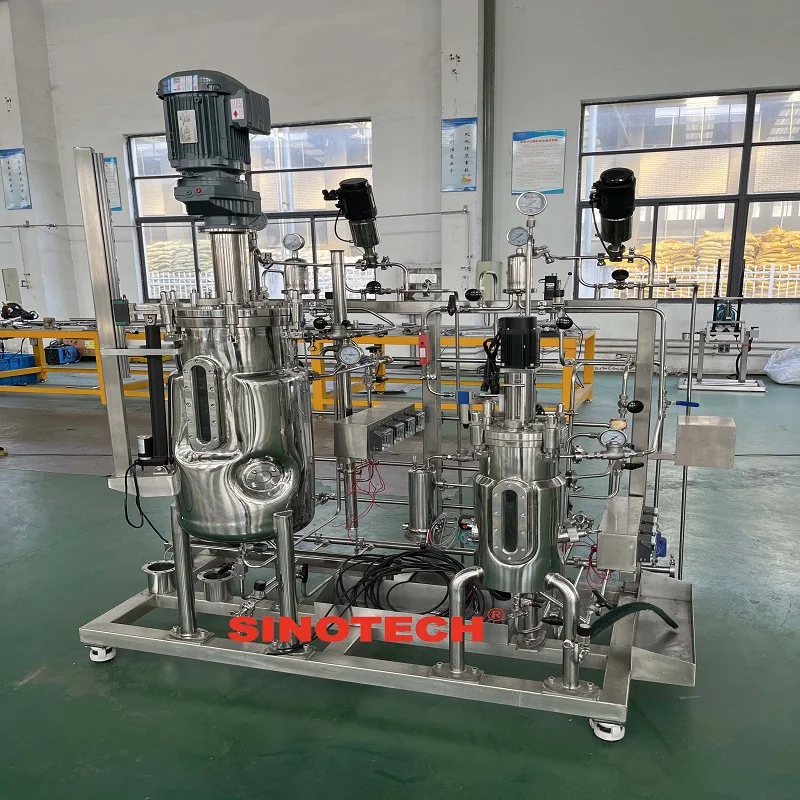

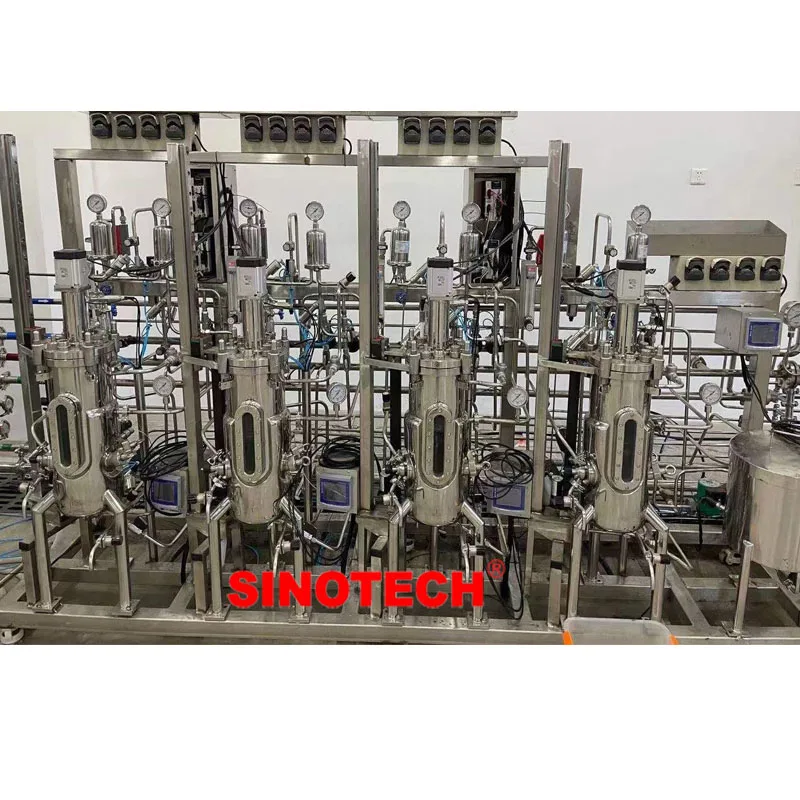

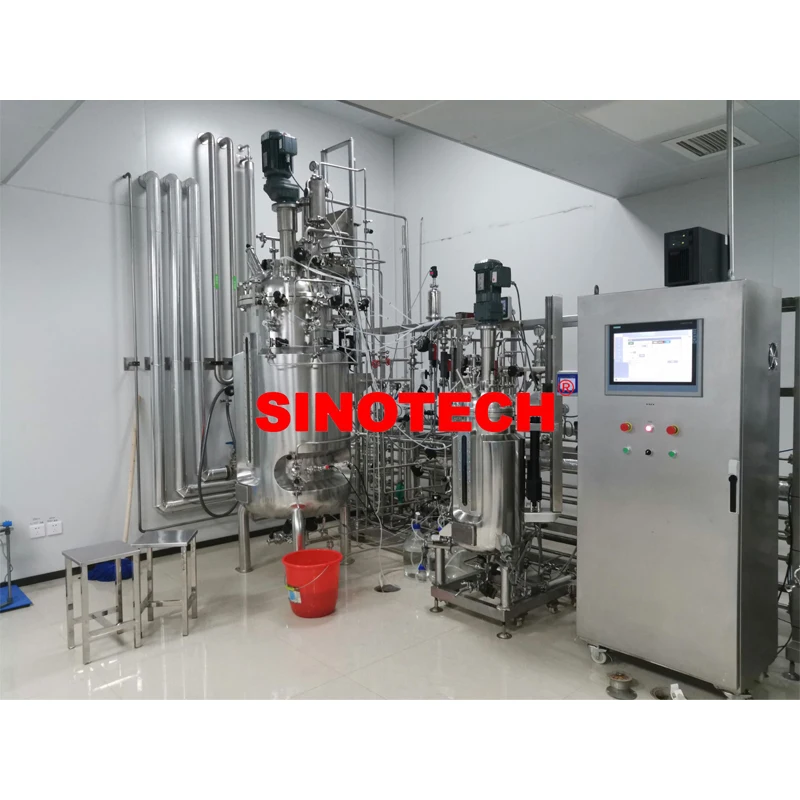

fermenter cost estimation bioreactor used in fermentation yeast algae cultivation bioreactor
- Category: >>>
- Supplier: Liaoyang Sinotech Technology Development Co. Ltd.
Share on (1600924068810):
Product Overview
Description
Phone/Whatsapp/Wechat: +86 15140990256
Product Application
this fermentation tank is ideal system for production of bacteria, yeast, enzyme,and fungi ,etc in aerobic and vaccines cultures.This series of products suits for various kinds of microbiology lab, pilot and industrial scale fermentation. User can choose appreciate model according to Client s detail requirement. We have model from 1L---30000L.
Structure:
This fermentation tank include fermentation tank, mixer, pipes, meters, valves, PH meter, Do meter, anti-foam device, temperature control system, heating system and control system
Principle:
First Sterilization the tank, then fill the culture medium into fermentation tank, adjust the PH and oxygen degree, it should be according to requirement of the bacteria, yeast, enzyme,and fungi. And keep the temperature according to the requirement, and constantly adjust the oxygen degree and PH degree in the tank.For industrial scale fermentation: first you put raw material into the tank with solvent, then heating it to high temperature to kill the bacterial, then cool the high temperature inside of the fermentation tank, and keep the temperature which the yeast living, add the yeast, and constantly adjust the PH and oxygen degree inside of the tank.
First Sterilization the tank, then fill the culture medium into fermentation tank, adjust the PH and oxygen degree, it should be according to requirement of the bacteria, yeast, enzyme,and fungi. And keep the temperature according to the requirement, and constantly adjust the oxygen degree and PH degree in the tank.For industrial scale fermentation: first you put raw material into the tank with solvent, then heating it to high temperature to kill the bacterial, then cool the high temperature inside of the fermentation tank, and keep the temperature which the yeast living, add the yeast, and constantly adjust the PH and oxygen degree inside of the tank.
All the control system:
1Temperature control system:
Electric heat water tank and cooling system which include the hot water pump,it can circulate the hot water,the heating system is good, it has PID control system. The control system can control temperature with four data show, the temperature scope can be 0-150℃ the fermentation temperature can be +5℃-65℃±0.2℃ control accuracy:0.1℃ Control scope: temperature value online detection, PID intelligent control, you can set temperature according to the fermentation process. you can set the 5 paragraph It include PT100 temperature sensor, stainless steel sensor protection,stainless steel heater, stainless steel hot water heating tank, and how water pump.
2 PH control system:
Control way: it is automatic and data setting.
The show scope:2.00~12.00 the show accuracy 0.01PH,the control accuracy:0.02PH
It is PID control system, the control accuracy is high, it is not easy produce fluctuation,the PH meter is METTLER TOLEDO,all the magmatic valve,peristaltic pump are automatic, the PH meter correction by soft wear system automatically.
1 the PH meter can bear high pressure and high temperature, so the PH meter can be sterilized.
2 the show scope:0.00~14.00±0.01 automatic control scope:2.00~12.00±0.02.
3 online testing and checking, automatic alarm, and peristaltic pump so that it can automatically add acid and alkali.
4PID control system: it an be manual control system and automatic control system, it can be time control system under automatic
control system, it can realized PH value curve analysis,add acid,alkali curve analysis, report analysis, all add acid,alkali curve
analysis. Fermentation control system,
5 PH up and down limit protection
3 DO control system :
METTLER TOLEDO DO meter shielding wire detection can select speed, feed and other parameter to control.
Show accuracy:±1%,Distinguish ratio:0.1%
Ways: online checking and control.
Show scope:0-100% or 0-200%
Parameter treatment: DO value curve analysis, report analysis
This DO meter can be bear high temperature sterilization, this DO meter with Double shielded signal transmission wires, it has stainless steel sensor protection and Transmitter
Parameter: DO valve curve analysis, report analysis.
Control ways:DO value abnormal alarm. It can control together with speed and add oxygen inlet. Fermentation process control(it can ferment according to time, it has 5 setting step)
4 anti foam control:
Control way: automatic control system, it can automatically add foam.
Sensitive:100~100000Ω
Include: foam sensor,it can automatically control foam by peristaltic pump.
Control mode: manual or automatic way
5 Feeding system:
Control mode: can be manual or automatic.
It can automatically add acid, alkali or seed , it can be manual control or automatically control.
6 pressure checking system
Control mode: manual control
it can control pressure by pressure meter on pipe, inside tank, jacket, the pressure scope::0-0.6Mpa
the main tank is installed with safety valve, so that it can protect the tank.
7 flow meter control
Control mode:manual control system
Checking scope: 0-100L/min
8 Speed control system
Control mode: automatically control
The motor is alternating current with inverter, it can make sure the motor stable operation, stepless adjustable speed,the speed can be 0-500rpm the accuracy:±5rpm
1Temperature control system:
Electric heat water tank and cooling system which include the hot water pump,it can circulate the hot water,the heating system is good, it has PID control system. The control system can control temperature with four data show, the temperature scope can be 0-150℃ the fermentation temperature can be +5℃-65℃±0.2℃ control accuracy:0.1℃ Control scope: temperature value online detection, PID intelligent control, you can set temperature according to the fermentation process. you can set the 5 paragraph It include PT100 temperature sensor, stainless steel sensor protection,stainless steel heater, stainless steel hot water heating tank, and how water pump.
2 PH control system:
Control way: it is automatic and data setting.
The show scope:2.00~12.00 the show accuracy 0.01PH,the control accuracy:0.02PH
It is PID control system, the control accuracy is high, it is not easy produce fluctuation,the PH meter is METTLER TOLEDO,all the magmatic valve,peristaltic pump are automatic, the PH meter correction by soft wear system automatically.
1 the PH meter can bear high pressure and high temperature, so the PH meter can be sterilized.
2 the show scope:0.00~14.00±0.01 automatic control scope:2.00~12.00±0.02.
3 online testing and checking, automatic alarm, and peristaltic pump so that it can automatically add acid and alkali.
4PID control system: it an be manual control system and automatic control system, it can be time control system under automatic
control system, it can realized PH value curve analysis,add acid,alkali curve analysis, report analysis, all add acid,alkali curve
analysis. Fermentation control system,
5 PH up and down limit protection
3 DO control system :
METTLER TOLEDO DO meter shielding wire detection can select speed, feed and other parameter to control.
Show accuracy:±1%,Distinguish ratio:0.1%
Ways: online checking and control.
Show scope:0-100% or 0-200%
Parameter treatment: DO value curve analysis, report analysis
This DO meter can be bear high temperature sterilization, this DO meter with Double shielded signal transmission wires, it has stainless steel sensor protection and Transmitter
Parameter: DO valve curve analysis, report analysis.
Control ways:DO value abnormal alarm. It can control together with speed and add oxygen inlet. Fermentation process control(it can ferment according to time, it has 5 setting step)
4 anti foam control:
Control way: automatic control system, it can automatically add foam.
Sensitive:100~100000Ω
Include: foam sensor,it can automatically control foam by peristaltic pump.
Control mode: manual or automatic way
5 Feeding system:
Control mode: can be manual or automatic.
It can automatically add acid, alkali or seed , it can be manual control or automatically control.
6 pressure checking system
Control mode: manual control
it can control pressure by pressure meter on pipe, inside tank, jacket, the pressure scope::0-0.6Mpa
the main tank is installed with safety valve, so that it can protect the tank.
7 flow meter control
Control mode:manual control system
Checking scope: 0-100L/min
8 Speed control system
Control mode: automatically control
The motor is alternating current with inverter, it can make sure the motor stable operation, stepless adjustable speed,the speed can be 0-500rpm the accuracy:±5rpm

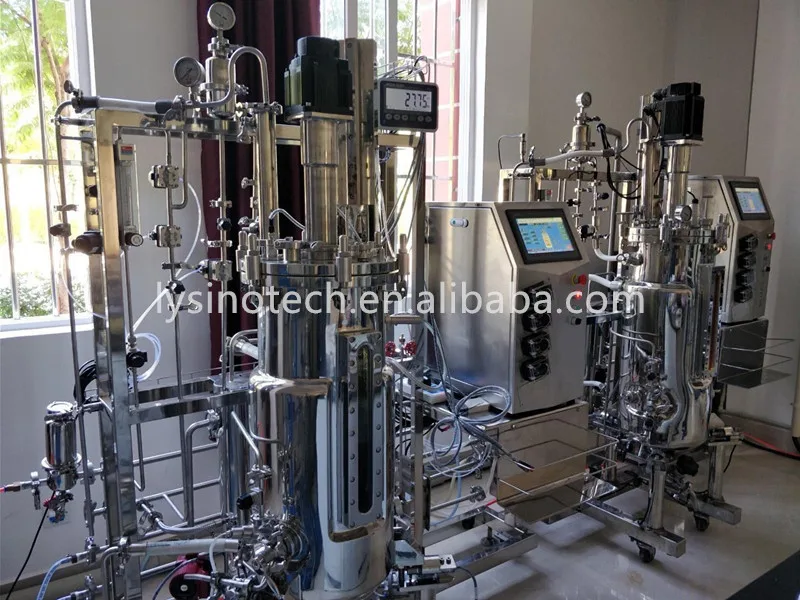

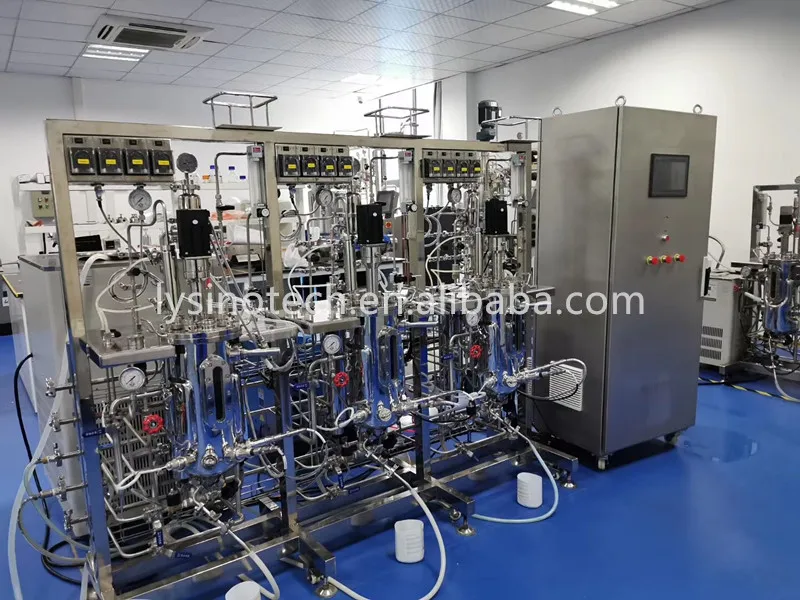

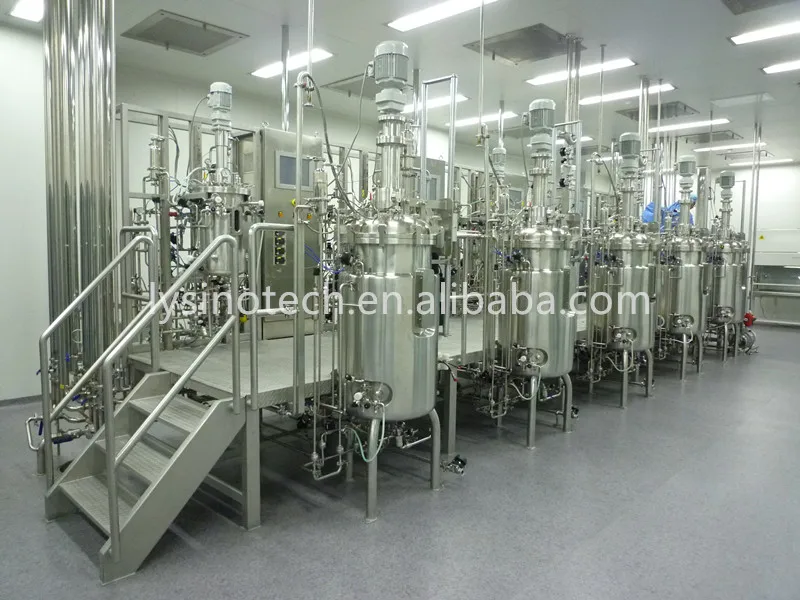

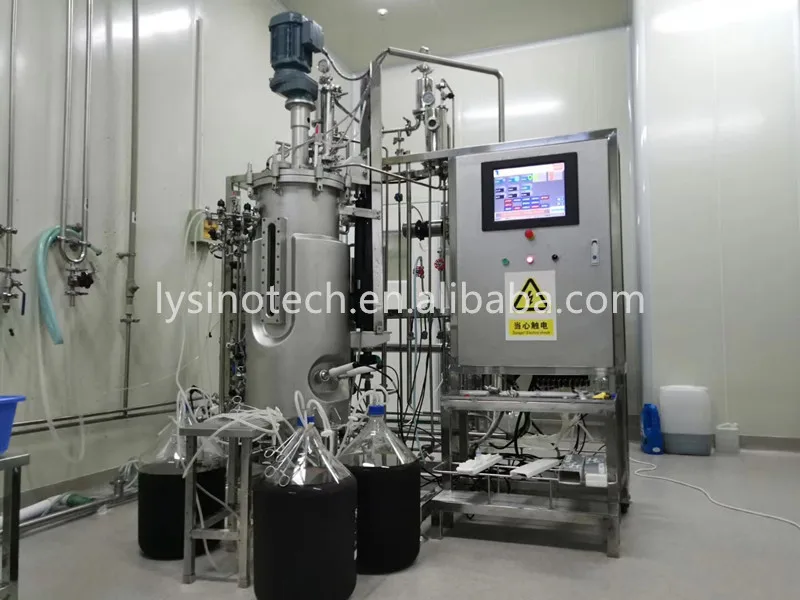

Detail image
