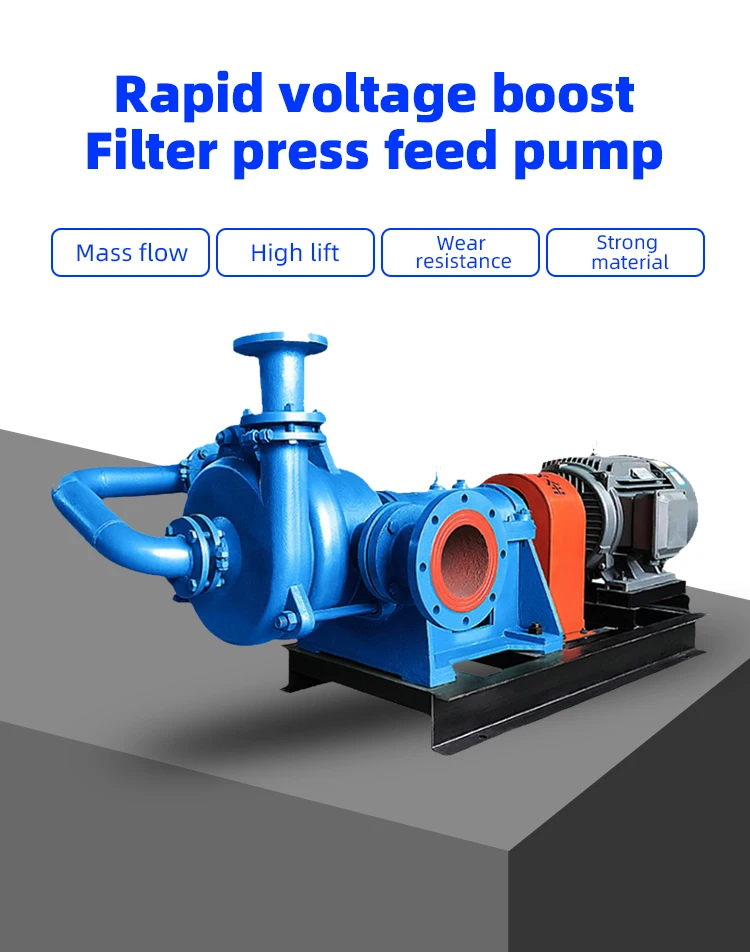

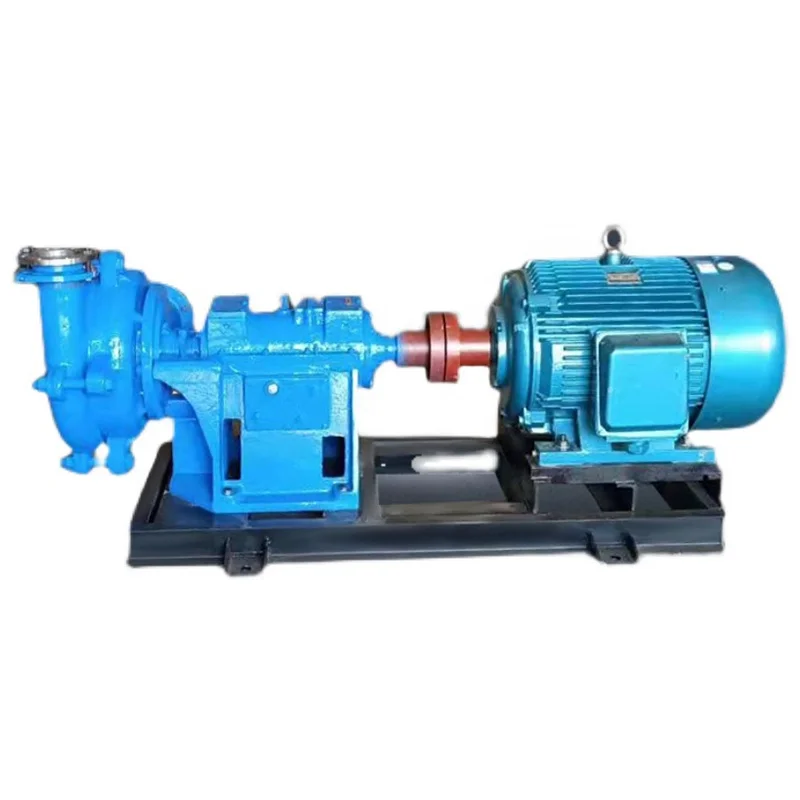

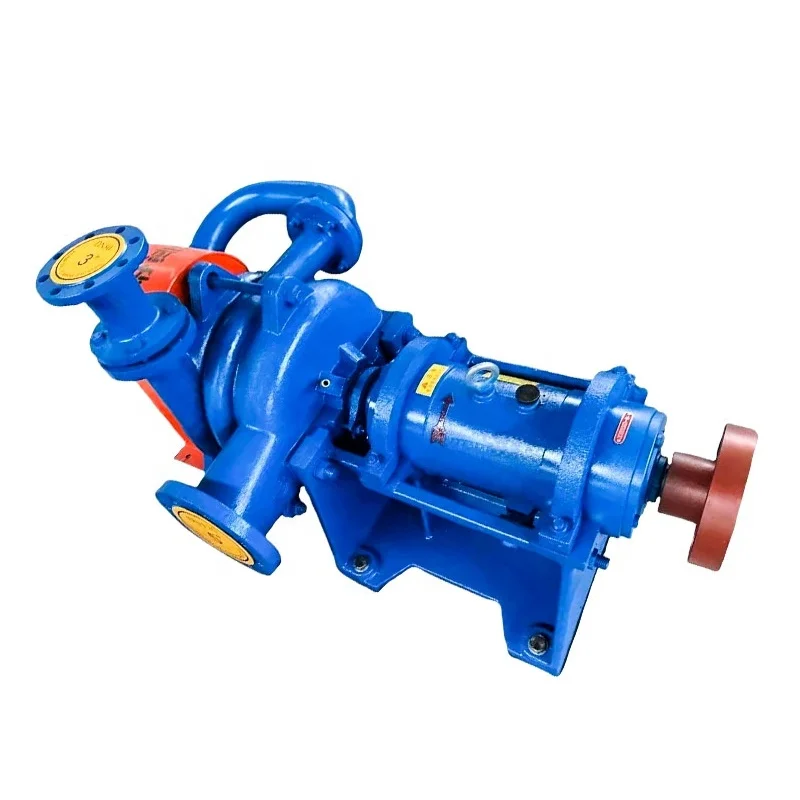

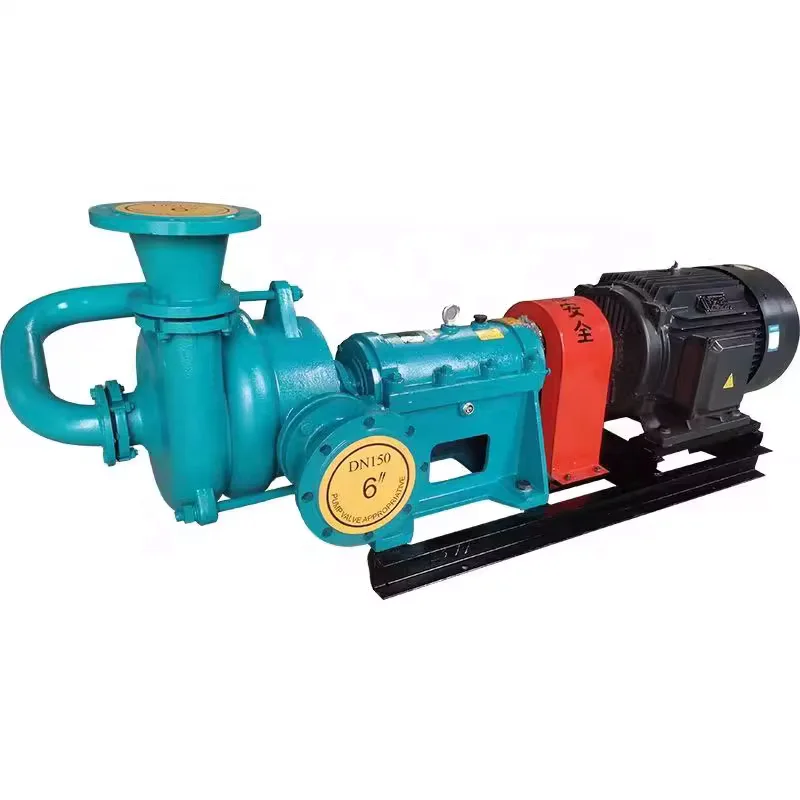

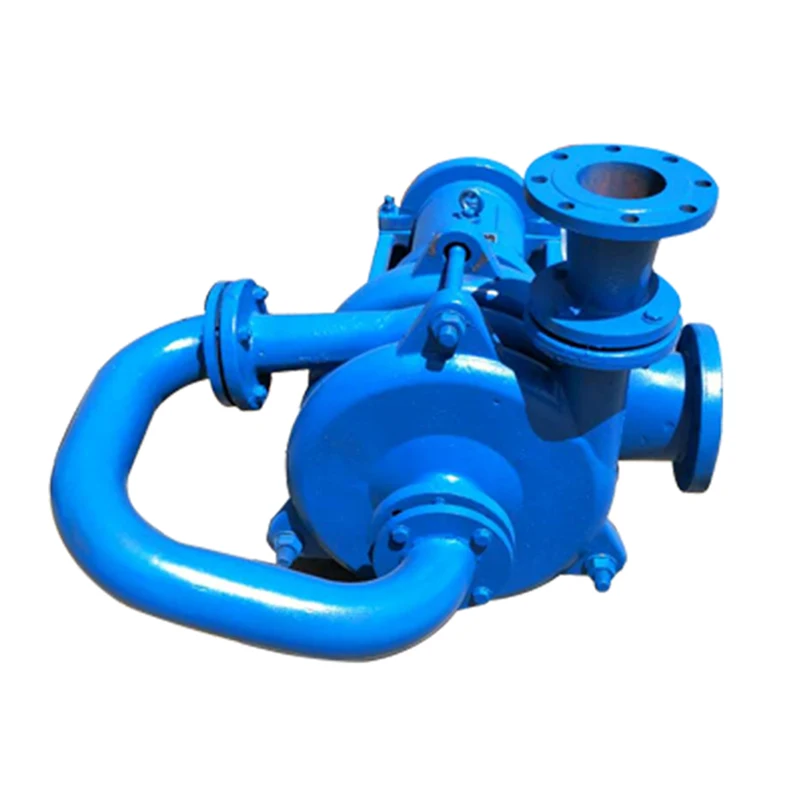

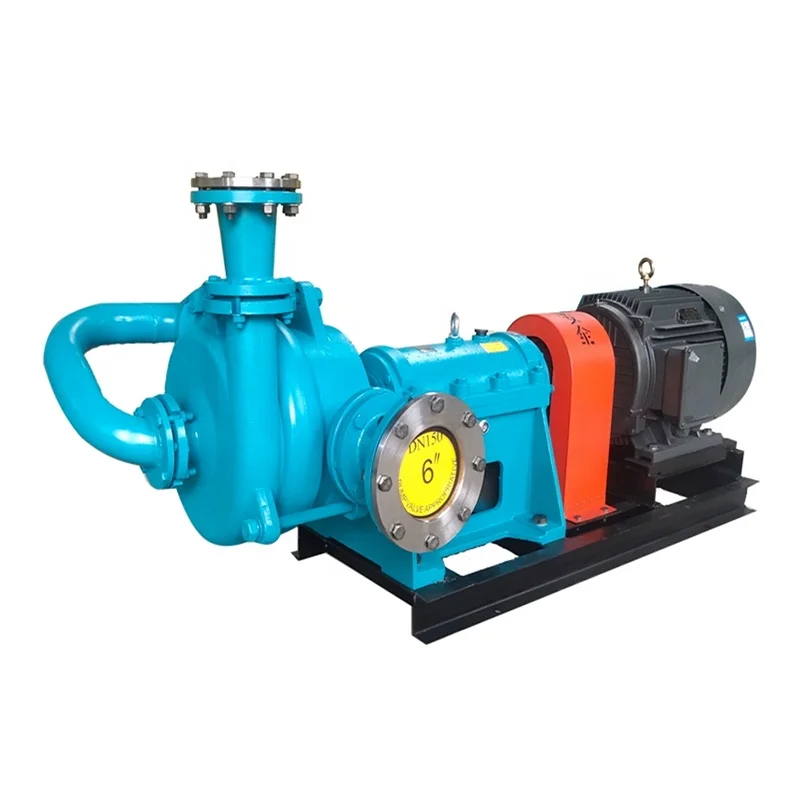

High quality Slurry filling centrifugal pump Filter press feed pump and parts
- Category: >>>
- Supplier: Hebei Antai Water Pump Manufacturing Co. Ltd.
Share on (1600924072877):
Product Overview
Description
Product Description
of filter press pump is a special performance of impurity pump and this filter press pump with unique hydraulic design ensure that its pump performance curve be more steep than normal pumps is more suitable for using in the filter press feed. The pump can meet the two stage feeding: the large capacity ,low pressure feeding and low capacity, high pressure filter.
Feature:
1. Advanced hydraulic design, structure design, high efficiency, abrasion resistance, stable and reliable operation;
2. Large feed flow and low pressure in the early stage;
3. Low flow rate and high pressure in late pressing;
4. The shaft seal is simple and reliable, no water injection, no mechanical seal, no leakage;
5. The pressure filter material does not need frequency conversion speed regulation, conveying high concentration
1. Advanced hydraulic design, structure design, high efficiency, abrasion resistance, stable and reliable operation;
2. Large feed flow and low pressure in the early stage;
3. Low flow rate and high pressure in late pressing;
4. The shaft seal is simple and reliable, no water injection, no mechanical seal, no leakage;
5. The pressure filter material does not need frequency conversion speed regulation, conveying high concentration

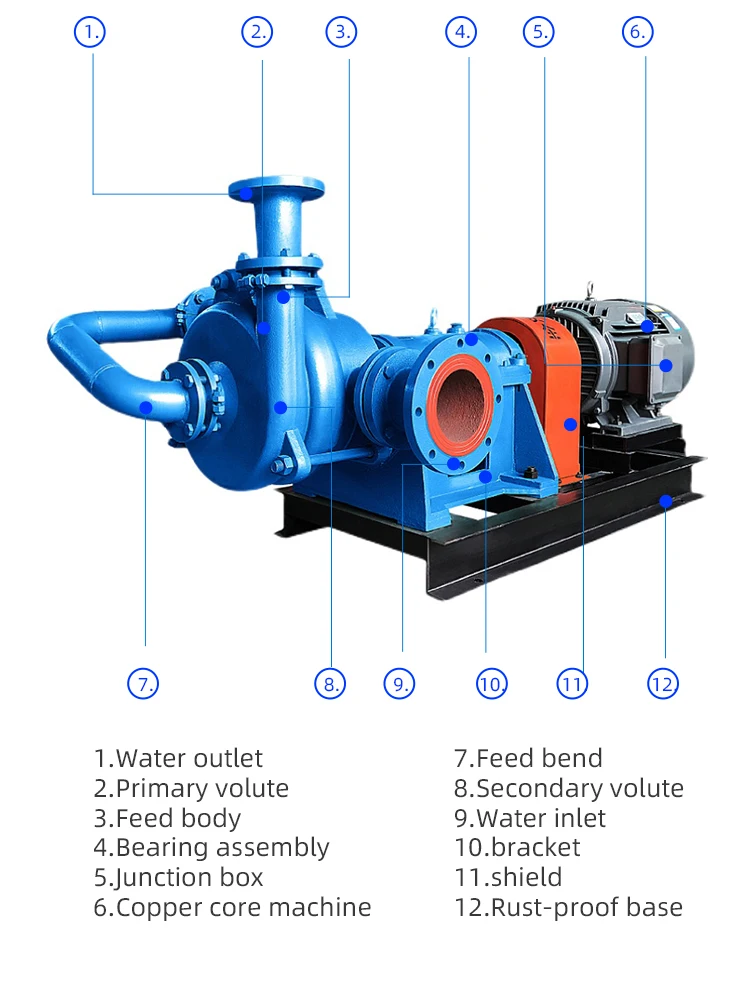

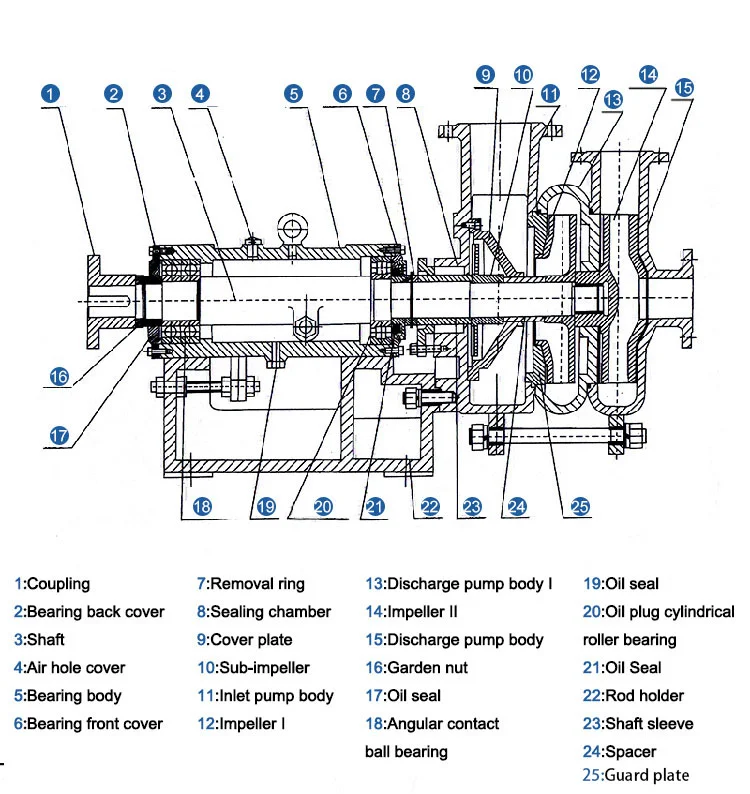

Details Images
Product Paramenters
Model number | Rotational speed (r/min) | Flow rate (m3/h) | Head (m) | Motor power (kw) | Reference motor | ||
Model number | Motor power (kw) | ||||||
65JW-II | 1480 | 41.4 | 76 | 22.3 | Y225S-4 | 30 | |
55.2 | 72.2 | ||||||
69 | 66.1 | 37 | |||||
80 | 56 | ||||||
100 | 43.2 | ||||||
80ZJW-II | 1480 | 60 | 76 | Y225S-4 | 37 | ||
80 | 72.2 | ||||||
100 | 66.1 | ||||||
115 | 56 | ||||||
135 | 43.5 | ||||||
100ZJW-II | 1480 | 85 | 73.3 | Y225M-4 | 45 | ||
113 | 69 | ||||||
150 | 62.5 | ||||||
169 | 51.2 | ||||||
175 | 44 | ||||||
125ZJW-II | 1480 | 105 | 73.5 | Y250M-4 | 55 | ||
140 | 71.6 | ||||||
186 | 68.6 | Y280S-4 | 75 | ||||
245 | 61.9 | ||||||
265 | 48.5 | ||||||
125ZJW-II | 1480 | 119 | 80 | Y280S-4 | 75 | ||
159 | 78 | ||||||
211 | 74.8 | 90 | |||||
279 | 67.5 | ||||||
305 | 52.9 | ||||||
125ZJW-II | 1480 | 87 | 91.8 | Y280S-4 | 75 | ||
116 | 89.1 | ||||||
154 | 85.7 | Y280M-4 | 90 | ||||
203 | 77.3 | ||||||
215 | 60.6 | ||||||
SThe performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.
Company Profile
Hebei Antai Pump Manufacturing Co., Ltd. is based on slurry pump, desulfurization pump, double suction pump, sand and gravel pump as the main products, research and development, design, manufacturing, sales, Service as one of the professional pump manufacturing enterprises, can provide users with modeling design, installation research, renovation, mapping and customization, machine accessories Service. Since its establishment, the company has always pursued the enterprise purpose of survival by quality and development by reputation, strengthened enterprise management, and highlighted the service level. The products are exported to Australia, East West Asia, Russia, Ukraine, Brazil, India, the United States, Canada, and other countries.
The European Union, etc. The registered capital of the company is 12 million yuan, with high-end professional equipment such as casting, processing, assembly, testing and inspection. The main product series are:
ATZJ, ATZJL, ATZXW, ATAH(R), ATM (R), ATHH, ATH, ATL (R), ATSP(R), ATG, ATZGB and other slurry pumps
ATDT, ATDTL, ATTL (R) and other desulfurization pumps, ATS, ATSH and other double suction pumps, ATSQ, ATSG, ATSW and other series of sewage pumps, caliber fan
Circumference 25-1000mm, flow 5-15000³/h, head 5-145m, widely used in waste incineration slag treatment industry, mining, power, coal,
Metallurgy, chemical industry, building materials, water conservancy and other industries. The company has a high level of domestic pump performance test center, with a perfect quality management system, Strictly implement total quality management, has passed the $1 O9001 quality system certification. The company's manufacturing, sales and service procedures are complete, and products are reliable Quality, superior performance obtained a number of professional certifications, and has import and export qualifications. Welcome new and old customers at home and abroad to visit our company to discuss cooperation! We will provide customers with perfect and thoughtful professional services with high quality products. A hold of the hand, forever friends.
ATZJ, ATZJL, ATZXW, ATAH(R), ATM (R), ATHH, ATH, ATL (R), ATSP(R), ATG, ATZGB and other slurry pumps
ATDT, ATDTL, ATTL (R) and other desulfurization pumps, ATS, ATSH and other double suction pumps, ATSQ, ATSG, ATSW and other series of sewage pumps, caliber fan
Circumference 25-1000mm, flow 5-15000³/h, head 5-145m, widely used in waste incineration slag treatment industry, mining, power, coal,
Metallurgy, chemical industry, building materials, water conservancy and other industries. The company has a high level of domestic pump performance test center, with a perfect quality management system, Strictly implement total quality management, has passed the $1 O9001 quality system certification. The company's manufacturing, sales and service procedures are complete, and products are reliable Quality, superior performance obtained a number of professional certifications, and has import and export qualifications. Welcome new and old customers at home and abroad to visit our company to discuss cooperation! We will provide customers with perfect and thoughtful professional services with high quality products. A hold of the hand, forever friends.
Usage scenario
Filter press feed pump is a kind of energy-saving, special structure of the type of equipment, mainly used for all kinds of slurry and concentrated slurry filtration screening, is also widely used in mining, Marine, electric motors,chemical, environmental protection and other industries.
Exhibition

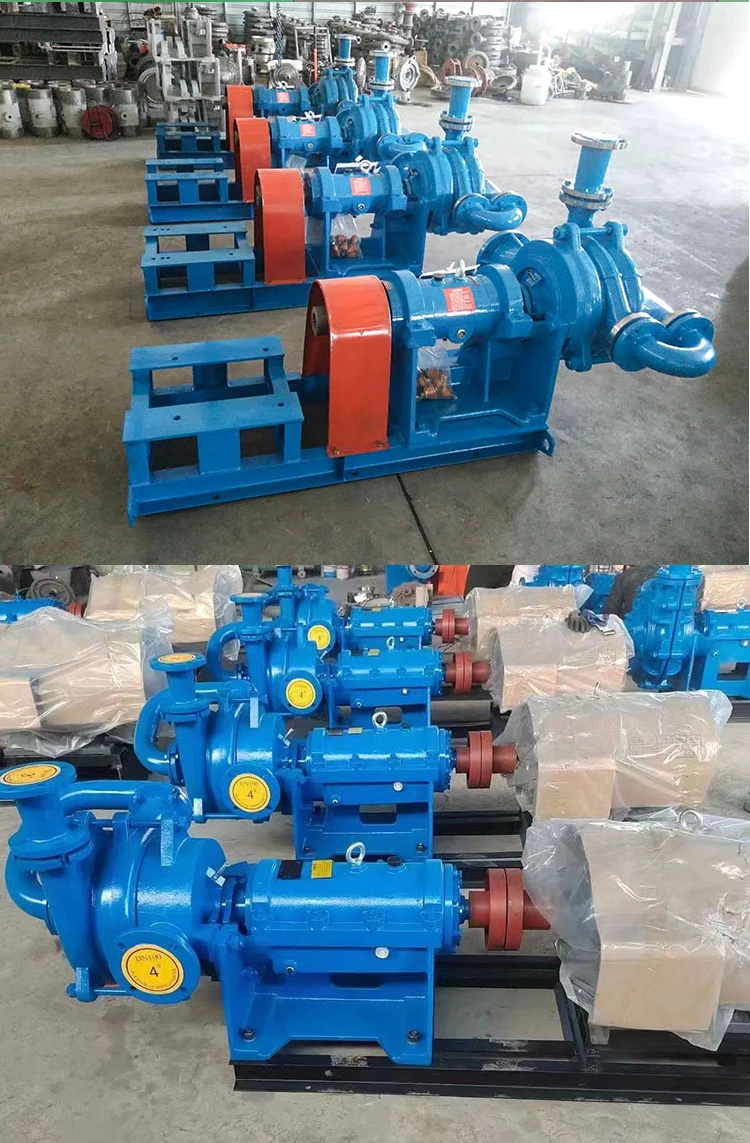

Packing & Delivery
Wooden case, iron frame, container, or Customized
FAQ
Q:Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable. The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable. The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
