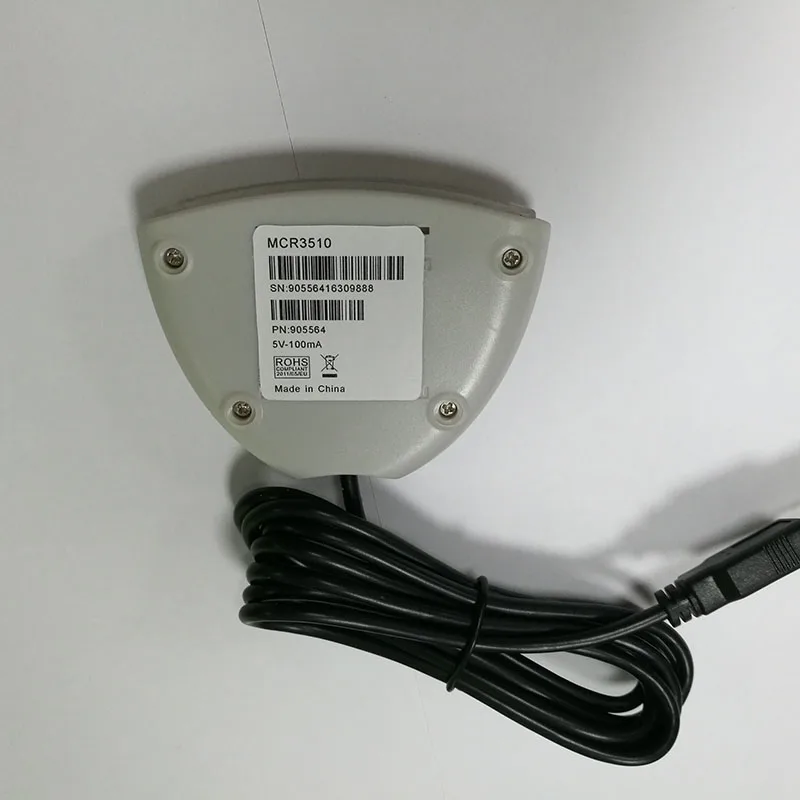

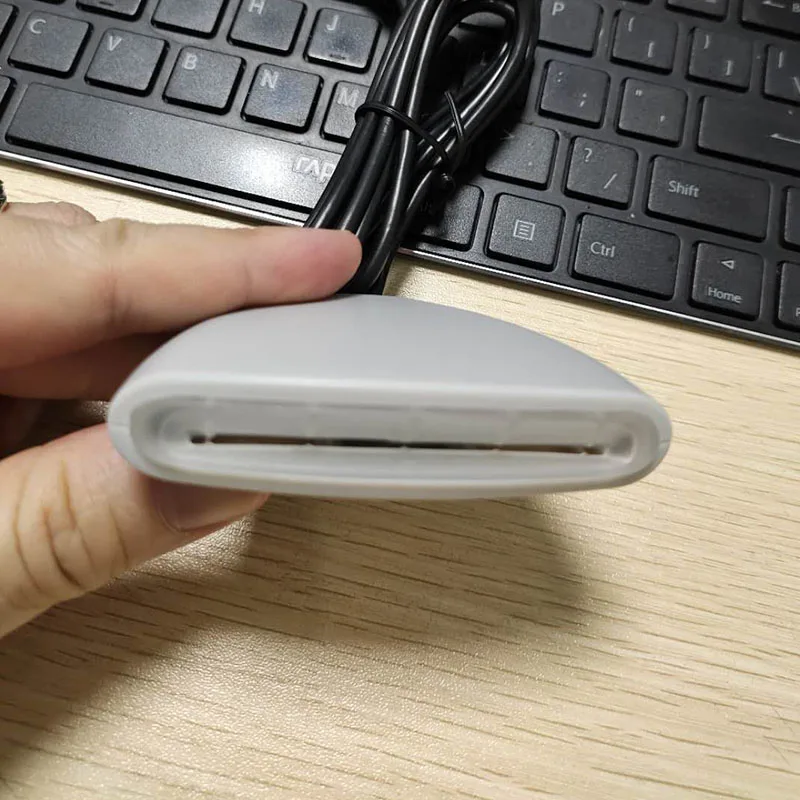

Bank Card IC/ID card emv 7816 fast ID card reader MCR3510 USB Type a Smart Card Reader
- Category: >>>
- Supplier: Chongqing Huakong Technology Co. Ltd.
Share on (1600924076984):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | kotech |
ITEM NAME | SMART CARD READER |
Ready to use
Driver support for all major PC operating systems
* All application ready
Supports all major smart card ICs and technologies in just one device
* Fast
Transaction time optimized for maximum end user acceptance
* User Convenience
Modern design optimized for easy and ergonomic operation
* SmartOS™ powered
Driver support for all major PC operating systems
* All application ready
Supports all major smart card ICs and technologies in just one device
* Fast
Transaction time optimized for maximum end user acceptance
* User Convenience
Modern design optimized for easy and ergonomic operation
* SmartOS™ powered
Typical Applications
The MCR3510 is the ideal PC-Linked USB contact smart card reader for a huge variety of applications. Providing full compliance
with all major industry standards such as ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL the MCR3510 seamlessly works with
virtually all contact smart cards and PC operating systems.
The full support and compliance to EMV 2008 and GSA FIPS 201 expand the use to very specific use applications requiring additional
security and data protection.
It represents the perfect mix between modern stylish design, ergonomic handling and a compact foot print.
The extended card data transmission rate of up to 600kBit/s with the support of
TA1=97 enables shortest possible transaction times for maximum end user convenience.
The end user experiences convenience, transaction time efficiency, security and reliability for use applications like network
log-in, Windows authentication & Single Sign-On (SSO), banking and cashless payment applications as well as high security use
cases for federal governments.
The MCR3510 is the ideal PC-Linked USB contact smart card reader for a huge variety of applications. Providing full compliance
with all major industry standards such as ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL the MCR3510 seamlessly works with
virtually all contact smart cards and PC operating systems.
The full support and compliance to EMV 2008 and GSA FIPS 201 expand the use to very specific use applications requiring additional
security and data protection.
It represents the perfect mix between modern stylish design, ergonomic handling and a compact foot print.
The extended card data transmission rate of up to 600kBit/s with the support of
TA1=97 enables shortest possible transaction times for maximum end user convenience.
The end user experiences convenience, transaction time efficiency, security and reliability for use applications like network
log-in, Windows authentication & Single Sign-On (SSO), banking and cashless payment applications as well as high security use
cases for federal governments.
Optional Accessory:
MCR3510 with pre-assembled optional Standing Base Kit
Easy conversion into a vertical insertion card reader for enhanced, ergonomic user experience
Flexible and fast adoption to application specific use case Reader can be ordered with pre-assembled standing base kit
MCR3510 with pre-assembled optional Standing Base Kit
Easy conversion into a vertical insertion card reader for enhanced, ergonomic user experience
Flexible and fast adoption to application specific use case Reader can be ordered with pre-assembled standing base kit
Parameter | MCR3510 | |
Host Interface | ||
Host Interface | USB 2.0 CCID (USB 1.1 / 3.0 compliant) | |
Communication Speed | 12 Mbps (USB2.0 full speed) | |
Smart Card Interface | ||
Supported standards | ISO/IEC 7816 Part 1 to 4 | |
Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC support | |
Protocols | T=0, T=1 | |
Interface speed | • up to 600 kBit/s (depending on card) • TA1=97 | |
Clock frequency | ISO/IEC 7816 compliant up to 5 MHz, Operates up to 12 MHz | |
Supported smart card types | 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C | |
Power to smart card | 60mA in Class A; 55mA in Class B; 35mA in Class C | |
Smart card detection | • Card present switch • Automatic power on/off • Short Circuit protection | |
Card size | ID-1 | |
Contact type | Landing Contact Socket (8 pin) | |
Driver& Software | ||
PC/SC driver | PC/SC Specification Ver. 2.01.09 for • Windows® XP/Vista/7/8 (32&64Bit) / Windows® Server 2003/2008/2012 / Windows® CE 6.0, 7.0 • MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x • Linux 2.4.x, 2.6.x (32&64Bit) | |
Software | • PC/SC API • CT-API (through wrapper on top of PC/SC) • Synchronous-API (through wrapper on top of PC/SC) • M-Card API (through wrapper on top of PC/SC) | |
Operating Conditions | ||
Power supply | USB Bus powered | |
Power consumption | < 25mA, excluding smart card; <500μA in Standby Mode | |
Dimension | • 73x58x17mm | |
Weight | • 52g ± 5% / 0.15 lb ± 5% | |
Operating temperature range | 0° to +50°C / +32 to +122 F | |
Storage temperature range | -20 to +60°C / -4 to +140 F | |
Operating humidity range | Up to 95% RH non condensing | |
Durability | Sliding Contacts 100.000 Card Insertions | |
MTBF | 100.000 hours | |
Connector | 1.5m USB Cable with USB Type A Connector | |
Status indicator | LED | |
Firmware | SmartOS™ | |
Firmware in-field upgradeable | No | |
