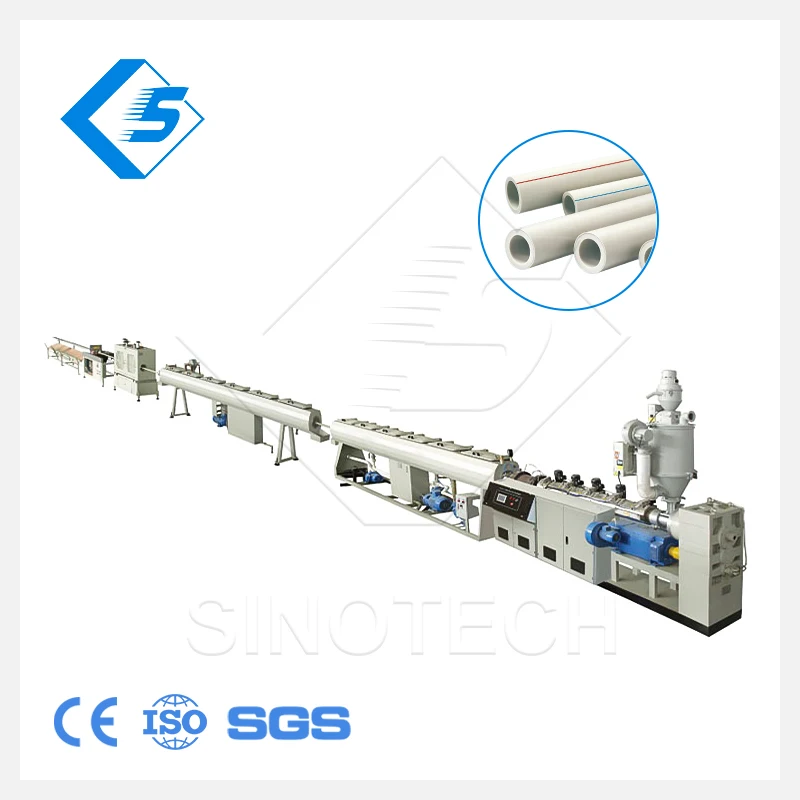

SINOTECH 2023 PPR PRET plastic pipes extrusion machine line suppliers up to 6 inch ppr for making water pipes
- Category: >>>
- Supplier: Zhangjiagang Sino-Tech Machinery Co. Ltd.
Share on (1600924085340):
Product Overview
Description
Main Features
PPR PERT Pipe Application:

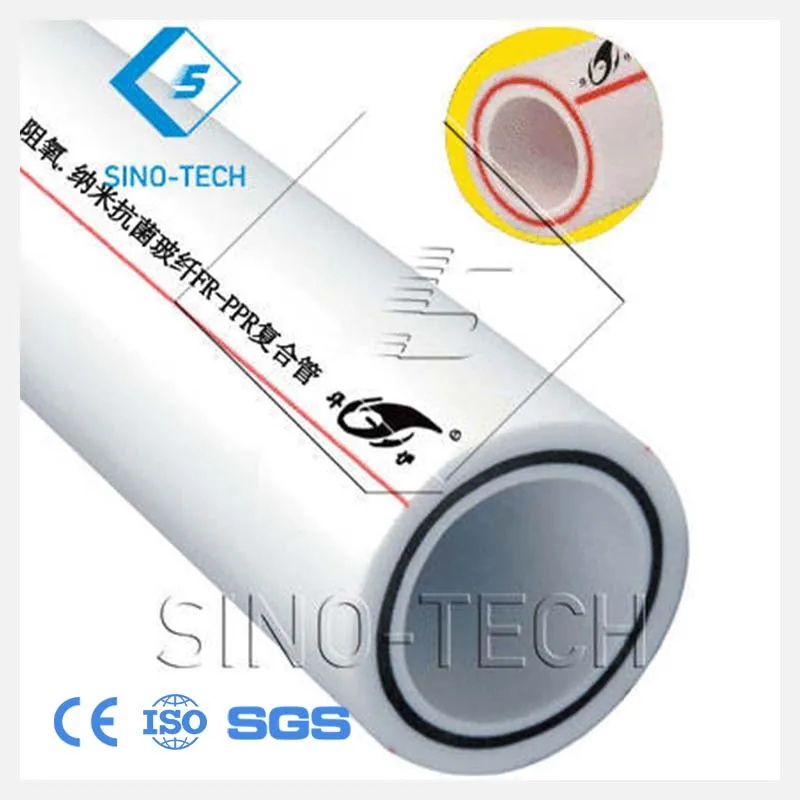

PPR PERT pipe hot water supply or cold drinking water supply with characteristic non toxic,rustless,non-filthily,heater preservation
Production Flow:

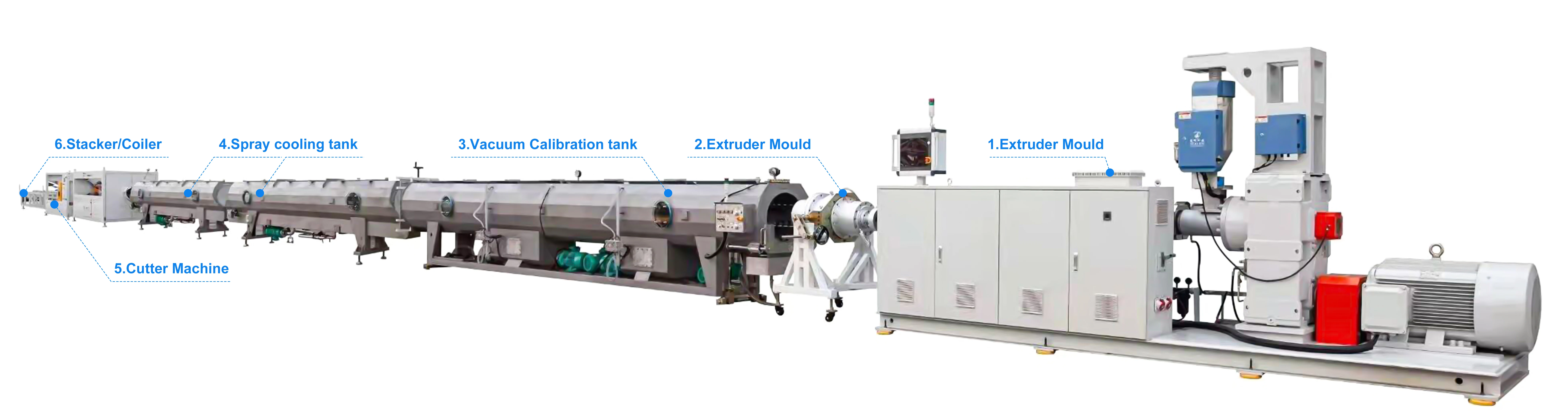

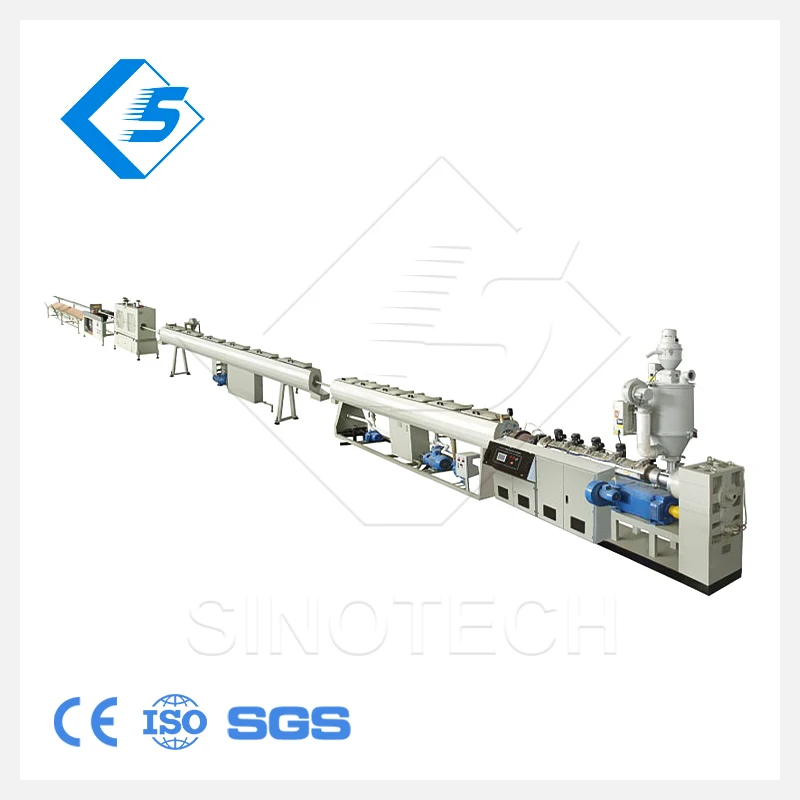

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →no dust cutter →stacker
Equipment Features:
PPR Pipe Diameter Range:φ16mm-φ160mm
The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Caterpillar Haul-off unit with two caterpillar, three caterpillar, four caterpillar,six caterpillar,eight caterpillar Twelve Caterpillar design for different range of pipe diameter haul-off

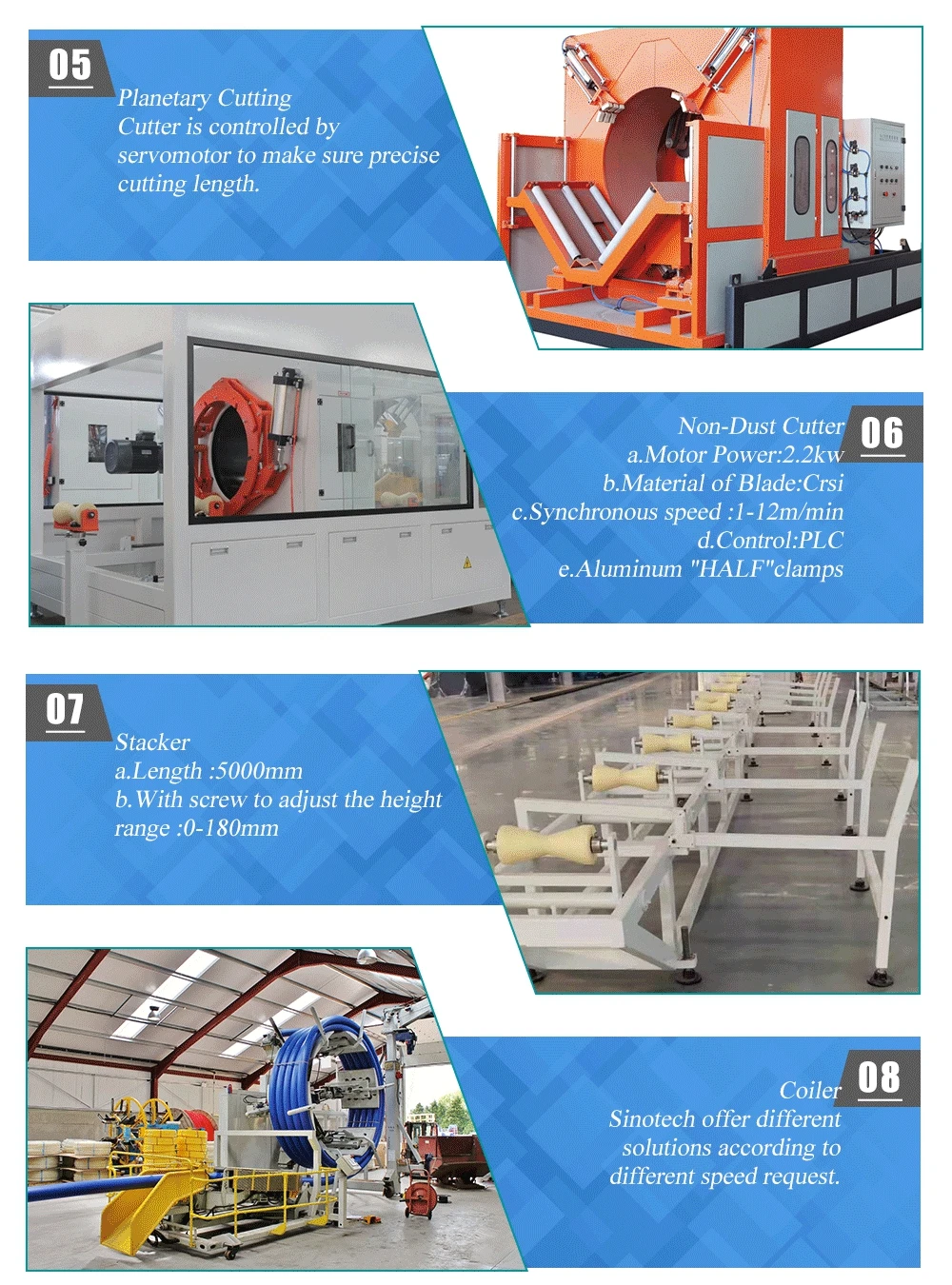

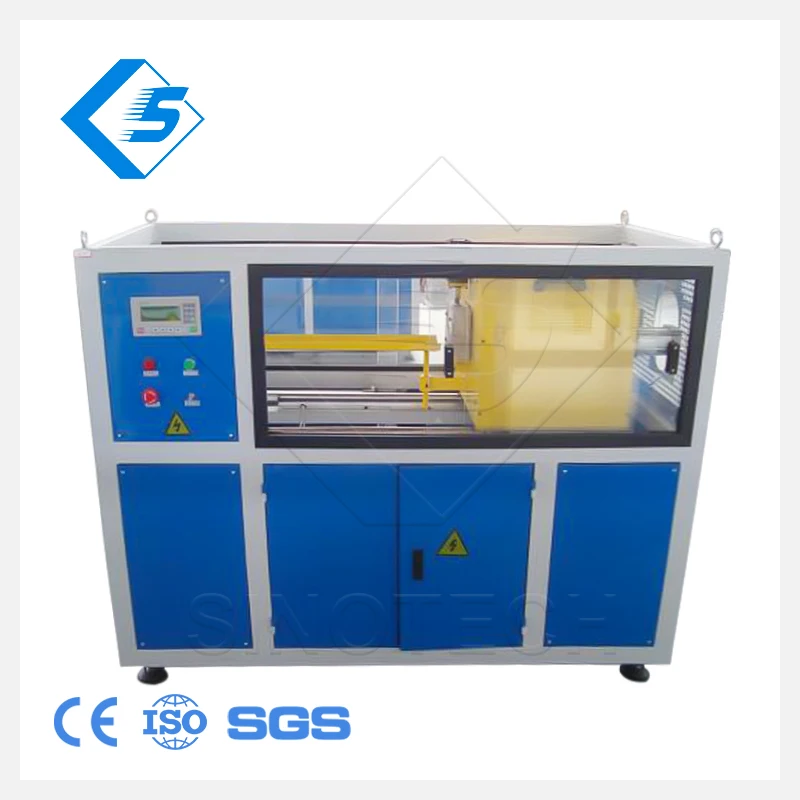

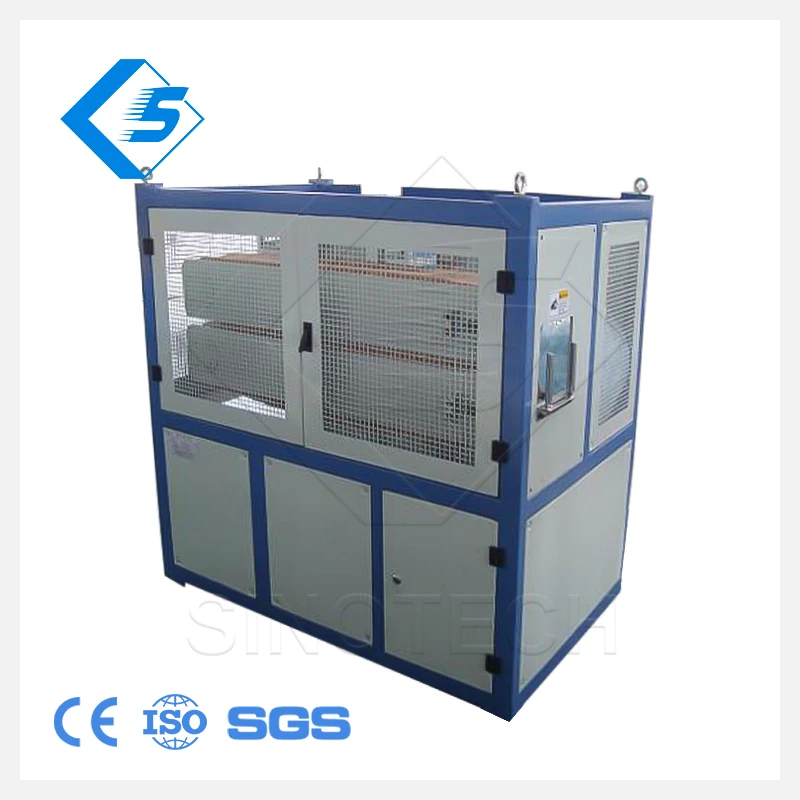

No dust cutter&Planetary cutter can be choosed according to different diameter pipe.
Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency, Easy Maintenance
PPR PERT pipe hot water supply or cold drinking water supply with characteristic non toxic,rustless,non-filthily,heater preservation
Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →no dust cutter →stacker
Equipment Features:
PPR Pipe Diameter Range:φ16mm-φ160mm
The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Caterpillar Haul-off unit with two caterpillar, three caterpillar, four caterpillar,six caterpillar,eight caterpillar Twelve Caterpillar design for different range of pipe diameter haul-off
No dust cutter&Planetary cutter can be choosed according to different diameter pipe.
Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency, Easy Maintenance
Machine model | Pipe diameter | Vacuum Calibration Tank | Spray Cooling Tank | Haul-off unit | cutter | ||||||||
Vacuum pump | Water pump | Length(mm) | Water pump | Length(mm) | caterpillar Quantity | Motor | Cutting type | ||||||
PPR-63 | φ16mm-φ63mm | 3kw*2 | 3kw*2 | 6000mm | 3kw*1 | 6000mm | 2 | 1.5kw*2 | No dust cutter | ||||
PPR-110 | Φ40mm-φ110mm | 4kw*2 | 3kw*2 | 6000mm | 3kw*1 | 6000mm | 2 | 3kw | No dust cutter | ||||
PPR-160 | Φ63mm-φ110mm | 4kw*2 | 4kw*2 | 6000mm | 4kw*1 | 6000mm | 3 | 1.1*3 | No dust cutter | ||||

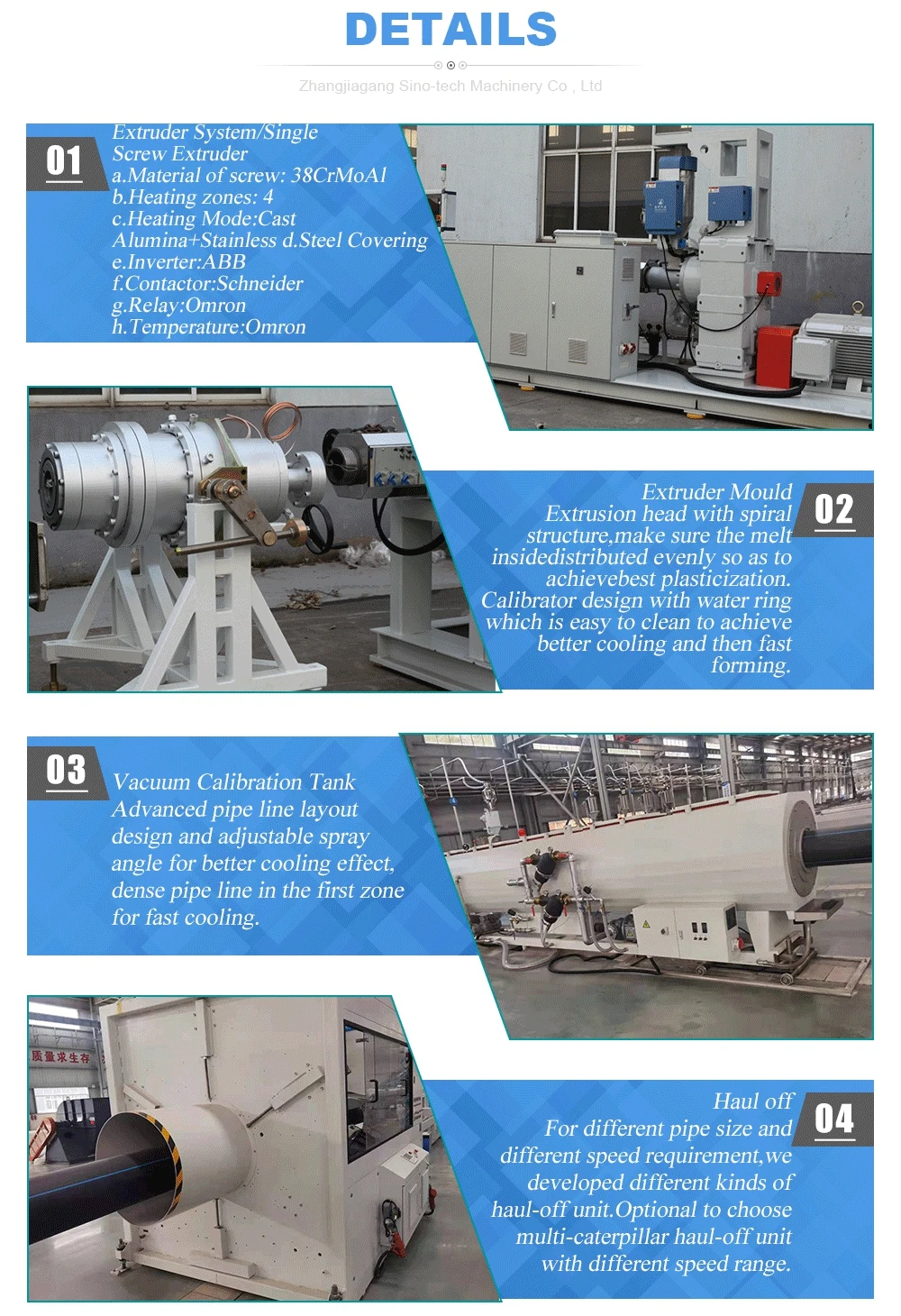

Details
Floor Plan
Our Factory
Certifications
Exhibition
Packaging & Shipping
FAQ
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
