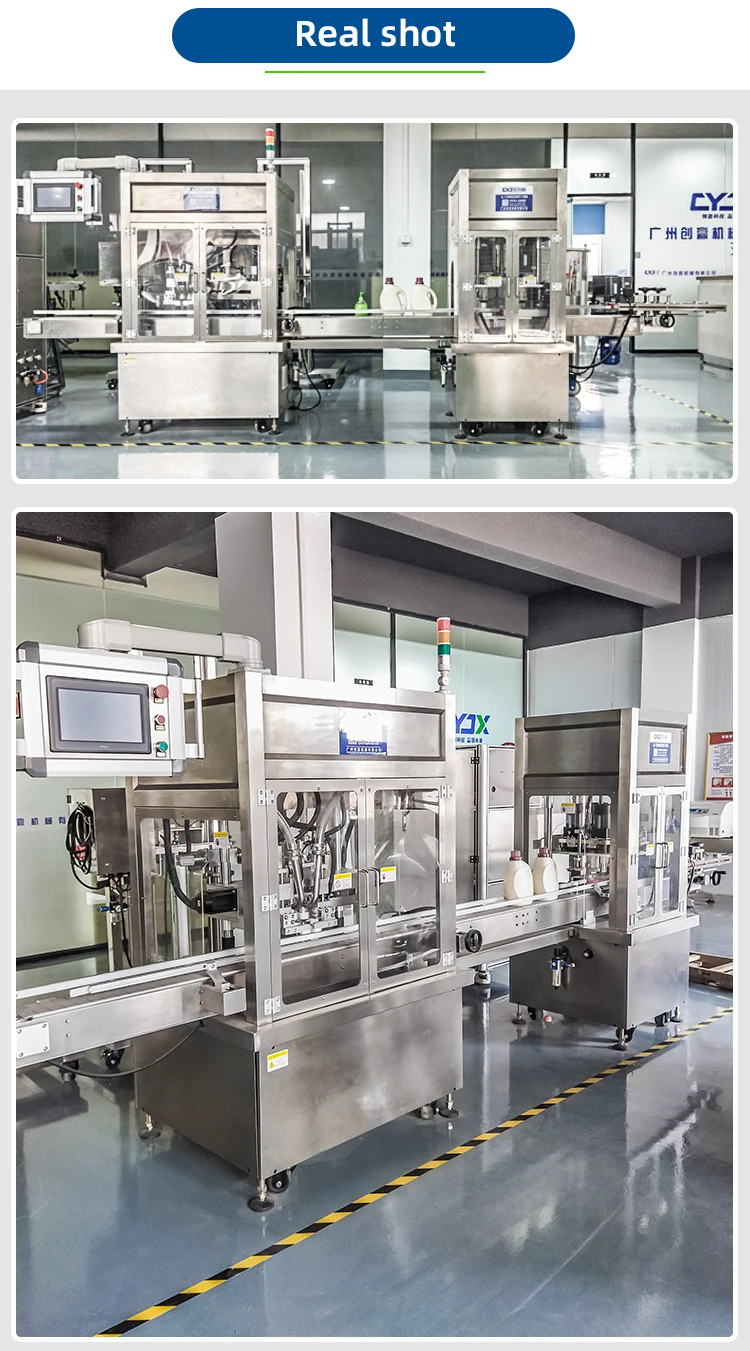

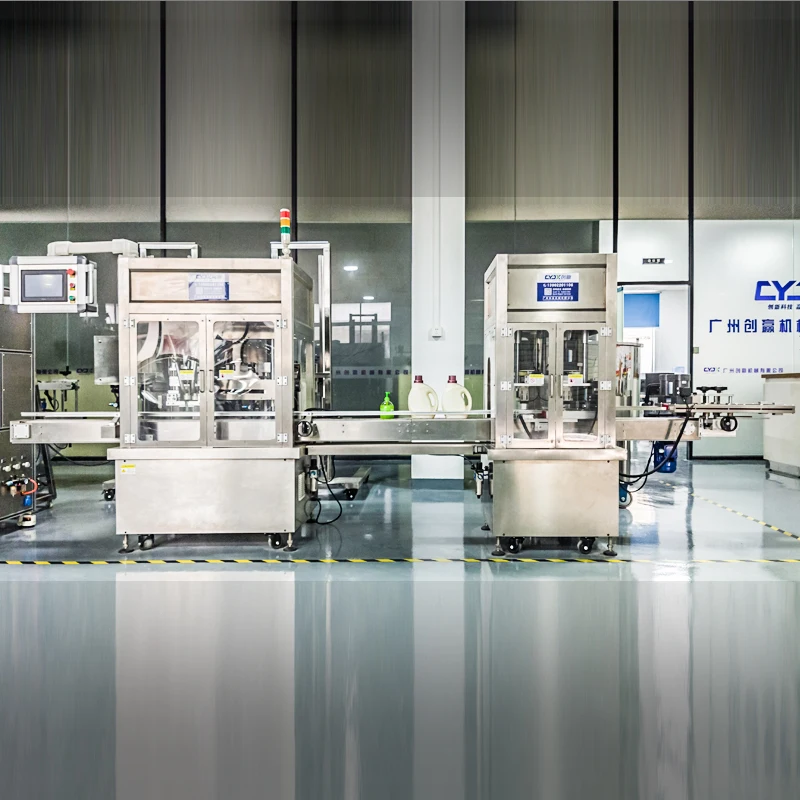

CYJX Automatic Unit Syrups Filling Plastic Ampoule Bottle Filling Sealing and Capping Machine

Share on (1600924089342):


Price:$28,600.00

Quantity:


Product Overview

Description



Company Information




Product Overview

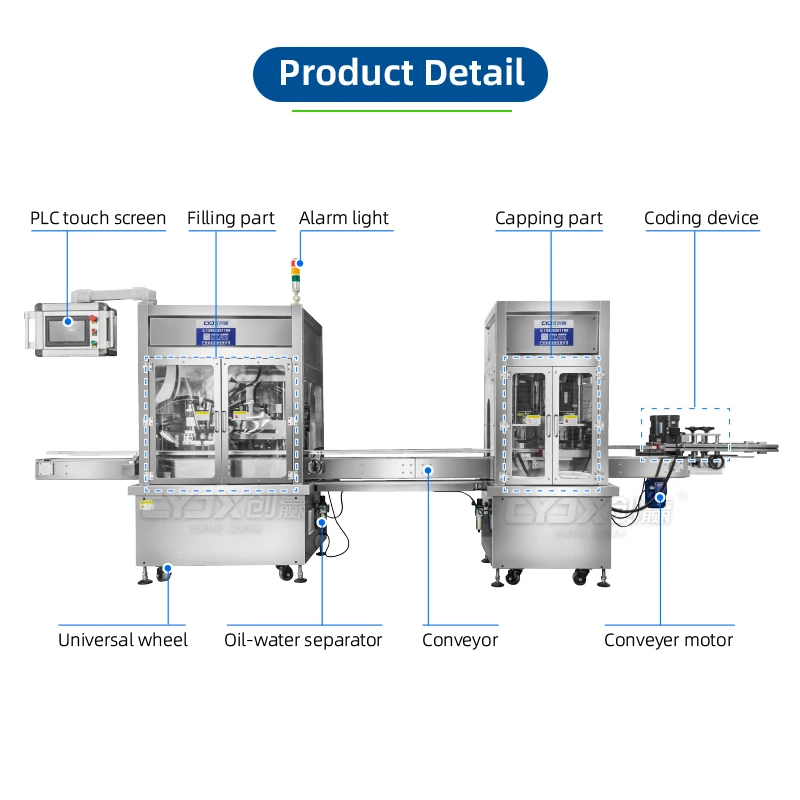

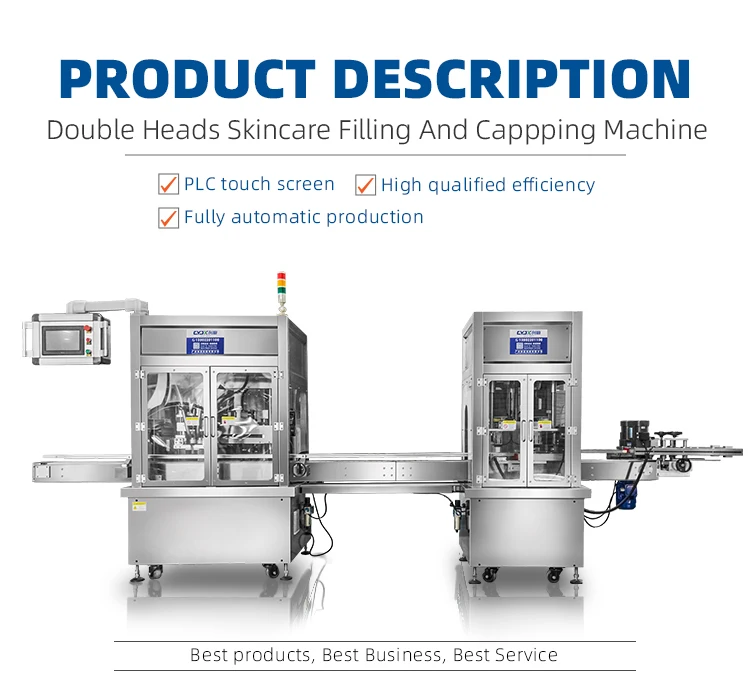

2 Heads Filling And Capping Machine
Semi-automatic ointment and liquid filling machine、Horizontal self-suction filling machine、full-automatic tube filling & sealing machine

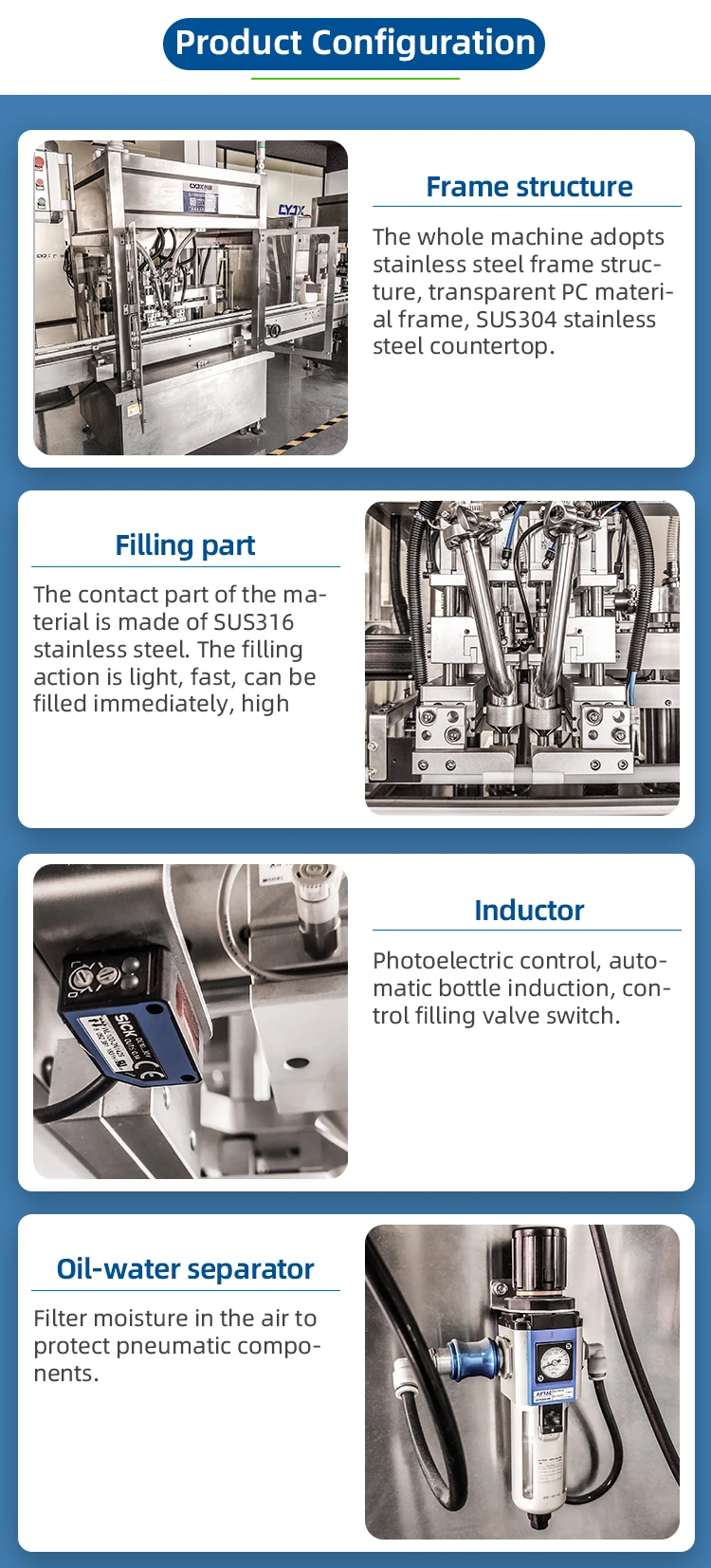

It adopts linear filling, suitable for various high/low viscosity liquids. It adopts a combined filling structure with high precision and easy installation and cleaning. Equipped with wheels, easy to move. The whole machine adopts sanitary stainless steel.

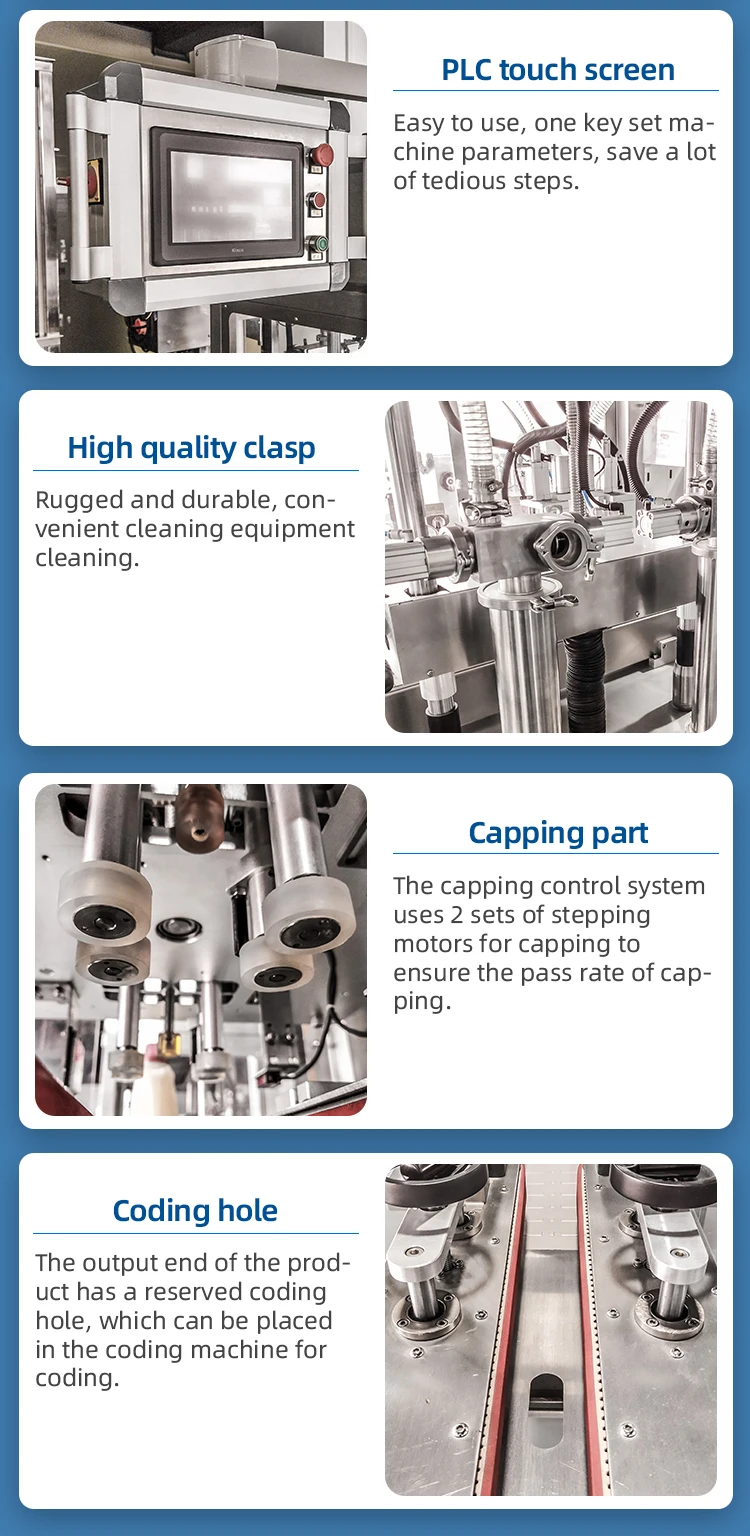

1. This machine is a set of filling and capping machine, using programmable logic controller (PLC), touch screen operation control, easy adjustment.
2. The photoelectric sensor and proximity switch adopt advanced sensing elements, and no bottle will be filled during operation.
3. Automatic shutdown and alarm in case of abnormal operation. The machine shows abnormal parts.
4. A series of operations such as counting into bottles, quantitative filling, capping, and conveying bottles are completed automatically.
5. High degree of automation and large production capacity.


Electrical configuration
1. PLC:
Panasonic control system
2. Touch screen:
Siemens
3. Pneumatic components:
AirtacTaiwan
4. Circuit breaker, AC contactor:
Honeywell, USA
5. Frequency converter:
Danfoss, Denmark
6. Servo motor, servo drive:
Delta
7. Photoelectric sensor:
Omron, Japan
8. Switching power supply, buttons, warning lights: French
Schneider brand



Product Name
Automatic emulsion cream filling and capping machine
Whole line power
220V-AC 4KW
Air resources
4-5kgf/cm2
Filling accuracy
±0.5g
Applicable volume
500-5000mL (can be customized )
Production capacity
2600-3600BPH
Dimensions (length × width × height)
5300×1500×2500mm
















FAQ


Q1: Are you a machine manufacturer or a trading company?
A1: We are a reliable machine manufacturer and can provide you with the best service. Our machines can be customized according to customer requirements. Welcome to join our factory!

Q2: How do you ensure the normal operation of this machine?
A2: Each machine is tested by our factory and other customers before shipment. We will adjust the machine to the best effect before shipment. During the warranty period, spare parts are always available and serve you free of charge.

Q3: How to install this machine after it arrives?
A3: We will send THE INSTALLATION VIDEOS step by step and meeting with engineers.

Q4: Can we visit your favtory or showing room?
A4: No problem. You just need to send us the location or pick up you at the airport when you get there>

Q5: How do we choose the machine that suits us?
A5: 1. Tell us the material you want to fill, and we will select the appropriate machine type for your reference
2. After selecting the appropriate machine type, please tell me the filling capacity of the machine you need
3. Finally, tell me the inner diameter of your container to help us choose the best filling head diameter for you

Q6: How do we guarantee the quality?
A6: Quality control based on ISO 9001 and GMP requirements, all processes under QA monitoring, and final inspection and testing before shipment
