Price:$13,125.00 - $71,400.00

Quantity:


Product Overview

Description

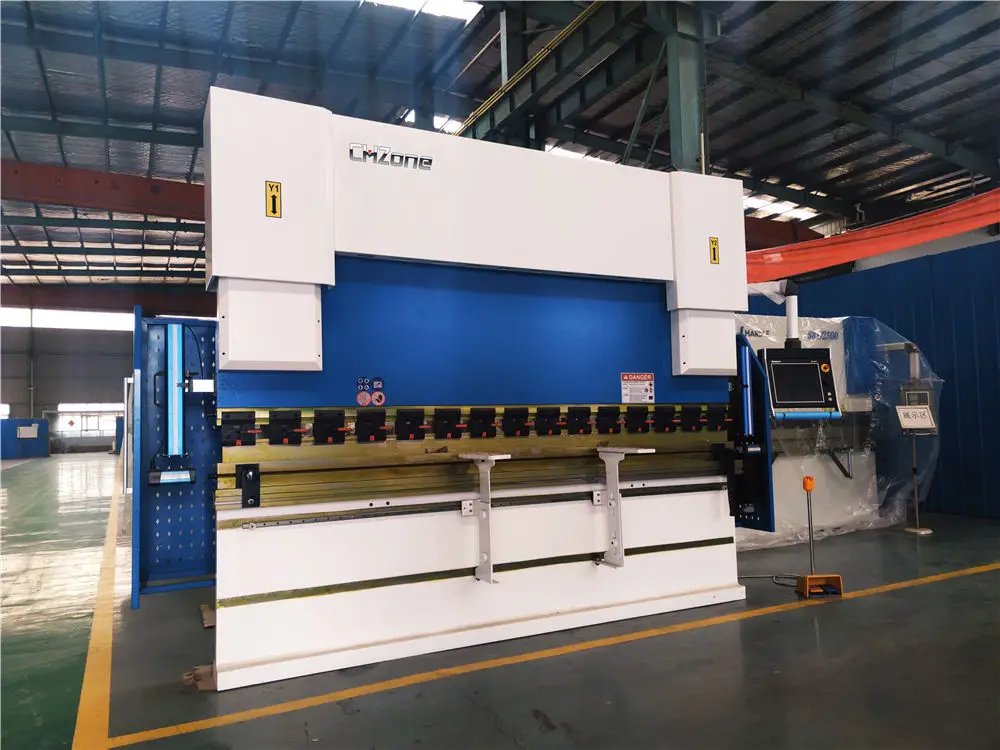

WE67K-220T/4000 DA66T 6+1 AXIS CNC PRESS BRAKE WITH WILA TOP&BOTTOM HOLDER


Product Description






Main features:
* 6+1 Axis,Y1 Y2 X Z1 Z2 R+Crowing
* DA66T Touch screen controller
* Synchronized cylinders for Y1 & Y2 axis.
* Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail
* Servo Main Motor
* WILA top and bottom hydraulic clamp with crowing


Controller
DELEM DA66T
Motor
INOVANCE Servo Motor
Valve
BOSCH Rexroth
Electrics
Schneider
Pump
Sunny
Servo
Yaskawa


Controller


DELEM DA66T
*2D graphical touch screen programming mode
*3D visualisation in simulation and
production
*17" high resolution colour TFT
*Full Windows application suite
*Delem Modusys compatibility (module scalability and adaptivity)
*USB, peripheral interfacing
*User specific application support within the controllers multitasking
environment
*Sensor bending & correction interface
* Profile-TL offline software


Main Parameters




PB_CNC
6325
10032
10040
16032
16040
20032
20040
25032
25040
Nominal Pressure
800
1000
1000
1600
1600
2000
2000
2500
2500
Workbench Length
2500
3200
4000
3200
4000
3200
4000
3200
4000
Workbench Width
110
110
110
110
110
110
110
110
110
Poles distance
1960
2600
3200
2600
3200
2600
3200
2600
3200
Throat depth
320
380
380
400
400
400
400
400
400
Slipper Stroke
200
200
200
200
200
200
200
200
200
Max Opening Height
480
480
480
480
480
480
480
480
480
slipper stroke adjust Length
150
150
150
150
150
150
150
150
150
Main motor
5.5
7.5
7.5
11
11
15
15
18.5
18.5
Oil pump
13
16
16
20
20
25
32
32
32
Hydraulic System Max Work Pressure
30
30
30
30
30
30
30
30
30
wallboard thickNess
35
45
45
50
50
50
60
70
70
slipper thickNess
40
50
50
60
60
60
60
70
70
support plate thickNess
40
60
60
70
70
70
70
80
80
Dimension(L×W×H)
2800×1700×2550
3800×1750×2580
2600×1500×2200
3800×1800×2900
2800×1900×2820
3800×1900×2920
4500×2100×2920
3800×2150×3020
4500×2150×3050
Machine weight
4.8
7.6
9
9
11
12
13.5
14
15


Detailed Images




DA66T Controller
Touch Screed, suitable for 6 axis

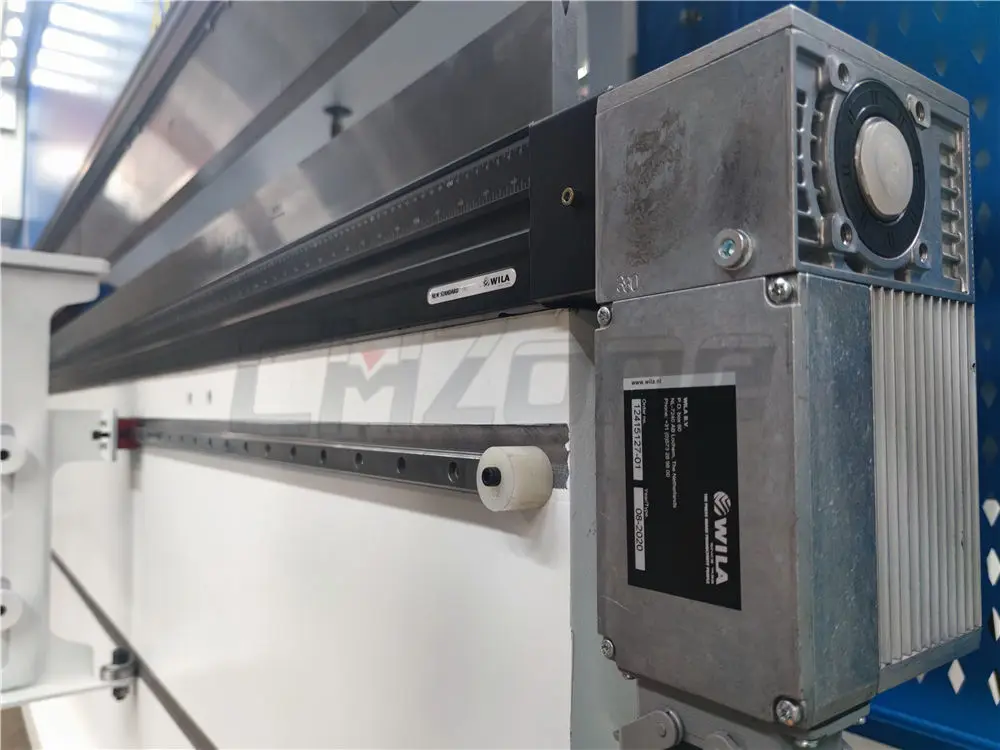

WILA Top Hydraulic Clamp
top grade hydraulic clamp, easy to operate

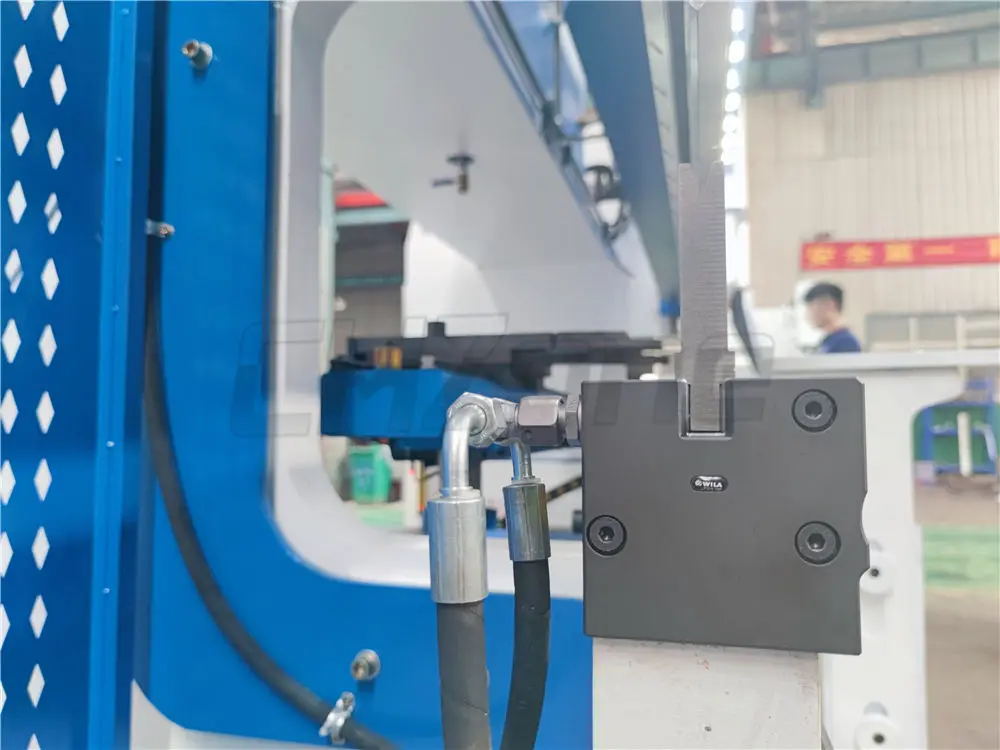

WILA bottom Hydraulic Clamp
one key hold, with crowing system


Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Yaskawa Servo
Japanese Brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.


Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire
Sunny Oil Pump
American most famous pump brand.
High quality
Hydraulic station
wila hydraulic station


Front Supportor
Factory Made, easy to feed plate
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.

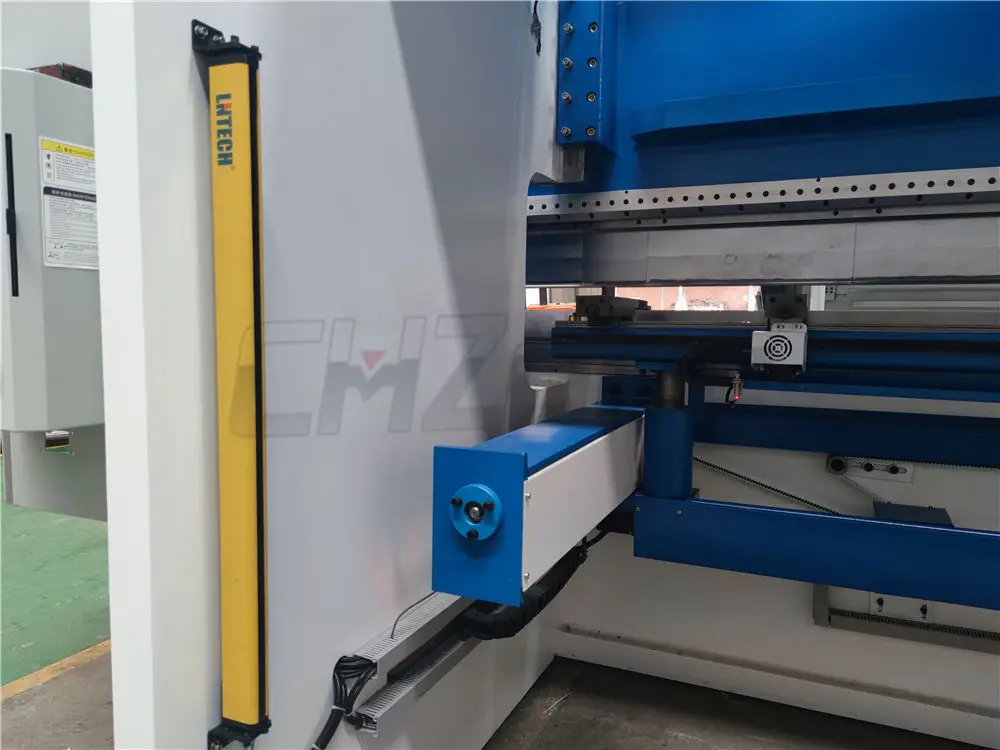

Side Fence
CE Safety Standard. Power off when open
Back light curtain
safety device
Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy

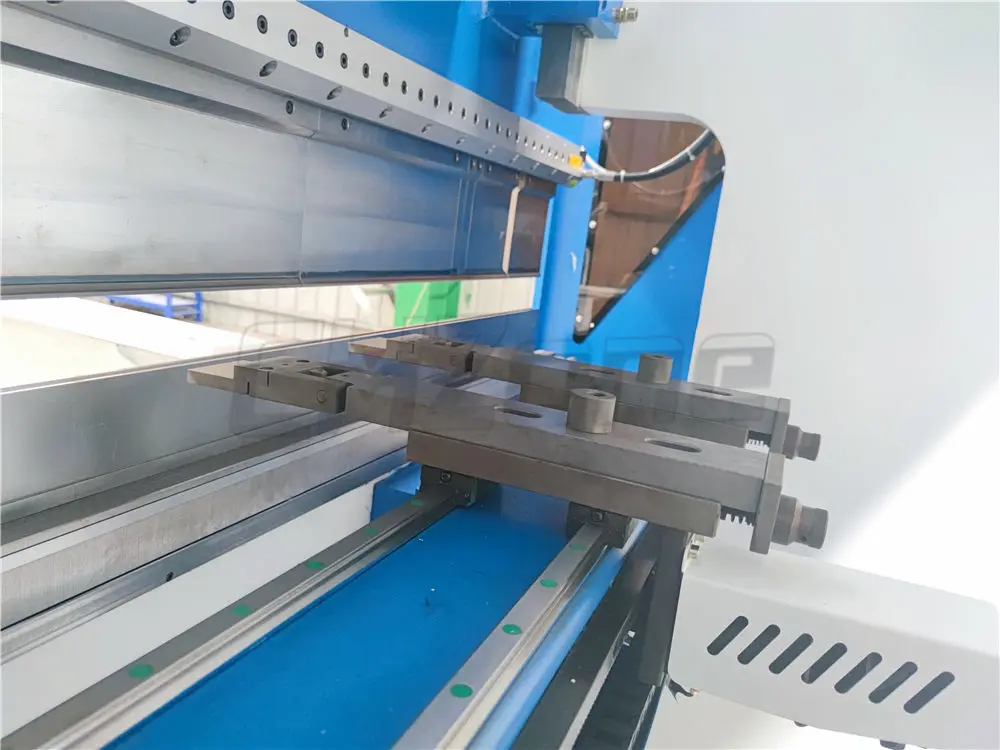

Backgauge
Controlled by servo motor. X,R,axis
Stop Fingers
Z1 Z2 axis


Standard Toolings
*Cr12MoV material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Other types tooling for optional


Related Products




Optional Parts


Laser Protection Device
For CE Standard use. Keep safety of finger
Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.
DELEM DA69T Controller
DELEM Top Grade Controller, can use 3D function


Packing&Shipping




Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
