Product Overview
Description
Product Description
Description

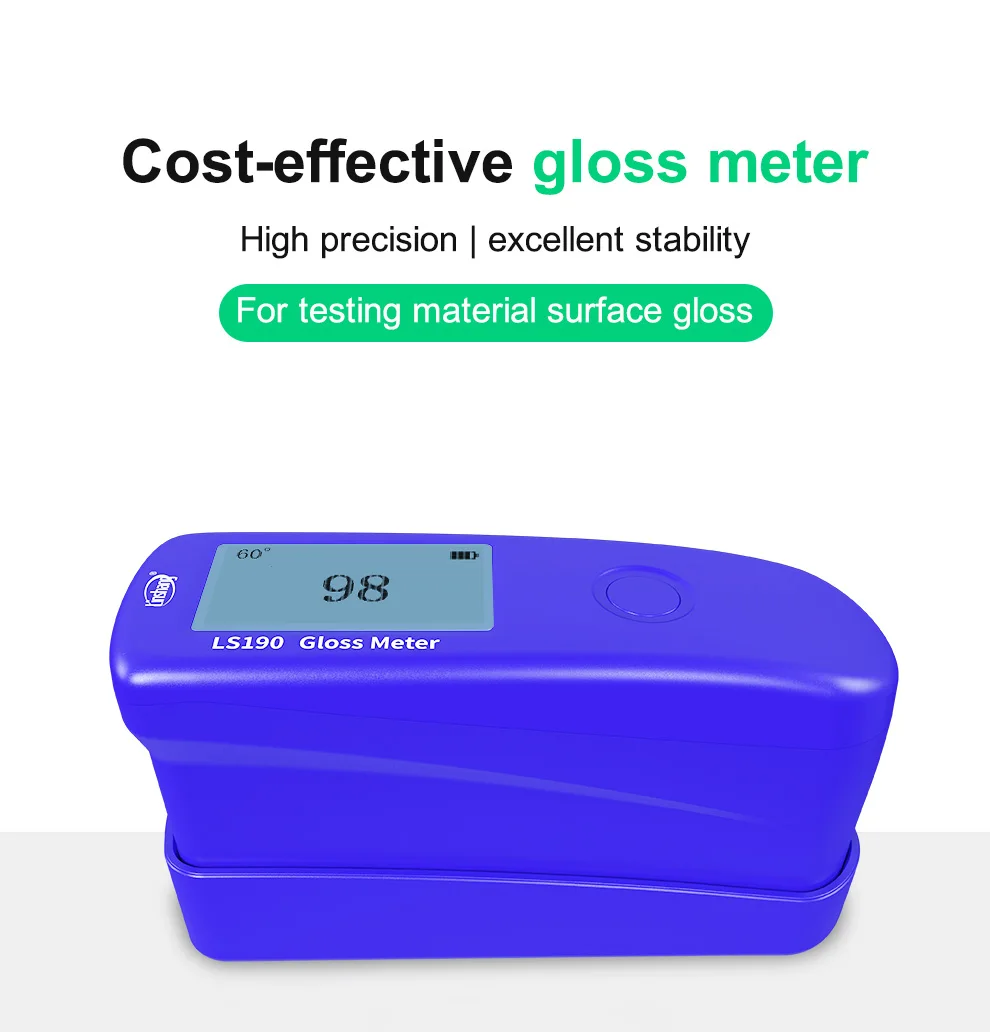

LS190 is a handheld gloss meter with a measuring range of 0-200GU. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. It is easy to use and you can get the measurement results immediately after testing in the normal mode. No need to wait. The device can switch to the QC mode, which can realize quick inspection to improve efficiency. LS190 gloss meter meets the national standard of secondary working machine which provided accurate measurement and stable data.
Features
1. High-quality with competitive price, value for the money.
2. 60° measuring angle, universal light path design, can measure the gloss of most materials.
3. 20*10mm test aperture, minimum size of material to be measured.
4. Measurement range is 0-200GU, which can measure the gloss of most materials.
5. The meter can start measuring directly after turning it on, users can get the measurement results quickly without waiting.
6. Supporting QC mode, allows the user to customize the upper and lower limit values for qualification determination, which is suitable for inspection on large scale.
7. Connect to PC software to generate test reports and more extent functions.
8. The instrument is recharged by built-in lithium battery for long-lasting endurance, and it can measure 115200 times continuously under fully charged condition.
2. 60° measuring angle, universal light path design, can measure the gloss of most materials.
3. 20*10mm test aperture, minimum size of material to be measured.
4. Measurement range is 0-200GU, which can measure the gloss of most materials.
5. The meter can start measuring directly after turning it on, users can get the measurement results quickly without waiting.
6. Supporting QC mode, allows the user to customize the upper and lower limit values for qualification determination, which is suitable for inspection on large scale.
7. Connect to PC software to generate test reports and more extent functions.
8. The instrument is recharged by built-in lithium battery for long-lasting endurance, and it can measure 115200 times continuously under fully charged condition.
Wide range of applications
Widely used in paint, plastic, stone, metal and other industries.

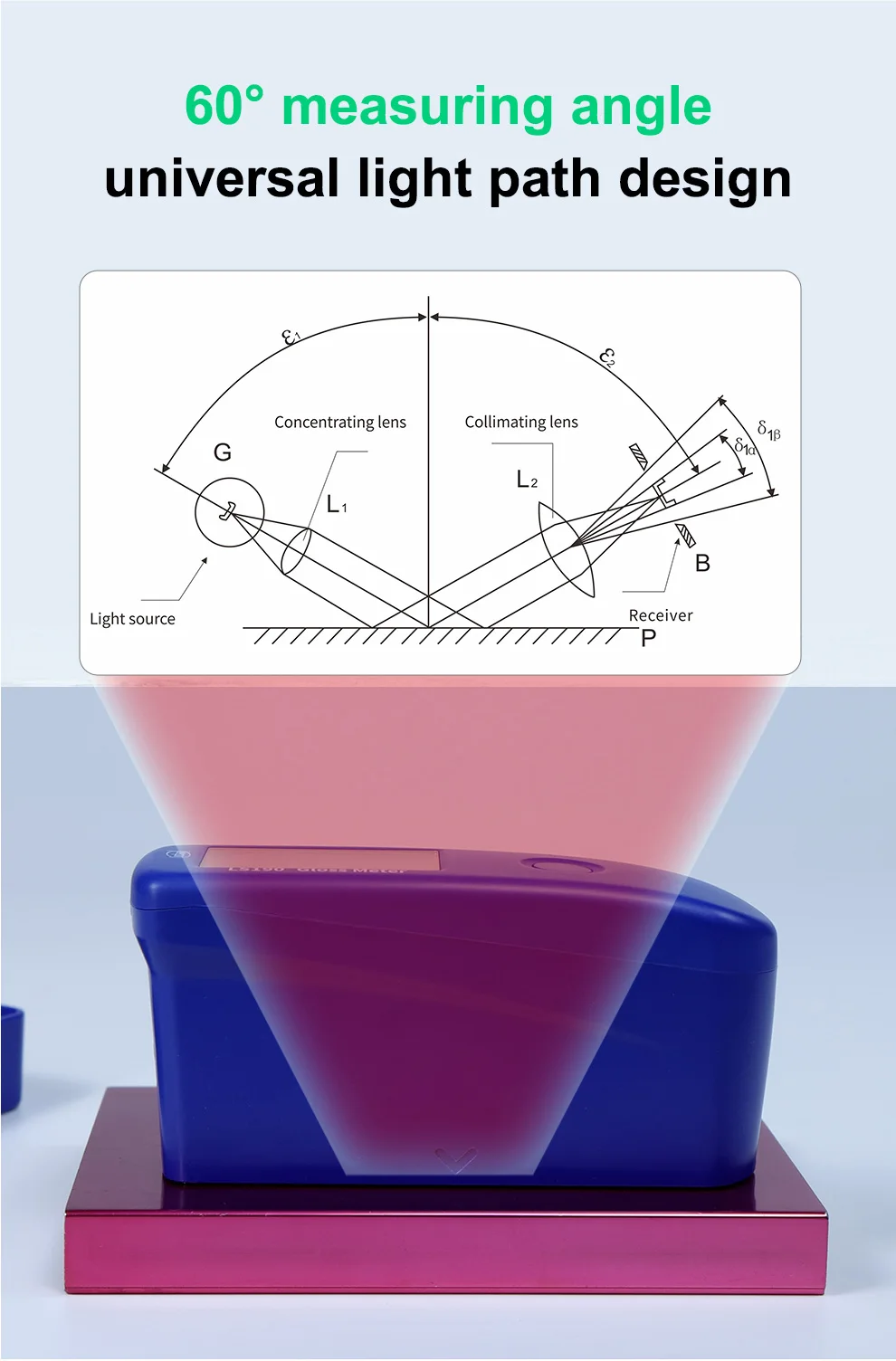

60° measuring angle, universal light path design
60° universal angle light path design, so that the general industry materials gloss can be measured.

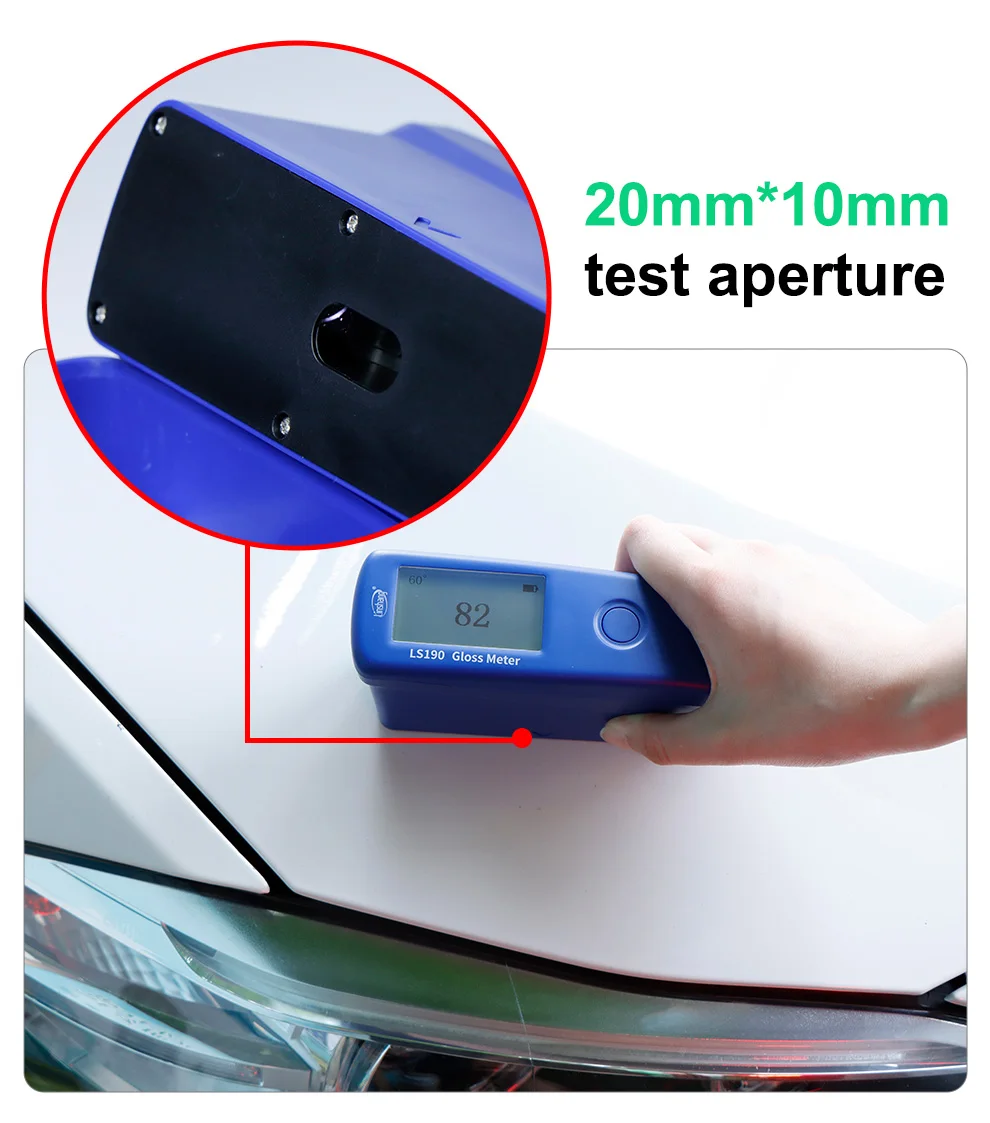

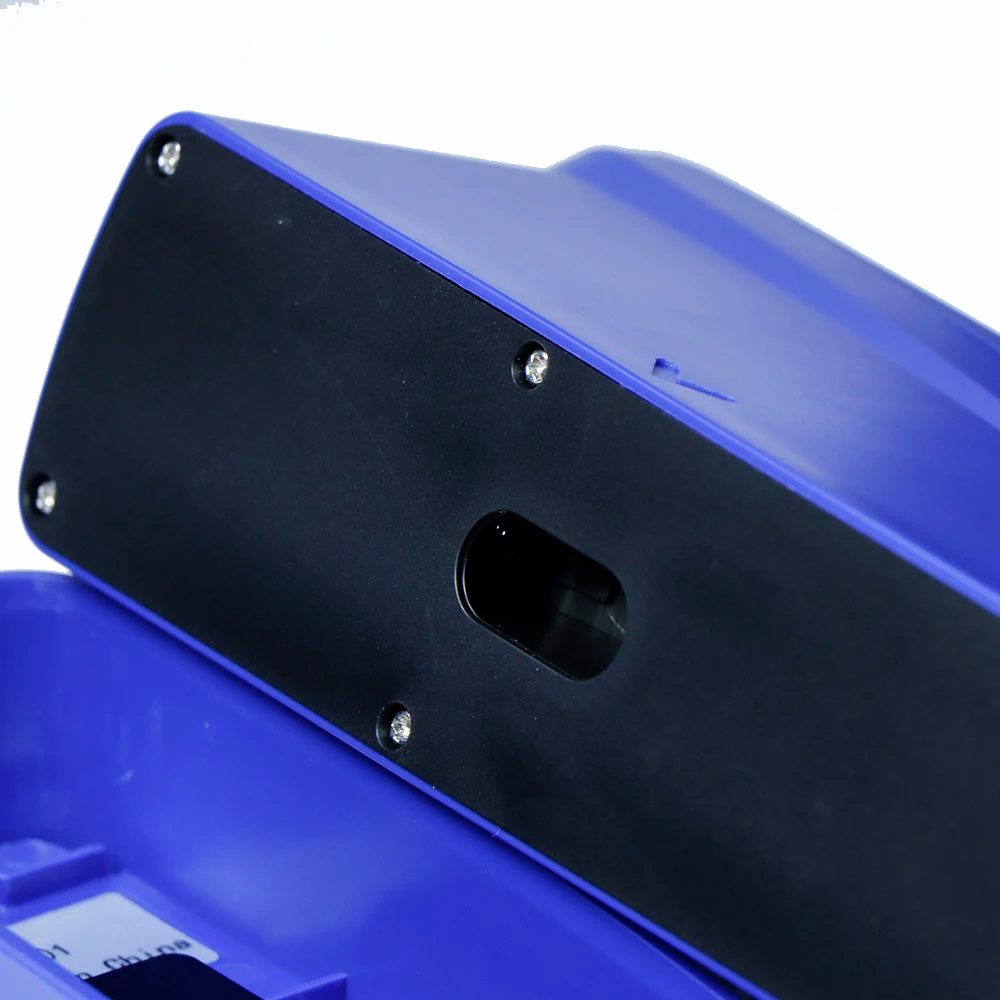

20mm*10mm test aperture
Minimum size of material to be measured

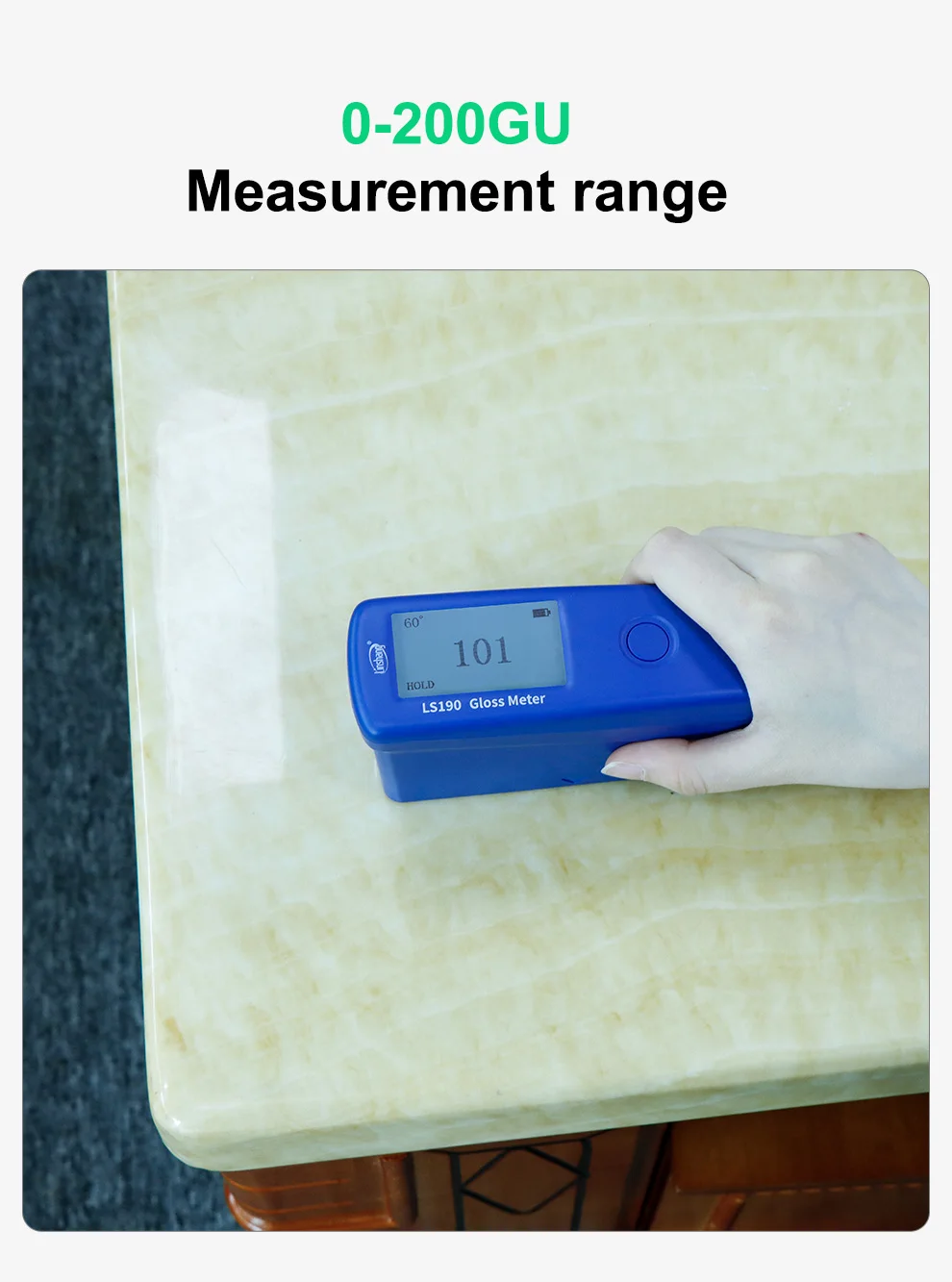

0-200GU Measurement range
Measurement range is 0-200GU, which can measure the gloss of most materials.

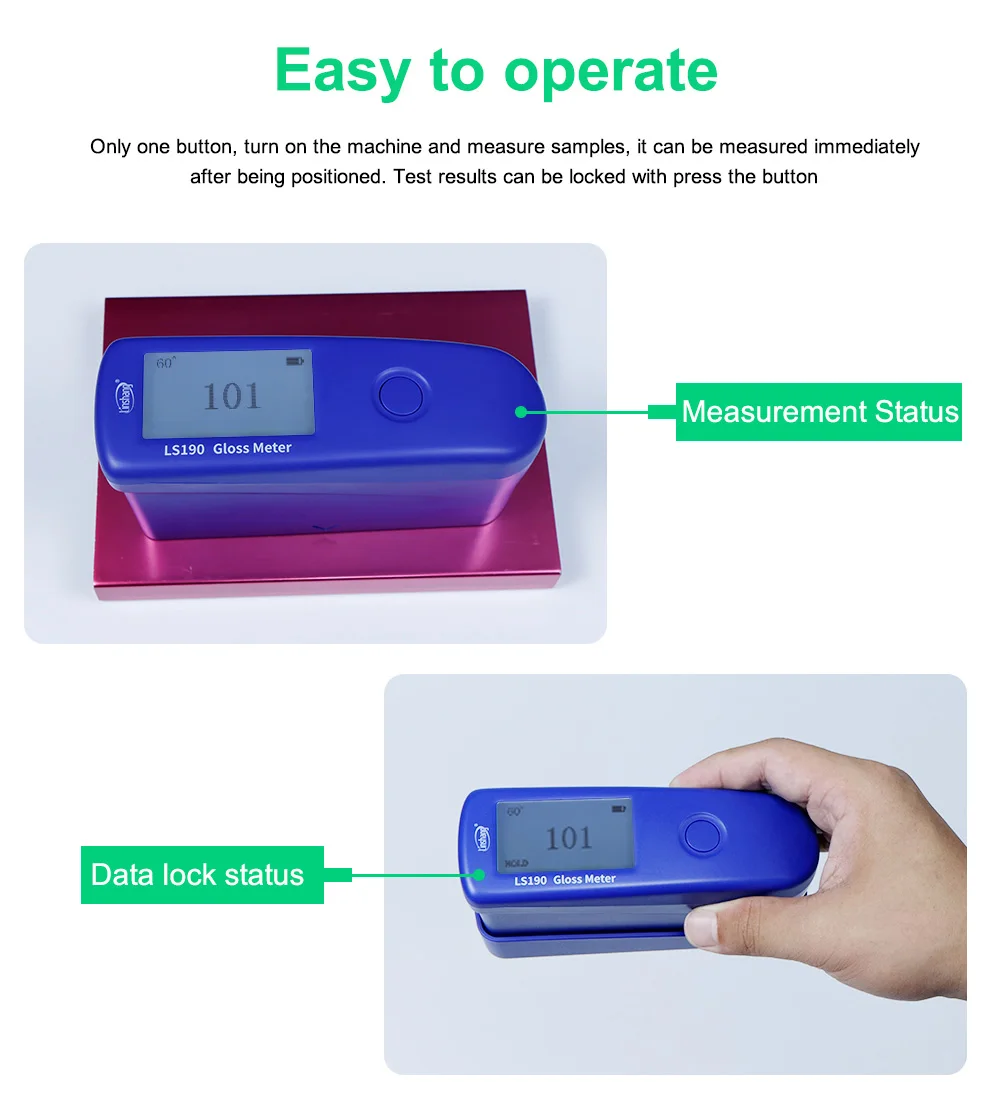

Easy to operate
Only one button, turn on the machine and measure samples, it can be measured immediately after being positioned. Test results can be locked with press the button.

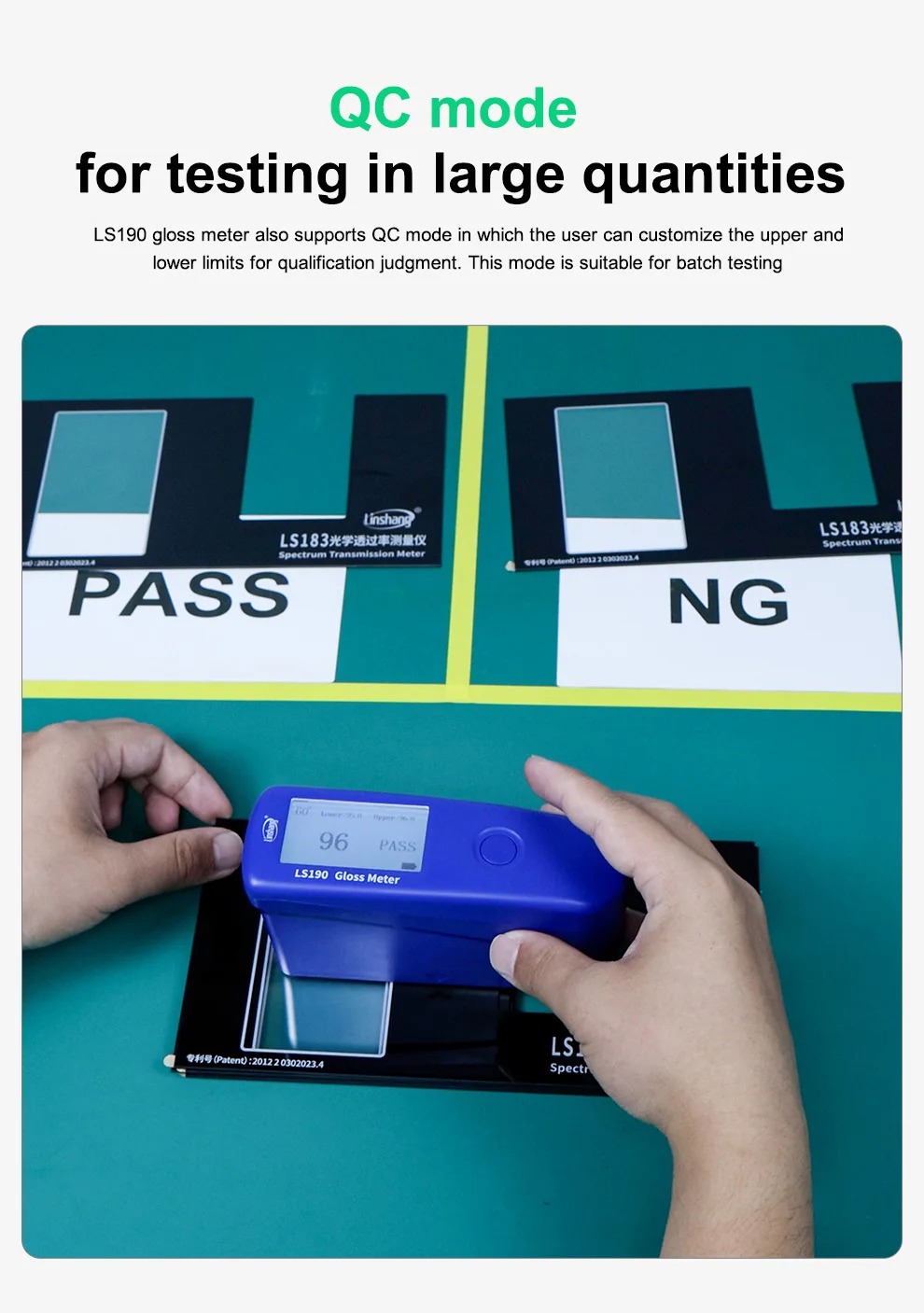

QC mode for testing in large quantities
LS190 gloss meter also supports QC mode in which the user can customize the upper and lower limits for qualification judgment. This mode is suitable for batch testing.

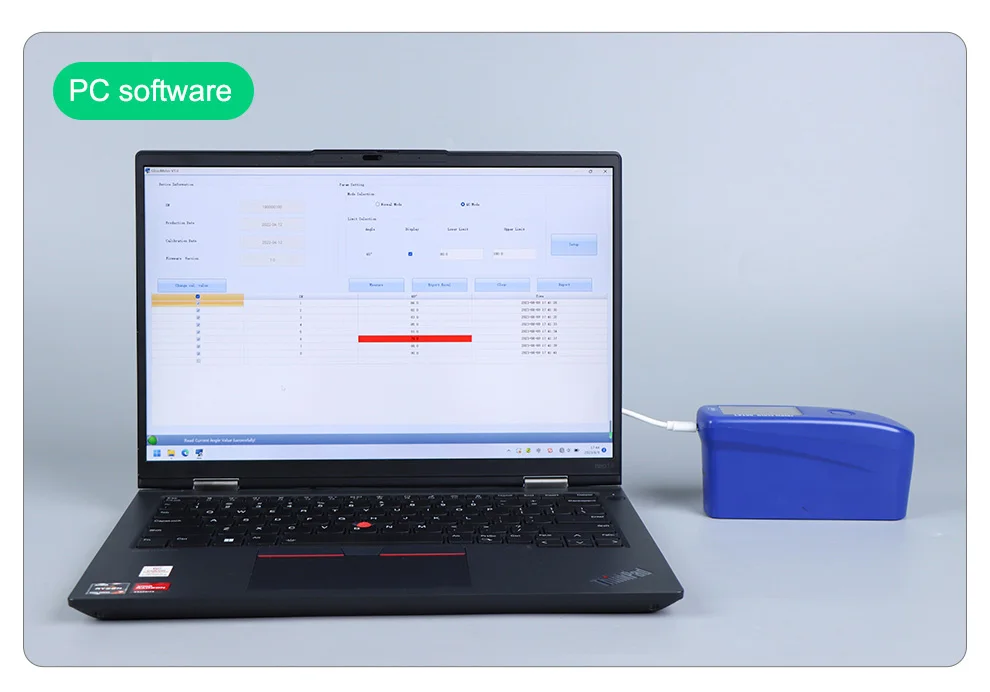

Providing PC software to generate test reports
The meter provides PC software and supports online measurement. The computer can perform intelligent statistics on the data and generates measurement reports.

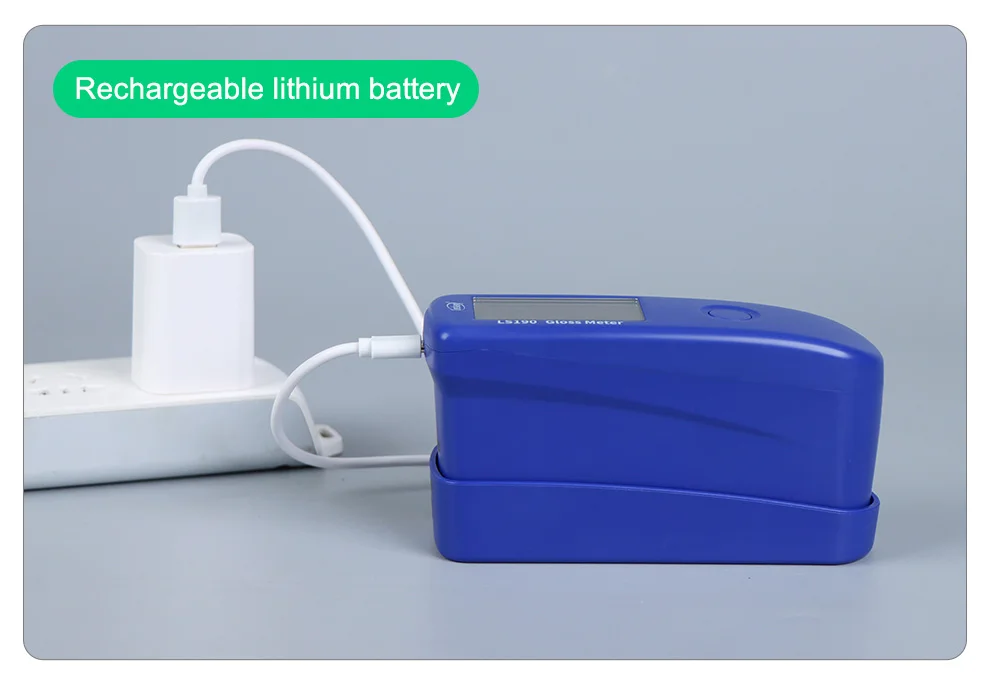

Rechargeable lithium battery charging
The instrument is recharged by built-in lithium battery for long-lasting endurance, and it can measure 115200 times continuously under fully charged condition.

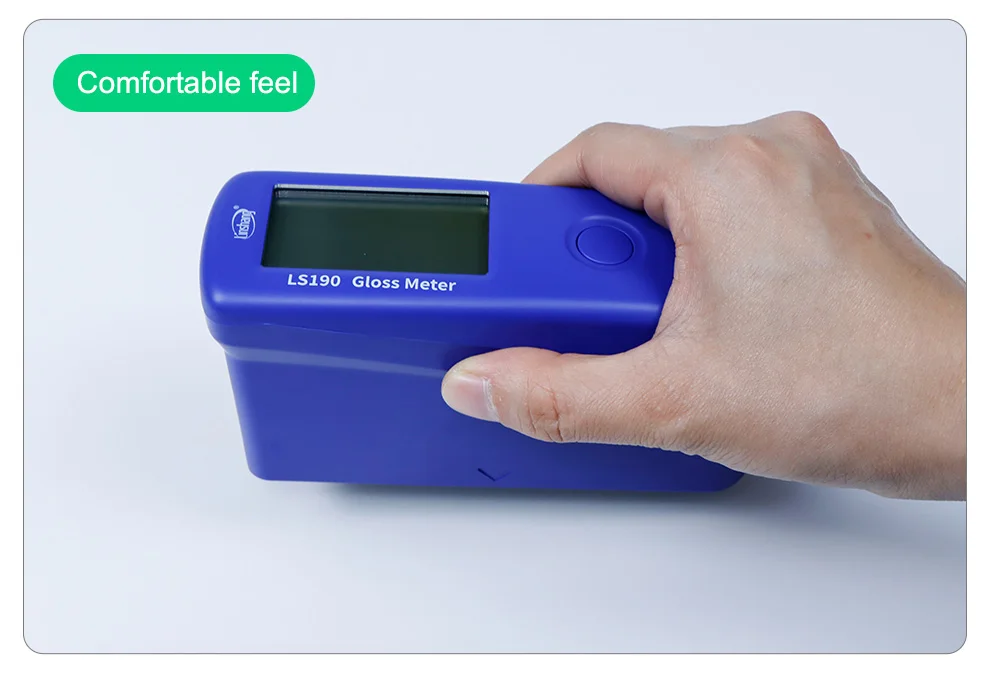

Smooth appearance, and comfortable feels in the hand
Blue engineering plastic with smooth appearance and has a clean minimalistic design.
Specification
item | value |
Warranty | 1 Year |
Customized support | OEM |
Place of Origin | China |
Guangdong | |
Brand Name | Linshang |
Model Number | LS190 |
Measuring Angle | 60° |
Measuring Aperture | 9*15mm |
Minimum Test Material Size | 20*10mm |
Measuring Range | 0-200GU |
Resolution | 1GU |
Repeatability | 0-100GU:±1GU/100-200GU:±1%reading |
Reproducibility | 0-100GU:±1GU/100-200GU:±1%reading |
Zero Error | 1GU |
Indication Error | 0-100GU:±3GU/100-1000GU:±3%reading |
Data Transmission | USB |
Note
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2. Please allow 1-2cm measuring deviation due to manual measurement.
2. Please allow 1-2cm measuring deviation due to manual measurement.

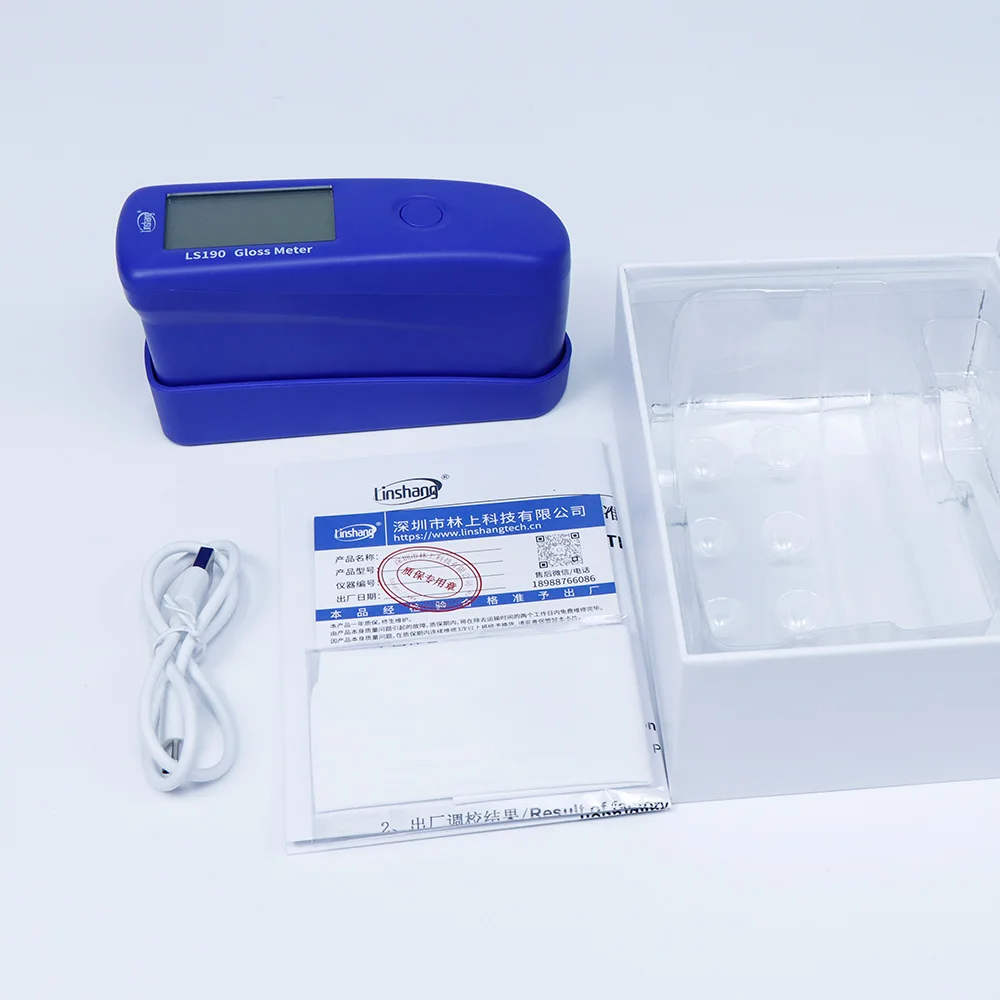

Structure & Packing
No. | Description | Quantity | Unit |
1 | Gloss Meter | 1 | Set |
2 | USB Data Cable | 1 | pcs |
3 | USB Disk (software) | 1 | pcs |
4 | Special Lens Cloth | 1 | pcs |
5 | User Manual | 1 | pcs |
6 | Certificate / Warranty Card | 1 | pcs |
Delivery
Packing | Air Carton / Express Packaging / Shrink Package |
Delivery Terms | EXW, DAP, Express Delivery |
Delivery Time | 25-30 days in stock |
Port | Shenzhen |
FAQ
1. Is it necessary to replace the light source after using the gloss meter for a long time?
The sheen instrument does not require frequent replacement of the light source.
2. What battery is used for the gloss meter? Is it power?
The sheen instrument is powered by a rechargeable lithium battery, which is ultra-low power consumption and can be used continuously for more than 50 hours at a time.
3. Does the gloss meter have to be calibrated with a standard board before each measurement?
It is not required because the sheen instrument has a temperature compensation function to ensure long-term data stability without frequent calibration.
4.Do you offer OEM and ODM service?
Yes. We can supply OEM and make customized design for any specific application.
5. who are we?
We are based in Guangdong, China, start from 2008,sell to Domestic Market(60.00%),Eastern Europe(6.00%),Eastern Asia(6.00%),South Asia(5.00%),Mid East(4.00%),Southern Europe(3.00%),North America(3.00%),Western Europe(3.00%),South America(2.00%),Northern Europe(2.00%),Central America(2.00%),Southeast Asia(2.00%),Africa(1.00%),Oceania(1.00%). There are total about 51-100 people in our office.
6. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
7.what can you buy from us?
Colorimeter,Gloss meter,Coating thickness meter,window tint meter,UV meter, Leeb hardness tester, Ultrasonic thickness gauge.
8. why should you buy from us not from other suppliers?
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments.
9. what services can we provide?
Accepted Delivery Terms: EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, Korean, Italian
