Product Overview
Description
Product Description

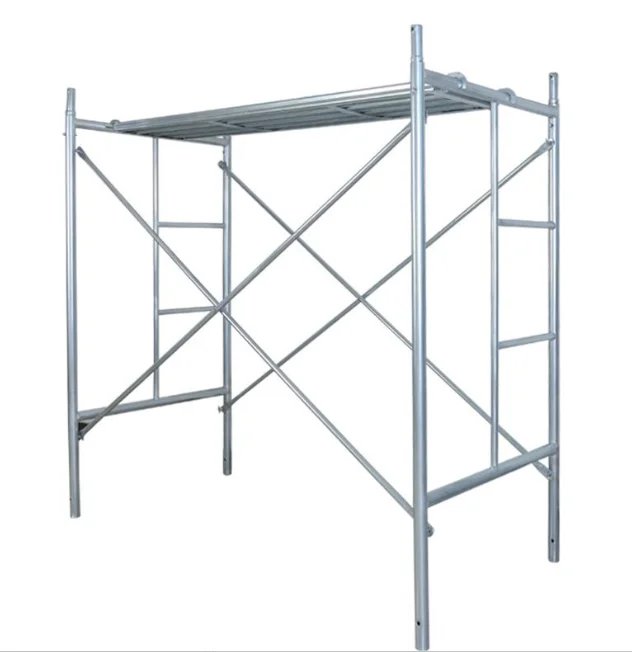

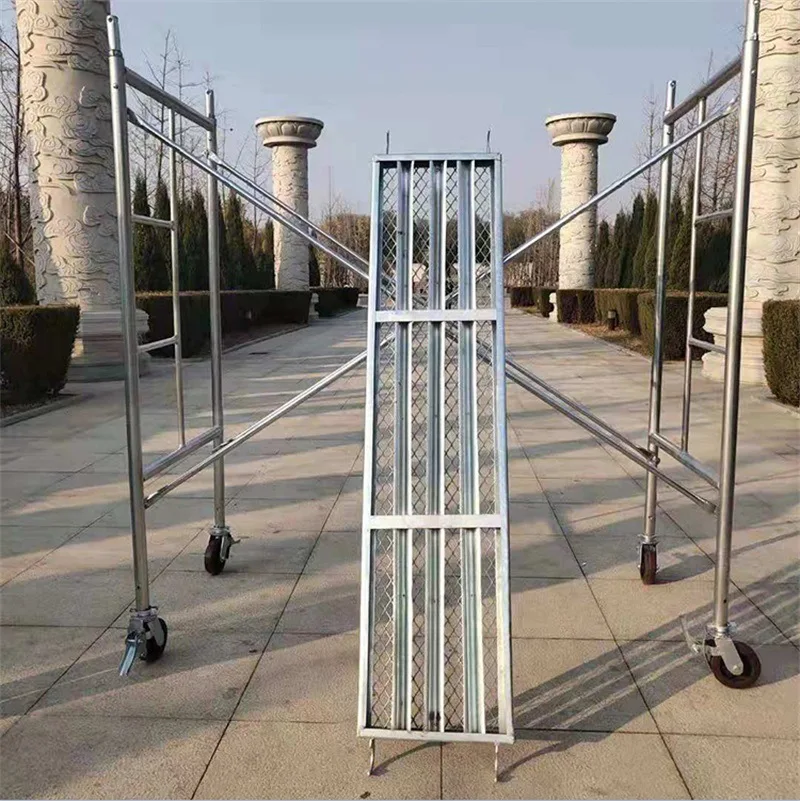

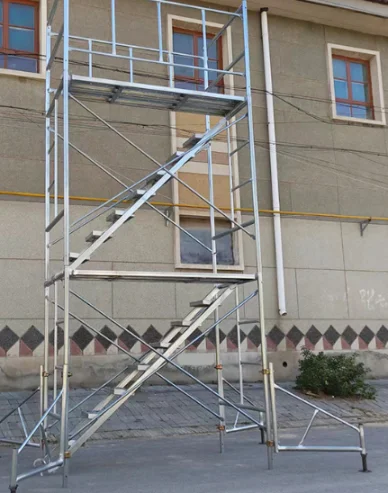

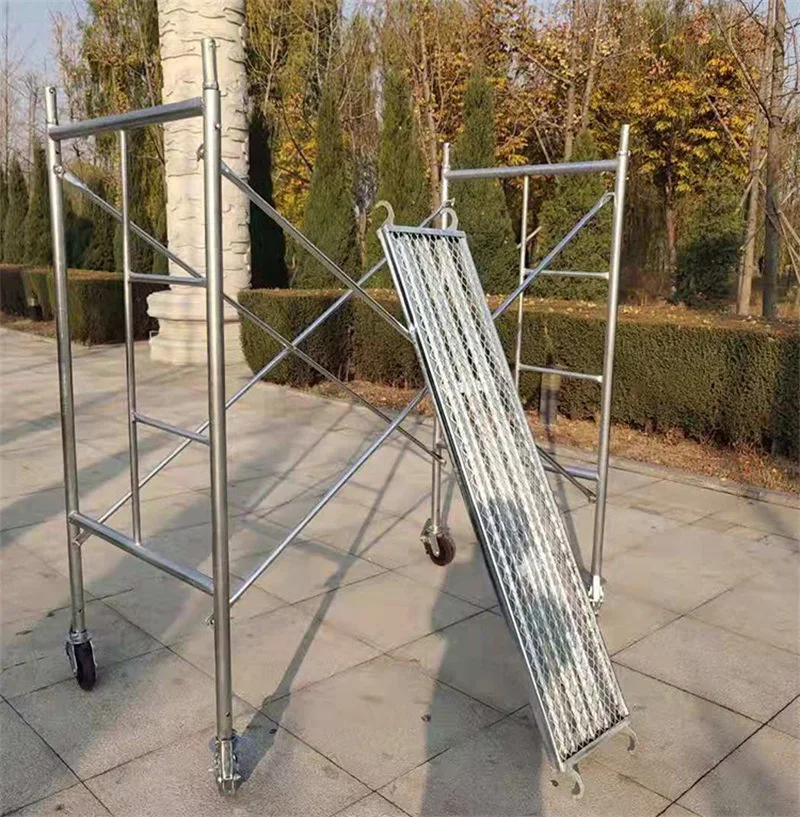

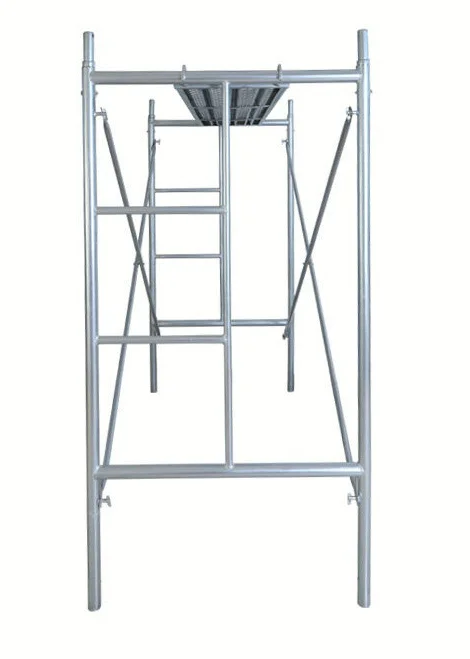

Frame scaffolding systems are probably one of the most commonly used scaffold system in the construction industry. The frame scaffold consists of welded steel frames connected by cross braces to form a framework to support scaffold planks or other scaffold platform systems.

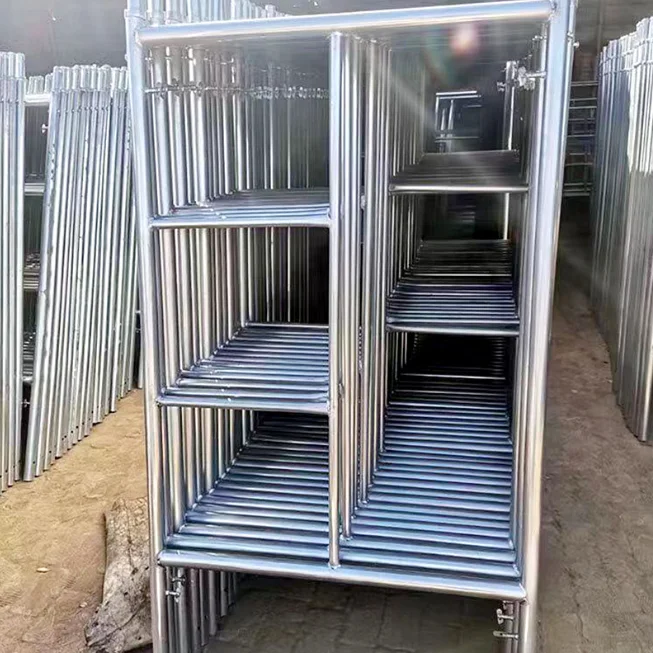

Frames are manufactured in a wide variety of sizes and configurations.
Frames are manufactured in a wide variety of sizes and configurations.
Facade Scaffolding
Facade scaffolding is a frame scaffold made of prefabricated components. The basic components in the scaffold includes base jacks, scaffold frames, double guardrails, vertical diagonals brace and decks, etc.
These can be assembled together to create scaffolds in a variety of different lengths and heights. Usually used in Europe, and material can be steel or aluminum .
Facade scaffolding is a frame scaffold made of prefabricated components. The basic components in the scaffold includes base jacks, scaffold frames, double guardrails, vertical diagonals brace and decks, etc.
These can be assembled together to create scaffolds in a variety of different lengths and heights. Usually used in Europe, and material can be steel or aluminum .
Specification
type | Europe facede frame scaffolding system | ||||||
Variety | layher frame & Europe Plettac Frames | ||||||
Main components | frame, steel plank, joint pin, diagonal brace, base jack, toe board, etc | ||||||
Advantage | easy erection, strong loading capacity, safety and stability | ||||||
Material | steel or aluminum | ||||||
Usage | bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry, civil building, etc. | ||||||

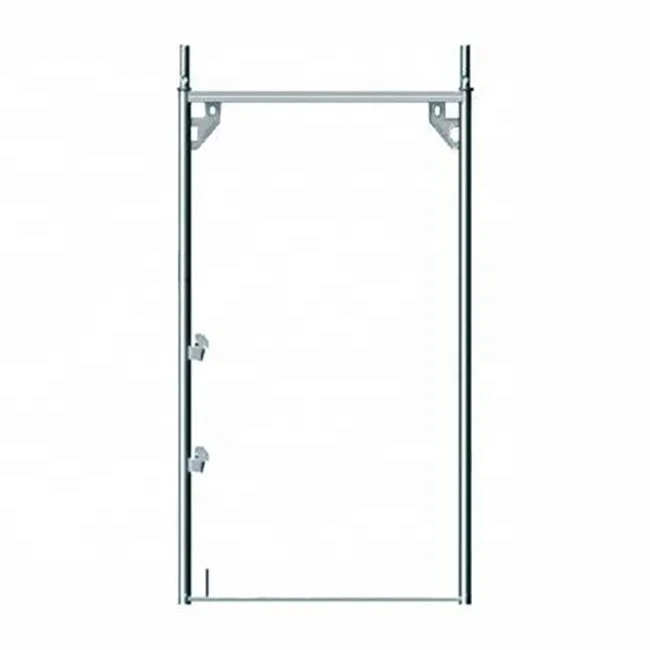

item | Assemble frame |
width | 732 mm |
Length | 1 m/2 m |
size | φ48.3*3.2 mm |
finish | hot dip galvanized |
Customize | according to your drawing |

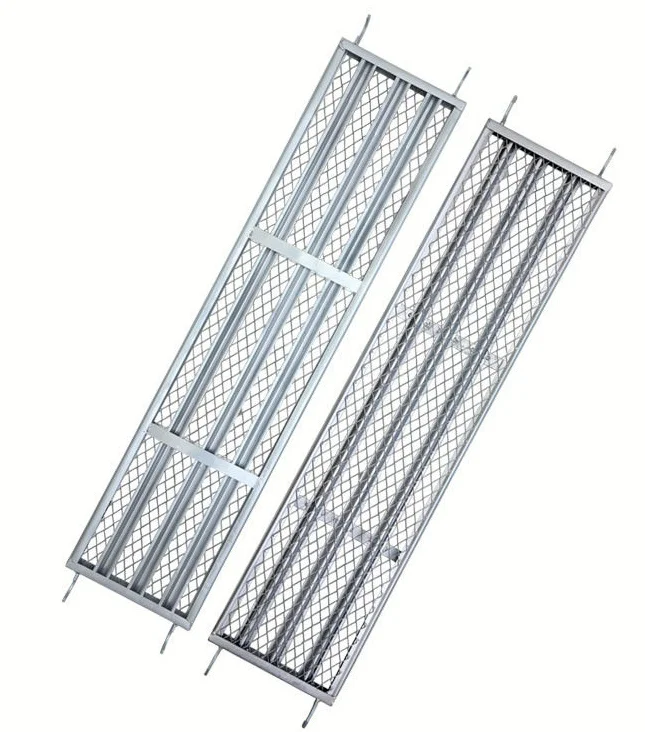

item | steel plank / decking |
finish | pre - galvanized |
Material | "C" profile |
Thickness | 1.8 mm |
Width | 320 mm |
Height | 70 mm |
Length | 0.73/1.07/1.57/2.07/2.57/3.07 m |
Item | diagonal brace |
size | φ42*2mm |
Specification | 2.07*2/2.57*2/3.07*2 m |
finish | HDG |
Item | front Guard rail |
Specification | φ32*2 mm tube HDG Length:1.07/1.57/2.07/2.57/3.07 m |
Item | double front guard rail |
size | φ32*2 mm, φ27*2 mm |
Specification | 2.07/2.57/3.07 m |
finish | HDG |
