3.5 K 5 Lug Hot Sale Tandem Trailer Electric Brake Axle Spare Parts
- Category: >>>
- Supplier: Guilin Pengyuan Trading Co. Ltd.
Share on (1600924201198):
Product Overview
Description
Welcome to Guilin Pengyuan
Product Description

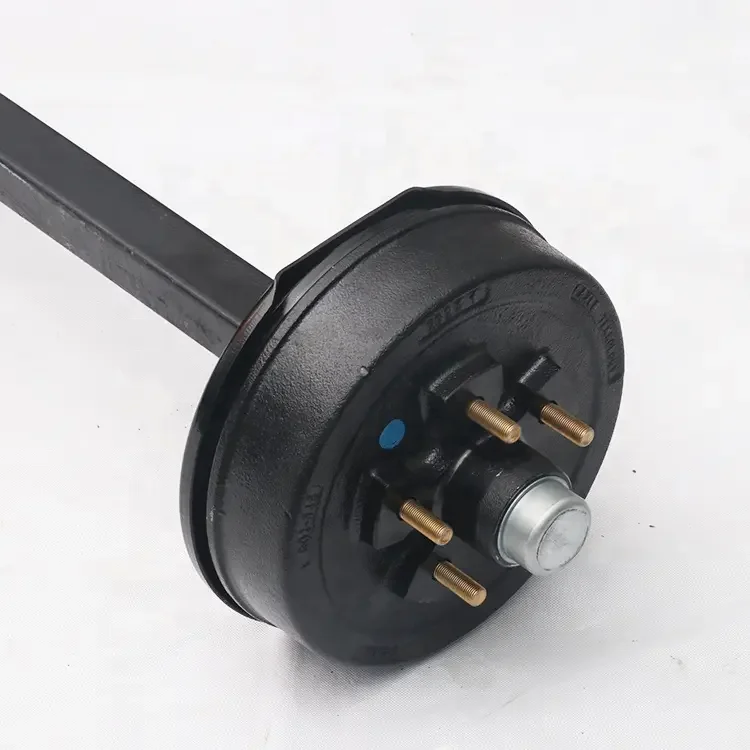

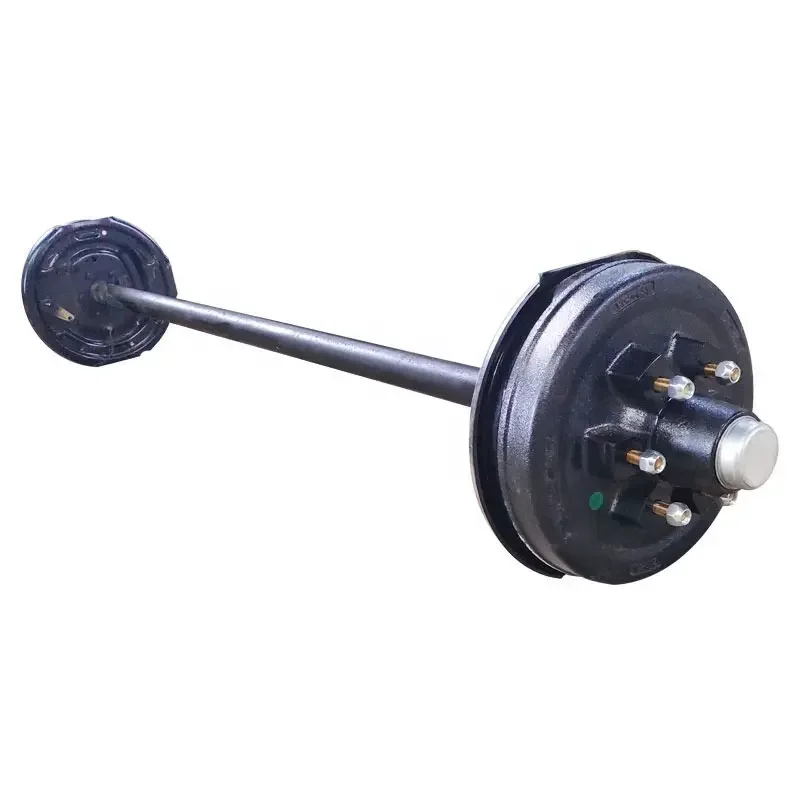

3.5 K 5 Lug Hot Sale Tandem Trailer Electric Brake Axle Spare Parts
Features:
Axle beam acts as part of your trailer's suspension system
Replace an axle on your trailer
Fabricate a suspension system to fit your application
High-strength steel construction
Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires
Best for straight-line acceleration and steady, controlled towing
Under slung design - spring seats welded to underside of axle for mounting leaf springs
Low ride height makes it easier to load and unload your trailer
Straight, EZ-Lube spindles - no drop
Built-in grease zerks for simple lubrication
Spring seats and spindles are welded on
Cast iron idler hubs are sturdy and durable
Bearings, races, seals, grease caps, wheel studs, lug nuts, and marine-grade wheel bearing grease included
Limited 1-year warranty
Specs:
Weight capacity: 3,500 lbs
Hub-face-to-hub-face length: 70"
Flange-to-flange length: 82-5/8"
Hub bolt pattern: 5 on 4-1/2"
Tubing outer diameter: 2-3/8"
Spindle size: 1-1/16"
Brake flange configuration: 4 bolt
Grease cap outer diameter: 1.986"
Wheel stud diameter: 1/2"
Wheel size: 13" - 17-1/2"
Bearing, Race, and Seal Information
Bearings
Inner bearing: L68149
Outer bearing: L44649
Races
Inner race: L68111
Outer race: L44610
Seal: 10-19
Inner diameter: 1.719"
Outer diameter: 2.565"
More specification of Pengyuan trailer axle:
| Item | Part NO. (Black Painted) | Part NO. (Hot glvanized) | Specification |
| Straight Axle(39mm round) | 65"P | 39R65"G | L=1651mm |
| 67"P | 39R67"G | L=1701mm | |
| 76"P | 39R76"G | L=1930mm | |
| 77"P | 39R77"G | L=1955mm | |
| 78"P | 39R78"G | L=1981mm | |
| Straight Axle(40mm square) | 65"P | 40S65"G | L=1651mm |
| 67"P | 40S67"G | L=1701mm | |
| 77"P | 40S77"G | L=1955mm | |
| 84"P | 40S84"G | L=2133mm | |
| Straight Axle(45mm square) | 65"P | 45S65"G | L=1651mm |
| 66"P | 45S66"G | L=1676mm | |
| 67"P | 45S67"G | L=1701mm | |
| 77"P | 45S77"G | L=1955mm | |
| 84"P | 45S84"G | L=2133mm | |
| Straight Axle(50mm square) | 76"P | 50S76"G | L=1930mm |
| 84"P | 45S84"G | L=2133mm | |
| Overlay Axle(40mm square) | W-40S2180G | L=2180mm | |
| Overlay Axle(45mm square) | W-45S2180G | L=2180mm | |
| Overlay Axle(45mm square) | W-45S2235G | L=2235mm | |
| Overlay Axle(45mm square) | W-45S2320G | L=2320mm |
Related Products
Company Information
Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupies an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,
As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.
We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.
Production workshop and equipment:
Pengyuan is well-equipped with all kinds of trailer parts.
We has 487 sets of physical performance, chemical analysis,
metallographic inspection and other testing equipment.
Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit

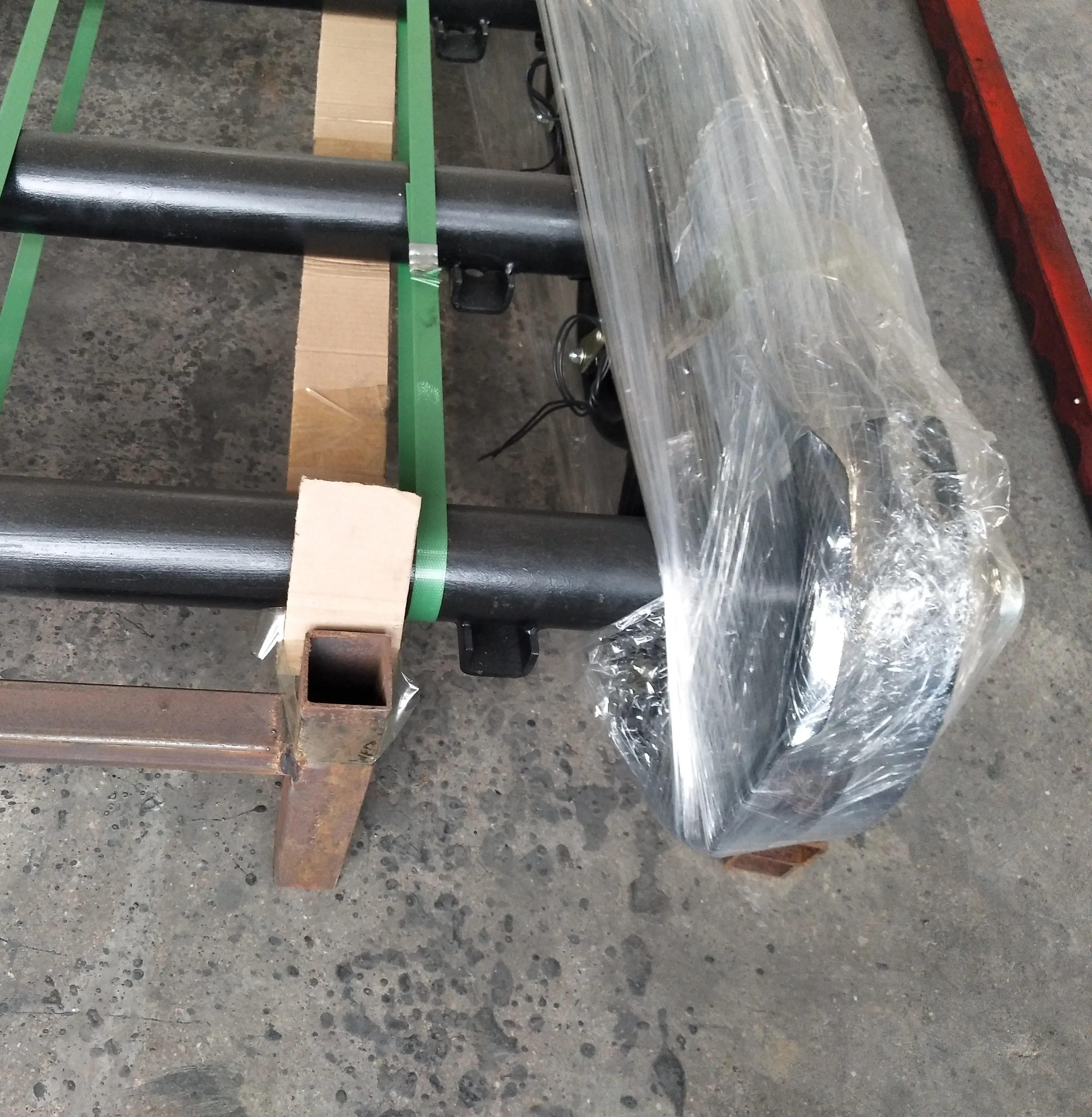

Packaging & Shipping
As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.
FAQ
1: Could you please make us an offer as soon as possible?
In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.
2: Could you please provide us with the specifications of the products?
Sure, please confirm the product code you need before that.
3: How can you guarantee the quality of your products?
Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
4: How to solve the problems in the later stage?
We are confident in our products. We pack them well to make sure they are well protected.
