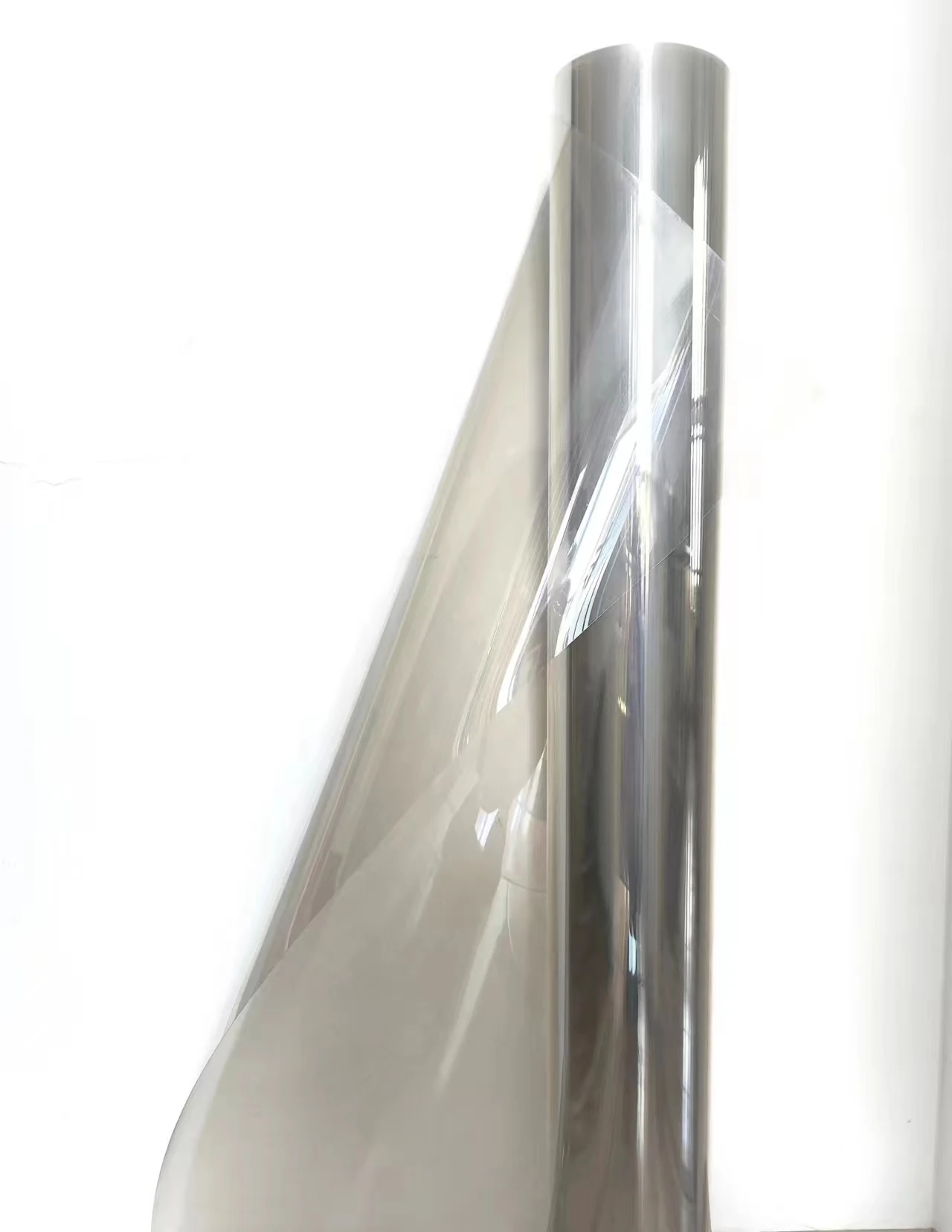

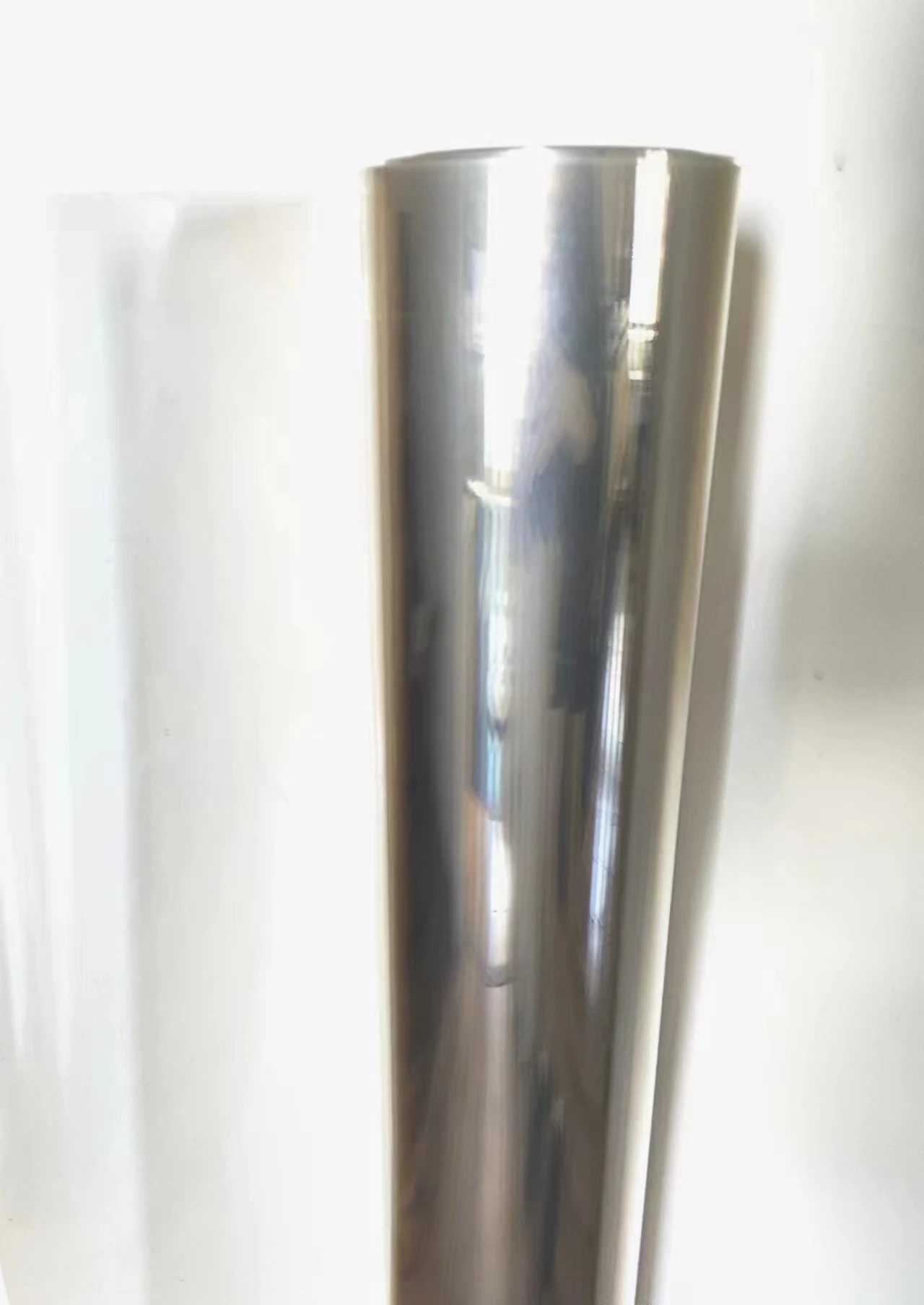

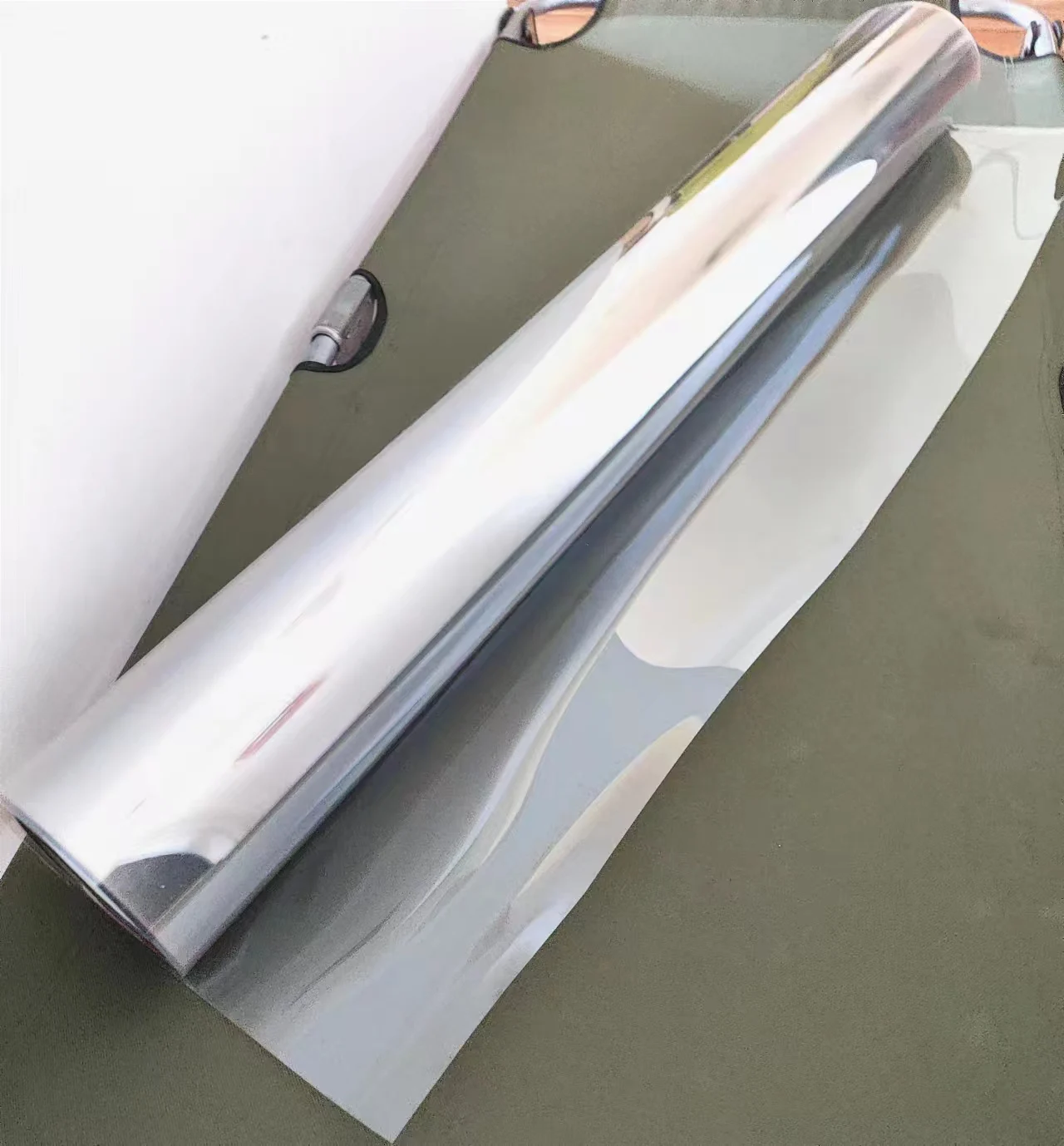

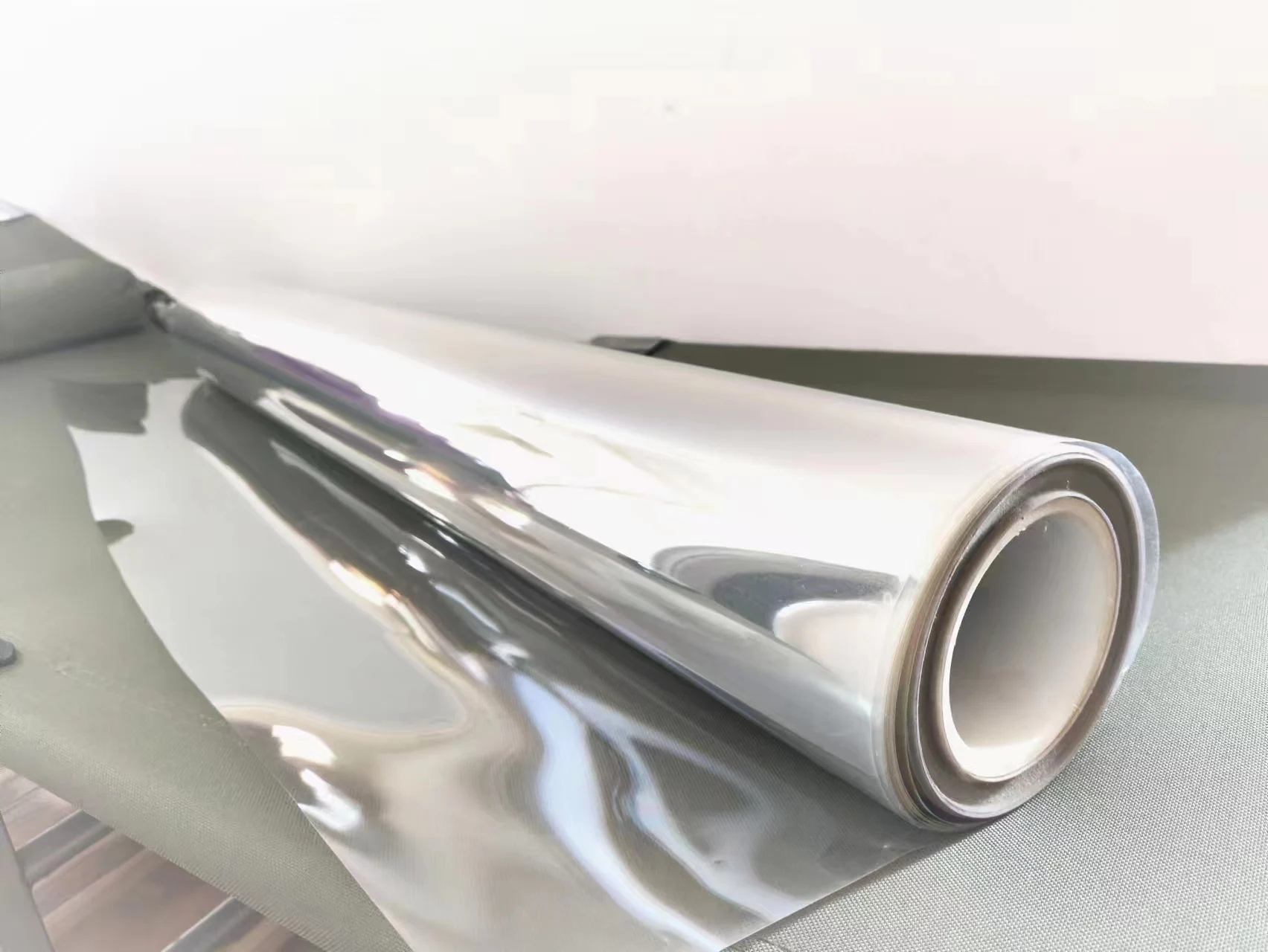

WSLPM250B Metal Mesh emiShielding Film For Medical Display
- Category: >>>
- Supplier: Mianyang Prochema Commercial Co. Ltd.
Share on (1600924209295):
Product Overview
Description

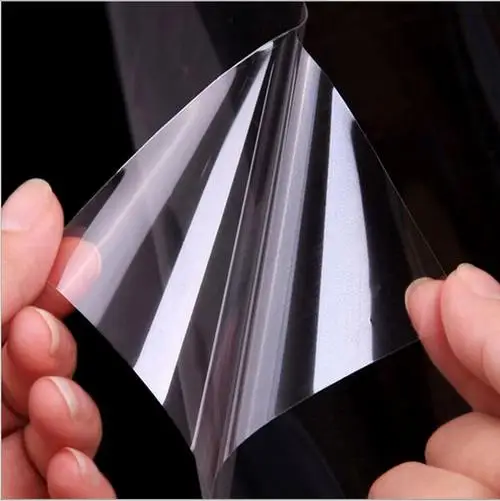

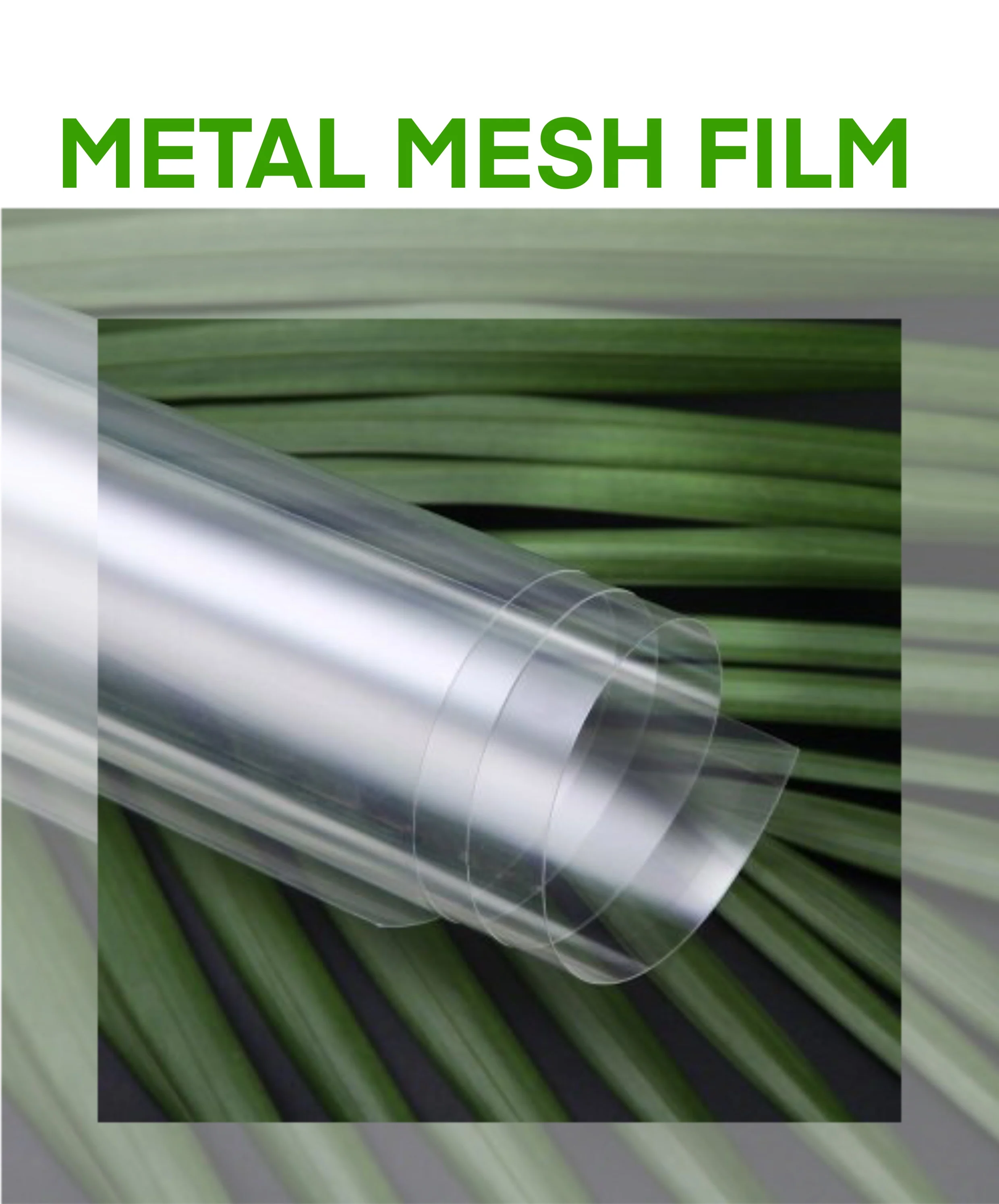

Metal mesh film is an optical transparent conductive film for anti radioation and electronic EMI shielding.
Applicable for electronic window,LCD display,electric meter etc ,to protect the display normally work in electromagnet environment.
Applicable for electronic window,LCD display,electric meter etc ,to protect the display normally work in electromagnet environment.

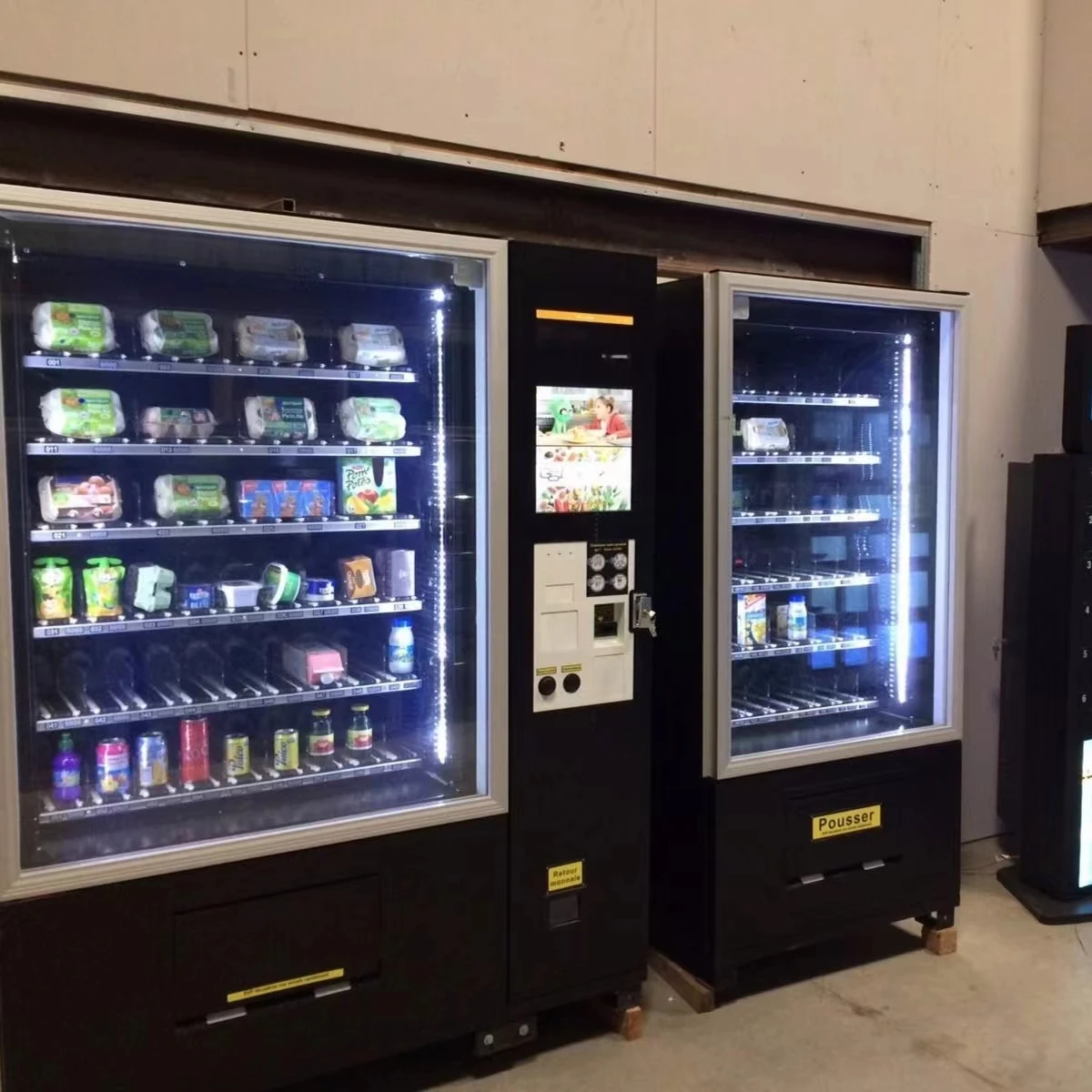

With the advent of the intelligent era, vending machines are becoming more and more popular. As the most mature RFID identification technology, it has many applications and developments in unmanned supermarkets, automatic bookcases, automatic medicine cabinets, self-service picking machines, etc. The WSLPMT250B transparent shielding film developed and produced by our company has absolute advantages in solving the RF signal shielding of RFID vending machines. Our materials have high shielding effectiveness, with an average attenuation of 43.9DB. While completely shielding RF signals, the light transmittance is greater than 84%. Natural vision, good sense, durable alloy materials. The single layer glass film greatly reduces the weight of the door and plays an important role in the overall safety of the cabinet.

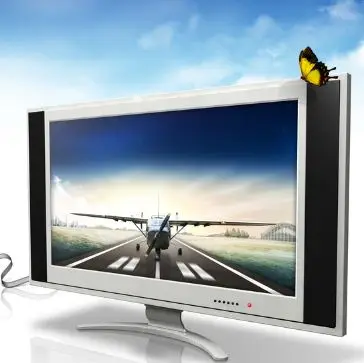

Metal Mesh Film For Medical Display

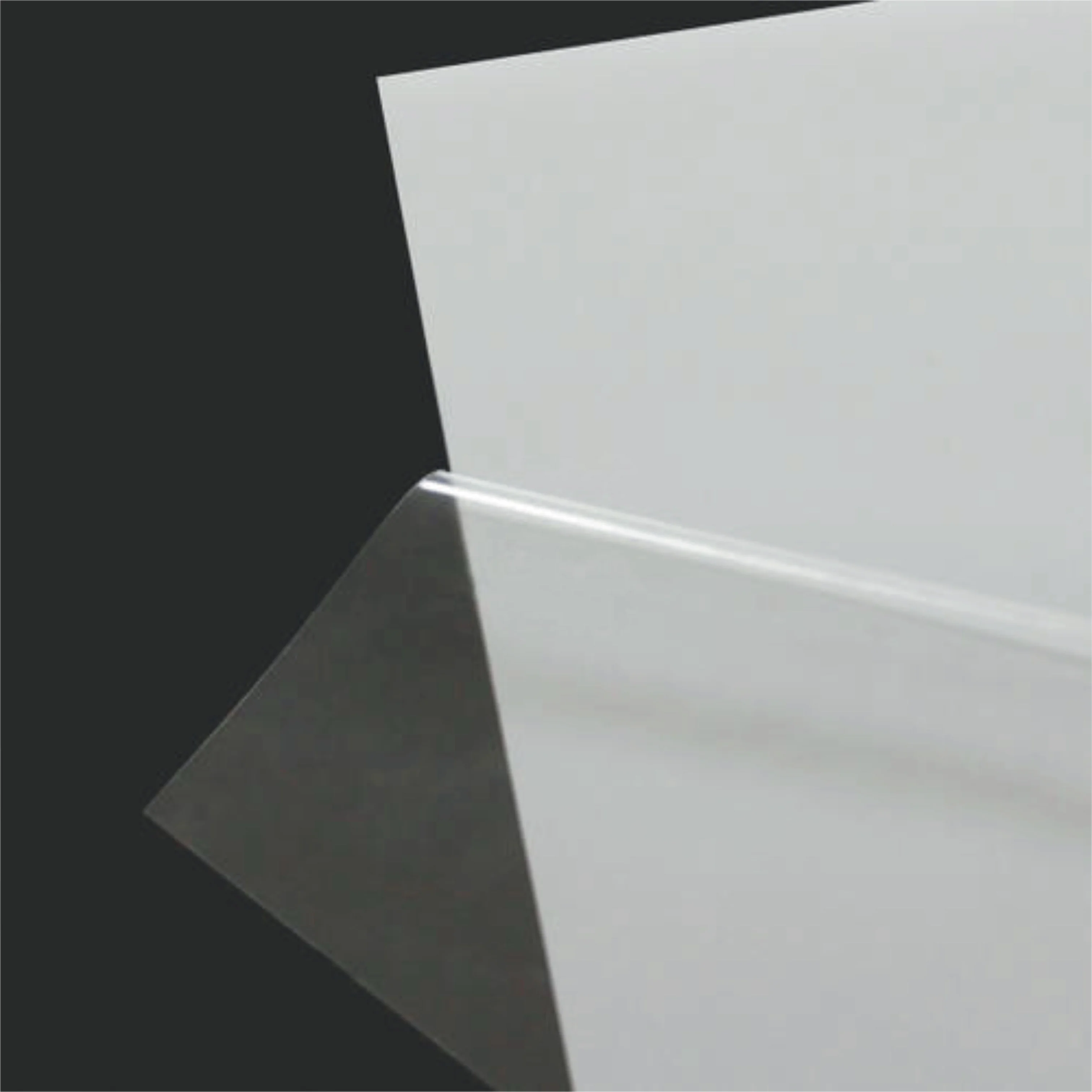

There is glue on backside, can directly stick to LCD screen or glass or other panel, easy operation!
Metal Mesh Film For Military Screen
High transmittance, no moire fringe!
With the arrival of the 5G era, the prevention of information leakage has been paid more and more attention by relevant units. With the diversity and complexity of signals, the shielding effectiveness of the shielding film is getting higher and higher. The WSLPMT250B transparent shielding film developed and produced by our company can shield low-frequency, intermediate frequency, high frequency, very high frequency, ultra-high frequency, ultra-high frequency and other electromagnetic signals, so as to protect the information confidentiality work of institutions and enterprises. Irregular network has the advantage of undistorted scenery in any use environment.
In terms of the application of electromagnetic shielding film to the shielding of LCD screen to prevent information leakage, WSLPM250B shielding film has a leading level. Its ultra-low square resistance of 0.04 Ω/sq and ultra-fine wire diameter can ensure high shielding effectiveness while having 84% high light transmittance. Irregular networks can have high-definition and high-definition images without angle adjustment. There is no moire on the LCD surface. It is currently a high-performance shielding material for LCD screen shielding.
Our company operates a variety of models of shielding films to meet the production needs of different industries. All models of shielding films of our company are stably supplied for a long time, providing long-term warranty and after-sales service, and customers can purchase with confidence.
item | value |
Material | PET |
Type | Metallized Film |
Usage | Emi Shielding |
Feature | Flexible & Conductive |
Hardness | Soft |
Transparency | Transparent |
Place of Origin | China |
Model Number | WSLPM250B |
Product Name | WSLPM250BMesh Emi Shielding Film |
Thickness | 125um |
Width | 0.8*1.8m |
Adhesive | Available |
Color | Transparent |
OCA Thickness | 25um |
Transmittance | >84% |
Line Width | 9um |
Resistance | <0.03ohm/sq |
Haze | <2% |

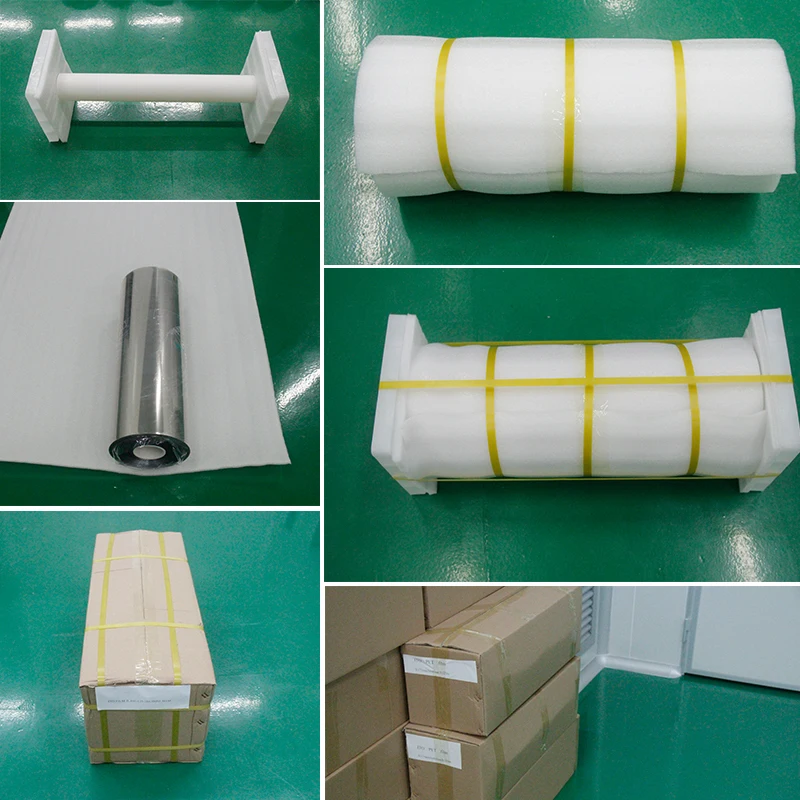

plastic bag and carton
Our company is in a leading position in the innovation and development of display &
window EMI/RFI shielding solutions. With the design update of display size and definition,
the new generation of nano mesh film has higher transparency and stronger shielding

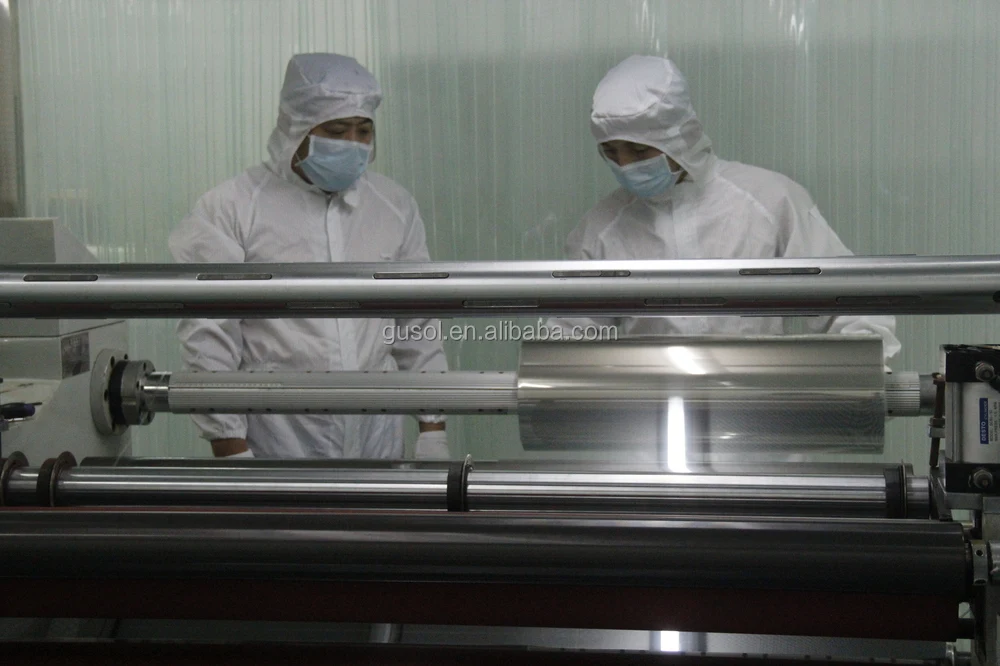

effect. Adopting the innovative principle of nano-alloy wire conductive printing process, the
introduction of etching grid technology, and the optimized display mode, making our
mesh film to be the first choice for window and touch screen shielding.
window EMI/RFI shielding solutions. With the design update of display size and definition,
the new generation of nano mesh film has higher transparency and stronger shielding
effect. Adopting the innovative principle of nano-alloy wire conductive printing process, the
introduction of etching grid technology, and the optimized display mode, making our
mesh film to be the first choice for window and touch screen shielding.
Mianyang Prochema Commercial Co., Ltd. is a leading manufacturer of ITO transparent conductive films for EMI,EL,E-PAPER,FPV(flexible solar cell),LCD etc. And Prochema is in supply of resistive Touch screen, capacitive touch film as per customer design. Meanwhile we still go on with our old business of insulation films.
Below is the list of supplying:
1.ITO PET FILM
Resistance:35, 50,100 ,150 ohm/sq
Thickness:25-175microns
Width:305-1220mm
2.Touch screen
Type: resistive , capacitive
Size:2-22"
Form:film+glass,film+film, film single layer
3.Insulation film
Material:FEP, PFA,PVDF,PCTFE,ETFE ,Polyimide,polyester film
Insulation temperature range:130-265C
Prochema has well trained staff to help you source in China for other special materials. Keep watching us, and start enjoying the excellent service.
We are looking forward to your cooperation with us for mutual benefits.
Below is the list of supplying:
1.ITO PET FILM
Resistance:35, 50,100 ,150 ohm/sq
Thickness:25-175microns
Width:305-1220mm
2.Touch screen
Type: resistive , capacitive
Size:2-22"
Form:film+glass,film+film, film single layer
3.Insulation film
Material:FEP, PFA,PVDF,PCTFE,ETFE ,Polyimide,polyester film
Insulation temperature range:130-265C
Prochema has well trained staff to help you source in China for other special materials. Keep watching us, and start enjoying the excellent service.
We are looking forward to your cooperation with us for mutual benefits.
1. who are we?
We are based in Sichuan, China, start from 2004,sell to South Asia(30.00%),North America(20.00%),Eastern Europe(18.00%),South America(10.00%),Mid East(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Domestic Market(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Transparent Conductive Film,Printing Film,Touch Control Film and Panel,Electronic Insulation Film,Handwriting Pad
4. why should you buy from us not from other suppliers?
1.Self produce ITO PET film
2.Professional expereinc in insulation film,wide knowledge service
3.TUV and Alibaba audit gold member,honest business
4.Stable quality and reasonable cheap price
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Sichuan, China, start from 2004,sell to South Asia(30.00%),North America(20.00%),Eastern Europe(18.00%),South America(10.00%),Mid East(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Domestic Market(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Transparent Conductive Film,Printing Film,Touch Control Film and Panel,Electronic Insulation Film,Handwriting Pad
4. why should you buy from us not from other suppliers?
1.Self produce ITO PET film
2.Professional expereinc in insulation film,wide knowledge service
3.TUV and Alibaba audit gold member,honest business
4.Stable quality and reasonable cheap price
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
