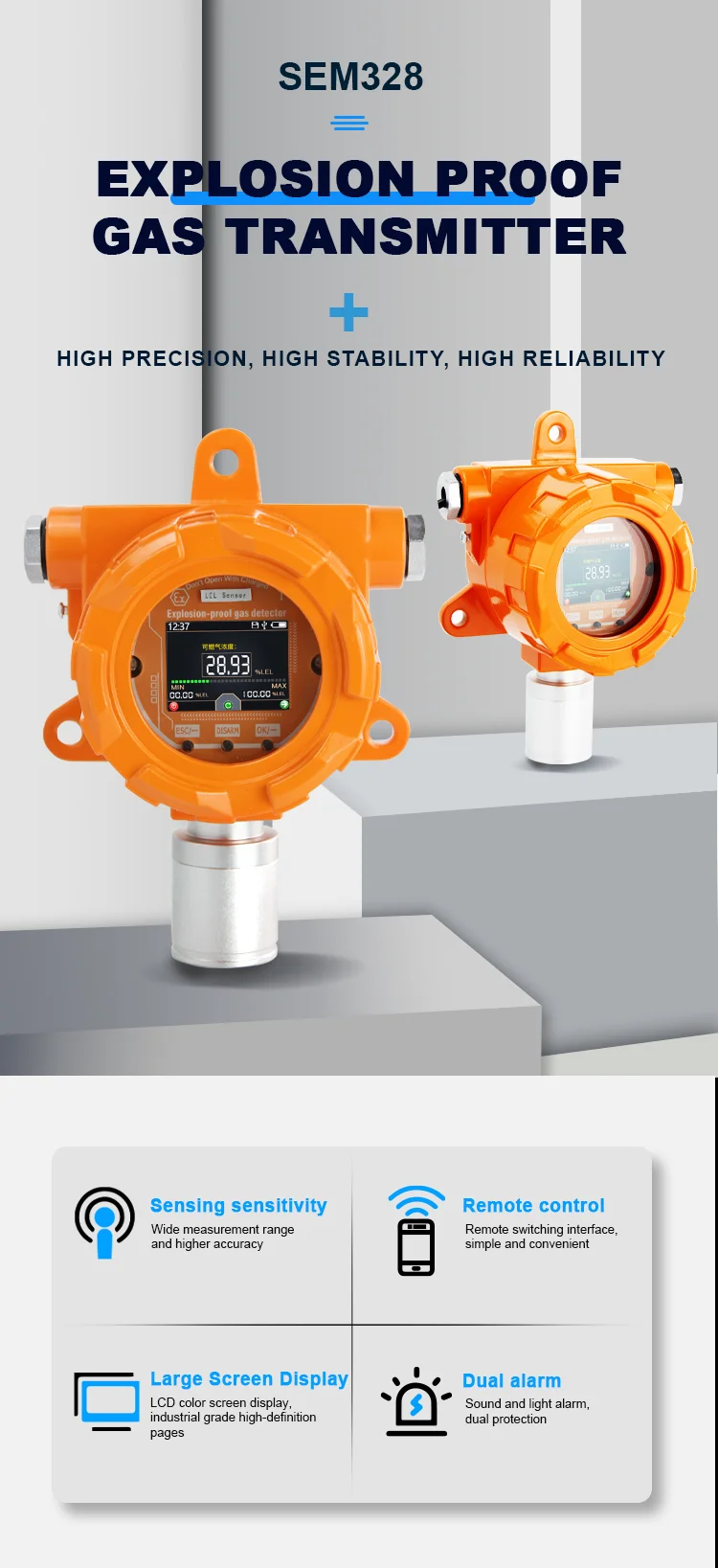

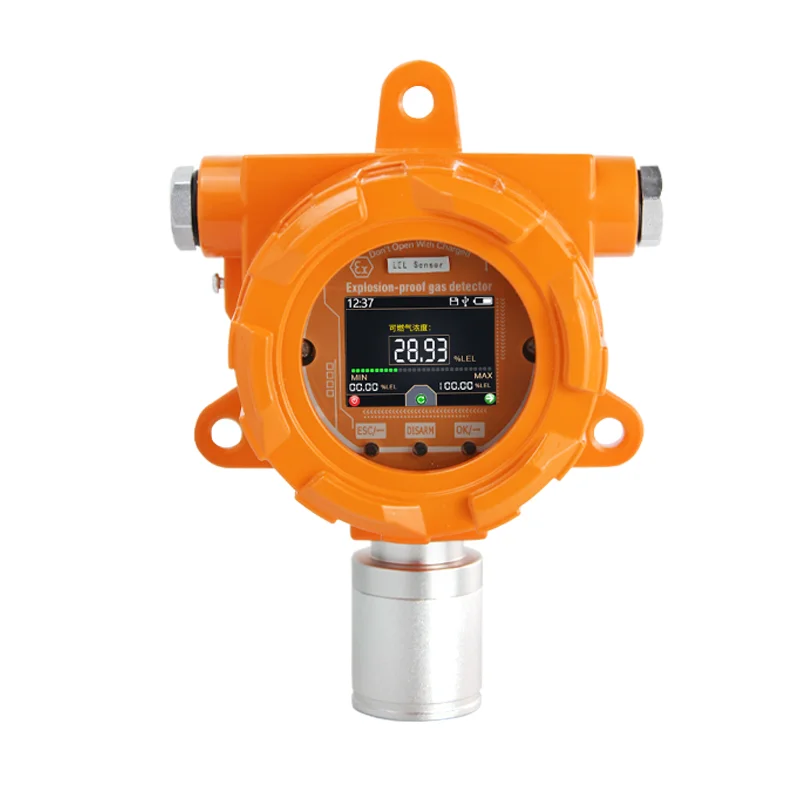

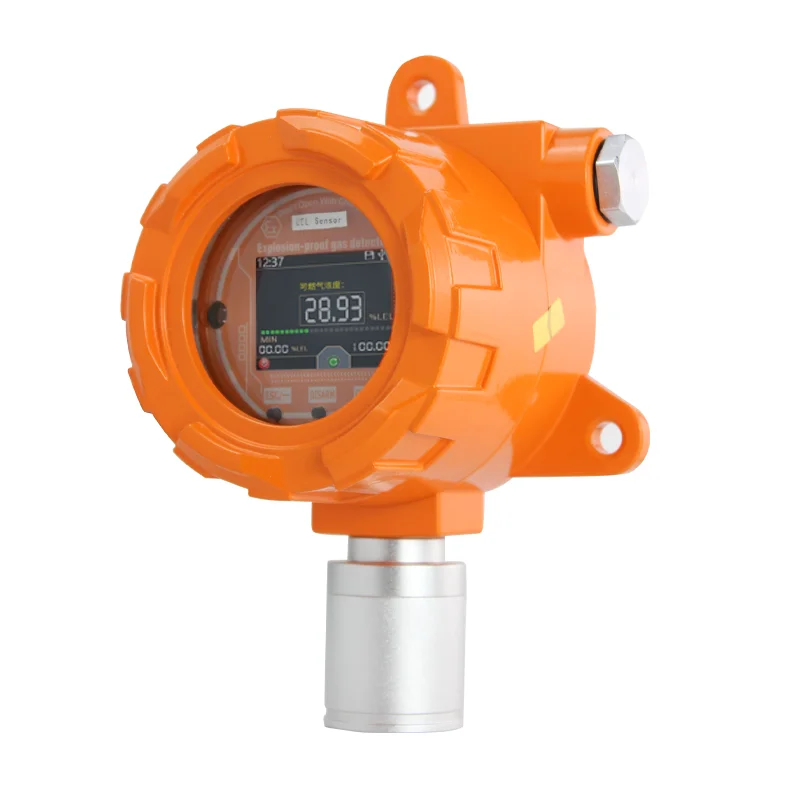

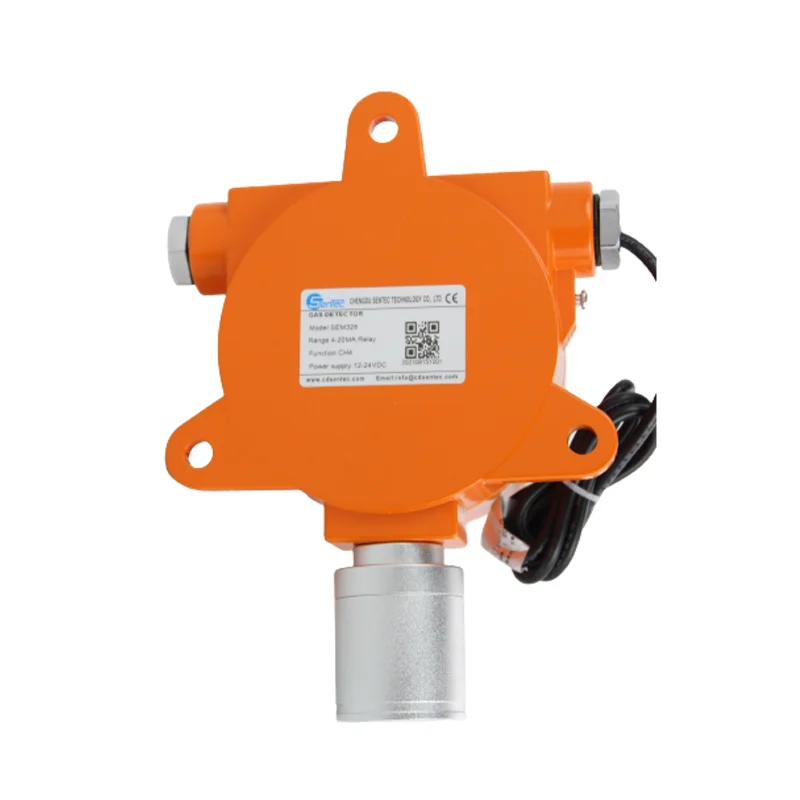

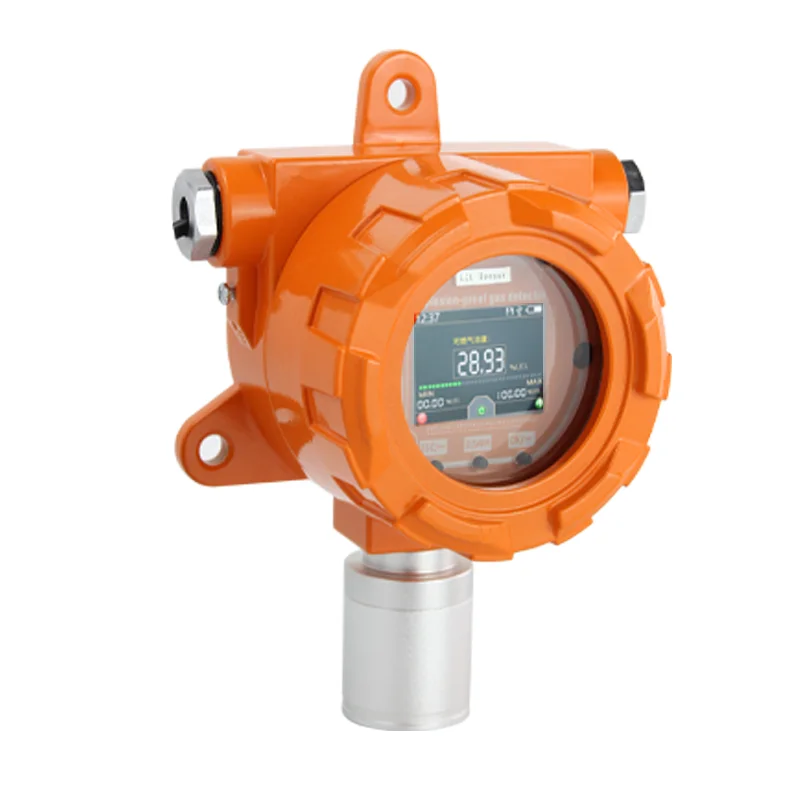

SenTec SEM328 Explosion Proof Gas Sensor With Strong Anti interference Ability Gas Meter
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1600924223798):
Product Overview
Description

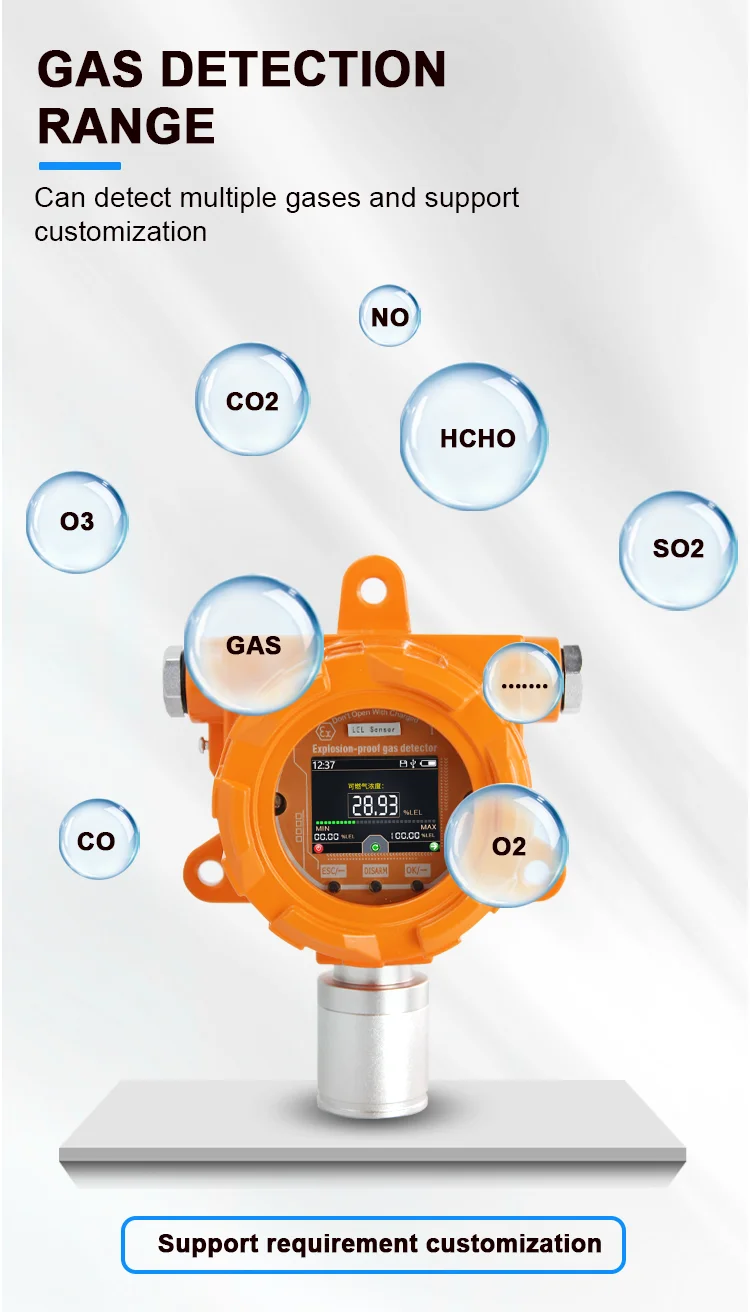

The on-site power supply adopts 10~30V DC wide-voltage power supply, supports a variety of gas detection, and the range can be customized;
The gas transmitter adopts imported fifirst-line brand electrochemical sensor, which has the characteristics of rapid response and strong anti-interference ability;
Wide voltage 10-30V DC power supply, standard Modbus-RTU communication protocol 485 signal output, address and baud rate can be set, the communication distance is up to 2000 meters;

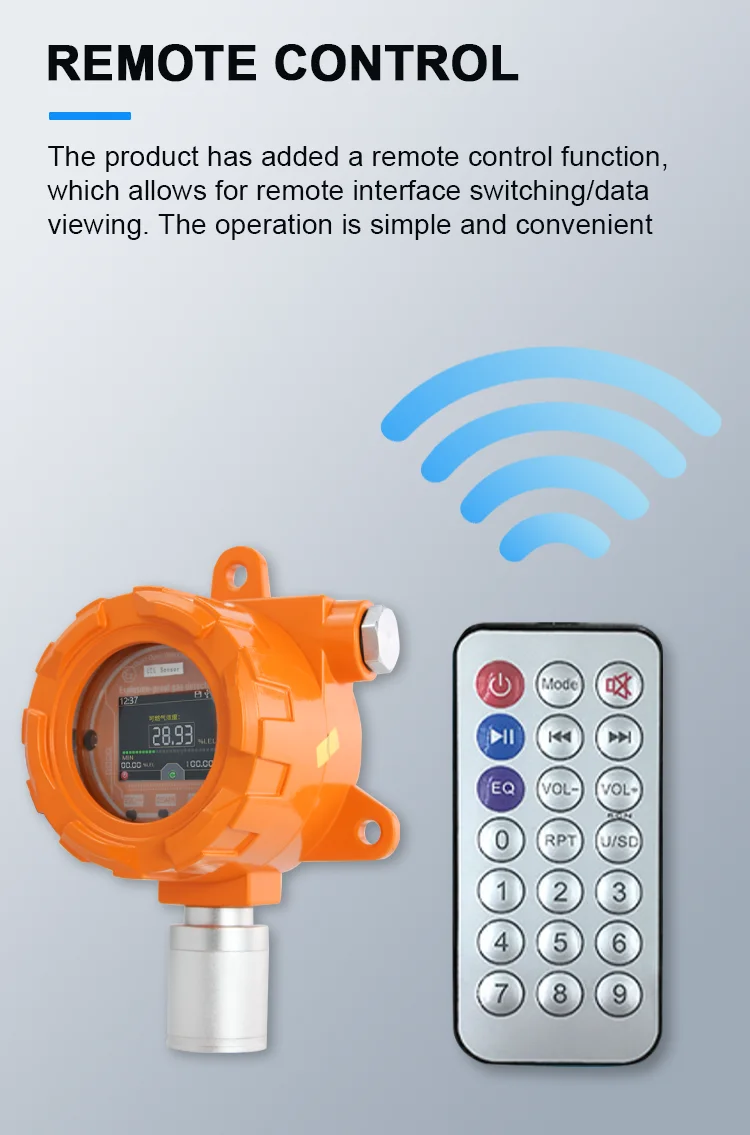

Using remote infrared remote control technology, after our unique compensation algorithm, multi-stage standard gas
calibration, it also has the characteristics of long life, high precision, high repeatability and high stability;

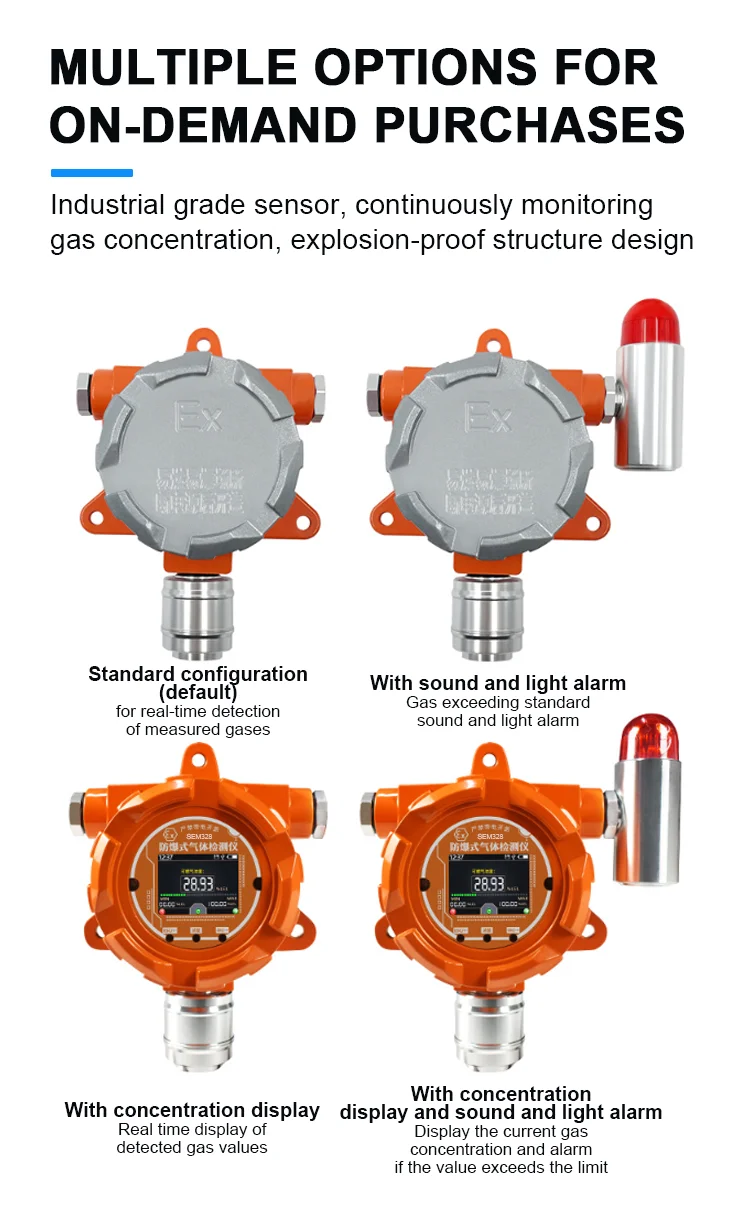

Optional high-quality LCD screen, the value can be viewed directly on site, and can be displayed clearly at night.
The gas transmitter adopts imported fifirst-line brand electrochemical sensor, which has the characteristics of rapid response and strong anti-interference ability;
Wide voltage 10-30V DC power supply, standard Modbus-RTU communication protocol 485 signal output, address and baud rate can be set, the communication distance is up to 2000 meters;
Using remote infrared remote control technology, after our unique compensation algorithm, multi-stage standard gas
calibration, it also has the characteristics of long life, high precision, high repeatability and high stability;
Optional high-quality LCD screen, the value can be viewed directly on site, and can be displayed clearly at night.
Power Supply | 10-30VDC | ||
Average power consumption | 0.35W | ||
Output signal | RS485 (Modbus protocol) | ||
Repeatability | NH3, H2, CO(1000ppm), H2S, CH4/NO2, SO2,CH2O, O3: ≤2% CO(2000ppm): ≤3%, O2: 1% | ||
Stability | CO()0~1000ppm)/H2S/H2/NO2/SO2/NH3 | ≤2%/month | |
CH4/CH2O/O3 | ≤7%/year | ||
CO(0~2000ppm)/O2 | ≤5%/year | ||
Working temperature | H2/CO/H2S/CH4/NO2/SO2/CH2O/O2/NH3: -20~50℃ O3: -10~55℃ | ||
Working humidity | NH3/H2/CO/H2S/NO2/SO2/CH2O/O3: 15~90%RH, No condensation O2: 5~95%RH, No condensation CH4: 0~95%RH, No condensation | ||
working pressure | NH3,/H2/CO(1000ppm)/H2S/SO2/O2 | 90~110Kpa | |
NO2/CH2O/O3 | 91~111Kpa | ||
CH4 | 80~116Kpa | ||
Preheating time | NH3/H2/CO/H2S/CH4/NO2/SO2/CH2O/O3/O2: ≥5 minutes | ||
The specific price is subject to the parameters, please contact us for the quotation
