S5735 S24P4XE V2 24 Ports, 4 x 10 GE SFP Ports, 2 stack ports poe switch

Description

S5735-S24P4XE-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, without power module)

Part Number

98012030

Model

S5735-S24P4XE-V2

First supported version

V600R022C01

Technical Specifications

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

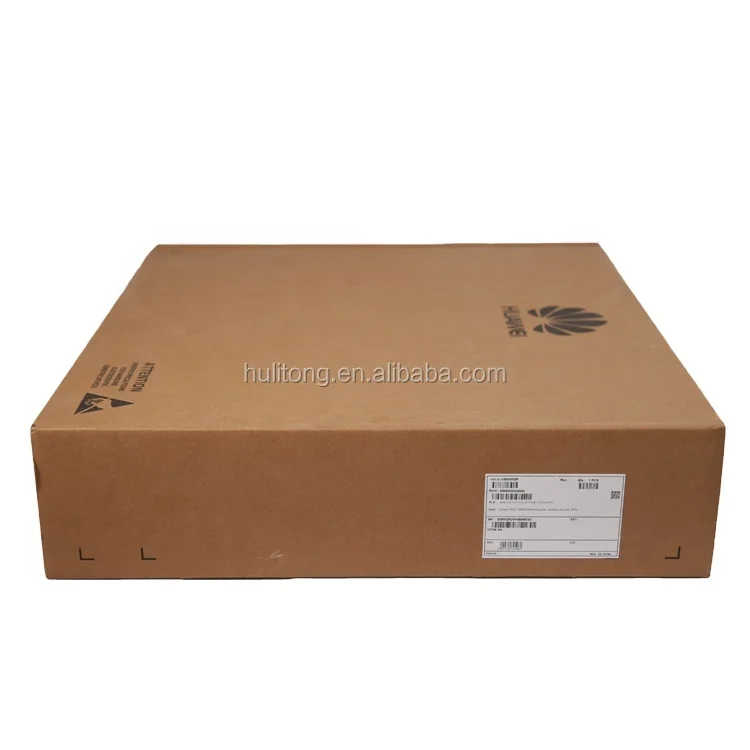

Dimensions with packaging (H x W x D) [mm(in.)]

185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)

Chassis height [U]

1

Weight without packaging [kg(lb)]

4.80 (10.58)

Weight with packaging [kg(lb)]

7.74 (17.06)

Typical power consumption [W]

39.43

Typical heat dissipation [BTU/hour]

134.54

Maximum power consumption [W]

- Without PoE: 83.76 W
- Full PoE load: 1023.22 W (PoE: 840 W)

Maximum heat dissipation [BTU/hour]

- Without PoE: 285.80
- Full PoE load: 3491.33

Static power consumption [W]

28.65

MTBF [year]

120.24

MTTR [hour]

2
