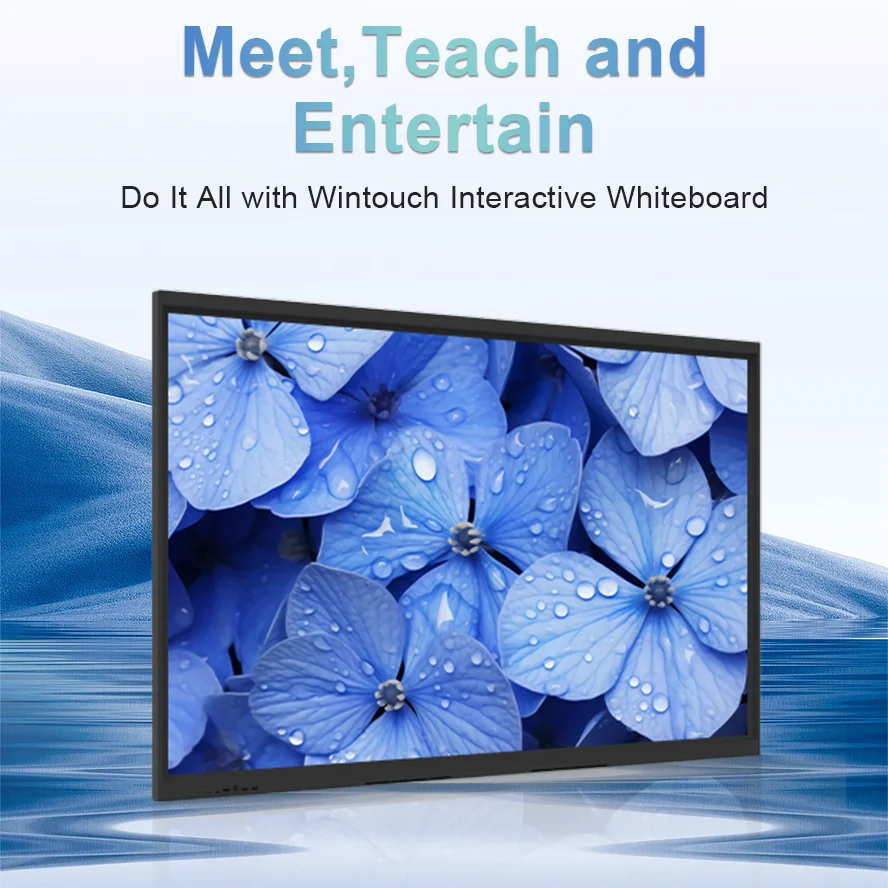

Aluminum Alloy Frame Electronic Interactive Board Interactive Dart Board Interactive Boards All In One
- Category: >>>
- Supplier: Dongguan Liontek Technology Co. Ltd.
Share on (1600924272054):
Product Overview
Description
Main features:

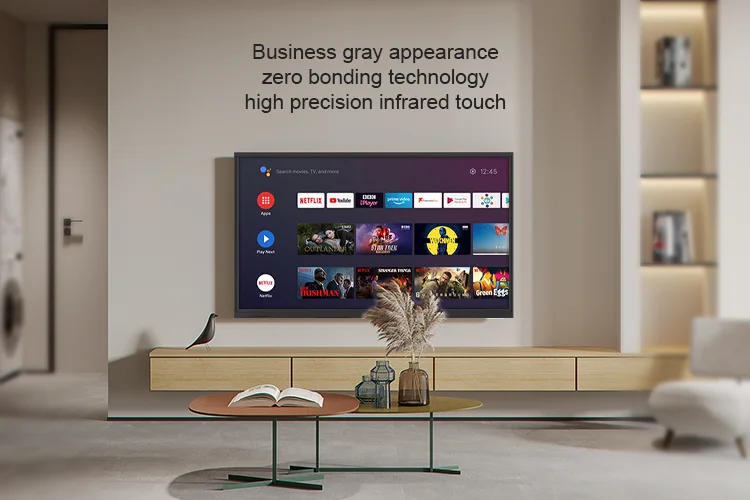

Business gray appearance, zero bond ing technology , high precision infrared touch, front mult i-functional port, aperture horn network, Android11.0 system

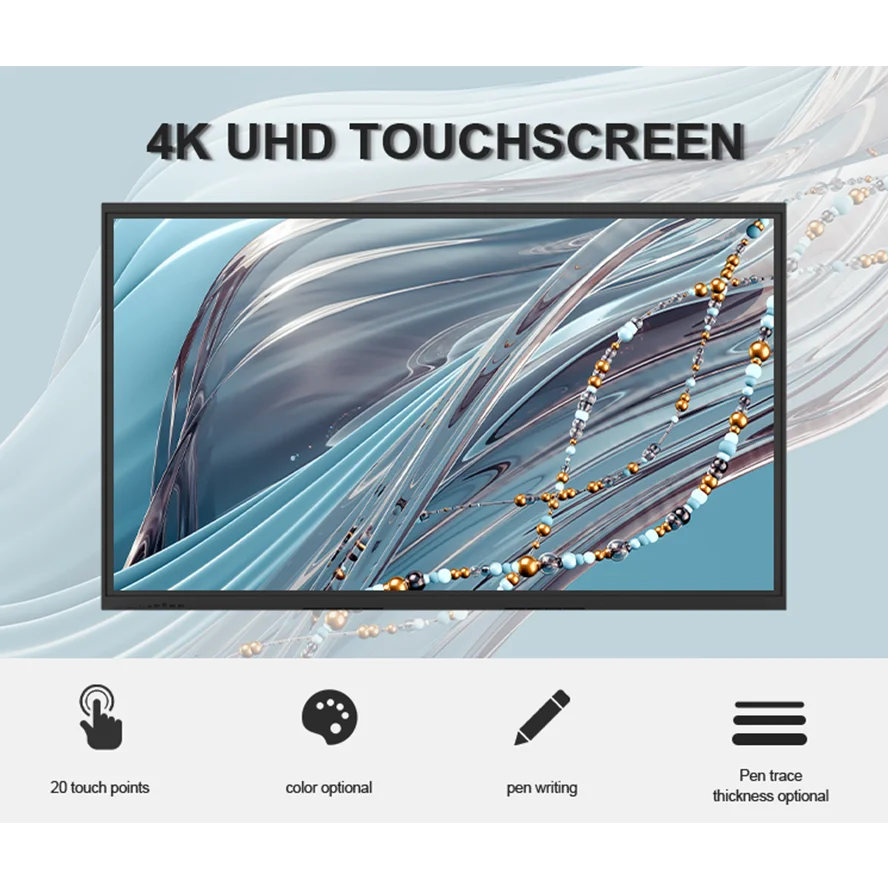

Android 11 Embedded system;Support the 20-point touch writing which meets the needs of different users ;

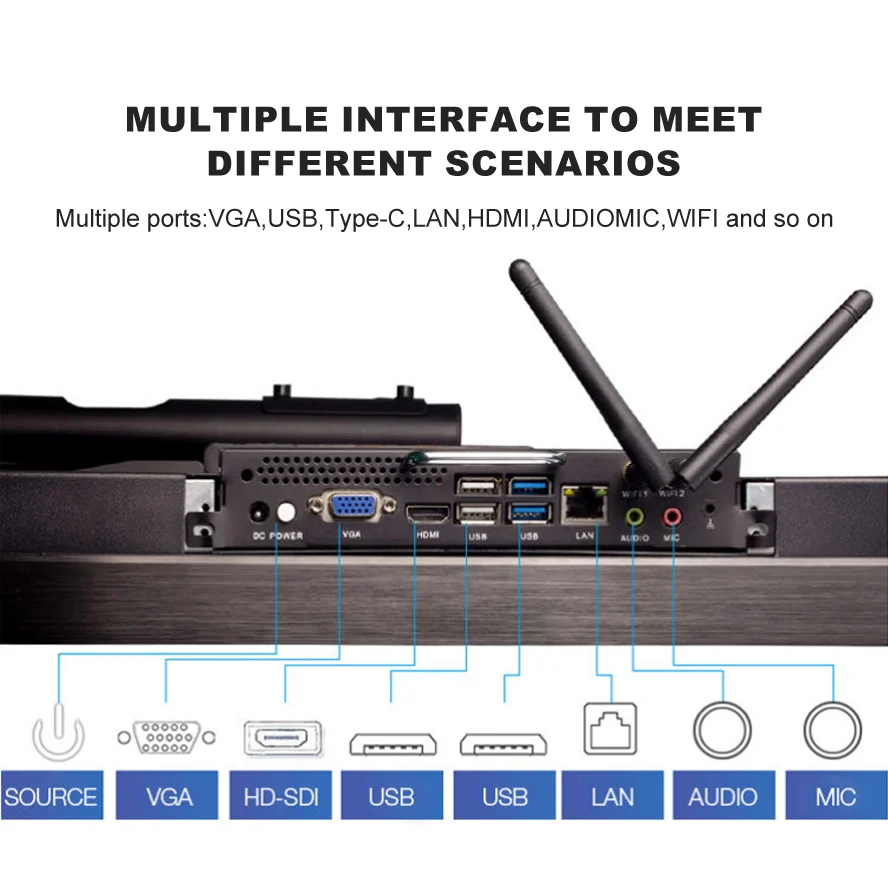

Product Parameter | Interface | |||||
Body material | Aluminum alloy frame | Input Port (IN) | HDMI: 2 sets | |||
Front frame glass | Physical tempered grade 7 explosion-proof glass, AG anti-glare treatment; | PC AUDIO: 1 set | ||||
The power of the machine | 220W (excluding OPS, supporting OPS power 100W) | Output Port (OUT) | OPTICAL OUT: 1set | |||
Standby power | ≤0.5W | (Mini) LINE: 1 set | ||||
Sound horn | Stereo sound effects, 2 * 15W high and height sound | Other ports | RJ 45 / LAN: 2 sets | |||
input voltage | AC 100-240V ~ 50/60Hz | Touch USB: 1set | ||||
RS232: Group 1 set | ||||||
System Parameter | USB2.0: 1 set | |||||
Main board | T982-N0DN | USB 3: 2 set | ||||
CPU | Quad-coreA55 2.0GHz | Font ports | HDMI IN: 1 set | |||
GPU | Mali-G52 MP2 | USB 3.0: 2 set | ||||
internal storage | 4G | Touch USB: 1 set | ||||
memory | 32GB | Type-C: 1 set | ||||

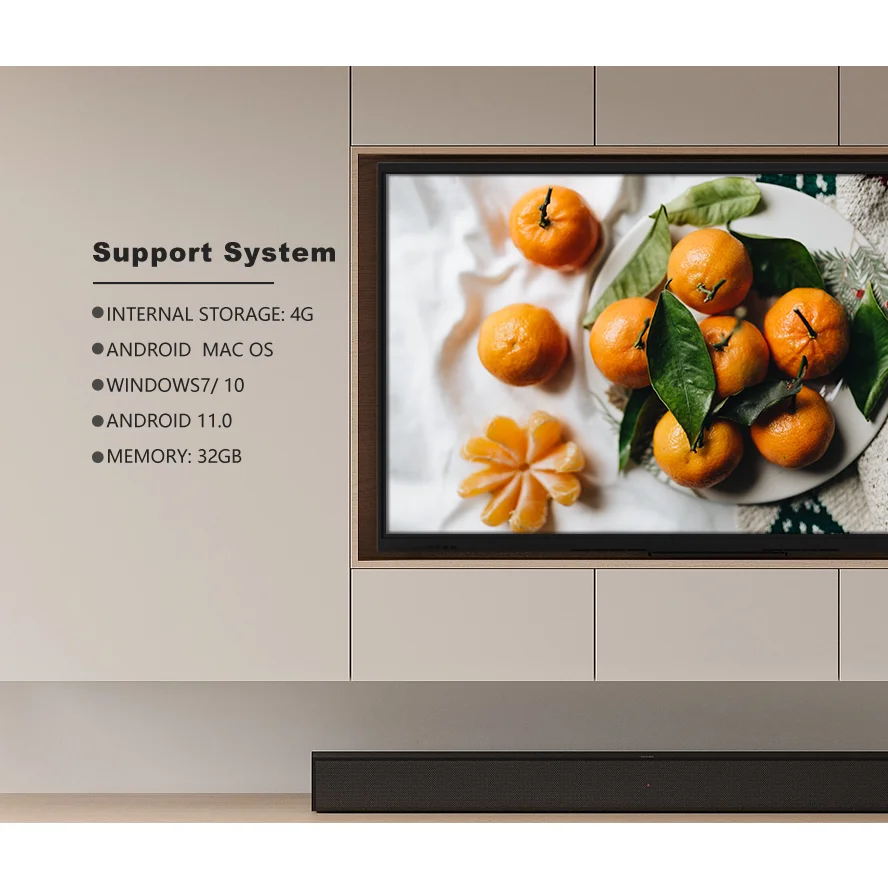

System version | Android 11.0 | |||||

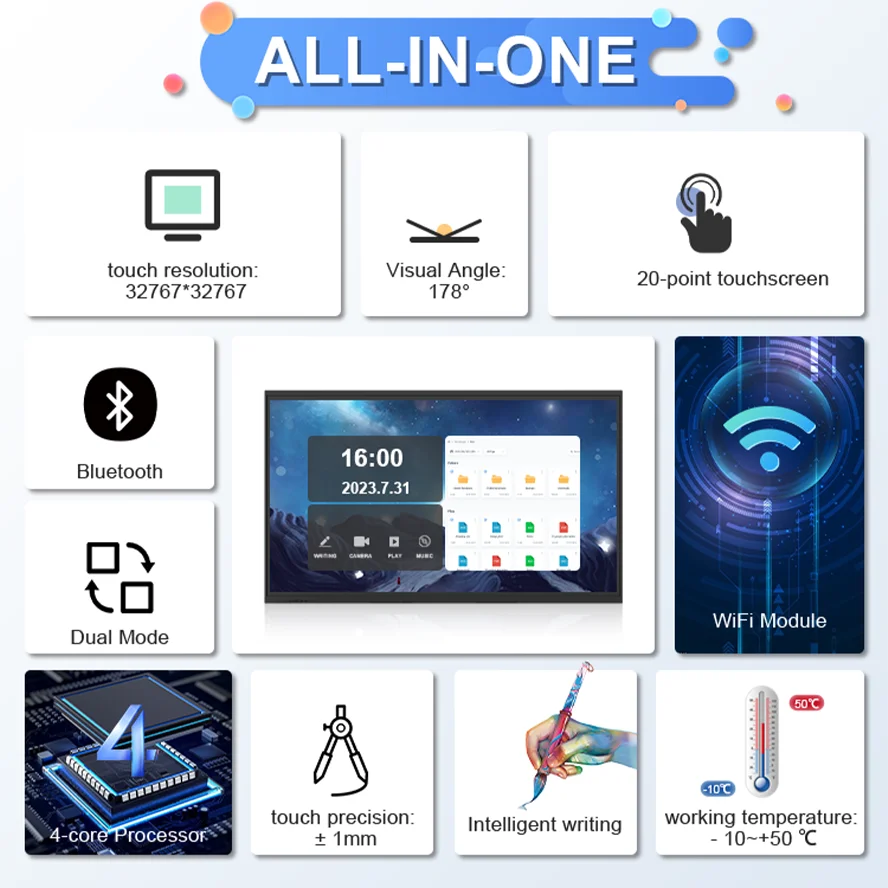

Touch parameters | ||||||
Display parameters | Touch-controlled embedded mode | Built-in all in one | ||||

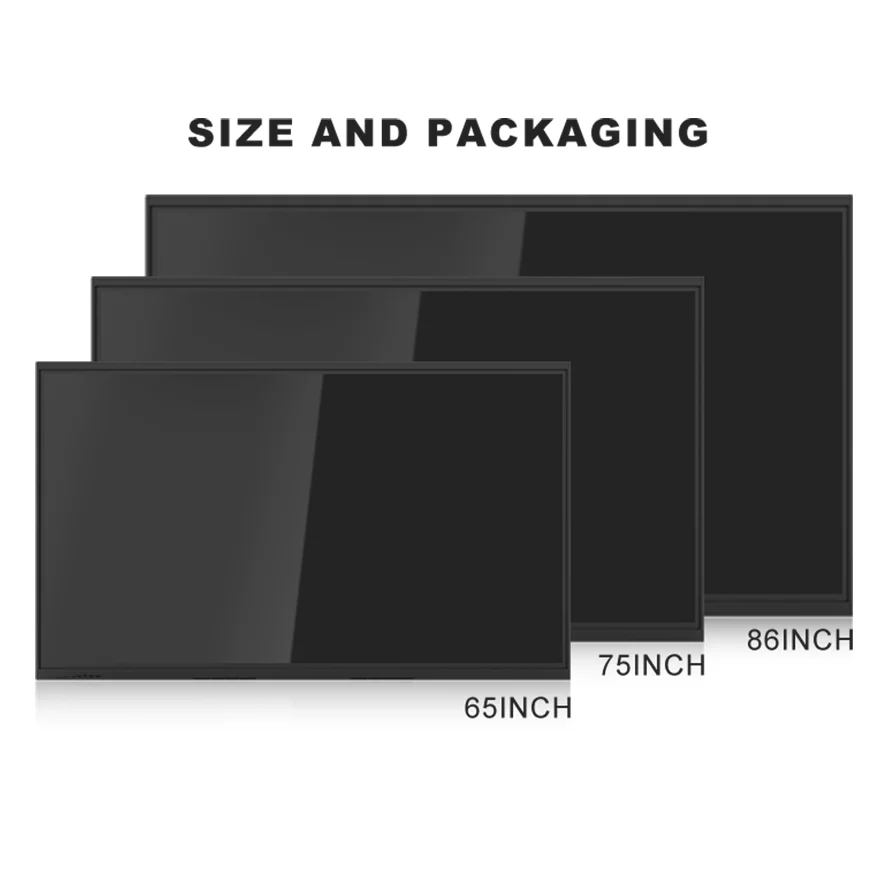

Panel size | 65-inch (16:9) | The way of writing | Finger, touch pen or other> 3mm not transparent object | |||
Backlit type | D-LED | Number of touch points | 20 points | |||
Display area | 1429.5 (H ) ×804.5 (V) | Touch resolution | 32767*32767 | |||
resolution ratio | 3840 (H) ×2160 (V) (UHD) | Touch precision | ± 1mm | |||
Color degree | 8bit ，1.07B | Single refers to the response speed | ＜8ms | |||
luminance | Center point: 300-350 cd / m | Touch number | The theoretical number is infinite | |||
contrast ratio | ≥ 1200：1 (Typ. ) | drivers | System automatic identification, no drive | |||
Visual Angle | 178° (H ) / 178°(V) | support system | windows7/ 10 ，Android ，Mac OS | |||
Backlight life | For> 30,000 hours | working temperature | - 10~+50 ℃ | |||

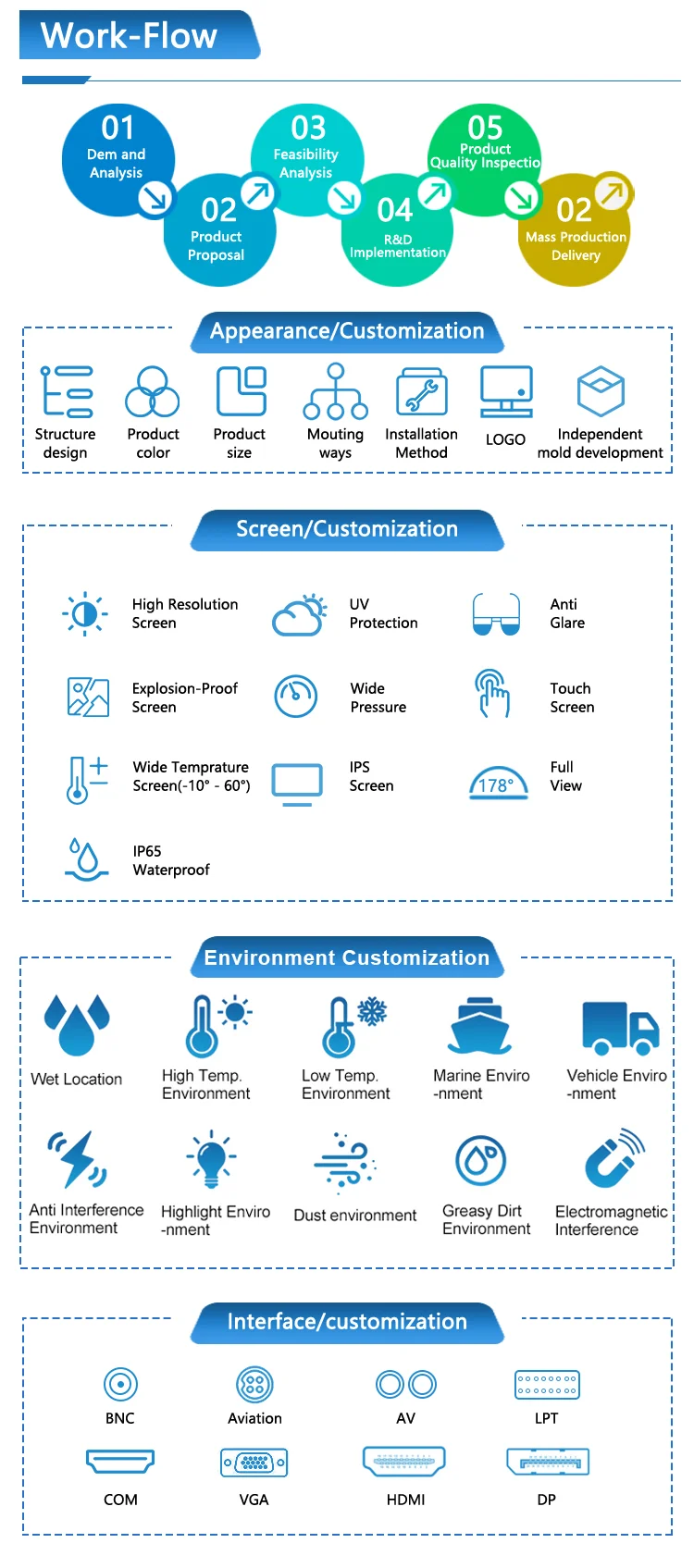

Customization
