OEM sae100 r1 R2 1 провод 2 4sp высокого давления hyd Труба Спираль 38 mangeras hidraulicas Гидравлический масляный резиновый шланг для автомойки

Product Overview

Description

Instock Euroflex Rubber R2 R3 R9 R10 R12 R13 R15 Fi Fitting 6s 6000 Psi 5/8 Hydraulics Hydraulic Hose Din En 854 2te

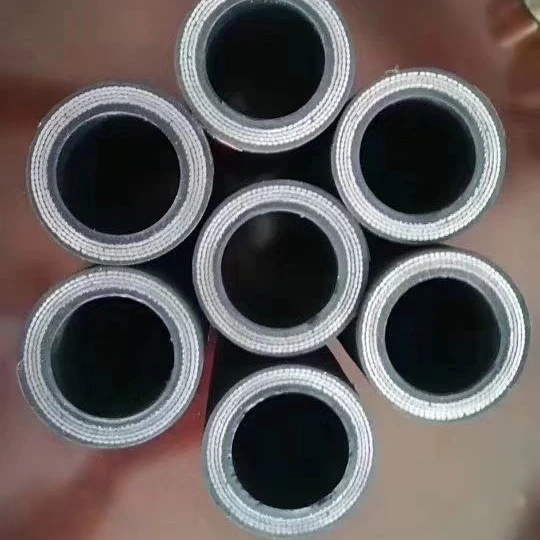

The internal rubber bears the pressure of delivery medium in order to protect the steel wire from corrupting while the enforced wire-wood layer increases the firmness of the hose.

 hydraulic hose

Our factory product all size of hydraulic hose,the best seller size ID range were 1/4"-2"(6mm-51mm) 2SP/4SP/6SP,if you need the large size,please contact us,will recommend you the details.

hydraulic hose

Please see the specification as below:

Nominal Diameter		Inside Diameter (mm)		Reinforcement Diameter (mm)		Outside Diameter (mm)		Working Pressure (max.)	Proof Pressure	Bursting Pressure (min.)	Bending Radius (min.)	Weight Approx
mm	inch	Min	Max	Min	Max	Min	Max	Mpa	Mpa	Mpa	mm	Kg/m
4.8	3/16	4.6	5.4	8.9	10.1	11.9	13.5	20.7	41.4	82.7	89	0.22
6.4	1/4	6.2	7.0	10.6	11.7	15.1	16.7	19.0	37.9	75.8	102	0.31
7.9	5/16	7.7	8.5	12.1	13.3	16.7	18.3	17.2	34.5	68.9	114	0.38
9.5	3/8	9.3	10.1	14.5	15.7	19.0	20.6	15.5	31.0	62.0	127	0.45
12.7	1/2	12.3	13.5	17.5	19.0	22.2	23.8	13.8	27.6	55.2	178	0.55
15.9	5/8	15.5	16.7	20.6	22.2	25.4	27.0	10.3	20.7	41.4	203	0.63
19.0	3/4	18.6	19.8	24.6	26.2	29.4	31.0	8.6	17.2	34.5	241	0.77
22.2	7/8	21.8	23.0	27.8	29.4	32.5	34.1	7.8	15.5	31.0	279	0.92
25.4	1	25.0	26.4	32.5	34.1	36.9	39.4	6.9	13.8	27.6	305	1.06
31.8	1. 1/4	31.4	33.0	39.3	41.7	44.4	47.6	4.3	8.6	17.2	419	1.45
38.1	1. 1/2	37.7	39.3	45.6	48.0	50.8	54.0	3.4	6.9	13.8	508	1.80
50.8	2	50.4	52.0	58.7	61.9	65.1	68.3	2.6	5.2	10.3	635

hydraulic hose

The application of the hydraulic hose:

hydraulic hose

The high pressure hose is mainly used for Mine hydraulic support ,oilfield exploitation ,object construction ,lifting transport ,metallurgic forging ,mine equipment, ship, injection molding machinery,agricultural machinery , all kinds of machine tools and various industrial sectors.



Machanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.

hydraulic hose



hydraulic hose

ADVANTAGE OF HIGH PRESSURE HOSE:



1.Selection of synthetic rubber hose with special made, with excellent oil resistance, heat resistance, anti-aging properties.

2,Hose for the high-pressure and superior pulse properties.

3,Hose combination of close,use soft,small defomation under pressure.





Our workshop





The production line:

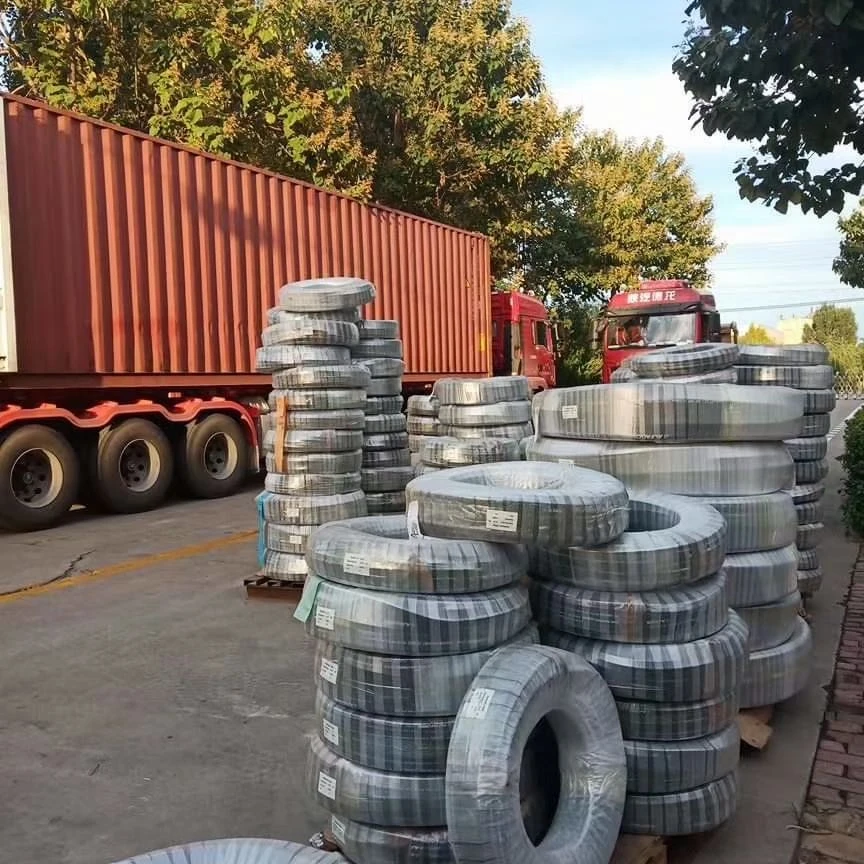

The hydraulic hose regular package is 50 meters/roll.





The package:

Packaged by weaved bag and wooden box fumigation.

The shipping:



We have many shipping methods for your choose,such like:By Sea,By Air,Express(DHL Fedex UPS)  or other methods you want.

If you have any special requirements,please kindly contact us.



How to get quotation for the hydraulic hose:



If you interested in our hydraulic hose,please kindly tell me the information as below,we will send you the details.



Hose standard	Size	Layers of wire	Quantity	The hose used for
SAE/DIN or etc.	Inner diameter	2SP/4SP/6SP	meters/rolls	Oil hose/water hose etc.



hydraulic hose

Besides of the hydraulic hose,we still have many other type hose:

We still have the fitting / ferrule / sleeve for your choose:

The catalog as below, if you interested in,please kindly contact me:





We have more models and products for you choose,like crimping machine range from 2mm-300mm,1/8-10 inches crimping machine,if you want to customize the large size crimping machine or other style hose crimping machine,please contact us.

hydraulic hose

Enclosed two hot sale hose crimping machine model for your reference,if you interested in the machine,please kindly contact us for the details:

hydraulic hose

1. Finn power P32 style, crimp hydraulic hose range 1/4-2.1/2" 6-64mm:

2. DX68 automatic style, crimp hose range 1/4-2" 6-51mm:

hydraulic hose

We still have the skiving machine,cutting machine, pipe cutting machine, crimping&skving machine,crimping&skving&inches,hose test machine,pipe bending machine and so on.



Our dust free 2 inch hose cutting machine:

Testing machine:
