24V PWM output led drivers customizable 40w watts OEM ODM high efficiency class2 swimming pool led Lighting Transformers
- Category: >>>
- Supplier: Shenzhen Keysun Technology Limited
Share on (1600924335665):
Product Overview
Description
Products Description
24V PWM output led drivers customizable 40w watts OEM ODM high efficiency class2 swimming pool led Lighting Transformers

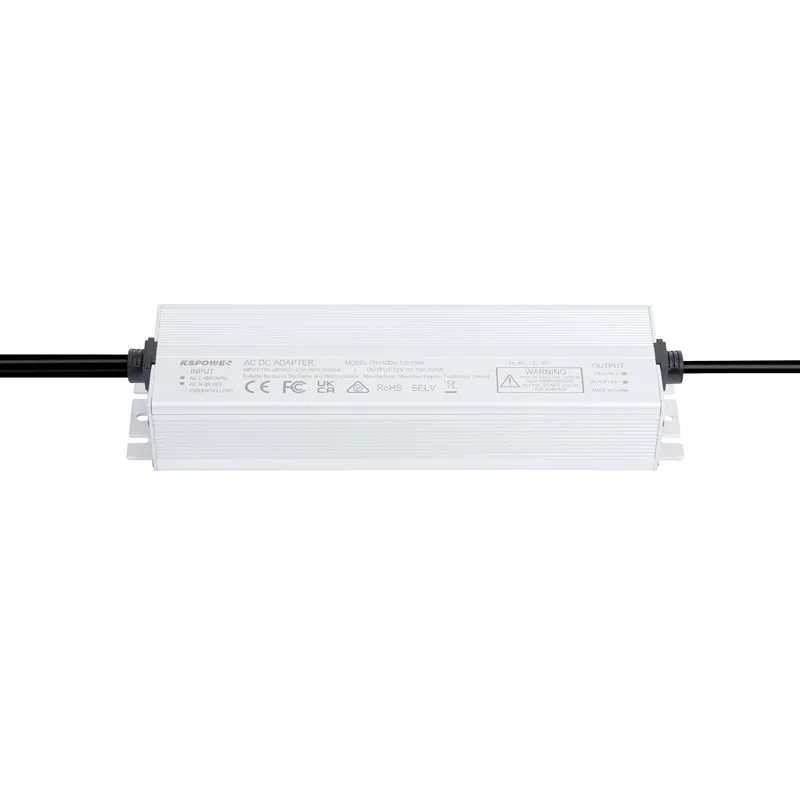

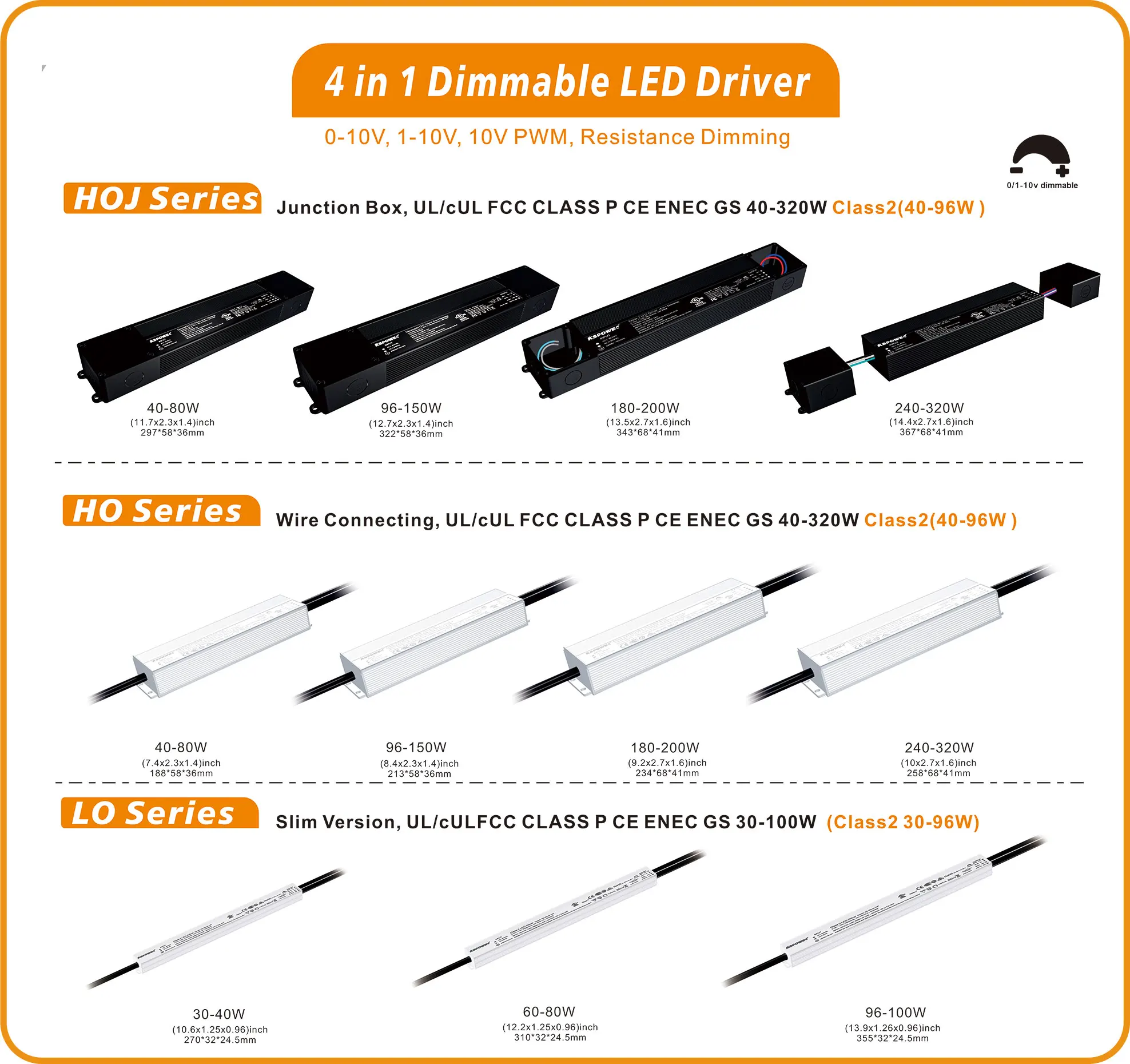

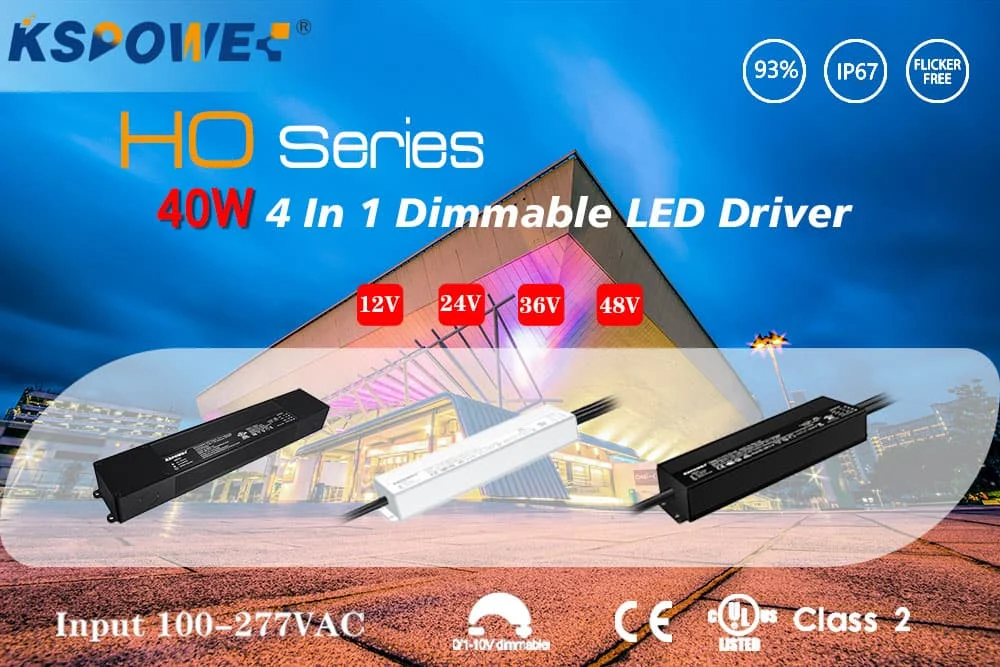

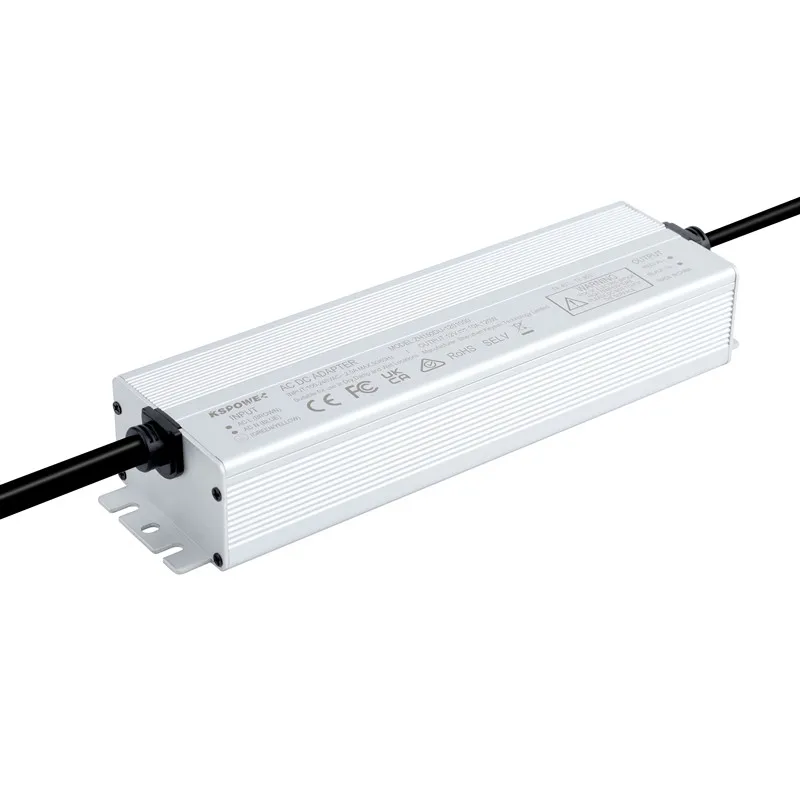

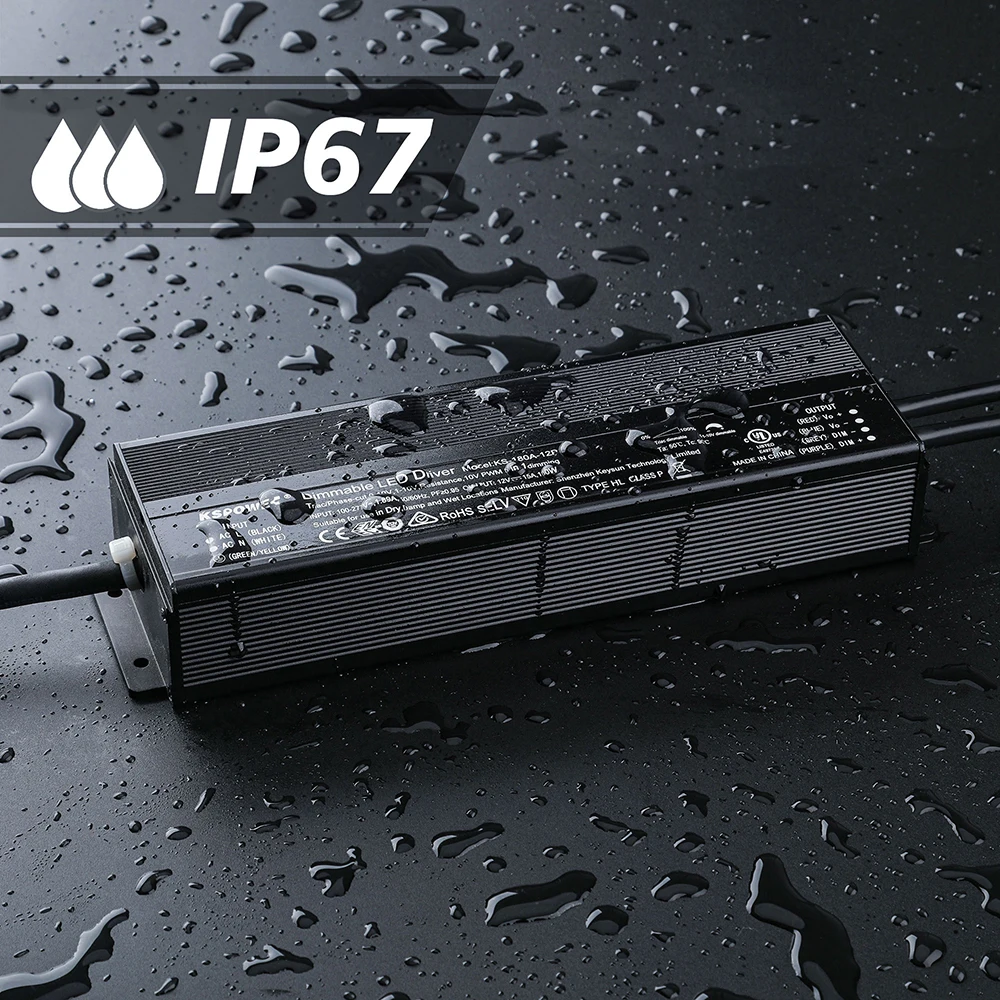

The KSPOWER - HO series 4 in 1 dimmable led driver 40 Watt is one constant voltage solution, single, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and high PFC function. The intertek class 2 power supply use low profile metal aluminum case with or without junction box makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 4K frequency PWM output and IP67 NEMA 3R waterproof environment protection rated for indoor or outdoor use, the 0-10V/1-10V dimmable LED driver provide 5 years warranty and outstanding led dimming performance.
Features:
* nput Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class P
* Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box

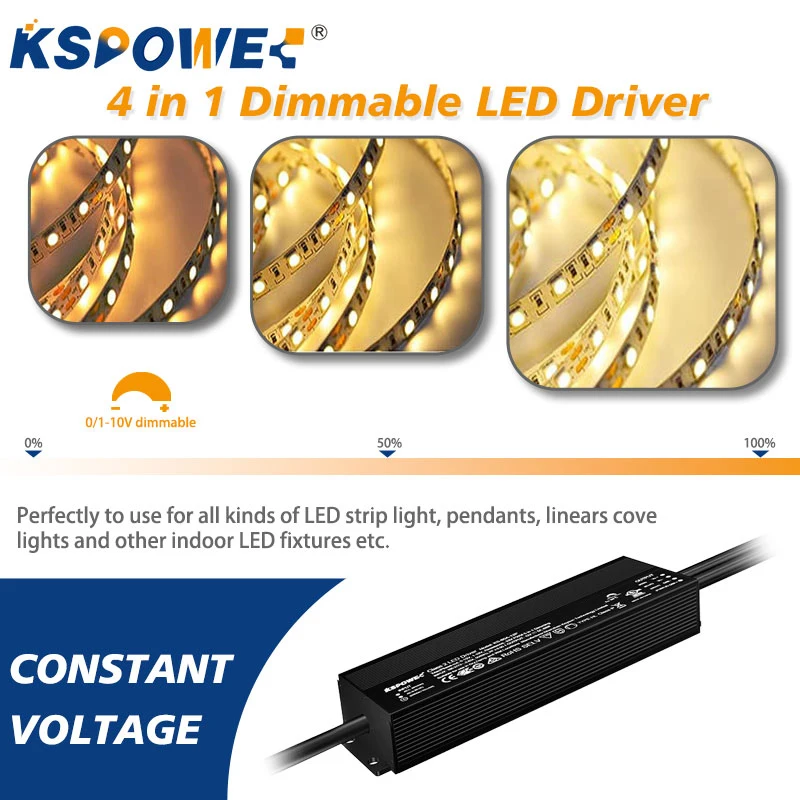

* Dimming: 10V PWM, 0/1-10V or Resistor Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation

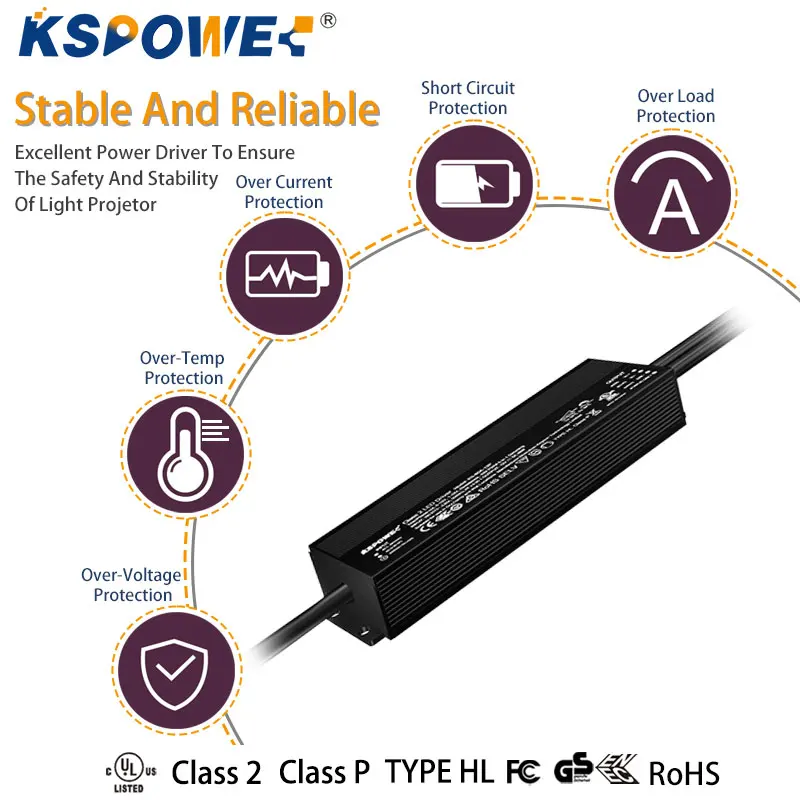

* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class P
* Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: 10V PWM, 0/1-10V or Resistor Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 .98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSHO-40W24 | ||||||
Output Voltage | 12V | ||||||
Rated Current | 1.67A | ||||||
Rated Power | 40W | ||||||
Ripple & Noise (max.) | 250mVp-p | ||||||
Certificate | UL/cUL FCC CE ROHS SAA CLASS P etc. | ||||||
Dimension(L*W*H) | 297*58*36mm / 11.7*2.29*1.46in | ||||||
Show Details

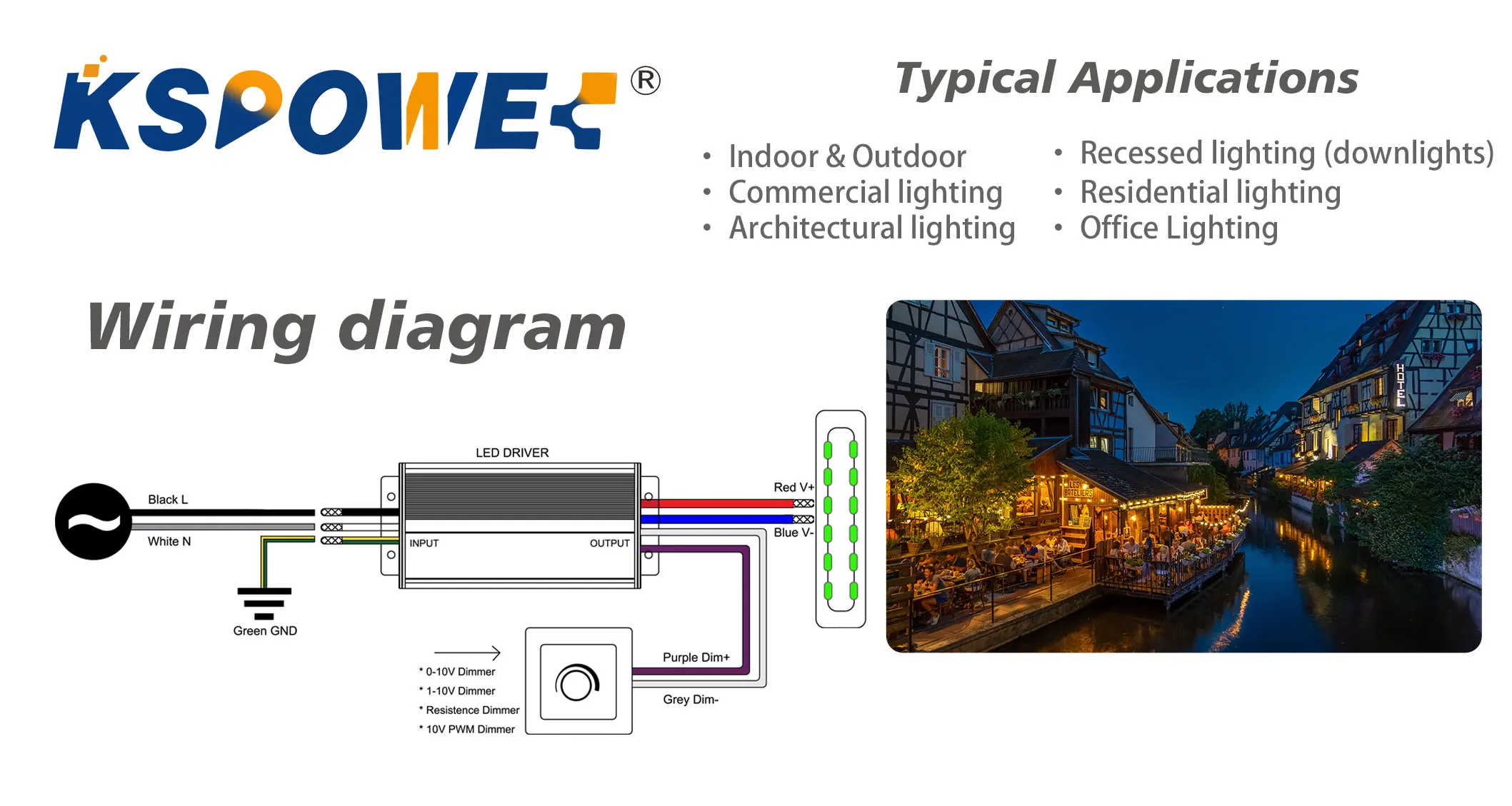

Dimming Connect Drawing

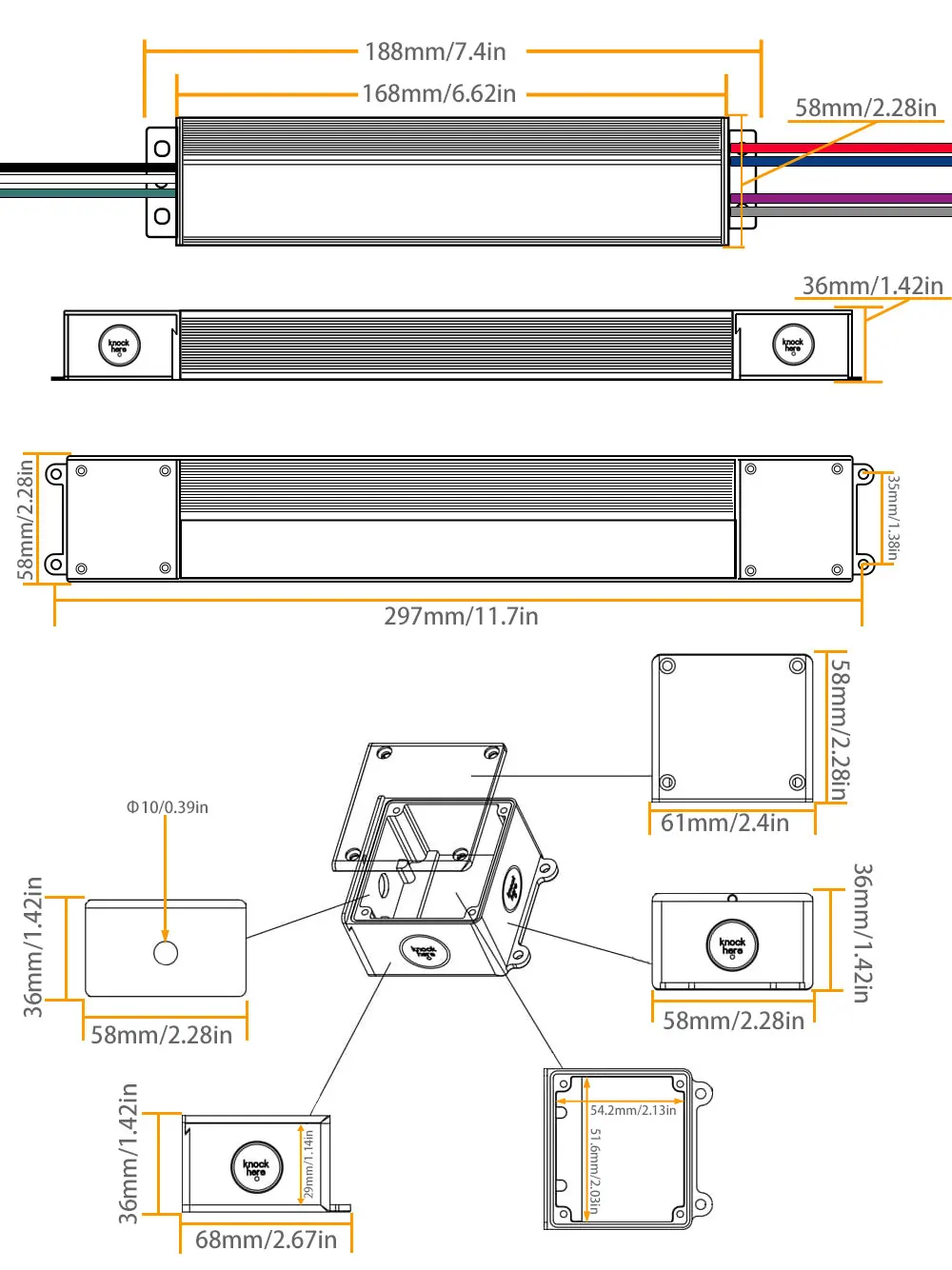

Dimension Drawing
Product Packaging
1. Each one put in one small inner brown box, then 20 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 20 | 0.84 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
313*64*40 | 355*330*195 | 17.5 | ||||
Applications

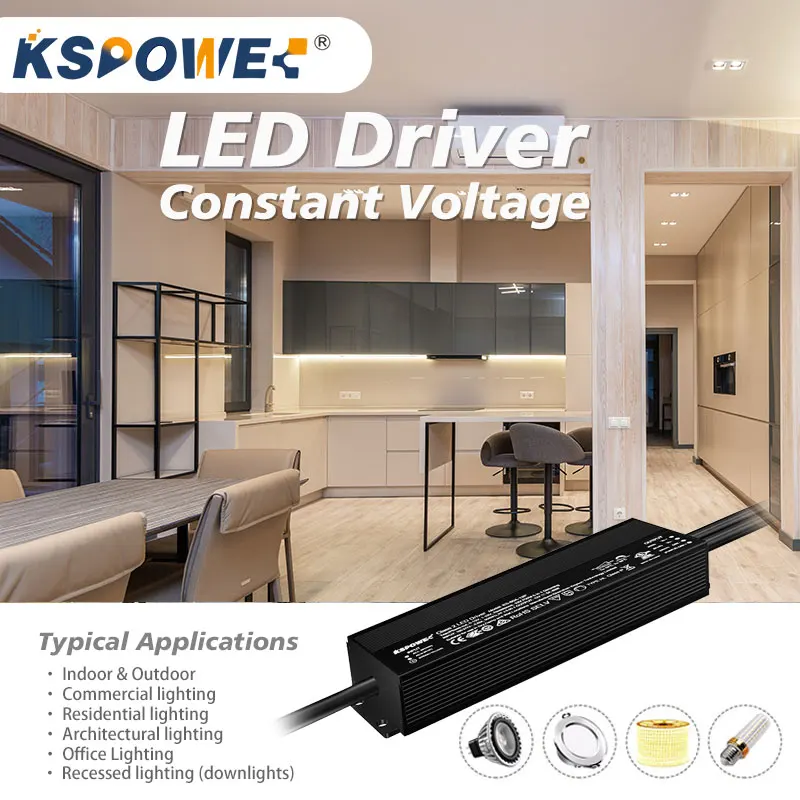

The led dimming power supply use low profile metal aluminum case with or without junction box makes the dimmable led driver solutions perfectly suitable for LED strips, LED sign, billboard and landscape lightings.
